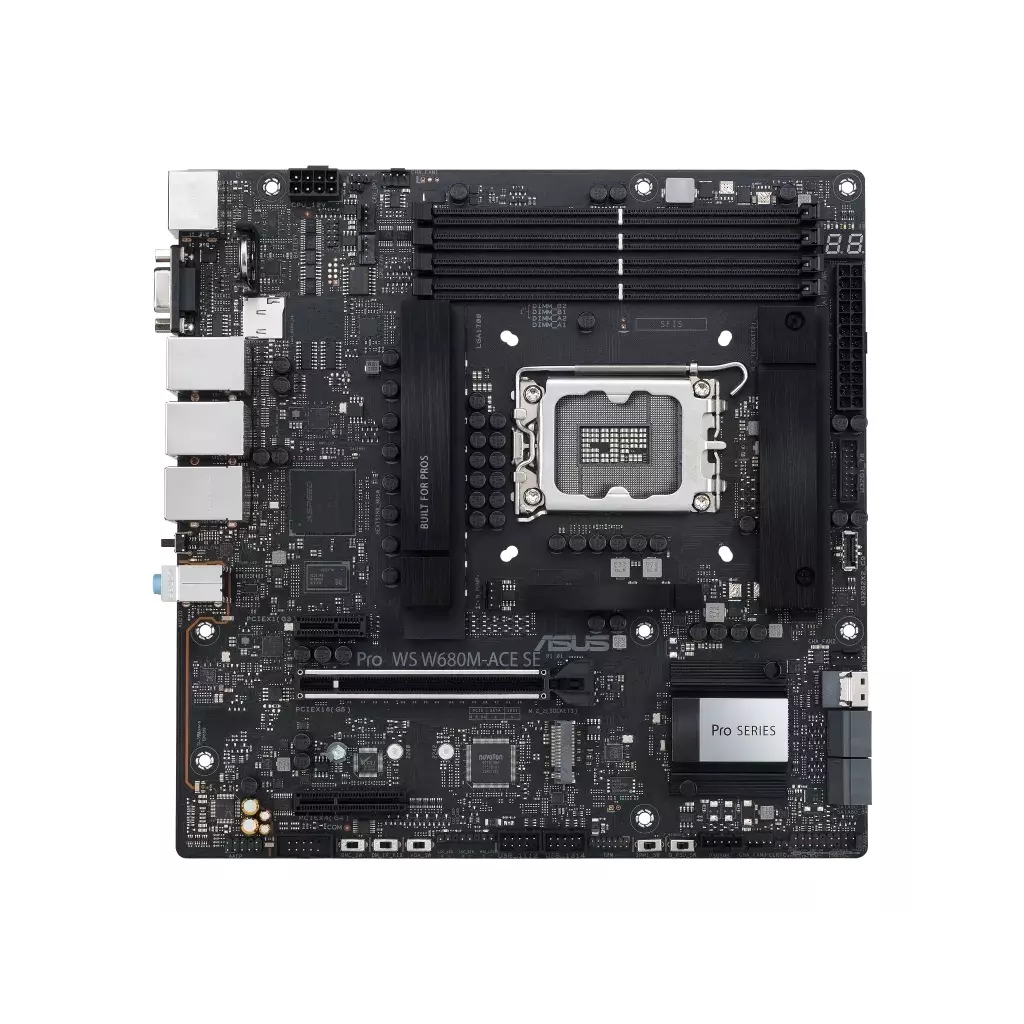

ASUS Pro WS W680M-ACE SE/LGA 1700/mATX
Kód zboží (ID): 5892197
vytisknout
Stav zboží:
Nové
Dostupnost:
není skladem
Datum odeslání:
Neznámé
Výrobce:
ASUS
Kód zboží:
5892197
Číslo zboží (PN):
90MB1FA0-M0EAY0
EAN:
Záruka koncový zákazník:
36 měsíců
Záruka při koupi na IČO:
36 měsíců
Cena bez DPH: *
11399.86 Kč
Cena vč. DPH: *
13794 Kč
* - cena uvedena vč. recyklačních a autorských poplatků.
Popis produktu:
ASUS Pro WS W680M-ACE SE
Intel W680 LGA 1700 Micro-ATX motherboard with BMC AST2600 onboard , PCIe 5.0, DDR5 support, dual Intel 2.5 Gb Ethernet, 2 x PCIe 4.0 M.2 slots, plus a USB 3.2 Gen 2x2 front panel connector, SlimSAS, SATA 6 Gbps, HDMI™, DisplayPort and VGA(dedicated for BMC)
- Intel LGA 1700 socket: Ready for 13th Gen Intel Core™ processors & 12th Gen Intel Core™ Processors
- Enhanced power solution: DrMOS, ProCool connector, alloy chokes and durable capacitors for stable power delivery
- Next-gen connectivity: PCIe 5.0 Safeslot, 2 x M.2 PCIe 4.0, SlimSAS, dual Intel 2.5Gb Ethernet, front panel USB 3.2 Gen2x2 Type-C, TPM header
- Server-grade IPMI remote management: Hardware and software-level with a dedicated LAN port link to AST2600 BMC controller, plus a real-time monitoring and management software – ASUS Control Center Express
- Comprehensive cooling: VRM heatsink, M.2 heatsinks, hybrid fan headers and Fan Xpert 4
- Trusted stability: Highly compatible with the latest technologies with solid QVL list and tested for 24/7 operation, validated for extensive compatibility
CPU
Intel Socket LGA1700 for 13th Gen Intel Core™ Processors & 12th Gen Intel Core™ * Refer to www.asus.com for CPU support list.
Chipset
Intel W680 Chipset
Memory
4 x DIMM, Max. 192GB, DDR5 ECC and Non-ECC Un-buffered Memory* Dual Channel Memory Architecture Supports Intel Extreme Memory Profile (XMP) OptiMem II * Supported memory types, data rate (speed), and number of DRAM modules vary depending on the CPU and memory configuration, for more information please refer to CPU/Memory Support list under the Support tab of product information site or visit https://www.asus.com/support/ * Non-ECC, un-buffered DDR5 memory supports On-Die ECC function.
Onboard Graphics
1 x DisplayPort** 1 x HDMI port*** 1 x VGA port from AST2600 * Graphics specifications may vary between CPU types. Please refer to www.intel.com for any updates. **Supports max. 8K@60Hz as specified in DisplayPort 1.4. ***Supports 4K@60Hz as specified in HDMI 2.1.
Audio
Realtek Audio CODEC High Definition Audio 2/4/5.1/7.1-channel * You can change the functionality of an audio jack using the audio software. To configure 7.1-channel audio, access the audio software for audio settings.
LAN
Realtek 7.1 Surround Sound High Definition Audio CODEC - Supports: Jack-detection, Multi-streaming, Front Panel Jack-retasking - Supports up to 24-Bit/192 kHz playback" Audio Features - Audio Shielding - Premium audio capacitors - Dedicated audio PCB layers - Unique de-pop circuit
Wireless & Bluetooth
M.2 slot only (Key E, CNVi & PCIe)* *Wi-Fi module is sold separately.
Expansion Slots
Intel 13th & 12th Gen Processors* - 1 x PCIe 5.0 x16 slot Intel W680 Chipset - 1 x PCIe 4.0 x4 slot - 1 x PCIe 3.0 x1 slot
Storage Interface
Total supports 2 x M.2 slots and 8 x SATA 6Gb/s ports* Intel 13th & 12th Gen Processors - M.2_1 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 mode) Intel W680 Chipset** - M.2_2 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 mode) - 4 x SATA 6Gb/s ports - 1 x SlimSAS Slot Support SlimSAS NVMe device (supports PCIe 4.0 x4 mode and up to 4 SATA devices)*** * Intel Rapid Storage Technology supports PCIe RAID 0/1/5/10, SATA RAID 0/1/5/10. ** Intel Rapid Storage Technology supports Intel Optane Memory H Series on PCH attached M.2 slots. *** SlimSAS slot can support up to 4 SATA devices via a transfer cable. the cable is purchased separately.
USB
Rear USB (Total 6 ports) - 2 x USB 3.2 Gen 2 ports (1 x Type-A, 1 x Type-C) - 4 x USB 3.2 Gen 1 ports (4 x Type-A) Front USB (Total 7 ports) - 1 x USB 3.2 Gen 2x2 connector (supports USB Type-C) - 1 x USB 3.2 Gen 1 header supports additional 2 USB 3.2 Gen 1 ports - 2 x USB 2.0 headers support additional 4 USB 2.0 ports
Internal I/O Connectors
Fan and Cooling related 1 x 4-pin CPU Fan header 1 x 4-pin CPU OPT Fan header 1 x 4-pin W_PUMP+ header 3 x 4-pin Chassis Fan headers Power related 1 x 24-pin Main Power connector 1 x 8-pin +12V Power connector Storage related 2 x M.2 slots (Key M) 4 x SATA 6Gb/s ports 1 x SlimSAS port USB 1 x USB 3.2 Gen 2x2 connector (supports USB Type-C ) 1 x USB 3.2 Gen 1 header supports 2 additional USB 3.2 Gen 1 ports 2 x USB 2.0 headers support 4 additional USB 2.0 ports Miscellaneous 1 x LPT header 1 x T-sensor 1 x Clear CMOS header 1 x COM Port header 1 x Front Panel Audio header (AAFP) 1 x SPI TPM header (14-1pin) 1 x 20-3 pin System Panel header with Chassis intrude function BMC Related 1 x BMC LED and switch 1 x VGA switch1 x BMC LAN fixed IP switch 1 x IPMI switch 1 x Q_PSU switch 1 x PSU SMBus header 1 x VPP_I2C header 1 x Micro SD card socket 1 x BMC_T_SENSOR header 1 x Location button header 1 x Location LED and header 1 x Message LED and header
Back Panel Connectors
-2 x USB 3.2 Gen 2 ports (1 x Type-A, 1 x Type-C) -4 x USB 3.2 Gen 1 ports (4 x Type-A) -1 x DisplayPort -1 x HDMI port -1 x VGA port from AST2600 -2 x Intel 2.5Gb Ethernet ports -1 x Realtek 1Gb Ethernet dedicated for AST2600 -3 x Audio jacks -1 x BIOS FlashbackTM button -2 x USB 3.2 Gen 2 ports (1 x Type-A, 1 x Type-C) -4 x USB 3.2 Gen 1 ports (4 x Type-A) -1 x DisplayPort -1 x HDMI port -1 x VGA port from AST2600 -2 x Intel 2.5Gb Ethernet ports -1 x Realtek 1Gb Ethernet dedicated for AST2600 -5 x Audio jacks -1 x BIOS FlashbackTM button
Special Features
ASUS 5X PROTECTION III - DIGI+ VRM (- Digital power design with DrMOS) - ESD Guards - LANGuard - Overvoltage Protection - SafeSlot - Stainless-Steel Back I/O ASUS Q-Design - Q-Code - M.2 Q-Latch - Q-Connector - Q-DIMM - Q-LED (CPU [red], DRAM [yellow], VGA [white], Boot Device [yellow green]) - Q-Slot ASUS Thermal Solution - M.2 heatsink - VRM heatsink design ASUS EZ DIY - CPU Socket lever protector - SafeDIMM - SafeSlot - BIOS FlashBack™ button - BIOS FlashBack™ LED Bespoke Motherboard Design & Business Focused Features - 24/7 Reliability
H/W Monitoring
Voltage detection Temperature detection Fan speed detection Water cooling flow rate detection Fan fail warning Fan speed control * Whether the fan speed control function is supported will depend on the fan you install.
Software Features
SUS Exclusive Software Armoury Crate - Fan Xpert 4 - Power Saving ASUS CPU-Z Adobe Creative Cloud (Free Trial) Norton 360 Deluxe (60 Days Free Trial) WinRAR IT Management software supported - ASUS Control Center Express(ACCE) Intel vPro UEFI BIOS ASUS EZ DIY - ASUS CrashFree BIOS 3 - ASUSTek. EzFlash Utility
BIOS
256 Mb Flash ROM, UEFI AMI BIOS(text-based) 256 Mb Flash ROM, UEFI AMI BIOS
Manageability
WOL by PME, PXE
Accessories
Cables 2 x SATA 6Gb/s cables Miscellaneous 1 x Q-connector 1 x M.2 Rubber Packages 2 x Screw package for M.2 SSD 1 x I/O Shield Documentation 1 x User guide 1 x ACC Express Activation Key Card
Operating System
Windows 11, Windows 10 64-bit
Form Factor
micro-ATX Form Factor 24.4 cm x 24.4 cm
ASUS Pro WS W680M-ACE SE Chipset: Intel® W680 Rozměrový formát: Mikro ATX (244 mm x 244 mm) Podpora pro procesory: Intel® Core™ 14., 13. a 12. generace, Intel® Core™ generace, Pentium® Gold a Celeron® Patice procesoru: LGA1700 Paměť: *4x DIMM patice podporující až 192GB, DDR5 až 4500 MT/s paměťové moduly *Podporuje Extreme Memory Profile (XMP) Grafické porty: *1x HDMI s maximálním rozlišením 4K při 60 Hz - Podpora pro HDMI verzi 2.1 *1x DisplayPort s maximálním rozlišením 8K při 60 Hz - Podpora pro DisplayPort verzi 1.4 *1x VGA port na AST2600 Zvuková karta: *Realtek 7.1 Surround Sound High Definition Audio CODEC Ethernet: *2x Intel® 2.5Gb Ethernet *1x Realtek 1Gb Ethernet určený pro AST2600 WLAN + Bluetooth: ne Rozšiřující sloty: *1x PCI Express x16 podporuje PCIe 5.0 *1x PCI Express x4 podporuje PCIe 4.0 *1x PCI Express x1 podporuje PCIe 3.0 RAID řadič: Technologie Intel® Rapid Storage Technology podporuje PCIe RAID 0/1/5/10 a SATA RAID 0/1/5/10 Úložný prostor: *1x M.2, M key typ 2242/2260/2280 - podpora PCIe 4.0 x4 SSD (M.2_1) *1x M.2, M key typ 2242/2260/2280 - podpora PCIe 4.0 x4 SSD (M.2_2) *4x SATA 6Gb/s *1x Slot SlimSAS podporuje zařízení SlimSAS NVMe (podporuje režim PCIe 4.0 x4 a až 4 zařízení SATA) USB: Zadní USB *1x port USB 3.2 Gen 2 Type-C® *1x port USB 3.2 Gen 2 Type-A *4x port USB 3.2 Gen 1 Type-A Přední USB *1x konektor USB 3.2 Gen 2x2 (podporuje USB Type-C®) *1x USB 3.2 Gen 1 header, podporuje 2 další porty USB 3.2 Gen 1 *2x USB 2.0 header, podporuje 4 další porty USB 2.0 Interní porty: *1x 4-pin CPU Fan header *1x 4-pin CPU OPT Fan header *1x 4-pin W_PUMP+ header *3x 4-pin Chassis Fan header Napájení *1x 24pinový hlavní napájecí konektor *1x 8pinový konektor pro napájení +12V Související s úložištěm *2x M.2 slot (M key) *4x SATA 6Gb/s port *1x SlimSAS port USB *1x konektor USB 3.2 Gen 2x2 (podporuje USB Type-C®) *1x USB 3.2 Gen 1 header *2x USB 2.0 header Ostatní *1x LPT header *1x T-sensor *1x Clear CMOS header *1x COM Port header *1x Front Panel Audio header (AAFP) *1x SPI TPM header (14-1pin) *20-3 pin System Panel header with Chassis intrude function Související s BMC *1x BMC LED and switch *1x VGA switch *1x BMC LAN fixed IP switch *1x IPMI switch *1x Q_PSU switch *1x PSU SMBus header *1x VPP_I2C header *1x Micro SD card socket *1x BMC_T_SENSOR header *1x Location button header *1x Location LED and header *1x Message LED and header Porty na zadním panelu: *1x port USB 3.2 Gen 2 Type-C® *1x port USB 3.2 Gen 2 Type-A *4x port USB 3.2 Gen 1 Type-A *1x DisplayPort *1x HDMI *1x VGA port na AST2600 *2x Ethernetový port Intel® 2.5Gb *2x Ethernetový port Realtek 1Gb určený pro AST2600 *3x Audio jack *1x Tlačítko BIOS FlashBack™ BIOS: 256 Mb Flash ROM, UEFI AMI BIOS(text-based) Příslušenství: *2x kabel SATA 6Gb/s *1x Q-konektor *1x I/O kryt *1x Gumový obal M.2 *2x Sada šroubů pro M.2 SSD *1x Uživatelská příručka *1x ACC Express Activation Key Card Odkaz na stránku výrobce: https://www.asus.com/motherboards-components/motherboards/workstation/pro-ws-w680m-ace-se/
Prodejce i výrobce si vyhrazuje právo změny parametrů či vlastností bez předchozího upozornění.
Chcete-li mít ohledně konkrétních parametrů aktuální informace kontaktujte nás.
Pozdější reklamace vlastností je zbytečnou komplikací pro obě strany.
