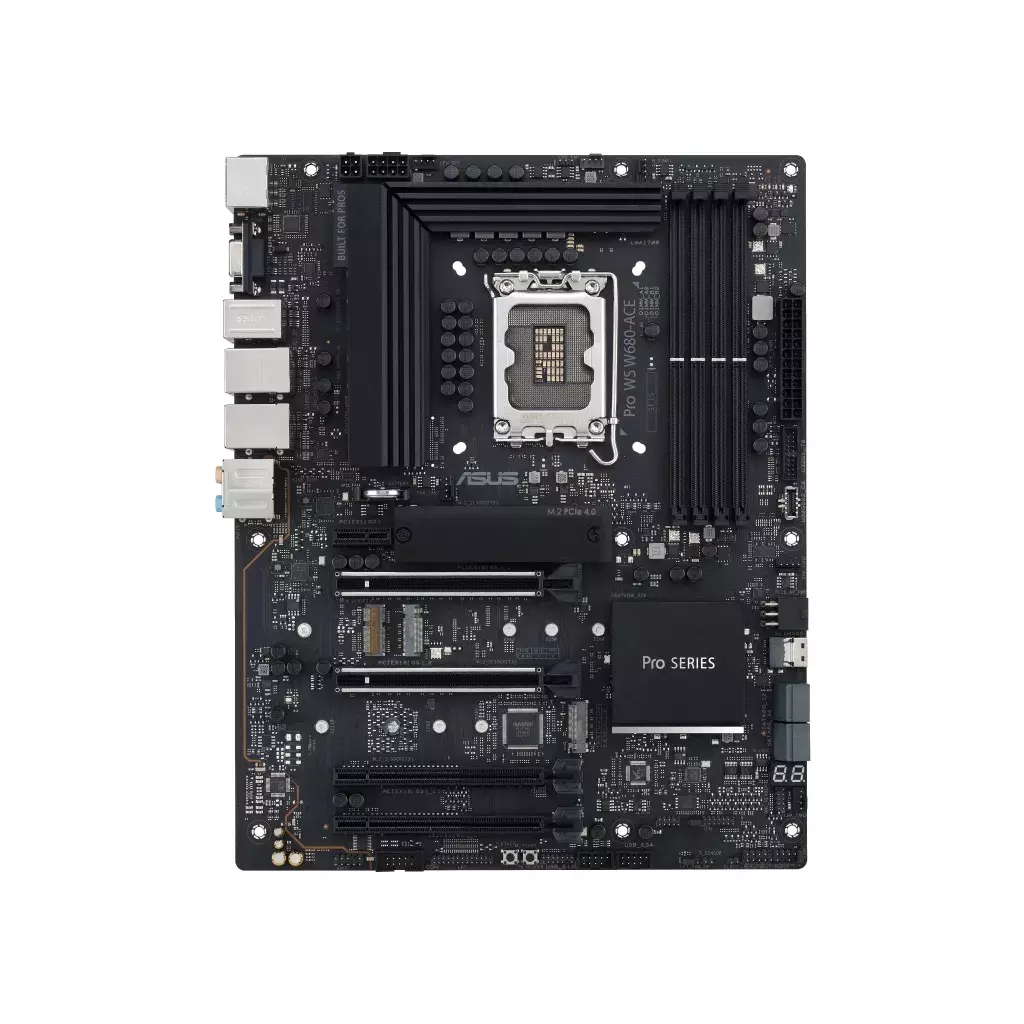

ASUS Pro WS W680-ACE/LGA 1700/ATX

Pro WS W680-ACE

Intel W680 (LGA 1700) ATX motherboard, PCIe 5.0, DDR5, dual Intel 2.5 Gb Ethernet, three PCIe 4.0 M.2 slots, USB 3.2 Gen 2x2 front panel connector, SlimSAS, SATA 6 Gbps, HDMI, DisplayPort and VGA

• Intel LGA 1700 socket: Ready for 13th Gen Intel Core™ processors & 12th Gen Intel Core™, Pentium Gold and Celeron Processors
• Enhanced power solution: DrMOS, ProCool connector, alloy chokes and durable capacitors for stable power delivery
• Next-gen connectivity: Dual PCIe 5.0 SafeSlots, dual PCIe 3.0 slots, 3 x M.2 PCIe 4.0, SlimSAS, dual Intel 2.5Gb Ethernet, front panel USB 3.2 Gen2x2 Type-C, Thunderbolt™ 4 header support, TPM header, LPT header
• Comprehensive cooling: Large VRM heatsink, M.2 heatsinks, hybrid fan headers and Fan Xpert 4
• Advanced security management: USB port management, software blacklisting and Regedit on/off controls via ASUS Control Center Express
• Trusted stability: Tested for 24/7 operation, validated for extensive compatibility and equipped with SafeSlot and SafeDIMM for enhanced durability

Model

Pro WS W680-ACE

CPU

Intel Socket LGA1700 for 13th Gen Intel Core™ Processors & 12th Gen Intel Core™, Pentium Gold and Celeron Processors * Refer to www.asus.com for CPU support list.

Chipset

Intel W680 Chipset

Memory

4 x DIMM, Max. 128GB, DDR5 ECC and Non-ECC Un-buffered Memory* Dual Channel Memory Architecture Supports Intel Extreme Memory Profile (XMP) OptiMem II * Supported memory types, data rate (speed), and number of DRAM modules vary depending on the CPU and memory configuration, for more information please refer to CPU/Memory Support list under the Support tab of product information site or visit https://www.asus.com/support/ * Non-ECC, un-buffered DDR5 memory supports On-Die ECC function. 4 x DIMM, Max. 128GB, DDR5 ECC and Non-ECC Un-buffered Memory* Dual Channel Memory Architecture Supports Intel Extreme Memory Profile (XMP) OptiMem II * Supported memory types, data rate (speed), and number of DRAM modules vary depending on the CPU and memory configuration, for more information please refer to CPU/Memory Support list under the Support tab of product information site or visit https://www.asus.com/support/ * Non-ECC, un-buffered DDR5 memory supports On-Die ECC function.

Graphics

1 x DisplayPort** 1 x HDMI port*** 1 x VGA port * Graphics specifications may vary between CPU types. Please refer to www.intel.com for any updates. **Supports max. 8K@60Hz as specified in DisplayPort 1.4. ***Supports 4K@60Hz as specified in HDMI 2.1.

Expansion Slots

Intel 13th & 12th Gen Processors* - 2 x PCIe 5.0 x16 slots (support x16 or x8 / x8 mode) Intel W680 Chipset - 2 x PCIe 3.0 x16 slots (supports x4 mode) - 1 x PCIe 3.0 x1 slot * Please check the PCIe bifurcation table at the support site (https://www.asus.com/support/FAQ/1037507/).

Storage

Total supports 3 x M.2 slots and 8 x SATA 6Gb/s ports* Intel 13th & 12th Gen Processors - M.2_1 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 mode) Intel W680 Chipset** - M.2_2 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 mode) - M.2_3 slot (Key M), type 2242/2260/2280/22110 (supports PCIe 4.0 x4 mode) - 4 x SATA 6Gb/s ports - 1 x SlimSAS Slot Support SlimSAS NVMe device (supports PCIe 4.0 x4 mode and up to 4 SATA devices)*** * Intel Rapid Storage Technology supports PCIe RAID 0/1/5/10, SATA RAID 0/1/5/10. ** Intel Rapid Storage Technology supports Intel Optane Memory H Series on PCH attached M.2 slots. *** SlimSAS slot can support up to 4 SATA devices via a transfer cable. the cable is perchased seperately.

Ethernet

2 x Intel 2.5Gb Ethernet ASUS LANGuard

Wireless & Bluetooth

M.2 slot only (Key E, CNVi & PCIe)* *Wi-Fi module is sold separately.

USB

Rear USB (Total 8 ports) - 2 x USB 3.2 Gen 2 ports (1 x Type-A, 1 x Type-C) - 4 x USB 3.2 Gen 1 ports (4 x Type-A) - 2 x USB 2.0 ports (2 x Type-A) Front USB (Total 7 ports) - 1 x USB 3.2 Gen 2x2 connector (supports USB Type-C) - 1 x USB 3.2 Gen 1 header supports additional 2 USB 3.2 Gen 1 ports - 2 x USB 2.0 headers support additional 4 USB 2.0 ports

Audio

Realtek 7.1 Surround Sound High Definition Audio CODEC - Supports: Jack-detection, Multi-streaming, Front Panel Jack-retasking - Supports up to 24-Bit/192 kHz playback" Audio Features - Audio Shielding - Premium audio capacitors - Dedicated audio PCB layers - Unique de-pop circuit

Back Panel I/O Ports

-2 x USB 3.2 Gen 2 ports (1 x Type-A, 1 x Type-C) -4 x USB 3.2 Gen 1 ports (4 x Type-A) -2 x USB 2.0 ports (2 x Type-A) -1 x DisplayPort -1 x HDMI port -1 x VGA port -2 x Intel 2.5Gb Ethernet ports -5 x Audio jacks -1 x BIOS FlashbackTM button

Internal I/O Connectors

Fan and Cooling related 1 x 4-pin CPU Fan header 1 x 4-pin CPU OPT Fan header 1 x 4-pin W_PUMP+ header 3 x 4-pin Chassis Fan headers Power related 1 x 24-pin Main Power connector 1 x 8-pin +12V Power connector 1 x 4-pin +12V Power connector 1 x 6-pin PCIe Power connector Storage related 3 x M.2 slots (Key M) 4 x SATA 6Gb/s ports 1 x SlimSAS port USB 1 x USB 3.2 Gen 2x2 connector (supports USB Type-C ) 1 x USB 3.2 Gen 1 header supports 2 additional USB 3.2 Gen 1 ports 2 x USB 2.0 headers support 4 additional USB 2.0 ports Miscellaneous 1 x LPT header 1 x T-sensor 1 x Clear CMOS header 1 x COM Port header 1 x BMC Header 1 x Front Panel Audio header (AAFP) 1 x Start button 1 x Flexkey button 1 x SPI TPM header (14-1pin) 1 x 20-3 pin System Panel header with Chassis intrude function 1 x M.2 slot (Key E) 1 x LPT_P80 Switch 1 x Thunderbolt™ header

Special Features

ASUS 5X PROTECTION III - DIGI+ VRM (- Digital power design with DrMOS) - ESD Guards - LANGuard - Overvoltage Protection - SafeSlot - Stainless-Steel Back I/O ASUS Q-Design - Q-Code - M.2 Q-Latch - Q-Connector - Q-DIMM - Q-LED (CPU [red], DRAM [yellow], VGA [white], Boot Device [yellow green]) - Q-Slot ASUS Thermal Solution - M.2 heatsink - VRM heatsink design ASUS EZ DIY - CPU Socket lever protector - SafeDIMM - SafeSlot - BIOS FlashBack™ button - BIOS FlashBack™ LED Bespoke Motherboard Design & Business Focused Features - 24/7 Reliability

Software Features

ASUS Exclusive Software Armoury Crate - Fan Xpert 4 - Power Saving ASUS CPU-Z Norton 360 Deluxe (60 Days Free Trial) WinRAR IT Management software supported - ASUS Control Center Express(ACCE) UEFI BIOS ASUS EZ DIY - ASUS CrashFree BIOS 3 - ASUS EZ Flash 3 FlexKey

BIOS

256 Mb Flash ROM, UEFI AMI BIOS

Manageability

WOL by PME, PXE

Accessories

Cables 2 x SATA 6Gb/s cables Miscellaneous 1 x Q-connector 1 x M.2 Rubber Packages 2 x Screw package for M.2 SSD 1 x Screw package for M.2 Key E 1 x I/O Shield Documentation 1 x User guide 1 x ACC Express Activation Key Card

Operating System

Windows 11, Windows 10 64-bit

Form Factor

ATX Form Factor 12 inch x 9.6 inch ( 30.5 cm x 24.4 cm )

ASUS Pro WS W680-ACE Chipset: Intel® W680 Rozměrový formát: ATX (305x244mm) Podpora pro procesory: 13 Gen Intel® Core™ & 12 Gen Intel® Core™, Pentium® Gold a Celeron® Patice procesoru: LGA1700 Paměť: * 4x DIMM, max. 128GB, DDR5 * dvoukanálová architektura paměti * podporuje Intel® Extreme Memory Profile (XMP) * OptiMem II Grafické výstupy: * 1x DisplayPort 1.4 * 1x HDMI® 2.1 * 1x VGA Zvuková karta: Realtek 7.1 Surround Sound High Definition Audio CODEC - podporuje přehrávání až 24-bit/192kHz Ethernet: 2x Intel® 2,5Gb Ethernet WLAN + Bluetooth: pouze slot M.2 (Key E, CNVi & PCIe) Rozšiřující sloty: * 2x PCIe 5.0 x16 (podpora x16 nebo x8/x8) * 2x PCIe 3.0 x16 (podporuje režim x4) * 1x PCIe 3.0 x1 RAID řadič: Intel® Rapid Storage Technology podporuje PCIe RAID 0/1/5/10, SATA RAID 0/1/5/10 Úložný prostor: celkem podporuje 3 sloty M.2 a 8 portů SATA 6Gb/s * 1x M.2_1 (Key M), typ 2242/2260/2280 (podporuje režim PCIe 4.0 x4) * 1x M.2_2 (Key M), typ 2242/2260/2280 (podporuje režim PCIe 4.0 x4) * 1x M.2_3 (Key M), typ 2242/2260/2280/22110 (podporuje režim PCIe 4.0 x4) * 4x port SATA 6Gb/s * 1x SlimSAS podpora zařízení SlimSAS NVMe (podporuje PCIe 4.0 x4 režim a až 4 SATA zařízení) USB: Zadní USB (celkem 8 portů) * 2x USB 3.2 Gen 2 (1x typ-A, 1x typ-C®) * 4x USB 3.2 Gen 1 (4x typ-A) * 2x USB 2.0 (2x typ-A) Přední USB (celkem 7 portů) * 1x USB 3.2 Gen 2x2 konektor - podpora USB-C® * 1x USB 3.2 Gen 1 header - podpora dalších 2 portů USB 3.2 Gen 1 * 2x USB 2.0 header - podpora dalších 4 portů USB 2.0 Porty na zadním panelu: * 2x USB 3.2 Gen 2 (1x typ-A, 1x typ-C®) * 4x USB 3.2 Gen 1 (4x typ-A) * 2x USB 2.0 (2x typ-A) * 1x DisplayPort * 1x HDMI® * 1x VGA * 2x Intel® 2,5GbE * 5x audio jack * 1x tlačítko BIOS FlashBack™ Interní porty: Související s ventilátorem a chlazením * 1x 4-pin CPU Fan header * 1x 4-pin CPU OPT Fan header * 1x 4-pin W_PUMP+ header * 3x 4-pin Chassis Fan header Napájení * 1x 24-pin hlavní napájecí konektor * 1x 8-pin +12V napájecí konektor * 1x 4-pin +12V napájecí konektor * 1x 6-pin PCIe napájecí konektor Související s úložištěm * 3x M.2 slot (Key M) * 4x SATA 6Gb/s port * 1x SlimSAS port USB * 1x USB 3.2 Gen 2x2 konektor - podpora USB-C® * 1x USB 3.2 Gen 1 header - podpora dalších 2 portů USB 3.2 Gen 1 * 2x USB 2.0 header - podpora dalších 4 portů USB 2.0 Ostatní * 1x LPT header * 1x T-sensor * 1x Clear CMOS header * 1x COM Port header * 1x BMC Header * 1x Front Panel Audio header (AAFP) * 1x tlačítko Start * 1x tlačítko Flexkey * 1x M.2 slot (Key E) * 1x SPI TPM header (14-1pin) * 1x 20-3pin System Panel header s funkcí Chassis intrude * 1x LPT_P80 Switch * 1x Thunderbolt™ header BIOS: 256Mb Flash ROM, UEFI AMI BIOS Příslušenství: * 2x SATA 6Gb/s kabel * 1x Q-konektor * 2x I/O záslepka * 1x balení podložek pro M.2 * 2x balení šroubů pro M.2 SSD * 1x balení šroubů pro M.2 Key E * 1x ACC Express Activation Key Card * 1x uživatelská příručka Odkaz na stránky výrobce: https://www.asus.com/cz/motherboards-components/motherboards/workstation/pro-ws-w680-ace/

Základní deska - ATX - zásuvka LGA1700 - W680 Cipová sada - USB-C 3.2 Gen2, USB 3.2 Gen 1, USB-C 3.2 Gen 2x2, USB 3.2 Gen 2 - 2 x 2.5 Gigabit LAN - vestavená grafika (vyžaduje CPU) - HD Audio (8 kanálu)
