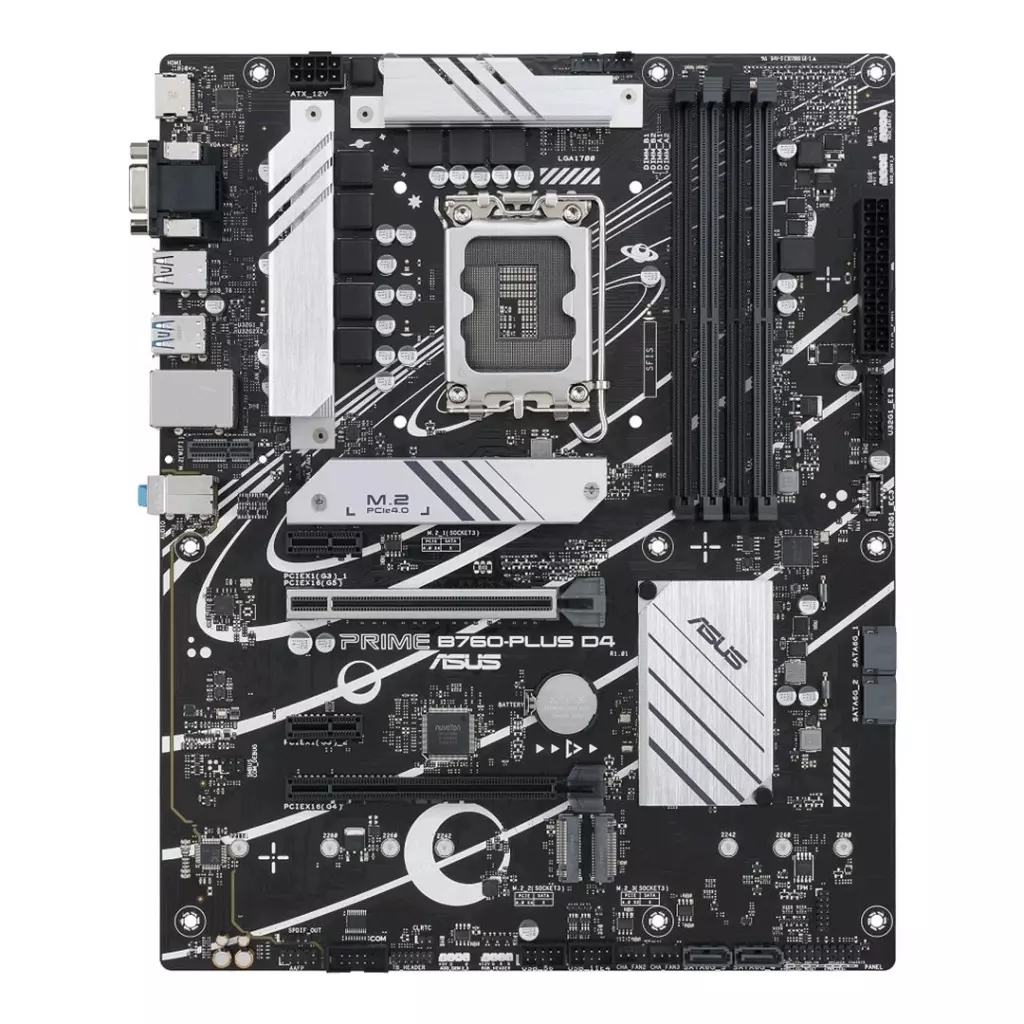

ASUS mb PRIME B760-PLUS D4 (soc 1700 DDR4 ATX D-Sub HDMI DP)

ASUS Prime B760-PLUS D4, an Intel® B760 LGA 1700 ATX motherboard with PCIe 5.0, three PCIe 4.0 M.2 slots, DDR4, Realtek 2.5Gb Ethernet, DisplayPort, VGA, HDMI®, SATA 6 Gbps, USB 3.2 Gen 2x2 Type-C®, front USB 3.2 Gen 1 Type-C®, Thunderbolt™ (USB4®) support, Aura Sync Intel® LGA 1700 Socket: Ready for 13th and 12th Gen Intel® processors Ultrafast Connectivity: PCIe 5.0, three PCIe 4.0 M.2, Realtek 2.5Gb Ethernet, USB 3.2 Gen 2x2 Type-C®, front USB 3.2 Gen 1 Type-C® and Thunderbolt™ (USB4®) header support Comprehensive Cooling: VRM heatsinks, M.2 heatsink, PCH heatsink, hybrid fan headers and Fan Xpert 2+ ASUS OptiMem: Careful routing of traces and vias to preserve signal integrity for improved memory stability Aura Sync RGB Lighting: Onboard Addressable Gen 2 headers and Aura RGB header for RGB LED strips, easily synced with Aura Sync-capable hardware Model PRIME B760-PLUS D4 CPU Intel® Socket LGA1700 for 13th Gen Intel® Core™ & 12th Gen Intel® Core™, Pentium® Gold and Celeron® Processors* Supports Intel® Turbo Boost Technology 2.0 and Intel® Turbo Boost Max Technology 3.0** * Refer to www.asus.com for CPU support list. ** Intel® Turbo Boost Max Technology 3.0 support depends on the CPU types. Chipset Intel® B760 Chipset Memory 4 x DIMM, Max. 128GB, DDR4 5066(OC)/5000(OC)/4800(OC)/4600(OC)/4400(OC)/4266(OC)/4000(OC)/3733(OC)/3600(OC)/3466(OC)/3400(OC)/3333(OC)/3200/3000/2933/2800/2666/2400/2133 Non-ECC, Un-buffered Memory* Dual Channel Memory Architecture Supports Intel® Extreme Memory Profile (XMP) OptiMem * Supported memory types, data rate (speed), and number of DRAM modules vary depending on the CPU and memory configuration, for more information please refer to CPU/Memory Support list under the Support tab of product information site or visit https://www.asus.com/support/. Graphics 1 x DisplayPort** 1 x VGA port 1 x HDMI® port*** * Graphics specifications may vary between CPU types. Please refer to www.intel.com for any updates. ** Supports max. 4K@60Hz as specified in DisplayPort 1.4. *** Supports 4K@60Hz as specified in HDMI® 2.1. Expansion Slots Intel® 13th & 12th Gen Processors* 1 x PCIe 5.0 x16 slot Intel® B760 Chipset 1 x PCIe 4.0 x16 slot (supports x4 mode) 2 x PCIe 3.0 x1 slots Note: To ensure compatibility of the device installed, please refer to https://www.asus.com/support/ for the list of supported peripherals. Storage Total supports 3 x M.2 slots and 4 x SATA 6Gb/s ports* Intel® 13th & 12th Gen Processors M.2_1 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 mode) Intel® B760 Chipset M.2_2 slot (Key M), type 2242/2260/2280/22110 (supports PCIe 4.0 x4 mode) M.2_3 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x2 mode) 4 x SATA 6Gb/s ports * Intel® Rapid Storage Technology supports SATA RAID 0/1/5/10. Ethernet 1 x Realtek 2.5Gb Ethernet Wireless & Bluetooth Vertical M.2 slot only (Key E, CNVi & PCIe)* * Wi-Fi module is sold separately. USB Rear USB (Total 6 ports) 1 x USB 3.2 Gen 2x2 port (1 x USB Type-C®) 2 x USB 3.2 Gen 2 ports (2 x Type-A) 1 x USB 3.2 Gen 1 port (1 x Type-A) 2 x USB 2.0 ports (2 x Type-A) Front USB (Total 7 ports) 1 x USB 3.2 Gen 1 connector (supports USB Type-C®) 1 x USB 3.2 Gen 1 header supports 2 additional USB 3.2 Gen 1 ports 2 x USB 2.0 headers support 4 additional USB 2.0 ports Audio Realtek 7.1 Surround Sound High Definition Audio CODEC* - Supports: Jack-detection, Multi-streaming, Front Panel Jack-retasking - Supports up to 24-Bit/192 kHz playback Audio Features - Audio Shielding - Premium audio capacitors - Dedicated audio PCB layers * A chassis with an HD audio module in the front panel is required to support 7.1 Surround Sound audio output. Back Panel I/O Ports 1 x USB 3.2 Gen 2x2 port (1 x USB Type-C®) 2 x USB 3.2 Gen 2 ports (2 x Type-A) 1 x USB 3.2 Gen 1 port (1 x Type-A) 2 x USB 2.0 ports (2 x Type-A) 1 x DisplayPort 1 x VGA port 1 x HDMI® port 1 x Vertical M.2 slot (Key E) 1 x Realtek 2.5Gb Ethernet port 3 x Audio jacks Internal I/O Connectors Fan and Cooling related 1 x 4-pin CPU Fan header 1 x 4-pin AIO Pump header 3 x 4-pin Chassis Fan headers Power related 1 x 24-pin Main Power connector 1 x 8-pin +12V Power connector Storage related 3 x M.2 slots (Key M) 4 x SATA 6Gb/s ports USB 1 x USB 3.2 Gen 1 connector (supports USB Type-C® ) 1 x USB 3.2 Gen 1 header supports 2 additional USB 3.2 Gen 1 ports 2 x USB 2.0 headers support 4 additional USB 2.0 ports Miscellaneous 3 x Addressable Gen 2 headers 1 x Aura RGB header 1 x Clear CMOS header 1 x COM Port header 1 x Front Panel Audio header (AAFP) 1 x S/PDIF Out header 1 x SPI TPM header (14-1pin) 1 x 20-3 pin System Panel header with Chassis intrude function 1 x Thunderbolt™ (USB4®) header Special Features ASUS 5X PROTECTION III - DIGI+ VRM - LANGuard - Overvoltage Protection - SafeSlot Core+ - Stainless-Steel Back I/O ASUS Q-Design - Q-DIMM - Q-LED Core - Q-Slot ASUS Thermal Solution - M.2 heatsink - VRM heatsink design ASUS EZ DIY - ProCool Aura Sync - Aura RGB header - Addressable Gen 2 headers Software Features ASUS Exclusive Software Armoury Crate - Aura Creator - Aura Sync - Fan Xpert 2+ - Power Saving AI Suite 3 - DIGI+ VRM - PC Cleaner ASUS CPU-Z Norton 360 Deluxe (60 Days Free Trial) WinRAR UEFI BIOS ASUS EZ DIY - ASUS CrashFree BIOS 3 - ASUS EZ Flash 3 - ASUS UEFI BIOS EZ Mode BIOS 128 Mb Flash ROM, UEFI AMI BIOS Manageability WOL by PME, PXE Accessories Cables 2 x SATA 6Gb/s cables Miscellaneous 1 x I/O Shield 1 x M.2 Rubber Package 2 x Screw Packages for M.2 SSD Documentation 1 x User guide Operating System Windows® 11, Windows® 10 64-bit Form Factor ATX Form Factor 12 inch x 9.6 inch ( 30.5 cm x 24.4 cm )

ASUS Prime B760-PLUS D4, an Intel® B760 LGA 1700 ATX motherboard with PCIe 5.0, three PCIe 4.0 M.2 slots, DDR4, Realtek 2.5Gb Ethernet, DisplayPort, VGA, HDMI®, SATA 6 Gbps, USB 3.2 Gen 2x2 Type-C®, front USB 3.2 Gen 1 Type-C®, Thunderbolt™ (USB4®) support, Aura Sync Intel® LGA 1700 Socket: Ready for 13th and 12th Gen Intel® processors Ultrafast Connectivity: PCIe 5.0, three PCIe 4.0 M.2, Realtek 2.5Gb Ethernet, USB 3.2 Gen 2x2 Type-C®, front USB 3.2 Gen 1 Type-C® and Thunderbolt™ (USB4®) header support Comprehensive Cooling: VRM heatsinks, M.2 heatsink, PCH heatsink, hybrid fan headers and Fan Xpert 2+ ASUS OptiMem: Careful routing of traces and vias to preserve signal integrity for improved memory stability Aura Sync RGB Lighting: Onboard Addressable Gen 2 headers and Aura RGB header for RGB LED strips, easily synced with Aura Sync-capable hardware Model PRIME B760-PLUS D4 CPU Intel® Socket LGA1700 for 13th Gen Intel® Core™ & 12th Gen Intel® Core™, Pentium® Gold and Celeron® Processors* Supports Intel® Turbo Boost Technology 2.0 and Intel® Turbo Boost Max Technology 3.0** * Refer to www.asus.com for CPU support list. ** Intel® Turbo Boost Max Technology 3.0 support depends on the CPU types. Chipset Intel® B760 Chipset Memory 4 x DIMM, Max. 128GB, DDR4 5066(OC)/5000(OC)/4800(OC)/4600(OC)/4400(OC)/4266(OC)/4000(OC)/3733(OC)/3600(OC)/3466(OC)/3400(OC)/3333(OC)/3200/3000/2933/2800/2666/2400/2133 Non-ECC, Un-buffered Memory* Dual Channel Memory Architecture Supports Intel® Extreme Memory Profile (XMP) OptiMem * Supported memory types, data rate (speed), and number of DRAM modules vary depending on the CPU and memory configuration, for more information please refer to CPU/Memory Support list under the Support tab of product information site or visit https://www.asus.com/support/. Graphics 1 x DisplayPort** 1 x VGA port 1 x HDMI® port*** * Graphics specifications may vary between CPU types. Please refer to www.intel.com for any updates. ** Supports max. 4K@60Hz as specified in DisplayPort 1.4. *** Supports 4K@60Hz as specified in HDMI® 2.1. Expansion Slots Intel® 13th & 12th Gen Processors* 1 x PCIe 5.0 x16 slot Intel® B760 Chipset 1 x PCIe 4.0 x16 slot (supports x4 mode) 2 x PCIe 3.0 x1 slots Note: To ensure compatibility of the device installed, please refer to https://www.asus.com/support/ for the list of supported peripherals. Storage Total supports 3 x M.2 slots and 4 x SATA 6Gb/s ports* Intel® 13th & 12th Gen Processors M.2_1 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 mode) Intel® B760 Chipset M.2_2 slot (Key M), type 2242/2260/2280/22110 (supports PCIe 4.0 x4 mode) M.2_3 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x2 mode) 4 x SATA 6Gb/s ports * Intel® Rapid Storage Technology supports SATA RAID 0/1/5/10. Ethernet 1 x Realtek 2.5Gb Ethernet Wireless & Bluetooth Vertical M.2 slot only (Key E, CNVi & PCIe)* * Wi-Fi module is sold separately. USB Rear USB (Total 6 ports) 1 x USB 3.2 Gen 2x2 port (1 x USB Type-C®) 2 x USB 3.2 Gen 2 ports (2 x Type-A) 1 x USB 3.2 Gen 1 port (1 x Type-A) 2 x USB 2.0 ports (2 x Type-A) Front USB (Total 7 ports) 1 x USB 3.2 Gen 1 connector (supports USB Type-C®) 1 x USB 3.2 Gen 1 header supports 2 additional USB 3.2 Gen 1 ports 2 x USB 2.0 headers support 4 additional USB 2.0 ports Audio Realtek 7.1 Surround Sound High Definition Audio CODEC* - Supports: Jack-detection, Multi-streaming, Front Panel Jack-retasking - Supports up to 24-Bit/192 kHz playback Audio Features - Audio Shielding - Premium audio capacitors - Dedicated audio PCB layers * A chassis with an HD audio module in the front panel is required to support 7.1 Surround Sound audio output. Back Panel I/O Ports 1 x USB 3.2 Gen 2x2 port (1 x USB Type-C®) 2 x USB 3.2 Gen 2 ports (2 x Type-A) 1 x USB 3.2 Gen 1 port (1 x Type-A) 2 x USB 2.0 ports (2 x Type-A) 1 x DisplayPort 1 x VGA port 1 x HDMI® port 1 x Vertical M.2 slot (Key E) 1 x Realtek 2.5Gb Ethernet port 3 x Audio jacks Internal I/O Connectors Fan and Cooling related 1 x 4-pin CPU Fan header 1 x 4-pin AIO Pump header 3 x 4-pin Chassis Fan headers Power related 1 x 24-pin Main Power connector 1 x 8-pin +12V Power connector Storage related 3 x M.2 slots (Key M) 4 x SATA 6Gb/s ports USB 1 x USB 3.2 Gen 1 connector (supports USB Type-C® ) 1 x USB 3.2 Gen 1 header supports 2 additional USB 3.2 Gen 1 ports 2 x USB 2.0 headers support 4 additional USB 2.0 ports Miscellaneous 3 x Addressable Gen 2 headers 1 x Aura RGB header 1 x Clear CMOS header 1 x COM Port header 1 x Front Panel Audio header (AAFP) 1 x S/PDIF Out header 1 x SPI TPM header (14-1pin) 1 x 20-3 pin System Panel header with Chassis intrude function 1 x Thunderbolt™ (USB4®) header Special Features ASUS 5X PROTECTION III - DIGI+ VRM - LANGuard - Overvoltage Protection - SafeSlot Core+ - Stainless-Steel Back I/O ASUS Q-Design - Q-DIMM - Q-LED Core - Q-Slot ASUS Thermal Solution - M.2 heatsink - VRM heatsink design ASUS EZ DIY - ProCool Aura Sync - Aura RGB header - Addressable Gen 2 headers Software Features ASUS Exclusive Software Armoury Crate - Aura Creator - Aura Sync - Fan Xpert 2+ - Power Saving AI Suite 3 - DIGI+ VRM - PC Cleaner ASUS CPU-Z Norton 360 Deluxe (60 Days Free Trial) WinRAR UEFI BIOS ASUS EZ DIY - ASUS CrashFree BIOS 3 - ASUS EZ Flash 3 - ASUS UEFI BIOS EZ Mode BIOS 128 Mb Flash ROM, UEFI AMI BIOS Manageability WOL by PME, PXE Accessories Cables 2 x SATA 6Gb/s cables Miscellaneous 1 x I/O Shield 1 x M.2 Rubber Package 2 x Screw Packages for M.2 SSD Documentation 1 x User guide Operating System Windows® 11, Windows® 10 64-bit Form Factor ATX Form Factor 12 inch x 9.6 inch ( 30.5 cm x 24.4 cm )

PRIME B760-PLUS D4

ASUS PRIME B760-PLUS D4 Chipset: Intel® B760 Rozměrový formát: ATX (305x244mm) Podpora pro procesory: 13 Gen Intel® Core™ & 12 Gen Intel® Core™, Pentium® Gold and Celeron® Patice procesoru: LGA1700 Paměť: * 4x DIMM, Max. 128GB, DDR4 5066(OC)/5000(OC)/4800(OC)/4600(OC)/4400(OC)/4266(OC)/4000(OC)/3733(OC)/3600(OC)/3466(OC)/3400(OC)/3333(OC)/3200/3000/2933/2800/2666/2400/2133 bez ECC, bez vyrovnávací paměti * dvoukanálová architektura paměti * podporuje Intel® Extreme Memory Profile (XMP) * OptiMem Grafické výstupy: * 1x DisplayPort 1.4 * 1x VGA * 1x HDMI® 2.1 Zvuková karta: Realtek 7.1 Surround Sound High Definition Audio CODEC - podporuje přehrávání až 24-bit/192kHz Ethernet: 1x Realtek 2,5Gb WLAN + Bluetooth: ne, pouze M.2 slot (Key E, CNVi & PCIe) Rozšiřující sloty: * 1x PCIe 5.0 x16 * 1x PCIe 4.0 x16 (podpora režim x4) * 2x PCIe 3.0 x1 RAID řadič: Intel® Rapid Storage Technology podporuje SATA RAID 0/1/5/10 Úložný prostor: celkem podporuje 3 sloty M.2 a 4 porty SATA 6Gb/s * 1x M.2_1 (Key M), typ 2242/2260/2280 (podporuje režim PCIe 4.0 x4) * 1x M.2_2 (Key M), typ 2242/2260/2280/22110 (podporuje režim PCIe 4.0 x4) * 1x M.2_3 (Key M), typ 2242/2260/2280 (podporuje režim PCIe 4.0 x2) * 4x port SATA 6Gb/s USB: Zadní USB (celkem 6 portů) * 1x USB 3.2 Gen 2x2 (1x USB typ-C®) * 2x USB 3.2 Gen 2 (2x typ-A) * 1x USB 3.2 Gen 1 (1x typ-A) * 2x USB 2.0 (2x typ-A) Přední USB (celkem 7 portů) * 1x USB 3.2 Gen 1 konektor - podpora USB-C® * 1x USB 3.2 Gen 1 header - podpora dalších 2 portů USB 3.2 Gen 1 * 2x USB 2.0 header - podpora dalších 4 portů USB 2.0 Porty na zadním panelu: * 1x USB 3.2 Gen 2x2 (1x USB typ-C®) * 2x USB 3.2 Gen 2 (2x typ-A) * 1x USB 3.2 Gen 1 (1x typ-A) * 2x USB 2.0 (2x typ-A) * 1x DisplayPort * 1x VGA * 1x HDMI® * 1x slot M.2 (Key E) * 1x Realtek 2,5Gb Ethernet * 3x audio jack Interní porty: Související s ventilátorem a chlazením * 1x 4-pin CPU Fan header * 1x 4-pin AIO Pump header * 3x 4-pin Chassis Fan headers Napájení * 1x 24-pin hlavní napájecí konektor * 1x 8-pin +12V napájecí konektor Související s úložištěm * 3x M.2 slot (Key M) * 4x SATA 6Gb/s port USB * 1x USB 3.2 Gen 1 konektor - podpora USB-C® * 1x USB 3.2 Gen 1 header - podpora dalších 2 portů USB 3.2 Gen 1 * 2x USB 2.0 header - podpora dalších 4 portů USB 2.0 Ostatní * 3x adresovatelný Gen 2 header * 1x Aura RGB header * 1x Clear CMOS header * 1x COM Port header * 1x Front Panel Audio header (AAFP) * 1x S/PDIF Out header * 1x SPI TPM header (14-1pin) * 1x 20-3 pin System Panel header s funkcí Chassis intrude * 1x Thunderbolt™ (USB4®) header BIOS: 128Mb Flash ROM, UEFI AMI BIOS Rozměry: 305x244x36mm Hmotnost: 720g Příslušenství: * 2x SATA 6Gb/s kabel * 1x I/O záslepka * 1x balení M.2 podložek * 2x balení šroubků pro M.2 SSD * 1x uživatelská příručka

ASUS PRIME B760-PLUS D4

Deska je vybavena grafickými výstupy pro použití s procesory s integrovaným grafickým jádrem. Základní deska grafickou kartu neobsahuje a bez použití odpovídajícího procesoru, budou tyto výstupy nefunkční.

CPU Podpora procesorů 12. a 13. generace Intel Core/ Pentium/ Celeron (patice LGA1700)

Čipová sada Intel B760

Paměť 4x DDR4 paměťový slot, podpora až 128 GB Podpora DDR4 5066 (OC)/ 5000 (OC)/ 4800 (OC)/ 4600 (OC)/ 4400 (OC)/ 4266 (OC)/ 4000 (OC)/ 3733 (OC)/ 3600 (OC)/ 3466 (OC)/ 3400 (OC)/ 3333 (OC)/ 3200/ 3000/ 2933/ 2800/ 2666/ 2400/ 2133 MHz Dvoukanálová architektura paměti Podpora non-ECC, bez vyrovnávací paměti Podpora Intel Extreme Memory Profile (XMP) Podpora OptiMem

Sloty Intel CPU 1x PCIe 5.0 x16 slot Intel B760 čipová sada 1x PCIe 4.0 x16 slot (podporuje x4 režim) 2x PCIe 3.0 x1 slot

Grafika 1x HDMI port, podporující max. rozlišení 4K při 60 Hz 1x DisplayPort port, podporující max. rozlišení 4K při 60 Hz 1x VGA port

Úložiště Intel CPU 1x M.2 slot, M Key, pro jednotky typu 2242/2260/2280 (PCIe 4.0 x4 režim) Intel B760 čipová sada 1x M.2 slot, M Key, pro jednotky typu 2242/2260/2280/22110 (PCIe 4.0 x4 režim) 1x M.2 slot, M Key, pro jednotky typu 2242/2260/2280 (PCIe 4.0 x2 režim) 4x SATA 6Gb/s port Podpora RAID 0, RAID 1, RAID 5 a RAID 10 pro SATA jednotky Podpora Intel Rapid Storage technologie

USB 1x USB 3.2 Gen2x2 typ C port na zadním panelu 2x USB 3.2 Gen2 typ A port na zadním panelu 3x USB 3.2 Gen1 (USB 3.0) typ A port (1 port na zadním panelu, 2 porty dostupné přes interní USB konektor) 1x USB 3.2 Gen1 (USB 3.0) typ C port dostupný přes interní USB konektor 6x USB 2.0 port (2 porty na zadním panelu, 4 porty dostupné přes interní USB konektory)

Audio Realtek Audio Codec 7.1kanálové High Definition Audio

LAN 1x Realtek 2,5Gigabit LAN řadič

Interní konektory 1x 24-pin hlavní napájecí konektor 1x 8-pin 12V napájecí konektor 4x SATA 6Gb/s konektor 3x M.2 slot, M Key 1x M.2 slot, E key pro Wi-Fi modul (není součástí) 1x USB 3.2 Gen1 (USB 3.0) typ C konektor 1x USB 3.2 Gen1 (USB 3.0) konektor (podporuje 2x USB 3.2 Gen1 port) 2x USB 2.0 konektor (podporuje 4x USB 2.0 port) 1x 4-pin konektor ventilátoru CPU 1x 4-pin konektor pumpy vodního chlazení 3x 4-pin konektor ventilátoru skříně 3x konektor adresovatelného RGB LED pásku 1x konektor Aura RGB LED pásku 1x konektor Clear CMOS 1x konektor pro sériový port 1x audio konektor předního panelu 1x konektor S/PDIF výstupu 1x SPI TPM konektor 1x konektor systémového panelu (s funkcí detekce otevření skříně) 1x Thunderbolt konektor

Porty na zadním panelu 1x HDMI 1x DisplayPort 1x VGA 1x USB 3.2 Gen2x2 typ C 2x USB 3.2 Gen2 typ A 1x USB 3.2 Gen1 (USB 3.0) 2x USB 2.0 1x RJ-45 3x audio jack

Rozměry 30,5 x 24,4 cm ATX formát

ASUS Prime B760-PLUS D4, základná doska Intel® B760 LGA 1700 ATX s PCIe 5.0, tri sloty PCIe 4.0 M.2, DDR4, Realtek 2,5 Gb Ethernet, DisplayPort, VGA, HDMI®, SATA 6 Gbps, USB 3.2 Gen 2x2 Type -C®, predný USB 3.2 Gen 1 Type-C®, podpora Thunderbolt™ (USB4®), Aura Sync Ultrarýchle pripojenie: PCIe 5.0, tri PCIe 4.0 M.2, Realtek 2,5 Gb Ethernet, USB 3.2 Gen 2x2 Type-C®, predná podpora USB 3.2 Gen 1 Type-C® a Thunderbolt™ (USB4®) Komplexné chladenie: chladiče VRM, chladič M.2, chladič PCH, hybridné hlavičky ventilátorov a Fan Xpert 2+ ASUS OptiMem: Starostlivé smerovanie stôp a priechodov na zachovanie integrity signálu pre lepšiu stabilitu pamäte Osvetlenie Aura Sync RGB: Integrované adresovateľné záhlavia Gen 2 a záhlavie Aura RGB pre RGB LED pásy, ľahko synchronizovateľné s hardvérom s podporou Aura Sync CPU Intel® Socket LGA1700 for 14th - 12th Gen Intel® Core™, Pentium® Gold and Celeron® Processors* Supports Intel® Turbo Boost Technology 2.0 and Intel® Turbo Boost Max Technology 3.0** * Refer to www.asus.com for CPU support list. ** Intel® Turbo Boost Max Technology 3.0 support depends on the CPU types. Chipset Intel® B760 Chipset Memory 4 x DIMM, Max. 128GB, DDR4 5066(OC)/5000(OC)/4800(OC)/4600(OC)/4400(OC)/4266(OC)/4000(OC)/3733(OC)/3600(OC)/3466(OC)/3400(OC)/3333(OC)/3200/3000/2933/2800/2666/2400/2133 Non-ECC, Un-buffered Memory* Dual Channel Memory Architecture Supports Intel® Extreme Memory Profile (XMP) OptiMem * Supported memory types, data rate (speed), and number of DRAM modules vary depending on the CPU and memory configuration, for more information please refer to CPU/Memory Support list under the Support tab of product information site or visit https://www.asus.com/support/. Graphics 1 x DisplayPort** 1 x VGA port 1 x HDMI® port*** * Graphics specifications may vary between CPU types. Please refer to www.intel.com for any updates. ** Supports max. 4K@60Hz as specified in DisplayPort 1.4. *** Supports 4K@60Hz as specified in HDMI® 2.1. Expansion Slots Intel® 13th & 12th Gen Processors* 1 x PCIe 5.0 x16 slot Intel® B760 Chipset 1 x PCIe 4.0 x16 slot (supports x4 mode) 2 x PCIe 3.0 x1 slots Note: To ensure compatibility of the device installed, please refer to https://www.asus.com/support/ for the list of supported peripherals. Storage Total supports 3 x M.2 slots and 4 x SATA 6Gb/s ports* Intel® 13th & 12th Gen Processors M.2_1 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 mode) Intel® B760 Chipset M.2_2 slot (Key M), type 2242/2260/2280/22110 (supports PCIe 4.0 x4 mode) M.2_3 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x2 mode) 4 x SATA 6Gb/s ports * Intel® Rapid Storage Technology supports SATA RAID 0/1/5/10. Ethernet 1 x Realtek 2.5Gb Ethernet Wireless & Bluetooth Vertical M.2 slot only (Key E, CNVi & PCIe)* * Wi-Fi module is sold separately. USB Rear USB (Total 6 ports) 1 x USB 3.2 Gen 2x2 port (1 x USB Type-C®) 2 x USB 3.2 Gen 2 ports (2 x Type-A) 1 x USB 3.2 Gen 1 port (1 x Type-A) 2 x USB 2.0 ports (2 x Type-A) Front USB (Total 7 ports) 1 x USB 3.2 Gen 1 connector (supports USB Type-C®) 1 x USB 3.2 Gen 1 header supports 2 additional USB 3.2 Gen 1 ports 2 x USB 2.0 headers support 4 additional USB 2.0 ports Audio Realtek 7.1 Surround Sound High Definition Audio CODEC* - Supports: Jack-detection, Multi-streaming, Front Panel Jack-retasking - Supports up to 24-Bit/192 kHz playback Audio Features - Audio Shielding - Premium audio capacitors - Dedicated audio PCB layers * A chassis with an HD audio module in the front panel is required to support 7.1 Surround Sound audio output. Back Panel I/O Ports 1 x USB 3.2 Gen 2x2 port (1 x USB Type-C®) 2 x USB 3.2 Gen 2 ports (2 x Type-A) 1 x USB 3.2 Gen 1 port (1 x Type-A) 2 x USB 2.0 ports (2 x Type-A) 1 x DisplayPort 1 x VGA port 1 x HDMI® port 1 x Vertical M.2 slot (Key E) 1 x Realtek 2.5Gb Ethernet port 3 x Audio jacks Internal I/O Connectors Fan and Cooling related 1 x 4-pin CPU Fan header 1 x 4-pin AIO Pump header 3 x 4-pin Chassis Fan headers Power related 1 x 24-pin Main Power connector 1 x 8-pin +12V Power connector Storage related 3 x M.2 slots (Key M) 4 x SATA 6Gb/s ports USB 1 x USB 3.2 Gen 1 connector (supports USB Type-C® ) 1 x USB 3.2 Gen 1 header supports 2 additional USB 3.2 Gen 1 ports 2 x USB 2.0 headers support 4 additional USB 2.0 ports Miscellaneous 3 x Addressable Gen 2 headers 1 x Aura RGB header 1 x Clear CMOS header 1 x COM Port header 1 x Front Panel Audio header (AAFP) 1 x S/PDIF Out header 1 x SPI TPM header (14-1pin) 1 x 20-3 pin System Panel header with Chassis intrude function 1 x Thunderbolt™ (USB4®) header Special Features ASUS 5X PROTECTION III - DIGI+ VRM - LANGuard - Overvoltage Protection - SafeSlot Core+ - Stainless-Steel Back I/O ASUS Q-Design - Q-DIMM - Q-LED Core - Q-Slot ASUS Thermal Solution - M.2 heatsink - VRM heatsink design ASUS EZ DIY - ProCool Aura Sync - Aura RGB header - Addressable Gen 2 headers Software Features ASUS Exclusive Software Armoury Crate - Aura Creator - Aura Sync - Fan Xpert 2+ - Power Saving AI Suite 3 - DIGI+ VRM - PC Cleaner ASUS CPU-Z Norton 360 Deluxe (60 Days Free Trial) WinRAR UEFI BIOS ASUS EZ DIY - ASUS CrashFree BIOS 3 - ASUS EZ Flash 3 - ASUS UEFI BIOS EZ Mode BIOS 128 Mb Flash ROM, UEFI AMI BIOS Manageability WOL by PME, PXE Accessories Cables 2 x SATA 6Gb/s cables Miscellaneous 1 x I/O Shield 1 x M.2 Rubber Package 2 x Screw Packages for M.2 SSD Documentation 1 x User guide Operating System Windows® 11, Windows® 10 64-bit Form Factor ATX Form Factor 12 inch x 9.6 inch ( 30.5 cm x 24.4 cm )

Základní deska, socket Intel 1700, čipset Intel B760, podpora procesorů Intel 13. a 12. generace Core/Pentium Gold/Celeron; podpora procesorů s integrovaným grafickým čipem, 4x DDR4 až 3200 MHz (až 5066 MHz OC), maximálně 128 GB; sloty: 1x PCIe 5.0 x16, 1x PCIe 4.0 x16 (x4), 2x PCIe 3.0 x1; konektory: 4x SATA 6Gb/s, 3x M.2, 6x USB 2.0, 4x USB 3.2 Gen1, 2x USB 3.2 Gen2, 1x USB 3.2 Gen2x2, 1x 2,5G LAN, 1x DisplayPort, 1x HDMI, 1x VGA, 3x 3,5 mm audio jack; formát ATX

ASUS PRIME B760-PLUS D4 Chipset: Intel® B760 Rozměrový formát: ATX (305x244mm) Podpora pro procesory: 13 Gen Intel® Core™ & 12 Gen Intel® Core™, Pentium® Gold and Celeron® Patice procesoru: LGA1700 Paměť: 4x DIMM, Max. 128GB, DDR4 5066(OC)/5000(OC)/4800(OC)/4600(OC)/4400(OC)/4266(OC)/4000(OC)/3733(OC)/3600(OC)/3466(OC)/3400(OC)/3333(OC)/3200/3000/2933/2800/2666/2400/2133 bez ECC, bez vyrovnávací paměti dvoukanálová architektura paměti podporuje Intel® Extreme Memory Profile (XMP) OptiMem Grafická karta: 1x DisplayPort 1.4 1x VGA 1x HDMI® 2.1 Zvuková karta: Realtek 7.1 Surround Sound High Definition Audio CODEC - podporuje přehrávání až 24-bit/192kHz Ethernet: 1x Realtek 2,5Gb WLAN + Bluetooth: ne, pouze M.2 slot (Key E, CNVi & PCIe) Rozšiřující sloty: 1x PCIe 5.0 x16 1x PCIe 4.0 x16 (podpora režim x4) 2x PCIe 3.0 x1 RAID řadič: Intel® Rapid Storage Technology podporuje SATA RAID 0/1/5/10 Úložný prostor: celkem podporuje 3 sloty M.2 a 4 porty SATA 6Gb/s 1x M.2_1 (Key M), typ 2242/2260/2280 (podporuje režim PCIe 4.0 x4) 1x M.2_2 (Key M), typ 2242/2260/2280/22110 (podporuje režim PCIe 4.0 x4) 1x M.2_3 (Key M), typ 2242/2260/2280 (podporuje režim PCIe 4.0 x2) 4x port SATA 6Gb/s USB: Zadní USB (celkem 6 portů) 1x USB 3.2 Gen 2x2 (1x USB typ-C®) 2x USB 3.2 Gen 2 (2x typ-A) 1x USB 3.2 Gen 1 (1x typ-A) 2x USB 2.0 (2x typ-A) Přední USB (celkem 7 portů) 1x USB 3.2 Gen 1 konektor - podpora USB-C® 1x USB 3.2 Gen 1 header - podpora dalších 2 portů USB 3.2 Gen 1 2x USB 2.0 header - podpora dalších 4 portů USB 2.0 Porty na zadním panelu: 1x USB 3.2 Gen 2x2 (1x USB typ-C®) 2x USB 3.2 Gen 2 (2x typ-A) 1x USB 3.2 Gen 1 (1x typ-A) 2x USB 2.0 (2x typ-A) 1x DisplayPort 1x VGA 1x HDMI® 1x slot M.2 (Key E) 1x Realtek 2,5Gb Ethernet 3x audio jack Interní porty: Související s ventilátorem a chlazením 1x 4-pin CPU Fan header 1x 4-pin AIO Pump header 3x 4-pin Chassis Fan headers Napájení 1x 24-pin hlavní napájecí konektor 1x 8-pin +12V napájecí konektor Související s úložištěm 3x M.2 slot (Key M) 4x SATA 6Gb/s port USB 1x USB 3.2 Gen 1 konektor - podpora USB-C® 1x USB 3.2 Gen 1 header - podpora dalších 2 portů USB 3.2 Gen 1 2x USB 2.0 header - podpora dalších 4 portů USB 2.0 Ostatní 3x adresovatelný Gen 2 header 1x Aura RGB header 1x Clear CMOS header 1x COM Port header 1x Front Panel Audio header (AAFP) 1x S/PDIF Out header 1x SPI TPM header (14-1pin) 1x 20-3 pin System Panel header s funkcí Chassis intrude 1x Thunderbolt™ (USB4®) header BIOS: 128Mb Flash ROM, UEFI AMI BIOS Rozměry: 305x244x36mm Hmotnost: 720g Příslušenství: 2x SATA 6Gb/s kabel 1x I/O záslepka 1x balení M.2 podložek 2x balení šroubků pro M.2 SSD 1x uživatelská příručka

ASUS PRIME B760-PLUS D4 Chipset: Intel® B760 Rozměrový formát: ATX (305x244mm) Podpora pro procesory: 13 Gen Intel® Core™ & 12 Gen Intel® Core™, Pentium® Gold and Celeron® Patice procesoru: LGA1700 Paměť: 4x DIMM, Max. 128GB, DDR4 5066(OC)/5000(OC)/4800(OC)/4600(OC)/4400(OC)/4266(OC)/4000(OC)/3733(OC)/3600(OC)/3466(OC)/3400(OC)/3333(OC)/3200/3000/2933/2800/2666/2400/2133 bez ECC, bez vyrovnávací paměti dvoukanálová architektura paměti podporuje Intel® Extreme Memory Profile (XMP) OptiMem Grafická karta: 1x DisplayPort 1.4 1x VGA 1x HDMI® 2.1 Zvuková karta: Realtek 7.1 Surround Sound High Definition Audio CODEC - podporuje přehrávání až 24-bit/192kHz Ethernet: 1x Realtek 2,5Gb WLAN + Bluetooth: ne, pouze M.2 slot (Key E, CNVi & PCIe) Rozšiřující sloty: 1x PCIe 5.0 x16 1x PCIe 4.0 x16 (podpora režim x4) 2x PCIe 3.0 x1 RAID řadič: Intel® Rapid Storage Technology podporuje SATA RAID 0/1/5/10 Úložný prostor: celkem podporuje 3 sloty M.2 a 4 porty SATA 6Gb/s 1x M.2_1 (Key M), typ 2242/2260/2280 (podporuje režim PCIe 4.0 x4) 1x M.2_2 (Key M), typ 2242/2260/2280/22110 (podporuje režim PCIe 4.0 x4) 1x M.2_3 (Key M), typ 2242/2260/2280 (podporuje režim PCIe 4.0 x2) 4x port SATA 6Gb/s USB: Zadní USB (celkem 6 portů) 1x USB 3.2 Gen 2x2 (1x USB typ-C®) 2x USB 3.2 Gen 2 (2x typ-A) 1x USB 3.2 Gen 1 (1x typ-A) 2x USB 2.0 (2x typ-A) Přední USB (celkem 7 portů) 1x USB 3.2 Gen 1 konektor - podpora USB-C® 1x USB 3.2 Gen 1 header - podpora dalších 2 portů USB 3.2 Gen 1 2x USB 2.0 header - podpora dalších 4 portů USB 2.0 Porty na zadním panelu: 1x USB 3.2 Gen 2x2 (1x USB typ-C®) 2x USB 3.2 Gen 2 (2x typ-A) 1x USB 3.2 Gen 1 (1x typ-A) 2x USB 2.0 (2x typ-A) 1x DisplayPort 1x VGA 1x HDMI® 1x slot M.2 (Key E) 1x Realtek 2,5Gb Ethernet 3x audio jack Interní porty: Související s ventilátorem a chlazením 1x 4-pin CPU Fan header 1x 4-pin AIO Pump header 3x 4-pin Chassis Fan headers Napájení 1x 24-pin hlavní napájecí konektor 1x 8-pin +12V napájecí konektor Související s úložištěm 3x M.2 slot (Key M) 4x SATA 6Gb/s port USB 1x USB 3.2 Gen 1 konektor - podpora USB-C® 1x USB 3.2 Gen 1 header - podpora dalších 2 portů USB 3.2 Gen 1 2x USB 2.0 header - podpora dalších 4 portů USB 2.0 Ostatní 3x adresovatelný Gen 2 header 1x Aura RGB header 1x Clear CMOS header 1x COM Port header 1x Front Panel Audio header (AAFP) 1x S/PDIF Out header 1x SPI TPM header (14-1pin) 1x 20-3 pin System Panel header s funkcí Chassis intrude 1x Thunderbolt™ (USB4®) header BIOS: 128Mb Flash ROM, UEFI AMI BIOS Rozměry: 305x244x36mm Hmotnost: 720g Příslušenství: 2x SATA 6Gb/s kabel 1x I/O záslepka 1x balení M.2 podložek 2x balení šroubků pro M.2 SSD 1x uživatelská příručka
