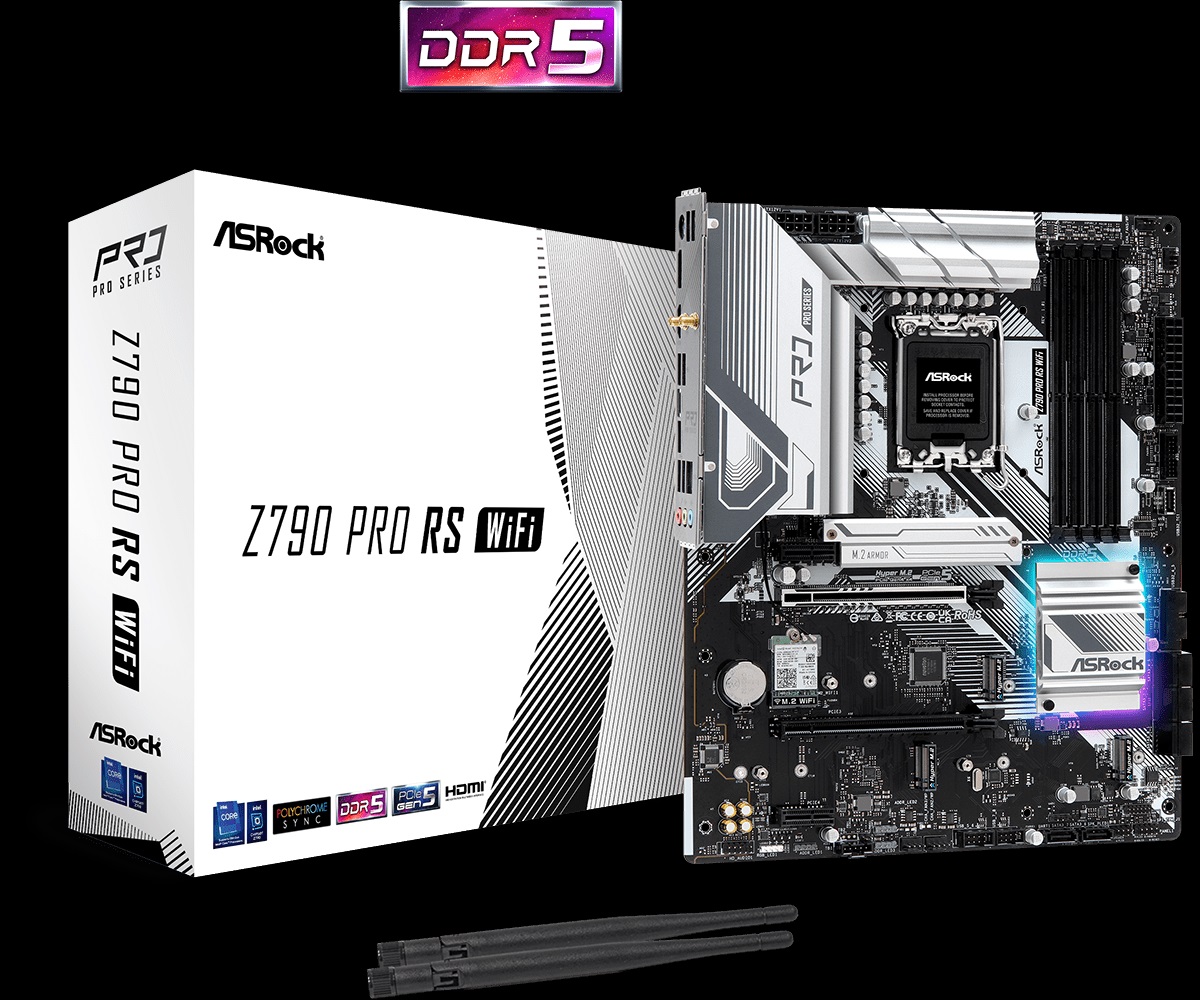

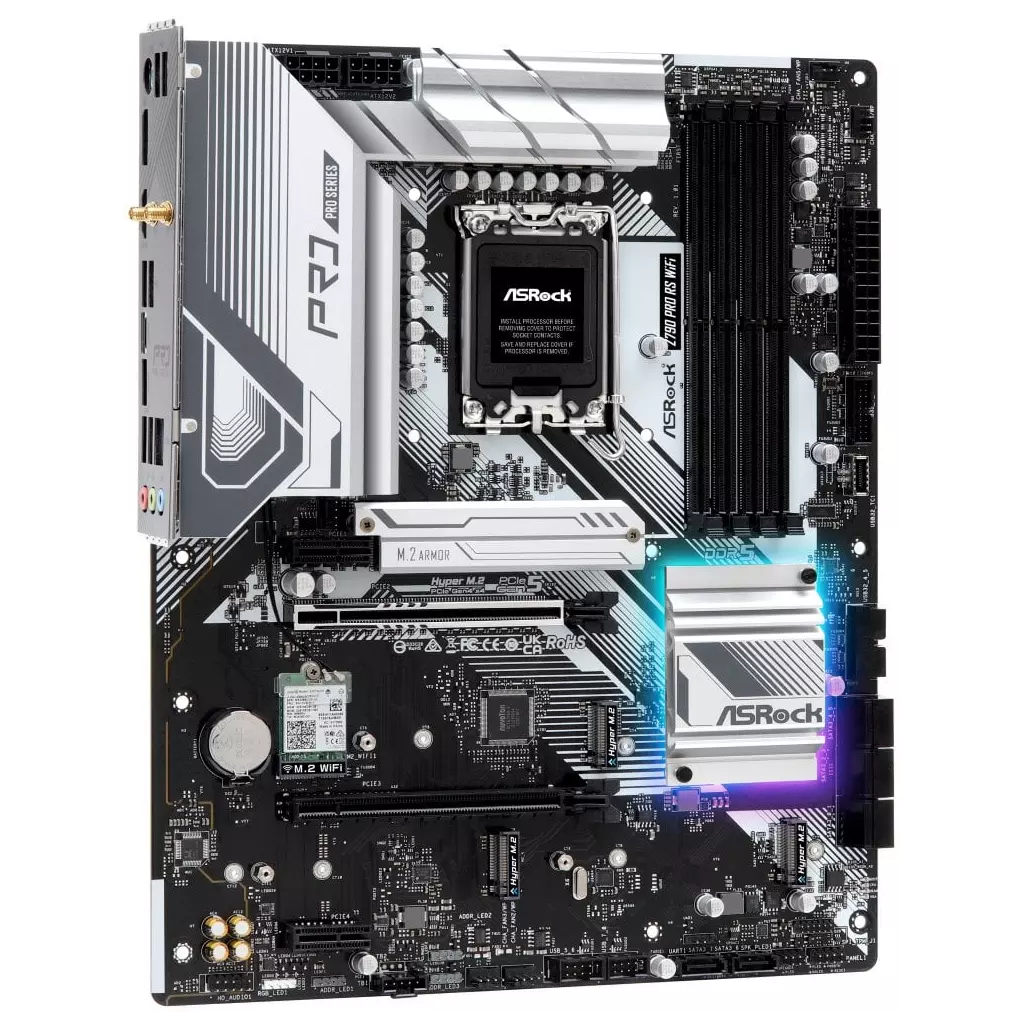

Z790 Pro RS WiFi

• Supports 13th Gen & 12th Gen Intel Core™ Processors
• 14+1+1 Phase Power Design, Dr.MOS for VCore+GT
• 4 x DDR5 DIMMs, supports up to 7200+(OC)
• 1 PCIe 5.0 x16, 1 PCIe 4.0 x16, 2 PCIe 3.0 x1
• Graphics Output Options: 1 HDMI, 1 DisplayPort, eDP
• 7.1 CH HD Audio (Realtek ALC897 Audio Codec), Nahimic Audio
• 4 Hyper M.2 (PCIe Gen4x4), 8 SATA3
• 1 USB 3.2 Gen2x2 Type-C (Front), 1 USB 3.2 Gen2 Type-C (Rear), 1 USB 3.2 Gen2 Type-A (Rear), 6 USB 3.2 Gen1 (2 Rear, 4 Front), 8 USB 2.0 (4 Rear, 4 Front)
• Realtek 2.5G LAN
• 802.11ax Wi-Fi 6E + Bluetooth

Unique Feature

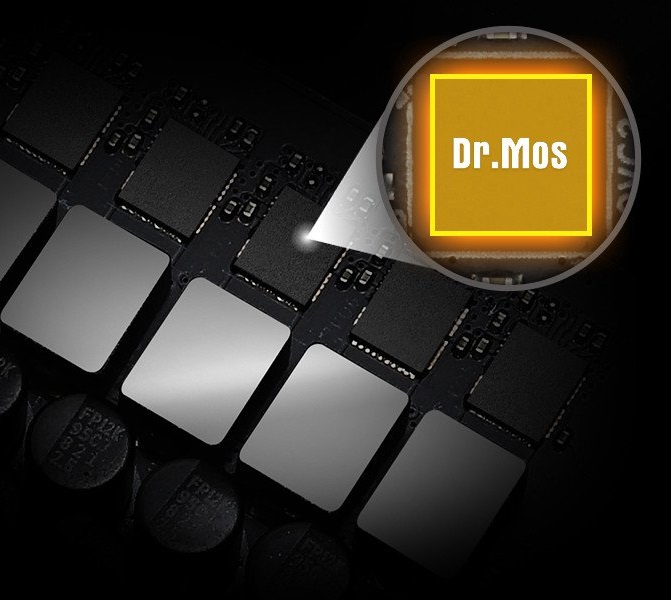

Superb Productivity - PCIe Gen5 (Graphics) - Dual Channel DDR5 Rock-Solid Durability - 14+1+1 Power Phase, 50A Dr.MOS for VCore+GT with Enlarged Heatsink Armor - Flexible Integrated I/O Shield Ultrafast Connectivity - 2.5G LAN, 802.11ax Wi-Fi 6E Module EZ Update - ASRock Auto Driver Installer EZ Troubleshooter - ASRock Post Status Checker

CPU

- Supports 13th Gen & 12th Gen Intel Core™ Processors (LGA1700) - Supports Intel Hybrid Technology - Supports Intel Turbo Boost Max 3.0 Technology - Supports Intel Thermal Velocity Boost (TVB) - Supports Intel Adaptive Boost Technology (ABT)

Chipset

- Intel Z790

Memory

- Dual Channel DDR5 Memory Technology - 4 x DDR5 DIMM Slots - Supports DDR5 non-ECC, un-buffered memory up to 7200+(OC)* - Max. capacity of system memory: 128GB - Supports Intel Extreme Memory Profile (XMP) 3.0

*1DPC 1R Up to 7200+ MHz (OC), 4800 MHz Natively. 1DPC 2R Up to 6000+ MHz (OC), 4400 MHz Natively. 2DPC 1R Up to 5600+ MHz (OC), 4000 MHz Natively. 2DPC 2R Up to 4800+ MHz (OC), 3600 MHz Natively.

BIOS

- 128Mb AMI UEFI Legal BIOS with GUI support

Graphics

- Intel Xe Graphics Architecture (Gen 12)* - 1 x eDP 1.4, supports max. resolution up to Full HD 60Hz - 1 x HDMI 2.1 TMDS Compatible, supports HDCP 2.3 and max. resolution up to 4K 60Hz - 1 x DisplayPort 1.4 with DSC (compressed), supports HDCP 2.3 and max. resolution up to 8K 60Hz / 5K 120Hz

*Intel UHD Graphics Built-in Visuals and the VGA outputs can be supported only with processors which are GPU integrated.

Audio

- 7.1 CH HD Audio (Realtek ALC897 Audio Codec) - Nahimic Audio

LAN

- 2.5 Gigabit LAN 10/100/1000/2500 Mb/s - Dragon RTL8125BG - Supports Dragon 2.5G LAN Software - Smart Auto Adjust Bandwidth Control - Visual User Friendly UI - Visual Network Usage Statistics - Optimized Default Setting for Game, Browser, and Streaming Modes - User Customized Priority Control Wireless LAN - 802.11ax Wi-Fi 6E Module - Supports IEEE 802.11a/b/g/n/ac/ax - Supports Dual-Band 2x2 with extended 6GHz band* support - 2 antennas to support 2 (Transmit) x 2 (Receive) diversity technology - Supports Bluetooth + High speed class II - Supports MU-MIMO

*Wi-Fi 6E (6GHz band) will be supported by Microsoft Windows 11. The availability will depend on the different regulation status of each country and region. It will be activated (for supported countries) through Windows Update and software updates once available. A 6GHz compatible router is required for 6E functionality.

Slots

CPU: - 1 x PCIe 5.0 x16 Slot (PCIE2), supports x16 mode* Chipset: - 1 x PCIe 4.0 x16 Slot (PCIE3), supports x4 mode* - 2 x PCIe 3.0 x1 Slots (PCIE1 and PCIE4)* - 1 x M.2 Socket (Key E), supports type 2230 WiFi/BT PCIe WiFi module and Intel CNVio/CNVio2 (Integrated WiFi/BT)* - Supports AMD CrossFire™

*Supports NVMe SSD as boot disks

Storage

CPU: - 1 x Hyper M.2 Socket (M2_1, Key M), supports type 2260/2280 PCIe Gen4x4 (64 Gb/s) mode* Chipset: - 1 x Hyper M.2 Socket (M2_2, Key M), supports type 2260/2280 PCIe Gen4x4 (64 Gb/s) mode* - 1 x Hyper M.2 Socket (M2_3, Key M), supports type 2260/2280 PCIe Gen4x4 (64 Gb/s) mode* - 1 x Hyper M.2 Socket (M2_4, Key M), supports type 2260/2280 PCIe Gen4x4 (64 Gb/s) mode* - 8 x SATA3 6.0 Gb/s Connectors

*Supports Intel Volume Management Device (VMD) Supports NVMe SSD as boot disks

RAID

- Supports RAID 0, RAID 1, RAID 5 and RAID 10 for SATA storage devices - Supports RAID 0, RAID 1 and RAID 5 for M.2 NVMe storage devices

USB

- 1 x USB 3.2 Gen2x2 Type-C (Front) - 1 x USB 3.2 Gen2 Type-C (Rear) - 1 x USB 3.2 Gen2 Type-A (Rear) - 6 x USB 3.2 Gen1 (2 Rear, 4 Front) - 8 x USB 2.0 (4 Rear, 4 Front) * All USB ports support ESD Protection

Connector

- 1 x eDP Signal Connector - 1 x SPI TPM Header - 1 x Power LED and Speaker Header - 1 x RGB LED Header* - 3 x Addressable LED Headers** - 1 x CPU Fan Connector (4-pin)*** - 1 x CPU/Water Pump Fan Connector (4-pin) (Smart Fan Speed Control)**** - 5 x Chassis/Water Pump Fan Connectors (4-pin) (Smart Fan Speed Control)***** - 1 x 24 pin ATX Power Connector - 2 x 8 pin 12V Power Connectors (Hi-Density Power Connector) - 1 x Front Panel Audio Connector - 1 x Thunderbolt™ AIC Connector (5-pin) (Supports ASRock Thunderbolt™ 4 AIC Card) - 2 x USB 2.0 Headers (Support 4 USB 2.0 ports) - 2 x USB 3.2 Gen1 Headers (Support 4 USB 3.2 Gen1 ports) - 1 x Front Panel Type C USB 3.2 Gen2x2 Header (20 Gb/s)

*Supports in total up to 12V/3A, 36W LED Strip

**Support in total up to 5V/3A, 15W LED Strip

***CPU_FAN1 supports the fan power up to 1A (12W).

****CPU_FAN2/WP supports the fan power up to 2A (24W).

*****CHA_FAN1~5/WP support the fan power up to 2A (24W). CPU_FAN2/WP and CHA_FAN1~5/WP can auto detect if 3-pin or 4-pin fan is in use.

Rear Panel I/O

- 2 x Antenna Ports - 1 x PS/2 Mouse/Keyboard Port - 1 x HDMI Port - 1 x DisplayPort 1.4 - 1 x USB 3.2 Gen2 Type-A Port (10 Gb/s) - 1 x USB 3.2 Gen2 Type-C Port (10 Gb/s) - 2 x USB 3.2 Gen1 Ports - 4 x USB 2.0 Ports - 1 x RJ-45 LAN Port - HD Audio Jacks: Line in / Front Speaker / Microphone

Software and UEFI

Software - ASRock Motherboard Utility (A-Tuning) - ASRock Dragon 2.5G LAN Software - ASRock Polychrome SYNC* UEFI - ASRock EZ Mode - ASRock Full HD UEFI - ASRock My Favorites in UEFI - ASRock Auto Driver Installer - ASRock Instant Flash - ASRock Easy RAID Installer

*These utilities can be downloaded from ASRock Live Update & APP Shop.

Accessories

- 1 x User Manual - 2 x SATA Data Cables - 2 x ASRock WiFi 2.4/5/6 GHz Antennas - 4 x Screws for M.2 Sockets - 1 x Standoff for M.2 Socket

Form Factor

- ATX Form Factor: 12.0-in x 9.6-in, 30.5 cm x 24.4 cm - 2oz Copper PCB

OS

- Microsoft Windows 10 64-bit / 11 64-bit

*Windows 10 only supports version 21H2 or later

Certifications

- FCC, CE - ErP/EuP ready (ErP/EuP ready power supply is required)

ASRock Z790 Pro RS WiFi

Deska je vybavena grafickými výstupy pro použití s procesory s integrovaným grafickým jádrem. Základní deska grafickou kartu neobsahuje a bez použití odpovídajícího procesoru, budou tyto výstupy nefunkční.

CPU Podpora procesorů 12. a 13. generace Intel Core/ Pentium/ Celeron (patice LGA1700)

Čipová sada Intel Z790

Paměť 4× DDR5 paměťový slot, podpora až 192 GB Podpora DDR5 až 7 200+ (OC) MHz Dvoukanálová architektura paměti Podpora non-ECC, bez vyrovnávací paměti Podpora Intel Extreme Memory Profile (XMP) 3.0

Sloty Intel CPU 1× PCIe 5.0 x16 slot Intel Z790 čipová sada 1× PCIe 4.0 x16 slot (podporuje x4 režim) 1× PCIe 3.0 x1 slot

Grafika 1× eDP port, podporující max. rozlišení Full HD při 60 Hz 1× HDMI port, podporující max. rozlišení 4K při 60 Hz 1× DisplayPort port, podporující max. rozlišení 8K při 60 Hz, 5K při 120 Hz

Multi-GPU Podpora AMD CrossFire technologie

Úložiště Intel CPU 1× Hyper M.2 slot, M Key, pro jednotky typu 2260/2280 (PCIe 4.0 x4 režim) Intel Z790 čipová sada 3× Hyper M.2 slot, M Key, pro jednotky typu 2260/2280 (PCIe 4.0 x4 režim) 8× SATA 6 Gb/s port Podpora Intel Volume Management Device (VMD) Podpora RAID 0, RAID 1, RAID 5 a RAID 10 pro SATA jednotky Podpora RAID 0, RAID 1 a RAID 5 pro M.2 NVMe jednotky

USB 1× USB-C 3.2 Gen2x2 port dostupný přes interní USB konektor 1× USB-C 3.2 Gen2 (USB 3.1) port na zadním panelu 1× USB 3.2 Gen2 (USB 3.1) port na zadním panelu 6× USB 3.2 Gen1 (USB 3.0) port (2 porty na zadním panelu, 4 porty dostupné přes interní USB konektory) 8× USB 2.0 port (4 porty na zadním panelu, 4 porty dostupné přes interní USB konektory)

Audio Realtek ALC897 Codec 7.1kanálové High Definition Audio Nahimic Audio

LAN 1× Dragon RTL8125BG 2,5Gigabit LAN řadič

WLAN/ Bluetooth Wi-Fi 6E modul Wi-Fi 802.11a/b/g/n/ac/ax Dual Band 2x2 (2,4 GHz, 5 GHz) + 6 GHz Podpora MU-MIMO Bluetooth

Interní konektory 1× eDP konektor 1× konektor SPI TPM 1× konektor reproduktoru a Power LED 1× konektor RGB LED pásku 3× konektor adresovatelného LED pásku 1× 4pin konektor ventilátoru CPU 1× 4pin konektor ventilátoru CPU/ ventilátoru vodního chlazení 5× 4pin konektor ventilátoru skříně/ ventilátoru vodního chlazení 1× 24pin ATX hlavní napájecí konektor 2× 8pin 12V napájecí konektor 1× audio konektor předního panelu 1× 5pin konektor Thunderbolt AIC (podporuje ASRock Thunderbolt 4 AIC) 2× USB 2.0 konektor (podporuje 4× USB 2.0 port) 2× USB 3.2 Gen1 (USB 3.0) konektor (podporuje 4× USB 3.2 Gen1 port) 1× USB-C 3.2 Gen2x2 konektor předního panelu 8× SATA 6 Gb/s konektor 4× Hyper M.2 slot, M Key

Porty na zadním panelu 2× konektor Wi-Fi antény 1× PS/2 combo port klávesnice a myši 1× HDMI 1× DisplayPort 1× USB-C 3.2 Gen2 (USB 3.1) 1× USB 3.2 Gen2 (USB 3.1) 2× USB 3.2 Gen1 (USB 3.0) 4× USB 2.0 1× RJ-45 3× audio jack

Rozměry 30,5 × 24,4 cm ATX formát
