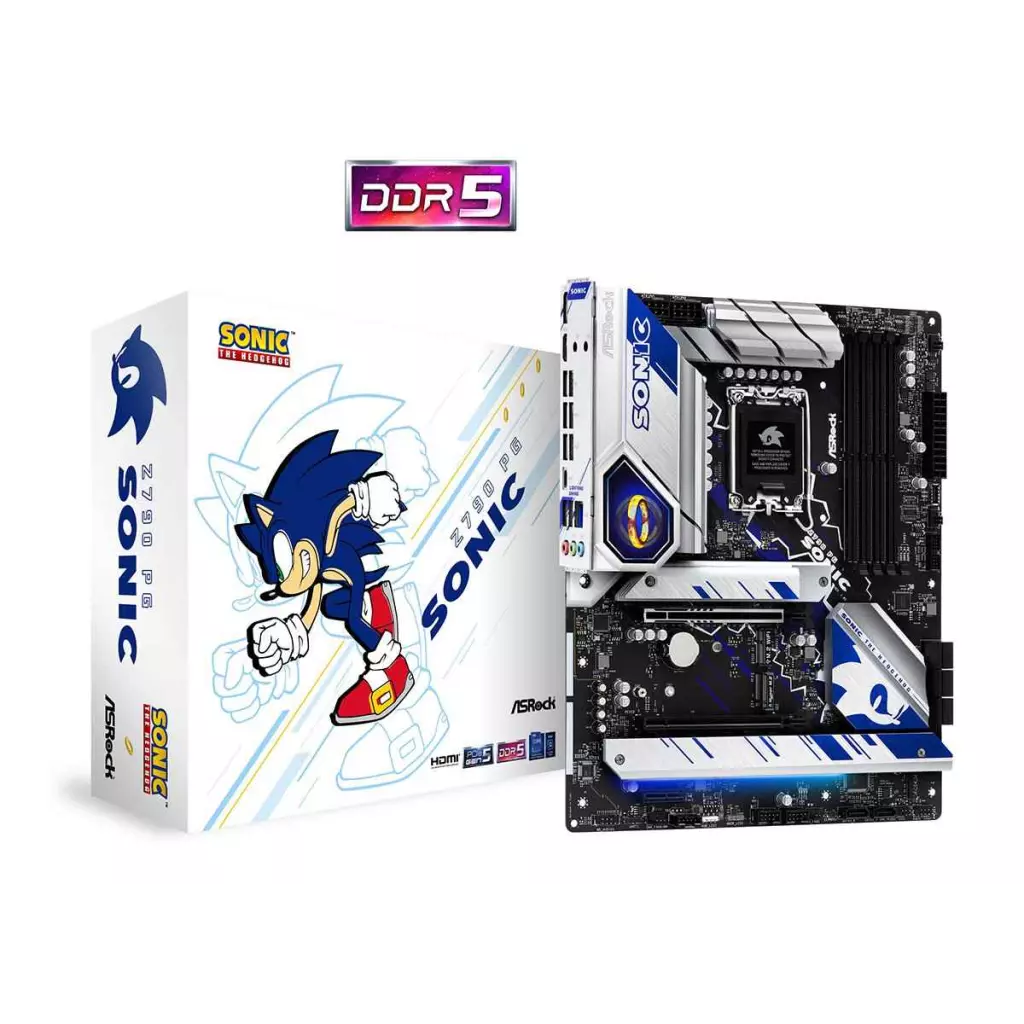

ASROCK Z790 PG SONIC (intel 1700 12+13+14gen, 4xDDR5 7200MHz, PCIe 5.0 x16, HDMI, PCIe Gen5x4, 1x2.5GLAN, EATX)
Stav zboží:
Nové
Dostupnost:
skladem
Datum odeslání:
Expedujeme 30.9.
Výrobce:
ASROCK
Kód zboží:
5548651
Číslo zboží (PN):
Z790 PG SONIC
EAN:
4710483941009
Záruka koncový zákazník:
36 měsíců
Záruka při koupi na IČO:
36 měsíců
Cena bez DPH: *
5438 Kč
Cena vč. DPH: *
6580 Kč
* - cena uvedena vč. recyklačních a autorských poplatků.
Popis produktu:
ASRock Z790 PG SONIC
Deska je vybavena grafickými výstupy pro použití s procesory s integrovaným grafickým jádrem. Základní deska grafickou kartu neobsahuje a bez použití odpovídajícího procesoru, budou tyto výstupy nefunkční.
CPU
Podpora procesorů 13. a 12. generace Intel Core/ Pentium Gold/ Celeron
Patice LGA1700
Čipová sada
Intel Z790
Paměť
4x DDR5 paměťový slot, podpora až 192 GB
Podpora DDR5 až 7200+ (OC) MHz
Dvoukanálová architektura paměti
Podpora non-ECC, bez vyrovnávací paměti
Podpora Intel Extreme Memory Profile (XMP) 3.0
Sloty
Intel CPU
1x PCIe 5.0 x16 slot
Intel Z790 čipová sada
1x PCIe 4.0 x16 slot (podporuje x4 režim)
1x PCIe 3.0 x1 slot
Grafika
1x HDMI port, podporující max. rozlišení 4K při 60 Hz
1x DisplayPort port, podporující max. rozlišení 8K při 60 Hz, 5K při 120 Hz
Multi-GPU
Podpora AMD CrossFire technologie
Úložiště
Intel CPU
1x Blazing M.2 slot, M Key, pro jednotky typu 2280 (PCIe 5.0 x4 režim)
1x Hyper M.2 slot, M Key, pro jednotky typu 2280 (PCIe 4.0 x4 režim)
Intel Z790 čipová sada
3x Hyper M.2 slot, M Key, pro jednotky typu 2260/2280 (PCIe 4.0 x4 režim)
8x SATA 6Gb/s port
Podpora Intel Volume Management Device (VMD)
Podpora RAID 0, RAID 1, RAID 5 a RAID 10 pro SATA jednotky
Podpora RAID 0, RAID 1 a RAID 5 pro M.2 NVMe jednotky
USB
1x USB 3.2 Gen2x2 typ C port dostupný přes interní USB konektor
2x USB 3.2 Gen2 typ A port na zadním panelu
1x USB 3.2 Gen1 typ C port na zadním panelu
6x USB 3.2 Gen1 (USB 3.0) port (4 porty na zadním panelu, 2 porty dostupné přes interní USB konektor)
6x USB 2.0 port (2 porty na zadním panelu, 4 porty dostupné přes interní USB konektory)
Audio
Realtek ALC897 Codec
7.1kanálové High Definition Audio
LAN
1x Killer E3100G 2,5Gigabit LAN řadič
Interní konektory
1x konektor SPI TPM
1x konektor reproduktoru a Power LED
1x konektor RGB LED pásku
3x konektor adresovatelného LED pásku
1x 4-pin konektor ventilátoru CPU
1x 4-pin konektor ventilátoru CPU/ ventilátoru vodního chlazení CPU
1x 4-pin konektor ventilátoru skříně
4x 4-pin konektor ventilátoru skříně/ ventilátoru vodního chlazení CPU
1x 24-pin ATX hlavní napájecí konektor
2x 8-pin 12V napájecí konektor
8x SATA 6Gb/s konektor
5x M.2 slot, M Key
1x M.2 slot, E key pro Wi-Fi a Intel CNVio/ CNVio2 modul (není součástí)
1x audio konektor předního panelu
1x 5-pin konektor Thunderbolt AIC (podporuje ASRock Thunderbolt 4 AIC)
2x USB 2.0 konektor (podporuje 4x USB 2.0 port)
1x USB 3.2 Gen1 (USB 3.0) konektor (podporuje 2x USB 3.2 Gen1 port)
1x USB 3.2 Gen2x2 typ C konektor předního panelu
Porty na zadním panelu
1x HDMI
1x DisplayPort
2x USB 3.2 Gen2 (USB 3.1 Gen2) typ A
1x USB 3.2 Gen1 (USB 3.0) typ C
4x USB 3.2 Gen1 (USB 3.0)
2x USB 2.0
1x RJ-45
3x audio jack
Rozměry
30,5 x 24,4 cm
ATX formát
