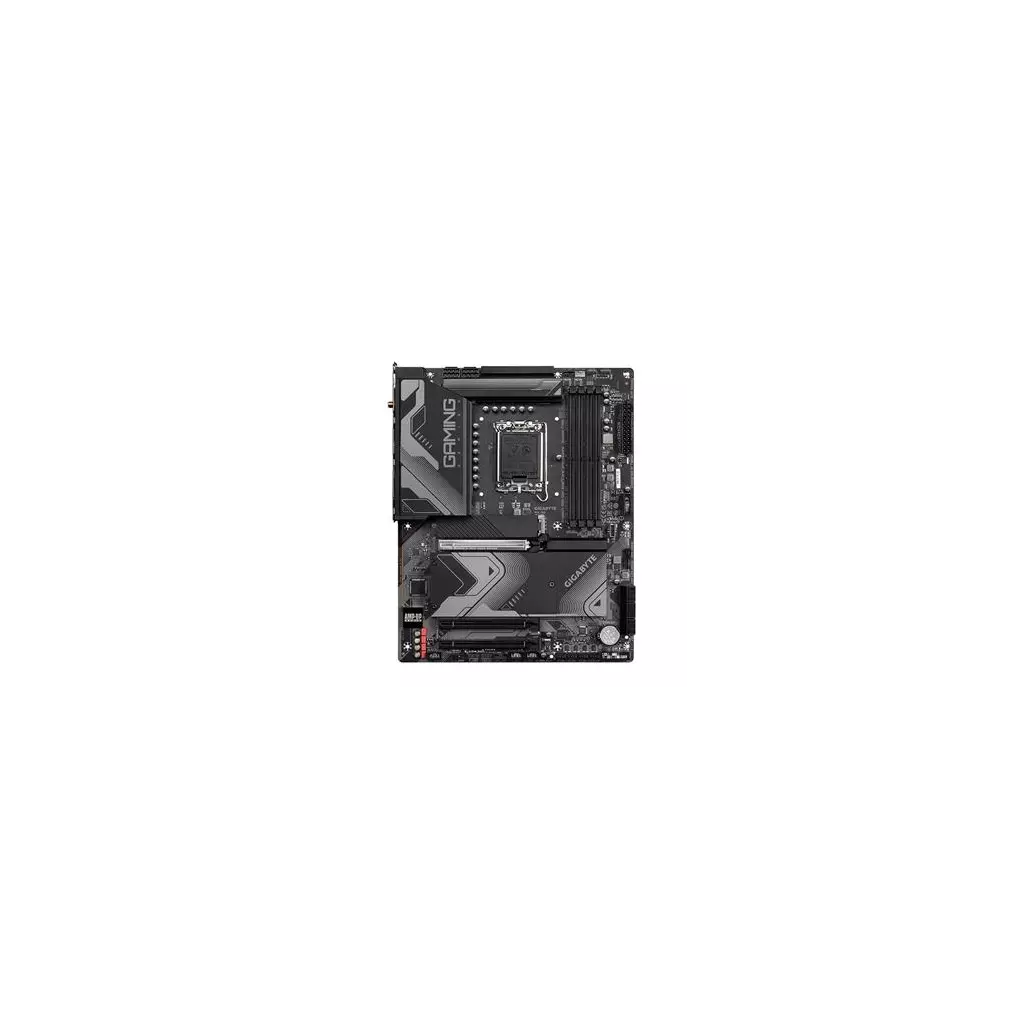

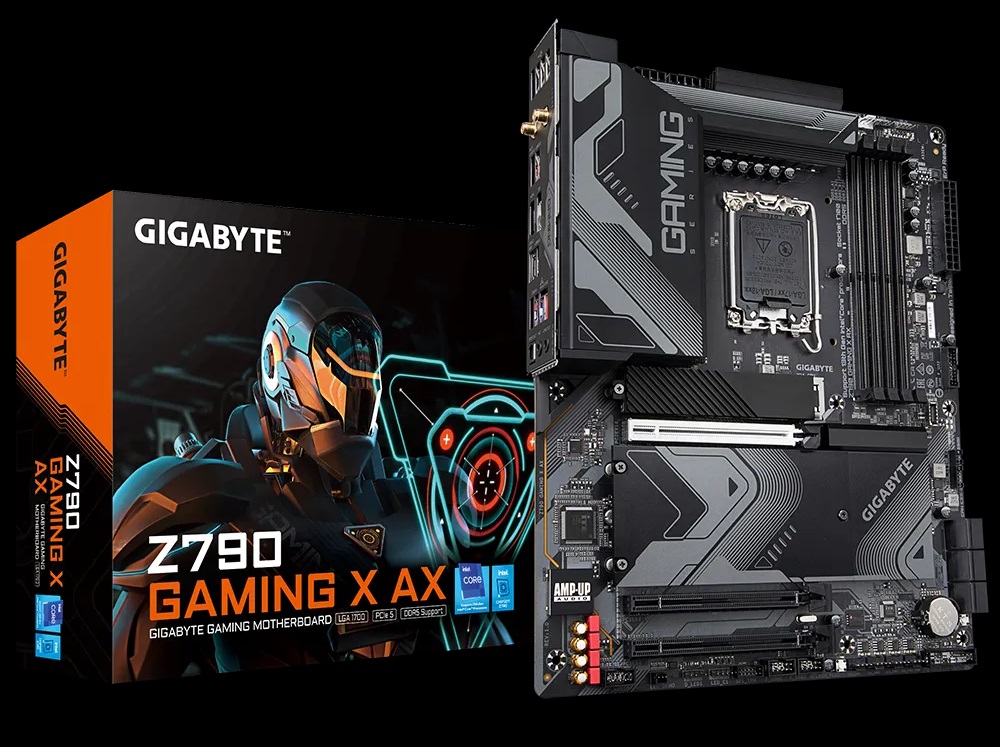

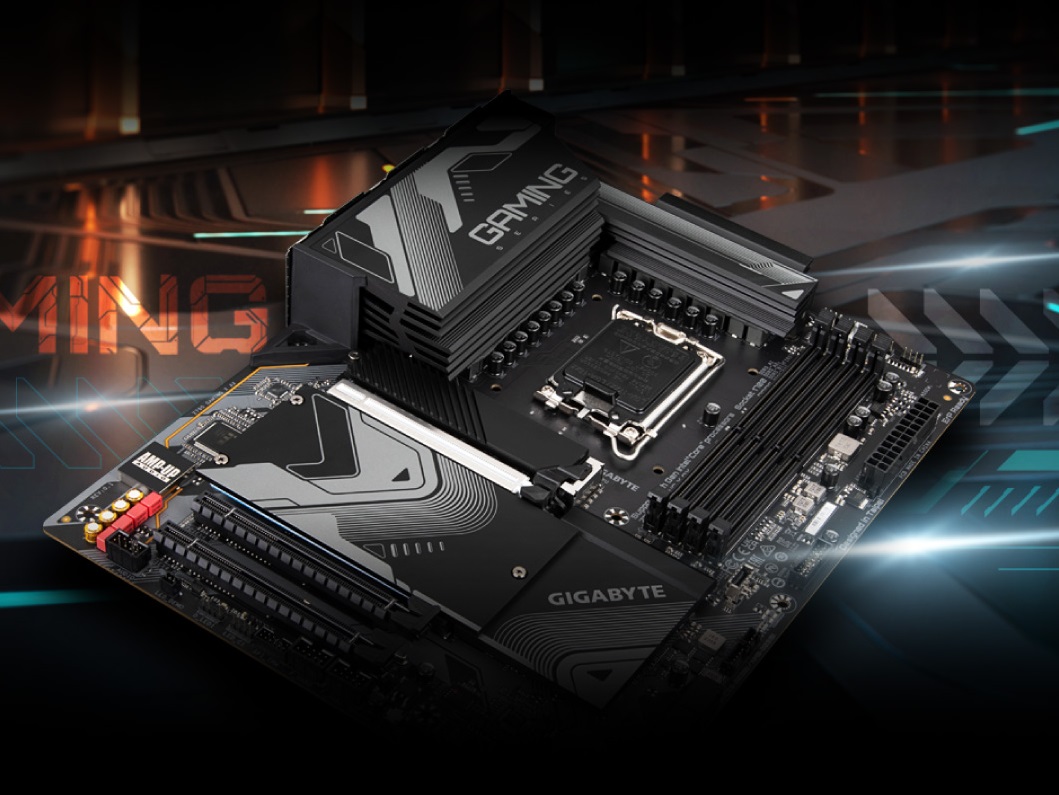

GIGABYTE Z790 GAMING X AX/LGA 1700/ATX
Popis produktu:
Deska je vybavena grafickými výstupy pro použití s procesory s integrovaným grafickým jádrem. Základní deska grafickou kartu neobsahuje a bez použití odpovídajícího procesoru, budou tyto výstupy nefunkční.
CPU Podpora procesorů 13. a 12. generace Intel Core/ Pentium Gold/ Celeron Patice LGA1700
Čipová sada Intel Z790
Paměť 4x DDR5 paměťový slot, podpora až 192 GB Podpora DDR5 7600 (OC)/ 7400 (OC)/ 7200 (OC)/ 7000 (OC)/ 6800 (OC)/ 6600 (OC)/ 6400 (OC)/ 6200 (OC)/ 6000 (OC)/ 5800 (OC)/ 5600 (OC)/ 5400 (OC)/ 5200 (OC)/ 4800/ 4000 MHz Dvoukanálová architektura paměti Podpora non-ECC, bez vyrovnávací paměti, 1Rx8/2Rx8/1Rx16 Podpora ECC pamětí (non-ECC režim), 1Rx8/2Rx8 Podpora Intel Extreme Memory Profile (XMP)
Sloty Intel CPU 1x PCIe 5.0 x16 slot Intel Z790 čipová sada 1x PCIe 4.0 x16 slot (podporuje x4 režim) 1x PCIe 3.0 x16 slot (podporuje x4 režim)
Grafika 1x HDMI port, podporující max. rozlišení 4096 x 2160 při 60 Hz 1x DisplayPort port, podporující max. rozlišení 4096 x 2304 při 60 Hz
Úložiště Intel CPU 1x M.2 slot, M Key, pro jednotky typu 2280/22110 (PCIe 4.0 x4/x2 režim) Intel Z790 čipová sada 2x M.2 slot, M Key, pro jednotky typu 2280/22110 (PCIe 4.0 x4/x2 režim) 1x M.2 slot, M Key, pro jednotky typu 2280/22110 (SATA a PCIe 4.0 x4/x2 režim) 6x SATA 6Gb/s port Podpora RAID 0, RAID 1, RAID 5 a RAID 10 pro SATA i NVMe SSD
USB 1x USB 3.2 Gen2x2 typ C port na zadním panelu 1x USB 3.2 Gen2 typ C port dostupný přes interní USB konektor 2x USB 3.2 Gen2 typ A port na zadním panelu 5x USB 3.2 Gen1 (USB 3.0) port (3 porty na zadním panelu, 2 porty dostupné přes interní USB konektor) 8x USB 2.0 port (4 porty na zadním panelu, 4 porty dostupné přes interní USB konektory)
Audio Realtek Codec 2/4/5.1/7.1kanálové High Definition Audio Podpora S/PDIF výstupu
LAN 1x Realtek 2,5Gigabit LAN řadič
WLAN/ Bluetooth Intel Wi-Fi 6E AX211 Wi-Fi 802.11a/b/g/n/ac/ax Triple Band (2,4 GHz, 5 GHz, 6 GHz) Rychlost přenosu dat až 2,4 Gbps Bluetooth 5.3
Interní konektory 1x 24-pin ATX hlavní napájecí konektor 2x 8-pin ATX 12V napájecí konektor 1x konektor ventilátoru CPU 1x konektor ventilátoru vodního chlazení CPU 3x konektor systémového ventilátoru 1x konektor systémového ventilátoru/ pumpy vodního chlazení 2x konektor adresovatelného LED pásku 2x konektor RGB LED pásku 4x M.2 slot, M Key 6x SATA 6Gb/s konektor 1x konektor předního panelu 1x audio konektor předního panelu 1x USB 3.2 Gen2 typ C konektor 1x USB 3.2 Gen1 (USB 3.0) konektor (podporuje 2x USB 3.2 Gen1 port) 2x USB 2.0 konektor (podporuje 4x USB 2.0 port) 2x konektor Thunderbolt AIC 1x TPM konektor (podporuje pouze moduly GC-TPM2.0 SPI a GC-TPM2.0 SPI 2.0) 1x tlačítko Q-Flash Plus 1x tlačítko Reset 1x propojka Reset 1x propojka Clear CMOS
Porty na zadním panelu 4x USB 2.0 2x konektor Wi-Fi antény 2x USB 3.2 Gen2 (USB 3.1 Gen2) 1x DisplayPort 1x HDMI 3x USB 3.2 Gen1 (USB 3.0) 1x USB 3.2 Gen2x2 typ C 1x RJ-45 1x optický S/PDIF výstup 2x audio jack
Rozměry 30,5 x 24,4 cm ATX formát
Z790 GAMING X AX
- Supports Intel Core™ 14th/ 13th /12th processors
- Unparalleled Performance:Twin 16*+2+1 Phases Digital VRM Solution
- Dual Channel DDR5:4*DIMMs with XMP 3.0 Memory Module Support

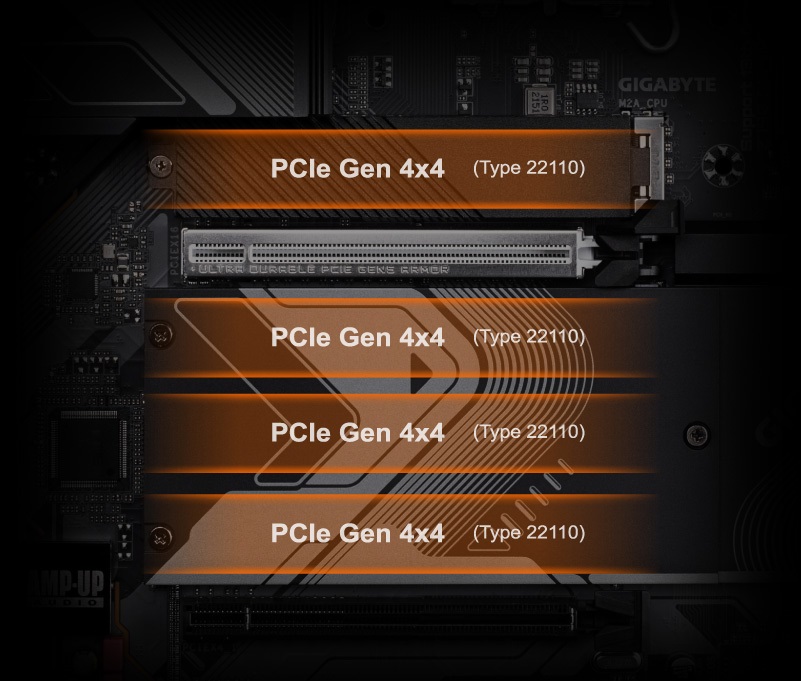

- Next Generation Storage:4*PCIe 4.0 x4 M.2 Connectors
- Advanced Thermal Design & M.2 Thermal Guard: To Ensure VRM Power Stability & M.2 SSD Performance
- EZ-Latch Plus:M.2 Connectors with Quick Release & Screwless Design

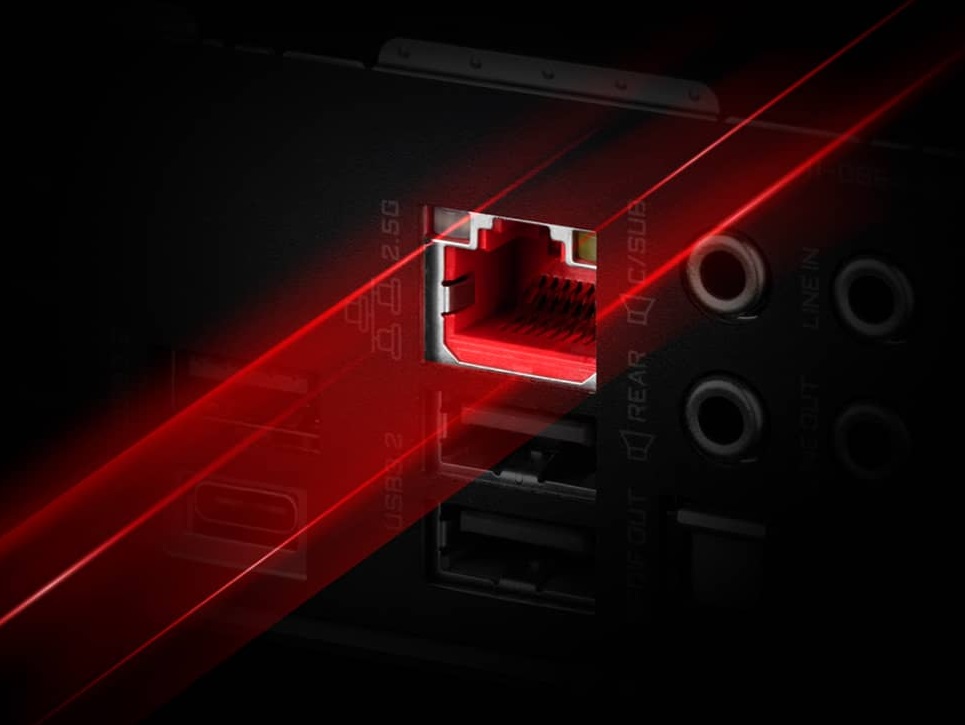

- Fast Networks:2.5GbE LAN & Wi-Fi 6E 802.11ax
- Extended Connectivity:DP, HDMI, Front USB-C 10Gb/s, Rear USB-C 20Gb/s
- Smart Fan 6:Features Multiple Temperature Sensors, Hybrid Fan Headers with FAN STOP
- Q-Flash Plus:Update BIOS Without Installing the CPU, Memory and Graphics Card
- * 8+8 phases parallel power design
CPU
LGA1700 socket: Support for the 14th, 13th, and 12th Generation Intel Core™, Pentium Gold and Celeron Processors
L3 cache varies with CPU (Please refer "CPU Support List" for more information.)
Chipset
Intel Z790 Express Chipset
Memory
14th and 13th Generation Intel Core™ i9/i7 Processors: -Support for DDR5 7600(O.C.) /7400(O.C.) /7200(O.C.) /7000(O.C.) /6800(O.C.) /6600(O.C.) / 6400(O.C.) / 6200(O.C.) / 6000(O.C.) / 5800(O.C.) / 5600 / 5400 / 5200/ 4800/4400 MT/s memory modules 13th Generation Intel Core™ i5/i3 and 12th Generation Intel Core™, Pentium Gold and Celeron Processors: - Support for DDR5 4800/4400 MT/s memory modules 4 x DDR5 DIMM sockets supporting up to 192 GB (48 GB single DIMM capacity) of system memory Dual channel memory architecture Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules Support for Extreme Memory Profile (XMP) memory modules (Please refer "Memory Support List" for more information.)
Onboard Graphics
Integrated Graphics Processor-Intel HD Graphics support: 1 x HDMI port, supporting a maximum resolution of 4096x2160@60 Hz * Support for HDMI 2.0 version and HDCP 2.3. 1 x DisplayPort, supporting a maximum resolution of 4096x2304@60 * Support for DisplayPort 1.2 version and HDCP 2.3 (Graphics specifications may vary depending on CPU support.)
Audio
Realtek Audio CODEC High Definition Audio 2/4/5.1/7.1-channel * You can change the functionality of an audio jack using the audio software. To configure 7.1-channel audio, access the audio software for audio settings. Support for S/PDIF Out
LAN
Realtek 2.5GbE LAN chip (2.5 Gbps/1 Gbps/100 Mbps)
Wireless Communication module
Intel Wi-Fi 6E AX210 (For PCB rev. 2.0) WIFI a, b, g, n, ac, ax, supporting 2.4/5/6 GHz carrier frequency bands BLUETOOTH 5.3 Support for 11ax 160MHz wireless standard
Intel Wi-Fi 6E AX211 WIFI a, b, g, n, ac, ax, supporting 2.4/5/6 GHz carrier frequency bands BLUETOOTH 5.3 Support for 11ax 160MHz wireless standard.
Realtek Wi-Fi 6E RTL8852CE (For PCB rev. 2.2) WIFI a, b, g, n, ac, ax, supporting 2.4/5/6 GHz carrier frequency bands BLUETOOTH 5.3 Support for 11ax 160MHz wireless standard (Actual data rate may vary depending on environment and equipment.)
Expansion Slots
CPU: 1 x PCI Express x16 slot, supporting PCIe 5.0 and running at x16 (PCIEX16) * For optimum performance, if only one PCI Express graphics card is to be installed, be sure to install it in the PCIEX16 slot. Chipset: 2 x PCI Express x16 slots, supporting PCIe 4.0 and running at x4 (PCIEX4_1, PCIEX4_2) Support for AMD CrossFire™ technology (PCIEX16 and PCIEX4)
Storage Interface
CPU: 1 x M.2 connector (Socket 3, M key, type 22110/2280 PCIe 4.0 x4/x2 SSD support) (M2A_CPU) Chipset: 2 x M.2 connectors (Socket 3, M key, type 22110/2280 PCIe 4.0 x4/x2 SSD support) (M2P_SB, M2Q_SB) 1 x M.2 connector (Socket 3, M key, type 22110/2280 SATA and PCIe 4.0 x4/x2 SSD support) (M2M_SB) 6 x SATA 6Gb/s connectors * Refer to "2-8 Internal Connectors," for the installation notices for the M.2 and SATA connectors. RAID 0, RAID 1, RAID 5, and RAID 10 support for NVMe SSD storage devices RAID 0, RAID 1, RAID 5, and RAID 10 support for SATA storage devices
USB
Chipset: 1 x USB Type-C port on the back panel, with USB 3.2 Gen 2x2 support 1 x USB Type-C port with USB 3.2 Gen 2 support, available through the internal USB header 2 x USB 3.2 Gen 2 Type-A ports (red) on the back panel 5 x USB 3.2 Gen 1 ports (3 ports on the back panel, 2 ports available through the internal USB header) Chipset+2 USB 2.0 Hubs: 8 x USB 2.0/1.1 ports (4 ports on the back panel, 4 ports available through the internal USB headers)
Internal I/O Connectors
1 x 24-pin ATX main power connector 2 x 8-pin ATX 12V power connectors 1 x CPU fan header 1 x water cooling CPU fan header 3 x system fan headers 1 x system fan/water cooling pump header 2 x addressable LED strip headers 2 x RGB LED strip headers 4 x M.2 Socket 3 connectors 6 x SATA 6Gb/s connectors 1 x front panel header 1 x front panel audio header 1 x USB Type-C header, with USB 3.2 Gen 2 support 1 x USB 3.2 Gen 1 header 2 x USB 2.0/1.1 headers 2 x Thunderbolt™ add-in card connectors 1 x Trusted Platform Module header (For the GC-TPM2.0 SPI/GC-TPM2.0 SPI 2.0 module only) 1 x Q-Flash Plus button 1 x reset button 1 x reset jumper 1 x Clear CMOS jumper
Back Panel Connectors
4 x USB 2.0/1.1 ports 2 x SMA antenna connectors (2T2R) 2 x USB 3.2 Gen 2 Type-A ports (red) 1 x DisplayPort 1 x HDMI 2.0 port 3 x USB 3.2 Gen 1 ports 1 x USB Type-C port, with USB 3.2 Gen 2x2 support 1 x RJ-45 port 1 x optical S/PDIF Out connector 2 x audio jacks
I/O Controller
iTE I/O Controller Chip
H/W Monitoring
Voltage detection Temperature detection Fan speed detection Water cooling flow rate detection Fan fail warning Fan speed control * Whether the fan (pump) speed control function is supported will depend on the fan (pump) you install.
BIOS
1 x 256 Mbit flash Use of licensed AMI UEFI BIOS PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0
Unique Features
Support for GIGABYTE Control Center (GCC) * Available applications in GCC may vary by motherboard model. Supported functions of each application may also vary depending on motherboard specifications. Support for Q-Flash Support for Q-Flash Plus Support for Smart Backup
Bundled Software
Norton Internet Security (OEM version) LAN bandwidth management software
Operating System
Support for Windows 11 64-bit Support for Windows 10 64-bit
Form Factor
ATX Form Factor; 30.5cm x 24.4cm
