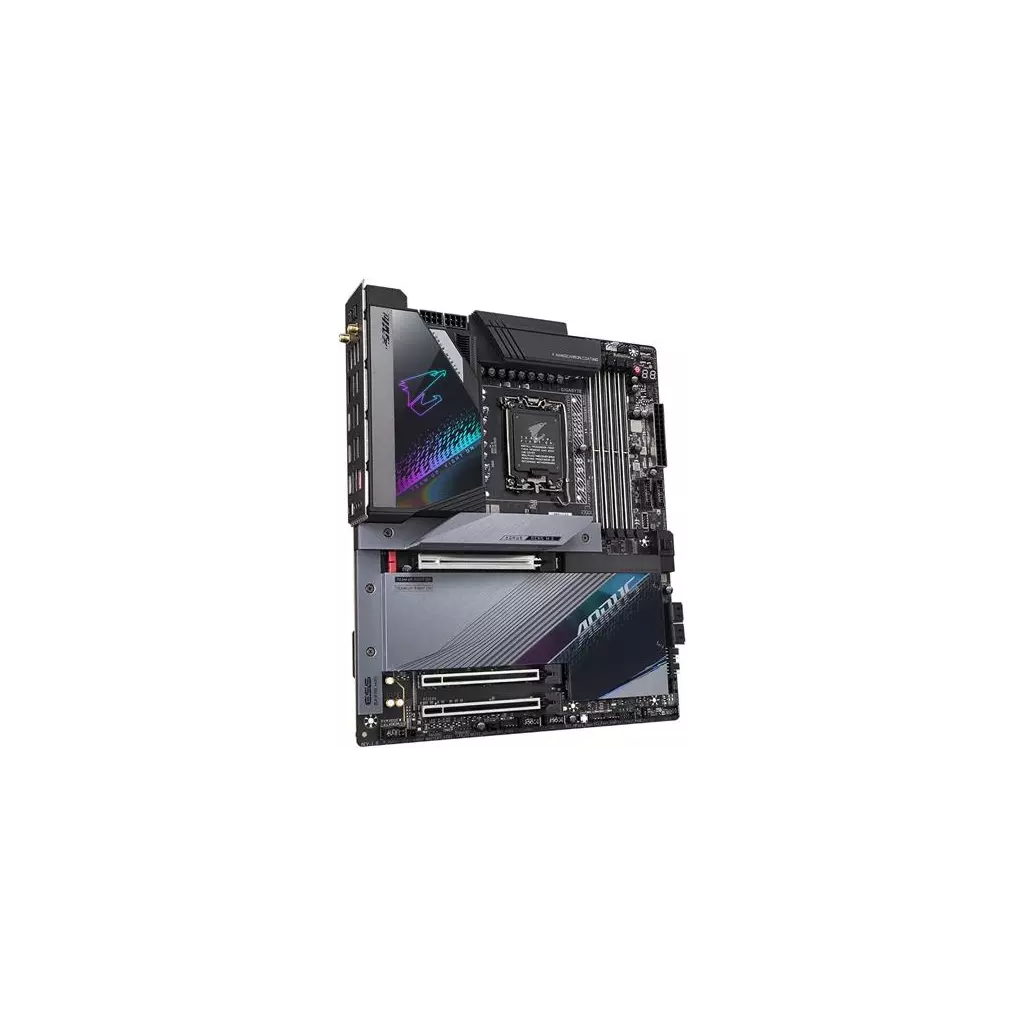

GIGABYTE Z790 AORUS MASTER/LGA 1700/E-ATX

Chipset: Intel Z790 Express Chipset Rozměrový formát: E-ATX Form Factor; (30.5cm x 26.0cm) Podpora pro procesory: 13th and 12th Generation Intel Core, Pentium Gold and Celeron Processors Patice procesoru: LGA 1700 Pozice na paměti: 4 x DDR5 DIMM sockets, Dual channel memory architecture Podpora pro paměti: DDR5 8000(O.C) / 7950(O.C) / 7900(O.C) / 7800(O.C) / 7600(O.C.) / 7400(O.C.) / 7200(O.C.) / 7000(O.C.) / 6800(O.C.) / 6600(O.C.) / 6400(O.C.) / 6200(O.C.) / 6000(O.C.) / 5800(O.C.) / 5600(O.C.) / 5400(O.C.) / 5200(O.C.) / 4800 / 4000 memory modules Max.velikost operační paměti: 128 GB (32 GB single DIMM capacity) Podpora pro paměti typu: ECC, non-ECC, XMP Grafická karta: (Intel HD Graphics) 1 x DisplayPort 1.2, maximální rozlišení 4096x2304@60 Hz Zvuková karta: Realtek ALC1220-VB CODEC 2/4/5.1-channel Podpora S/PDIF Out Síťová karta: Marvell AQtion AQC113C 10GbE LAN chip (10 Gbps/5 Gbps/2.5 Gbps/1 Gbps/100 Mbps) Intel Killer Wi-Fi 6E AX1690 a, b, g, n, ac, ax Bluetooth 5.3 Rozšiřující sloty: 1 x PCI Express x16 slot, supporting PCIe 5.0 and running at x16 (PCIEX16) 1 x PCI Express x16 slot, supporting PCIe 3.0 and running at x4 (PCIEX4) 1 x PCI Express x16 slot, supporting PCIe 3.0 and running at x1 (PCIEX1) RAID řadič: RAID 0, RAID 1, RAID5, and RAID 10 SATA: 4 x SATA 6Gb/s connectors M.2: 5 x M.2 Socket 3 connectors USB: Interní: 1 x USB Type-C header, with USB 3.2 Gen 2x2 support 2 x USB 3.2 Gen 1 headers 2 x USB 2.0/1.1 headers Externí: 1 x USB Type-C port, with USB 3.2 Gen 1 support 2 x USB Type-C ports, with USB 3.2 Gen 2x2 support 7 x USB 3.2 Gen 2 Type-A ports (red) 4 x USB 3.2 Gen 1 ports Interní porty: 1 x 24-pin ATX main power connector 2 x 8-pin ATX 12V power connectors 1 x CPU fan header 1 x water cooling CPU fan header 4 x system fan headers 4 x system fan/water cooling pump headers 2 x addressable LED strip headers 2 x RGB LED strip headers 5 x M.2 Socket 3 connectors 4 x SATA 6Gb/s connectors 1 x front panel header 1 x front panel audio header 1 x USB Type-C header, with USB 3.2 Gen 2x2 support 2 x USB 3.2 Gen 1 headers 2 x USB 2.0/1.1 headers 1 x noise detection header 2 x Thunderbolt add-in card connectors 1 x Trusted Platform Module header (For the GC-TPM2.0 SPI/GC-TPM2.0 SPI 2.0 module only) 1 x power button 1 x reset button 1 x reset jumper 1 x Clear CMOS jumper 2 x temperature sensor headers Externí porty: 1 x Q-Flash Plus button 1 x Clear CMOS button 2 x SMA antenna connectors (2T2R) 1 x DisplayPort 1 x USB Type-C port, with USB 3.2 Gen 1 support 2 x USB Type-C ports, with USB 3.2 Gen 2x2 support 7 x USB 3.2 Gen 2 Type-A ports (red) 4 x USB 3.2 Gen 1 ports 1 x RJ-45 port 1 x optical S/PDIF Out connector 2 x audio jacks BIOS: AMI UEFI BIOS, 1 x 256 Mbit flash

Z790 AORUS MASTER

• Intel Socket LGA 1700:Support 13th and 12th Gen Series Processors
• Unparalleled Performance:Direct 20+1+2 Phases Digital VRM Solution
• Dual Channel DDR5:4*SMD DIMMs with XMP 3.0 Memory Module Support
• Next Generation Storage:1*PCIe 5.0 x4 and 4*PCIe 4.0 x4 M.2 Connectors

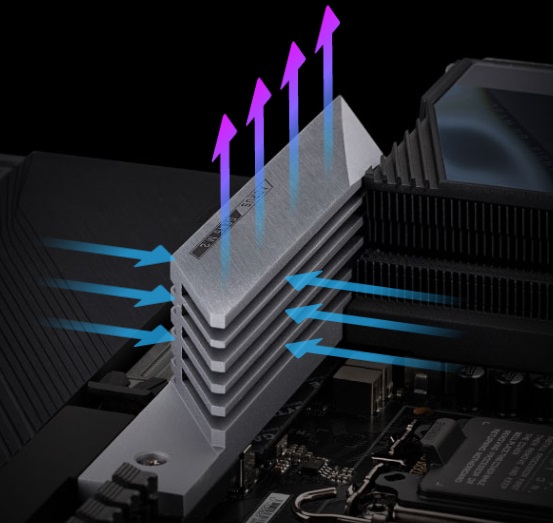

• Fins-Array III & M.2 Thermal Guard III:To Ensure VRM Power Stability & 25110 PCIe 5.0 M.2 SSD Performance
• EZ-Latch Plus:SMD PCIe 5.0 x16 Slot & M.2 Connectors with Quick Release & Screwless Design
• Hi-Fi Audio with DTS:X Ultra:ALC1220 CODEC and Rear ESS SABRE Hi-Fi 9118 DAC
• Fast Networks:Marvell AQtion 10GbE LAN & Intel Wi-Fi 6E 802.11ax with DCT
• Extended Connectivity:DP, USB-C 10Gb/s, Front and Dual Rear USB-C 20Gb/s
• Smart Fan 6:Features Multiple Temperature Sensors, Hybrid Fan Headers with FAN STOP and Noise Detection

CPU

LGA1700 socket: Support for the 14th, 13th, and 12th Generation Intel Core™, Pentium Gold and Celeron Processors* L3 cache varies with CPU * Please refer to "CPU Support List" for more information.

Chipset

Intel Z790 Express Chipset

Memory

Support for DDR5 8000(O.C) / 7950(O.C) / 7900(O.C) / 7800(O.C) / 7600(O.C.) / 7400(O.C.) / 7200(O.C.) / 7000(O.C.) / 6800(O.C.) / 6600(O.C.) / 6400(O.C.) / 6200(O.C.) / 6000(O.C.) / 5800(O.C.) / 5600(O.C.) / 5400(O.C.) / 5200(O.C.) / 4800 / 4000 memory modules 4 x DDR5 DIMM sockets supporting up to 192 GB (48 GB single DIMM capacity) of system memory Dual channel memory architecture Support for ECC Un-buffered DIMM 1Rx8/2Rx8 memory modules (operate in non-ECC mode) Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules Support for Extreme Memory Profile (XMP) memory modules (Please refer "Memory Support List" for more information.)

Onboard Graphics

Integrated Graphics Processor-Intel HD Graphics support: 1 x DisplayPort, supporting a maximum resolution of 4096x2304@60 Hz * Support for DisplayPort 1.2 version and HDCP 2.3 (Graphics specifications may vary depending on CPU support.)

Audio

Realtek ALC1220-VB CODEC * The front panel line out jack supports DSD audio. ESS ES9118 DAC chip Support for DTS:X Ultra High Definition Audio 2/4/5.1-channel * You can change the functionality of an audio jack using the audio software. To configure 5.1-channel audio, access the audio software for audio settings. Support for S/PDIF Out

LAN

Marvell AQtion AQC113C 10GbE LAN chip (10 Gbps/5 Gbps/2.5 Gbps/1 Gbps/100 Mbps)

Wireless Communication module

Intel Wi-Fi 6E AX411 WIFI a, b, g, n, ac, ax, supporting 2.4/5/6 GHz carrier frequency bands BLUETOOTH 5.3 Support for 11ax 160MHz wireless standard and up to 2.4 Gbps data rate (Actual data rate may vary depending on environment and equipment.)

Expansion Slots

CPU: 1 x PCI Express x16 slot, supporting PCIe 5.0 and running at x16 (PCIEX16) * The PCIEX16 slot shares bandwidth with the M2C_CPU connector. The PCIEX16 slot operates at up to x8 mode when a device is installed in the M2C_CPU connector. * For optimum performance, if only one PCI Express graphics card is to be installed, be sure to install it in the PCIEX16 slot. Chipset: 1 x PCI Express x16 slot, supporting PCIe 3.0 and running at x4 (PCIEX4) 1 x PCI Express x16 slot, supporting PCIe 3.0 and running at x1 (PCIEX1) Support for AMD CrossFire™ technology (PCIEX16 and PCIEX4)

Storage Interface

CPU: 1 x M.2 connector (Socket 3, M key, type 25110/2280 PCIe 5.0 x4/x2 SSD support) (M2C_CPU) 1 x M.2 connector (Socket 3, M key, type 22110/2280 PCIe 4.0 x4/x2 SSD support) (M2A_CPU) Chipset: 1 x M.2 connector (Socket 3, M key, type 22110/2280 PCIe 4.0 x4/x2 SSD support) (M2Q_SB) 1 x M.2 connector (Socket 3, M key, type 2280/2260 PCIe 4.0 x4/x2 SSD support) (M2P_SB) 1 x M.2 connector (Socket 3, M key, type 2280/2260 SATA and PCIe 4.0 x4/x2 SSD support) (M2M_SB) 4 x SATA 6Gb/s connectors RAID 0, RAID 1, RAID5, and RAID 10 support for NVMe SSD storage devices RAID 0, RAID 1, RAID5, and RAID 10 support for SATA storage devices

USB

Chipset: 3 x USB Type-C ports, with USB 3.2 Gen 2x2 support (2 ports on the back panel, 1 port available through the internal USB header) Chipset+2 USB 3.2 Gen 2 Hubs: 1 x USB Type-C port on the back panel, with USB 3.2 Gen 1 support 7 x USB 3.2 Gen 2 Type-A ports (red) on the back panel Chipset+2 USB 3.2 Gen 1 Hubs: 8 x USB 3.2 Gen 1 ports (4 ports on the back panel, 4 ports available through the internal USB headers) Chipset+USB 2.0 Hub: 4 x USB 2.0/1.1 ports available through the internal USB headers

Internal I/O Connectors

1 x 24-pin ATX main power connector 2 x 8-pin ATX 12V power connectors 1 x CPU fan header 1 x water cooling CPU fan header 4 x system fan headers 4 x system fan/water cooling pump headers 2 x addressable LED strip headers 2 x RGB LED strip headers 5 x M.2 Socket 3 connectors 4 x SATA 6Gb/s connectors 1 x front panel header 1 x front panel audio header 1 x USB Type-C header, with USB 3.2 Gen 2x2 support 2 x USB 3.2 Gen 1 headers 2 x USB 2.0/1.1 headers 1 x noise detection header 2 x Thunderbolt™ add-in card connectors 1 x Trusted Platform Module header (For the GC-TPM2.0 SPI/GC-TPM2.0 SPI 2.0 module only) 1 x power button 1 x reset button 1 x reset jumper 1 x Clear CMOS jumper 2 x temperature sensor headers Voltage Measurement Points

Back Panel Connectors

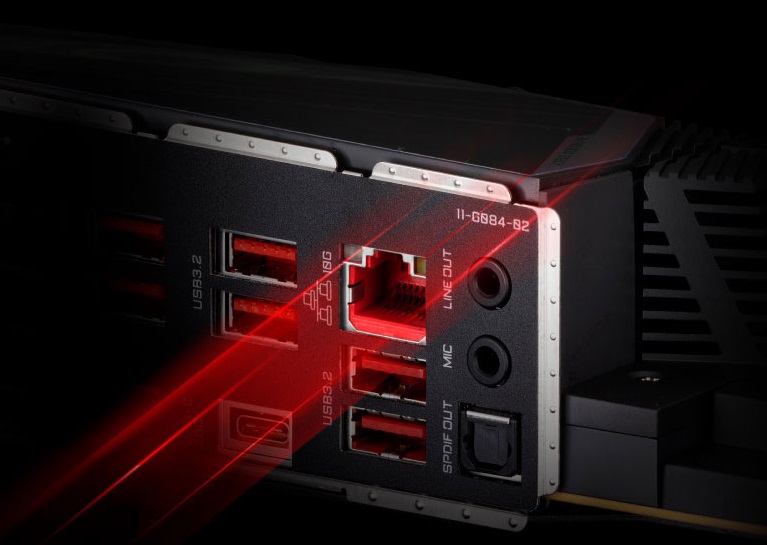

1 x Q-Flash Plus button 1 x Clear CMOS button 2 x SMA antenna connectors (2T2R) 1 x DisplayPort 1 x USB Type-C port, with USB 3.2 Gen 1 support 2 x USB Type-C ports, with USB 3.2 Gen 2x2 support 7 x USB 3.2 Gen 2 Type-A ports (red) 4 x USB 3.2 Gen 1 ports 1 x RJ-45 port 1 x optical S/PDIF Out connector 2 x audio jacks

I/O Controller

iTE I/O Controller Chip H/W Monitoring Voltage detection Temperature detection Fan speed detection Water cooling flow rate detection Fan fail warning Fan speed control * Whether the fan (pump) speed control function is supported will depend on the fan (pump) you install. Noise detection

BIOS

1 x 256 Mbit flash Use of licensed AMI UEFI BIOS PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0

Unique Features

Support for GIGABYTE Control Center (GCC) * Available applications in GCC may vary by motherboard model. Supported functions of each application may also vary depending on motherboard specifications. Support for Q-Flash Support for Q-Flash Plus Support for Smart Backup

Bundled Software

Norton Internet Security (OEM version) LAN bandwidth management software

Operating System

Support for Windows 11 64-bit Support for Windows 10 64-bit

Form Factor

E-ATX Form Factor; 30.5cm x 26.0cm

GIGABYTE Z790 AORUS MASTER

Deska je vybavena grafickými výstupy pro použití s procesory s integrovaným grafickým jádrem. Základní deska grafickou kartu neobsahuje a bez použití odpovídajícího procesoru, budou tyto výstupy nefunkční.

CPU Podpora procesorů 13. a 12. generace Intel Core/ Pentium Gold/ Celeron Patice LGA1700

Čipová sada Intel Z790

Paměť 4x DDR5 paměťový slot, podpora až 192 GB Podpora DDR5 8000 (OC)/ 7950 (OC)/ 7900 (OC)/ 7800 (OC)/ 7600 (OC)/ 7400 (OC)/ 7200 (OC)/ 7000 (OC)/ 6800 (OC)/ 6600 (OC)/ 6400 (OC)/ 6200 (OC)/ 6000 (OC)/ 5800 (OC)/ 5600 (OC)/ 5400 (OC)/ 5200 (OC)/ 4800/ 4000 MHz Dvoukanálová architektura paměti Podpora non-ECC, bez vyrovnávací paměti, 1Rx8/2Rx8/1Rx16 Podpora ECC pamětí (non-ECC režim), 1Rx8/2Rx8 Podpora Intel Extreme Memory Profile (XMP)

Sloty Intel CPU 1x PCIe 5.0 x16 slot Intel Z790 čipová sada 1x PCIe 3.0 x16 slot (podporuje x4 režim) 1x PCIe 3.0 x16 slot (podporuje x1 režim)

Grafika 1x DisplayPort port, podporující max. rozlišení 4096 x 2304 při 60 Hz

Multi-GPU Podpora AMD CrossFire technologie

Úložiště Intel CPU 1x M.2 slot, M Key, pro jednotky typu 2280/25110 (PCIe 5.0 x4/x2 režim) 1x M.2 slot, M Key, pro jednotky typu 2280/22110 (PCIe 4.0 x4/x2 režim) Intel Z790 čipová sada 1x M.2 slot, M Key, pro jednotky typu 2280/22110 (PCIe 4.0 x4/x2 režim) 1x M.2 slot, M Key, pro jednotky typu 2260/2280 (PCIe 4.0 x4/x2 režim) 1x M.2 slot, M Key, pro jednotky typu 2260/2280 (SATA a PCIe 4.0 x4/x2 režim) 4x SATA 6Gb/s port Podpora RAID 0, RAID 1, RAID 5 a RAID 10 pro SATA i NVMe SSD

USB 3x USB 3.2 Gen2x2 typ C port (2 porty na zadním panelu, 1 port dostupný přes interní USB konektor) 1x USB 3.2 Gen1 typ C port na zadním panelu 7x USB 3.2 Gen2 typ A port na zadním panelu 8x USB 3.2 Gen1 (USB 3.0) port (4 porty na zadním panelu, 4 porty dostupné přes interní USB konektory) 4x USB 2.0 port dostupný přes interní USB konektory

Audio Realtek ALC1220-VB Codec 2/4/5.1kanálové High Definition Audio ESS ES9118 DAC čip Podpora DTS:X Ultra Podpora S/PDIF výstupu

LAN 1x Marvell AQtion AQC113C 10Gigabit LAN řadič

WLAN/ Bluetooth Intel Killer Wi-Fi 6E AX1690 Wi-Fi 802.11a/b/g/n/ac/ax Triple Band (2,4 GHz, 5 GHz, 6 GHz) Rychlost přenosu dat až 2,4 Gbps Bluetooth 5.3

Interní konektory 1x 24-pin ATX hlavní napájecí konektor 2x 8-pin ATX 12V napájecí konektor 1x konektor ventilátoru CPU 1x konektor ventilátoru vodního chlazení CPU 4x konektor systémového ventilátoru 4x konektor systémového ventilátoru/ pumpy vodního chlazení 2x konektor adresovatelného LED pásku 2x konektor RGB LED pásku 5x M.2 slot, M Key 4x SATA 6Gb/s konektor 1x konektor předního panelu 1x audio konektor předního panelu 1x USB 3.2 Gen2x2 typ C konektor 2x USB 3.2 Gen1 (USB 3.0) konektor (podporuje 4x USB 3.2 Gen1 port) 2x USB 2.0 konektor (podporuje 4x USB 2.0 port) 1x konektor detekce hluku 2x konektor Thunderbolt AIC 1x TPM konektor (podporuje pouze moduly GC-TPM2.0 SPI a GC-TPM2.0 SPI 2.0) 1x tlačítko Power 1x tlačítko Reset 1x Reset propojka 1x propojka Clear CMOS 2x konektor teplotního čidla 1x body pro měření napětí

Porty na zadním panelu 1x tlačítko Q-Flash Plus 1x tlačítko Clear CMOS 2x konektor Wi-Fi antény 1x DisplayPort 1x USB 3.2 Gen1 typ C 2x USB 3.2 Gen2x2 typ C 7x USB 3.2 Gen2 (USB 3.1 Gen2) 4x USB 3.2 Gen1 (USB 3.0) 1x RJ-45 1x optický S/PDIF výstup 2x audio jack

Rozměry 30,5 x 26 cm E-ATX formát

GIGABYTE Z790 AORUS MASTER. Výrobce procesoru: Intel, Patice procesoru: LGA 1700, Kompatibilní procesory: Intel® Celeron®, Intel® Core™ i3, Intel® Core™ i5, Intel® Core™ i7, Intel® Core™ i9,.... Podporované typy paměti: DDR5-SDRAM, Maximální vnitřní paměť: 192 GB, Typ paměťových slotů: DIMM. Podporovaná rozhraní úložiště: M.2, PCI Express 4.0, PCI Express 5.0, SATA III, Podporované typy úložišť: HDD & SSD, Úrovně RAID: 0, 1, 5, 10. Podpora technologie paralelního zpracování: Crossfire, Maximální rozlišení: 4096 x 2304 px. Konektor USB: USB Typ-A, USB typu C
