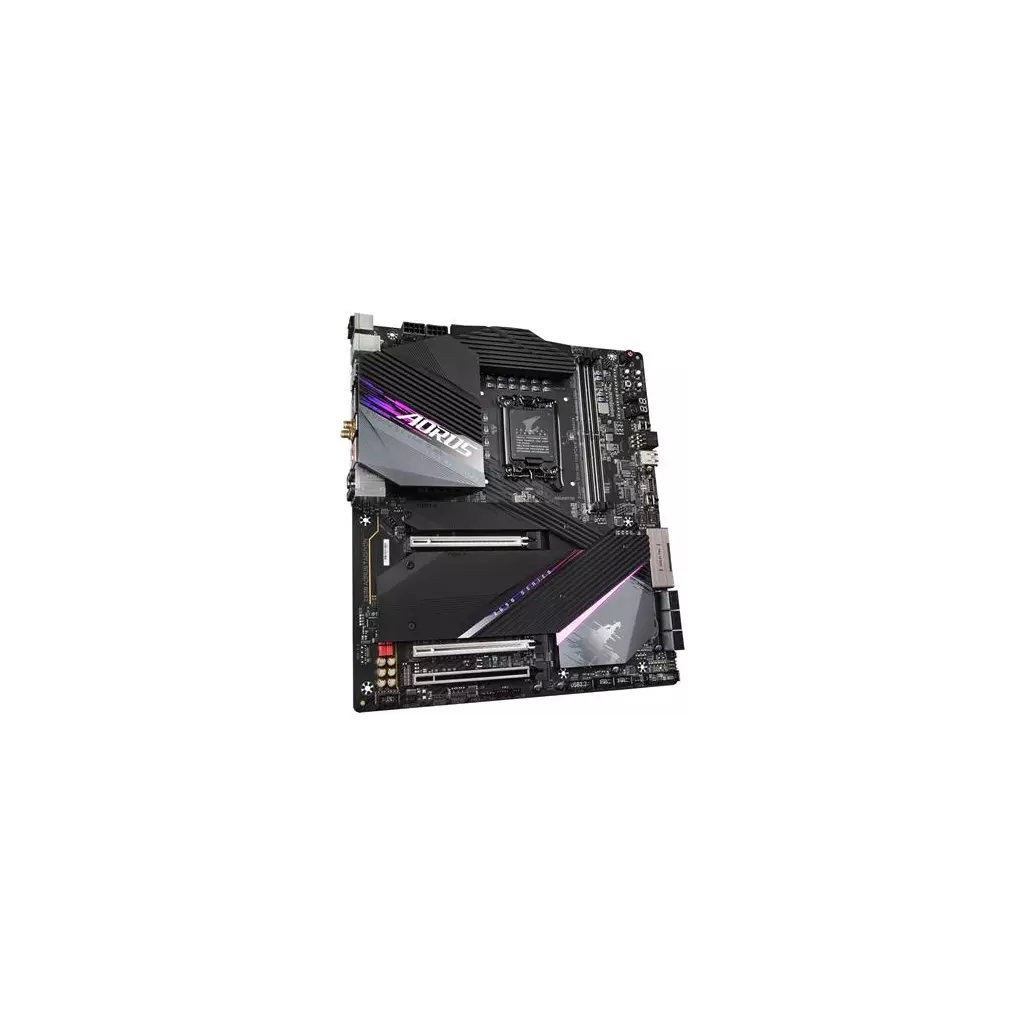

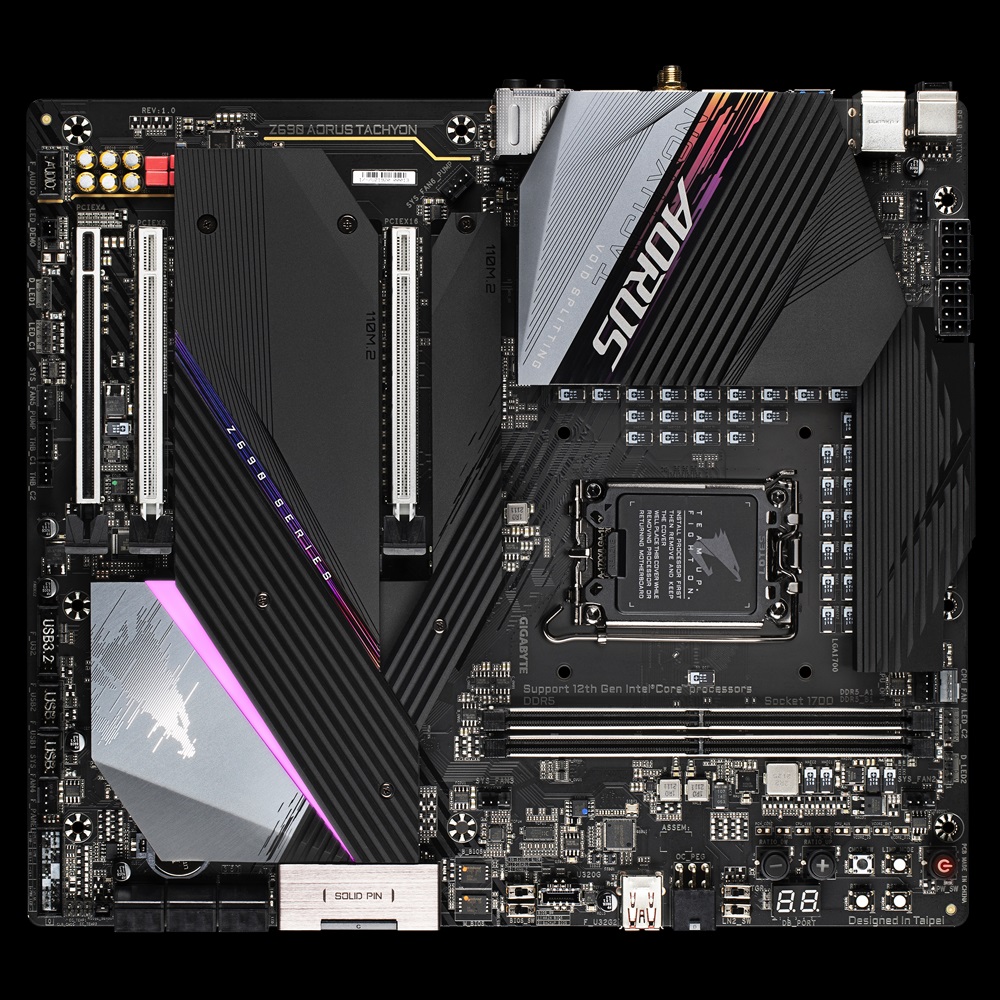

GIGABYTE Z690 AORUS TACHYON / LGA1700 / Intel Z690 / 2x DDR5 / 4x M.2 / HDMI / USB-C / WiFi / EATX

Kód zboží (ID): 5282433 vytisknout
Stav zboží: Nové
Dostupnost: dostupnost na dotaz
Datum odeslání: Neznámé
Výrobce: GIGABYTE
Kód zboží: 5282433
Číslo zboží (PN): Z690 AORUS TACHYON
EAN:
Záruka koncový zákazník: 36 měsíců
Záruka při koupi na IČO: 36 měsíců
Cena bez DPH: * 13920 Kč
Cena vč. DPH: * 16843 Kč
* - cena uvedena vč. recyklačních a autorských poplatků.

Popis produktu:

GIGABYTE Z690 AORUS TACHYON

Deska je vybavena grafickými výstupy pro použití s procesory s integrovaným grafickým jádrem. Základní deska grafickou kartu neobsahuje a bez použití odpovídajícího procesoru, budou tyto výstupy nefunkční.

CPU Podpora procesorů 12. a 13. generace Intel Core/ Pentium Gold/ Celeron Patice LGA1700

Čipová sada Intel Z690

Paměť 2x DDR5 paměťový slot, podpora až 96 GB Podpora DDR5 7000 (OC)/ 6600 (OC)/ 6400 (OC)/ 6200 (OC)/ 6000 (OC)/ 5800 (OC)/ 5600 (OC)/ 5400 (OC)/ 5200 (OC)/ 4800/ 4000 MHz Dvoukanálová architektura paměti Podpora non-ECC, bez vyrovnávací paměti, 1Rx8/2Rx8/1Rx16 Podpora ECC pamětí (non-ECC režim), 1Rx8/2Rx8 Podpora Intel Extreme Memory Profile (XMP)

Sloty 1x PCIe 5.0 x16 slot 1x PCIe 5.0 x16 slot (podporuje x8 režim) 1x PCIe 3.0 x16 slot (podporuje x4 režim)

Grafika 1x HDMI port, podporující max. rozlišení 4096 x 2160 při 60 Hz

Multi-GPU Podpora AMD Quad-GPU CrossFire a 2-Way CrossFire technologie

Úložiště Intel CPU 1x M.2 slot, M Key, pro jednotky typu 2260/2280/22110 (PCIe 4.0 x4/x2 režim) Intel Z690 čipová sada 2x M.2 slot, M Key, pro jednotky typu 2260/2280/22110 (PCIe 4.0 x4/x2 režim) 1x M.2 slot, M Key, pro jednotky typu 2260/2280/22110 (SATA a PCIe 4.0 x4/x2 režim) 6x SATA 6Gb/s port Podpora RAID 0, RAID 1, RAID 5 a RAID 10 Podpora Intel Optane technologie

USB 2x USB 3.2 Gen2x2 typ C port (1 port na zadním panelu, 1 port dostupný přes interní USB konektor) 4x USB 3.2 Gen2 typ A port (3 porty na zadním panelu, 1 port dostupný přes interní USB konektor) 6x USB 3.2 Gen1 (USB 3.0) port (4 porty na zadním panelu, 2 porty dostupné přes interní USB konektory) 4x USB 2.0 port dostupný přes interní USB konektory

Audio Realtek ALC1220-VB Codec 2/4/5.1/7.1kanálové High Definition Audio Podpora DTS:X Ultra Podpora S/PDIF výstupu

LAN 1x Intel 2,5 GbELAN řadič

WLAN/ Bluetooth Intel Wi-Fi 6E AX210 Wi-Fi 802.11a/b/g/n/ac/ax Dual Band (2,4 GHz, 5 GHz, 6 GHz) Rychlost přenosu dat až 2,4 Gbps Bluetooth 5.2

Interní konektory 1x 24-pin ATX hlavní napájecí konektor 2x 8-pin ATX 12V napájecí konektor 1x 6-pin OC_PEG napájecí konektor 1x konektor ventilátoru CPU 1x konektor ventilátoru vodního chlazení CPU 4x konektor systémového ventilátoru 2x konektor systémového ventilátoru/ pumpy vodního chlazení 2x konektor adresovatelného LED pásku 2x konektor RGB LED pásku 4x M.2 slot, M Key 6x SATA 6Gb/s konektor 1x konektor předního panelu 1x audio konektor předního panelu 1x USB 3.2 Gen2x2 typ C konektor 1x USB 3.2 Gen2 typ A konektor 1x USB 3.2 Gen1 (USB 3.0) konektor (podporuje 2x USB 3.2 Gen1 port) 2x USB 2.0 konektor (podporuje 4x USB 2.0 port) 1x konektor detekce hluku 2x konektor Thunderbolt AIC 2x konektor teplotního čidla 1x body pro měření napětí 1x propojka Clear CMOS 1x tlačítko Power 1x tlačítko Reset 1x tlačítko Clear CMOS 1x tlačítko Cold Reset 1x tlačítko Protection Mode 2x přepínač BIOS 1x tlačítko CPU Ratio Up 1x tlačítko CPU Ratio Down 1x přepínač OC Trigger 1x přepínač Reserved

Porty na zadním panelu 1x tlačítko Q-Flash Plus 1x tlačítko OC Ignition 1x PS/2 port klávesnice 1x PS/2 port myši 2x konektor Wi-Fi antény 1x HDMI 1x USB 3.2 Gen2x2 typ C 3x USB 3.2 Gen2 (USB 3.1 Gen2) 4x USB 3.2 Gen1 (USB 3.0) 1x RJ-45 1x optický S/PDIF výstup 5x audio jack

Rozměry 30,5 x 27 cm E-ATX formát

GIGABYTE Z690 AORUS TACHYON

Deska je vybavena grafickými výstupy pro použití s procesory s integrovaným grafickým jádrem. Základní deska grafickou kartu neobsahuje a bez použití odpovídajícího procesoru, budou tyto výstupy nefunkční.

CPU Podpora procesorů 12. a 13. generace Intel Core/ Pentium Gold/ Celeron Patice LGA1700

Čipová sada Intel Z690

Paměť 2x DDR5 paměťový slot, podpora až 96 GB Podpora DDR5 7000 (OC)/ 6600 (OC)/ 6400 (OC)/ 6200 (OC)/ 6000 (OC)/ 5800 (OC)/ 5600 (OC)/ 5400 (OC)/ 5200 (OC)/ 4800/ 4000 MHz Dvoukanálová architektura paměti Podpora non-ECC, bez vyrovnávací paměti, 1Rx8/2Rx8/1Rx16 Podpora ECC pamětí (non-ECC režim), 1Rx8/2Rx8 Podpora Intel Extreme Memory Profile (XMP)

Sloty 1x PCIe 5.0 x16 slot 1x PCIe 5.0 x16 slot (podporuje x8 režim) 1x PCIe 3.0 x16 slot (podporuje x4 režim)

Grafika 1x HDMI port, podporující max. rozlišení 4096 x 2160 při 60 Hz

Multi-GPU Podpora AMD Quad-GPU CrossFire a 2-Way CrossFire technologie

Úložiště Intel CPU 1x M.2 slot, M Key, pro jednotky typu 2260/2280/22110 (PCIe 4.0 x4/x2 režim) Intel Z690 čipová sada 2x M.2 slot, M Key, pro jednotky typu 2260/2280/22110 (PCIe 4.0 x4/x2 režim) 1x M.2 slot, M Key, pro jednotky typu 2260/2280/22110 (SATA a PCIe 4.0 x4/x2 režim) 6x SATA 6Gb/s port Podpora RAID 0, RAID 1, RAID 5 a RAID 10 Podpora Intel Optane technologie

USB 2x USB 3.2 Gen2x2 typ C port (1 port na zadním panelu, 1 port dostupný přes interní USB konektor) 4x USB 3.2 Gen2 typ A port (3 porty na zadním panelu, 1 port dostupný přes interní USB konektor) 6x USB 3.2 Gen1 (USB 3.0) port (4 porty na zadním panelu, 2 porty dostupné přes interní USB konektory) 4x USB 2.0 port dostupný přes interní USB konektory

Audio Realtek ALC1220-VB Codec 2/4/5.1/7.1kanálové High Definition Audio Podpora DTS:X Ultra Podpora S/PDIF výstupu

LAN 1x Intel 2,5 GbELAN řadič

WLAN/ Bluetooth Intel Wi-Fi 6E AX210 Wi-Fi 802.11a/b/g/n/ac/ax Dual Band (2,4 GHz, 5 GHz, 6 GHz) Rychlost přenosu dat až 2,4 Gbps Bluetooth 5.2

Interní konektory 1x 24-pin ATX hlavní napájecí konektor 2x 8-pin ATX 12V napájecí konektor 1x 6-pin OC_PEG napájecí konektor 1x konektor ventilátoru CPU 1x konektor ventilátoru vodního chlazení CPU 4x konektor systémového ventilátoru 2x konektor systémového ventilátoru/ pumpy vodního chlazení 2x konektor adresovatelného LED pásku 2x konektor RGB LED pásku 4x M.2 slot, M Key 6x SATA 6Gb/s konektor 1x konektor předního panelu 1x audio konektor předního panelu 1x USB 3.2 Gen2x2 typ C konektor 1x USB 3.2 Gen2 typ A konektor 1x USB 3.2 Gen1 (USB 3.0) konektor (podporuje 2x USB 3.2 Gen1 port) 2x USB 2.0 konektor (podporuje 4x USB 2.0 port) 1x konektor detekce hluku 2x konektor Thunderbolt AIC 2x konektor teplotního čidla 1x body pro měření napětí 1x propojka Clear CMOS 1x tlačítko Power 1x tlačítko Reset 1x tlačítko Clear CMOS 1x tlačítko Cold Reset 1x tlačítko Protection Mode 2x přepínač BIOS 1x tlačítko CPU Ratio Up 1x tlačítko CPU Ratio Down 1x přepínač OC Trigger 1x přepínač Reserved

Porty na zadním panelu 1x tlačítko Q-Flash Plus 1x tlačítko OC Ignition 1x PS/2 port klávesnice 1x PS/2 port myši 2x konektor Wi-Fi antény 1x HDMI 1x USB 3.2 Gen2x2 typ C 3x USB 3.2 Gen2 (USB 3.1 Gen2) 4x USB 3.2 Gen1 (USB 3.0) 1x RJ-45 1x optický S/PDIF výstup 5x audio jack

Rozměry 30,5 x 27 cm E-ATX formát

Parametr Hodnota
Socket (patice) Socket 1700
Chipset Intel Z690
Technologie paměti RAM DDR5
Formát základní desky E-ATX
PCI Express x16 1

Specifikace:

Z690 AORUS TACHYON

Intel Z690 AORUS Motherboard with 15+1+2 Phases Digital VRM Design, Overclocking Kit, DDR5 XTREME MEMORY Design, 4x PCIe 4.0 M.2 with Thermal Guards, Intel 2.5GbE LAN, Intel WIFI 6E 802.11ax , 120dB Hi-Res Audio with WIMA, Dual USB 3.2 Gen2x2 TYPE-C, RGB FUSION 2.0, Q-Flash Plus

  • Support 12th Gen Intel Series Processors
  • Dual Channel Non-ECC Unbuffered DDR5, 2 DIMMs

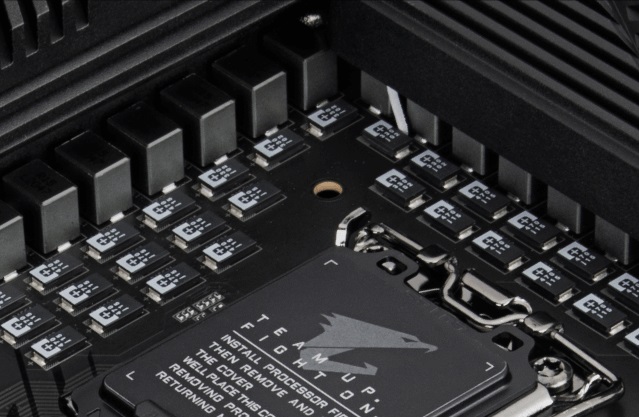

  • 15+1+2 Phases Direct VRM Design with 105A Power Stage* and Tantalum Polymer Capacitor
  • DDR5 XTREME MEMORY Design with SMD DIMM and Shielded Memory Routing
  • Exclusive onboard Overclocking Kit for extreme overclocking
  • Intel WIFI 6E 802.11ax 2T2R & BT 5 with AORUS Antenna
  • Amp-Up Audio with ALC1220 and WIMA Audio Capacitors
  • Blazing Fast Intel 2.5GbE LAN with cFosSpeed
  • 4 x Ultra-Fast NVMe PCIe 4.0*/3.0 x4 M.2 with Thermal Guards
  • Dual SuperSpeed USB 3.2 Gen2x2 TYPE-C delivers up to 20Gb/s transfer speeds
  • RGB FUSION 2.0 with Multi-Zone Addressable LED Light Show Design, Support Addressable LED & RGB LED Strips
  • Smart Fan 6 Features Multiple Temperature Sensors , Hybrid Fan Headers with FAN STOP and Noise Detection
  • Q-Flash Plus Update BIOS without Installing the CPU, Memory and Graphics Card
  • * Power Stage maximum current.

CPU

LGA1700 socket: Support for 12th Generation Intel Core™ i9 processors/Intel Core™ i7 processors/Intel Core™ i5 processors L3 cache varies with CPU (Please refer to "CPU Support List" for more information.)

Chipset

Intel Z690 Express Chipset

Memory

Support for DDR5 7000(O.C.) / 6600(O.C.) / 6400(O.C.) / 6200(O.C.) / 6000(O.C.) / 5800(O.C.) / 5600(O.C.) / 5400(O.C.) / 5200(O.C.) / 4800 / 4000 MHz memory modules 2 x DDR5 DIMM sockets supporting up to 64 GB (32 GB single DIMM capacity) of system memory Dual channel memory architecture Support for ECC Un-buffered DIMM 1Rx8/2Rx8 memory modules (operate in non-ECC mode) Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules Support for Extreme Memory Profile (XMP) memory modules (Please refer "Memory Support List" for more information.)

Onboard Graphics

Integrated Graphics Processor-Intel HD Graphics support: 1 x HDMI port, supporting a maximum resolution of 4096x2160@60 Hz * Support for HDMI 2.1 version and HDCP 2.3. ** Support native HDMI 2.1 TMDS compatible ports (Graphics specifications may vary depending on CPU support.)

Audio

Realtek ALC1220-VB CODEC * The back panel line out jack supports DSD audio. Support for DTS:X Ultra High Definition Audio 2/4/5.1/7.1-channel Support for S/PDIF Out

LAN

Intel 2.5GbE LAN chip (2.5 Gbps/1 Gbps/100 Mbps)

Wireless Communication module

Intel Wi-Fi 6E AX210 WIFI a, b, g, n, ac, ax, supporting 2.4/5/6 GHz carrier frequency bands BLUETOOTH 5.2 Support for 11ax 160MHz wireless standard and up to 2.4 Gbps data rate * Actual data rate may vary depending on environment and equipment.

Expansion Slots

1 x PCI Express x16 slot, running at x16 (PCIEX16) * For optimum performance, if only one PCI Express graphics card is to be installed, be sure to install it in the PCIEX16 slot. 1 x PCI Express x16 slot, running at x8 (PCIEX8) * The PCIEX8 slot shares bandwidth with the PCIEX16 slot. When the PCIEX8 slot is populated, the PCIEX16 slot operates at up to x8 mode. (The PCIEX16 and PCIEX8 slots conform to PCI Express 5.0 standard.) 1 x PCI Express x16 slot, running at x4 (PCIEX4) (The PCIEX4 slot conforms to PCI Express 3.0 standard.)

Multi-Graphics Technology

Support for AMD Quad-GPU CrossFire™ and 2-Way AMD CrossFire™ technologies

Storage Interface

CPU: 1 x M.2 connector (Socket 3, M key, type 2260/2280/22110 PCIe 4.0 x4/x2 SSD support) (M2A_CPU) Chipset: 2 x M.2 connectors (Socket 3, M key, type 2260/2280/22110 PCIe 4.0 x4/x2 SSD support) (M2P_SB, M2Q_SB) 1 x M.2 connector (Socket 3, M key, type 2260/2280/22110 SATA and PCIe 4.0 x4/x2 SSD support) (M2M_SB) 6 x SATA 6Gb/s connectors Support for RAID 0, RAID 1, RAID 5, and RAID 10 Intel Optane™ Memory Ready * System acceleration with Intel Optane™ Memory can only be enabled on the M.2 connectors supported by the Chipset.

USB

Chipset: 2 x USB Type-C ports, with USB 3.2 Gen 2x2 support (1 port on the back panel, 1 port available through the internal USB header) 3 x USB 3.2 Gen 2 Type-A ports (red) on the back panel 2 x USB 3.2 Gen 1 ports available through the internal USB header ASMedia USB 3.2 Gen 2 controller: 1 x USB 3.2 Gen 2 Type-A port (red) onboard Chipset+USB 3.2 Gen 1 Hub: 4 x USB 3.2 Gen 1 ports on the back panel Chipset+USB 2.0 Hub: 4 x USB 2.0/1.1 ports available through the internal USB headers

Internal I/O Connectors

1 x 24-pin ATX main power connector 2 x 8-pin ATX 12V power connectors 1 x 6-pin OC_PEG power connector 1 x CPU fan header 1 x water cooling CPU fan header 4 x system fan headers 2 x system fan/water cooling pump headers 2 x addressable LED strip headers 2 x RGB LED strip headers 4 x M.2 Socket 3 connectors 6 x SATA 6Gb/s connectors 1 x front panel header 1 x front panel audio header 1 x USB Type-C header, with USB 3.2 Gen 2x2 support 1 x USB 3.2 Gen 2 Type-A port (red) 1 x USB 3.2 Gen 1 header 2 x USB 2.0/1.1 headers 1 x noise detection header 2 x Thunderbolt™ add-in card connectors 2 x temperature sensor headers Voltage Measurement Points 1 x Clear CMOS jumper 1 x power button (PW_SW) 1 x reset button (RST_SW) 1 x Clear CMOS button (CMOS_SW) 1 x Cold Reset button (RTY_SW) 1 x Protection Mode button (LIMP_MODE) 2 x BIOS switches (BIOS_SW/SB) 1 x CPU Ratio up button (RATIO_UP) 1 x CPU Ratio down button (RATIO_DW) 1 x OC Trigger switch (TGR) 1 x Reserved switch (RSV_SW)

Back Panel Connectors

1 x Q-Flash Plus button 1 x OC Ignition button 1 x PS/2 keyboard port 1 x PS/2 mouse port 2 x SMA antenna connectors (2T2R) 1 x HDMI port 1 x USB Type-C port, with USB 3.2 Gen 2x2 support 3 x USB 3.2 Gen 2 Type-A ports (red) 4 x USB 3.2 Gen 1 ports 1 x RJ-45 port 1 x optical S/PDIF Out connector 5 x audio jacks

I/O Controller

iTE I/O Controller Chip

H/W Monitoring

Voltage detection Temperature detection Fan speed detection Water cooling flow rate detection Fan fail warning Fan speed control * Whether the fan (pump) speed control function is supported will depend on the fan (pump) you install. Noise detection

BIOS

2 x 256 Mbit flash Use of licensed AMI UEFI BIOS Support for DualBIOS™ PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0

Unique Features

Support for APP Center * Available applications in APP Center may vary by motherboard model. Supported functions of each application may also vary depending on motherboard specifications. @BIOS EasyTune Fast Boot Game Boost ON/OFF Charge RGB Fusion Smart Backup System Information Viewer Support for Q-Flash Plus Support for Q-Flash Support for Xpress Install

Bundled Software

Norton Internet Security (OEM version) cFosSpeed

Operating System

Support for Windows 10 64-bit

Form Factor

E-ATX Form Factor; 30.5cm x 27.0cm

Chipset: Intel Z690 Express Chipset Rozměrový formát: E-ATX Form Factor; (30.5cm x 27.0cm) Podpora pro procesory: 12th Generation Intel Core i9 processors/Intel Core i7 processors/Intel Core i5 processors Patice procesoru: LGA 1700 Pozice na paměti: 2 x DDR5 DIMM, Dual channel memory architecture Podpora pro paměti: DDR5 7000(O.C.) / 6600(O.C.) / 6400(O.C.) / 6200(O.C.) / 6000(O.C.) / 5800(O.C.) / 5600(O.C.) / 5400(O.C.) / 5200(O.C.) / 4800 / 4000 MHz memory modules Max.velikost operační paměti: 64 GB Podpora pro paměti typu: ECC, XMP Grafická karta: Intel HD Graphics *1 x HDMI port - 4096x2160@60 Hz Zvuková karta: Realtek ALC1220-VB CODEC *2/4/5.1/7.1-channel *Podpora S/PDIF Out Síťová karta: *Intel 2.5GbE LAN chip (2.5 Gbps/1 Gbps/100 Mbps) *Intel Wi-Fi 6E AX210 - WIFI a, b, g, n, ac, ax *Bluetooth 5.2 Rozšiřující sloty: *1 x PCI Express x16 slot, running at x16 (PCI Express 5.0 standard) *1 x PCI Express x16 slot, running at x8 (PCI Express 5.0 standard) *1 x PCI Express x16 slot, running at x4 (PCI Express 3.0 standard) RAID řadič: RAID 0, RAID 1, RAID 5, and RAID 10 SATA: 6 x SATA 6Gb/s connectors M.2: 4 x M.2 Socket 3 connectors USB: *Interní: *1 x USB Type-C header, with USB 3.2 Gen 2x2 support *1 x USB 3.2 Gen 2 Type-A port (red) *1 x USB 3.2 Gen 1 header *2 x USB 2.0/1.1 headers *Externí: *1 x USB Type-C port, with USB 3.2 Gen 2x2 support *3 x USB 3.2 Gen 2 Type-A ports (red) *4 x USB 3.2 Gen 1 ports Interní porty: *1 x 24-pin ATX main power connector *2 x 8-pin ATX 12V power connectors *1 x 6-pin OC_PEG power connector *1 x CPU fan header *1 x water cooling CPU fan header *4 x system fan headers *2 x system fan/water cooling pump headers *2 x addressable LED strip headers *2 x RGB LED strip headers *4 x M.2 Socket 3 connectors *6 x SATA 6Gb/s connectors *1 x front panel header *1 x front panel audio header *1 x USB Type-C header, with USB 3.2 Gen 2x2 support *1 x USB 3.2 Gen 2 Type-A port (red) *1 x USB 3.2 Gen 1 header *2 x USB 2.0/1.1 headers *1 x noise detection header *2 x Thunderbolt add-in card connectors *2 x temperature sensor headers *Voltage Measurement Points *1 x Clear CMOS jumper *1 x power button (PW_SW) *1 x reset button (RST_SW) *1 x Clear CMOS button (CMOS_SW) *1 x Cold Reset button (RTY_SW) *1 x Protection Mode button (LIMP_MODE) *2 x BIOS switches (BIOS_SW/SB) *1 x CPU Ratio up button (RATIO_UP) *1 x CPU Ratio down button (RATIO_DW) *1 x OC Trigger switch (TGR) *1 x Reserved switch (RSV_SW) Externí porty: *1 x Q-Flash Plus button *1 x OC Ignition button *1 x PS/2 keyboard port *1 x PS/2 mouse port *2 x SMA antenna connectors (2T2R) *1 x HDMI port *1 x USB Type-C port, with USB 3.2 Gen 2x2 support *3 x USB 3.2 Gen 2 Type-A ports (red) *4 x USB 3.2 Gen 1 ports *1 x RJ-45 port *1 x optical S/PDIF Out connector *5 x audio jacks BIOS: AMI UEFI BIOS, 2 x 256 Mbit flash Stránka výrobce: http://www.gigabyte.com/Motherboard/Z690-AORUS-TACHYON-rev-10#kf
