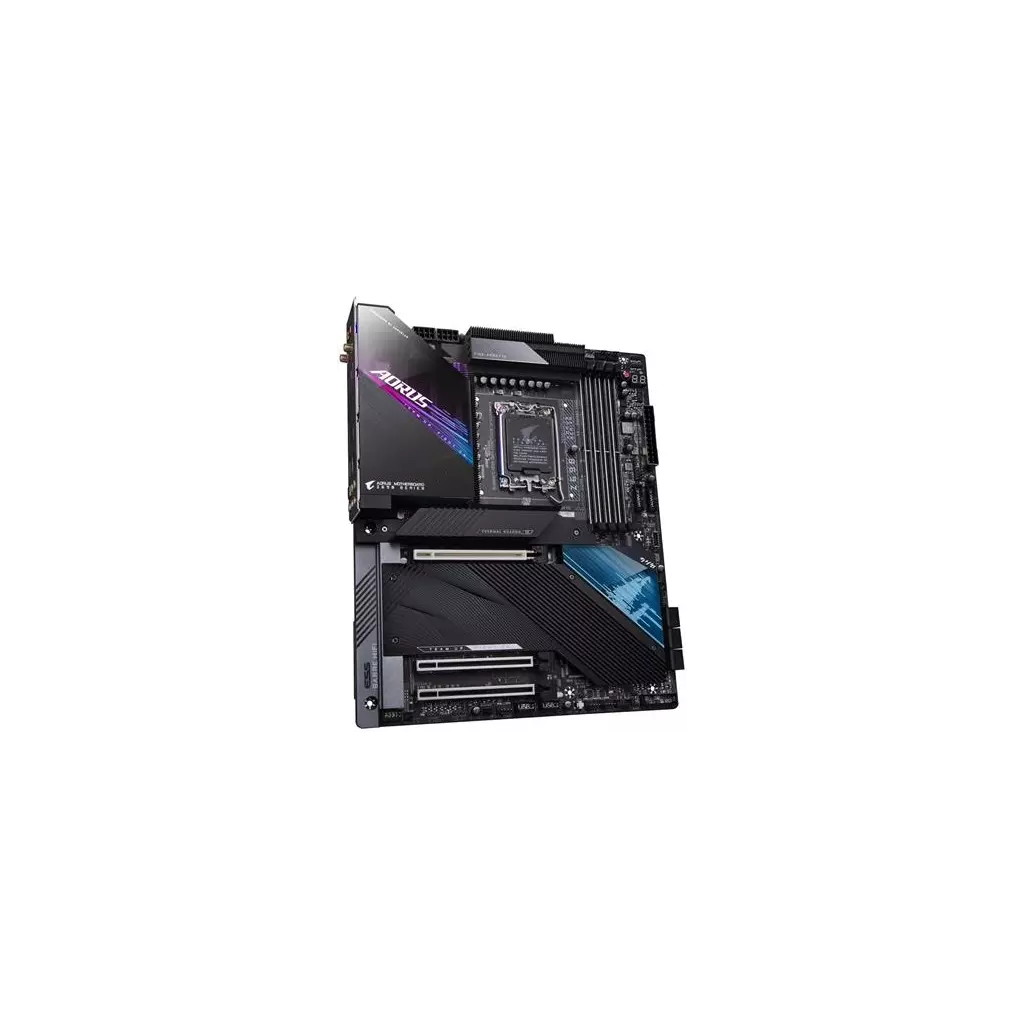

GIGABYTE Z690 AORUS MASTER / LGA1700 / Intel Z690 / 4x DDR5 / 5x M.2 / DP / USB-C / WiFi / EATX
Popis produktu:
Deska je vybavena grafickými výstupy pro použití s procesory s integrovaným grafickým jádrem. Základní deska grafickou kartu neobsahuje a bez použití odpovídajícího procesoru, budou tyto výstupy nefunkční.
CPU Podpora procesorů 12. a 13. generace Intel Core i3/ i5/ i7/ i9 Patice LGA1700
Čipová sada Intel Z690
Paměť 4x DDR5 paměťový slot, podpora až 192 GB Podpora DDR5 6400 (OC)/ 6200 (OC)/ 6000 (OC)/ 5800 (OC)/ 5600 (OC)/ 5400 (OC)/ 5200 (OC)/ 4800/ 4000 MHz Dvoukanálová architektura paměti Podpora non-ECC, bez vyrovnávací paměti, 1Rx8/2Rx8/1Rx16 Podpora ECC pamětí (non-ECC režim), 1Rx8/2Rx8 Podpora Intel Extreme Memory Profile (XMP)
Sloty 1x PCIe 5.0 x16 slot 2x PCIe 3.0 x16 slot (podporuje x4 režim)
Grafika 1x DisplayPort port, podporující max. rozlišení 4096 x 2304 při 60 Hz
Multi-GPU Podpora AMD Quad-GPU CrossFire a 2-Way CrossFire technologie
Úložiště Intel CPU 1x M.2 slot, M Key, pro jednotky typu 2260/2280/22110 (PCIe 4.0 x4/x2 režim) Intel Z690 čipová sada 2x M.2 slot, M Key, pro jednotky typu 2260/2280/22110 (PCIe 4.0 x4/x2 režim) 1x M.2 slot, M Key, pro jednotky typu 2242/2260/2280 (PCIe 3.0 x4/x2 režim) 1x M.2 slot, M Key, pro jednotky typu 2242/2260/2280 (SATA a PCIe 4.0 x4/x2 režim) 6x SATA 6Gb/s port Podpora RAID 0, RAID 1, RAID 5 a RAID 10 Podpora Intel Optane technologie
USB 2x USB 3.2 Gen2x2 typ C port (1 port na zadním panelu, 1 port dostupný přes interní USB konektor) 1x USB 3.2 Gen2 typ C port na zadním panelu 5x USB 3.2 Gen2 typ A port na zadním panelu 8x USB 3.2 Gen1 (USB 3.0) port (4 porty na zadním panelu, 4 porty dostupné přes interní USB konektory) 4x USB 2.0 port dostupný přes interní USB konektory
Audio Realtek ALC1220-VB Codec 2/4/5.1/7.1kanálové High Definition Audio ESS ES9118 DAC čip Podpora DTS:X Ultra Podpora S/PDIF výstupu
LAN 1x Marvell AQtion AQC113C 10Gigabit LAN řadič
WLAN/ Bluetooth Intel Wi-Fi 6E AX210 Wi-Fi 802.11a/b/g/n/ac/ax Dual Band (2,4 GHz, 5 GHz, 6 GHz) Rychlost přenosu dat až 2,4 Gbps Bluetooth 5.2
Interní konektory 1x 24-pin ATX hlavní napájecí konektor 2x 8-pin ATX 12V napájecí konektor 1x konektor ventilátoru CPU 1x konektor ventilátoru vodního chlazení CPU 4x konektor systémového ventilátoru 4x konektor systémového ventilátoru/ pumpy vodního chlazení 2x konektor adresovatelného LED pásku 2x konektor RGB LED pásku 5x M.2 slot, M Key 6x SATA 6Gb/s konektor 1x konektor předního panelu 1x audio konektor předního panelu 1x USB 3.2 Gen2x2 typ C konektor 2x USB 3.2 Gen1 (USB 3.0) konektor (podporuje 4x USB 3.2 Gen1 port) 2x USB 2.0 konektor (podporuje 4x USB 2.0 port) 1x konektor detekce hluku 2x konektor Thunderbolt AIC 1x TPM konektor (podporuje pouze moduly GC-TPM2.0 SPI a GC-TPM2.0 SPI 2.0) 1x tlačítko Power 1x tlačítko Reset 1x Reset propojka 1x propojka Clear CMOS 2x konektor teplotního čidla 1x body pro měření napětí
Porty na zadním panelu 1x tlačítko Q-Flash Plus 1x tlačítko Clear CMOS 2x konektor Wi-Fi antény 1x DisplayPort 1x USB 3.2 Gen2 typ C 1x USB 3.2 Gen2x2 typ C 5x USB 3.2 Gen2 (USB 3.1 Gen2) 4x USB 3.2 Gen1 (USB 3.0) 1x RJ-45 1x optický S/PDIF výstup 5x audio jack
Rozměry 30,5 x 25,9 cm E-ATX formát
Deska je vybavena grafickými výstupy pro použití s procesory s integrovaným grafickým jádrem. Základní deska grafickou kartu neobsahuje a bez použití odpovídajícího procesoru, budou tyto výstupy nefunkční.
CPU Podpora procesorů 12. a 13. generace Intel Core i3/ i5/ i7/ i9 Patice LGA1700
Čipová sada Intel Z690
Paměť 4x DDR5 paměťový slot, podpora až 192 GB Podpora DDR5 6400 (OC)/ 6200 (OC)/ 6000 (OC)/ 5800 (OC)/ 5600 (OC)/ 5400 (OC)/ 5200 (OC)/ 4800/ 4000 MHz Dvoukanálová architektura paměti Podpora non-ECC, bez vyrovnávací paměti, 1Rx8/2Rx8/1Rx16 Podpora ECC pamětí (non-ECC režim), 1Rx8/2Rx8 Podpora Intel Extreme Memory Profile (XMP)
Sloty 1x PCIe 5.0 x16 slot 2x PCIe 3.0 x16 slot (podporuje x4 režim)
Grafika 1x DisplayPort port, podporující max. rozlišení 4096 x 2304 při 60 Hz
Multi-GPU Podpora AMD Quad-GPU CrossFire a 2-Way CrossFire technologie
Úložiště Intel CPU 1x M.2 slot, M Key, pro jednotky typu 2260/2280/22110 (PCIe 4.0 x4/x2 režim) Intel Z690 čipová sada 2x M.2 slot, M Key, pro jednotky typu 2260/2280/22110 (PCIe 4.0 x4/x2 režim) 1x M.2 slot, M Key, pro jednotky typu 2242/2260/2280 (PCIe 3.0 x4/x2 režim) 1x M.2 slot, M Key, pro jednotky typu 2242/2260/2280 (SATA a PCIe 4.0 x4/x2 režim) 6x SATA 6Gb/s port Podpora RAID 0, RAID 1, RAID 5 a RAID 10 Podpora Intel Optane technologie
USB 2x USB 3.2 Gen2x2 typ C port (1 port na zadním panelu, 1 port dostupný přes interní USB konektor) 1x USB 3.2 Gen2 typ C port na zadním panelu 5x USB 3.2 Gen2 typ A port na zadním panelu 8x USB 3.2 Gen1 (USB 3.0) port (4 porty na zadním panelu, 4 porty dostupné přes interní USB konektory) 4x USB 2.0 port dostupný přes interní USB konektory
Audio Realtek ALC1220-VB Codec 2/4/5.1/7.1kanálové High Definition Audio ESS ES9118 DAC čip Podpora DTS:X Ultra Podpora S/PDIF výstupu
LAN 1x Marvell AQtion AQC113C 10Gigabit LAN řadič
WLAN/ Bluetooth Intel Wi-Fi 6E AX210 Wi-Fi 802.11a/b/g/n/ac/ax Dual Band (2,4 GHz, 5 GHz, 6 GHz) Rychlost přenosu dat až 2,4 Gbps Bluetooth 5.2
Interní konektory 1x 24-pin ATX hlavní napájecí konektor 2x 8-pin ATX 12V napájecí konektor 1x konektor ventilátoru CPU 1x konektor ventilátoru vodního chlazení CPU 4x konektor systémového ventilátoru 4x konektor systémového ventilátoru/ pumpy vodního chlazení 2x konektor adresovatelného LED pásku 2x konektor RGB LED pásku 5x M.2 slot, M Key 6x SATA 6Gb/s konektor 1x konektor předního panelu 1x audio konektor předního panelu 1x USB 3.2 Gen2x2 typ C konektor 2x USB 3.2 Gen1 (USB 3.0) konektor (podporuje 4x USB 3.2 Gen1 port) 2x USB 2.0 konektor (podporuje 4x USB 2.0 port) 1x konektor detekce hluku 2x konektor Thunderbolt AIC 1x TPM konektor (podporuje pouze moduly GC-TPM2.0 SPI a GC-TPM2.0 SPI 2.0) 1x tlačítko Power 1x tlačítko Reset 1x Reset propojka 1x propojka Clear CMOS 2x konektor teplotního čidla 1x body pro měření napětí
Porty na zadním panelu 1x tlačítko Q-Flash Plus 1x tlačítko Clear CMOS 2x konektor Wi-Fi antény 1x DisplayPort 1x USB 3.2 Gen2 typ C 1x USB 3.2 Gen2x2 typ C 5x USB 3.2 Gen2 (USB 3.1 Gen2) 4x USB 3.2 Gen1 (USB 3.0) 1x RJ-45 1x optický S/PDIF výstup 5x audio jack
Rozměry 30,5 x 25,9 cm E-ATX formát
Parametr | Hodnota |
---|---|
Socket (patice) | Socket 1700 |
Chipset | Intel Z690 |
Technologie paměti RAM | DDR5 |
Formát základní desky | E-ATX |
Podpora RAID | 1 |
Podpora RAID | 5 |
Podpora RAID | 10 |
PCI Express x16 | 1 |
3.5mm Jack | Ano |
Specifikace:
Z690 AORUS MASTER
Intel Z690 AORUS Motherboard with Direct 19+1+2 Phases Digital VRM Design, DDR5 XTREME MEMORY Design, Fins-Array III Heatsink, Direct-Touch Heatpipe II, NanoCarbon Baseplate, M.2 Thermal Guard III, 125dB ESS Sabre Audio, Intel WIFI 6E 802.11ax, AQUANTIA 10GbE LAN?
- Support 12th Gen Intel Series Processors
- Dual Channel Non-ECC Unbuffered DDR5, 4 DIMMs

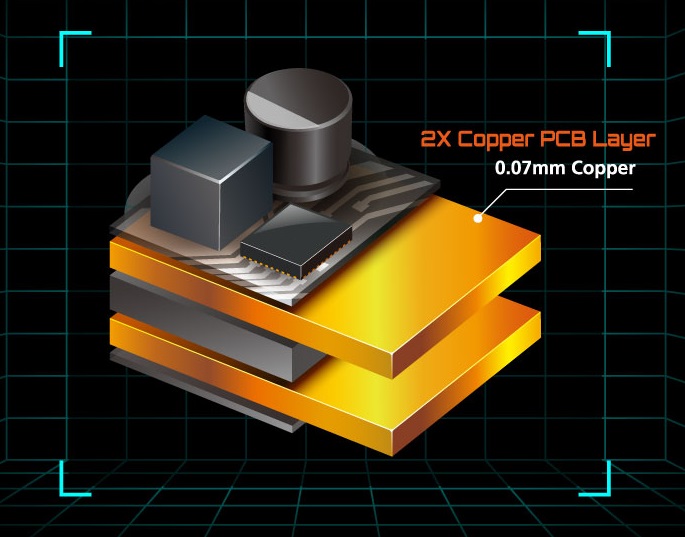

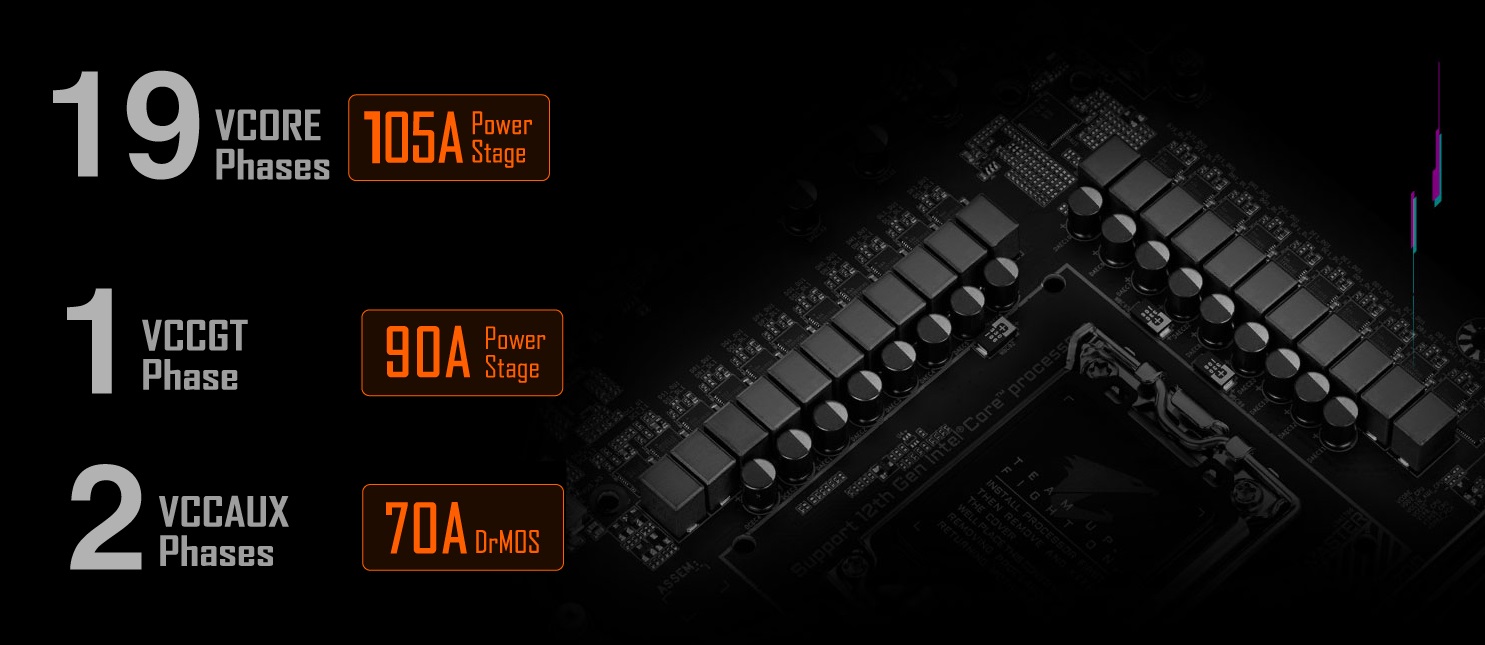

- Direct 19+1+2 Phases VRM Design with 105A Power Stage* and Tantalum Polymer Capacitor
- DDR5 XTREME MEMORY Design with SMD DIMM and Shielded Memory Routing
- Advanced Thermal Solution with NanoCarbon Fins-Array III Heatsink, Direct-Touch Heatpipe II and NanoCarbon Baseplate
- Intel WIFI 6E 802.11ax 2T2R & BT5 with AORUS Antenna
- Audio Slution with ESS Sabre ES9118 125dB on Rear Audio?
- AQUANTIA 10GbE BASE-T LAN
- 5 x Ultra-Fast NVMe PCIe 4.0/3.0 x4 M.2 with Thermal Guards
- RGB FUSION 2.0 with Multi-Zone Addressable LED Light Show Design, Support Addressable LED & RGB LED Strips
- Smart Fan 6 Features Multiple Temperature Sensors , Hybrid Fan Headers with FAN STOP and Noise Detection
- Q-Flash Plus Update BIOS without Installing the CPU, Memory and Graphics Card
*Power Stage maximum current capacity is based on VCORE Phase.
CPU
LGA1700 socket: Support for 12th Generation Intel Core™ i9 processors/Intel Core™ i7 processors/Intel Core™ i5 processors L3 cache varies with CPU (Please refer to "CPU Support List" for more information.)
Chipset
Intel Z690 Express Chipset
Memory
Support for DDR5 6400(O.C.) / 6200(O.C.) / 6000(O.C.) / 5800(O.C.) / 5600(O.C.) / 5400(O.C.) / 5200(O.C.) / 4800 / 4000 MHz memory modules 4 x DDR5 DIMM sockets supporting up to 128 GB (32 GB single DIMM capacity) of system memory Dual channel memory architecture Support for ECC Un-buffered DIMM 1Rx8/2Rx8 memory modules (operate in non-ECC mode) Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules Support for Extreme Memory Profile (XMP) memory modules (Please refer "Memory Support List" for more information.)
Onboard Graphics
Integrated Graphics Processor-Intel HD Graphics support: 1 x DisplayPort, supporting a maximum resolution of 4096x2304@60 Hz * Support for DisplayPort 1.2 version and HDCP 2.3 (Graphics specifications may vary depending on CPU support.)
Audio
Realtek ALC1220-VB CODEC * The front panel line out jack supports DSD audio. ESS ES9118 DAC chip Support for DTS:X Ultra High Definition Audio 2/4/5.1/7.1-channel Support for S/PDIF Out
LAN

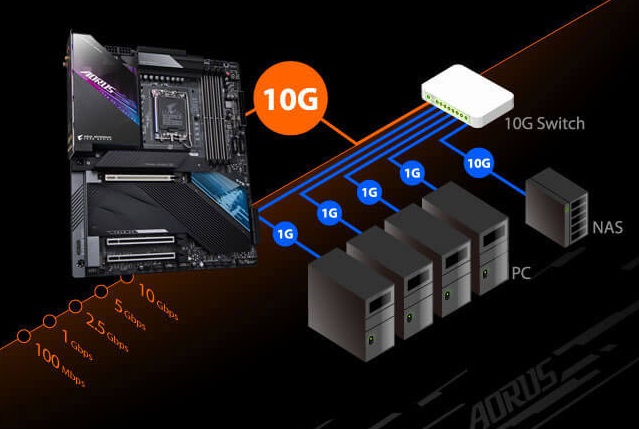

Marvell AQtion AQC113C 10GbE LAN chip (10 Gbps/5 Gbps/2.5 Gbps/1 Gbps/100 Mbps)
Wireless Communication module
Intel Wi-Fi 6E AX210 WIFI a, b, g, n, ac, ax, supporting 2.4/5/6 GHz carrier frequency bands BLUETOOTH 5.2 Support for 11ax 160MHz wireless standard and up to 2.4 Gbps data rate * Actual data rate may vary depending on environment and equipment.
Expansion Slots
1 x PCI Express x16 slot, running at x16 (PCIEX16) * For optimum performance, if only one PCI Express graphics card is to be installed, be sure to install it in the PCIEX16 slot. (The PCIEX16 slot conforms to PCI Express 5.0 standard.) 2 x PCI Express x16 slots, running at x4 (PCIEX4_1, PCIEX4_2) * The PCIEX4_1 slot shares bandwidth with the M2C_SB connector. The PCIEX4_1 slot becomes unavailable when a device is installed in the M2C_SB connector. (The PCIEX4 slots conform to PCI Express 3.0 standard.)
Multi-Graphics Technology
Support for AMD Quad-GPU CrossFire™ and 2-Way AMD CrossFire™ technologies
Storage Interface
CPU: 1 x M.2 connector (Socket 3, M key, type 2260/2280/22110 PCIe 4.0 x4/x2 SSD support) (M2A_CPU) Chipset: 2 x M.2 connectors (Socket 3, M key, type 2260/2280/22110 PCIe 4.0 x4/x2 SSD support) (M2P_SB, M2Q_SB) 1 x M.2 connector (Socket 3, M key, type 2242/2260/2280 PCIe 3.0 x4/x2 SSD support) (M2C_SB) 1 x M.2 connector (Socket 3, M key, type 2242/2260/2280 SATA and PCIe 4.0 x4/x2 SSD support) (M2M_SB) 6 x SATA 6Gb/s connectors Support for RAID 0, RAID 1, RAID 5, and RAID 10 * Refer to "2-8 Internal Connectors," for the installation notices for the PCIEX4_1, M.2, and SATA connectors. Intel Optane™ Memory Ready * System acceleration with Intel Optane™ Memory can only be enabled on the M.2 connectors supported by the Chipset.
USB
Chipset: 2 x USB Type-C ports, with USB 3.2 Gen 2x2 support (1 port on the back panel, 1 port available through the internal USB header) 3 x USB 3.2 Gen 2 Type-A ports (red) on the back panel Chipset+USB 3.2 Gen 2 Hub: 1 x USB Type-C port on the back panel, with USB 3.2 Gen 2 support 2 x USB 3.2 Gen 2 Type-A ports (red) on the back panel Chipset+2 USB 3.2 Gen 1 Hubs: 8 x USB 3.2 Gen 1 ports (4 ports on the back panel, 4 ports available through the internal USB headers) Chipset+USB 2.0 Hub: 4 x USB 2.0/1.1 ports available through the internal USB headers
Internal I/O Connectors
1 x 24-pin ATX main power connector 2 x 8-pin ATX 12V power connectors 1 x CPU fan header 1 x water cooling CPU fan header 4 x system fan headers 4 x system fan/water cooling pump headers 2 x addressable LED strip headers 2 x RGB LED strip headers 5 x M.2 Socket 3 connectors 6 x SATA 6Gb/s connectors 1 x front panel header 1 x front panel audio header 1 x USB Type-C header, with USB 3.2 Gen 2x2 support 2 x USB 3.2 Gen 1 headers 2 x USB 2.0/1.1 headers 1 x noise detection header 2 x Thunderbolt™ add-in card connectors 1 x Trusted Platform Module header (For the GC-TPM2.0 SPI/GC-TPM2.0 SPI 2.0 module only) 1 x power button 1 x reset button 1 x reset jumper 1 x Clear CMOS jumper 2 x temperature sensor headers Voltage Measurement Points
Back Panel Connectors
1 x Q-Flash Plus button 1 x Clear CMOS button 2 x SMA antenna connectors (2T2R) 1 x DisplayPort 1 x USB Type-C port, with USB 3.2 Gen 2 support 1 x USB Type-C port, with USB 3.2 Gen 2x2 support 5 x USB 3.2 Gen 2 Type-A ports (red) 4 x USB 3.2 Gen 1 ports 1 x RJ-45 port 1 x optical S/PDIF Out connector 5 x audio jacks
I/O Controller
iTE I/O Controller Chip
H/W Monitoring
Voltage detection Temperature detection Fan speed detection Water cooling flow rate detection Fan fail warning Fan speed control * Whether the fan (pump) speed control function is supported will depend on the fan (pump) you install. Noise detection
BIOS
1 x 256 Mbit flash Use of licensed AMI UEFI BIOS PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0
Unique Features
Support for APP Center * Available applications in APP Center may vary by motherboard model. Supported functions of each application may also vary depending on motherboard specifications. @BIOS EasyTune Fast Boot Game Boost ON/OFF Charge RGB Fusion Smart Backup System Information Viewer Support for Q-Flash Plus Support for Q-Flash Support for Xpress Install
Bundled Software
Norton Internet Security (OEM version) cFosSpeed
Operating System
Support for Windows 10 64-bit
Form Factor
E-ATX Form Factor; 30.5cm x 25.9cm
