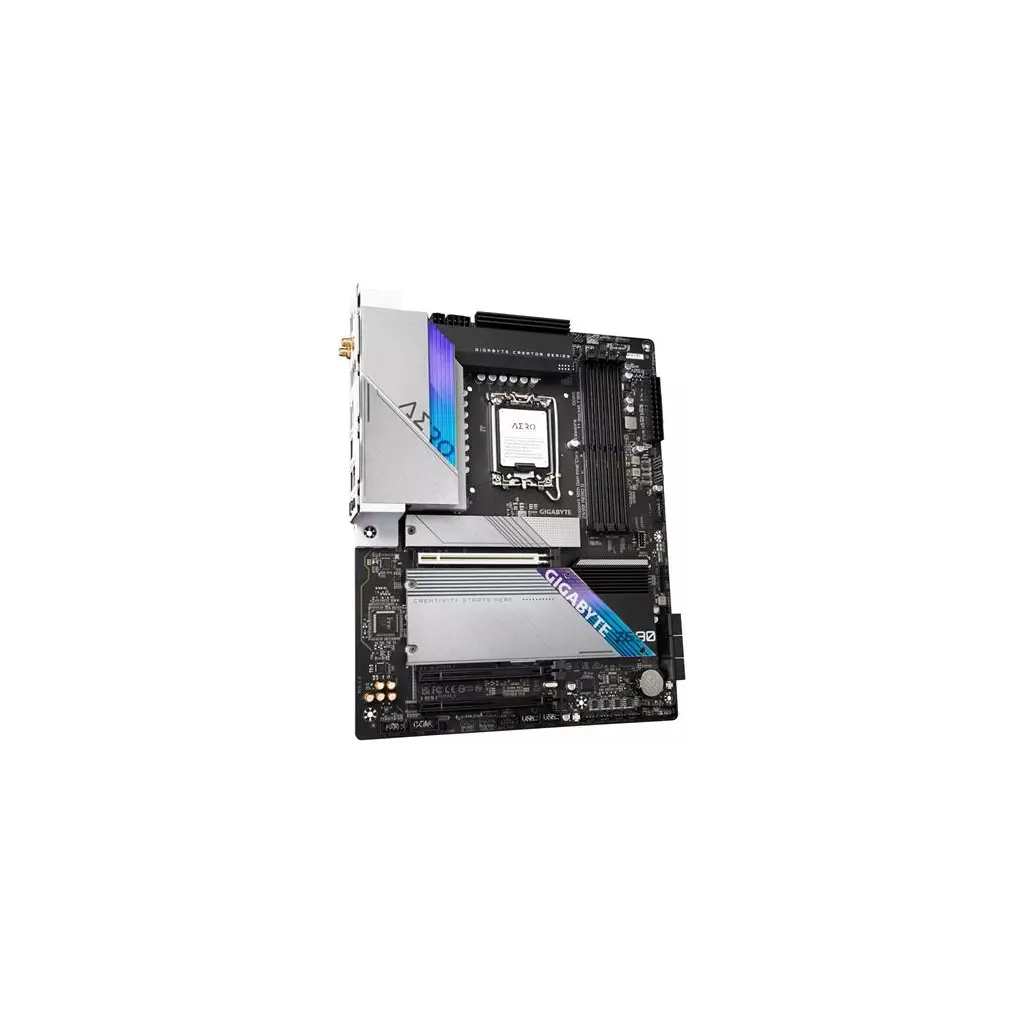

GIGABYTE Z690 AERO G / LGA1700 / Intel Z690 / 4x DDR5 / 4x M.2 / HDMI / DP / USB-C / WiFi / ATX
![](https://cdn.vmshop.cz/images/get/7/mbgb6238.jpg?p=detail,wp)
Popis produktu:
Deska je vybavena grafickými výstupy pro použití s procesory s integrovaným grafickým jádrem. Základní deska grafickou kartu neobsahuje a bez použití odpovídajícího procesoru, budou tyto výstupy nefunkční.
CPU Podpora procesorů 12. a 13. generace Intel Core i5/ i7/ i9 Patice LGA1700
Čipová sada Intel Z690
Paměť 4x DDR5 paměťový slot, podpora až 192 GB Podpora DDR5 6000 (OC)/ 5800 (OC)/ 5600 (OC)/ 5400 (OC)/ 5200 (OC)/ 4800/ 4000 MHz Dvoukanálová architektura paměti Podpora non-ECC, bez vyrovnávací paměti, 1Rx8/2Rx8/1Rx16 Podpora ECC pamětí (non-ECC režim), 1Rx8/2Rx8 Podpora Intel Extreme Memory Profile (XMP)
Sloty 1x PCIe 5.0 x16 slot 2x PCIe 3.0 x16 slot (podporuje x4 režim)
Grafika 1x USB 3.2 Gen1 typ C port, podporující max. rozlišení 4096 x 2304 při 60 Hz 1x HDMI port, podporující max. rozlišení 4096 x 2160 při 30 Hz
Multi-GPU Podpora AMD Quad-GPU CrossFire a 2-Way CrossFire technologie
Úložiště Intel CPU 1x M.2 slot, M Key, pro jednotky typu 2260/2280/22110 (PCIe 4.0 x4/x2 režim) Intel Z690 čipová sada 2x M.2 slot, M Key, pro jednotky typu 2260/2280/22110 (PCIe 4.0 x4/x2 režim) 1x M.2 slot, M Key, pro jednotky typu 2260/2280/22110 (SATA a PCIe 4.0 x4/x2 režim) 6x SATA 6Gb/s port Podpora RAID 0, RAID 1, RAID 5 a RAID 10 Podpora Intel Optane technologie
USB 2x USB 3.2 Gen2x2 typ C port (1 port na zadním panelu, 1 port dostupný přes interní USB konektor) 1x USB 3.2 Gen1 typ C port na zadním panelu 2x USB 3.2 Gen2 typ A port na zadním panelu 6x USB 3.2 Gen1 (USB 3.0) port (4 porty na zadním panelu, 2 porty dostupné přes interní USB konektory) 6x USB 2.0 port (2 porty na zadním panelu, 4 porty dostupné přes interní USB konektory)
Audio Realtek ALC4080 Codec 7.1kanálové High Definition Audio 2kanálový analogový výstup Podpora S/PDIF výstupu
LAN 1x Intel 2,5Gigabit LAN řadič
WLAN/ Bluetooth Intel Wi-Fi 6 AX201 Wi-Fi 802.11a/b/g/n/ac/ax Dual Band (2,4 GHz, 5 GHz) Rychlost přenosu dat až 2,4 Gbps Bluetooth 5.2
Interní konektory 1x 24-pin ATX hlavní napájecí konektor 1x 8-pin ATX 12V napájecí konektor 1x 4-pin ATX 12V napájecí konektor 1x konektor ventilátoru CPU 1x konektor ventilátoru vodního chlazení CPU 4x konektor systémového ventilátoru 2x konektor systémového ventilátoru/ pumpy vodního chlazení 2x konektor adresovatelného LED pásku 2x konektor RGB LED pásku 4x M.2 slot, M Key 6x SATA 6Gb/s konektor 1x konektor předního panelu 1x audio konektor předního panelu 1x USB 3.2 Gen2x2 typ C konektor 1x USB 3.2 Gen1 (USB 3.0) konektor (podporuje 2x USB 3.2 Gen1 port) 2x USB 2.0 konektor (podporuje 4x USB 2.0 port) 1x konektor detekce hluku 2x konektor Thunderbolt AIC 1x TPM konektor (podporuje pouze moduly GC-TPM2.0 SPI a GC-TPM2.0 SPI 2.0) 1x konektor sériového portu 1x tlačítko Q-Flash Plus 1x tlačítko Reset 1x Reset propojka 2x konektor teplotního čidla 1x propojka Clear CMOS
Porty na zadním panelu 2x konektor Wi-Fi antény 2x USB 2.0 4x USB 3.2 Gen1 (USB 3.0) 1x DisplayPort vstup 1x HDMI 2x USB 3.2 Gen2 (USB 3.1 Gen2) 1x USB 3.2 Gen2x2 typ C 1x USB 3.2 Gen1 typ C 1x RJ-45 1x optický S/PDIF výstup 2x audio jack
Rozměry 30,5 x 24,4 cm ATX formát
Deska je vybavena grafickými výstupy pro použití s procesory s integrovaným grafickým jádrem. Základní deska grafickou kartu neobsahuje a bez použití odpovídajícího procesoru, budou tyto výstupy nefunkční.
CPU Podpora procesorů 12. a 13. generace Intel Core i5/ i7/ i9 Patice LGA1700
Čipová sada Intel Z690
Paměť 4x DDR5 paměťový slot, podpora až 192 GB Podpora DDR5 6000 (OC)/ 5800 (OC)/ 5600 (OC)/ 5400 (OC)/ 5200 (OC)/ 4800/ 4000 MHz Dvoukanálová architektura paměti Podpora non-ECC, bez vyrovnávací paměti, 1Rx8/2Rx8/1Rx16 Podpora ECC pamětí (non-ECC režim), 1Rx8/2Rx8 Podpora Intel Extreme Memory Profile (XMP)
Sloty 1x PCIe 5.0 x16 slot 2x PCIe 3.0 x16 slot (podporuje x4 režim)
Grafika 1x USB 3.2 Gen1 typ C port, podporující max. rozlišení 4096 x 2304 při 60 Hz 1x HDMI port, podporující max. rozlišení 4096 x 2160 při 30 Hz
Multi-GPU Podpora AMD Quad-GPU CrossFire a 2-Way CrossFire technologie
Úložiště Intel CPU 1x M.2 slot, M Key, pro jednotky typu 2260/2280/22110 (PCIe 4.0 x4/x2 režim) Intel Z690 čipová sada 2x M.2 slot, M Key, pro jednotky typu 2260/2280/22110 (PCIe 4.0 x4/x2 režim) 1x M.2 slot, M Key, pro jednotky typu 2260/2280/22110 (SATA a PCIe 4.0 x4/x2 režim) 6x SATA 6Gb/s port Podpora RAID 0, RAID 1, RAID 5 a RAID 10 Podpora Intel Optane technologie
USB 2x USB 3.2 Gen2x2 typ C port (1 port na zadním panelu, 1 port dostupný přes interní USB konektor) 1x USB 3.2 Gen1 typ C port na zadním panelu 2x USB 3.2 Gen2 typ A port na zadním panelu 6x USB 3.2 Gen1 (USB 3.0) port (4 porty na zadním panelu, 2 porty dostupné přes interní USB konektory) 6x USB 2.0 port (2 porty na zadním panelu, 4 porty dostupné přes interní USB konektory)
Audio Realtek ALC4080 Codec 7.1kanálové High Definition Audio 2kanálový analogový výstup Podpora S/PDIF výstupu
LAN 1x Intel 2,5Gigabit LAN řadič
WLAN/ Bluetooth Intel Wi-Fi 6 AX201 Wi-Fi 802.11a/b/g/n/ac/ax Dual Band (2,4 GHz, 5 GHz) Rychlost přenosu dat až 2,4 Gbps Bluetooth 5.2
Interní konektory 1x 24-pin ATX hlavní napájecí konektor 1x 8-pin ATX 12V napájecí konektor 1x 4-pin ATX 12V napájecí konektor 1x konektor ventilátoru CPU 1x konektor ventilátoru vodního chlazení CPU 4x konektor systémového ventilátoru 2x konektor systémového ventilátoru/ pumpy vodního chlazení 2x konektor adresovatelného LED pásku 2x konektor RGB LED pásku 4x M.2 slot, M Key 6x SATA 6Gb/s konektor 1x konektor předního panelu 1x audio konektor předního panelu 1x USB 3.2 Gen2x2 typ C konektor 1x USB 3.2 Gen1 (USB 3.0) konektor (podporuje 2x USB 3.2 Gen1 port) 2x USB 2.0 konektor (podporuje 4x USB 2.0 port) 1x konektor detekce hluku 2x konektor Thunderbolt AIC 1x TPM konektor (podporuje pouze moduly GC-TPM2.0 SPI a GC-TPM2.0 SPI 2.0) 1x konektor sériového portu 1x tlačítko Q-Flash Plus 1x tlačítko Reset 1x Reset propojka 2x konektor teplotního čidla 1x propojka Clear CMOS
Porty na zadním panelu 2x konektor Wi-Fi antény 2x USB 2.0 4x USB 3.2 Gen1 (USB 3.0) 1x DisplayPort vstup 1x HDMI 2x USB 3.2 Gen2 (USB 3.1 Gen2) 1x USB 3.2 Gen2x2 typ C 1x USB 3.2 Gen1 typ C 1x RJ-45 1x optický S/PDIF výstup 2x audio jack
Rozměry 30,5 x 24,4 cm ATX formát
Parametr | Hodnota |
---|---|
Socket (patice) | Socket 1700 |
Chipset | Intel Z690 |
Technologie paměti RAM | DDR5 |
Formát základní desky | ATX |
PCI Express x16 | 1 |
3.5mm Jack | Ano |
Bezdrátové připojení | Wi-Fi |
Specifikace:
Z690 AERO G
Intel Z690 Creator Motherboard with unique VisionLINK I/O design, Next Gen Memory DDR5, WIFI6 802.11ax and Intel 2.5GbE LAN, PCIe 5.0 x16 slot, 4 x NVMe PCIe 4.0 x4 M.2 Connectors, USB 3.2 Gen 2x2 Type-C
- Supports 12th Gen Intel Core™ Series Processors?
- Dual Channel Non-ECC Unbuffered DDR5, 4 DIMMs
- PCle 5.0 x16 slot design can be ready for PCle 5.0 GPU or NVMe storage
- Go further without more cables by VisionLINK I/O design
- Brings a speed network experience with Intel 2.5GbE LAN
- WIFI6 2x2 802.11ax 2T2R & BT5 with new antenna for better signal
- No Hassle Connection with front USB 3.2 Gen 2x2 Type-C
- 4 x Ultra-Fast NVMe PCIe 4.0 x4 M.2 connectors with enlarged thermal guards
- Advanced thermal architecture design for the better thermal dissipation
- Smart Fan 6 features hybrid fan headers and numerous temperature sensors for fan mode configuration
- Q-Flash Plus Updates BIOS without Installing the CPU, Memory and Graphics Card
CPU
LGA1700 socket: Support for 12th Generation Intel Core™ i9 processors/Intel Core™ i7 processors/Intel Core™ i5 processors L3 cache varies with CPU (Please refer to "CPU Support List" for more information.)
Chipset
Intel Z690 Express Chipset
Memory
Support for DDR5 6000(O.C.) / 5800(O.C.) / 5600(O.C.) / 5400(O.C.) / 5200(O.C.) / 4800 / 4000 MHz memory modules 4 x DDR DIMM sockets supporting up to 128 GB (32 GB single DIMM capacity) of system memory Dual channel memory architecture Support for ECC Un-buffered DIMM 1Rx8/2Rx8 memory modules (operate in non-ECC mode) Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules Support for Extreme Memory Profile (XMP) memory modules (Please refer "Memory Support List" for more information.)
Onboard Graphics
Integrated Graphics Processor-Intel HD Graphics support: 1 x USB Type-C port, supporting USB Type-C and DisplayPort video outputs and a maximum resolution of 4096x2304@60 Hz * Support for drawing tablets and 20V@3A of power delivery. * Support for DisplayPort 1.2 version and HDCP 2.3 1 x HDMI port, supporting a maximum resolution of 4096x2160@30 Hz * Support for HDMI 1.4 version and HDCP 2.3. (Graphics specifications may vary depending on CPU or graphics card support.)
Audio
Realtek ALC4080 CODEC High Definition Audio 2-channel analog output Support for S/PDIF Out 7.1-channel digital signals * Actual output of digital signals may vary depending on the playback content and software used, and an external DAC is required.
LAN
Intel 2.5GbE LAN chip (2.5 Gbps/1 Gbps/100 Mbps)
Wireless Communication module
Intel Wi-Fi 6 AX201 WIFI a, b, g, n, ac, ax, supporting 2.4/5 GHz Dual-Band BLUETOOTH 5.2 Support for 11ax 160MHz wireless standard and up to 2.4 Gbps data rate * Actual data rate may vary depending on environment and equipment.
Expansion Slots
1 x PCI Express x16 slot, running at x16 (PCIEX16) * For optimum performance, if only one PCI Express graphics card is to be installed, be sure to install it in the PCIEX16 slot. (The PCIEX16 slot conforms to PCI Express 5.0 standard.) 2 x PCI Express x16 slots, running at x4 (PCIEX4_1, PCIEX4_2) (The PCIEX4 slots conform to PCI Express 3.0 standard.)
Multi-Graphics Technology
Support for AMD Quad-GPU CrossFire™ and 2-Way AMD CrossFire™ technologies
Storage Interface
CPU: 1 x M.2 connector (Socket 3, M key, type 2260/2280/22110 PCIe 4.0 x4/x2 SSD support) (M2A_CPU) Chipset: 2 x M.2 connectors (Socket 3, M key, type 2260/2280/22110 PCIe 4.0 x4/x2 SSD support) (M2P_SB, M2Q_SB) 1 x M.2 connector (Socket 3, M key, type 2260/2280/22110 SATA and PCIe 4.0 x4/x2 SSD support) (M2M_SB) 6 x SATA 6Gb/s connectors Support for RAID 0, RAID 1, RAID 5, and RAID 10 * Refer to "2-7 Internal Connectors," for the installation notices for the M.2 and SATA connectors. Intel Optane™ Memory Ready * System acceleration with Intel Optane™ Memory can only be enabled on the M.2 connectors supported by the Chipset.
USB
Chipset: 2 x USB Type-C ports, with USB 3.2 Gen 2x2 support (1 port on the back panel, 1 port available through the internal USB header) 1 x USB Type-C port on the back panel, with USB 3.2 Gen 1 support 2 x USB 3.2 Gen 2 Type-A ports (red) on the back panel 2 x USB 3.2 Gen 1 ports available through the internal USB header 2 x USB 2.0/1.1 ports on the back panel Chipset+USB 3.2 Gen 1 Hub: 4 x USB 3.2 Gen 1 ports on the back panel Chipset+USB 2.0 Hub: 4 x USB 2.0/1.1 ports available through the internal USB headers
Internal I/O Connectors
1 x 24-pin ATX main power connector 1 x 8-pin ATX 12V power connector 1 x 4-pin ATX 12V power connector 1 x CPU fan header 1 x water cooling CPU fan header 4 x system fan headers 2 x system fan/water cooling pump headers 2 x addressable LED strip headers 2 x RGB LED strip headers 4 x M.2 Socket 3 connectors 6 x SATA 6Gb/s connectors 1 x front panel header 1 x front panel audio header 1 x USB Type-C header, with USB 3.2 Gen 2x2 support 1 x USB 3.2 Gen 1 header 2 x USB 2.0/1.1 headers 1 x noise detection header 2 x Thunderbolt™ add-in card connectors 1 x Trusted Platform Module header (For the GC-TPM2.0 SPI/GC-TPM2.0 SPI 2.0 module only) 1 x serial port header 1 x Q-Flash Plus button 1 x reset button 1 x reset jumper 2 x temperature sensor headers 1 x Clear CMOS jumper
Back Panel Connectors
2 x USB 2.0/1.1 ports 2 x SMA antenna connectors (2T2R) 4 x USB 3.2 Gen 1 ports 1 x DisplayPort In port 1 x HDMI port 2 x USB 3.2 Gen 2 Type-A ports (red) 1 x USB Type-C port, with USB 3.2 Gen 2x2 support 1 x USB Type-C port, with USB 3.2 Gen 1 support 1 x RJ-45 port 1 x optical S/PDIF Out connector 2 x audio jacks
I/O Controller
iTE I/O Controller Chip
H/W Monitoring
Voltage detection Temperature detection Fan speed detection Water cooling flow rate detection Fan fail warning Fan speed control * Whether the fan (pump) speed control function is supported will depend on the fan (pump) you install. Noise detection
BIOS
1 x 256 Mbit flash Use of licensed AMI UEFI BIOS PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0
Unique Features
Support for APP Center * Available applications in APP Center may vary by motherboard model. Supported functions of each application may also vary depending on motherboard specifications. @BIOS EasyTune Fast Boot Game Boost ON/OFF Charge RGB Fusion Smart Backup System Information Viewer Support for Q-Flash Plus Support for Q-Flash Support for Xpress Install
Bundled Software
Norton Internet Security (OEM version) cFosSpeed
Operating System
Support for Windows 10 64-bit
Form Factor
ATX Form Factor; 30.5cm x 24.4cm
Deska je vybavena grafickými výstupy pro použití s procesory s integrovaným grafickým jádrem. Základní deska grafickou kartu neobsahuje a bez použití odpovídajícího procesoru, budou tyto výstupy nefunkční.
CPU Podpora procesorů 12. a 13. generace Intel Core i5/ i7/ i9 Patice LGA1700
Čipová sada Intel Z690
Paměť 4x DDR5 paměťový slot, podpora až 192 GB Podpora DDR5 6000 (OC)/ 5800 (OC)/ 5600 (OC)/ 5400 (OC)/ 5200 (OC)/ 4800/ 4000 MHz Dvoukanálová architektura paměti Podpora non-ECC, bez vyrovnávací paměti, 1Rx8/2Rx8/1Rx16 Podpora ECC pamětí (non-ECC režim), 1Rx8/2Rx8 Podpora Intel Extreme Memory Profile (XMP)
Sloty 1x PCIe 5.0 x16 slot 2x PCIe 3.0 x16 slot (podporuje x4 režim)
Grafika 1x USB 3.2 Gen1 typ C port, podporující max. rozlišení 4096 x 2304 při 60 Hz 1x HDMI port, podporující max. rozlišení 4096 x 2160 při 30 Hz
Multi-GPU Podpora AMD Quad-GPU CrossFire a 2-Way CrossFire technologie
Úložiště Intel CPU 1x M.2 slot, M Key, pro jednotky typu 2260/2280/22110 (PCIe 4.0 x4/x2 režim) Intel Z690 čipová sada 2x M.2 slot, M Key, pro jednotky typu 2260/2280/22110 (PCIe 4.0 x4/x2 režim) 1x M.2 slot, M Key, pro jednotky typu 2260/2280/22110 (SATA a PCIe 4.0 x4/x2 režim) 6x SATA 6Gb/s port Podpora RAID 0, RAID 1, RAID 5 a RAID 10 Podpora Intel Optane technologie
USB 2x USB 3.2 Gen2x2 typ C port (1 port na zadním panelu, 1 port dostupný přes interní USB konektor) 1x USB 3.2 Gen1 typ C port na zadním panelu 2x USB 3.2 Gen2 typ A port na zadním panelu 6x USB 3.2 Gen1 (USB 3.0) port (4 porty na zadním panelu, 2 porty dostupné přes interní USB konektory) 6x USB 2.0 port (2 porty na zadním panelu, 4 porty dostupné přes interní USB konektory)
Audio Realtek ALC4080 Codec 7.1kanálové High Definition Audio 2kanálový analogový výstup Podpora S/PDIF výstupu
LAN 1x Intel 2,5Gigabit LAN řadič
WLAN/ Bluetooth Intel Wi-Fi 6 AX201 Wi-Fi 802.11a/b/g/n/ac/ax Dual Band (2,4 GHz, 5 GHz) Rychlost přenosu dat až 2,4 Gbps Bluetooth 5.2
Interní konektory 1x 24-pin ATX hlavní napájecí konektor 1x 8-pin ATX 12V napájecí konektor 1x 4-pin ATX 12V napájecí konektor 1x konektor ventilátoru CPU 1x konektor ventilátoru vodního chlazení CPU 4x konektor systémového ventilátoru 2x konektor systémového ventilátoru/ pumpy vodního chlazení 2x konektor adresovatelného LED pásku 2x konektor RGB LED pásku 4x M.2 slot, M Key 6x SATA 6Gb/s konektor 1x konektor předního panelu 1x audio konektor předního panelu 1x USB 3.2 Gen2x2 typ C konektor 1x USB 3.2 Gen1 (USB 3.0) konektor (podporuje 2x USB 3.2 Gen1 port) 2x USB 2.0 konektor (podporuje 4x USB 2.0 port) 1x konektor detekce hluku 2x konektor Thunderbolt AIC 1x TPM konektor (podporuje pouze moduly GC-TPM2.0 SPI a GC-TPM2.0 SPI 2.0) 1x konektor sériového portu 1x tlačítko Q-Flash Plus 1x tlačítko Reset 1x Reset propojka 2x konektor teplotního čidla 1x propojka Clear CMOS
Porty na zadním panelu 2x konektor Wi-Fi antény 2x USB 2.0 4x USB 3.2 Gen1 (USB 3.0) 1x DisplayPort vstup 1x HDMI 2x USB 3.2 Gen2 (USB 3.1 Gen2) 1x USB 3.2 Gen2x2 typ C 1x USB 3.2 Gen1 typ C 1x RJ-45 1x optický S/PDIF výstup 2x audio jack
Rozměry 30,5 x 24,4 cm ATX formát
