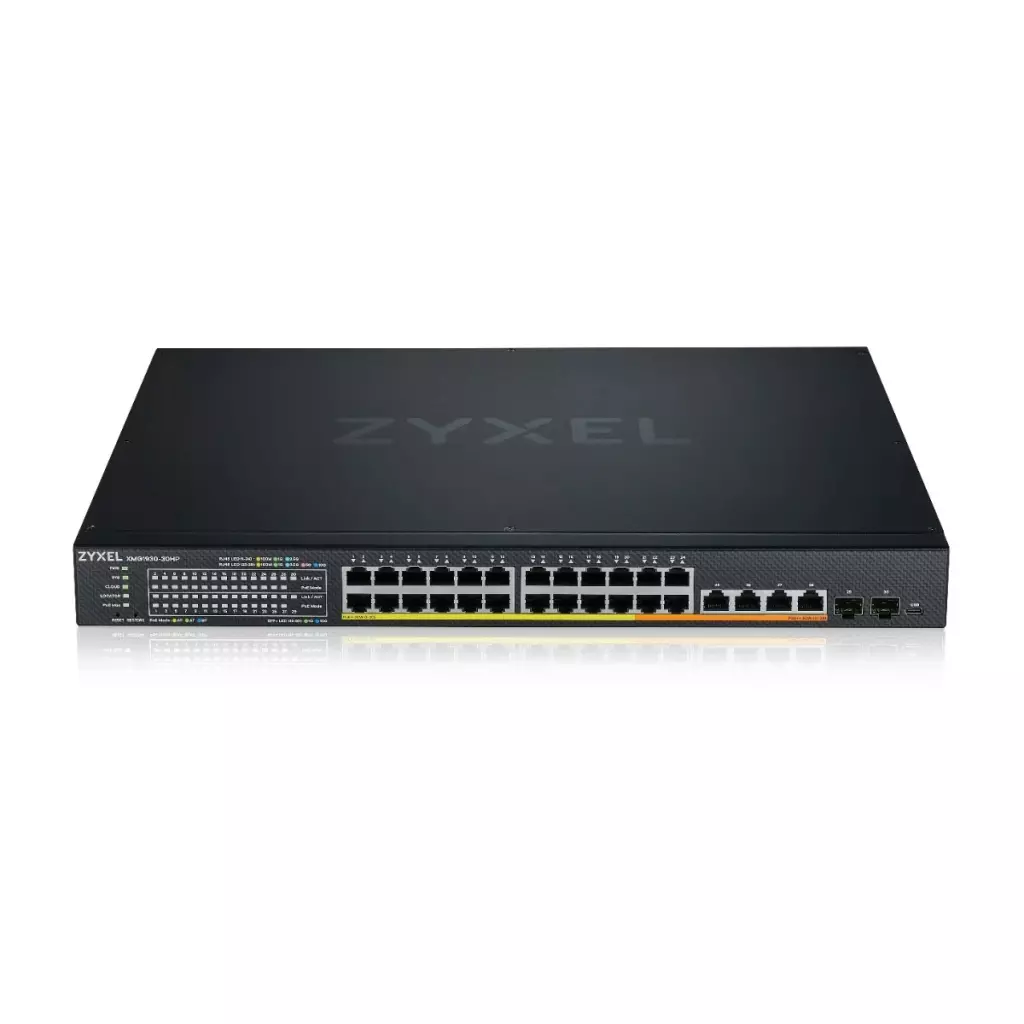

ZYXEL XMG1930-30HP 24port,2,5GbE Smart Managed Layer 2 PoE 700W 22xPoE+/8xPoE++ Switch

Zyxel XMG1930-30HP, 24-port 2.5GbE Smart Managed Layer 2 PoE 700W 22xPoE+/8xPoE++ Switch with 4 10GbE and 2 SFP+ U The Backbone to Embrace the New Era of Multi-Gigabit XMG1930 Series Multi-Gigabit Lite-L3 Smart Managed Switch Nebula Cloud-Managed Multi-Gigabit Switches The XMG1930 series is a family of Multi-Gigabit Lite-L3 Smart Managed switches including 2 models, with and without PoE options. This Series features a high Multi-Gig port density for WiFi 6/6E wireless access points, servers, and workstations. Both models support NebulaFlex, and come with simplicity, useful features and superior performance. Manage It Your Way! The XMG1930 Series supports free Nebula cloud management. Nebula provides both intuitive web interface and mobile App to deliver a streamlined experience for installation and management of your network, without additional cost for a software or hardware controller. Typical standalone mode is still available for your preference. The Ideal Solution To Upgrade Your Network with Extensibility and Resilience There are up to six 10G uplinks including both copper and fiber options which are capable of network expansion and flexible deployment for Service Providers to upgrade network service, as well as 8 PoE++ (60W) ports to adopt WiFi 6/6E and incoming WiFi 7 APs without hassles. Anytime, Anywhere with Nebula Mobile App Easy device onboarding: QR code scan At a glance of network status Remote control your network Reboot AP, Camera by PoE power cycle Block clients with unusual traffic The Nebula Ecosystem The support of Zyxel Nebula allows your business to experience a unified cloud network from Switch, AP, Firewall to 5G/LTE routers anytime with just a few simple clicks. Just connect with a single vendor Resellers, Managed Service Providers (MSPs) and network Administrators will find Simplicity, Scalability, Flexibility, reduced IT risk and reduced costs through Zyxel’s Cloud Networking Management platform, Nebula a single-vendor approach. Just Connect without the complexity Nebula offers powerful, effortless and scalable network connectivity that works together to remove the complexity and security risks often associated with having a mixed vendor approach to networking. Launch an entire network in minutes Connect, protect and manage Security, Switch, Wireless and LTE/5G connectivity via our centralized Cloud platform, Nebula. Just Connect, with an unmatched portfolio Serving customers with over 80 Nebula enabled devices via an ever-growing portfolio, Zyxel is unmatched in its approach to onboarding new and existing products via NebulaFlex. From Deploying a home office to delivering connectivity to distributed network configurations, Zyxel’s Portfolio of Nebula enabled products can accommodate all types of budgets, functionality and scalability for now and for the future. Dedicated Networked AV Mode The XMG1930 series includes a tailor-made networked AV mode when used in standalone mode. You can switch interfaces to simplify the installation of AVoIP with an intuitive wizard that prompts high level requirements for this type of network infrastructure; leveraging from AI intelligence, the switch is then able to remove the complexity by applying all the necessary details to set up a professional AVoIP deployment in minutes. When deployed in Networked AV mode the switch gives you a dedicated dashboard allowing quick access to the key AV network elements such as IGMP and IP information as well as fast access to configuration functions often associated with AVoIP deployments. Port Density Total port count 30 100M/1G/2.5G Ethernet (RJ-45) 24 1G/2.5G/5G/10G Ethernet (RJ-45) 4 1G SFP/10G SFP+ 2 PoE PoE ports 28 Total PoE budget (Watts) 700 IEEE 802.3at (PoE+) Port 1 - 20 IEEE 802.3bt (PoE++, 60 W) 100M/1G/2.5G: Port 21 - 24 1G/2.5G/5G/10G: Port 25 - 28 Performance Switching capacity (Gbps) 240 Forwarding rate (Mpps) 178.5 Packet buffer (byte) 2 MB MAC address table 16 K Jumbo frame (byte) 12 K L3 forwarding table (Max. IPv4/Max. IPv6) 512/512 Routing table 32 IP interface 32/32 Flash/RAM 32 MB/256 MB Power Input 100 - 240 V AC, 50/60 Hz Max. power consumption (watt) 864.1 Physical Specifications Dimensions (WxDxH)(mm/in.) 441 x 330 x 44/17.36 x 12.99 x 1.73 Weight (kg/lb.) 4.85/10.69 Included accessories Power cord Power adapter Rack mounting kit ESD/Surge Protections Ethernet port surge protection 2 KV Power supply surge protection Line-GND: 6 KV Line-Line: 6 KV Ethernet port ESD protection (air/contact) 8 KV/4 KV Environmental Specifications Operating Temperature: -20°C to 50°C/-4°F to 122°F Humidity: 5% to 95% (non-condensing) Storage Temperature: -40°C to 70°C/-40°F to 158°F Humidity: 5% to 95% (non-condensing) MTBF (hr) 587,922.31 Heat dissipation (BTU/hr) 864.1 Acoustic noise @ 25°C (min/max, dBA) 27.9/51.6

Description Product name 24-Port 2.5G Multi-Gig Lite-L3 Smart Managed PoE++/PoE+ Switch with 6 10G Uplink Port Density Total port count 30 100M/1G/2.5G Ethernet (RJ-45) 24 1G/2.5G/5G/10G Ethernet (RJ-45) 4 1G SFP/10G SFP+ 2 PoE PoE ports 28 Total PoE budget (Watts) 700 IEEE 802.3at (PoE+) Port 1 - 20 IEEE 802.3bt (PoE++, 60 W) 100M/1G/2.5G: Port 21 - 24 1G/2.5G/5G/10G: Port 25 - 28 Performance Switching capacity (Gbps) 240 Forwarding rate (Mpps) 178.5 Packet buffer (byte) 2 MB MAC address table 16 K Jumbo frame (byte) 12 K L3 forwarding table (Max. IPv4/Max. IPv6) 512/512 Routing table 32 IP interface 32/32 Flash/RAM 32 MB/256 MB Power Input 100 - 240 V AC, 50/60 Hz Max. power consumption (watt) 864.1 Physical Specifications Dimensions (WxDxH)(mm/in.) 441 x 330 x 44/17.36 x 12.99 x 1.73 Weight (kg/lb.) 4.85/10.69 Included accessories Power cord Power adapter Rack mounting kit ESD/Surge Protections Ethernet port surge protection 2 KV Power supply surge protection Line-GND: 6 KV Line-Line: 6 KV Ethernet port ESD protection (air/contact) 8 KV/4 KV Environmental Specifications Operating Temperature: -20°C to 50°C/-4°F to 122°F Humidity: 5% to 95% (non-condensing)

Zyxel XMG1930-30HP 24portový 2,5G multi-gig PoE++/PoE+ Lite-L3 Smart Managed Switch 700W s 6portovým 10G Uplinkem (4 Copper/2 SFP+) * ochrana ESD/přepětí * až šest uplinků 10G včetně metalických i optických možností poskytujících rozšiřitelnost a odolnost sítí * design ventilátoru poskytuje téměř tichý provoz pro jakékoli pracovní prostředí * Nebula - inteligentní správa cloudu Switch: Ano Typ switche: Smart Managed Porty: (celkový počet: 30) * 24x 100M/1G/2,5G Ethernet (RJ-45) * 4x 1G/2,5G/5G/10G Ethernet (RJ-45) * 2x 1G SFP/10G SFP+ Flash/RAM: 32MB/256MB Jumbo Frame: 12K Tabulka MAC adres: 16K Vyrovnávací paměť: 2MB PoE: ano (28 portů, 700W) Max. spotřeba energie: 864,1W Akustický hluk (min/max): 27,9/51,6dBA Rozměry: 441x330x44mm Hmotnost: 4,85kg Příslušenství: * napájecí kabel * montážní souprava

Přepínač - spravovaný, NebulaFLEX cloud - L3 Lite - inteligentní - 20 x 100/1000/2.5G (PoE+) + 4 x 100/1000/2.5G (PoE++) + 4 x 1/2.5/5/10 (PoE++) + 2 x Gigabit SFP / 10 Gigabit SFP+ - Lze montovat do rozvaděče - PoE++ (700 W)

Zyxel XMG1930-30HP. Typ přepínače: Řízený, Přepínač vrstev: L3. Typy přepínaných ethernetových portů RJ-45: 2.5G Ethernet (100/1000/2500), Počet přepínaných ethernetových portů RJ-45: 24, Počet instalovaných modulů SFP+: 2. Tabulka MAC adres: 16000 pol., Kapacita přepínání: 240 Gbit/s. Síťové standardy: IEEE 802.1p, IEEE 802.1s, IEEE 802.1w, IEEE 802.3ab, IEEE 802.3ad, IEEE 802.3ae, IEEE 802.3af,.... Napájecí konektor: Konektor AC-IN. Podpora napájení po Ethernetu (PoE). Instalace do racku, Formát: 1U
