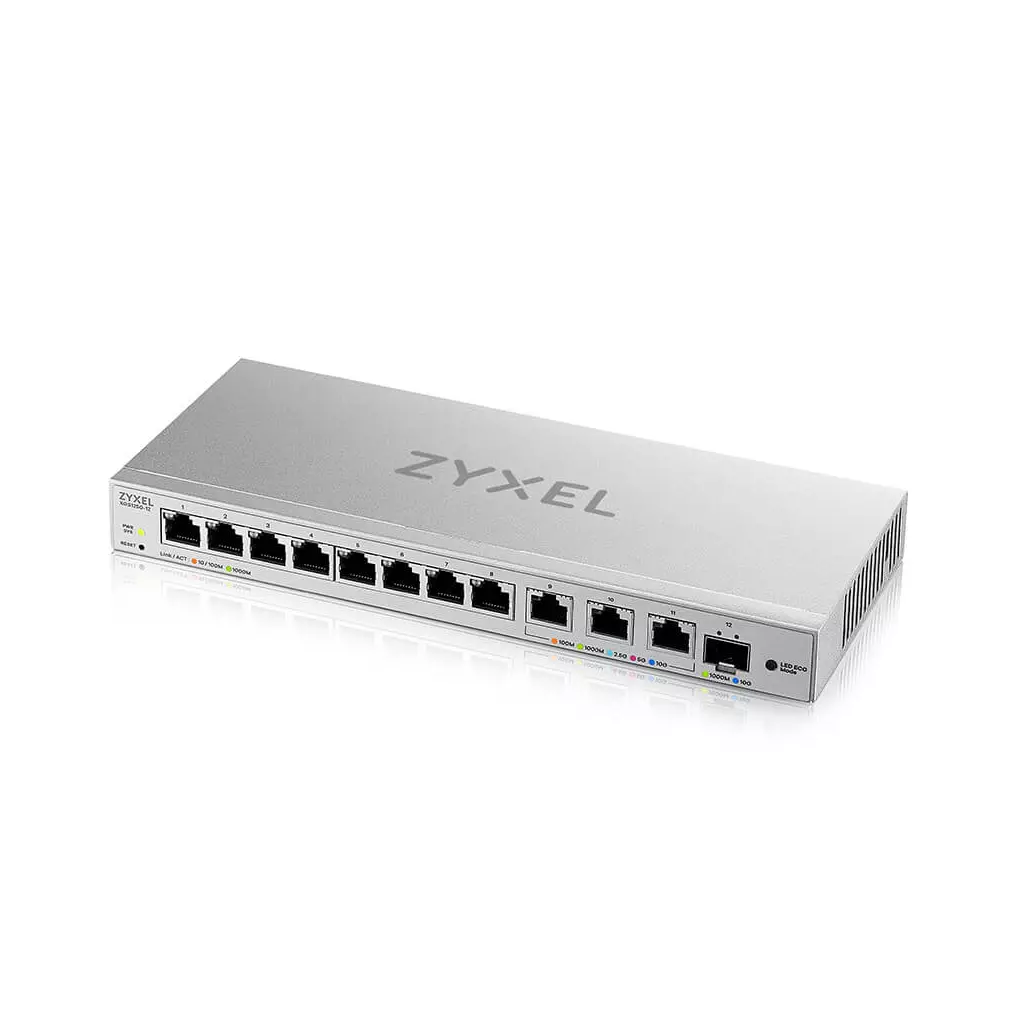

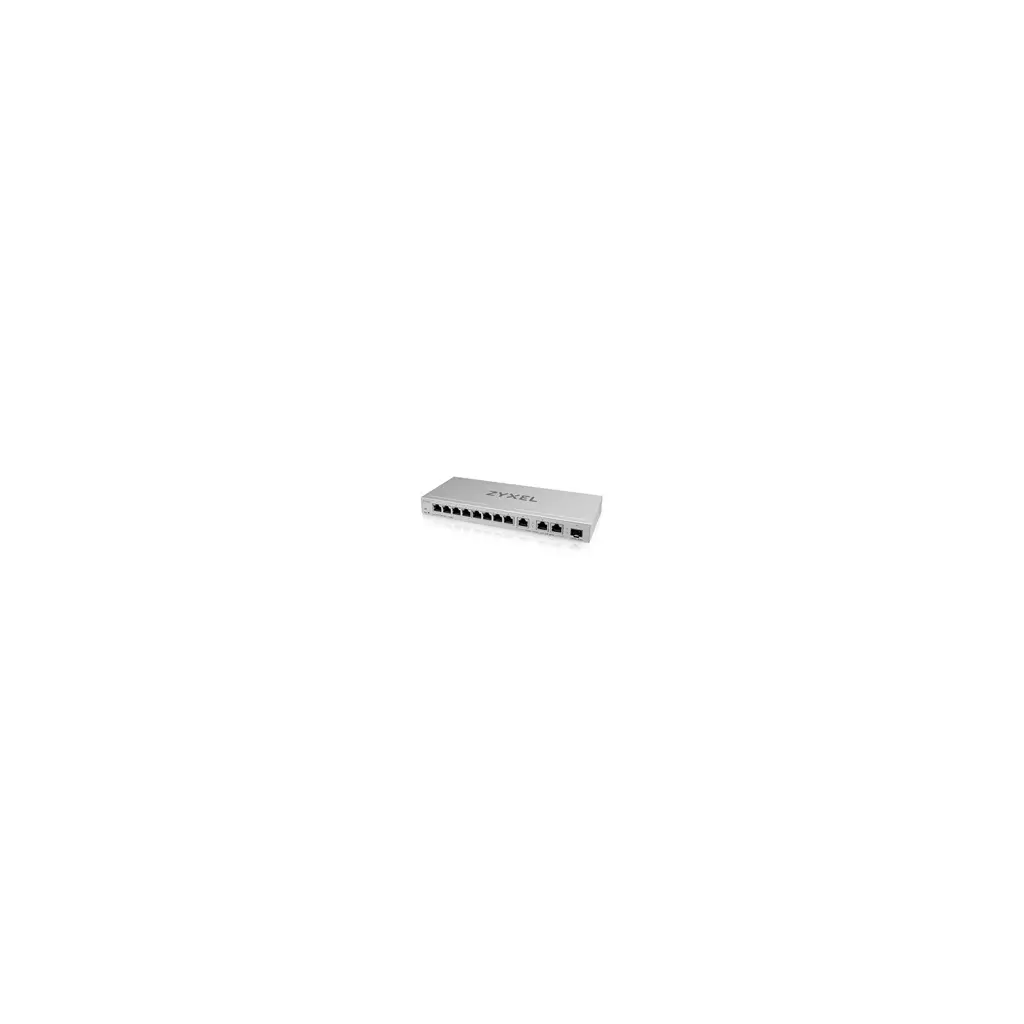

Zyxel XGS1250-12 v2, 12-Port GB webmanaged Switch w. 8 port 1G + 3-Port MultiGig + 1-Port SFP+

XGS1250-12, 12-Port Gigabit webmanaged Switch with 8 port 1G + 3-Port MultiGig 1/2.5/5/10G + 1-Port SFP+ Double the 10G Capability! XS1250-12 features with three Multi-Gigabit ports supporting up to 10G and one additional 10G fiber port on top of the two 10G copper ports provided by the other vendors. With our additional fiber port and 10G connectivity boost the flexibility to adopt more 10G devices in your daily work. Why Multi-Gigabit? Increasing new applications raise the demand for higher network speed requirement. The Multi-Gigabit RJ-45 ports provide more speed options for your network. Before upgrading the network, you should figure out network speed of motherboard, PC, or WiFi 6 AP, and you need to pick up the right network cable to achieve the maximum speed. Using Your Current Cabling Is Fine! The Multi-Gigabit support is able to leverage existing Cat 5e cable infrastructure to upgrade network speed up to 5 times for cost efficient network setup. Whisper-silent, Energy-saving at Work The built-in smart fan is designed to automatically adjust speeds based on the device’s temperature; you can barely hear the sound while the switch is in operation. Also, the Energy Efficient Ethernet function is able to detect network traffic and adjusts power consumption dynamically to reduce business operating expenses. Easy Web Management The XGS1250-12 comes with essential features including VLAN, QoS, IGMP snooping v1/v2 and v3 compatible, link aggregation, and port mirroring which are configurable through a user-friendly web-based interface. It’s the most ideal solution to simplify networks for home and small office users. Standard IEEE 802.3 10BASE-T Ethernet IEEE 802.3u 100BASE-TX Fast Ethernet IEEE 802.3ab 1000BASE-T Gigabit Ethernet IEEE 802.3an 10GBASE-T IEEE 802.3ae 10 Gbit/s Ethernet over fiber IEEE 802.3az Energy Efficient Ethernet IEEE 802.3x full duplex operation and flow control IEEE 802.1p QoS Performance Switching capacity: 96 Gbps Switching forwarding rate: 71.42 Mpps MAC address table: 16 K Packet buffer: 1.5 MB Jumbo frame support up to 12 KB Features Web-based management Auto-MDI/MDIX in all ports System password VLAN (Port supported) Port-based QoS 802.1p QoS Broadcast storm control Loop detection/prevention DHCP client Static Link aggregation Port mirroring Weighted Round Robin (WRR) priority QoS IGMP snooping v1/v2/and v3 compatible Supported multicast groups: 128 Support Zyxel One Network (ZON Utility) Interface 8 x RJ-45 10/100/1000 Mbps Ethernet port with metal shielding 3 x RJ-45 100M/1G/2.5G/5G/10G Ethernet port with metal shielding 1 x SFP+ Hardware reset button LED Indicator PWR: Power Port 1-8: Link/Activity Green: 1000 Mbps Amber: 10/100 Mbps Port 9-11: Link/Activity Blue : 10Gbps Purple : 5Gbps Sky Blue : 2.5Gbps Green : 1Gbps Amber: 100Mbps Port 12: Link/Activity Blue: 10Gbps Green : 1Gbps Power Supply AC-to-DC external power adapter Input: 100-240V~50-60Hz Output: 12V DC/2A Item dimensions (WxDxH): 250 x 104 x 27 mm (9.84" x 4.10" x 1.06") Item weight: 783 g (1.73 lb.) Packing dimensions (WxDxH): 306 x 225 x 64 mm (12.04" x 8.86" x 1.06") Packing weight: 1350 g (2.98 lb.) Operating Environment Temperature: 0°C to 40°C (32°F to 104°F) Humidity: 10% to 90% (Non-condensing) Storage Environment Temperature: -40°C to 70°C (-32°F to 158°F) Humidity: 10% to 90% (Non-condensing) Safety: CE-LVD, BSMI EMC: CE, EAC, FCC, BSMI, Class B Package Contents Switch Power adapter Quick Start Guide Safety warning and DoC

XGS1250-12-ZZ0102F Zyxel XGS1250-12 v2, 12-Port GB Webmanaged Switch with 8-Port 1G + 3-Port Multi-Gig + 1-Port SFP+ Vlastnosti *Porty: 3 Multi-Gigabit porty s podporou 5 rychlostí (100M/1G/2.5G/5G/10G) *Správa: přehledné webové rozhraní pro snadné nastavení *Chlazení: inteligentní tichý ventilátor *Pokročilé funkce: QoS, VLAN, Link Aggregation, IGMP Snooping *Úspora energie: funkce Green Ethernet *Ovládání LED: možnost vypnutí LED pomocí tlačítka nebo webového rozhraní Porty *Celkový počet portů: 12 *RJ-45 10/100/1000 Mbps: 8 *RJ-45 1G/2.5G/5G/10G: 3 *SFP/SFP+: 1 (1G/10G SFP+) *Třída switche: Web Managed Výkon *Kapacita přepínání: 96 Gbps *Forwarding rate: 71,42 Mpps *Packet buffer: 1,5 MB *MAC tabulka: 16 K *Jumbo frame: 12 K Napájení *Vstup: 100–240 V AC, 50/60 Hz *Napájecí zdroj: externí *Max. spotřeba: 20,06 W *Min. spotřeba: 6,16 W Fyzické parametry *Rozměry (Š × H × V): 250 × 104 × 27 mm *Hmotnost: 0,783 kg *Rozměry balení (Š × H × V): 306 × 225 × 64 mm *Hmotnost balení: 1,35 kg Web výrobce: https://www.zyxel.com/cz/cs/products/switch/12-port-web-managed-multi-gigabit-switch-includes-3-port-10g-and-1-port-10g-sfp-xgs1250-12

Přepínač - řízený - 8 x 10/100/1000 + 3 x 1/2.5/5/10GBase-T + 1 x 1 Gigabit / 10 Gigabit SFP+ - desktop

8 x RJ-45 10/100/1000 Mbps Ethernet port s kovovým tienením 3 x RJ-45 100M/1G/2.5G/5G/10G Ethernetový port s kovovým tienením 1 x SFP+ Hardvérové tlačidlo resetovania Výkon Prepínacia kapacita: 96 Gb/s Rýchlosť prepínania: 71.42 Mpps Tabuľka adries MAC: 16 K Vyrovnávacia pamäť paketov: 1.5 MB Podpora Jumbo rámcov do 12 KB Funkcie Webová správa Automatické MDI/MDIX vo všetkých portoch Systémové heslo VLAN (Port supported) Port-based QoS 802.1p QoS Riadenie búrky vysielania Detekcia/prevencia slučky DHCP klient Statická agregácia spojov Zrkadlenie portov Priorita WRR (Weighted Round Robin) QoS Kompatibilita s IGMP snooping v1/v2/ a v3 Podporované skupiny multicast: 128 Podpora Zyxel One Network (ZON Utility).
