Viewsonic UMB202 MSTeams certified video camera, with max.4K@30fps resolution and PIR, Microphone array*6,speaker

SPECIFICATIONS Camera Resolution: H.264/MJ: @30FPS (1)3840×2160 (2)2560×1440 (3)1920×1080 (4)1280×720 (5)1024×576 (6)960×540 (7)800×600 (8)640×480 (9)640×360 (10)480×270 (11)352×288 (12)320×240 NV12 / YUY2: @30FPS (1)1920×1080(2)1280×720 (3)640×360 Sensor: IMX577 1/2.3 inch, CMOS, 12M pixel FOV: 117.8° (DFOV) ,109° (HFOV),74.4° (VFOV) PTZ: EPTZ (5X digital Zoom) Digital Noise Reduction: Yes White Balance: Yes Exposure: Yes Audio Microphone array: 6 element, 8 meters pickup range Speaker: treble module x1, mid-bass modulex1 in one box (Maximum output 8W) Output Power: 80 dBA @ 1000 Hz @ 1 meter at maximum volume I/O USB-TypeC: 1 Audio Out: 1 DC 2.0 Power: 1 RJ45: 1 (Only for power supply) IEEE 802.3 at,25.50W (max) Power Button: Power Button: In startup mode, press the power button to mute. In standby mode, press the power button to power on. MIC Mute Button: Yes USB feature Connection type: USB 3.0, downward compatible with USB2.0 Video Compression: MJPEG /YUY2 / H.264 / NV12 USB audio: 16K sampling rate, support UAC2.0 USB video communication protocol: UVC 1.1 UVC PTZ control: Support (Control Via Remote controller) Intelligent Function Auto Framing: Yes Voice tracking: Yes System Compatibility OS: Windows 7 /8.1/10/11 or higher macOS® 10.10 or higher Google ChromebookTM Version 29.0.1547.70 or higher Android Accessory (inbox) USB Type-C cable: 1.8m typeC x1 (include TypeC to A Plug adaptor) Remote Control: Yes Power adapter: 1 Wall mount components: 1 Screws: Yes Lens Cover: 1 QSG: Yes Compliance statement: Yes

SPECIFICATIONS Camera Resolution: H.264/MJ: @30FPS (1)3840×2160 (2)2560×1440 (3)1920×1080 (4)1280×720 (5)1024×576 (6)960×540 (7)800×600 (8)640×480 (9)640×360 (10)480×270 (11)352×288 (12)320×240 NV12 / YUY2: @30FPS (1)1920×1080(2)1280×720 (3)640×360 Sensor: IMX577 1/2.3 inch, CMOS, 12M pixel FOV: 117.8° (DFOV) ,109° (HFOV),74.4° (VFOV) PTZ: EPTZ (5X digital Zoom) Digital Noise Reduction: Yes White Balance: Yes Exposure: Yes Audio Microphone array: 6 element, 8 meters pickup range Speaker: treble module x1, mid-bass modulex1 in one box (Maximum output 8W) Output Power: 80 dBA @ 1000 Hz @ 1 meter at maximum volume I/O USB-TypeC: 1 Audio Out: 1 DC 2.0 Power: 1 RJ45: 1 (Only for power supply) IEEE 802.3 at,25.50W (max) Power Button: Power Button: In startup mode, press the power button to mute. In standby mode, press the power button to power on. MIC Mute Button: Yes USB feature Connection type: USB 3.0, downward compatible with USB2.0 Video Compression: MJPEG /YUY2 / H.264 / NV12 USB audio: 16K sampling rate, support UAC2.0 USB video communication protocol: UVC 1.1 UVC PTZ control: Support (Control Via Remote controller) Intelligent Function Auto Framing: Yes Voice tracking: Yes System Compatibility OS: Windows 7 /8.1/10/11 or higher macOS® 10.10 or higher Google ChromebookTM Version 29.0.1547.70 or higher Android Accessory (inbox) USB Type-C cable: 1.8m typeC x1 (include TypeC to A Plug adaptor) Remote Control: Yes Power adapter: 1 Wall mount components: 1 Screws: Yes Lens Cover: 1 QSG: Yes Compliance statement: Yes

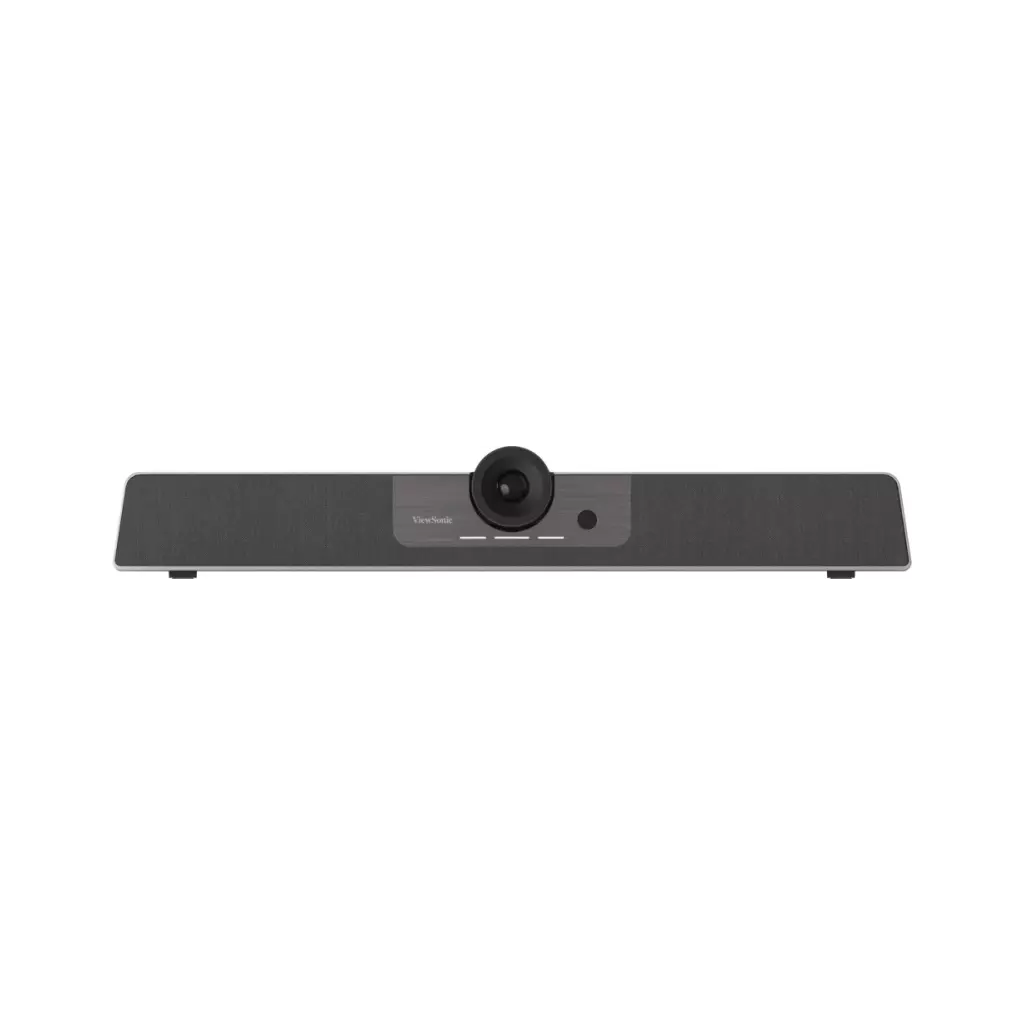

ViewSonic UMB202

Videobar s certifikací Microsoft Teams je ideální pro středně velké až velké konferenční a zasedací místnosti. Disponuje rozlišením 4K Ultra HD a superširokoúhlým objektivem s úhlem záběru 120°, který zachytí všechny účastníky s ohromující čistotou. Technologie sledování hlasu v kombinaci s 5násobným digitálním zoomem zajišťuje, že řečník je vždy na kameře. Reproduktory o výkonu 8 W + 3 W a sestava šesti mikrofonů s technologiemi potlačení šumu a ozvěny zaručují, že každý účastník hovoru bude mít pocit, jako by byl s vámi v místnosti. Připojení plug-and-play s interaktivními displeji ViewSonic ViewBoard a komerčními displeji umožňuje rychlé a snadné nastavení.

Součástí balení je USB-C kabel, dálkové ovládání a sada pro montáž na zeď.

ZÁKLADNÍ SPECIFIKACE

Snímací čip: Sony IMX577, 1/2,3" CMOS Úhel záběru: horizontálně 109°, vertikálně 74,4°, diagonálně 120° Rozlišení: 4K při 30 fps, 1080p při 60 fps Rozhraní: 1× USB-C 3.0, 1× RJ-45 (PoE), 1× audio výstup (3,5 mm jack) Mikrofon: ano Frekvenční rozsah: 150 Hz – 18 kHz Napájení: DC 12 V nebo PoE Rozměry: 462 × 94 × 76 mm Hmotnost: 1,043 kg Barva: šedá

SPECIFICATIONS Camera Resolution: H.264/MJ: @30FPS (1)3840×2160 (2)2560×1440 (3)1920×1080 (4)1280×720 (5)1024×576 (6)960×540 (7)800×600 (8)640×480 (9)640×360 (10)480×270 (11)352×288 (12)320×240 NV12 / YUY2: @30FPS (1)1920×1080(2)1280×720 (3)640×360 Sensor: IMX577 1/2.3 inch, CMOS, 12M pixel FOV: 117.8° (DFOV) ,109° (HFOV),74.4° (VFOV) PTZ: EPTZ (5X digital Zoom) Digital Noise Reduction: Yes White Balance: Yes Exposure: Yes Audio Microphone array: 6 element, 8 meters pickup range Speaker: treble module x1, mid-bass modulex1 in one box (Maximum output 8W) Output Power: 80 dBA @ 1000 Hz @ 1 meter at maximum volume I/O USB-TypeC: 1 Audio Out: 1 DC 2.0 Power: 1 RJ45: 1 (Only for power supply) IEEE 802.3 at,25.50W (max) Power Button: Power Button: In startup mode, press the power button to mute. In standby mode, press the power button to power on. MIC Mute Button: Yes USB feature Connection type: USB 3.0, downward compatible with USB2.0 Video Compression: MJPEG /YUY2 / H.264 / NV12 USB audio: 16K sampling rate, support UAC2.0 USB video communication protocol: UVC 1.1 UVC PTZ control: Support (Control Via Remote controller) Intelligent Function Auto Framing: Yes Voice tracking: Yes System Compatibility OS: Windows 7 /8.1/10/11 or higher macOS® 10.10 or higher Google ChromebookTM Version 29.0.1547.70 or higher Android Accessory (inbox) USB Type-C cable: 1.8m typeC x1 (include TypeC to A Plug adaptor) Remote Control: Yes Power adapter: 1 Wall mount components: 1 Screws: Yes Lens Cover: 1 QSG: Yes Compliance statement: Yes

SPECIFICATIONS Camera Resolution: H.264/MJ: @30FPS (1)3840×2160 (2)2560×1440 (3)1920×1080 (4)1280×720 (5)1024×576 (6)960×540 (7)800×600 (8)640×480 (9)640×360 (10)480×270 (11)352×288 (12)320×240 NV12 / YUY2: @30FPS (1)1920×1080(2)1280×720 (3)640×360 Sensor: IMX577 1/2.3 inch, CMOS, 12M pixel FOV: 117.8° (DFOV) ,109° (HFOV),74.4° (VFOV) PTZ: EPTZ (5X digital Zoom) Digital Noise Reduction: Yes White Balance: Yes Exposure: Yes Audio Microphone array: 6 element, 8 meters pickup range Speaker: treble module x1, mid-bass modulex1 in one box (Maximum output 8W) Output Power: 80 dBA @ 1000 Hz @ 1 meter at maximum volume I/O USB-TypeC: 1 Audio Out: 1 DC 2.0 Power: 1 RJ45: 1 (Only for power supply) IEEE 802.3 at,25.50W (max) Power Button: Power Button: In startup mode, press the power button to mute. In standby mode, press the power button to power on. MIC Mute Button: Yes USB feature Connection type: USB 3.0, downward compatible with USB2.0 Video Compression: MJPEG /YUY2 / H.264 / NV12 USB audio: 16K sampling rate, support UAC2.0 USB video communication protocol: UVC 1.1 UVC PTZ control: Support (Control Via Remote controller) Intelligent Function Auto Framing: Yes Voice tracking: Yes System Compatibility OS: Windows 7 /8.1/10/11 or higher macOS® 10.10 or higher Google ChromebookTM Version 29.0.1547.70 or higher Android Accessory (inbox) USB Type-C cable: 1.8m typeC x1 (include TypeC to A Plug adaptor) Remote Control: Yes Power adapter: 1 Wall mount components: 1 Screws: Yes Lens Cover: 1 QSG: Yes Compliance statement: Yes

SPECIFICATIONS Camera Resolution: H.264/MJ: @30FPS (1)3840×2160 (2)2560×1440 (3)1920×1080 (4)1280×720 (5)1024×576 (6)960×540 (7)800×600 (8)640×480 (9)640×360 (10)480×270 (11)352×288 (12)320×240 NV12 / YUY2: @30FPS (1)1920×1080(2)1280×720 (3)640×360 Sensor: IMX577 1/2.3 inch, CMOS, 12M pixel FOV: 117.8° (DFOV) ,109° (HFOV),74.4° (VFOV) PTZ: EPTZ (5X digital Zoom) Digital Noise Reduction: Yes White Balance: Yes Exposure: Yes Audio Microphone array: 6 element, 8 meters pickup range Speaker: treble module x1, mid-bass modulex1 in one box (Maximum output 8W) Output Power: 80 dBA @ 1000 Hz @ 1 meter at maximum volume I/O USB-TypeC: 1 Audio Out: 1 DC 2.0 Power: 1 RJ45: 1 (Only for power supply) IEEE 802.3 at,25.50W (max) Power Button: Power Button: In startup mode, press the power button to mute. In standby mode, press the power button to power on. MIC Mute Button: Yes USB feature Connection type: USB 3.0, downward compatible with USB2.0 Video Compression: MJPEG /YUY2 / H.264 / NV12 USB audio: 16K sampling rate, support UAC2.0 USB video communication protocol: UVC 1.1 UVC PTZ control: Support (Control Via Remote controller) Intelligent Function Auto Framing: Yes Voice tracking: Yes System Compatibility OS: Windows 7 /8.1/10/11 or higher macOS® 10.10 or higher Google ChromebookTM Version 29.0.1547.70 or higher Android Accessory (inbox) USB Type-C cable: 1.8m typeC x1 (include TypeC to A Plug adaptor) Remote Control: Yes Power adapter: 1 Wall mount components: 1 Screws: Yes Lens Cover: 1 QSG: Yes Compliance statement: Yes
