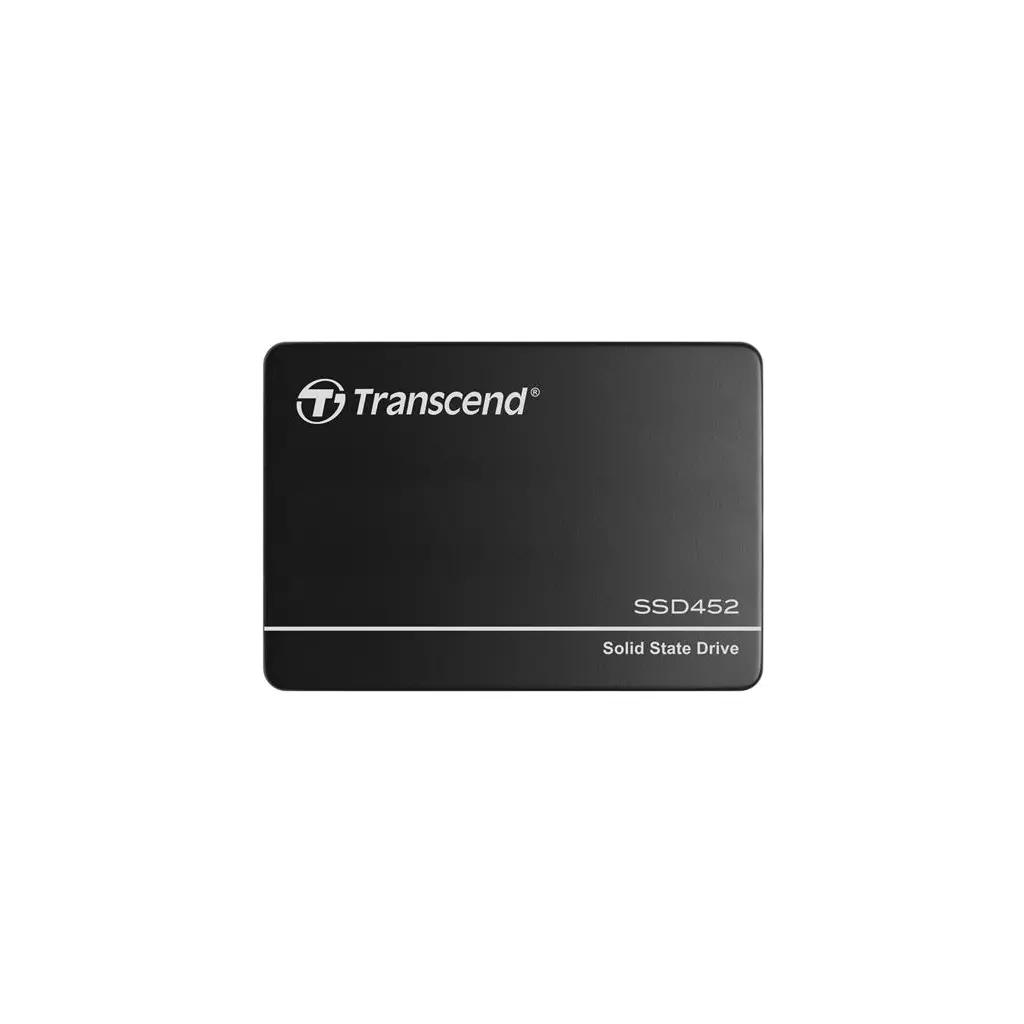

TRANSCEND Industrial SSD 452K-I, 128GB, 2,5", SATA III

TRANSCEND SSD452K-I 128GB Industrial (3K P/E) SSD disk 2.5" SATA3, 3D TLC, Aluminium case, 560MB/s R, 520 MB/W, černý Transcend's SSD452K features the SATA III 6Gb/s interface and state-of-the-art 3D NAND technology, which allows 96 layers of 3D NAND flash chips to be vertically stacked. Compared to 3D NAND at 64 layers, this density breakthrough greatly improves storage efficiency. The SSD452K is built with DRAM cache for fast access, and is fully tested in-house to guarantee reliability in mission-critical applications, boasting an endurance rating of 3K Program/Erase cycles. Transcend also offers the SSD452K-I with wide temperature (-40? ~ 85?) capabilities to ensure sustained functionality, enhanced endurance and optimal reliability in mission-critical applications. Features: DRAM Cache embedded Endurance: 3K P/E cycles (Program/Erase cycles) guaranteed Wide-temperature model available: promised operational reliability in a wide temperature range (from -40? to 85?) Advanced Global Wear-Leveling and Block management for reliability Advanced Garbage Collection Built-in LDPC ECC (Error Correction Code) functionality Enhanced S.M.A.R.T. function Compliant with RoHS 2.0 standards Supports Trim and NCQ command Power-saving DevSleep (Device Sleep) mode (optional) Specifications: Dimensions (Max.): 100 mm x 69.85 mm x 6.8 mm (3.94" x 2.75" x 0.27") Weight (Max.): 54 g (1.90 oz) Form Factor: 2.5" Bus Interface: SATA III 6Gb/s Flash Type: 3D TLC NAND flash Capacity: 128 GB Operating Voltage: 5V±5% Operating Temperature: -40°C (-40°F) ~ 85°C (185°F) Storage Temperature: -40°C (-40°F) ~ 85°C (185°F) Humidity: 5% ~ 95% Shock: 1500 G, 0.5 ms, 3 axis Vibration (Operating): 20 G (peak-to-peak), 5 Hz ~ 800 Hz (frequency) Power Consumption (Operation): 3.3 watt(s) Power Consumption (Sleep): 0.5 watt(s) Performance: Sequential Read/Write (ATTO, max.): - Read: 560 MB/s - Write: 520 MB/s Sequential Read/Write (CrystalDiskMark, max.): - Read: 560 MB/s - Write: 520 MB/s 4K Random Read/Write (IOmeter, max.): - Read: 95,000 IOPS - Write: 85,000 IOPS Mean Time Between Failures (MTBF): 1,000,000 hour(s) Terabytes Written (Max.): 1,760 TB Drive Writes Per Day (DWPD): 1.61 (3 yrs) Note Speed may vary due to host hardware, software, usage, and storage capacity. The workload used to rate DWPD may be different from your actual workload, which may vary due to host hardware, software, usage, and storage capacity. Certificate : CE/FCC/BSMI Warranty: Three-year Limited Warranty Warranty does not apply when SSD Scope's wear-out indicator displays 0% within the warranty coverage. Due to the complexity and variety of industrial applications, Transcend cannot guarantee 100% compatibility with all platforms and under all scenarios. For special applications and environments, it is strongly suggested that you contact Transcend beforehand for clarification. SSD Scope Pro software is required by request. Please contact us for more information.

TRANSCEND SSD452K-I 128GB Industrial (3K P/E) SSD disk 2.5" SATA3, 3D TLC, Aluminium case, 560MB/s R, 520 MB/W, černý Transcend's SSD452K features the SATA III 6Gb/s interface and state-of-the-art 3D NAND technology, which allows 96 layers of 3D NAND flash chips to be vertically stacked. Compared to 3D NAND at 64 layers, this density breakthrough greatly improves storage efficiency. The SSD452K is built with DRAM cache for fast access, and is fully tested in-house to guarantee reliability in mission-critical applications, boasting an endurance rating of 3K Program/Erase cycles. Transcend also offers the SSD452K-I with wide temperature (-40? ~ 85?) capabilities to ensure sustained functionality, enhanced endurance and optimal reliability in mission-critical applications. Features: DRAM Cache embedded Endurance: 3K P/E cycles (Program/Erase cycles) guaranteed Wide-temperature model available: promised operational reliability in a wide temperature range (from -40? to 85?) Advanced Global Wear-Leveling and Block management for reliability Advanced Garbage Collection Built-in LDPC ECC (Error Correction Code) functionality Enhanced S.M.A.R.T. function Compliant with RoHS 2.0 standards Supports Trim and NCQ command Power-saving DevSleep (Device Sleep) mode (optional) Specifications: Dimensions (Max.): 100 mm x 69.85 mm x 6.8 mm (3.94" x 2.75" x 0.27") Weight (Max.): 54 g (1.90 oz) Form Factor: 2.5" Bus Interface: SATA III 6Gb/s Flash Type: 3D TLC NAND flash Capacity: 128 GB Operating Voltage: 5V±5% Operating Temperature: -40°C (-40°F) ~ 85°C (185°F) Storage Temperature: -40°C (-40°F) ~ 85°C (185°F) Humidity: 5% ~ 95% Shock: 1500 G, 0.5 ms, 3 axis Vibration (Operating): 20 G (peak-to-peak), 5 Hz ~ 800 Hz (frequency) Power Consumption (Operation): 3.3 watt(s) Power Consumption (Sleep): 0.5 watt(s) Performance: Sequential Read/Write (ATTO, max.): - Read: 560 MB/s - Write: 520 MB/s Sequential Read/Write (CrystalDiskMark, max.): - Read: 560 MB/s - Write: 520 MB/s 4K Random Read/Write (IOmeter, max.): - Read: 95,000 IOPS - Write: 85,000 IOPS Mean Time Between Failures (MTBF): 1,000,000 hour(s) Terabytes Written (Max.): 1,760 TB Drive Writes Per Day (DWPD): 1.61 (3 yrs) Note Speed may vary due to host hardware, software, usage, and storage capacity. The workload used to rate DWPD may be different from your actual workload, which may vary due to host hardware, software, usage, and storage capacity. Certificate : CE/FCC/BSMI Warranty: Three-year Limited Warranty Warranty does not apply when SSD Scope's wear-out indicator displays 0% within the warranty coverage. Due to the complexity and variety of industrial applications, Transcend cannot guarantee 100% compatibility with all platforms and under all scenarios. For special applications and environments, it is strongly suggested that you contact Transcend beforehand for clarification. SSD Scope Pro software is required by request. Please contact us for more information.

Disk SSD452K od spoločnosti Transcend je vybavený rozhraním SATA III 6 Gb/s a najmodernejšou technológiou 3D NAND, ktorá umožňuje vertikálne uloženie 96 vrstiev čipov 3D NAND flash. V porovnaní s 3D NAND so 64 vrstvami tento prelom v hustote výrazne zlepšuje účinnosť ukladania. Disk SSD452K je vybavený vyrovnávacou pamäťou DRAM pre rýchly prístup a je plne testovaný vo vlastnej réžii, aby bola zaručená spoľahlivosť v kritických aplikáciách, pričom sa môže pochváliť hodnotením odolnosti 3 000 cyklov programovania/mazania. spoločnosť Transcend ponúka aj SSD452K-I so širokou teplotou (-40? ~ 85?) na zabezpečenie trvalej funkčnosti, zvýšenej odolnosti a optimálnej spoľahlivosti v kritických aplikáciách.

Funkcie

• Zabudovaná vyrovnávacia pamäť DRAM
• Výdrž: 3K cyklov P/E (cykly programovania/mazania)
• K dispozícii je model so širokou teplotou: sľúbená prevádzková spoľahlivosť v širokom rozsahu teplôt (od -40? to 85?)
• Pokročilé globálne riadenie opotrebenia a riadenie blokov pre spoľahlivosť
• Pokročilý zber odpadu
• Zabudovaná funkcia LDPC ECC (Error Correction Code)
• Vylepšené S.M.A.R.T. funkcia
• V súlade s RoHS 2.0 noriem
• Podporuje príkaz Trim a NCQ
• Režim úspory energie DevSleep (režim spánku zariadenia) (voliteľné)

Špecifikácie

Vzhľad
Rozmery	100 mm x 69.85 mm x 6.8 mm (3.94" x 2.75" x 0.27")
Hmotnosť	54 g (1.90 oz)
Faktor formy	2.5"
Rozhranie
Rozhranie zbernice	SATA III 6 Gb/s
Úložisko
Typ blesku	3D TLC NAND flash
Kapacita	64 GB/ 128 GB/ 256 GB/ 512 GB/ 1 TB/ 2 TB/
Prevádzkové prostredie
Prevádzkové napätie	5V±5%
Prevádzková teplota	štandard 0°C~ 70°C Široká teplota. - 40°C(-40°F) ~ 85°C(185°F)
Teplota skladovania	-40°C (-40°F) ~ 85°C (185°F)
Vlhkosť	5% ~ 95%
Šok	1500 G, 0.5 ms, 3 osi
Vibrácie (prevádzkové)	2.17 G (špička-špička), 10 Hz ~ 700 Hz (frekvencia)
Napájanie
Spotreba energie (prevádzka)	3.5 wattov
Spotreba energie (v režime spánku)	0.5 wattov
Výkon
Sekvenčné čítanie/zápis (CrystalDiskMark, max.)	Čítanie: 560 MB/s Zápis: 520 MB/s
náhodné čítanie/zápis 4K (IOmeter, max.)	Čítanie: 90 000 IOPS Zápis: 85 000 IOPS
Stredný čas medzi poruchami (MTBF)	3 000 000 hodín
Zapísané terabajty (max.)	3 520 TB
Zápisy na disk za deň (DWPD)	1.61 (3 roky)
Poznámka	Rýchlosť sa môže líšiť v závislosti od hardvéru hostiteľa, softvéru, používania a kapacity úložiska. Pracovná záťaž použitá na hodnotenie DWPD sa môže líšiť od vašej skutočnej pracovnej záťaže, ktorá sa môže líšiť v dôsledku hardvéru, softvéru, používania a kapacity úložiska hostiteľa.
Záruka
Certifikát	CE/ FCC/ BSMI/
Záruka	Trojročná obmedzená záruka

.

SSD - 128 GB - interní - 2.5" - SATA 6Gb/s
