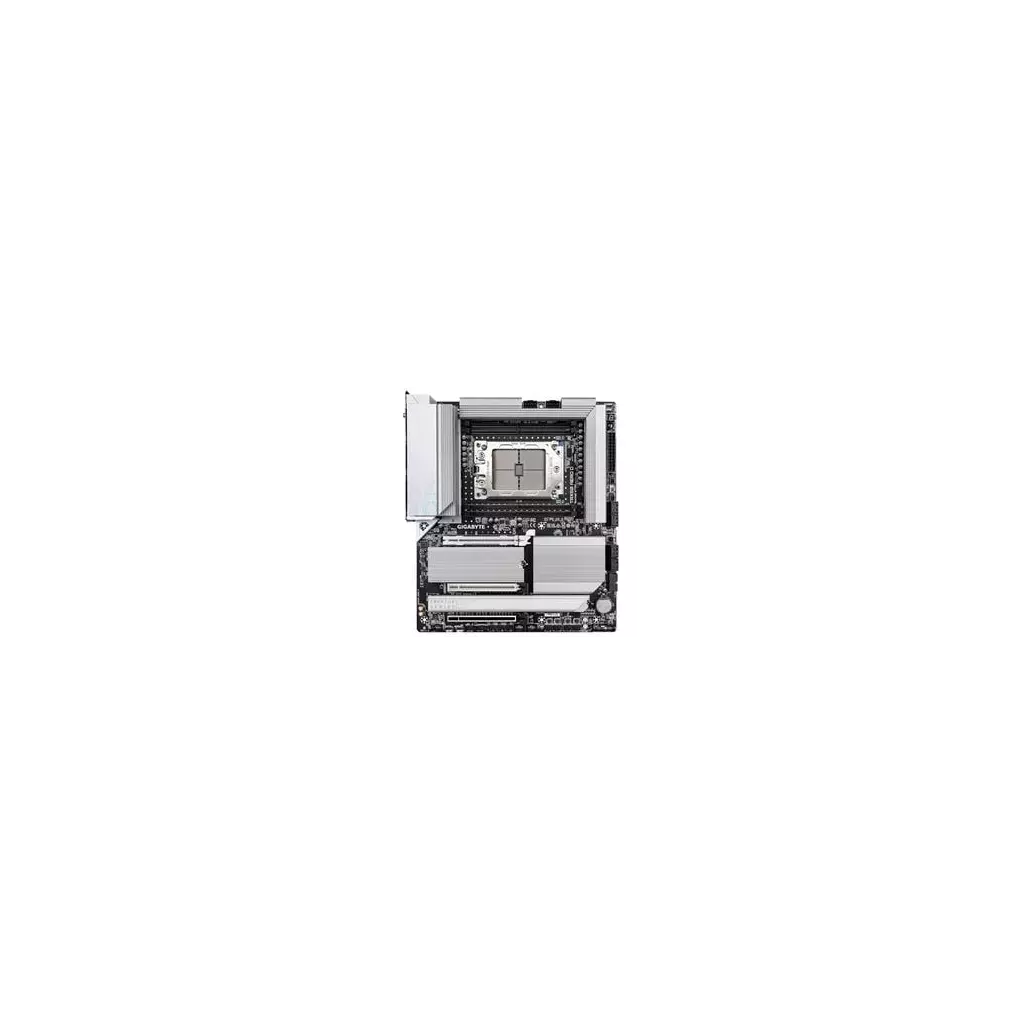

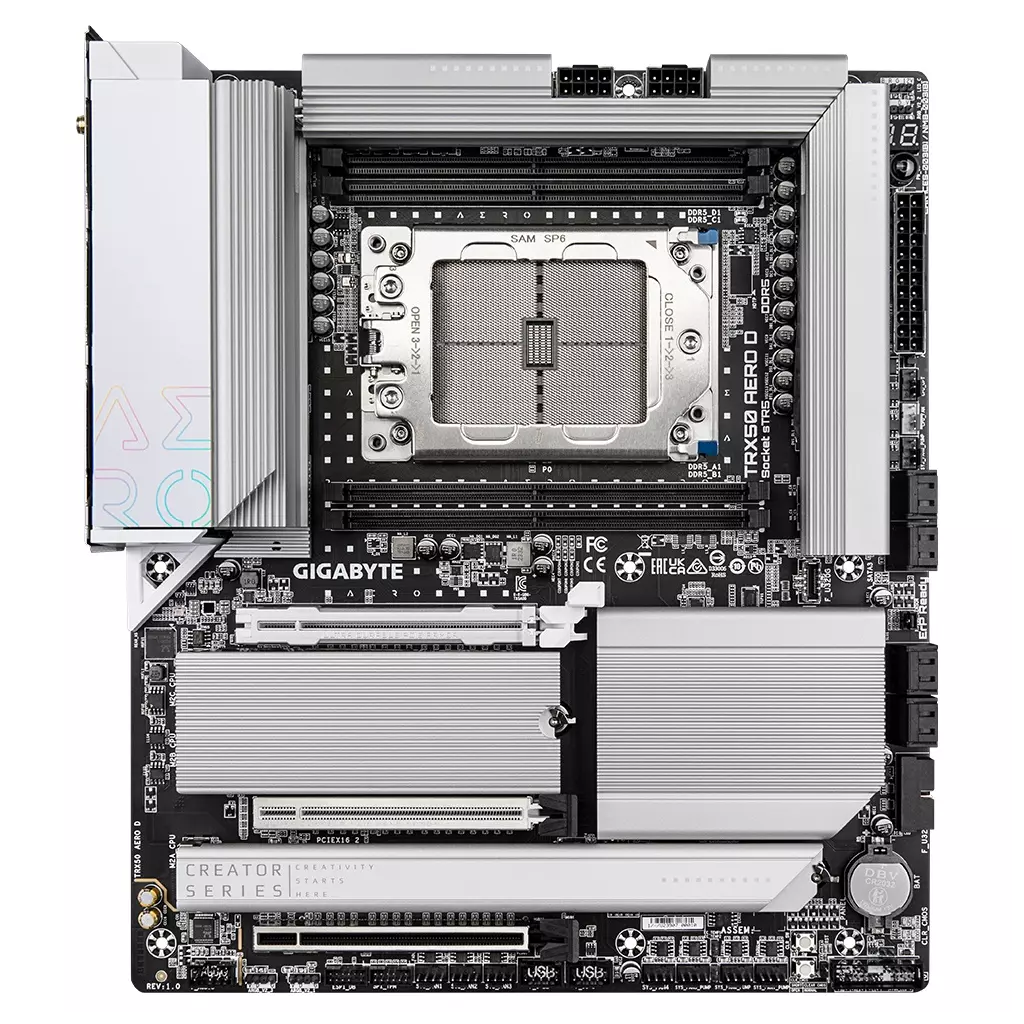

GIGABYTE TRX50 AERO D
Kód zboží (ID): 5892959
vytisknout
Stav zboží:
Nové
Dostupnost:
není skladem
Datum odeslání:
Neznámé
Výrobce:
GIGABYTE
Kód zboží:
5892959
Číslo zboží (PN):
TRX50 AERO D
EAN:
4719331859480
Záruka koncový zákazník:
36 měsíců
Záruka při koupi na IČO:
36 měsíců
Cena bez DPH: *
14408.91 Kč
Cena vč. DPH: *
17435 Kč
* - cena uvedena vč. recyklačních a autorských poplatků.
Popis produktu:
GIGABYTE TRX50 AERO D
- Supports AMD Ryzen™ Threadripper™ PRO 7000 series/ Ryzen™ Threadripper™ 7000 series Processors
- Breakthrough Performance:16+8+4 Phases Digital VRM Solution
- Quad Channel DDR5:4*SMD R-DIMMs with AMD EXPO™ & Intel XMP Memory Module Support
- Reinforced Overall Thermal:VRM Thermal Armor Advanced & M.2 Thermal Guard
- Ultimate Scalibility: 3*PCIe x16 slots for Multi-GPU and 4*PCIe x4 M.2 slots
- Next-genConnectivity: Dual USB4 Type-C ports
- Blazing Fast Networks: 10GbE + 2.5 GbE Dual LAN and Wi-Fi 7
- PCIe UD Slot X:PCIe 5.0 x16 slot with 10X strength for graphics card
- EZ-Latch Click:M.2 heatsinks with screwless design
- EZ-Latch Plus:M.2 slots with quick release design
- Hi-Fi Audio with DTS:X Ultra:ALC4080+ALC897 CODEC
- UC BIOS:User-Centred intuitive UX with Quick Access function
CPU
AMD Socket sTR5, support for: AMD Ryzen™ Threadripper™ PRO 7000 processors / AMD Ryzen™ Threadripper™ 7000 Series processors (Go to GIGABYTE's website for the latest CPU support list.)
Chipset
AMD TRX50
Memory
Support for DDR5 7800(O.C.)/7600(O.C.)/7200(O.C.)/7000(O.C)/6800(O.C.)/6400(O.C.)/6000(O.C.)/5600(O.C.)/5200/4800/4400 MT/s ECC Registered memory modules (RDIMM/RDIMM-3DS) 4 x DDR5 DIMM sockets supporting up to 1TB (256 GB single DIMM capacity) of system memory Quad channel memory architecture Support for AMD EXtended Profiles for Overclocking (AMD EXPO™) and Extreme Memory Profile (XMP) memory modules (The CPU and memory configuration may affect the supported memory types, data rate (speed), and number of DRAM modules, please refer to "Memory Support List" on GIGABYTE's website for more information.)
Audio
Realtek ALC4080 CODEC (rear panel audio) - Support for DTS:X Ultra - High Definition Audio - 2-channel Realtek ALC897 CODEC (front panel audio)
LAN
Marvell AQtion AQC113C 10GbE LAN chip (10 Gbps/5 Gbps/2.5 Gbps/1 Gbps/100 Mbps) (LAN1) Realtek 2.5GbE LAN chip (2.5 Gbps/1 Gbps/100 Mbps) (LAN)
Wireless Communication module
Qualcomm Wi-Fi 7 QCNCM865 - 802.11a, b, g, n, ac, ax, be, supporting 2.4/5/6 GHz carrier frequency bands - BLUETOOTH 5.3 - Support for 11be 320MHz wireless standard (Actual data rate may vary depending on environment and equipment.) Note: Wi-Fi 7 features require Windows 11 SV3 to function properly. (There is no support driver for Windows 10) Wi-Fi 7 channels on 6GHz band availability depends on individual country's regulations.
Expansion Slots
CPU: - 2 x PCI Express x16 slots, supporting PCIe 5.0 and running at x16 (PCIEX16_1/PCIEX16_2) * For optimum performance, if only one PCI Express graphics card is to be installed, be sure to install it in the PCIEX16_1 slot. - 1 x PCI Express x16 slot, supporting PCIe 4.0 and running at x16(PCIEX16_3)
Storage Interface
CPU: - 1 x M.2 connector (Socket 3, M key, type 25110/2280 PCIe 5.0 x4/x2 SSD support) (M2C_CPU) - 2 x M.2 connectors (Socket 3, M key, type 22110/2280 PCIe 5.0 x4/x2 SSD support) (M2A_CPU/M2B_CPU) - 1 x M.2 connector (Socket 3, M key, type 2280 PCIe 4.0 x4/x2 SSD support) (M2D_CPU) CPU+Chipset: - 8 x SATA 6Gb/s connectors RAID 0, RAID 1, and RAID 10 support for NVMe SSD storage devices RAID 0, RAID 1, and RAID 10 support for SATA storage devices
USB
CPU: - 3 x USB 3.2 Gen 2 Type-A ports (red) on the back panel Chipset+Intel JHL8540 USB4 controller: - 2 x USB4 USB Type-C ports on the back panel Chipset: - 1 x USB Type-C port with USB 3.2 Gen 2x2 support, available through the internal USB header - 1 x USB 3.2 Gen 2 Type-A port (red) on the back panel - 2 x USB 3.2 Gen 1 ports available through the internal USB header CPU+USB 3.2 Gen 1 Hub: - 4 x USB 3.2 Gen 1 ports on the back panel Chipset+USB 2.0 Hub: - 4 x USB 2.0/1.1 ports available through the internal USB headers
Internal I/O Connectors
1 x 24-pin ATX main power connector 2 x 8-pin ATX 12V power connectors 1 x CPU fan header 1 x CPU fan/water cooling pump header 4 x system fan headers 4 x system fan/water cooling pump headers 3 x addressable RGB Gen2 LED strip headers 1 x RGB LED strip header 4 x M.2 Socket 3 connectors 8 x SATA 6Gb/s connectors 1 x front panel header 1 x front panel audio header 1 x USB Type-C header, with USB 3.2 Gen 2x2 support 1 x USB 3.2 Gen 1 header 2 x USB 2.0/1.1 headers 1 x noise detection header 1 x Trusted Platform Module header (For the GC-TPM2.0 SPI/GC-TPM2.0 SPI 2.0/GC-TPM2.0 SPI V2 module only) 1 x power button 1 x Clear CMOS button 1 x reset button 1 x reset jumper 2 x temperature sensor headers 1 x Clear CMOS jumper
Back Panel Connectors
1 x Q-Flash Plus button 2 x SMA antenna connectors (2T2R) 1 x DisplayPort In port 1 x USB4 USB Type-C port (DisplayPort) 1 x USB4 USB Type-C port 4 x USB 3.2 Gen 2 Type-A ports (red) 4 x USB 3.2 Gen 1 ports 2 x RJ-45 ports 2 x audio jacks
I/O Controller
iTE I/O Controller Chip
H/W Monitoring
Voltage detection Temperature detection Fan speed detection Water cooling flow rate detection Fan fail warning Fan speed control * Whether the fan (pump) speed control function is supported will depend on the fan (pump) you install. Noise detection
BIOS
1 x 256 Mbit flash Use of licensed AMI UEFI BIOS PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0
Unique Features
Support for GIGABYTE Control Center (GCC) * Available applications in GCC may vary by motherboard model. Supported functions of each application may also vary depending on motherboard specifications. Support for Q-Flash Support for Q-Flash Plus
Bundled Software
Norton Internet Security (OEM version) LAN bandwidth management software
Operating System
Support for Windows 11 64-bit
Form Factor
E-ATX Form Factor; 30.5cm x 26.4cm
GIGABYTE TRX50 AERO D (rev. 1.0) * detekce hluku * podpora Q-Flash Plus Chipset: AMD TRX50 Rozměrový formát: E-ATX (305x264mm) Podpora pro procesory: AMD Ryzen™ Threadripper™ PRO 7000/AMD Ryzen™ Threadripper™ 7000 Series Patice procesoru: sTR5 Paměť: * 4x DIMM socket podporující až 1TB (256GB kapacita single DIMM), DDR5 7800(OC)/7600(OC)/7200(OC)/7000(OC)/6800(OC)/6400(OC)/6000(OC)/5600(OC)/5200/4800/4400MT/s registrované paměťové moduly ECC (RDIMM/RDIMM-3DS) * čtyřkanálová architektura paměti * podpora pro AMD EXtended Profiles for Overclocking (AMD EXPO™) a paměťové moduly Extreme Memory Profile (XMP) Zvuková karta: * zadní panel: kodek Realtek® ALC408, podpora DTS:X® Ultra * přední panel: kodek Realtek® ALC897 Ethernet: Marvell® AQtion AQC113C 10GbE LAN + Realtek® 2,5GbE LAN WLAN + Bluetooth: Qualcomm® Wi-Fi 7 QCNCM865 + Bluetooth v5.3 Rozšiřující sloty: * 2x PCI Express x16, PCIe 5.0 (PCIEX16_1/PCIEX16_2) * 1x PCI Express x16, PCIe 4.0 (PCIEX16_3) RAID řadič: podpora pro NVMe SSD a SATA RAID 0/1/10 Úložný prostor: celkem podporuje 4 sloty M.2 a 8 portů SATA 6Gb/s * 1x M.2 (M2C_CPU), M key, typ 25110/2280 (podpora PCIe 5.0 x4/x2 SSD) * 2x M.2 (M2A_CPU/M2B_CPU), M key, typ 22110/2280 (podpora PCIe 5.0 x4/x2 SSD) * 1x M.2 (M2D_CPU), M key, typ 2280 (podpora PCIe 4.0 x4/x2 SSD) * 8x port SATA 6Gb/s USB: Zadní USB (celkem 10 portů) * 1x USB4® USB typ-C® (DisplayPort) * 1x USB4® USB typ-C® * 4x USB 3.2 Gen 2 typ-A (červené) * 4x USB 3.2 Gen 1 Přední USB (celkem 7 portů) * 1x USB typ-C® konektor s podporou USB 3.2 Gen 2x2 * 1x USB 3.2 Gen 1 header - podpora dalších 2 portů USB 3.2 Gen 1 * 2x USB 2.0/1.1 header - podpora dalších 4 portů USB 2.0/1.1 Porty na zadním panelu: * 1x tlačítko Q-Flash Plus * 2x SMA anténní konektor (2T2R) * 1x DisplayPort In * 1x USB4® USB typ-C® (DisplayPort) * 1x USB4® USB typ-C® * 4x USB 3.2 Gen 2 typ-A (červené) * 4x USB 3.2 Gen 1 * 2x RJ-45 * 2x audio jack Interní porty: Napájení * 1x 24-pin ATX hlavní napájecí konektor * 2x 8-pin ATX 12V napájecí konektor Související s ventilátorem a chlazením * 1x CPU fan header * 1x CPU fan/water cooling pump header * 4x system fan header * 4x system fan/water cooling pump header Související s úložištěm * 4x M.2 slot (Key M) * 8x SATA 6Gb/s port USB * 1x USB typ-C® konektor, s podporou USB 3.2 Gen 2x2 * 1x USB 3.2 Gen 1 header * 2x USB 2.0/1.1 header Ostatní * 3x adresovatelný RGB Gen2 LED strip header * 1x RGB LED strip header * 1x front panel header * 1x front panel audio header * 1x noise detection header * 1x Trusted Platform Module header (pouze pro modul GC-TPM2.0 SPI/GC-TPM2.0 SPI 2.0/GC-TPM2.0 SPI V2) * 1x tlačítko power * 1x tlačítko reset * 1x tlačítko Clear CMOS * 1x reset jumper * 1x Clear CMOS jumper * 2x temperature sensor header BIOS: 1x 256Mb flash, AMI UEFI BIOS, PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0 Odkaz na stránku výrobce: https://www.gigabyte.com/cz/Motherboard/TRX50-AERO-D-rev-10#kf
Prodejce i výrobce si vyhrazuje právo změny parametrů či vlastností bez předchozího upozornění.
Chcete-li mít ohledně konkrétních parametrů aktuální informace kontaktujte nás.
Pozdější reklamace vlastností je zbytečnou komplikací pro obě strany.
