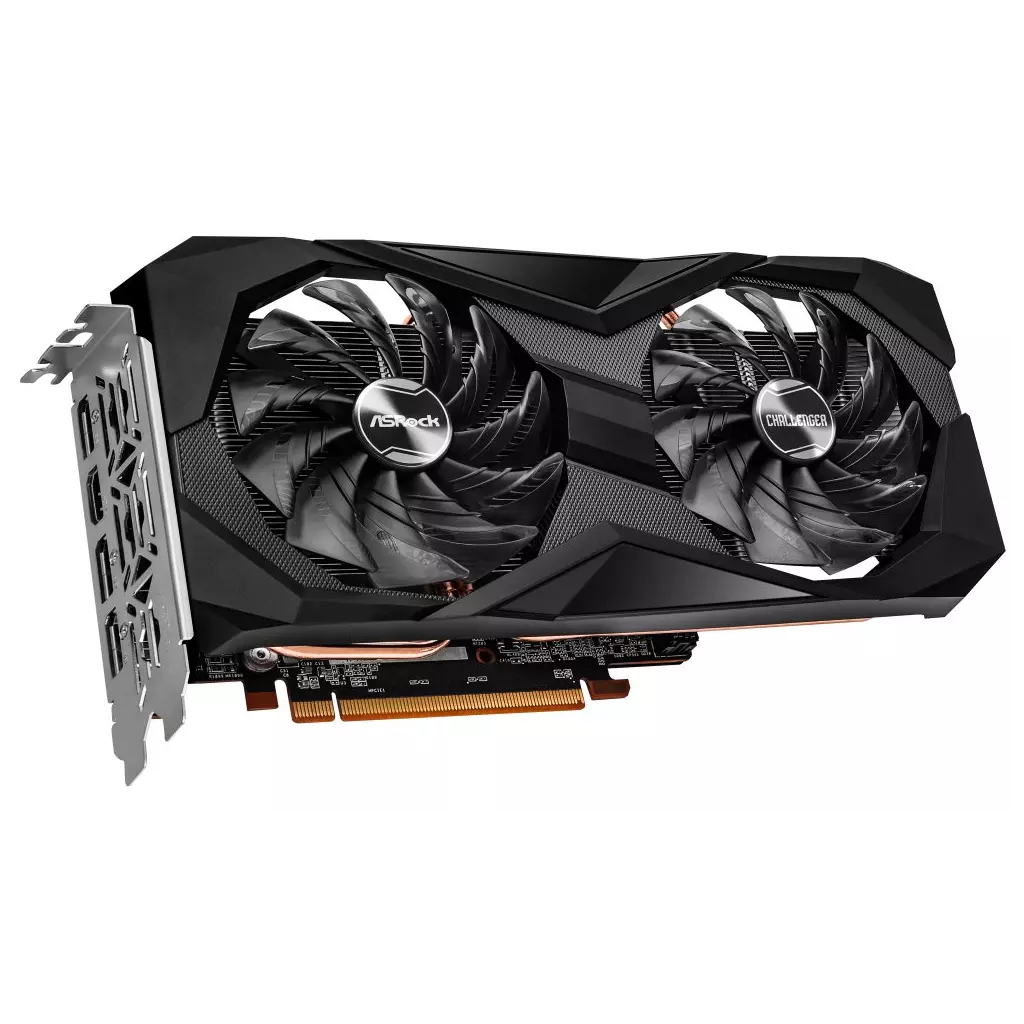

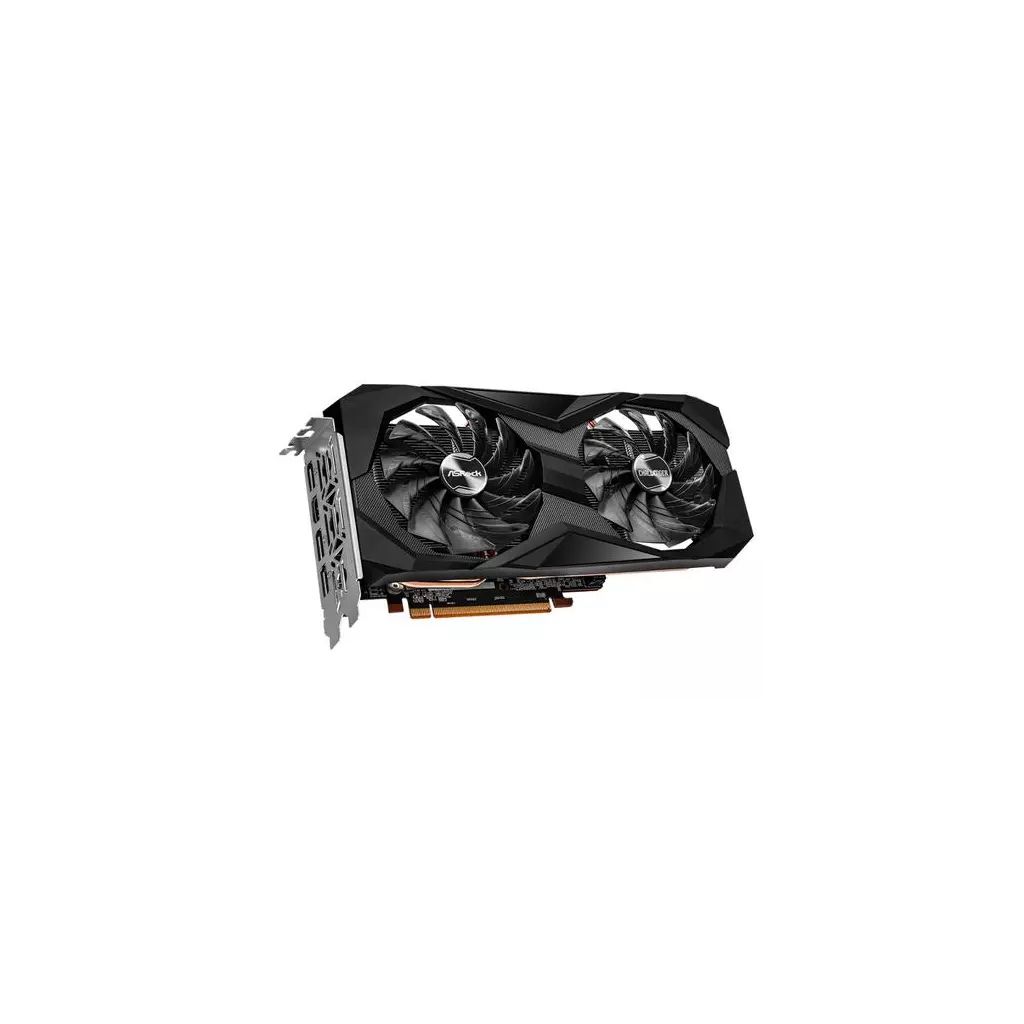

ASROCK vga RX 6600 Challenger D 8GB AMD Radeon RX6600 (1x HDMI, 3x DPort))

Popis produktu:
ZÁKLADNÍ SPECIFIKACE
Grafický čip: AMD Radeon RX 6600 Takt jádra: 1 626 MHz (2 491 MHz v boost režimu) Takt paměti: 14 000 MHz – 128bit Velikost paměti: 8 GB GDDR6 Typ sběrnice: PCI Express 4.0 Konektory: 1× HDMI, 3× DisplayPort Rozměry: 269 × 132 × 41 mm Napájení: 1× 8pin PCIe
Podporované technologie VR Ready RDNA 2 architektura AMD Smart Access Memory AMD FidelityFX Super Resolution AMD Eyefinity DirectX Raytracing Microsoft DirectX 12 Ultimate OpenGL 4.6 HDCP ASRock Tweak 2.0 PCI Express 4.0 Podpora max. 4 monitorů Podpora max. rozlišení 7680 × 4320 Podpora HDMI 2.1 VRR, DisplayPort 1.4 DSC
Asrock AMD Radeon RX6600 Challenger D 8GB, GDDR6 128 bit, 1xHDMI, 3xDP 1.4,
- power 1x8 pin, recommended PSU 500W.
Video Output | |
Requires Expansion Slot Standard: | PCI Express 4.0 x8 |
Video Chipset: | AMD Radeon RX 6600 |
GPU Core Name: | NAVI 23 |
GPU Core Speed: | 1626 MHz |
GPU Core Speed Boost: | 2491 MHz |
GPU Quantity: | 1 |
Stream Processors Quantity: | 1792 |
Compute Units Quantity: | 28 |
Texture Mapping Unit Quantity: | 112 |
Render Output Units Quantity (ROP): | 64 |
Max. Monitors Supports: | 4 |
Maximum Resolution: | 7680x4320 |
2D/3D Features: | HDCP(High-Bandwidth Digital Content Protection) AMD FidelityFX RDNA 2 Architecture AMD Smart Access Memory |
API Supports: | OpenCL DirectX 12.0 OpenGL 4.6 |
Memory | |
Video Memory Type: | Video Controller Memory |
Memory Type: | GDDR6 SDRAM |
Installed Video Memory Storage Capacity: | 8 GB |
Video Memory Speed: | 14 Gbps |
Memory Bus Bandwidth: | 128 bit |
Memory Bandwidth: | 256 GB/s |
Interface Provided | |
HDMI Interface Quantity: | 1 |
HDMI Interface Connector Type: | HDMI (Type A) |
DisplayPort Interface Quantity: | 3 |
System Requirements | |
External Power: | 8 pin |
PSU Output Power Required: | 500 W |
Miscellaneous | |
Cooling System Type: | VGA Cooler |
Included Accessories: | User Guide |
Dimensions & Weight Device | |
Depth (mm): | 269 mm |
Height (mm): | 41 mm |
Width (mm): | 132 mm |
Nominal Weight: | 0.627 kg |
