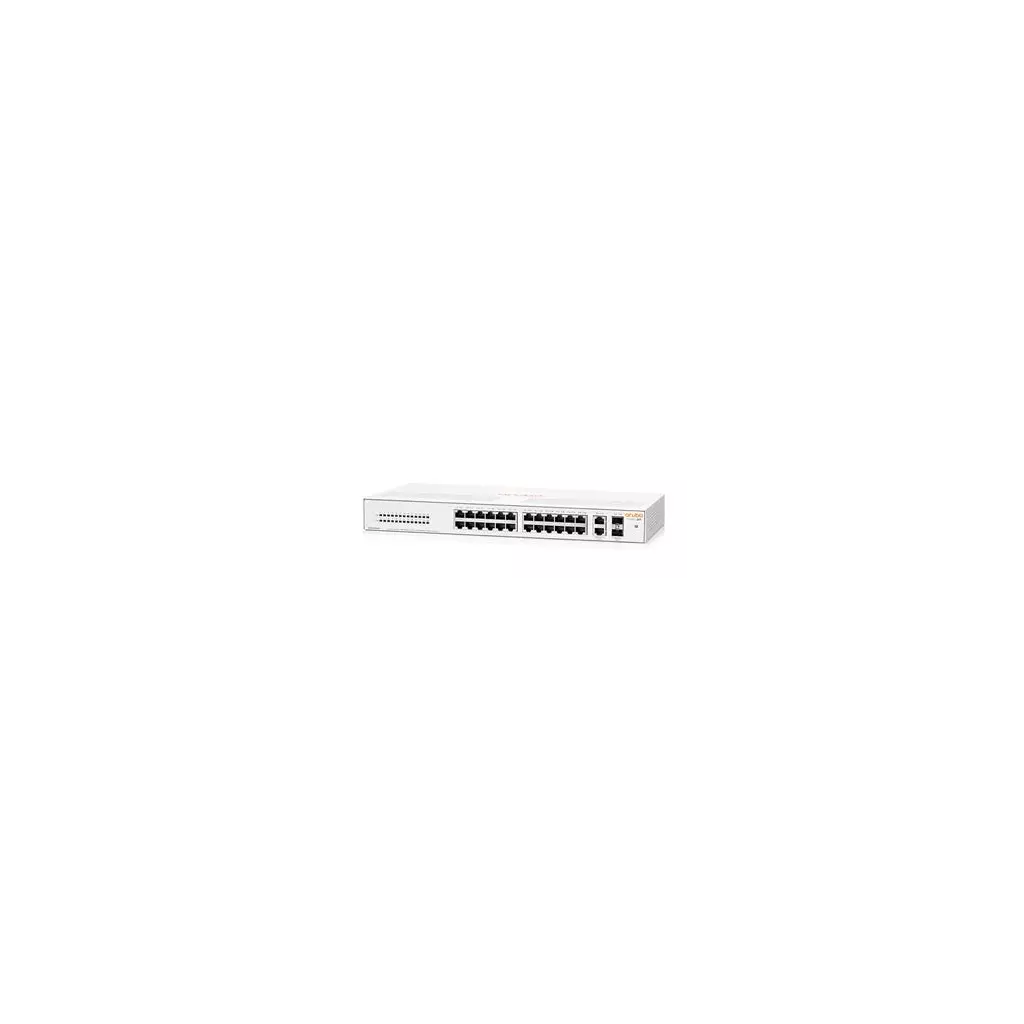

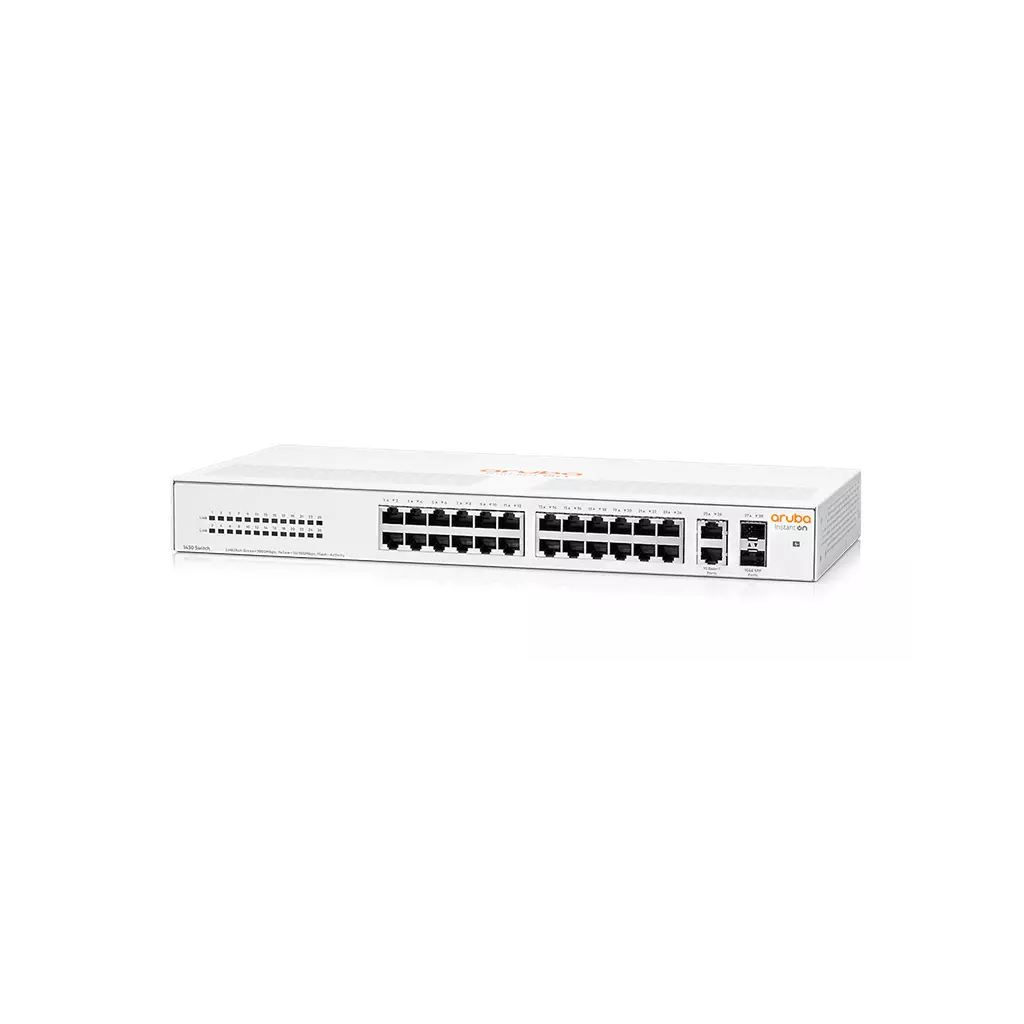

HPE Aruba Instant On 1430 Unmanaged 26G 2SFP Switch
Stav zboží:
Nové
Dostupnost:
skladem
Datum odeslání:
Expedujeme 3.10.
Výrobce:
HPE
Kód zboží:
5463487
Číslo zboží (PN):
R8R50A
EAN:
190017602646
Záruka koncový zákazník:
24 měsíců
Záruka při koupi na IČO:
24 měsíců
Cena bez DPH: *
2449 Kč
Cena vč. DPH: *
2963 Kč
* - cena uvedena vč. recyklačních a autorských poplatků.
Popis produktu:
Aruba IOn 1430 26G 2SFP Sw HPE Networking Instant On Switch 26p Gigabit 2p SFP 1430 26 RJ-45 autosensing 10/100/1000 ports 2 SFP 100/1000 Mbps ports min=0 \ max=2 SFP Transceivers 1U - Height What's New Unmanaged Layer 2 Gigabit Ethernet switch series ready to deploy in 5-, 8-, 16-, 24-and 26-port non-PoE and PoE models. No configuration or management needed. Plug-and-play with fully automated functions and zero ongoing maintenance. Up to 124W of PoE to power APs, IP Phones, and other IoT devices. Fan-less design for silent deployment in office spaces. DifferentiatorAffordable, plug-and-play, unmanaged series for small businesses looking for simple reliable, and low-cost network connectivity, offering Layer 2 Ethernet switching capabilities to help connect printers and access points, without any complicated network configuration or management needed. With fully automated functions, zero ongoing maintenance, and Power over Ethernet (PoE) models, these unmanaged switches deliver simple, reliable connectivity for the smallest SMBs and home offices. Power consumptionMaximum: 16.4W Idle: 8W Input voltage100-127VAC / 200-240VAC, depending on model Ports26 RJ-45 10/100/1000 ports, 2 SFP 1GbE ports Switching capacity56 Gbps Throughput41.68 Mpps Memory and processor32Mb Flash; Packet buffer size: 12.0 Mb Power supply nameInternal Power Supply PoE capability- Operating temperature0°C to 40°C, 32°F to 104°F Management featuresUnmanaged WarrantyLimited Lifetime Warranty with 24x7 phone support for 90 days and chat support for the entire warranty duration. Detailed product description26 RJ-45 autosensing 10/100/1000 ports 2 SFP 100/1000 Mbps ports min=0 \ max=2 SFP Transceivers 1U - Height Weight2.27 kg (5.00 lb) Dimensions22.5 x 38.8 x 4.4 cm (8.86 x 15.28 x 1.73 in)
Aruba IOn 1430 26G 2SFP Sw HPE Networking Instant On Switch 26p Gigabit 2p SFP 1430 26 RJ-45 autosensing 10/100/1000 ports 2 SFP 100/1000 Mbps ports min=0 \ max=2 SFP Transceivers 1U - Height What's New Unmanaged Layer 2 Gigabit Ethernet switch series ready to deploy in 5-, 8-, 16-, 24-and 26-port non-PoE and PoE models. No configuration or management needed. Plug-and-play with fully automated functions and zero ongoing maintenance. Up to 124W of PoE to power APs, IP Phones, and other IoT devices. Fan-less design for silent deployment in office spaces. DifferentiatorAffordable, plug-and-play, unmanaged series for small businesses looking for simple reliable, and low-cost network connectivity, offering Layer 2 Ethernet switching capabilities to help connect printers and access points, without any complicated network configuration or management needed. With fully automated functions, zero ongoing maintenance, and Power over Ethernet (PoE) models, these unmanaged switches deliver simple, reliable connectivity for the smallest SMBs and home offices. Power consumptionMaximum: 16.4W Idle: 8W Input voltage100-127VAC / 200-240VAC, depending on model Ports26 RJ-45 10/100/1000 ports, 2 SFP 1GbE ports Switching capacity56 Gbps Throughput41.68 Mpps Memory and processor32Mb Flash; Packet buffer size: 12.0 Mb Power supply nameInternal Power Supply PoE capability- Operating temperature0°C to 40°C, 32°F to 104°F Management featuresUnmanaged WarrantyLimited Lifetime Warranty with 24x7 phone support for 90 days and chat support for the entire warranty duration. Detailed product description26 RJ-45 autosensing 10/100/1000 ports 2 SFP 100/1000 Mbps ports min=0 \ max=2 SFP Transceivers 1U - Height Weight2.27 kg (5.00 lb) Dimensions22.5 x 38.8 x 4.4 cm (8.86 x 15.28 x 1.73 in)
Aruba Instant On 1430 26G 2SFP Switch (R8R50A)
|
|
I/O ports and slots
|
26 RJ-45 autosensing 10/100/1000 ports (IEEE 802.3 Type 10BASE-T, IEEE 802.3u Type 100BASE-TX, IEEE 802.3ab Type 1000BASE-T); Duplex: 10BASE-T/100BASE-TX: half or full; 1000BASE-T: full only 2 SFP 1GbE ports
|
|
Physical Characteristics
|
|
Dimensions
|
225(d) x 388(w) x 44(h) mm
|
|
Weight
|
5.00 lb (2.27 kg)
|
|
Processor and Memory
|
32Mb Flash; Packet buffer size: 12.0 Mb
|
|
Performance
|
|
|
100 Mb latency
|
< 5.21 µSec
|
|
1000 Mb latency
|
> 2.90 µSec
|
|
Throughput (Mpps)
|
41.68 Mpps
|
|
Capacity
|
56 Gbps
|
|
MAC address table size
|
16384 entries
|
|
Reliability MTBF (years)
|
171.9
|
|
Environment
|
|
Operating temperature
|
32°F to 104°F (0°C to 40°C)
|
|
Operating relative humidity
|
15% to 95% @ 104°F (40°C) non-condensing
|
|
Nonoperating/ storage temperature
|
-40°F to 158°F (-40°C to 70°C) up to 15000 ft
|
|
Nonoperating/ storage relative humidity
|
15% to 90% @ 149°F (65°C) non-condensing
|
|
Altitude
|
up to 10,000 ft (3 km)
|
|
Acoustics
|
Fanless
|
|
Electrical Characteristics
|
|
Frequency
|
50Hz/60Hz
|
|
AC voltage
|
100-127VAC / 200- 240VAC
|
|
Current
|
0.4A / 0.3A
|
|
Maximum power rating
|
16.4W
|
|
Idle power
|
8W
|
|
PoE power
|
-
|
|
Power Supply
|
Internal Power Supply
|
|
Safety
|
- EN/IEC 60950- 1:2006 + A11:2009 + A1:2010 + A12:2011 + A2:2013
- EN/IEC 62368-1, 2nd. & 3rd. Ed.
- UL 62368-1, 3rd. Ed.
- CAN/CSA C22.2 No. 62368-1, 3rd. Ed.
- EN/IEC 60825- 1:2014 Class 1
|
|
Emissions
|
- EN 55032:2015/ CISPR 32, Class A
- FCC CFR 47 Part 15: 2018, Class A
- ICES-003, Class A
- VCCI-32, Class A
- CNS 13438, Class A
- KS C 9832, Class A
- AS/NZS CISPR 32, Class A
|
|
Immunity
|
BS/EN 55035, CISPR 35, KS C 9835
|
|
Generic
|
EN 55035, CISPR 35
|
|
EN
|
EN/IEC 61000-4-2
|
|
ESD
|
EN/IEC 61000-4-3
|
|
Radiated
|
EN/IEC 61000-4-4
|
|
EFT/Burst
|
EN/IEC 61000-4-5
|
|
Surge
|
EN/IEC 61000-4-6
|
|
Conducted
|
EN/IEC 61000-4-8
|
|
Power frequency magnetic field
|
EN/IEC 61000-4-11
|
|
Voltage dips and interruptions
|
EN/IEC 61000-3-2
|
|
Harmonics
|
EN /IEC 61000-3-3
|
|
Device Management
|
Unmanaged
|
|
Mounting
|
|
Mounting positions and supported racking
|
- Mounts in an EIA standard 19 in telco rack or equipment cabinet. 2-post rack kit included
- Supports table-top mounting
- Supports rack-mounting using the brackets provided
- Supports wall-mounting with ports facing either up or down using either the base surface mounting holes, or the brackets provided
- Supports under-table mounting using the brackets provided
- Must be mounted top surface up. To prevent possible impact to long-term reliability, product should not be mounted upside-down
|
|
Transceivers
|
- Aruba 1G SFP LC LX 10km SMF Transceiver (J4859D)
- Aruba Instant On 1G SFP LC SX 500m OM2 MMF Transceiver (R9D16A)
|
Model: Hewlett Packard Enterprise Aruba Instant On 1430 26G 2SFP Switch: Ano Typ switche: Desktop Síťové standardy: *IEEE 802.3 *IEEE 802.3ab *IEEE 802.3az *IEEE 802.3i *IEEE 802.3u *IEEE 802.3x *IEEE 802.3z Datový přenos: *Ethernet 10/100/1000 *SFP 10/100/1000 Kapacita přepínání: 56 Gbit/s PoE: Ne Konektory: *26x RJ-45 *2x SFP Napájení: Interní adapter Rozměry: 388 x 44 x 225 mm (Š x V x H) Hmotnost: 2,27 kg Záruka: Doživotní
HPE Aruba Instant On 1430 26G 2SFP
Neřízený (unmanaged) přepínač z řady 1430 nabízí 26× 10/100/1000 Mbps RJ-45 portů, 2× 1G SFP porty, Plug-and-Play instalaci, plně automatizované funkce a nulovou průběžnou údržbu. Díky snadné obsluze bez složité konfigurace sítě je ideální volbou pro malé podniky a domácí kanceláře, které hledají jednoduché, spolehlivé a cenově přijatelné řešení. Přepínací kapacita switche je 56 Gbps a rychlost směrování činí 41,68 Mpps. Díky prioritizaci na základě DSCP nebo dle standardu 802.1p přepínač zajišťuje plynulý audio a video přenos ve vaší kancelářské síti. Lze ho položit jen tak na stůl, namontovat ho na nebo pod něj, na zeď nebo do 19" rackového rozvaděče. Bezventilátorové provedení zaručuje naprosto tichý chod.
ZÁKLADNÍ SPECIFIKACE
Porty: 26× 10/100/1000 RJ-45, 2× 1G SFP
Kapacita switche: 56 Gbps
Rychlost směrování: 41,68 Mpps
Podpora PoE: ne
Rozměry: 388 × 225 × 44 mm
Hmotnost: 2,27 kg
Aruba Instant On 1430 26G 2SFP. Typ přepínače: Nespravované, Přepínač vrstev: L2. Typy přepínaných ethernetových portů RJ-45: Gigabit Ethernet (10/100/1000), Počet přepínaných ethernetových portů RJ-45: 26. Plně duplexní režim. Tabulka MAC adres: 16384 pol., Kapacita přepínání: 56 Gbit/s. Síťové standardy: IEEE 802.3, IEEE 802.3ab, IEEE 802.3az, IEEE 802.3i, IEEE 802.3u, IEEE 802.3x, IEEE 802.3z. Instalace do racku, Formát: 1U
Aruba Instant On 1430 26G 2SFP. Typ přepínače: Nespravované, Přepínač vrstev: L2. Typy přepínaných ethernetových portů RJ-45: Gigabit Ethernet (10/100/1000), Počet přepínaných ethernetových portů RJ-45: 26. Plně duplexní režim. Tabulka MAC adres: 16384 pol., Kapacita přepínání: 56 Gbit/s. Síťové standardy: IEEE 802.3, IEEE 802.3ab, IEEE 802.3az, IEEE 802.3i, IEEE 802.3u, IEEE 802.3x, IEEE 802.3z. Instalace do racku, Formát: 1U
