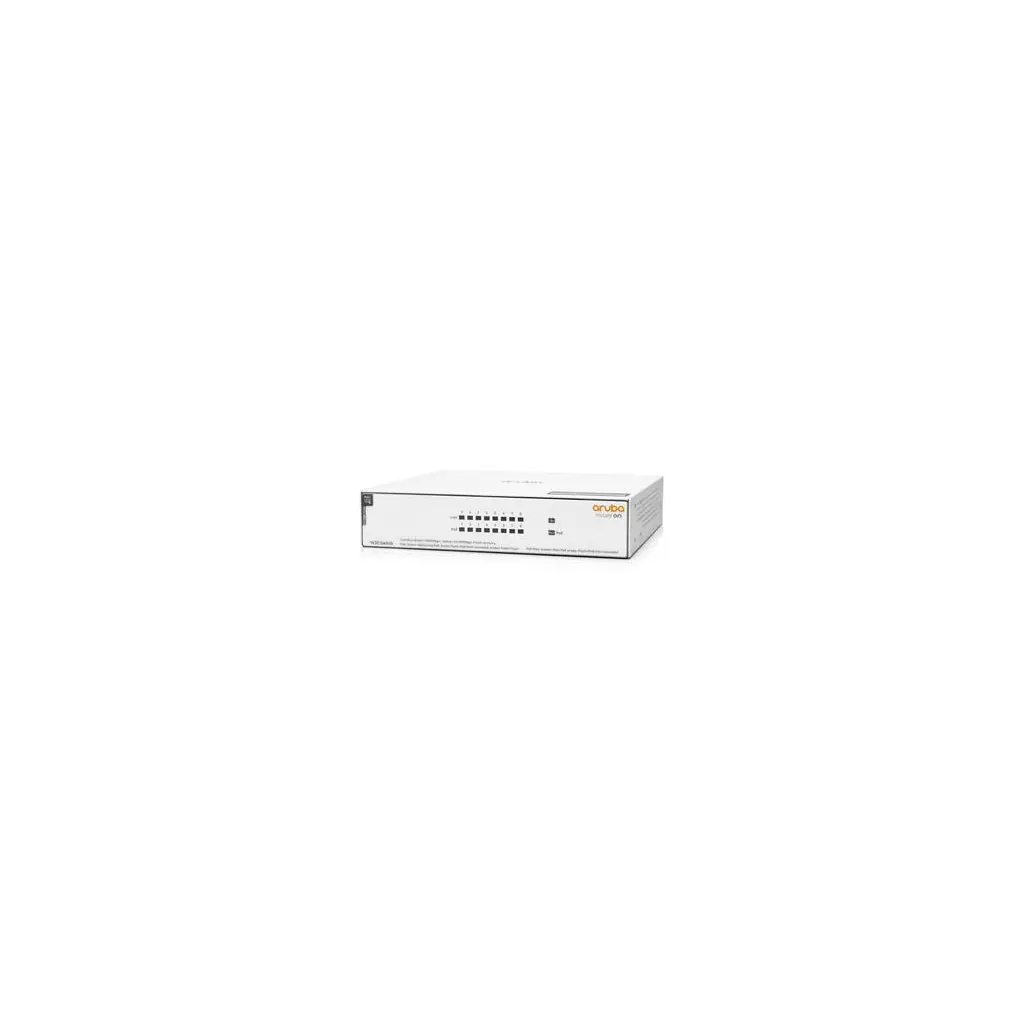

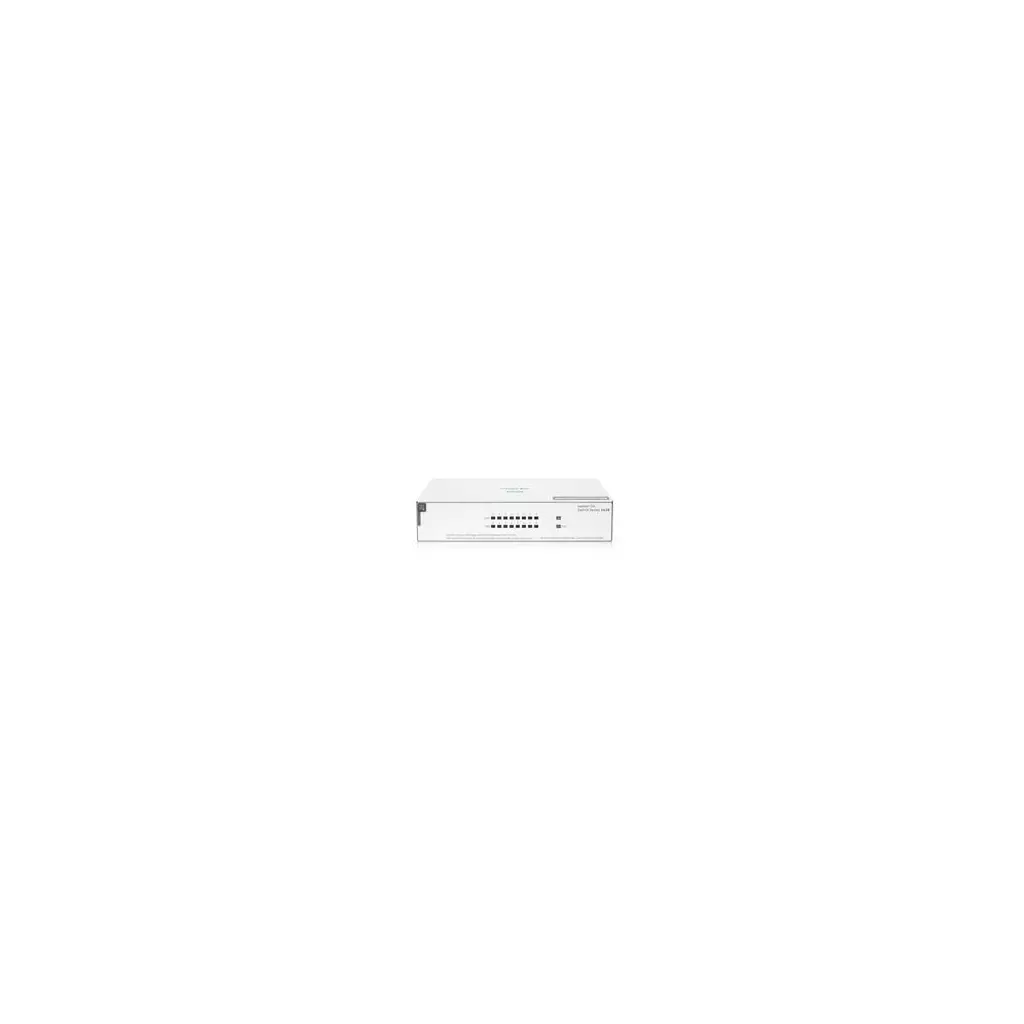

Aruba Instant On 1430 8G Class4 PoE 64W Switch
Stav zboží:
Nové
Dostupnost:
skladem
Datum odeslání:
Expedujeme pozítří
Výrobce:
Hewlett Packard Enterprise
Kód zboží:
5463483
Číslo zboží (PN):
R8R46A#ABB
EAN:
190017601762
Záruka koncový zákazník:
96 měsíců
Záruka při koupi na IČO:
96 měsíců
Cena bez DPH: *
3103 Kč
Cena vč. DPH: *
3754 Kč
* - cena uvedena vč. recyklačních a autorských poplatků.
Popis produktu:
HPE Networking Instant On Switch 8p Gigabit CL4 PoE 64W 1430 8 RJ-45 autosensing Class4 PoE 10/100/1000 ports What's New Unmanaged Layer 2 Gigabit Ethernet switch series ready to deploy in 5-, 8-, 16-, 24-and 26-port non-PoE and PoE models. No configuration or management needed. Plug-and-play with fully automated functions and zero ongoing maintenance. Up to 124W of PoE to power APs, IP Phones, and other IoT devices. Fan-less design for silent deployment in office spaces. DifferentiatorAffordable, plug-and-play, unmanaged series for small businesses looking for simple reliable, and low-cost network connectivity, offering Layer 2 Ethernet switching capabilities to help connect printers and access points, without any complicated network configuration or management needed. With fully automated functions, zero ongoing maintenance, and Power over Ethernet (PoE) models, these unmanaged switches deliver simple, reliable connectivity for the smallest SMBs and home offices. Power consumptionMaximum: 90W Idle: 4.1W Input voltage100-240VAC Ports8 RJ-45 10/100/1000 Class 4 PoE ports Switching capacity16 Gbps Throughput11.90 Mpps Memory and processor128Kb EEPROM; Packet buffer size: 2.0 Mb Power supply nameExternal Power Adapter PoE capability64W Class 4 PoE Operating temperature0°C to 40°C, 32°F to 104°F Management featuresUnmanaged WarrantyLimited Lifetime Warranty with 24x7 phone support for 90 days and chat support for the entire warranty duration. Detailed product description8 RJ-45 autosensing Class4 PoE 10/100/1000 ports Weight0.77 kg (1.70 lb) Dimensions15.0 x 17.7 x 3.7 cm (5.91 x 6.97 x 1.46 in)
HPE Networking Instant On Switch 8p Gigabit CL4 PoE 64W 1430 8 RJ-45 autosensing Class4 PoE 10/100/1000 ports What's New Unmanaged Layer 2 Gigabit Ethernet switch series ready to deploy in 5-, 8-, 16-, 24-and 26-port non-PoE and PoE models. No configuration or management needed. Plug-and-play with fully automated functions and zero ongoing maintenance. Up to 124W of PoE to power APs, IP Phones, and other IoT devices. Fan-less design for silent deployment in office spaces. DifferentiatorAffordable, plug-and-play, unmanaged series for small businesses looking for simple reliable, and low-cost network connectivity, offering Layer 2 Ethernet switching capabilities to help connect printers and access points, without any complicated network configuration or management needed. With fully automated functions, zero ongoing maintenance, and Power over Ethernet (PoE) models, these unmanaged switches deliver simple, reliable connectivity for the smallest SMBs and home offices. Power consumptionMaximum: 90W Idle: 4.1W Input voltage100-240VAC Ports8 RJ-45 10/100/1000 Class 4 PoE ports Switching capacity16 Gbps Throughput11.90 Mpps Memory and processor128Kb EEPROM; Packet buffer size: 2.0 Mb Power supply nameExternal Power Adapter PoE capability64W Class 4 PoE Operating temperature0°C to 40°C, 32°F to 104°F Management featuresUnmanaged WarrantyLimited Lifetime Warranty with 24x7 phone support for 90 days and chat support for the entire warranty duration. Detailed product description8 RJ-45 autosensing Class4 PoE 10/100/1000 ports Weight0.77 kg (1.70 lb) Dimensions15.0 x 17.7 x 3.7 cm (5.91 x 6.97 x 1.46 in)
|
Aruba Instant On 1430 8G Class4 PoE 64W Switch (R8R46A)
|
|
I/O ports and slots
|
8 RJ-45 autosensing 10/100/1000 Class 4 PoE ports (IEEE 802.3 Type 10BASE-T, IEEE 802.3u Type 100BASE-TX, IEEE 802.3ab Type 1000BASE-T); Duplex: 10BASE-T/100BASE-TX: half or full; 1000BASE-T: full only
|
|
Dimensions
|
150(d) x 177(w) x 37(h) mm
|
|
Weight
|
1.70 lb (0.77 kg)
|
|
Processor and Memory
|
128Kb EEPROM; Packet buffer size: 2.0 Mb
|
|
Performance
|
|
|
100 Mb latency
|
< 2.7 µSec
|
|
1000 Mb latency
|
< 1.80 µSec
|
|
Throughput (Mpps)
|
11.90 Mpps
|
|
Capacity
|
16 Gbps
|
|
MAC address table size
|
8192 entries
|
|
Reliability MTBF (years)
|
131.1
|
|
Operating temperature
|
32°F to 104°F (0°C to 40°C)
|
|
Operating relative humidity
|
15% to 95% @ 104°F (40°C) non-condensing
|
|
Nonoperating/ storage temperature
|
-40°F to 158°F (-40°C to 70°C) up to 15000 ft
|
|
Nonoperating/ storage relative humidity
|
15% to 90% @ 149°F (65°C) non-condensing
|
|
Altitude
|
up to 10,000 ft (3 km)
|
|
Acoustics
|
Fanless
|
|
Frequency
|
50Hz/60Hz
|
|
AC voltage
|
100-240VAC
|
|
Current
|
2A (54VDC - 1.58A)
|
|
Maximum power rating
|
90W
|
|
Idle power
|
4.1W
|
|
PoE power
|
64W Class 4 PoE
|
|
Power Supply
|
External Power Adapter
|
|
Safety
|
- EN/IEC 60950- 1:2006 + A11:2009 + A1:2010 + A12:2011 + A2:2013
- EN/IEC 62368-1, 2nd. & 3rd. Ed.
- UL 62368-1, 3rd. Ed.
- CAN/CSA C22.2 No. 62368-1, 3rd. Ed.
- EN/IEC 60825- 1:2014 Class 1
|
|
Emissions
|
- EN 55032:2015/ CISPR 32, Class B
- FCC CFR 47 Part 15: 2018, Class B
- ICES-003, Class B
- VCCI-32, Class B
- CNS 13438, Class B
- KS C 9832, Class B
- AS/NZS CISPR 32, Class B
|
|
Immunity
|
BS/EN 55035, CISPR 35, KS C 9835
|
|
Generic
|
EN 55035, CISPR 35
|
|
EN
|
EN/IEC 61000-4-2
|
|
ESD
|
EN/IEC 61000-4-3
|
|
Radiated
|
EN/IEC 61000-4-4
|
|
EFT/Burst
|
EN/IEC 61000-4-5
|
|
Surge
|
EN/IEC 61000-4-6
|
|
Conducted
|
EN/IEC 61000-4-8
|
|
Power frequency magnetic field
|
EN/IEC 61000-4-11
|
|
Voltage dips and interruptions
|
EN/IEC 61000-3- 2
|
|
Harmonics
|
EN /IEC 61000-3-3
|
|
Device Management
|
Unmanaged
|
|
Mounting positions and supported racking
|
- Mounts in an EIA standard 19 in telco rack or equipment cabinet. 2-post rack kit included
- Supports table-top mounting
- Supports rack-mounting using the brackets provided
- Supports wall-mounting with ports facing either up or down using either the base surface mounting holes, or the brackets provided
- Supports under-table mounting using the brackets provided
- Must be mounted top surface up. To prevent possible impact to long-term reliability, product should not be mounted upside-down
|
Model: Hewlett Packard Enterprise Aruba Instant On 1430 8G Class4 PoE 64W Switch: Ano Typ switche: Desktop Síťové standardy: *IEEE 802.3 *IEEE 802.3ab *IEEE 802.3az *IEEE 802.3i *IEEE 802.3u *IEEE 802.3x *IEEE 802.3z Datový přenos: *Ethernet 10/100/1000 Kapacita přepínání: 16 Gbit/s PoE: Ano Konektory: 8x RJ-45 Napájení: Externí adapter Rozměry: 177 x 37 x 150 mm (Š x V x H) Hmotnost: 0.77 kg Záruka: Doživotní
HPE Aruba Instant On 1430 8G PoE
Neřízený (unmanaged) přepínač z řady 1430 nabízí 8× 10/100/1000 Mbps RJ-45 portů s podporou PoE+ (802.3af/at), Plug-and-Play instalaci, plně automatizované funkce a nulovou průběžnou údržbu. Díky snadné obsluze bez složité konfigurace sítě je ideální volbou pro malé podniky a domácí kanceláře, které hledají jednoduché, spolehlivé a cenově přijatelné řešení. Přepínací kapacita switche je 16 Gbps a rychlost směrování činí 11,9 Mpps. Díky prioritizaci na základě DSCP nebo dle standardu 802.1p přepínač zajišťuje plynulý audio a video přenos ve vaší kancelářské síti. Lze ho položit jen tak na stůl, namontovat ho na nebo pod něj, na zeď nebo do 19" rackového rozvaděče. Bezventilátorové provedení zaručuje naprosto tichý chod.
ZÁKLADNÍ SPECIFIKACE
Porty: 8× 10/100/1000 RJ-45
Kapacita switche: 16 Gbps
Rychlost směrování: 11,9 Mpps
Podpora PoE: ano, 802.3af/at (64 W celkem)
Rozměry: 177 × 150 × 37 mm
Hmotnost: 0,77 kg
