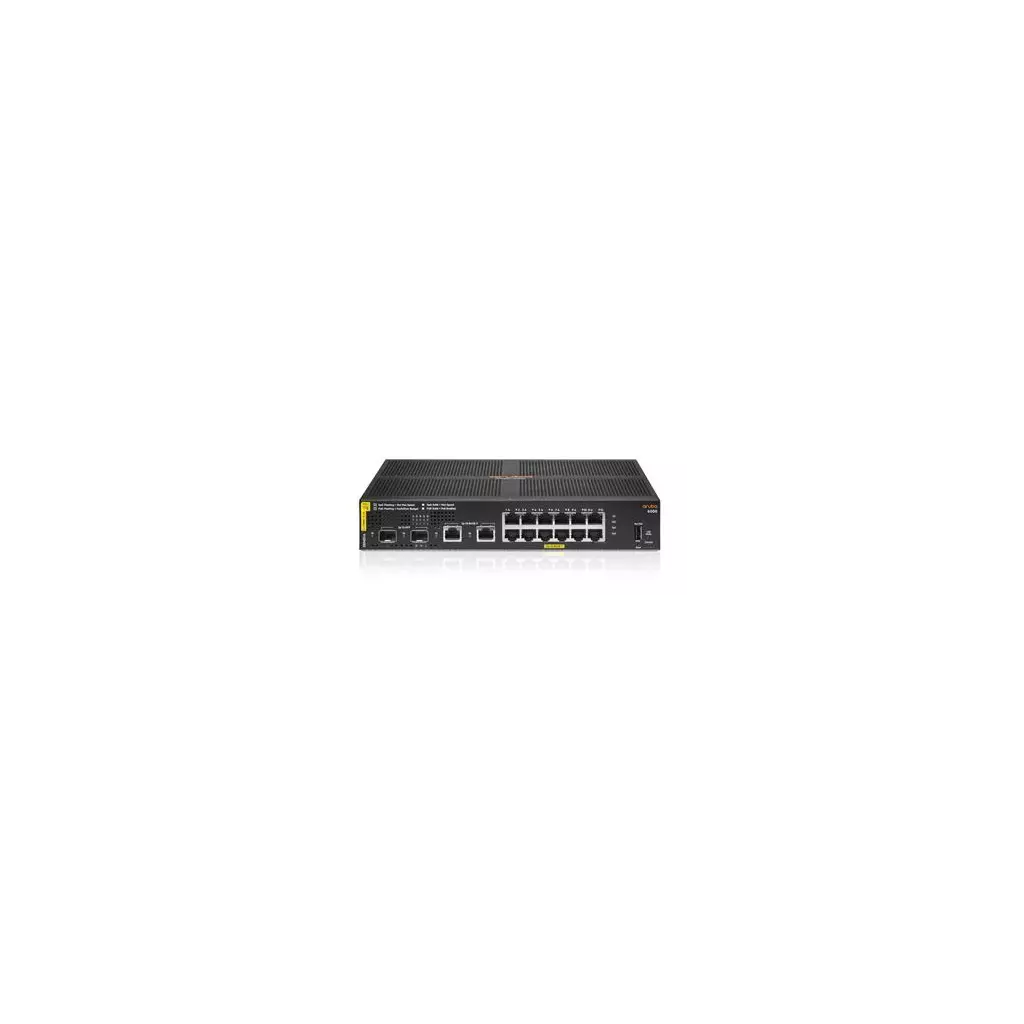

HPE Networking CX 6000 12G CL4 PoE 2G/2SFP 139W

Simplify IT operations with modern Layer 2 Gigabit Ethernet switch series that provides entry level, reliable, and convenient wired access connectivity. Convenient built-in 1GbE uplinks and up to 370W of Class 4 PoE for support of access points, client, and IoT devices. Compact and fanless 12 port PoE model for space-constrained deployments. Flexibility to manage with Aruba Central1, easy to use Web GUI, CLI, or Aruba NetEdit. Software defined ready with REST APIs. HPE Limited Lifetime Warranty with no switch software licensing required. Entry Level Aruba CX Access Layer Switches The Aruba CX 6000 Switch Series offers Ethernet gigabit connectivity and optional PoE to provide entry level, reliable, and convenient wired access connectivity for enterprise branch offices and SMB networks. Using Aruba AOS-CX operating system across Aruba CX switching platforms and access-to-core-to-data center deployment domains provides a simpler, more consistent operator experience. Fully-managed enterprise class switches deliver Layer 2 capabilities with support static routing, ACLs, robust QoS, traffic prioritization, sFlow, and IPv6 support. Right size deployment with choice of 12, 24, and 48 port 1U models with convenient built-in 1GbE uplinks and up to 370W of Class 4 PoE. Simplifies ownership with no switch software licensing or subscriptions required. Performance and Power The Aruba CX 6000 Switch Series is designed with Aruba ASICs that deliver very low latency, increased packet buffering, and adaptive power consumption. Deploy wireless access points and IoT devices with Aruba CX 6000 switch models that support up to 370W IEEE 802.3at Class 4 Power over Ethernet for up to 30W per port. Up to four built-in wire speed 1GbE uplinks remove bottlenecks at the access layer where users and devices connect. Simplified Configuration and Management The Aruba CX 6000 Switch Series provides flexibility to manage and simplify configurations with Aruba NetEdit, Aruba Central1, easy to use Web GUI, or industry standard CLI. Aruba NetEdit introduces automation that allows for rapid network-wide changes, and verifies policy conformance post network updates. Software-defined ready with REST APIs for fine-grained programmability of network tasks. Reduce manual IT operation tasks around initial deployment or on-going configuration changes to accommodate adds, moves, and changes with colorless ports using local user roles and local-MAC-Authentication (LMA). Power Consumption DescriptionMax Power (w/o PoE): 21.9W Max Power (w/ PoE): 170W Input Voltage100-127 VAC / 200-240 VAC External I/O Ports12x ports 10/100/1000BASE-T Ports 2x 1G SFP ports 2x 1GbE ports Latency1 Gbps: 2.3 µSec Routing CapabilitiesStatic Switching Capacity32 Gbps Throughput23.8 Mpps Memory and ProcessorDual Core ARM Cortex A9 @ 1016 Mhz 8 GB DDR3, maximum, depending on model 16 GB eMMC PoE Capability139W Class 4 PoE/PoE+ Warranty Standard StatementLimited Lifetime Warranty, see https://www.arubanetworks.com/support-services/ productwarranties/ for warranty and support information included with your product purchase Weight (imperial)6.13 lbs Weight (metric)2.8 kg Product Dimensions (imperial)1.73 x 10.0 x 10.4 in Product Dimensions (metric)4.4 x 25.4 x 25.5 cm Operating Temperature32°F to 113°F (0°C to 45°C) up to 5000 ft (1.5 km) derate -1°C for every 1000 ft (305 m) from 5000 ft (1.5 km) to 10000 ft (3.0 km)

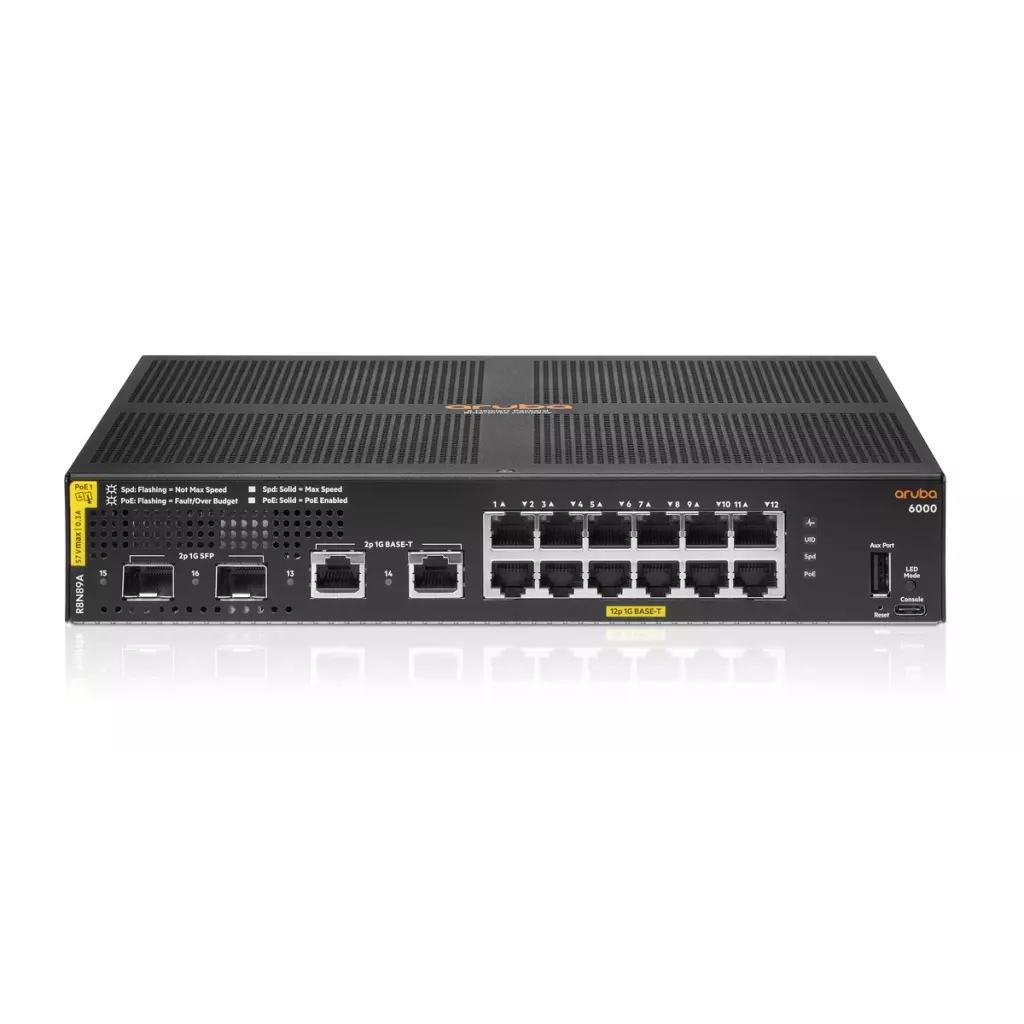

HPE Aruba Networking CX 6000 12G Class4 PoE 2G/2SFP 139W Switch 12x ports 10/100/1000BASE-T Ports 2x 1G SFP ports 2x 1GbE ports Supports PoE Standards IEEE 802.3af, 802.3at 1x USB-C Console Port 1x USB Type-A Host port

Power supplies Fixed power supply Up to 139W of Class 4 PoE Power Fans Fanless Dimensions (H) 4.39 cm (W) 25.4 cm (D) 25.5 cm Configuration Weight 2.78 kg CPU Dual Core ARM Cortex A9 @ 1016 Mhz Memory and Flash 4 GB DDR3 16 GB eMMC Packet Buffer 12.38MB (4.5MB Ingress/7.875MB Egress) Model Switching Capacity 32 Gbps Model Throughput Capacity 23.8 Mpps Average Latency (LIFO-64-bytes packets) 1 Gbps: 2.3 µSec Switched Virtual Interfaces (dual stack) 16 IPv4 Host Table (ARP) 1,024 IPv6 Host Table (ND) 512 IPv4 Unicast Routes 512 IPv6 Unicast Routes 512 MAC Table Capacity 8,192 IGMP Groups 512 MLD Groups 512 IPv4/IPv6/MAC ACL Entries (ingress) 256 / 128 / 256 Operating Temperature 32°F to 113°F (0°C to 45°C) up to 5000 ft (1.5 km) derate -1°C for every 1000 ft (305 m) from 5000 ft (1.5 km) to 10000 ft (3.0 km) Operating Relative Humidity 15% to 95% at 104°F (40°C) non-condensing Non-Operating -40°F to 158°F (-40°C to 70°C) up to 15000 ft (4.6 km) Non-Operating Storage Relative Humidity 15% to 90% @ 149°F (65°C) non-condensing Max Operating Altitude 10000 feet (3 km) Max Max Non-Operating Altitude 15000 feet (4.6 km) Max Acoustic Sound Power, LWAd = 0 Bel Sound Pressure, LpAm (Bystander) = 0 dB Primary Airflow Frequency 50 / 60 Hz AC Voltage 100-127 VAC / 200-240 VAC Current 1.8 A / 0.9 A Power Consumption (230 VAC) idle: 16W Max Power (w/o PoE): 21.9W Max Power (w/ PoE): 170W Safety UL 60950-1; IEC 60950-1; EN 60950-1; CAN/ CSA-C22.2 No. 60950-1; EN 60825-1 UL 62368-1 Ed. 2; IEC 62368-1 Ed. 2; EN 62368-1:2014 Emissions VCCI-CISPR 32, Class A; CNS 13438; ICES-003 Issue 6 Class A; FCC CFR 47 Part 15, Class A; EN 55032: 2015 +AC:2016 / CISPR-32, Class A Lasers EN 60825-1:2007 / IEC 60825-1:2007 Class 1Class 1 Laser Products / Laser Klasse 1 (Applicable for accessories - Optical Transceivers only) Mounting and Enclosure Mounts in an EIA-standard 19-inch telco rack or equipment cabinet (rack-mounting kit available); horizontal surface mounting; wall mounting

Model: Aruba 6000 Switch: Ano Typ Switche: Managed Podporované standardy: *IEEE 802.1D *IEEE 802.1Q *IEEE 802.1p *IEEE 802.1s *IEEE 802.1w *IEEE 802.3 *IEEE 802.3ab Kapacita propustnosti: 23.8 Mpps Optika: Ano Konektory: *12x ports 10/100/1000BASE-T Ports *2x 1G SFP ports *2x 1GbE ports PoE: Ano Rozměry: 254 x 44 x 255 mm (ŠxVxH) Hmotnost: 2.8 kg

HPE Aruba Networking Aruba 6000 12G Class4 PoE 2G/2SFP 139W. Typ přepínače: Řízený, Přepínač vrstev: L3. Typy přepínaných ethernetových portů RJ-45: Gigabit Ethernet (10/100/1000), Počet přepínaných ethernetových portů RJ-45: 12, Konzolový port: USB. Tabulka MAC adres: 8192 pol., Kapacita přepínání: 32 Gbit/s. Síťové standardy: IEEE 802.1D, IEEE 802.1Q, IEEE 802.1p, IEEE 802.1s, IEEE 802.1w, IEEE 802.3, IEEE 802.3ab, IEEE.... Podpora napájení po Ethernetu (PoE). Instalace do racku, Formát: 1U

Výkonný a spolehlivý HPE Networking CX 6000 PoE Switch 12G je ideální pro podnikové sítě díky 14x Gigabit LAN portům s podporou 802.3af/at PoE (pouze u 12 portů) spolu s 2x SFP optickým portům. Nabízí plně spravované funkce vrstvy L2, včetně statického směrování, ACL, QoS a podpory IPv6, což zajišťuje vysokou flexibilitu a bezpečnost. S PoE budgetem 139W umožňuje napájení zařízení přímo přes síťový kabel. Snadné ovládání a správu zajišťuje intuitivní platforma Aruba Central, Aruba NetEdit nebo webové rozhraní. Kompaktní design pro 19" rack a pasivního chlazení poskytují spolehlivý provoz i v náročných prostředích.

Obsah balení

• Zařízení
• Napájecí kabel
• Úchyty do 19" racku
