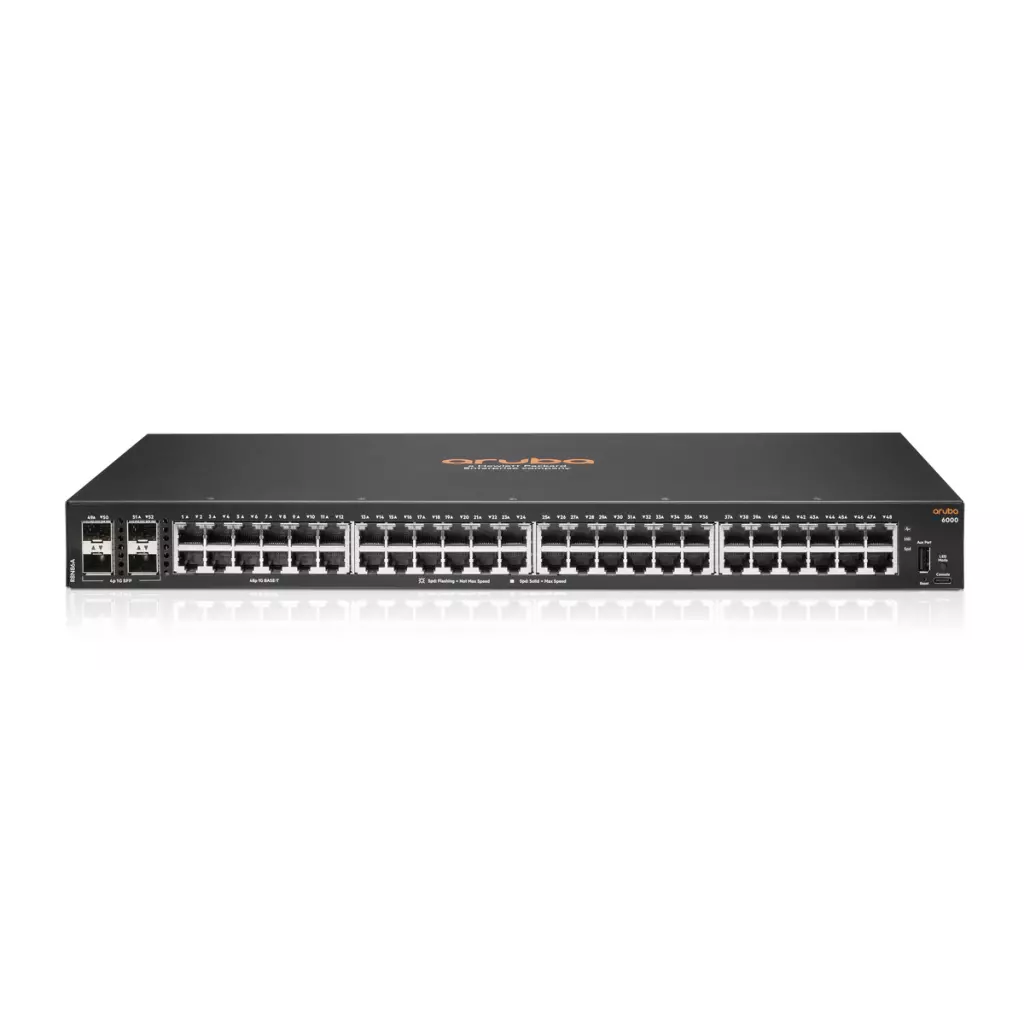

HPE Aruba 6000 48G 4SFP Switch

Simplify IT operations with modern Layer 2 Gigabit Ethernet switch series that provides entry level, reliable, and convenient wired access connectivity. Convenient built-in 1GbE uplinks and up to 370W of Class 4 PoE for support of access points, client, and IoT devices. Compact and fanless 12 port PoE model for space-constrained deployments. Flexibility to manage with Aruba Central1, easy to use Web GUI, CLI, or Aruba NetEdit. Software defined ready with REST APIs. HPE Limited Lifetime Warranty with no switch software licensing required. Entry Level Aruba CX Access Layer Switches The Aruba CX 6000 Switch Series offers Ethernet gigabit connectivity and optional PoE to provide entry level, reliable, and convenient wired access connectivity for enterprise branch offices and SMB networks. Using Aruba AOS-CX operating system across Aruba CX switching platforms and access-to-core-to-data center deployment domains provides a simpler, more consistent operator experience. Fully-managed enterprise class switches deliver Layer 2 capabilities with support static routing, ACLs, robust QoS, traffic prioritization, sFlow, and IPv6 support. Right size deployment with choice of 12, 24, and 48 port 1U models with convenient built-in 1GbE uplinks and up to 370W of Class 4 PoE. Simplifies ownership with no switch software licensing or subscriptions required. Performance and Power The Aruba CX 6000 Switch Series is designed with Aruba ASICs that deliver very low latency, increased packet buffering, and adaptive power consumption. Deploy wireless access points and IoT devices with Aruba CX 6000 switch models that support up to 370W IEEE 802.3at Class 4 Power over Ethernet for up to 30W per port. Up to four built-in wire speed 1GbE uplinks remove bottlenecks at the access layer where users and devices connect. Simplified Configuration and Management The Aruba CX 6000 Switch Series provides flexibility to manage and simplify configurations with Aruba NetEdit, Aruba Central1, easy to use Web GUI, or industry standard CLI. Aruba NetEdit introduces automation that allows for rapid network-wide changes, and verifies policy conformance post network updates. Software-defined ready with REST APIs for fine-grained programmability of network tasks. Reduce manual IT operation tasks around initial deployment or on-going configuration changes to accommodate adds, moves, and changes with colorless ports using local user roles and local-MAC-Authentication (LMA). Power Consumption DescriptionMax Power: 44.2W Input Voltage100-127 VAC / 200-240 VAC External I/O Ports48x ports 10/100/1000BASE-T ports 4x 1G SFP ports Latency1 Gbps: 1.9 µSec Routing CapabilitiesStatic Switching Capacity104 Gbps Throughput77.3 Mpps Memory and ProcessorDual Core ARM Cortex A9 @ 1016 Mhz 8 GB DDR3, maximum, depending on model 16 GB eMMC PoE Capabilitynon-PoE model Warranty Standard StatementLimited Lifetime Warranty, see https://www.arubanetworks.com/support-services/ productwarranties/ for warranty and support information included with your product purchase Weight (imperial)7.54 lbs Weight (metric)3.4 kg Product Dimensions (imperial)1.73 x 17.4 x 9.74 in Product Dimensions (metric)4.4 x 44.2 x 24.7 cm Operating Temperature32°F to 113°F (0°C to 45°C) up to 5000 ft (1.5 km) derate -1°C for every 1000 ft (305 m) from 5000 ft (1.5 km) to 10000 ft (3.0 km)

Simplify IT operations with modern Layer 2 Gigabit Ethernet switch series that provides entry level, reliable, and convenient wired access connectivity. Convenient built-in 1GbE uplinks and up to 370W of Class 4 PoE for support of access points, client, and IoT devices. Compact and fanless 12 port PoE model for space-constrained deployments. Flexibility to manage with Aruba Central1, easy to use Web GUI, CLI, or Aruba NetEdit. Software defined ready with REST APIs. HPE Limited Lifetime Warranty with no switch software licensing required. Entry Level Aruba CX Access Layer Switches The Aruba CX 6000 Switch Series offers Ethernet gigabit connectivity and optional PoE to provide entry level, reliable, and convenient wired access connectivity for enterprise branch offices and SMB networks. Using Aruba AOS-CX operating system across Aruba CX switching platforms and access-to-core-to-data center deployment domains provides a simpler, more consistent operator experience. Fully-managed enterprise class switches deliver Layer 2 capabilities with support static routing, ACLs, robust QoS, traffic prioritization, sFlow, and IPv6 support. Right size deployment with choice of 12, 24, and 48 port 1U models with convenient built-in 1GbE uplinks and up to 370W of Class 4 PoE. Simplifies ownership with no switch software licensing or subscriptions required. Performance and Power The Aruba CX 6000 Switch Series is designed with Aruba ASICs that deliver very low latency, increased packet buffering, and adaptive power consumption. Deploy wireless access points and IoT devices with Aruba CX 6000 switch models that support up to 370W IEEE 802.3at Class 4 Power over Ethernet for up to 30W per port. Up to four built-in wire speed 1GbE uplinks remove bottlenecks at the access layer where users and devices connect. Simplified Configuration and Management The Aruba CX 6000 Switch Series provides flexibility to manage and simplify configurations with Aruba NetEdit, Aruba Central1, easy to use Web GUI, or industry standard CLI. Aruba NetEdit introduces automation that allows for rapid network-wide changes, and verifies policy conformance post network updates. Software-defined ready with REST APIs for fine-grained programmability of network tasks. Reduce manual IT operation tasks around initial deployment or on-going configuration changes to accommodate adds, moves, and changes with colorless ports using local user roles and local-MAC-Authentication (LMA). Power Consumption DescriptionMax Power: 44.2W Input Voltage100-127 VAC / 200-240 VAC External I/O Ports48x ports 10/100/1000BASE-T ports 4x 1G SFP ports Latency1 Gbps: 1.9 µSec Routing CapabilitiesStatic Switching Capacity104 Gbps Throughput77.3 Mpps Memory and ProcessorDual Core ARM Cortex A9 @ 1016 Mhz 8 GB DDR3, maximum, depending on model 16 GB eMMC PoE Capabilitynon-PoE model Warranty Standard StatementLimited Lifetime Warranty, see https://www.arubanetworks.com/support-services/ productwarranties/ for warranty and support information included with your product purchase Weight (imperial)7.54 lbs Weight (metric)3.4 kg Product Dimensions (imperial)1.73 x 17.4 x 9.74 in Product Dimensions (metric)4.4 x 44.2 x 24.7 cm Operating Temperature32°F to 113°F (0°C to 45°C) up to 5000 ft (1.5 km) derate -1°C for every 1000 ft (305 m) from 5000 ft (1.5 km) to 10000 ft (3.0 km)

Aruba 6000 48G 4SFP Switch

	Aruba 6000 48G 4SFP Switch (R8N86A)
Description	48x ports 10/100/1000BASE-T Ports 4x 1G/1G SFP ports 1x USB-C Console Port 1x USB Type-A Host port
Power supplies	Fixed power supply
Fans	Fixed fans
Dimensions	(H) 4.39 cm (W) 44.2 cm (D) 24.74 cm (1.73" x 17.4" x 9.74")
Configuration Weight	3.42 kg (7.54 lbs)
CPU	Dual Core ARM Cortex A9 @ 1016 Mhz
Memory and Flash	4 GB DDR3 16 GB eMMC
Packet Buffer	12.38MB (4.5MB Ingress/7.875MB Egress)
Model Switching Capacity	104 Gbps
Model Throughput Capacity	77.3 Mpps
Average Latency (LIFO-64- bytes packets)	1 Gbps: 1.9 µSec
Switched Virtual Interfaces (dual stack)	16
IPv4 Host Table (ARP)	1,024
IPv6 Host Table (ND)	512
IPv4 Unicast Routes	512
IPv6 Unicast Routes	512
MAC Table Capacity	8,192
IGMP Groups	512
MLD Groups	512
IPv4/IPv6/MAC ACL Entries (ingress)	256 / 128 / 256

Operating Temperature	32°F to 113°F (0°C to 45°C) up to 5000 ft (1.5 km) derate -1°C for every 1000 ft (305 m) from 5000 ft (1.5 km) to 10000 ft (3.0 km)
Operating Relative Humidity	15% to 95% at 104°F (40°C) non-condensing
Non-Operating	-40°F to 158°F (-40°C to 70°C) up to 15000 ft (4.6 km)
Non-Operating Storage Relative Humidity	15% to 90% @ 149°F (65°C) non-condensing
Max Operating Altitude	10000 feet (3 km) Max
Max Non-Operating Altitude	15000 feet (4.6 km) Max
Acoustic	Sound Power, LWAd = 3.6 Bel Sound Pressure, LpAm (Bystander)= 24.6 dB
Primary Airflow	Side-to-side
Electrical Characteristics
Frequency	50 / 60 Hz
AC Voltage	100-127 VAC / 200-240 VAC
Current	0.8 A / 0.5 A
Power Consumption (230 VAC)	Idle: 20.6W Max Power (w/o PoE): 44.2W
Safety	UL 60950-1; IEC 60950-1; EN 60950-1; CAN/ CSA-C22.2 No. 60950-1; EN 60825-1 UL 62368-1 Ed. 2; IEC 62368-1 Ed. 2; EN 62368-1:2014
Emissions	VCCI-CISPR 32, Class A; CNS 13438; ICES-003 Issue 6 Class A; FCC CFR 47 Part 15, Class A; EN 55032: 2015 +AC:2016 / CISPR-32, Class A

Model: Aruba 6000 Switch: Ano Typ Switche: Managed Podporované standardy: *IEEE 802.1D *IEEE 802.1Q *IEEE 802.1p *IEEE 802.1s *IEEE 802.1w *IEEE 802.3 *IEEE 802.3ab Kapacita propustnosti: 77.3 Mpps Optika: Ano Konektory: *48x RJ-45 10/100/1000 ports *4x SFP 1GbE ports PoE: Ne Rozměry: 442 x 44 x 247 mm (ŠxVxH) Hmotnost: 3.4 kg

HPE Aruba 6000 48G 4SFP

Spravovatelný switch nabízející 48x 10/100/1000 Mbps RJ-45 portů a 4x 1GbE SFP porty. Přepínací kapacita switche je 104 Gbps a rychlost směrování činí 77,3 Mpps.

Řada CX 6000 je založena na architektuře Aruba ASIC s programovatelným operačním systémem AOS-CX, který se používá napříč celým portfoliem Aruba CX pro konzistentnější a efektivnější obsluhu. Flexibilní možnosti správy zahrnují webové grafické rozhraní, rozhraní CLI, cloudovou a lokální správu Aruba Central, takže si můžete vybrat to, co nejlépe vyhovuje vaší firmě a síti.

ZÁKLADNÍ SPECIFIKACE

Porty: 48x 10/100/1000 RJ-45, 4x 1GbE SFP, 1x konzolový port USB typ C, 1x USB host port

Kapacita switche: 104 Gbps

Rychlost směrování: 77,3 Mpps

Podpora PoE: ne

Rozměry: 442 x 247,4 x 43,9 mm

Hmotnost: 3,42 kg

Řada přepínačů Aruba CX 6000 je moderní řada přepínačů pro pobočky, středně velké podniky a malé podniky. Řada CX 6000 je založena na architektuře ASIC Aruba s použitým programovatelným operačním systémem AOS-CX. Možnosti správy zahrnují webové GUI, CLI, cloud a centrální správu on-premise. přepínací vrstva Layer 2 s rozšířenou podporou pro ACL, robustní QoS a statické směrování webové GUI, CLI a Aruba NetEdit jednoduché nasazení s Zero Touch Provisioning software definovaný pomocí REST API

Řada přepínačů Aruba CX 6000 je moderní řada přepínačů pro pobočky, středně velké podniky a malé podniky. Řada CX 6000 je založena na architektuře ASIC Aruba s použitým programovatelným operačním systémem AOS-CX. Možnosti správy zahrnují webové GUI, CLI, cloud a centrální správu on-premise. přepínací vrstva Layer 2 s rozšířenou podporou pro ACL, robustní QoS a statické směrování webové GUI, CLI a Aruba NetEdit jednoduché nasazení s Zero Touch Provisioning software definovaný pomocí REST API

Řada přepínačů Aruba CX 6000 je moderní řada přepínačů pro pobočky, středně velké podniky a malé podniky. Řada CX 6000 je založena na architektuře ASIC Aruba s použitým programovatelným operačním systémem AOS-CX. Možnosti správy zahrnují webové GUI, CLI, cloud a centrální správu on-premise. přepínací vrstva Layer 2 s rozšířenou podporou pro ACL, robustní QoS a statické směrování webové GUI, CLI a Aruba NetEdit jednoduché nasazení s Zero Touch Provisioning software definovaný pomocí REST API
