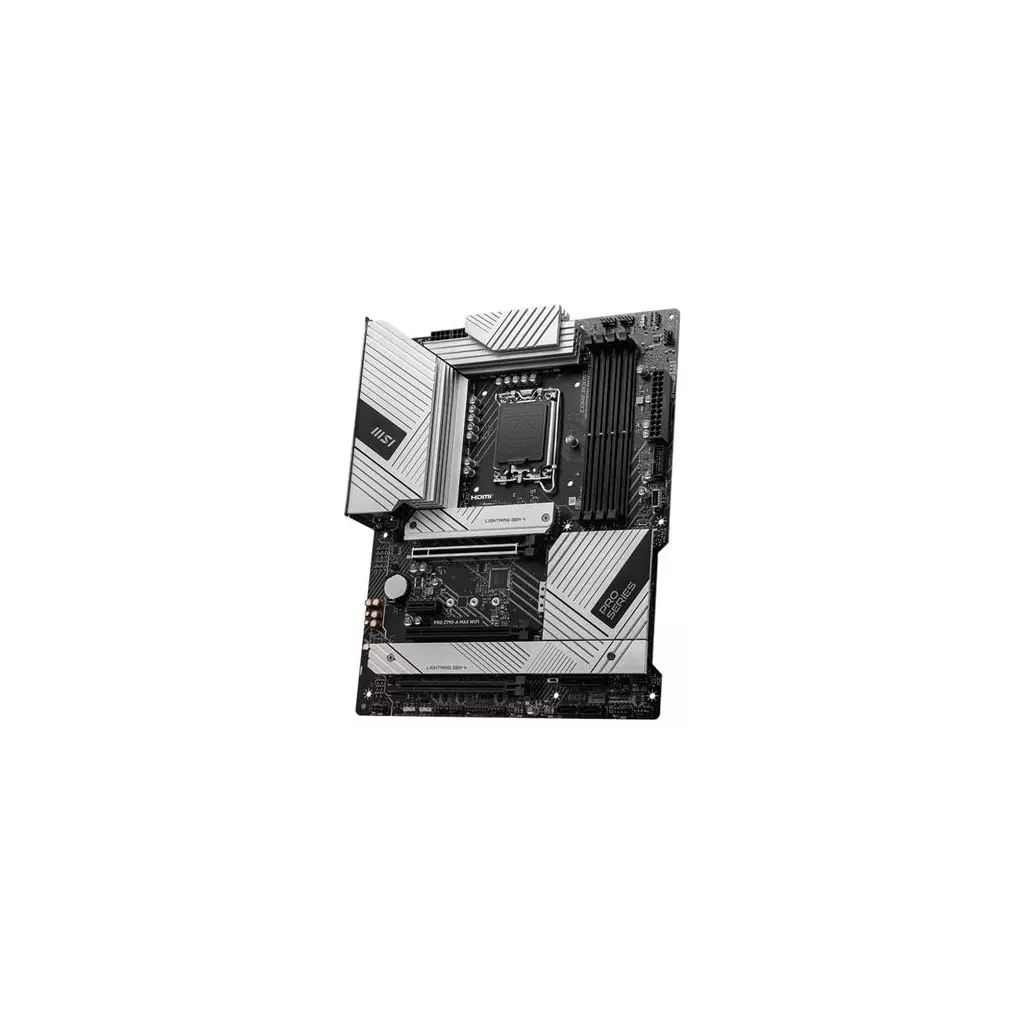

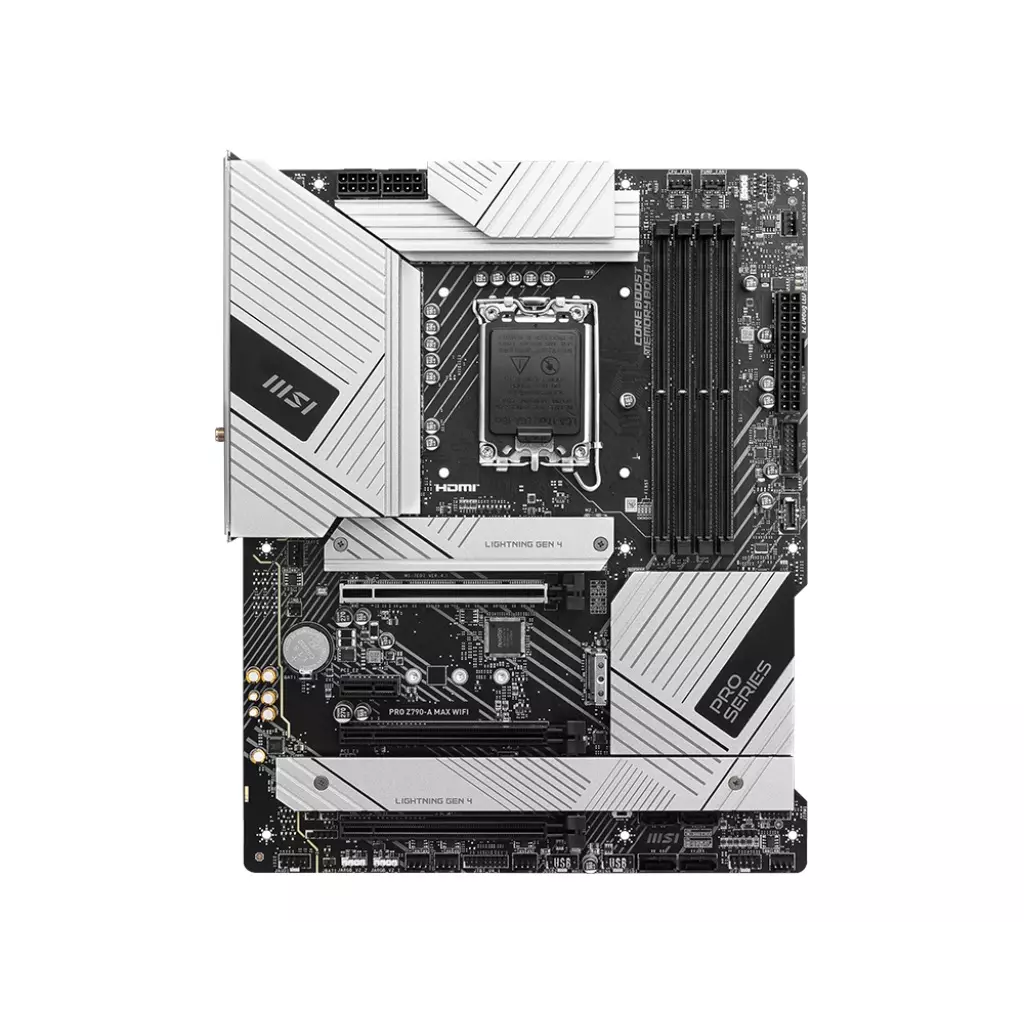

MSI PRO Z790-A MAX WIFI / Intel Z790 / LGA1700 / 4x DDR5 / 4x M.2 / HDMI / DP / USB-C / WiFi / ATX
Stav zboží:
Nové
Dostupnost:
skladem
Datum odeslání:
Expedujeme 8.7.
Výrobce:
MSI
Kód zboží:
5860334
Číslo zboží (PN):
PRO Z790-A MAX WIFI
EAN:
4711377139939
Záruka koncový zákazník:
36 měsíců
Záruka při koupi na IČO:
36 měsíců
Cena bez DPH: *
6021 Kč
Cena vč. DPH: *
7286 Kč
* - cena uvedena vč. recyklačních a autorských poplatků.
Popis produktu:
CHIPSET INTEL Z790 CPU Support Intel® Core™ 14th/ 13th/ 12th Gen Processors, Intel® Pentium® Gold and Celeron® Processors LGA 1700 MEMORY 4x DDR5 UDIMM, Maximum Memory Capacity 192GB Memory Support 7800+(OC)/ 7600(OC)/ 7400(OC)/ 7200(OC)/ 7000(OC)/ 6800(OC)/ 6600(OC)/ 6400(OC)/ 6200(OC)/ 6000(OC)/ 5800(OC)/ 5600(JEDEC)/ 5400(JEDEC)/ 5200(JEDEC)/ 5000(JEDEC)/ 4800(JEDEC) MHz Max. overclocking frequency: • 1DPC 1R Max speed up to 7800+ MHz • 1DPC 2R Max speed up to 6600+ MHz • 2DPC 1R Max speed up to 6400+ MHz • 2DPC 2R Max speed up to 5600+ MHz Supports Intel® XMP 3.0 OC Supports Dual-Controller Dual-Channel mode Supports non-ECC, un-buffered memory ONBOARD GRAPHICS 1x HDMI™ Support HDMI™ 2.1 with HDR, maximum resolution of 4K 60Hz* 1x DisplayPort Support DP 1.4, maximum resolution of 8K 60Hz* *Available only on processors featuring integrated graphics. Graphics specifications may vary depending on the CPU installed. SLOT 3x PCI-E x16 slot 1x PCI-E x1 slot PCI_E1 Gen PCIe 5.0 supports up to x16 (From CPU) PCI_E2 Gen PCIe 3.0 supports up to x1 (From Chipset) PCI_E3 Gen PCIe 4.0 supports up to x4 (From Chipset) PCI_E4 Gen PCIe 3.0 supports up to x1 (From Chipset) STORAGE 4x M.2 M.2_1 Source (From CPU) supports up to PCIe 4.0 x4 , supports 22110/2280/2260/2242 devices M.2_2 Source (From Chipset) supports up to PCIe 4.0 x4 , supports 2280/2260/2242 devices M.2_3 Source (From Chipset) supports up to PCIe 4.0 x4 / SATA mode, supports 2280/2260/2242 devices M.2_4 Source (From Chipset) supports up to PCIe 4.0 x4 / SATA mode, supports 2280/2260/2242 devices 6x SATA 6G RAID Supports RAID 0, RAID 1, RAID 5 and RAID 10 for SATA storage devices Supports RAID 0, RAID 1, RAID 5 and RAID 10 for M.2 NVMe storage devices USB 2x USB 2.0 (Rear) 4x USB 2.0 (Front) 2x USB 3.2 Gen1 Type A (Rear) 2x USB 3.2 Gen1 Type A (Front) 3x USB 3.2 Gen2 Type A (Rear) 1x USB 3.2 Gen2 Type C (Front) 1x USB 3.2 Gen2x2 Type C (Rear) LAN Intel® 2.5Gbps LAN WIRELESS LAN & BLUETOOTH Wi-Fi 7 The Wireless module is pre-installed in the M.2 (Key-E) slot Supports MU-MIMO TX/RX, 2.4GHz / 5GHz / 6GHz* (320MHz) up to 5.8Gbps Supports 802.11 a/ b/ g/ n/ ac/ ax/ be Supports Bluetooth® 5.4**, MLO, 4KQAM * 6GHz band support may depend on every country’s regulations and Wi-Fi 7 will be ready in Windows 11 SV3. ** The Bluetooth version may be updated, please refer to the Wi-Fi chipset vendor’s website for details. Bluetooth 5.4 support schedule depends on MSFT Windows 11 plan. AUDIO Realtek® ALC4080 Codec 7.1-Channel USB High Performance Audio Supports S/PDIF output INTERNAL IO 1x Power Connector(ATX_PWR) 2x Power Connector(CPU_PWR) 1x CPU Fan 1x Pump Fan 6x System Fan 2x Front Panel (JFP) 1x Chassis Intrusion (JCI) 1x Front Audio (JAUD) 1x TBT connector (JTBT, supports RTD3) 1x Tuning Controller connector(JDASH) 3x Addressable V2 RGB LED connector (JARGB_V2) 1x RGB LED connector(JRGB) 1x TPM pin header(Support TPM 2.0) 4x USB 2.0 ports 2x USB 3.2 Gen1 Type A ports 1x USB 3.2 Gen2 Type C ports 1x USB4 card connector (JTBT_U4_1, supports RTD3) LED FEATURE 4x EZ Debug LED BACK PANEL PORTS DisplayPort USB 2.0 2.5G LAN Wi-Fi / Bluetooth Audio Connectors HDMI™ Flash BIOS Button USB 3.2 Gen 1 5Gbps (Type-A) USB 3.2 Gen 2 10Gbps (Type-A) USB 3.2 Gen 2x2 20Gbps (Type-C) S/PDIF-OUT OPERATING SYSTEM Support for Windows® 11 64-bit PCB INFO ATX 243.84mmx304.8mm
CHIPSET INTEL Z790 CPU Support Intel® Core™ 14th/ 13th/ 12th Gen Processors, Intel® Pentium® Gold and Celeron® Processors LGA 1700 MEMORY 4x DDR5 UDIMM, Maximum Memory Capacity 192GB Memory Support 7800+(OC)/ 7600(OC)/ 7400(OC)/ 7200(OC)/ 7000(OC)/ 6800(OC)/ 6600(OC)/ 6400(OC)/ 6200(OC)/ 6000(OC)/ 5800(OC)/ 5600(JEDEC)/ 5400(JEDEC)/ 5200(JEDEC)/ 5000(JEDEC)/ 4800(JEDEC) MHz Max. overclocking frequency: • 1DPC 1R Max speed up to 7800+ MHz • 1DPC 2R Max speed up to 6600+ MHz • 2DPC 1R Max speed up to 6400+ MHz • 2DPC 2R Max speed up to 5600+ MHz Supports Intel® XMP 3.0 OC Supports Dual-Controller Dual-Channel mode Supports non-ECC, un-buffered memory ONBOARD GRAPHICS 1x HDMI™ Support HDMI™ 2.1 with HDR, maximum resolution of 4K 60Hz* 1x DisplayPort Support DP 1.4, maximum resolution of 8K 60Hz* *Available only on processors featuring integrated graphics. Graphics specifications may vary depending on the CPU installed. SLOT 3x PCI-E x16 slot 1x PCI-E x1 slot PCI_E1 Gen PCIe 5.0 supports up to x16 (From CPU) PCI_E2 Gen PCIe 3.0 supports up to x1 (From Chipset) PCI_E3 Gen PCIe 4.0 supports up to x4 (From Chipset) PCI_E4 Gen PCIe 3.0 supports up to x1 (From Chipset) STORAGE 4x M.2 M.2_1 Source (From CPU) supports up to PCIe 4.0 x4 , supports 22110/2280/2260/2242 devices M.2_2 Source (From Chipset) supports up to PCIe 4.0 x4 , supports 2280/2260/2242 devices M.2_3 Source (From Chipset) supports up to PCIe 4.0 x4 / SATA mode, supports 2280/2260/2242 devices M.2_4 Source (From Chipset) supports up to PCIe 4.0 x4 / SATA mode, supports 2280/2260/2242 devices 6x SATA 6G RAID Supports RAID 0, RAID 1, RAID 5 and RAID 10 for SATA storage devices Supports RAID 0, RAID 1, RAID 5 and RAID 10 for M.2 NVMe storage devices USB 2x USB 2.0 (Rear) 4x USB 2.0 (Front) 2x USB 3.2 Gen1 Type A (Rear) 2x USB 3.2 Gen1 Type A (Front) 3x USB 3.2 Gen2 Type A (Rear) 1x USB 3.2 Gen2 Type C (Front) 1x USB 3.2 Gen2x2 Type C (Rear) LAN Intel® 2.5Gbps LAN WIRELESS LAN & BLUETOOTH Wi-Fi 7 The Wireless module is pre-installed in the M.2 (Key-E) slot Supports MU-MIMO TX/RX, 2.4GHz / 5GHz / 6GHz* (320MHz) up to 5.8Gbps Supports 802.11 a/ b/ g/ n/ ac/ ax/ be Supports Bluetooth® 5.4**, MLO, 4KQAM * 6GHz band support may depend on every country’s regulations and Wi-Fi 7 will be ready in Windows 11 SV3. ** The Bluetooth version may be updated, please refer to the Wi-Fi chipset vendor’s website for details. Bluetooth 5.4 support schedule depends on MSFT Windows 11 plan. AUDIO Realtek® ALC4080 Codec 7.1-Channel USB High Performance Audio Supports S/PDIF output INTERNAL IO 1x Power Connector(ATX_PWR) 2x Power Connector(CPU_PWR) 1x CPU Fan 1x Pump Fan 6x System Fan 2x Front Panel (JFP) 1x Chassis Intrusion (JCI) 1x Front Audio (JAUD) 1x TBT connector (JTBT, supports RTD3) 1x Tuning Controller connector(JDASH) 3x Addressable V2 RGB LED connector (JARGB_V2) 1x RGB LED connector(JRGB) 1x TPM pin header(Support TPM 2.0) 4x USB 2.0 ports 2x USB 3.2 Gen1 Type A ports 1x USB 3.2 Gen2 Type C ports 1x USB4 card connector (JTBT_U4_1, supports RTD3) LED FEATURE 4x EZ Debug LED BACK PANEL PORTS DisplayPort USB 2.0 2.5G LAN Wi-Fi / Bluetooth Audio Connectors HDMI™ Flash BIOS Button USB 3.2 Gen 1 5Gbps (Type-A) USB 3.2 Gen 2 10Gbps (Type-A) USB 3.2 Gen 2x2 20Gbps (Type-C) S/PDIF-OUT OPERATING SYSTEM Support for Windows® 11 64-bit PCB INFO ATX 243.84mmx304.8mm
MSI PRO Z790-A MAX WIFI
PRO Z790-A MAX WIFI offers a simple design with a harmonious silver color scheme that perfectly matches white and black PC builds. It is engineered with many exclusive features of MSI, a convenient Wi-Fi 7 solution, and DDR5 optimization for Intel Core™ 14th Gen and 13th Gen processors.
The PRO Series is tailored to professionals from all walks of life. The lineup features impressive performance and high quality, while aiming to provide users incredible experience. Users who care about productivity and efficiency can definitely count on the MSI PRO Series to assist you with multitasking and increasing efficiency.
CPU
Support Intel Core™ 14th/ 13th/ 12th Gen Processors, Intel Pentium Gold and Celeron Processors
LGA 1700
MEMORY
4x DDR5 UDIMM, Maximum Memory Capacity 256GB
Memory Support 7800+(OC)/ 7600(OC)/ 7400(OC)/ 7200(OC)/ 7000(OC)/ 6800(OC)/ 6600(OC)/ 6400(OC)/ 6200(OC)/ 6000(OC)/ 5800(OC)/ 5600(JEDEC)/ 5400(JEDEC)/ 5200(JEDEC)/ 5000(JEDEC)/ 4800(JEDEC) MHz
Max. overclocking frequency:
• 1DPC 1R Max speed up to 7800+ MHz
• 1DPC 2R Max speed up to 6600+ MHz
• 2DPC 1R Max speed up to 6400+ MHz
• 2DPC 2R Max speed up to 5600+ MHz
Supports Intel XMP 3.0 OC
Supports Dual-Controller Dual-Channel mode
Supports non-ECC, un-buffered memory
ONBOARD GRAPHICS
1x HDMI™
Support HDMI™ 2.1 with HDR, maximum resolution of 4K 60Hz*
1x DisplayPort
Support DP 1.4, maximum resolution of 8K 60Hz*
*Available only on processors featuring integrated graphics. Graphics specifications may vary depending on the CPU installed.
EXPANSION SLOT
3x PCI-E x16 slot
1x PCI-E x1 slot
PCI_E1 Gen PCIe 5.0 supports up to x16 (From CPU)
PCI_E2 Gen PCIe 3.0 supports up to x1 (From Chipset)
PCI_E3 Gen PCIe 4.0 supports up to x4 (From Chipset)
PCI_E4 Gen PCIe 3.0 supports up to x1 (From Chipset)
STORAGE
4x M.2
M.2_1 Source (From CPU) supports up to PCIe 4.0 x4 , supports 22110/2280/2260/2242 devices
M.2_2 Source (From Chipset) supports up to PCIe 4.0 x4 , supports 2280/2260/2242 devices
M.2_3 Source (From Chipset) supports up to PCIe 4.0 x4 / SATA mode, supports 2280/2260/2242 devices
M.2_4 Source (From Chipset) supports up to PCIe 4.0 x4 / SATA mode, supports 2280/2260/2242 devices
6x SATA 6G
Supports RAID 0, RAID 1, RAID 5 and RAID 10 for SATA storage devices
Supports RAID 0, RAID 1, RAID 5 and RAID 10 for M.2 NVMe storage devices
USB
2x USB 2.0 (Rear)
4x USB 2.0 (Front)
2x USB 3.2 Gen1 Type A (Rear)
2x USB 3.2 Gen1 Type A (Front)
3x USB 3.2 Gen2 Type A (Rear)
1x USB 3.2 Gen2 Type C (Front)
1x USB 3.2 Gen2x2 Type C (Rear)
WIRELESS / BLUETOOTH
Wi-Fi 7
The Wireless module is pre-installed in the M.2 (Key-E) slot
Supports MU-MIMO TX/RX, 2.4GHz / 5GHz / 6GHz* (320MHz) up to 5.8Gbps
Supports 802.11 a/ b/ g/ n/ ac/ ax/ be
Supports Bluetooth 5.4**, MLO, 4KQAM
* 6GHz band support may depend on every country’s regulations and Wi-Fi 7 will be ready in Windows 11 SV3.
** The Bluetooth version may be updated, please refer to the Wi-Fi chipset vendor’s website for details. Bluetooth 5.4 support schedule depends on MSFT Windows 11 plan.
AUDIO
Realtek ALC4080 Codec
7.1-Channel USB High Performance Audio
Supports S/PDIF output
INTERNAL I/O
1x Power Connector(ATX_PWR)
2x Power Connector(CPU_PWR)
1x CPU Fan
1x Pump Fan
6x System Fan
2x Front Panel (JFP)
1x Chassis Intrusion (JCI)
1x Front Audio (JAUD)
1x TBT connector (JTBT, supports RTD3)
1x Tuning Controller connector(JDASH)
3x Addressable V2 RGB LED connector (JARGB_V2)
1x RGB LED connector(JRGB)
1x TPM pin header(Support TPM 2.0)
4x USB 2.0 ports
2x USB 3.2 Gen1 Type A ports
1x USB 3.2 Gen2 Type C ports
1x USB4 card connector (JTBT_U4_1, supports RTD3)
LED FEATURE
4x EZ Debug LED
BACK PANEL PORTS
1x DisplayPort
2x USB 2.0
1x 2.5G LAN
2x Wi-Fi / Bluetooth
5x Audio Connectors
1x HDMI™
1x Flash BIOS Button
2x USB 3.2 Gen 1 5Gbps (Type-A)
3x USB 3.2 Gen 2 10Gbps (Type-A)
1x USB 3.2 Gen 2x2 20Gbps (Type-C)
1x S/PDIF-OUT
OPERATING SYSTEM
Support for Windows 11 64-bit
Form Factor
ATX
243.84 x 304.8 mm
Co je v krabici
2x SATA Cables
2x M.2 Clips
1x M.2 Screw
Wi-Fi Antenna
Driver DVD
Quick Installation Guide
MSI PRO Z790-A MAX WIFI Chipset: Intel® Z790 Rozměrový formát: ATX (304,8x243,84mm) Podpora pro procesory: Intel® Core™ 14./13./12. generace, Intel® Pentium® Gold a Celeron® Patice procesoru: LGA1700 Paměť: * 4x paměťový slot DDR5 UDIMM, maximální kapacita 192GB * DDR5 7800+(OC)/7600(OC)/7400(OC)/7200(OC)/7000(OC)/6800(OC)/6600(OC)/6400(OC)/6200(OC)/6000(OC)/5800(OC)/5600(JEDEC)/5400(JEDEC)/5200(JEDEC)/5000(JEDEC)/4800(JEDEC)MT/s * podpora paměťových modulů Intel® XMP 3.0 OC * podpora Dual-Controller Dual-Channel mode * podpora non-ECC, bez vyrovnávací paměti Grafické porty: (Specifikace grafiky se mohou lišit v závislosti na nainstalovaném CPU.) * 1x HDMI™ 2.1 s HDR * 1x DisplayPort 1.4 Zvuková karta: kodek Realtek® ALC4080, 7.1-kanálový zvuk s vysokým rozlišením, S/PDIF out Ethernet: Intel® 2,5GbE LAN WLAN + Bluetooth: Wi-Fi 7 + Bluetooth® v5.4 Rozšiřující sloty: * 3x slot PCI-E x16 * 1x slot PCI-E x1 Úložný prostor: celkem podporuje 4 sloty M.2 a 6 portů SATA 6Gb/s * M.2_1 (CPU) podpora PCIe 4.0 x4, typ 22110/2280/2260/2242 * M.2_2 (Chipset) podpora PCIe 4.0 x4, typ 2280/2260/2242 * M.2_3 (Chipset) podpora PCIe 4.0 x4/režim SATA, typ 2280/2260/2242 * M.2_4 (Chipset) podpora PCIe 4.0 x4/režim SATA, typ 2280/2260/2242 * 6x port SATA 6Gb/s RAID řadič: podpora RAID 0/1/5/10 pro úložná zařízení M.2 NVMe a SATA USB: Zadní USB (celkem 8 portů) * 1x USB 3.2 Gen 2x2 20Gb/s typ C * 3x USB 3.2 Gen 2 10Gb/s typ A * 2x USB 3.2 Gen 1 5Gb/s typ A * 2x USB 2.0 Přední USB (celkem 7 portů) * 4x USB 2.0 * 2x USB 3.2 Gen 1 typ A * 1x USB 3.2 Gen 2 typ C Porty na zadním panelu: * 1x USB 3.2 Gen 2x2 20Gb/s typ C * 3x USB 3.2 Gen 2 10Gb/s typ A * 2x USB 3.2 Gen 1 5Gb/s typ A * 2x USB 2.0 * 1x DisplayPort * 1x HDMI™ * 1x RJ-45 2,5G LAN * 5x audio konektor * 1x Wi-Fi/Bluetooth anténa * 1x tlačítko Flash BIOS * 1x S/PDIF-OUT Interní porty: Napájení * 1x napájecí konektor (ATX_PWR) * 2x napájecí konektor (CPU_PWR) Související s ventilátorem a chlazením * 1x CPU Fan * 1x Pump Fan * 6x System Fan USB * 4x USB 2.0 * 2x USB 3.2 Gen 1 typ A * 1x USB 3.2 Gen 2 typ C * 1x USB4 card konektor (JTBT_U4_1, podpora RTD3) LED * 3x adresovatelný V2 RGB LED konektor (JARGB_V2) * 1x RGB LED konektor (JRGB) * 4x EZ Debug LED Ostatní * 2x Front Panel (JFP) * 1x Chassis Intrusion (JCI) * 1x pření audio (JAUD) * 1x TBT konektor (JTBT, podpora RTD3) * 1x Tuning Controller connector (JDASH) * 1x TPM pin header (podpora TPM 2.0) Příslušenství: * 2x SATA 6Gb/s kabel * Wi-Fi anténa * 2x EZ M.2 clip * M.2 šroub/standoff set * DVD driver * uživatelská příručka Odkaz na stránku výrobce: https://www.msi.com/Motherboard/PRO-Z790-A-MAX-WIFI
MSI PRO Z790-A MAX WIFI
Deska je vybavena grafickými výstupy pro použití s procesory s integrovaným grafickým jádrem. Základní deska grafickou kartu neobsahuje a bez použití odpovídajícího procesoru, budou tyto výstupy nefunkční.
CPU
Podpora procesorů 14., 13. a 12. generace Intel Core/ Pentium Gold/ Celeron
Patice LGA1700
Čipová sada
Intel Z790
Paměť
4× DDR5 paměťový slot, podpora až 192 GB
Podpora DDR5 7800+ (OC)/ 7600 (OC)/ 7400 (OC)/ 7200 (OC)/ 7000 (OC)/ 6800 (OC)/ 6600 (OC)/ 6400 (OC)/ 6200 (OC)/ 6000 (OC)/ 5800 (OC)/ 5600 (JEDEC)/ 5400 (JEDEC)/ 5200 (JEDEC)/ 5000 (JEDEC)/ 4800 (JEDEC) MHz
Dvoukanálová architektura paměti
Podpora non-ECC, bez vyrovnávací paměti
Podpora Intel Extreme Memory Profile (XMP) 3.0 OC
Sloty
Intel CPU
1× PCIe 5.0 x16 slot
Intel Z790 čipová sada
1× PCIe 4.0 x16 slot (podporuje x4 režim)
1× PCIe 3.0 x16 slot (podporuje x1 režim)
1× PCIe 3.0 x1 slot
Grafika
1× HDMI port, podporující max. rozlišení 4K při 60 Hz
1× DisplayPort port, podporující max. rozlišení 8K při 60 Hz
Úložiště
Intel CPU
1× M.2 slot, M Key, pro jednotky typu 2242/2260/2280/22110 (PCIe 4.0 x4 režim)
Intel Z790 čipová sada
6× SATA 6Gb/s port
1× M.2 slot, M Key, pro jednotky typu 2242/2260/2280 (PCIe 4.0 x4 režim)
2× M.2 slot, M key, pro jednotky typu 2242/2260/2280 (SATA a PCIe 4.0 x4 režim)
Podpora RAID 0, RAID 1, RAID 5 a RAID 10 pro SATA i M.2 NVMe jednotky
USB
6× USB 2.0 port (2 porty na zadním panelu, 4 porty dostupné přes interní USB konektory)
4× USB 3.2 Gen1 (USB 3.0) port (2 porty na zadním panelu, 2 porty dostupné přes interní USB konektor)
3× USB 3.2 Gen2 typ A port na zadním panelu
1× USB-C 3.2 Gen2 port dostupný přes interní USB konektor
1× USB-C 3.2 Gen 2x2 na zadním panelu
Audio
Realtek ALC4080 Codec
7.1kanálové USB High Performance Audio
Podpora S/PDIF výstupu
LAN
1× Intel 2,5Gigabit LAN řadič
WLAN/ Bluetooth
Intel Wi-Fi 7
Wi-Fi 802.11a/b/g/n/ac/ax/be
Triple Band (2,4 GHz, 5 GHz, 6 GHz)
Podpora MU-MIMO TX/RX
Rychlost přenosu dat až 5,8 Gbps
Bluetooth 5.4
Interní konektory
1× 24pin ATX hlavní napájecí konektor
2× 8pin 12V napájecí konektor
1× 4pin konektor ventilátoru CPU
1× 4pin konektor ventilátoru pumpy vodního chlazení
6× 4pin konektor systémového ventilátoru
2× konektor předního panelu
1× konektor detekce otevření skříně
1× audio konektor předního panelu
1× TPM konektor (podporuje TPM 2.0)
1× konektor Tuning ovladače
1× konektor pro rozšiřující kartu USB4 (podporuje RTD3)
1× propojka Clear CMOS
3× 3pin konektor V2 ARGB LED
1× 4pin konektor RGB LED
2× USB 2.0 konektor (podporuje 4× USB 2.0 port)
1× USB 3.2 Gen1 (USB 3.0) konektor (podporuje 2× USB 3.2 Gen1 port)
1× USB-C 3.2 Gen2 konektor
4× EZ Debug LED
Porty na zadním panelu
1× DisplayPort
1× HDMI
1× tlačítko Flash BIOS
2× USB 2.0
2× USB 3.2 Gen1 (USB 3.0)
3× USB 3.2 Gen2 (USB 3.1 Gen2)
1× USB-C 3.2 Gen2x2 (USB 3.2)
1× RJ-45
2× konektor Wi-Fi antény
5× audio jack
1× optický S/PDIF výstup
Rozměry
30,5 × 24,4 cm
ATX formát
MSI PRO Z790-A MAX WIFI Chipset: Intel® Z790 Rozměrový formát: ATX (304,8x243,84mm) Podpora pro procesory: Intel® Core™ 14./13./12. generace, Intel® Pentium® Gold a Celeron® Patice procesoru: LGA1700 Paměť: * 4x paměťový slot DDR5 UDIMM, maximální kapacita 192GB * DDR5 7800+(OC)/7600(OC)/7400(OC)/7200(OC)/7000(OC)/6800(OC)/6600(OC)/6400(OC)/6200(OC)/6000(OC)/5800(OC)/5600(JEDEC)/5400(JEDEC)/5200(JEDEC)/5000(JEDEC)/4800(JEDEC)MT/s * podpora paměťových modulů Intel® XMP 3.0 OC * podpora Dual-Controller Dual-Channel mode * podpora non-ECC, bez vyrovnávací paměti Grafické porty: (Specifikace grafiky se mohou lišit v závislosti na nainstalovaném CPU.) * 1x HDMI™ 2.1 s HDR * 1x DisplayPort 1.4 Zvuková karta: kodek Realtek® ALC4080, 7.1-kanálový zvuk s vysokým rozlišením, S/PDIF out Ethernet: Intel® 2,5GbE LAN WLAN + Bluetooth: Wi-Fi 7 + Bluetooth® v5.4 Rozšiřující sloty: * 3x slot PCI-E x16 * 1x slot PCI-E x1 Úložný prostor: celkem podporuje 4 sloty M.2 a 6 portů SATA 6Gb/s * M.2_1 (CPU) podpora PCIe 4.0 x4, typ 22110/2280/2260/2242 * M.2_2 (Chipset) podpora PCIe 4.0 x4, typ 2280/2260/2242 * M.2_3 (Chipset) podpora PCIe 4.0 x4/režim SATA, typ 2280/2260/2242 * M.2_4 (Chipset) podpora PCIe 4.0 x4/režim SATA, typ 2280/2260/2242 * 6x port SATA 6Gb/s RAID řadič: podpora RAID 0/1/5/10 pro úložná zařízení M.2 NVMe a SATA USB: Zadní USB (celkem 8 portů) * 1x USB 3.2 Gen 2x2 20Gb/s typ C * 3x USB 3.2 Gen 2 10Gb/s typ A * 2x USB 3.2 Gen 1 5Gb/s typ A * 2x USB 2.0 Přední USB (celkem 7 portů) * 4x USB 2.0 * 2x USB 3.2 Gen 1 typ A * 1x USB 3.2 Gen 2 typ C Porty na zadním panelu: * 1x USB 3.2 Gen 2x2 20Gb/s typ C * 3x USB 3.2 Gen 2 10Gb/s typ A * 2x USB 3.2 Gen 1 5Gb/s typ A * 2x USB 2.0 * 1x DisplayPort * 1x HDMI™ * 1x RJ-45 2,5G LAN * 5x audio konektor * 1x Wi-Fi/Bluetooth anténa * 1x tlačítko Flash BIOS * 1x S/PDIF-OUT Interní porty: Napájení * 1x napájecí konektor (ATX_PWR) * 2x napájecí konektor (CPU_PWR) Související s ventilátorem a chlazením * 1x CPU Fan * 1x Pump Fan * 6x System Fan USB * 4x USB 2.0 * 2x USB 3.2 Gen 1 typ A * 1x USB 3.2 Gen 2 typ C * 1x USB4 card konektor (JTBT_U4_1, podpora RTD3) LED * 3x adresovatelný V2 RGB LED konektor (JARGB_V2) * 1x RGB LED konektor (JRGB) * 4x EZ Debug LED Ostatní * 2x Front Panel (JFP) * 1x Chassis Intrusion (JCI) * 1x pření audio (JAUD) * 1x TBT konektor (JTBT, podpora RTD3) * 1x Tuning Controller connector (JDASH) * 1x TPM pin header (podpora TPM 2.0) Příslušenství: * 2x SATA 6Gb/s kabel * Wi-Fi anténa * 2x EZ M.2 clip * M.2 šroub/standoff set * DVD driver * uživatelská příručka Odkaz na stránku výrobce: https://www.msi.com/Motherboard/PRO-Z790-A-MAX-WIFI
MSI PRO Z790-A MAX WIFI
Deska je vybavena grafickými výstupy pro použití s procesory s integrovaným grafickým jádrem. Základní deska grafickou kartu neobsahuje a bez použití odpovídajícího procesoru, budou tyto výstupy nefunkční.
CPU
Podpora procesorů 14., 13. a 12. generace Intel Core/ Pentium Gold/ Celeron
Patice LGA1700
Čipová sada
Intel Z790
Paměť
4× DDR5 paměťový slot, podpora až 192 GB
Podpora DDR5 7800+ (OC)/ 7600 (OC)/ 7400 (OC)/ 7200 (OC)/ 7000 (OC)/ 6800 (OC)/ 6600 (OC)/ 6400 (OC)/ 6200 (OC)/ 6000 (OC)/ 5800 (OC)/ 5600 (JEDEC)/ 5400 (JEDEC)/ 5200 (JEDEC)/ 5000 (JEDEC)/ 4800 (JEDEC) MHz
Dvoukanálová architektura paměti
Podpora non-ECC, bez vyrovnávací paměti
Podpora Intel Extreme Memory Profile (XMP) 3.0 OC
Sloty
Intel CPU
1× PCIe 5.0 x16 slot
Intel Z790 čipová sada
1× PCIe 4.0 x16 slot (podporuje x4 režim)
1× PCIe 3.0 x16 slot (podporuje x1 režim)
1× PCIe 3.0 x1 slot
Grafika
1× HDMI port, podporující max. rozlišení 4K při 60 Hz
1× DisplayPort port, podporující max. rozlišení 8K při 60 Hz
Úložiště
Intel CPU
1× M.2 slot, M Key, pro jednotky typu 2242/2260/2280/22110 (PCIe 4.0 x4 režim)
Intel Z790 čipová sada
6× SATA 6Gb/s port
1× M.2 slot, M Key, pro jednotky typu 2242/2260/2280 (PCIe 4.0 x4 režim)
2× M.2 slot, M key, pro jednotky typu 2242/2260/2280 (SATA a PCIe 4.0 x4 režim)
Podpora RAID 0, RAID 1, RAID 5 a RAID 10 pro SATA i M.2 NVMe jednotky
USB
6× USB 2.0 port (2 porty na zadním panelu, 4 porty dostupné přes interní USB konektory)
4× USB 3.2 Gen1 (USB 3.0) port (2 porty na zadním panelu, 2 porty dostupné přes interní USB konektor)
3× USB 3.2 Gen2 typ A port na zadním panelu
1× USB-C 3.2 Gen2 port dostupný přes interní USB konektor
1× USB-C 3.2 Gen 2x2 na zadním panelu
Audio
Realtek ALC4080 Codec
7.1kanálové USB High Performance Audio
Podpora S/PDIF výstupu
LAN
1× Intel 2,5Gigabit LAN řadič
WLAN/ Bluetooth
Intel Wi-Fi 7
Wi-Fi 802.11a/b/g/n/ac/ax/be
Triple Band (2,4 GHz, 5 GHz, 6 GHz)
Podpora MU-MIMO TX/RX
Rychlost přenosu dat až 5,8 Gbps
Bluetooth 5.4
Interní konektory
1× 24pin ATX hlavní napájecí konektor
2× 8pin 12V napájecí konektor
1× 4pin konektor ventilátoru CPU
1× 4pin konektor ventilátoru pumpy vodního chlazení
6× 4pin konektor systémového ventilátoru
2× konektor předního panelu
1× konektor detekce otevření skříně
1× audio konektor předního panelu
1× TPM konektor (podporuje TPM 2.0)
1× konektor Tuning ovladače
1× konektor pro rozšiřující kartu USB4 (podporuje RTD3)
1× propojka Clear CMOS
3× 3pin konektor V2 ARGB LED
1× 4pin konektor RGB LED
2× USB 2.0 konektor (podporuje 4× USB 2.0 port)
1× USB 3.2 Gen1 (USB 3.0) konektor (podporuje 2× USB 3.2 Gen1 port)
1× USB-C 3.2 Gen2 konektor
4× EZ Debug LED
Porty na zadním panelu
1× DisplayPort
1× HDMI
1× tlačítko Flash BIOS
2× USB 2.0
2× USB 3.2 Gen1 (USB 3.0)
3× USB 3.2 Gen2 (USB 3.1 Gen2)
1× USB-C 3.2 Gen2x2 (USB 3.2)
1× RJ-45
2× konektor Wi-Fi antény
5× audio jack
1× optický S/PDIF výstup
Rozměry
30,5 × 24,4 cm
ATX formát
