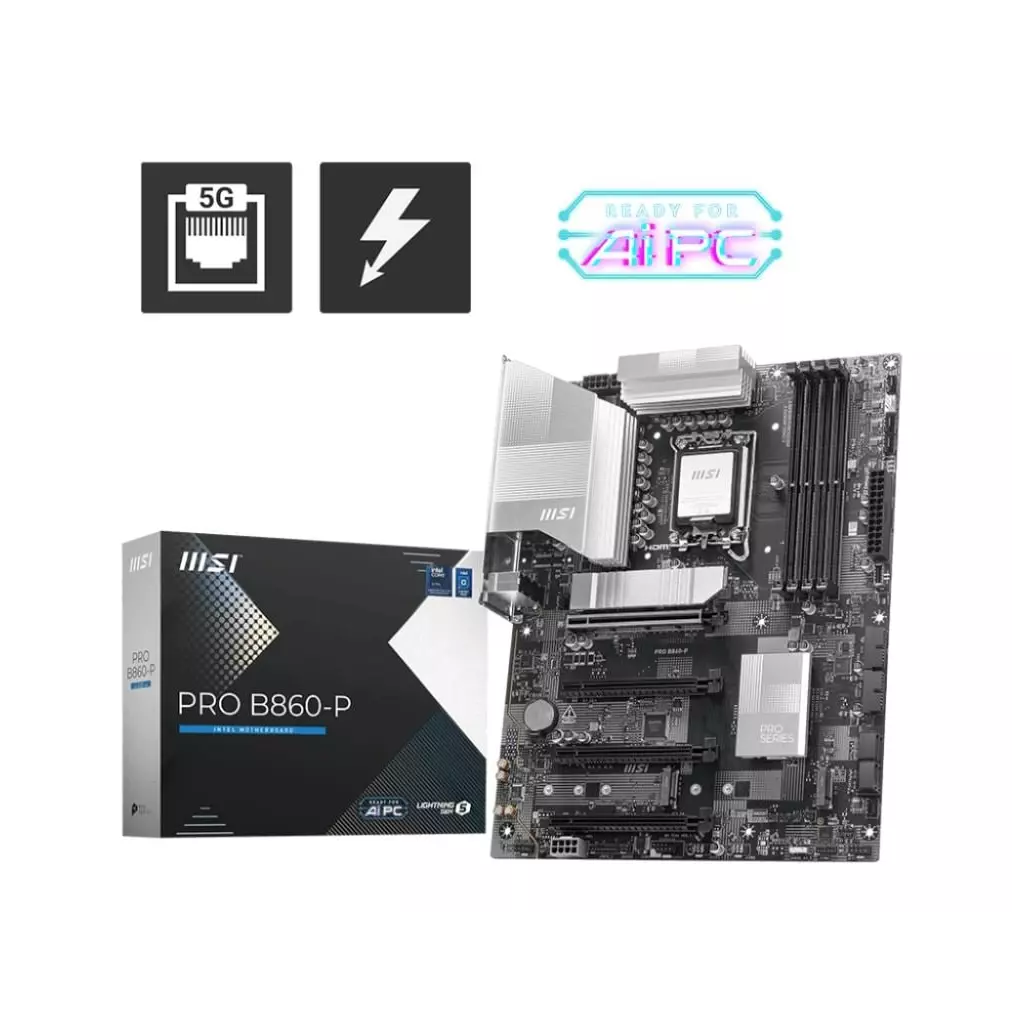

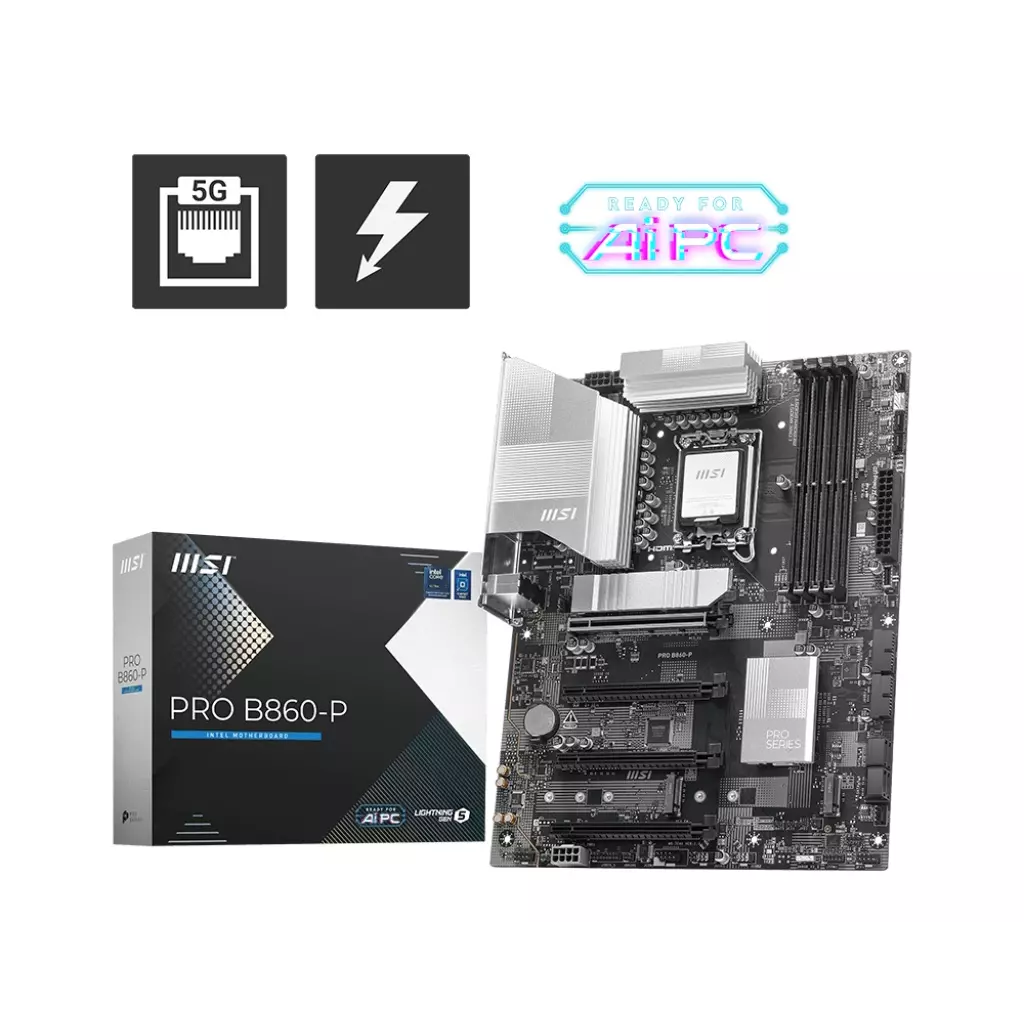

MSI PRO B860-P

Popis produktu:
MSI PRO B860-P
PRO B860-P offers a simple design with a harmonious silver color scheme that perfectly matches both white and black PC builds. It is engineered with many exclusive features of MSI, 5G LAN, Thunderbolt 4, PCIe 5.0 M.2, and Supplemental PCIe Power, ready for the Intel Core™ Ultra processors.

Chipset
INTEL B860
CPU
Supports Intel Core™ Ultra Processors (Series 2) LGA 1851
Memory
4x DDR5 UDIMM, Maximum Memory Capacity 256GB Memory Support 8600 - 6400 (OC) MT/s / 6400 - 4800 (JEDEC) MT/s Max. overclocking frequency: • 1DPC 1R Max speed up to 8600+ MT/s • 1DPC 2R Max speed up to 7200+ MT/s • 2DPC 1R Max speed up to 4800+ MT/s • 2DPC 2R Max speed up to 4800+ MT/s Supports Intel POR Speed and JEDEC Speed Supports Memory Overclocking and Intel XMP 3.0 Supports Dual-Controller Dual-Channel mode Supports Non-ECC, Un-buffered memory Supports CUDIMM • The DIMM slots on this motherboard only have single-sided latches. • Memory compatibility and supported speeds can vary depending on the CPU and memory configuration. For detailed information, please refer to the Memory Compatibility List available on the product’s Support page or visit https://www.msi.com/support/.
Onboard Graphics
1x HDMI™ Support HDMI™ 2.1, maximum resolution of 4K 60Hz* 1x DisplayPort Support DisplayPort 1.4, maximum resolution of 4K 60Hz* 1x Type-C DisplayPort Thunderbolt™ 4 port, supporting DisplayPort 2.1 with UHBR20 over USB Type-C, with a maximum resolution of 4K@120Hz / 8K@60Hz* *Available only on processors featuring integrated graphics. Graphics specifications may vary depending on the CPU installed.
Slot
4x PCI-E x16 slot PCI_E1 Gen PCIe 5.0 supports up to x16 (From CPU) PCI_E2 Gen PCIe 4.0 supports up to x1 (From Chipset) PCI_E3 Gen PCIe 4.0 supports up to x4 (From Chipset) PCI_E4 Gen PCIe 4.0 supports up to x1 (From Chipset)
Audio
Realtek ALC897 Codec 7.1-Channel High Definition Audio
Storage
3x M.2 M.2_1 Source (From CPU) supports up to PCIe 5.0 x4 , supports 2280/2260 devices M.2_2 Source (From Chipset) supports up to PCIe 4.0 x4 , supports 2280/2260/2242 devices M.2_3 Source (From Chipset) supports up to PCIe 4.0 x2 , supports 2280/2260 devices 4x SATA 6G *Please refer to the manual for M.2 SSD heatsink restrictions.
RAID
Supports RAID 0, RAID 1, RAID 5 and RAID 10 for SATA storage devices
Onboard Thunderbolt
1x Thunderbolt4 ports (Rear) Supports up to 40Gbps transfer rate with Thunderbolt devices Supports up to 20Gbps transfer rate with USB4 devices Supports up to 10Gbps transfer rate with USB 3.2 devices Supports up to 5V/3A,15W power charging Each port can daisy-chain up to three Thunderbolt 4 devices or five Thunderbolt 3 devices Supports up to 8K display
USB
4x USB 2.0 (Rear) 4x USB 2.0 (Front) 2x USB 5Gbps Type A (Rear) 4x USB 5Gbps Type A (Front) 2x USB 10Gbps Type A (Rear) 1x USB 10Gbps Type C (Front) 1x USB 40Gbps Type C (Rear)
LAN
Realtek 8126 5Gbps LAN
Internal IO
1x Power Connector(ATX_PWR) 2x Power Connector(CPU_PWR) 1x Power Connector(PCIE_PWR 8pin) 1x CPU Fan 1x Combo Fan (Pump_Sys Fan) 4x System Fan 2x Front Panel (JFP) 1x Chassis Intrusion (JCI) 1x Front Audio (JAUD) 1x Com Port (JCOM) 1x Tuning Controller connector(JDASH) 2x Addressable V2 RGB LED connector (JARGB_V2) 1x RGB LED connector(JRGB) 1x TPM pin header(Support TPM 2.0) 4x USB 2.0 ports 4x USB 5Gbps Type A ports 1x USB 10Gbps Type C ports
LED FEATURE
4x EZ Debug LED
BACK PANEL PORTS
DisplayPort USB 2.0 USB 5Gbps Type-A 5G LAN Audio Connectors HDMI™ Thunderbolt™ 4 40Gbps (Type-C) USB 10Gbps Type-A Clear CMOS Button
OPERATING SYSTEM
Support for Windows 11 64-bit
FORM Factor
ATX 243.84mmx304.8mm
Deska je vybavena grafickými výstupy pro použití s procesory s integrovaným grafickým jádrem. Základní deska grafickou kartu neobsahuje a bez použití odpovídajícího procesoru, budou tyto výstupy nefunkční.
CPU Podpora procesorů Intel Core Ultra série 2 Patice LGA1851
Čipová sada Intel B860
Paměť 4× DDR5 paměťový slot, podpora až 256 GB Podpora DDR5 8800–6400 (OC) MT/s / 6400–4800 (JEDEC) MT/s 1DPC 1R max. rychlost až 8800+ MT/s 1DPC 2R max. rychlost až 7200+ MT/s 2DPC 1R max. rychlost až 6400+ MT/s 2DPC 2R max. rychlost až 5600+ MT/s Dvoukanálová architektura paměti Podpora non-ECC, bez vyrovnávací paměti Podpora Intel Extreme Memory Profile (XMP) 3.0 Podpora CUDIMM
Sloty Intel CPU 1× PCIe 5.0 x16 slot Intel B860 čipová sada 2× PCIe 4.0 x16 slot (podporuje x1 režim) 1× PCIe 4.0 x16 slot (podporuje x4 režim)
Grafika 1× HDMI port, podporující max. rozlišení 4K při 60 Hz 1× DisplayPort, podporující max. rozlišení 4K při 60 Hz 1× Thunderbolt 4 port, podporující max. rozlišení 4K při 120 Hz nebo 8K při 60 Hz
Úložiště Intel CPU 1× M.2 slot, M Key, pro jednotky typu 2280/2260 (PCIe 5.0 x4 režim) Intel B860 čipová sada 1× M.2 slot, M Key, pro jednotky typu 2280/2260/2242 (PCIe 4.0 x4 režim) 1× M.2 slot, M Key, pro jednotky typu 2280/2260 (PCIe 4.0 x2 režim) 4× SATA 6Gb/s port Podpora RAID 0, RAID 1, RAID 5 a RAID 10 pro SATA jednotky
USB 1× Thunderbolt 4 na zadním panelu 8× USB 2.0 port (4 porty na zadním panelu, 4 porty dostupné přes interní USB konektory) 6× USB 3.2 Gen1 (USB 3.0) port (2 porty na zadním panelu, 4 porty dostupné přes interní USB konektory) 2× USB 3.2 Gen2 (USB 3.1) port na zadním panelu 1× USB-C 3.2 Gen2 (USB-C 3.1) port dostupný přes interní USB konektor
Audio Realtek ALC897 Codec 7.1kanálové High Definition Audio
LAN 1× Realtek 8126 5 GbE LAN řadič
Interní konektory 1× 24pin ATX hlavní napájecí konektor 1× 8pin +12V napájecí konektor 1× 4pin ATX 12V napájecí konektor 1× 8pin PCIe napájecí konektor 1× 4pin konektor ventilátoru CPU 1× 4pin konektor pumpy vodního chlazení/ systémového ventilátoru 4× 4pin konektor systémového ventilátoru 2× konektor předního panelu 1× konektor detekce otevření skříně 1× audio konektor předního panelu 1× konektor sériového portu 1× konektor Tuning ovladače (JDASH) 2× 3pin konektor adresovatelného V2 RGB LED pásku 1× 4pin RGB LED konektor 1× konektor TPM modulu (podporuje TPM 2.0) 2× USB 2.0 konektor (podporuje 4× USB 2.0 port) 2× USB 3.2 Gen1 (USB 3.0) konektor (podporuje 4× USB 3.2 Gen1 port) 1× interní USB-C 3.1 1× propojka Clear CMOS 1× Thunderbolt 5 konektor (JTBT5, podpora RTD3) 4× EZ Debug LED
Porty na zadním panelu 1× HDMI 1× DisplayPort 1× Thunderbolt 4 1× tlačítko Clear CMOS 2× USB 3.0 2× USB 3.2 Gen2 (USB 3.1) 4× USB 2.0 1× RJ-45 2× konektor Wi-Fi antény 3× audio jack
Rozměry 304,8 × 243,84 mm ATX formát
