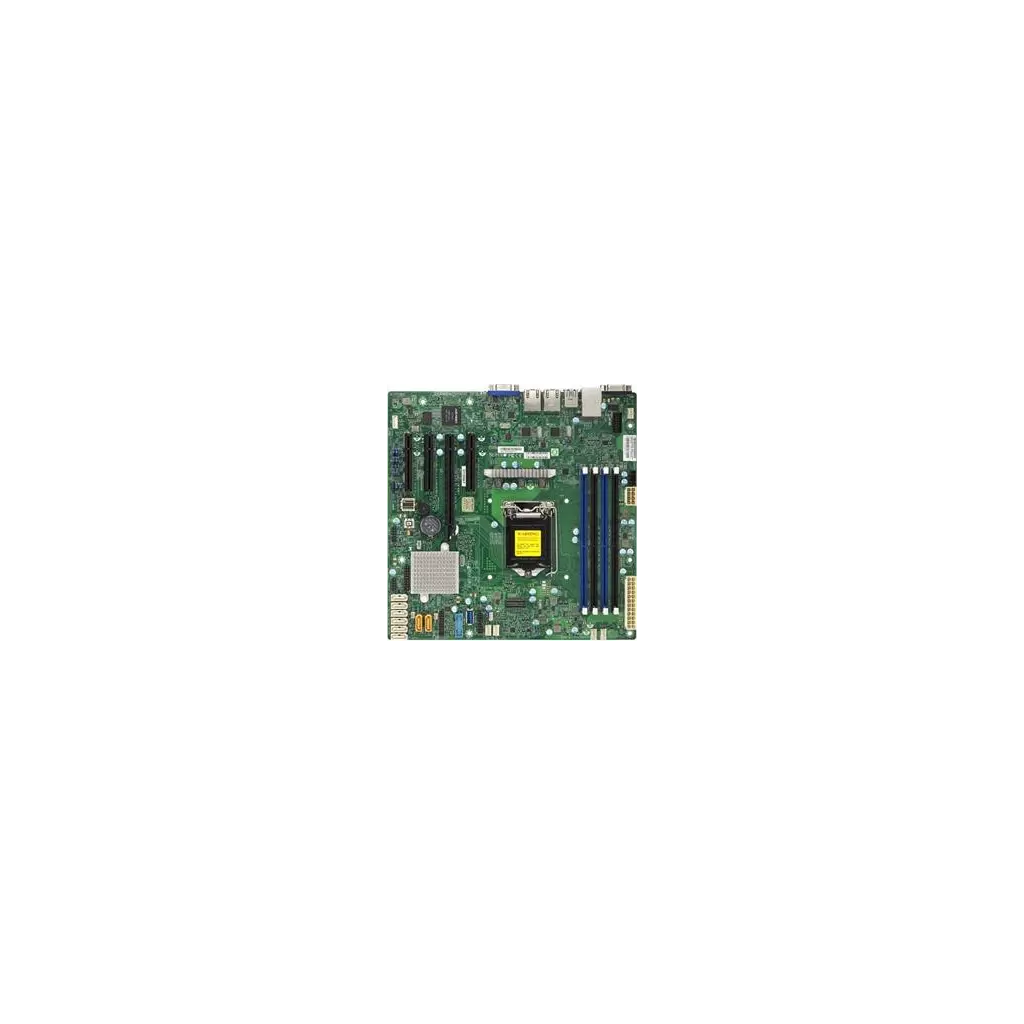

SUPERMICRO MB 1xLGA1151, iC236,DDR4,8xSATA3,PCIe 3.0 (1 x8, 1 x8 (in x16), 2 x4 (in x8)), IPMI

Product SKUs MBD-X11SSM-F X11SSM-F Physical Stats Form Factor Micro-ATX Dimensions 9.6" x 9.6" (24.38cm x 24.38cm) Processor/Cache CPU Intel® 7th/6th Generation Core i3 series, Intel® Celeron®, Intel® Pentium®, Intel® Xeon® processor E3-1200 v6/v5. Single Socket H4 (LGA 1151) supported, CPU TDP support 80W Note BIOS version 2.0 or above is required to support 7th Generation Intel® Core? i3 Processors and Intel® Xeon® Processor E3-1200 v6 series System Memory Memory Capacity 64GB Unbuffered ECC UDIMM, DDR4-2400MHz, in 4 DIMM slots Memory Type 2400/2133/1866/1600MHz ECC DDR4 SDRAM 72-bit, 288-pin (UDIMM) gold-plated DIMMs DIMM Sizes 4GB, 8GB, 16GB Memory Voltage 1.2V Error Detection Corrects single-bit errors On-Board Devices Chipset Intel® C236 SATA Intel® C236 controller for 8 SATA3 (6 Gbps) ports; RAID 0,1,5,10 IPMI ASPEED AST2400 BMC Network Controllers Dual LAN with Intel® Ethernet Controller I210-AT Graphics Aspeed AST2400 BMC Input / Output USB 6 USB 2.0 ports (2 rear + 4 headers) 5 USB 3.0 ports (2 rear + 2 headers + 1 Type A) Video Output 1 VGA port Serial Port / Header 2 COM Ports (1 rear, 1 header) TPM TPM Header Expansion Slots PCI-E 1 PCI-E 3.0 x8 (in x16 slot), 1 PCI-E 3.0 x8, 2 PCI-E 3.0 x4 (in x8 slot) System BIOS BIOS Type 128Mb SPI Flash EEPROM with AMI BIOS BIOS Features Plug and Play (PnP) APM 1.2 DMI 2.3 PCI 2.3 ACPI 1.0 / 2.0 / 3.0 / 4.0 USB Keyboard support Hardware BIOS Virus protection SMBIOS 2.7.1 UEFI 2.3.1 Management Software Intel® Node Manager, IPMI2.0, NMI, SPM, SSM, SUM, SuperDoctor® 5, Watchdog Power Configurations ACPI Power Management Power-on mode for AC power recovery PC Health Monitoring Voltage +12V, +3.3V, +5V, +5V standby, Chassis intrusion header, Monitors CPU voltages, Supports system management utility, System level control, VBAT FAN 5x 4-pin fan headers (up to 5 fans), Fan speed control, Overheat LED indication, Thermal control tachometer fan connectors Temperature Monitoring for CPU and chassis environment, CPU thermal trip support, Thermal Monitor 2 (TM2) support, PECI LED CPU / System Overheat LED, UID/Remote UID Other Features Control of power-on for recovery from AC power loss, CPU thermal trip support for processor protection, Node Manager Support, WOL Operating Environment Operating Temperature Range 0°C ~ 50°C (32°F ~ 122°F) Non-Operating Temperature Range -40°C - 70°C (-40°F - 158°F) Operating Relative Humidity Range 8% - 90% (non-condensing) Non-Operating Relative Humidity Range 5% - 95% (non-condensing) Parts List ? Parts List (Bulk Package) Name Part Number Qty Description Motherboard MBD-X11SSM-F 1 X11SSM-F Motherboard I/O Cables CBL-0044L 2 57.5CM SATA FLAT S-S PBF I/O Shield MCP-260-00042-0N 1 STD I/O Shield for X11SSM-F with EMI Gasket Parts List (Retail Package) Name Part Number Qty Description Motherboard MBD-X11SSM-F 1 X11SSM-F Motherboard QRG MNL-1785-QRG 1 Motherboard Quick Reference Guide I/O Cables CBL-0044L 6 57.5CM SATA FLAT S-S PBF I/O Shield MCP-260-00042-0N 1 STD I/O Shield for X11SSM-F with EMI Gasket Chassis (Optimized for X11SSM-F) Embedded Compact 1U 2U 3U Mid/Mini-Tower 4U/Tower SC813MFTQC-505CB SC813MFTQ-R400CB SC813MTQ-350CB SC512L-200B SC512F-350B SC811TQ-441B SC113MFAC2-341CB SC113MFAC2-R606CB SC510-203B SC813MFTQC-350CB SC825TQ-R720LPB 2U: SC213LT-600LPB 2U: SC823TQ-653LPB SC825TQC-R802LPB 2U Heatsink:SNK-P0046A4 SC833T-653B 2U Heatsink:SNK-P0046A4 SC731i-403B SC732I-500B SC731i-300B SC732D3-1200B SC732D4-903B SC732i-865B SC733TQ-668B SC732D4F-903B 2U Heatsink:SNK-P0046A4 SC842i-500B SC842TQ-665B SC743AC-1200B-SQ SC745BAC-R1K28B2 2U Heatsink:SNK-P0046A4

Single socket H4 (LGA 1151) pro procesory Intel® Xeon® E3-1200 v5, Intel® 7th/6th Gen. Core™ i3 series, Intel® Celeron® a Intel® Pentium® Intel® C236 Express PCH (7 letý životní cyklus) 64GB DDR4 ECC/non-ECC 2133MHz Unbuffered DIMM ve 4 slotech; dual channel Dual Gigabit Ethernet LAN ports (2× Intel® i210AT) 8× SATA3 (6Gbps) 2× SuperDOM 1× PCI-Express 3.0 ×8 v ×16 slotu, 1× PCI-Express 3.0 ×8 a dva PCI-Express ×4 v ×8 slotech; jeden slot podporuje NVMe 5× USB 3.0 (dva na zadním panelu, jeden interní typ-A a dva interní přes headers) 6× USB 2.0 (dva na zadním panelu a čtyři interní přes headers) 2× COM Port (jeden na zadním panelu a jeden interní přes header) Integrované plnohodnotné IPMI 2.0 s KVM a dedikovanou LAN VGA BMC integrated Aspeed AST2400 9.6" × 9.6" mATX

Serverový konfigurátor

SUPERMICRO MB 1xLGA1151, iC236,DDR4,8xSATA3,PCIe 3.0 (1 x8, 1 x8 (in x16), 2 x4 (in x8)), IPMI CPU/Chipset • Intel Skylake Xeon E3-1200 v5 and 6th Gen Core i3, Pentium, Celeron processors. Skt-H4, LGA1151 • Intel C236 PCH (7-year long life) • 4x ECC/non-ECC UDIMM slots, up to 64GB DDR4-2133MHz • 4 PCIe 3.0 slots: 1 x8, 1 x8 (in x16), 2 x4 (in x8) • Slots 7 support NVMe SSD via PCIe AOC • 8x SATA 6Gb/s (RAID 0, 1, 10, 5) I/O Connectors • 1 VGA D-Sub Connector, 2x COM Port (1 rear, 1 header) • Dual GbE LAN ports (2x i210) • 5x USB 3.0 (2 rear, 1 Type-A, 2 header) • 6x USB 2.0 (2 rear, 4 via headers) • 2x Super-DOM connectors (yellow color). Misc • Support Intel Node Manager • TPM header, IPMI 2.0 w/ Aspeed on Dedicated LAN (-F only) • 0 ~ 50 Degree C Operating Temperature. • PCB. 9.6” x 9.6” uATX, FCC B, WHQL; OOB. Optimized Chassis & RSC • SC512, SC813M, SC731, SC113MTQ, RSC-RR1U-E16, RSC-RR1U-E8 Major Applications • Cost-&-performance optimized entry level server board. Key Features 1. Single socket H4 (LGA 1151) supports Intel® Xeon® processor E3-1200 v5, Intel® 6th Gen. Core™ i3 series, Intel® Celeron® and Intel® Pentium® 2. Intel® C236 chipset 3. Up to 64GB Unbuffered ECC UDIMM DDR4 2133MHz; 4x DIMM slots 4. Expansion slots: 1 PCI-E 3.0 x8 (in x16), 1 PCI-E 3.0 x8, 2 PCI-E 3.0 x4 (in x8) 5. Dual GbE LAN with Intel® i210-AT 6. 8x SATA3 (6Gbps) via C236; RAID 0, 1, 5, 10 7. I/O: 1x VGA, 2x COM, 2x SuperDOM 8. 5x USB 3.0 (2 rear + 2 via header + 1 Type A), 6x USB 2.0 (2 rear + 4 via headers) 9. Integrated IPMI 2.0 and KVM with Dedicated LAN Physical Stats Form Factor microATX Dimensions 9.6" x 9.6", (24.4cm x 24.4cm) Processor/Cache CPU Single Socket H4 (LGA 1151) supports: Intel® Xeon® processor E3-1200 v5, Intel® 6th Gen Core™ i3, Intel® Pentium®, Intel® Celeron® processors CPU TDP up to 80W System Memory Memory Capacity 4x 288-pin DDR4 DIMM slots Up to 64GB DDR4 ECC UDIMM Memory Type 2133/1866/1600MHz ECC DDR4 SDRAM 72-bit, 288-pin (UDIMM) gold-plated DIMMs DIMM Sizes 16GB, 8GB, 4GB Memory Voltage 1.2 V Error Detection Corrects single-bit errors Detects double-bit errors (using ECC memory) On-Board Devices Chipset Intel® C236 chipset SATA SATA3 (6Gbps) via C236 controller RAID 0, 1, 5, 10 support IPMI Support for Intelligent Platform Management Interface v.2.0 IPMI 2.0 with virtual media over LAN and KVM-over-LAN support ASPEED AST2400 BMC Network Controllers Dual Intel® I210-AT Gigabit Ethernet LAN ports Virtual Machine Device Queues reduce I/O overhead Supports 10BASE-T, 100BASE-TX, and 1000BASE-T, RJ45 output Graphics ASPEED AST2400 BMC Input / Output SATA 8x SATA3 (6Gbps) ports LAN 2x RJ45 Gigabit Ethernet LAN ports 1x RJ45 Dedicated IPMI LAN port USB 5x USB 3.0 ports (2 rear + 2 via header + 1 Type A) 6x USB 2.0 ports (2 rear + 4 via headers) Video 1x VGA port Serial Port / Header 2x COM ports (1 rear, 1 header) SuperDOM 2x SuperDOM (Disk on Module) ports with built-in power TPM 1x TPM 1.2 20-pin Header Chassis (Optimized for X11SSM-F ) 1U Chassis: SC813MFTQC-505CB SC813MFTQ-R400CB SC813MTQ-350CB SC512L-200B SC512F-350B SC811TQ-441B SC113MFAC2-341CB SC113MFAC2-R606CB SC510-203B SC813MFTQC-350CB 2U Chassis: SC213LT-600LPB SC825TQ-R720LPB SC823TQ-653LPB 3U Chassis: SC833T-653B Mid/Mini Tower Chassis: SC732I-500B SC731i-300B 4U / Tower Chassis: SC842TQ-665B SC842i-500B Important Chassis Notes To support the new generation Intel® Xeon® processor-based motherboards, Revision M chassis is recommended. Please talk to your sales representative for details. Expansion Slots PCI-Express 1x PCI-E 3.0 x8 (in x16) slot 1x PCI-E 3.0 x8 slot 2x PCI-E 3.0 x4 (in x8) slot System BIOS BIOS Type 128Mb SPI Flash EEPROM with AMI BIOS BIOS Features Plug and Play (PnP) APM 1.2 DMI 2.3 PCI 2.3 ACPI 1.0 / 2.0 / 3.0 / 4.0 USB Keyboard support Hardware BIOS Virus protection SMBIOS 2.7.1 UEFI 2.3.1 RTC (Real Time Clock) Wakeup Management Software IPMI 2.0 with KVM support NMI Watch Dog SuperDoctor® 5 Power Configurations ACPI Power Management Keyboard Wakeup from Soft-Off CPU Fan auto-off in sleep mode Power-on mode for AC power recovery PC Health Monitoring Voltage Monitors for CPU Cores, +3.3V, +5V, +12V, +5V Standby, VBAT, HT, Memory, Chipset Voltages. FAN Total of 5 fan headers supporting up to 5 fans 5 fans with tachometer status monitoring Status monitor for speed control Status monitor for on/off control Low noise fan speed control Pulse Width Modulated (PWM) fan connectors Temperature Monitoring for CPU and chassis environment CPU thermal trip support I2C temperature sensing logic Thermal Monitor 2 (TM2) support PECI LED CPU / System Overheat LED Suspend static indicator LED UID/Remote UID Other Features Chassis intrusion detection Chassis intrusion header Chipkill support RoHS
