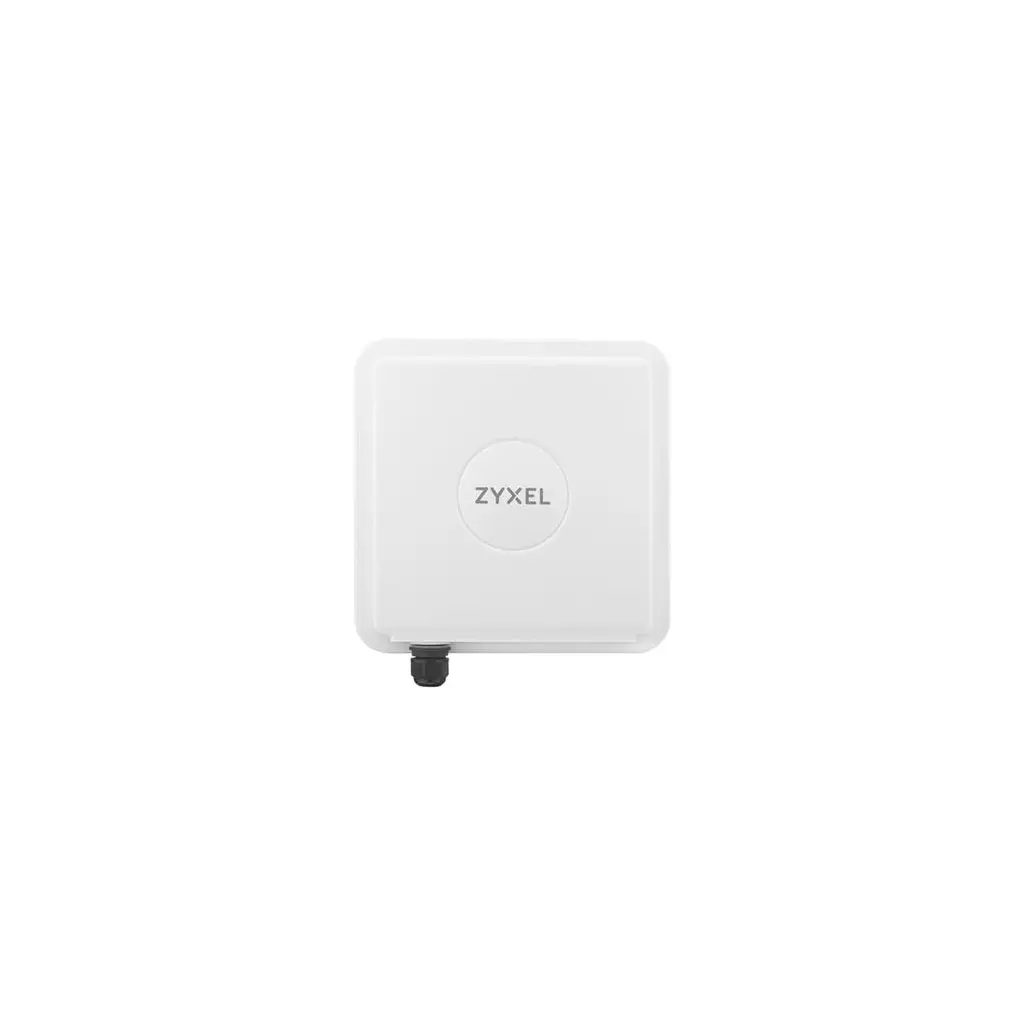

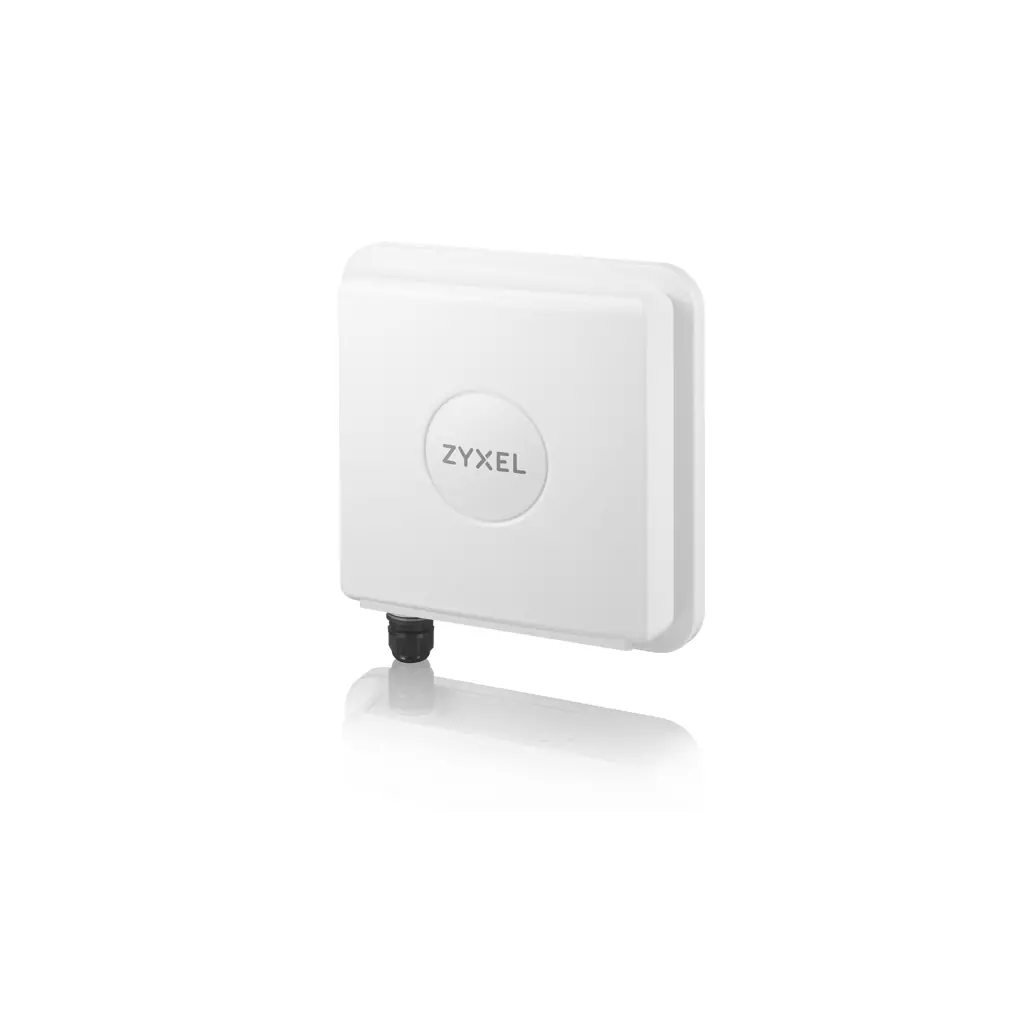

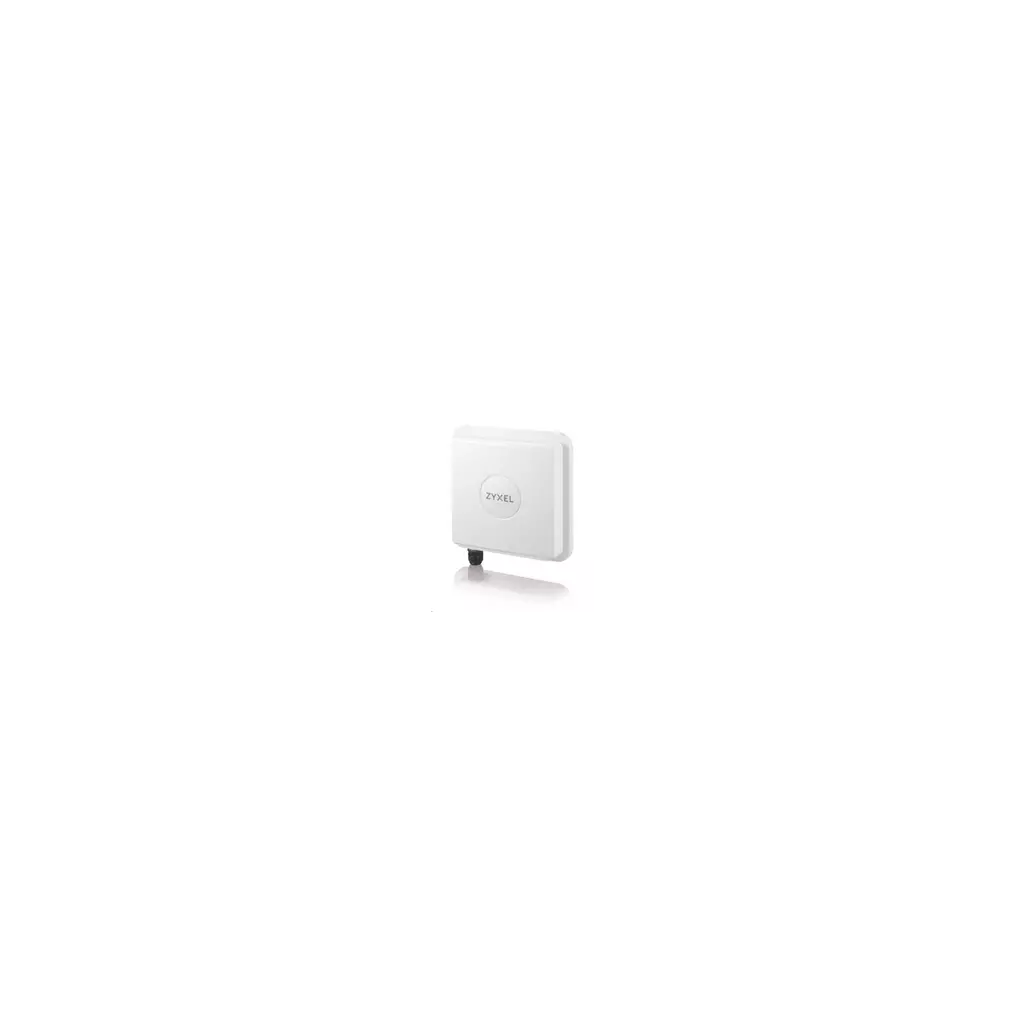

ZYXEL LTE7480-M804

LTE7480-M804,LTE B1/3/5/7/8/20/38/40/41,WCDMA B1/9, Standard,EU/UK Plug,FCS, support CA B1+B3

LTE7480-M804,LTE B1/3/5/7/8/20/38/40/41,WCDMA B1/9, Standard,EU/UK Plug,FCS, support CA B1+B3 The Zyxel LTE7480-M804 4G LTE-A Outdoor Router is a great solution for suburban areas, public locations, homes and offices. Enjoy lightning-fast connections effortlessly with the LTE7480-M804. Fixed Wireless Access (FWA) is an alternative means to provide Internet connectivity that utilizes wireless network technology rather than fixed lines. With a fixed wireless access offering, network operators can supply a vast amount of new customers with broadband Internet connectivity. By delivering broadband over LTE mobile networks, operators can rapidly increase revenue from the untapped markets. The Zyxel LTE7480-M804 4G LTE-A Outdoor Router supports a routing mode with both bridge and router functions, high-gain antenna for better signal performance and robust IP67 outdoor hardware designed for harsh environments – all the necessary features that benefit the critical “second WAN” design. No matter you have a router or not, the LTE7480-M804 can be easily deployed and integrated into your existing environment. You can set 4G LTE as your main connection or use it as a backup in case performance of the main connection drops. The Zyxel LTE7480-M804 is good for any venue like suburban areas, public locations, homes and offices. Enjoy 4G LTE-Advanced technology effortlessly with the LTE7480-M804. Download speeds of up to 600 Mbps, UE Cat. 12 IP67 hardened enclosure with industrial grade components Remote management Built-in 4x4 MIMO, high-gain antenna of up to 8 dBi per element Embedded bridge/router mode LTE Ally app for iOS & Android Standard 802.3af/at PoE Remote throughput testing Lightning-fast Internet connectivity The Zyxel LTE7480-M804 4G LTE-A Outdoor Router employs 3GPP UE downlink Category 12 – the best-practice LTE technology with downlink data rates of up to 600 Mbps through 4 Spatial Streams on two component carriers. Easy installation Easy installation is realized with flexible wall or pole mounting kit, indoor stand for the window side (optional), integrated IEEE 802.3af/at PoE support, dedicated WiFi AP with mobile apps content graphics for Donor eNB alignment. Built-In 4x4 MIMO high-gain antenna The Zyxel LTE7480-M804 4G LTE-A Outdoor Router provides DL 4x4 MIMO high-gain antennas of up to 8 dBi per element for stronger and better signal from long-range transmission reach up to of 20 km*. The outdoor design enables it to work under near non-line-of-sight conditions to increase coverage and capacity as well as to eliminate edge corners having difficulty accessing good signals. Environmentally-hardened Stronger waterproof protection guarantees high-quality connections and a longer device life despite weather and natural adversaries. It also elevates customer satisfaction thanks to the easy installation procedure since it’s not necessary to find a spot with lower humidity. Remote management, TR-069, HTTP/Web GUI and FTP Through the LTE radio interface, the Zyxel LTE7480-M804 supports TR-069, remote GUI and FTP to be fully configurable and software upgradeable through events triggered by the operators. Thanks to remote throughput testing, the trouble shooting can be performed locally or remotely with better efficiency. Non-stop connectivity with LTE 2nd WAN for fail-over Multi-WAN fail-over relieves the risk of network outage due to the dependence on single WAN connection. Even better, the wireless LTE allows you to take advantage of the 2nd WAN without a cabling plan. As long as the gateway supports “multi-WAN fail-over”, you can just connect Zyxel LTE7480-M804 to the existing gateway and set LTE as the fail-over WAN. System Specifications IP Networking Support IPv4/IPv6 dual stack (NDP IPv6) DHCP server ICMP supported Virtual Private Network (VPN) pass through Roaming management Support NAT/NAPT Support NAT DMZ Support port forwarding/triggering Support ALG Routing Support router mode Support bridge (IP pass through) mode Support dynamic DNS for first APN Support remote management under bridge mode IP Firewall Firewall can be enabled or disabled via GUI DoS attack prevention Support SPI Application-level firewall Filters LAN MAC address Filters LAN IP address Filters URLs Management Support local/remote device management and firmware upgrade via TR-069, HTTP/Web GUI and FTP APN management Account management PIN/PUK management Network selection Network preference Operating frequency band selection CLI/SSH (local and remote SSH access) Support UPNP IGD Support SSH with key access certification management Support bandwidth/quota management Support mobile apps (iOS and Android) for easy installation and local management only Support remote throughput testing by TR143 WiFi Protected Setup (WPS) Hidden SSID Hardware Specifications LTE Interface Standard compliant: 3GPP UE Category 12 Support LTE bands : 1/3/5/7/8/20/28/32/38/40/41 Support DL TM1/2/3/4/7/8/9 LTE Antennas: 4 embedded directional antennas of up to 8 dBi/element (4x4 MIMO) Support DL 2CC, 4x4 MIMO, 4 spatial streams Support DL modulation QPSK, 16-QAM, 64-QAM and 256-QAM Support UL modulation QPSK, 16-QAM and 64-QAM Supports DL speeds of up to 600 Mbps Supports UL speeds of up to 150 Mbps WiFi Interface Wireless standard: 802.11 b/g/n, 2.4 GHz, 300 Mbps. Wireless omni antennas: WiFi 2.4 GHz: 2x2 internal antennas up to 3 dBi Hardware Interface One GbE RJ-45 PoE LAN port One LED indicator for: Power status Internet status LTE signal strength WiFi status LAN status One WiFi On/Off button One 3FF mini SIM card socket One reset to default button Power Specifications Standard 802.3af/at PoE Power Consumption 16 watt (peak) Physical Specifications Dimension (WxDxH): 254 x 255 x 58 mm (9.99” x 10.03” x 2.28”) Weight: 1100 g (2.43 lb.) Environmental Specifications Ingress Protection Rating IP67 harden for outdoor environments Lightning Protection K.21 enhance mode, 6 KV Operating Environment Temperature: -40°C to 60°C (-40°F to 140°F) Humidity: 5% to 95% (non-condensing) Storage Environment Temperature: -40°C to 70°C (-40°F to 158°F) Humidity: 5% to 95% (non-condensing) Certification CE WEEE 2011/65/EC Restriction of Hazardous Substances directive (RoHS) Hazardous Substance Free (HSF) European parliament and council directive 94/62/EC of 20 December 1994 on packaging and packaging waste Package Contents Standard 802.3af/at POE 1.8 M Ethernet cable yellow 8P8C Power cord 1 M grounding kit PG19 thread (cable grand) Quick start guide Warranty card DoC and safety warning Wall/pole mounting kit Stand (optional)

Zyxel LTE7480-M804. Wi-fi pásmo: Jednopásmový (2,4 GHz), Wi-Fi standard: Wi-Fi 4 (802.11n), Maximální přenosová rychlost dat přes WLAN: 300 Mbit/s. Typ rozhraní ethernetu LAN: Gigabit Ethernet, Přenosová rychlost sítě Ethernet: 10,100,1000 Mbit/s, Síťové standardy: IEEE 802.2, IEEE 802.3ab, IEEE 802.3af, IEEE 802.3at, IEEE 802.3u. Generace mobilní sítě: 4G. Barva: Bílá, LED indikátory: LTE, Status, WLAN. Certifikace: CE, WEEE

The Zyxel LTE7480-M804 4G LTE-A Outdoor Router is a great solution for suburban areas, public locations, homes and offices. Enjoy lightning-fast connections effortlessly with the LTE7480-M804. Download speeds of up to 600 Mbps, UE Cat. 12 Built-in 4x4 MIMO, high-gain antenna of up to 7 dBi per element Standard 802.3af/at PoE IP67 hardened enclosure with industrial grade components Embedded bridge/router mode Remote throughput testing Remote management LTE Ally app for iOS & Android LTE7480 outdoor IP67, cat 12, LTE B1/3/5/7/8/20/38/40/41,WCDMA B1/8, Standard,EU/UK Plug,FCS, support CA B1+B3

ZyXEL LTE7480-M804

Venkovní 4G LTE-A router nabízející rychlost bezdrátového přenosu v LTE pásmu až 600 Mb/s download (LTE Cat. 12). Disponuje čtyřmi interními anténami (4x4 MIMO) se ziskem až 8 dBi. Díky podpoře standardu TR-069 umožňuje poskytovatelům služeb spravovat a konfigurovat zařízení na dálku i bez fyzického zásahu v místě koncového uživatele.

• V souladu se standardem 3GPP UE kategorie 12
• Podpora pásem LTE 1/3/5/7/8/20/28/32/38/40/41
• Podpora DL TM1/2/3/4/7/8/9
• Antény LTE - 4 vestavěné směrové antény s výkonem až 8 dBi/prvek (4x4 MIMO)
• Podpora DL 2CC, 4x4 MIMO, 4 prostorové streamy
• Podpora modulace DL QPSK, 16-QAM, 64-QAM a 256-QAM
• Podpora modulace UL QPSK, 16-QAM a 64-QAM
• Podpora DL rychlosti až 600 Mb/s
• Podpora UL rychlostí až 150 Mb/s

Součástí balení je PoE injektor, Ethernet kabel, napájecí kabel, sada pro uzemnění, krytka PG19 a montážní sada (stěna/stožár).

ZÁKLADNÍ SPECIFIKACE

Standard: IEEE 802.11b/g/n

Rychlost datového přenosu: 300 Mbps pro 2,4 GHz, 600 Mbps pro LTE (download)

Anténa: 4x integrovaná anténa (8 dBi)

Porty: 1x GbE RJ-45 LAN, 1x microSIM slot (3FF)

Podpora PoE: ano, 802.3af/at

Rozměry: 255 x 254 x 58 mm
