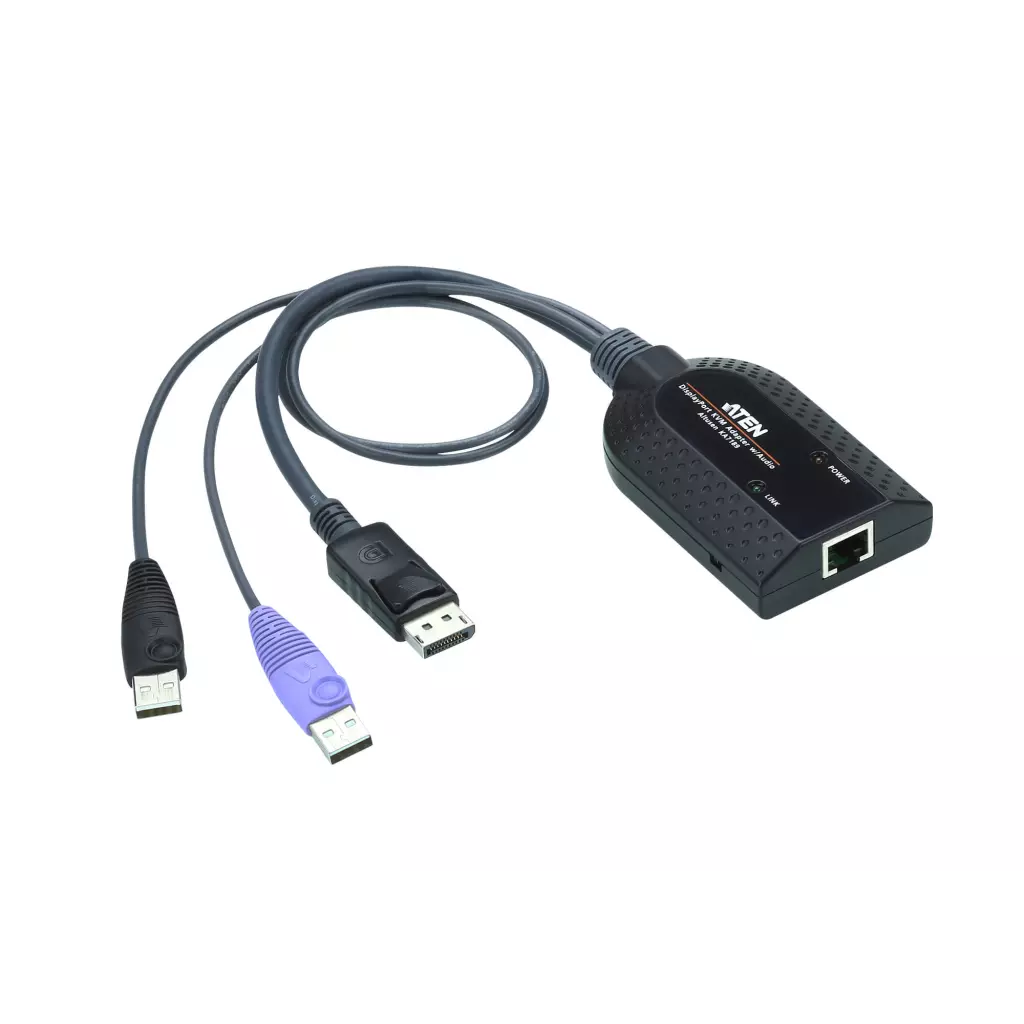

ATEN USB DisplayPort Virtual Media KVM Adapter

Supports Audio De-Embedder Auto Signal Compensation (ASC), no DIP switch setting needed for different distances Keyboard and mouse emulation – keeps your server functioning smoothly when it’s disconnected from the switch's KVM port or is relocated to a different KVM port Superior video quality - supports resolution up to 1920 x 1200 (Reduced blanking)*** The KA7189 KVM Adapter Cable connects a KVM switch to the DisplayPort video and USB ports of a target computer.* The KA7189 supports DisplayPort output and provides two USB plugs to connect a target computer for keyboard/mouse, Virtual Media, or Smart Card/CAC Reader functions.** The KA7189 supports Audio De-Embedder, which extracts the audio from a DisplayPort signal. More advanced features of KA7189 include the small size and lightweight design, as well as superior signal compensation and delay skew technologies for greatly enhanced video quality. *Both USB connectors must be plugged into USB ports on the target computer for the KA7189 to receive sufficient power. **Please refer to the webpage of KVM Adapter Cable Compatibility List (https://www.aten.com/global/en/products/kvmtool/kacablecompatibility/) for information about compatible KVM Switches. Connects a KVM switch to the DisplayPort video and USB ports of a target computer* Supports Audio De-Embedder Auto Signal Compensation (ASC), no DIP switch setting needed for different distances Keyboard and mouse emulation – keeps your server functioning smoothly when it’s disconnected from the switch's KVM port or is relocated to a different KVM port Virtual Media Support** Smart Card / CAC Reader Support** Superior video quality - supports resolution up to 1920 x 1200 (Reduced blanking)*** Built in ASIC for greater reliability and compatibility Compact size Firmware upgradeable Note: *Both USB connectors must be plugged into USB ports on the target computer for the KA7189 to receive sufficient power. **Please refer to the webpage of KVM Adapter Cable Compatibility List (https://www.aten.com/global/en/products/kvmtool/kacablecompatibility/) for information about compatible KVM Switches. ***This maximum resolution may vary depending on the transmission distance. For more details, please refer to the product pages of the connected KVM switches.

Koncový modul KVM (klávesnice, video, myš) pro KVM přepínače ATEN s podporou Virtual Media.

Parametr	Popis
Typ	KA7189
Konektory	Konzole: 1x DP(M), 2x USB A(M) Ke KVM přepínači: RJ45F
Vzdálenosti	Maximální vzdálenost a rozlišení jsou závislé na typu přepínače, max. 1920 x 1200.
Rozlišení	Maximální vzdálenost a rozlišení jsou závislé na typu přepínače, max. 1920 x 1200.
Napájení	přes USB port
Další informace	- podpora virtuálních médií - podpora Smart Card/CAC reader
Indikace	2x LED, link a napájení
Barva	černá
Materiál	plast
Rozměry	91 x 56 x 21mm
Obsah balení	modul;

USB DisplayPort Virtual Media KVM Adapter (Support Smart Card Reader and Audio De-Embedder) The KA7189 KVM Adapter Cable connects a KVM switch to the DisplayPort video and USB ports of a target computer.* The KA7189 supports DisplayPort output and provides two USB plugs to connect a target computer for keyboard/mouse, Virtual Media, or Smart Card/CAC Reader functions.** The KA7189 supports Audio De-Embedder, which extracts the audio from a DisplayPort signal. More advanced features of KA7189 include the small size and lightweight design, as well as superior signal compensation and delay skew technologies for greatly enhanced video quality. *Both USB connectors must be plugged into USB ports on the target computer for the KA7189 to receive sufficient power. **Please refer to the webpage of KVM Adapter Cable Compatibility List (https://www.aten.com/global/en/products/kvmtool/kacablecompatibility/) for information about compatible KVM Switches.

ATEN KA7189. Typ portu klávesnice: USB, Typ portu myši: USB, Typ videoportu: DisplayPort. Certifikáty shody: RoHS. Hmotnost: 120 g, Šířka balení: 42 mm, Hloubka balení: 124 mm. Rozměry (ŠxHxV): 56 x 91 x 21,4 mm. Čistá hmotnost velkoobchodního balení: 4,8 kg, Šířka balení: 270 mm, Délka vnějšího kartonu: 470 mm
