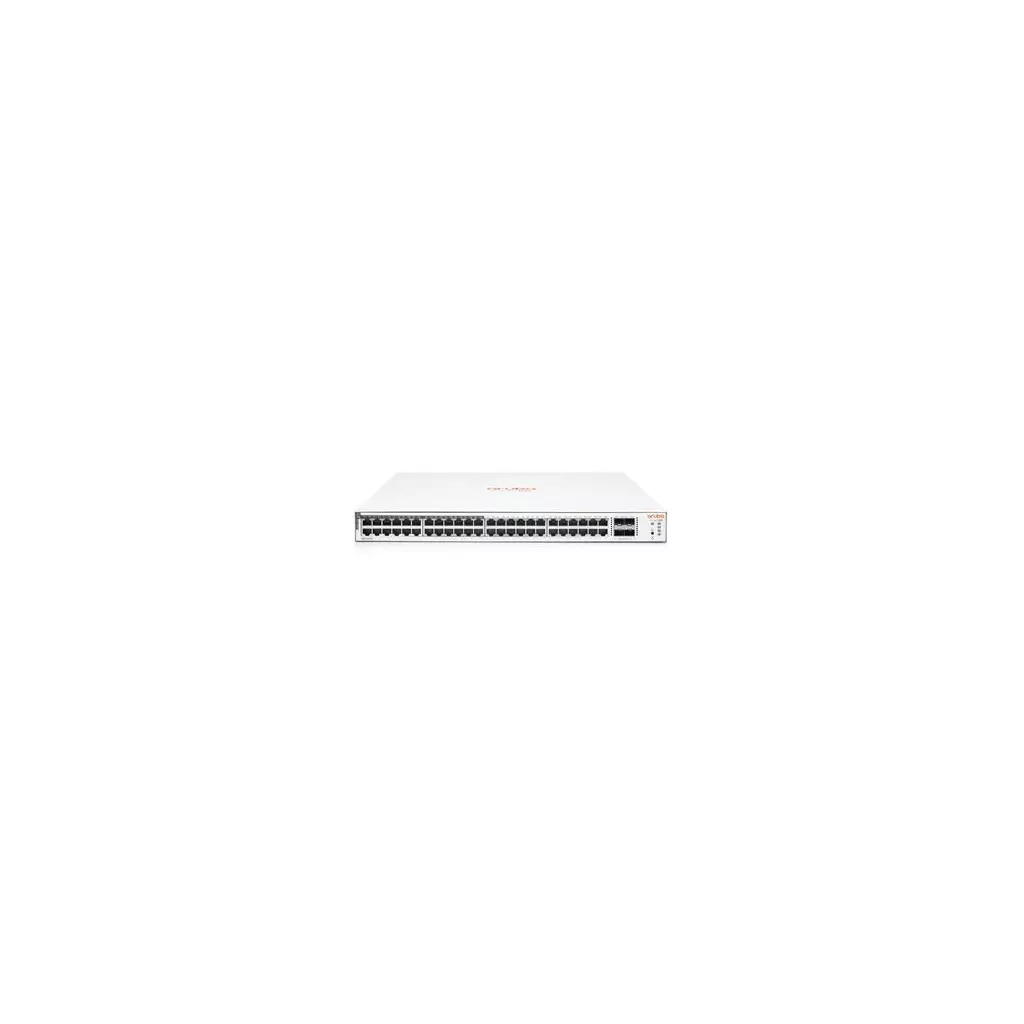

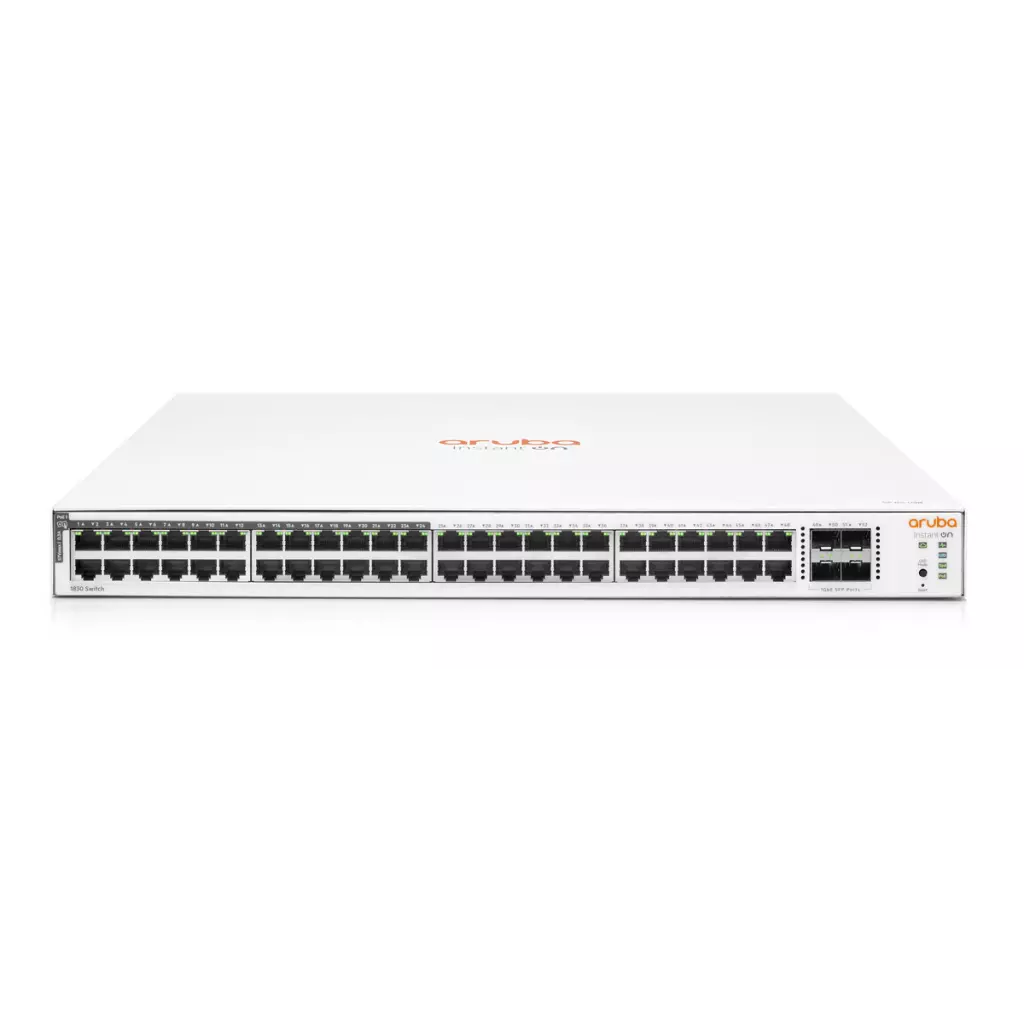

HPE Aruba Instant On 1830 48G 4SFP 370W Switch (24x PoE Class4 + 24x RJ45 10/100/1000).

Aruba Instant On 1830 48G 24p Class4 PoE 4SFP 370W Switch Aruba Instant On 1830 Switch Series provides an easy to use and affordable wired solution for networks supporting IT, mobile, and cloud applications. This affordable and easy-to-deploy smart-managed switch series is ideal for small businesses looking for cost-effective wired infrastructure to keep Smart-managed Layer 2 Ethernet switch series ready to deploy in 8, 24-, and 48-port for non-PoE and PoE models. Compact and fan-less 8-port PoE/ non-PoE models and 24-port non-PoE model for acoustically sensitive environments. Aruba Instant On mobile app and/or cloud-based web portal for easy network management onsite or remotely. Two (2) and four (4) dedicated 1G SFP fiber ports on 24- and 48-port models respectively to eliminate traffic bottlenecks across your network. Option to manage your switches through local web GUI. Cost-effective PoE Support: With half of the ports capable of supporting PoE, these switches are ideal for the most cost-efficient environments. DifferentiatorEntry-level, smart-managed, Gigabit Layer 2 switches. Easy-to-deploy, secure and affordable switches, designed for small businesses looking for cost-effective solution with evolving networking demands. Using the Instant On mobile app or the cloud-based web portal, quickly setup, monitor and manage the 1830 switches. Can also manage the device through the local web GUI. This model has 48 10/100/1000 RJ-45 and 4 SFP 1GbE ports, and provides 370 W of Class 4 PoE power. Power consumptionMaximum: 100-127V: 462.5W 200-220V: 452.5W; Idle: 100-127V: 25.8W 200-220V: 25.4W Input voltage100 - 240 VAC Ports48 RJ-45 10/100/1000 Class 4 PoE ports, 4 SFP 1GbE ports Switching capacity104 Gbps Throughput77.37 Mpps Memory and processorARM Cortex-A9 @ 800MHz, 512 MB SDRAM, 256 MB flash; packet buffer: 1.5 MB PoE capability370W Operating Temperature0-40°C, 0-10,000 ft Management featuresAruba Instant On Cloud; Web browser; SNMP Manager WarrantyLimited Lifetime Warranty with 24x7 phone support for 90 days and chat support for the entire warranty duration. Weight10.90 lb Weight4.94 kg Minimum dimensions ( H x W x D)13.82 x 17.44 x 1.73 in Minimum dimensions ( H x W x D)35.10 x 44.30 x 4.39 cm

Aruba Instant On 1830 48G 24p Class4 PoE 4SFP 370W Switch Aruba Instant On 1830 Switch Series provides an easy to use and affordable wired solution for networks supporting IT, mobile, and cloud applications. This affordable and easy-to-deploy smart-managed switch series is ideal for small businesses looking for cost-effective wired infrastructure to keep Smart-managed Layer 2 Ethernet switch series ready to deploy in 8, 24-, and 48-port for non-PoE and PoE models. Compact and fan-less 8-port PoE/ non-PoE models and 24-port non-PoE model for acoustically sensitive environments. Aruba Instant On mobile app and/or cloud-based web portal for easy network management onsite or remotely. Two (2) and four (4) dedicated 1G SFP fiber ports on 24- and 48-port models respectively to eliminate traffic bottlenecks across your network. Option to manage your switches through local web GUI. Cost-effective PoE Support: With half of the ports capable of supporting PoE, these switches are ideal for the most cost-efficient environments. DifferentiatorEntry-level, smart-managed, Gigabit Layer 2 switches. Easy-to-deploy, secure and affordable switches, designed for small businesses looking for cost-effective solution with evolving networking demands. Using the Instant On mobile app or the cloud-based web portal, quickly setup, monitor and manage the 1830 switches. Can also manage the device through the local web GUI. This model has 48 10/100/1000 RJ-45 and 4 SFP 1GbE ports, and provides 370 W of Class 4 PoE power. Power consumptionMaximum: 100-127V: 462.5W 200-220V: 452.5W; Idle: 100-127V: 25.8W 200-220V: 25.4W Input voltage100 - 240 VAC Ports48 RJ-45 10/100/1000 Class 4 PoE ports, 4 SFP 1GbE ports Switching capacity104 Gbps Throughput77.37 Mpps Memory and processorARM Cortex-A9 @ 800MHz, 512 MB SDRAM, 256 MB flash; packet buffer: 1.5 MB PoE capability370W Operating Temperature0-40°C, 0-10,000 ft Management featuresAruba Instant On Cloud; Web browser; SNMP Manager WarrantyLimited Lifetime Warranty with 24x7 phone support for 90 days and chat support for the entire warranty duration. Weight10.90 lb Weight4.94 kg Minimum dimensions ( H x W x D)13.82 x 17.44 x 1.73 in Minimum dimensions ( H x W x D)35.10 x 44.30 x 4.39 cm

Aruba Instant On 1830 48G 4SFP 370W Switch (JL815A) + AP12 Access Point (R2X01A) + AP17 Access Point (R2X11A)

Model: Aruba Instant On 1830 Switch: Ano Typ Switche: smart-managed Podporované standardy: *IEEE 802.1D *IEEE 802.1Q *IEEE 802.1ab *IEEE 802.1p *IEEE 802.1w *IEEE 802.3 *IEEE 802.3ab Kapacita propustnosti: 77.37 Mpps Optika: Ano Konektory: *48x RJ-45 10/100/1000 (24x PoE a 24x non PoE) *4x SFP 1GbE ports PoE: Ano Rozměry: 443 x 351 x 43 mm (ŠxVxH) Hmotnost: 4,94 kg

HPE Aruba Instant On 1830 48G PoE 4SFP

Spravovatelný PoE+ switch nabízející 24× 10/100/1000 Mbps RJ-45 portů s PoE+ (802.3af/at), 24× 10/100/1000 Mbps RJ-45 portů a 4× 1 GbE SFP sloty. Přepínací kapacita switche je 104 Gbps a rychlost směrování činí 77,37 Mpps. Mezi hlavní přednosti patří snadná tvorba oddělených VLAN, QoS nebo IGMP Snooping. Řada Aruba 1830 nabízí uživatelsky přívětivé webové rozhraní či mobilní aplikaci pro snadnou konfiguraci a správu.

ZÁKLADNÍ SPECIFIKACE

Porty: 48× 10/100/1000 RJ-45, 4× 1 GbE SFP

Kapacita switche: 104 Gbps

Rychlost směrování: 77,37 Mpps

Podpora PoE: ano, 24× 802.3af/at (370 W celkem)

Rozměry: 443 × 351 × 43,9 mm

Hmotnost: 4,94 kg

Řada přepínačů Aruba Instant On 1830 je cenově dostupné řešení pro podnikové sítě, mobilní a cloudové aplikace. Tato cenově dostupná a snadno implementovatelná řada řízených přepínačů je ideální pro malé a střední podniky, které hledají nákladově efektivní infrastrukturu, aby udržely krok s vyvíjejícími se požadavky na sítě. Nastavitelné funkce: Flow control, STP, BPDU filtering, Loop protection, IGMP, Link aggregation, LLDP, VLAN, Port mirroring, Auto recovery, TPM, Automatic denial-of-service protection, Global Storm Control, Jumbo frame support. POE dle: IEEE 802.3at (PoE +), 24 portů, až 30 W na jeden port, max. 370W Rozměry: 443 x 351 x 44 mm Operační teplota: 0°C - 40°C
