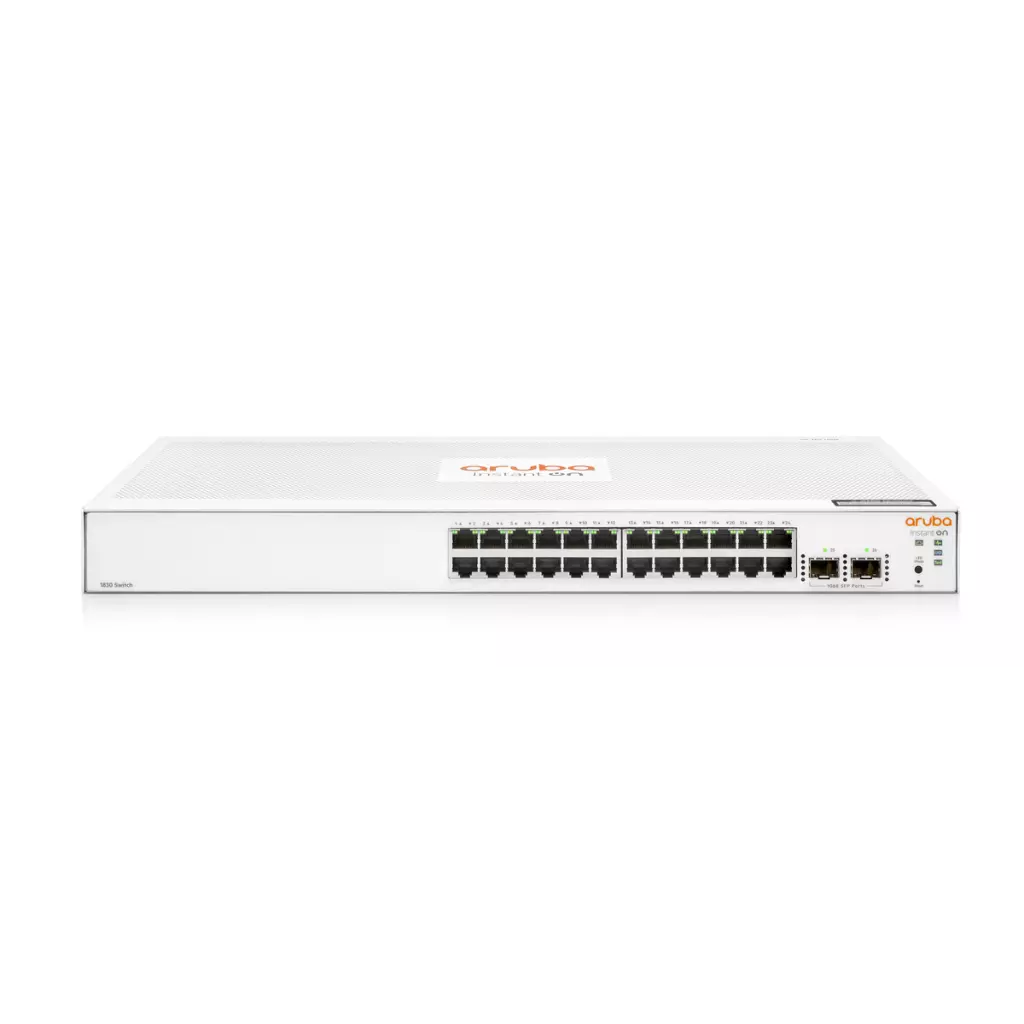

Aruba IOn 1830 24G 2SFP Switch

Smart-managed Layer 2 Ethernet switch series ready to deploy in 8, 24-, and 48-port for non-PoE and PoE models. Compact and fan-less 8-port PoE/ non-PoE models and 24-port non-PoE model for acoustically sensitive environments. Aruba Instant On mobile app and/or cloud-based web portal for easy network management onsite or remotely. Two (2) and four (4) dedicated 1G SFP fiber ports on 24- and 48-port models respectively to eliminate traffic bottlenecks across your network. Option to manage your switches through local web GUI. Cost-effective PoE Support: With half of the ports capable of supporting PoE, these switches are ideal for the most cost-efficient environments. Product Differentiator (long)Entry-level, smart-managed, Gigabit Layer 2 switches. Easy-to-deploy, secure and affordable switches, designed for small businesses?looking for cost-effective solution with evolving networking demands. Using the Instant On mobile app or the cloud-based web portal, quickly setup, monitor and manage the 1830 switches. Can also manage the device through the local web GUI. This model has 24 10/100/1000 RJ-45 and 2 SFP 1GbE ports. Power Consumption DescriptionMaximum: 100-127V: 19.1W 200-220V: 19W: Idle: 100-127V: 7.6W 200-220V: 7.8W Input Voltage100 - 240 VAC External I/O Ports24 RJ-45 10/100/1000 ports, 2 SFP 1GbE ports Switching Capacity52 Gbps Throughput38.68 Mpps Memory and ProcessorARM Cortex-A9 @ 800MHz, 512 MB SDRAM, 256 MB flash, packet buffer: 1.5 MB PoE Capability- Management FeaturesAruba Instant On Cloud, Web browser, SNMP Manager Warranty FeaturesHPE provides 3-year, next-day, product exchange, limited warranty for the HPE LTO Ultrium Tape Drives, plus 9x5 phone support Warranty Standard StatementLimited Lifetime Warranty with 24x7 phone support for 90 days and chat support for the entire warranty duration. Weight (imperial)5.50 lb Weight (metric)2.49 kg Product Dimensions (imperial)8.50 x 17.44 x 1.73 in Product Dimensions (metric)21.59 x 44.30 x 4.39 cm

Model: Aruba Instant On 1830 Switch: Ano Typ Switche: smart-managed Podporované standardy: *IEEE 802.1D *IEEE 802.1Q *IEEE 802.1ab *IEEE 802.1p *IEEE 802.1w *IEEE 802.3 *IEEE 802.3ab Kapacita propustnosti: 38.68 Mpps Optika: Ano Konektory: *24x RJ-45 10/100/1000 ports *2x SFP 1GbE ports PoE: Ne Rozměry: 443 x 215 x 43 mm (ŠxVxH) Hmotnost: 2,49 kg

HPE Aruba Instant On 1830 24G 2SFP

Spravovatelný switch nabízející 24x 10/100/1000 Mbps RJ-45 portů a 2x 1 GbE SFP porty. Přepínací kapacita switche je 52 Gbps a rychlost směrování činí 38,68 Mpps. Mezi hlavní přednosti patří snadná tvorba oddělených VLAN, QoS nebo IGMP Snooping. Řada Aruba 1830 nabízí uživatelsky přívětivé webové rozhraní či mobilní aplikaci pro snadnou konfiguraci a správu.

ZÁKLADNÍ SPECIFIKACE

Porty: 24x 10/100/1000 RJ-45, 2x 1GbE SFP

Kapacita switche: 52 Gbps

Rychlost směrování: 38,68 Mpps

Podpora PoE: ne

Rozměry: 443 x 215,9 x 43,9 mm

Hmotnost: 2,49 kg

Model: Aruba Instant On 1830 Switch: Ano Typ Switche: smart-managed Podporované standardy: *IEEE 802.1D *IEEE 802.1Q *IEEE 802.1ab *IEEE 802.1p *IEEE 802.1w *IEEE 802.3 *IEEE 802.3ab Kapacita propustnosti: 38.68 Mpps Optika: Ano Konektory: *24x RJ-45 10/100/1000 ports *2x SFP 1GbE ports PoE: Ne Rozměry: 443 x 215 x 43 mm (ŠxVxH) Hmotnost: 2,49 kg

Aruba Instant On 1830 24G 2SFP. Typ přepínače: Řízený, Přepínač vrstev: L2. Typy přepínaných ethernetových portů RJ-45: Gigabit Ethernet (10/100/1000), Počet přepínaných ethernetových portů RJ-45: 24. Plně duplexní režim. Tabulka MAC adres: 16000 pol., Kapacita přepínání: 52 Gbit/s. Síťové standardy: IEEE 802.1D, IEEE 802.1Q, IEEE 802.1ab, IEEE 802.1p, IEEE 802.1w, IEEE 802.3, IEEE 802.3ab, IEEE.... Instalace do racku, Formát: 1U

Řada přepínačů Aruba Instant On 1830 je cenově dostupné řešení pro podnikové sítě, mobilní a cloudové aplikace. Tato cenově dostupná a snadno implementovatelná řada řízených přepínačů je ideální pro malé a střední podniky, které hledají nákladově efektivní infrastrukturu, aby udržely krok s vyvíjejícími se požadavky na sítě. Nastavitelné funkce: Flow control, STP, BPDU filtering, Loop protection, IGMP, Link aggregation, LLDP, VLAN, Port mirroring, Auto recovery, TPM, Automatic denial-of-service protection, Global Storm Control, Jumbo frame support. Rozměry: 443 x 216 x 44 mm Operační teplota: 0°C - 40°C

Aruba Instant On 1830 24G 10/100/1000 2SFP Switch

Aruba Instant On 1830 24G 10/100/1000 2SFP Switch. JL812A

	Aruba Instant On 1830 8G Switch (JL810A)	Aruba Instant On 1830 8G 4p Class4 PoE 65W Switch (JL811A)			Aruba Instant On 1830 24G 2SFP Switch (JL812A)		Aruba Instant On 1830 24G 12p Class4 PoE 2SFP 195W Switch (JL813A)	Aruba Instant On 1830 48G 4SFP Switch (JL814A)	Aruba Instant On 1830 48G 24p Class4 PoE 4SFP 370W Switch (JL815A)
I/O ports and slots
	8 RJ-45 autosensing 10/100/1000 ports IEEE 802.3af Class 3 PD (port 1) (IEEE 802.3 Type 10BASE-T, IEEE 802.3u Type 100BASE-TX, IEEE 802.3ab Type 1000BASE-T); Duplex: 10BASE-T/100BASE-TX: half or full; 1000BASE-T: full only	8 RJ-45 autosensing 10/100/1000 ports IEEE 802.3at Class 4 PoE (ports 1-4) (IEEE 802.3 Type 10BASE-T, IEEE 802.3u Type 100BASE-TX, IEEE 802.3ab Type 1000BASE-T); Duplex: 10BASE-T/100BASE-TX: half or full; 1000BASE-T: full only		24 RJ-45 autosensing 10/100/1000 ports (IEEE 802.3 Type 10BASE-T, IEEE 802.3u Type 100BASE-TX, IEEE 802.3ab Type 1000BASE-T); Duplex: 10BASE-T/100BASE-TX: half or full; 1000BASE-T: full only 2 SFP 1GbE ports		24 RJ-45 autosensing 10/100/1000 ports IEEE 802.3at Class 4 PoE (ports 1-12) (IEEE 802.3 Type 10BASE-T, IEEE 802.3u Type 100BASE-TX, IEEE 802.3ab Type 1000BASE-T); Duplex: 10BASE-T/100BASE-TX: half or full; 1000BASE-T: full only 2 SFP 1GbE ports		48 RJ-45 autosensing 10/100/1000 ports (IEEE 802.3 Type 10BASE-T, IEEE 802.3u Type 100BASE-TX, IEEE 802.3ab Type 1000BASE-T); Duplex: 10BASE-T/100BASE-TX: half or full; 1000BASE-T: full only 4 SFP 1GbE ports	48 RJ-45 autosensing 10/100/1000 ports IEEE 802.3at Class 4 PoE (ports 1-24) (IEEE 802.3 Type 10BASE-T, IEEE 802.3u Type 100BASE-TX, IEEE 802.3ab Type 1000BASE-T); Duplex: 10BASE-T/100BASE-TX: half or full; 1000BASE-T: full only 4 SFP 1GbE ports
Physical Characteristics
Dimensions	157.0(d) x 173.0(w) x 39.1(h) mm	195.1(d) x 245.1(w) x 43.9(h) mm		215.9(d) x 443.0(w) x 43.9(h) mm		253.0(d) x 443.0(w) x 43.9(h) mm		253.0(d) x 443.0(w) x 43.9(h) mm	351.0(d) x 443.0(w) x 43.9(h) mm
Weight	1.70 lb (0.77 kg)	3.40 lb (1.54 kg)		5.50 lb (2.49 kg)		7.65 lb (3.47 kg)		7.80 lb (3.54 kg)	10.90 lb (4.94 kg)
Processor and Memory	ARM Cortex-A9 @ 800MHz, 512 MB SDRAM, 256 MB flash; packet buffer: 1.5MB		ARM Cortex-A9 @ 800MHz, 512 MB SDRAM, 256 MB flash; packet buffer: 1.5MB		ARM Cortex-A9 @ 800MHz, 512 MB SDRAM, 256 MB flash; packet buffer: 1.5MB		ARM Cortex-A9 @ 800MHz, 512 MB SDRAM, 256 MB flash; packet buffer: 1.5MB	"RM Cortex-A9 @ 800MHz, 512 MB SDRAM, 256 MB flash; packet buffer: 1.5MB	ARM Cortex-A9 @ 800MHz, 512 MB SDRAM, 256 MB flash; packet buffer: 1.5MB

Aruba Instant On 1830 8G Switch

(JL810A)

Aruba Instant On 1830 8G 4p Class4 PoE 65W Switch (JL811A)

Aruba Instant On 1830 24G 2SFP Switch

(JL812A)

Aruba Instant On 1830 24G 12p Class4 PoE 2SFP 195W Switch

(JL813A)

Aruba Instant On 1830 48G 4SFP Switch

(JL814A)

Aruba Instant On 1830 48G 24p Class4 PoE 4SFP 370W Switch

(JL815A)

Performance

100 Mb latency

< 5.2 uSec

1000 Mb latency

< 2.8 uSec

10000 Mb latency

n/a

Throughput (Mpps)

11.90 Mpps

38.68 Mpps

77.37 Mpps

Capacity

16 Gbps

52 Gbps

104 Gbps

MAC address table size (# of entries)

8,000 entries

16,000 entries

Reliability MTBF (years)

188.2

105.9

203.6

96.6

114.4

83.5

Environment

Operating temperature

32°F to 104°F (0°C to 40°C)

Operating relative humidity

15% to 95% @ 104°F (40°C)

Nonoperating/ storage temperature

-40°F to 158°F (-40°C to 70°C)

Nonoperating/ storage relative humidity

15% to 95% @ 140°F (60°C)

Altitude

up to 10,000 ft (3 km)

Acoustics¹

Fanless

LWAd = 3.1 Bel LpAm (Bystander) = 17 dB

LWAd = 3.4 Bel LpAm (Bystander) = 19 dB

LWAd = 4.0 Bel LpAm (Bystander) = 25 dB

Notes: ¹Acoustics measured in 23°C semi-anechoic chamber with a loading of 100% traffic and (for JL813A and JL815A) 50% PoE on all ports. Measured in accordance with ISO 7779. Declared in accordance with ECMA-109:2010. Values presented are the Declared A-Weighted Sound Power Level (LWAd) and the mean Bystander A-Weighted Sound Pressure Level (LpAm)

100% traffic

Fanless

LWAd = 3.1 Bel LpAm (Bystander) = 17 dB

LWAd = 3.4 Bel LpAm (Bystander) = 19 dB

LWAd = 3.5 Bel LpAm (Bystander) = 20 dB

100% traffic / 0% PoE

Fanless

LWAd = 3.1 Bel LpAm (Bystander) = 17 dB

-

LWAd = 3.5 Bel LpAm (Bystander) = 20 dB

100% traffic / 50% PoE

Fanless

LWAd = 3.1 Bel LpAm (Bystander) = 17 dB

-

LWAd = 4.0 Bel LpAm (Bystander) = 25 dB

100% traffic / 100% PoE

Fanless

LWAd = 5.1 Bel LpAm (Bystander) = 35 dB

-

LWAd = 5.7 Bel LpAm (Bystander) = 41 dB

Aruba Instant On 1830 8G Switch

(JL810A)

Aruba Instant On 1830 8G 4p Class4 PoE 65W Switch (JL811A)

Aruba Instant On 1830 24G 2SFP Switch

(JL812A)

Aruba Instant On 1830 24G 12p Class4 PoE 2SFP 195W Switch

(JL813A)

Aruba Instant On 1830 48G 4SFP Switch

(JL814A)

Aruba Instant On 1830 48G 24p Class4 PoE 4SFP 370W Switch

(JL815A)

Electrical Characteristics

Frequency

50Hz/60Hz

AC voltage

100-127VAC / 200- 240VAC

Current

12V -- 1.0A

1.0A/0.5A

0.4A/0.3A

2.7A/1.4A

0.9A/0.6A

5.2A/2.6A

Maximum power rating

100-127V: 8.09W 200-220V: 8.05W

100-127V: 86.07W 200-220V: 83.67W

100-127V: 19.1W 200-220V: 19W

100-127V: 244.6W 200-220V: 237.2W

100-127V: 40.2W 200-220V: 40W

100-127V: 462.5W 200-220V: 452.5W

Idle power

100-127V: 5.8W 200-220V: 5.9W

100-127V: 8.3W 200-220V: 8.2W

100-127V: 7.6W 200-220V: 7.8W

100-127V: 14.5W 200-220V: 13.4W

100-127V: 17.7W 200-220V: 17.7W

100-127V: 25.8W 200-220V: 25.4W

PoE power

13W max Class 3 PD

65 W Class 4 PoE

-

195 W Class 4 PoE

-

370 W Class 4 PoE

Power supply

External power adapter (included)

Internal power supply

Safety

EN/IEC 60950-1:2006 + A11:2009 + A1:2010 + A12:2011 + A2:2013

EN/IEC 62368-1, 2nd. & 3rd. Ed.

UL 62368-1, 2nd. & 3rd. Ed.

CAN/CSA C22.2 No. 62368-1, 2nd. & 3rd. Ed.

EN/IEC 60825-1:2014 Class 1

EN/IEC 60950-1:2006 + A11:2009 + A1:2010 + A12:2011 + A2:2013

EN/IEC 62368-1, 2nd. & 3rd. Ed.

UL 62368-1, 2nd. & 3rd. Ed.

CAN/CSA C22.2 No. 62368-1, 2nd. & 3rd. Ed.

EN/IEC 60825-1:2014 Class 1

EN/IEC 60950-1:2006 + A11:2009 + A1:2010 + A12:2011 + A2:2013

EN/IEC 62368-1, 2nd. & 3rd. Ed.

L 62368-1, 2nd. & 3rd. Ed.

CAN/CSA C22.2 No. 62368-1, 2nd. & 3rd. Ed.

EN/IEC 60825-1:2014 Class 1

EN/IEC 60950-1:2006 + A11:2009 + A1:2010 + A12:2011 + A2:2013

EN/IEC 62368-1, 2nd. & 3rd. Ed.

UL 62368-1, 2nd. & 3rd. Ed.

CAN/CSA C22.2 No. 62368-1, 2nd. & 3rd. Ed.

EN/IEC 60825-1:2014 Class 1

EN/IEC 60950-1:2006 + A11:2009 + A1:2010 + A12:2011 + A2:2013

EN/IEC 62368-1, 2nd. & 3rd. Ed.

UL 62368-1, 2nd. & 3rd. Ed.

CAN/CSA C22.2 No. 62368-1, 2nd. & 3rd. Ed.

EN/IEC 60825-1:2014 Class 1

EN/IEC 60950-1:2006 + A11:2009 + A1:2010 + A12:2011 + A2:2013

EN/IEC 62368-1, 2nd. & 3rd. Ed.

UL 62368-1, 2nd. & 3rd. Ed.

CAN/CSA C22.2 No. 62368-1, 2nd. & 3rd. Ed.

EN/IEC 60825-1:2014 Class 1

Emissions

EN 55032:2015/CISPR 32, Class A

FCC CFR 47 Part 15: 2018 Class A

ICES-003 Class A

VCCI Class A

CNS 13438 Class A

KN 32 Class A

AS/NZS CISPR 32 Class A

EN 55032:2015/CISPR 32, Class A

FCC CFR 47 Part 15: 2018 Class A

ICES-003 Class A

VCCI Class A

CNS 13438 Class A

KN 32 Class A

AS/NZS CISPR 32 Class A

EN 55032:2015/CISPR 32, Class A

FCC CFR 47 Part 15: 2018 Class A

ICES-003 Class A

VCCI Class A

CNS 13438 Class A

KN 32 Class A

AS/NZS CISPR 32 Class A

EN 55032:2015/CISPR 32, Class A

FCC CFR 47 Part 15: 2018 Class A

ICES-003 Class A

VCCI Class A

CNS 13438 Class A

KN 32 Class A

AS/NZS CISPR 32 Class A

EN 55032:2015/CISPR 32, Class A

FCC CFR 47 Part 15: 2018 Class A

ICES-003 Class A

VCCI Class A

CNS 13438 Class A

KN 32 Class A

AS/NZS CISPR 32 Class A

EN 55032:2015/CISPR 32, Class A

FCC CFR 47 Part 15: 2018 Class A

ICES-003 Class A

VCCI Class A

CNS 13438 Class A

KN 32 Class A

AS/NZS CISPR 32 Class A

Aruba Instant On 1830 8G Switch

(JL810A)

Aruba Instant On 1830 8G 4p Class4 PoE 65W Switch (JL811A)

Aruba Instant On 1830 24G 2SFP Switch

(JL812A)

Aruba Instant On 1830 24G 12p Class4 PoE 2SFP 195W Switch

(JL813A)

Aruba Instant On 1830 48G 4SFP Switch

(JL814A)

Aruba Instant On 1830 48G 24p Class4 PoE 4SFP 370W Switch

(JL815A)

Immunity

Generic

EN 55035, CISPR 35, KN35

EN

EN 55035, CISPR 35

ESD

EN/IEC 61000-4-2

Radiated

EN/IEC 61000-4-3

EFT/Burst

EN/IEC 61000-4-4

Surge

EN/IEC 61000-4-5

Conducted

EN/IEC 61000-4-6

Power frequency magnetic field

EN/IEC 61000-4-8

Voltage dips and interruptions

EN/IEC 61000-4-11

Harmonics

EN/IEC 61000-3-2

Flicker

EN /IEC 61000-3-3

Device Management

Aruba Instant On Cloud; Web browser; SNMP Manager

Mounting

Mounting positions and supported racking

Supports table-top mounting

Supports wall-mounting with ports facing either up or down

Supports under-table mounting using base surface mounting holes

Mounts in an EIAstandard 19 in. telco rack or equipment cabinet. 2-post rack kit included

Supports table-top mounting

Supports rack-mounting

Supports wall-mounting with ports facing either up or down

Supports under-table mounting using the brackets provided

Must be mounted top surface up. To prevent possible impact to longterm reliability, product should not be mounted upside-down

Mounts in an EIAstandard 19 in. telco rack or equipment cabinet. 2-post rack kit included

Supports table-top mounting

Supports rack-mounting

Supports wall-mounting with ports facing either up or down

Supports under-table mounting using the brackets provided

Must be mounted top surface up. To prevent possible impact to longterm reliability, product should not be mounted upside-down

Mounts in an EIAstandard 19 in. telco rack or equipment cabinet. 2-post rack kit included

Supports table-top mounting

Supports rack-mounting

Supports wall-mounting with ports facing either up or down

Supports under-table mounting using the brackets provided

Mounts in an EIAstandard 19 in. telco rack or equipment cabinet. 2-post rack kit included

Supports table-top mounting

Supports rack-mounting

Supports wall-mounting with ports facing either up or down

Supports under-table mounting using the brackets provided

Mounts in an EIAstandard 19 in. telco rack or equipment cabinet. 2-post rack kit included

Supports table-top mounting

Supports rack-mounting

Supports wall-mounting with ports facing either up or down

Suports under-table mounting using the brackets provided

Aruba Instant On 1830 8G Switch

(JL810A)

Aruba Instant On 1830 8G 4p Class4 PoE 65W Switch (JL811A)

Aruba Instant On 1830 24G 2SFP Switch

(JL812A)

Aruba Instant On 1830 24G 12p Class4 PoE 2SFP 195W Switch

(JL813A)

Aruba Instant On 1830 48G 4SFP Switch

(JL814A)

Aruba Instant On 1830 48G 24p Class4 PoE 4SFP 370W Switch

(JL815A)

Transceivers

Aruba Instant On 1G SFP LC SX 500m OM2 MMF Transceiver (R9D16A)

Aruba 1G SFP LC LX 10km SMF Transceiver (J4859D)

Aruba 1G SFP RJ45 T 100m Cat5e Transceiver (J8177D)

Standards and Protocols (applies to all products in series)

IEEE Standards Support
IEEE 802.3	10 Mbps Ethernet
IEEE 802.3u	100Base-T Ethernet
IEEE 802.3z	1000 Mbps Ethernet
IEEE 802.3ab	1000Base-T
IEEE 802.3x	Flow Control
IEEE 802.1Q	VLANs
IEEE 802.1p	Traffic Prioritization
IEEE 802.3ad	Link Aggregation Control Protocol (LACP)
IEEE 802.1D	Spanning Tree Protocol
IEEE 802.1w	Rapid Spanning Tree Protocol
IEEE 802.3af	PoE 1 (PoE models only)
IEEE 802.3at	PoE 1 (PoE models only)
IEEE 802.3az	Energy-Efficient Ethernet (EEE)
IEEE 802.1AB	Link Layer Discovery Protocol
IEEE 802.3ac	Frame extension for VLAN tags

Model: Aruba Instant On 1830 Switch: Ano Typ Switche: smart-managed Podporované standardy: *IEEE 802.1D *IEEE 802.1Q *IEEE 802.1ab *IEEE 802.1p *IEEE 802.1w *IEEE 802.3 *IEEE 802.3ab Kapacita propustnosti: 38.68 Mpps Optika: Ano Konektory: *24x RJ-45 10/100/1000 ports *2x SFP 1GbE ports PoE: Ne Rozměry: 443 x 215 x 43 mm (ŠxVxH) Hmotnost: 2,49 kg

Aruba Instant On 1830 24G 2SFP. Typ přepínače: Řízený, Přepínač vrstev: L2. Typy přepínaných ethernetových portů RJ-45: Gigabit Ethernet (10/100/1000), Počet přepínaných ethernetových portů RJ-45: 24. Plně duplexní režim. Tabulka MAC adres: 16000 pol., Kapacita přepínání: 52 Gbit/s. Síťové standardy: IEEE 802.1D, IEEE 802.1Q, IEEE 802.1ab, IEEE 802.1p, IEEE 802.1w, IEEE 802.3, IEEE 802.3ab, IEEE.... Instalace do racku, Formát: 1U

Řada přepínačů Aruba Instant On 1830 je cenově dostupné řešení pro podnikové sítě, mobilní a cloudové aplikace. Tato cenově dostupná a snadno implementovatelná řada řízených přepínačů je ideální pro malé a střední podniky, které hledají nákladově efektivní infrastrukturu, aby udržely krok s vyvíjejícími se požadavky na sítě. Nastavitelné funkce: Flow control, STP, BPDU filtering, Loop protection, IGMP, Link aggregation, LLDP, VLAN, Port mirroring, Auto recovery, TPM, Automatic denial-of-service protection, Global Storm Control, Jumbo frame support. Rozměry: 443 x 216 x 44 mm Operační teplota: 0°C - 40°C
