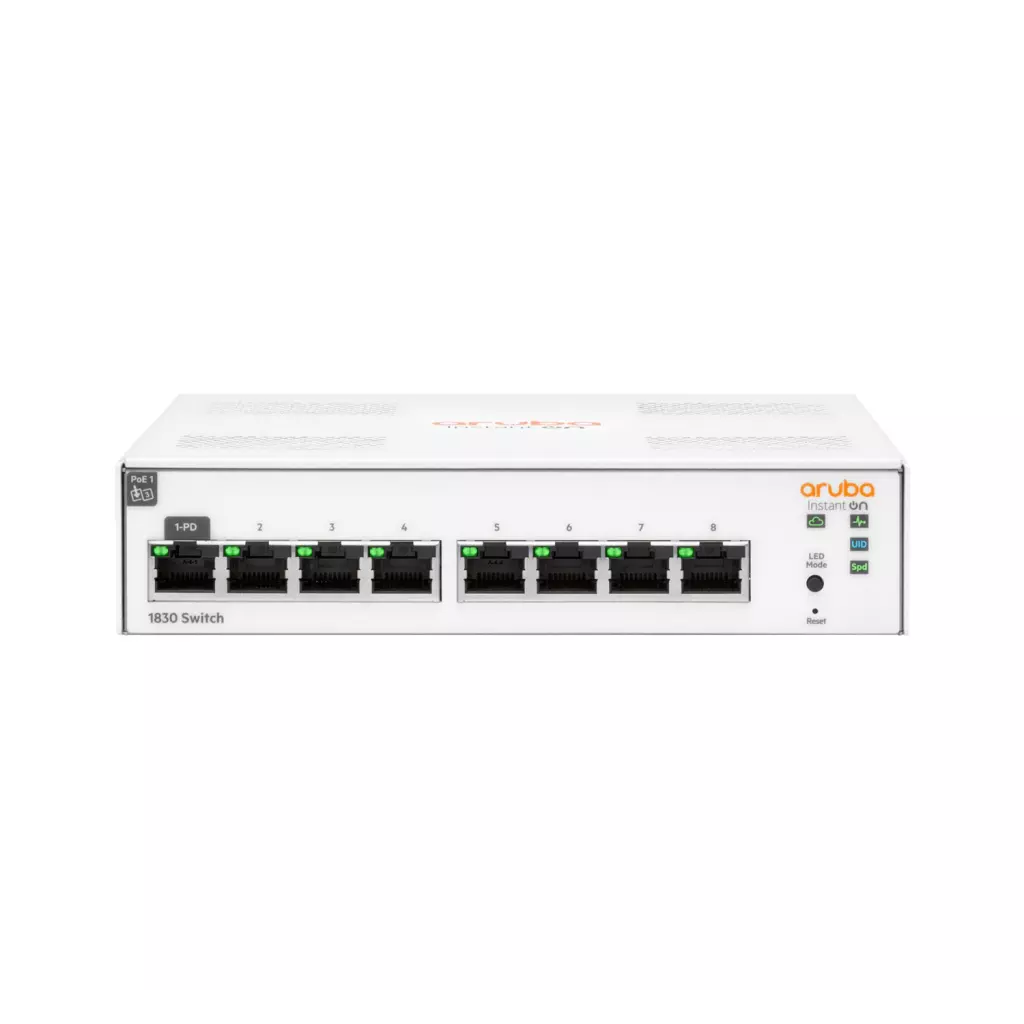

HPE Aruba Instant On 1830 8G 10/100/1000 Switch
Popis produktu:
Aruba Instant On 1830 8G 10/100/1000 Switch
Features: Smart-managed Layer 2 Ethernet switch series ready to deploy in 8, 24-, and 48-port for non-PoE and PoE models. Compact and fan-less 8-port PoE/ non-PoE models and 24-port non-PoE model for acoustically sensitive environments. Aruba Instant On mobile app and/or cloud-based web portal for easy network management onsite or remotely. Two (2) and four (4) dedicated 1G SFP fiber ports on 24- and 48-port models respectively to eliminate traffic bottlenecks across your network. Option to manage your switches through local web GUI. Cost-effective PoE Support: With half of the ports capable of supporting PoE, these switches are ideal for the most cost-efficient environments.
Aruba Instant On 1830 8G Switch (JL810A) |
Aruba Instant On 1830 8G 4p Class4 PoE 65W Switch (JL811A) |
Aruba Instant On 1830 24G 2SFP Switch (JL812A) |
Aruba Instant On 1830 24G 12p Class4 PoE 2SFP 195W Switch (JL813A) |
Aruba Instant On 1830 48G 4SFP Switch (JL814A) |
Aruba Instant On 1830 48G 24p Class4 PoE 4SFP 370W Switch (JL815A) |
||||
I/O ports and slots |
|||||||||
8 RJ-45 autosensing 10/100/1000 ports IEEE 802.3af Class 3 PD (port 1) (IEEE 802.3 Type 10BASE-T, IEEE 802.3u Type 100BASE-TX, IEEE 802.3ab Type 1000BASE-T); Duplex: 10BASE-T/100BASE-TX: half or full; 1000BASE-T: full only |
8 RJ-45 autosensing 10/100/1000 ports IEEE 802.3at Class 4 PoE (ports 1-4) (IEEE 802.3 Type 10BASE-T, IEEE 802.3u Type 100BASE-TX, IEEE 802.3ab Type 1000BASE-T); Duplex: 10BASE-T/100BASE-TX: half or full; 1000BASE-T: full only |
24 RJ-45 autosensing 10/100/1000 ports (IEEE 802.3 Type 10BASE-T, IEEE 802.3u Type 100BASE-TX, IEEE 802.3ab Type 1000BASE-T); Duplex: 10BASE-T/100BASE-TX: half or full; 1000BASE-T: full only 2 SFP 1GbE ports |
24 RJ-45 autosensing 10/100/1000 ports IEEE 802.3at Class 4 PoE (ports 1-12) (IEEE 802.3 Type 10BASE-T, IEEE 802.3u Type 100BASE-TX, IEEE 802.3ab Type 1000BASE-T); Duplex: 10BASE-T/100BASE-TX: half or full; 1000BASE-T: full only 2 SFP 1GbE ports |
48 RJ-45 autosensing 10/100/1000 ports (IEEE 802.3 Type 10BASE-T, IEEE 802.3u Type 100BASE-TX, IEEE 802.3ab Type 1000BASE-T); Duplex: 10BASE-T/100BASE-TX: half or full; 1000BASE-T: full only 4 SFP 1GbE ports |
48 RJ-45 autosensing 10/100/1000 ports IEEE 802.3at Class 4 PoE (ports 1-24) (IEEE 802.3 Type 10BASE-T, IEEE 802.3u Type 100BASE-TX, IEEE 802.3ab Type 1000BASE-T); Duplex: 10BASE-T/100BASE-TX: half or full; 1000BASE-T: full only 4 SFP 1GbE ports |
||||
Physical Characteristics |
|||||||||
Dimensions |
157.0(d) x 173.0(w) x 39.1(h) mm |
195.1(d) x 245.1(w) x 43.9(h) mm |
215.9(d) x 443.0(w) x 43.9(h) mm |
253.0(d) x 443.0(w) x 43.9(h) mm |
253.0(d) x 443.0(w) x 43.9(h) mm |
351.0(d) x 443.0(w) x 43.9(h) mm |
|||
Weight |
1.70 lb (0.77 kg) |
3.40 lb (1.54 kg) |
5.50 lb (2.49 kg) |
7.65 lb (3.47 kg) |
7.80 lb (3.54 kg) |
10.90 lb (4.94 kg) |
|||
Processor and Memory |
|||||||||
ARM Cortex-A9 @ 800MHz, 512 MB SDRAM, 256 MB flash; packet buffer: 1.5MB |
ARM Cortex-A9 @ 800MHz, 512 MB SDRAM, 256 MB flash; packet buffer: 1.5MB |
ARM Cortex-A9 @ 800MHz, 512 MB SDRAM, 256 MB flash; packet buffer: 1.5MB |
ARM Cortex-A9 @ 800MHz, 512 MB SDRAM, 256 MB flash; packet buffer: 1.5MB |
"RM Cortex-A9 @ 800MHz, 512 MB SDRAM, 256 MB flash; packet buffer: 1.5MB |
ARM Cortex-A9 @ 800MHz, 512 MB SDRAM, 256 MB flash; packet buffer: 1.5MB |
||||
Aruba Instant On 1830 8G Switch (JL810A) |
Aruba Instant On 1830 8G 4p Class4 PoE 65W Switch (JL811A) |
Aruba Instant On 1830 24G 2SFP Switch (JL812A) |
Aruba Instant On 1830 24G 12p Class4 PoE 2SFP 195W Switch (JL813A) |
Aruba Instant On 1830 48G 4SFP Switch (JL814A) |
Aruba Instant On 1830 48G 24p Class4 PoE 4SFP 370W Switch (JL815A) |
||||||||
Performance |
|||||||||||||
100 Mb latency |
< 5.2 uSec |
< 5.2 uSec |
< 5.2 uSec |
< 5.2 uSec |
< 5.2 uSec |
< 5.2 uSec |
|||||||
1000 Mb latency |
< 2.8 uSec |
< 2.8 uSec |
< 2.8 uSec |
< 2.8 uSec |
< 2.8 uSec |
< 2.8 uSec |
|||||||
10000 Mb latency |
n/a |
n/a |
n/a |
n/a |
n/a |
n/a |
|||||||
Throughput (Mpps) |
11.90 Mpps |
11.90 Mpps |
38.68 Mpps |
38.68 Mpps |
77.37 Mpps |
77.37 Mpps |
|||||||
Capacity |
16 Gbps |
16 Gbps |
52 Gbps |
52 Gbps |
104 Gbps |
104 Gbps |
|||||||
MAC address table size (# of entries) |
8,000 entries |
8,000 entries |
16,000 entries |
16,000 entries |
16,000 entries |
16,000 entries |
|||||||
Reliability MTBF (years) |
188.2 |
105.9 |
203.6 |
96.6 |
114.4 |
83.5 |
|||||||
Environment |
|||||||||||||
Operating temperature |
32°F to 104°F (0°C to 40°C) |
32°F to 104°F (0°C to 40°C) |
32°F to 104°F (0°C to 40°C) |
32°F to 104°F (0°C to 40°C) |
32°F to 104°F (0°C to 40°C) |
32°F to 104°F (0°C to 40°C) |
|||||||
Operating relative humidity |
15% to 95% @ 104°F (40°C) |
15% to 95% @ 104°F (40°C) |
15% to 95% @ 104°F (40°C) |
15% to 95% @ 104°F (40°C) |
15% to 95% @ 104°F (40°C) |
15% to 95% @ 104°F (40°C) |
|||||||
Nonoperating/ storage temperature |
-40°F to 158°F (-40°C to 70°C) |
-40°F to 158°F (-40°C to 70°C) |
-40°F to 158°F (-40°C to 70°C) |
-40°F to 158°F (-40°C to 70°C) |
-40°F to 158°F (-40°C to 70°C) |
-40°F to 158°F (-40°C to 70°C) |
|||||||
Nonoperating/ storage relative humidity |
15% to 95% @ 140°F (60°C) |
15% to 95% @ 140°F (60°C) |
15% to 95% @ 140°F (60°C) |
15% to 95% @ 140°F (60°C) |
15% to 95% @ 140°F (60°C) |
15% to 95% @ 140°F (60°C) |
|||||||
Altitude |
up to 10,000 ft (3 km) |
up to 10,000 ft (3 km) |
up to 10,000 ft (3 km) |
up to 10,000 ft (3 km) |
up to 10,000 ft (3 km) |
up to 10,000 ft (3 km) |
|||||||
Acoustics1 |
|||||||||||||
Fanless |
Fanless |
Fanless |
LWAd = 3.1 Bel LpAm (Bystander) = 17 dB |
LWAd = 3.4 Bel LpAm (Bystander) = 19 dB |
LWAd = 4.0 Bel LpAm (Bystander) = 25 dB |
||||||||
Notes: 1Acoustics measured in 23°C semi-anechoic chamber with a loading of 100% traffic and (for JL813A and JL815A) 50% PoE on all ports. Measured in accordance with ISO 7779. Declared in accordance with ECMA-109:2010. Values presented are the Declared A-Weighted Sound Power Level (LWAd) and the mean Bystander A-Weighted Sound Pressure Level (LpAm) |
|||||||||||||
100% traffic |
Fanless |
Fanless |
Fanless |
LWAd = 3.1 Bel LpAm (Bystander) = 17 dB |
LWAd = 3.4 Bel LpAm (Bystander) = 19 dB |
LWAd = 3.5 Bel LpAm (Bystander) = 20 dB |
|||||||
100% traffic / 0% PoE |
Fanless |
Fanless |
Fanless |
LWAd = 3.1 Bel LpAm (Bystander) = 17 dB |
- |
LWAd = 3.5 Bel LpAm (Bystander) = 20 dB |
|||||||
100% traffic / 50% PoE |
Fanless |
Fanless |
Fanless |
LWAd = 3.1 Bel LpAm (Bystander) = 17 dB |
- |
LWAd = 4.0 Bel LpAm (Bystander) = 25 dB |
|||||||
100% traffic / 100% PoE |
Fanless |
Fanless |
Fanless |
LWAd = 5.1 Bel LpAm (Bystander) = 35 dB |
- |
LWAd = 5.7 Bel LpAm (Bystander) = 41 dB |
|||||||
Aruba Instant On 1830 8G Switch (JL810A) |
Aruba Instant On 1830 8G 4p Class4 PoE 65W Switch (JL811A) |
Aruba Instant On 1830 24G 2SFP Switch (JL812A) |
Aruba Instant On 1830 24G 12p Class4 PoE 2SFP 195W Switch (JL813A) |
Aruba Instant On 1830 48G 4SFP Switch (JL814A) |
Aruba Instant On 1830 48G 24p Class4 PoE 4SFP 370W Switch (JL815A) |
||||||||
Electrical Characteristics |
|||||||||||||
Frequency |
50Hz/60Hz |
50Hz/60Hz |
50Hz/60Hz |
50Hz/60Hz |
50Hz/60Hz |
50Hz/60Hz |
|||||||
AC voltage |
100-127VAC / 200- 240VAC |
100-127VAC / 200- 240VAC |
100-127VAC / 200- 240VAC |
100-127VAC / 200- 240VAC |
100-127VAC / 200- 240VAC |
100-127VAC / 200- 240VAC |
|||||||
Current |
12V -- 1.0A |
1.0A/0.5A |
0.4A/0.3A |
2.7A/1.4A |
0.9A/0.6A |
5.2A/2.6A |
|||||||
Maximum power rating |
100-127V: 8.09W 200-220V: 8.05W |
100-127V: 86.07W 200-220V: 83.67W |
100-127V: 19.1W 200-220V: 19W |
100-127V: 244.6W 200-220V: 237.2W |
100-127V: 40.2W 200-220V: 40W |
100-127V: 462.5W 200-220V: 452.5W |
|||||||
Idle power |
100-127V: 5.8W 200-220V: 5.9W |
100-127V: 8.3W 200-220V: 8.2W |
100-127V: 7.6W 200-220V: 7.8W |
100-127V: 14.5W 200-220V: 13.4W |
100-127V: 17.7W 200-220V: 17.7W |
100-127V: 25.8W 200-220V: 25.4W |
|||||||
PoE power |
13W max Class 3 PD |
65 W Class 4 PoE |
- |
195 W Class 4 PoE |
- |
370 W Class 4 PoE |
|||||||
Power supply |
External power adapter (included) |
Internal power supply |
Internal power supply |
Internal power supply |
Internal power supply |
Internal power supply |
|||||||
Safety |
EN/IEC 60950-1:2006 + A11:2009 + A1:2010 + A12:2011 + A2:2013 EN/IEC 62368-1, 2nd. & 3rd. Ed. UL 62368-1, 2nd. & 3rd. Ed. CAN/CSA C22.2 No. 62368-1, 2nd. & 3rd. Ed. EN/IEC 60825-1:2014 Class 1 |
EN/IEC 60950-1:2006 + A11:2009 + A1:2010 + A12:2011 + A2:2013 EN/IEC 62368-1, 2nd. & 3rd. Ed. UL 62368-1, 2nd. & 3rd. Ed. CAN/CSA C22.2 No. 62368-1, 2nd. & 3rd. Ed. EN/IEC 60825-1:2014 Class 1 |
EN/IEC 60950-1:2006 + A11:2009 + A1:2010 + A12:2011 + A2:2013 EN/IEC 62368-1, 2nd. & 3rd. Ed. L 62368-1, 2nd. & 3rd. Ed. CAN/CSA C22.2 No. 62368-1, 2nd. & 3rd. Ed. EN/IEC 60825-1:2014 Class 1 |
EN/IEC 60950-1:2006 + A11:2009 + A1:2010 + A12:2011 + A2:2013 EN/IEC 62368-1, 2nd. & 3rd. Ed. UL 62368-1, 2nd. & 3rd. Ed. CAN/CSA C22.2 No. 62368-1, 2nd. & 3rd. Ed. EN/IEC 60825-1:2014 Class 1 |
EN/IEC 60950-1:2006 + A11:2009 + A1:2010 + A12:2011 + A2:2013 EN/IEC 62368-1, 2nd. & 3rd. Ed. UL 62368-1, 2nd. & 3rd. Ed. CAN/CSA C22.2 No. 62368-1, 2nd. & 3rd. Ed. EN/IEC 60825-1:2014 Class 1 |
EN/IEC 60950-1:2006 + A11:2009 + A1:2010 + A12:2011 + A2:2013 EN/IEC 62368-1, 2nd. & 3rd. Ed. UL 62368-1, 2nd. & 3rd. Ed. CAN/CSA C22.2 No. 62368-1, 2nd. & 3rd. Ed. EN/IEC 60825-1:2014 Class 1 |
|||||||
Emissions |
EN 55032:2015/CISPR 32, Class A FCC CFR 47 Part 15: 2018 Class A ICES-003 Class A VCCI Class A CNS 13438 Class A KN 32 Class A AS/NZS CISPR 32 Class A |
EN 55032:2015/CISPR 32, Class A FCC CFR 47 Part 15: 2018 Class A ICES-003 Class A VCCI Class A CNS 13438 Class A KN 32 Class A AS/NZS CISPR 32 Class A |
EN 55032:2015/CISPR 32, Class A FCC CFR 47 Part 15: 2018 Class A ICES-003 Class A VCCI Class A CNS 13438 Class A KN 32 Class A AS/NZS CISPR 32 Class A |
EN 55032:2015/CISPR 32, Class A FCC CFR 47 Part 15: 2018 Class A ICES-003 Class A VCCI Class A CNS 13438 Class A KN 32 Class A AS/NZS CISPR 32 Class A |
EN 55032:2015/CISPR 32, Class A FCC CFR 47 Part 15: 2018 Class A ICES-003 Class A VCCI Class A CNS 13438 Class A KN 32 Class A AS/NZS CISPR 32 Class A |
EN 55032:2015/CISPR 32, Class A FCC CFR 47 Part 15: 2018 Class A ICES-003 Class A VCCI Class A CNS 13438 Class A KN 32 Class A AS/NZS CISPR 32 Class A |
|||||||
Aruba Instant On 1830 8G Switch (JL810A) |
Aruba Instant On 1830 8G 4p Class4 PoE 65W Switch (JL811A) |
Aruba Instant On 1830 24G 2SFP Switch (JL812A) |
Aruba Instant On 1830 24G 12p Class4 PoE 2SFP 195W Switch (JL813A) |
Aruba Instant On 1830 48G 4SFP Switch (JL814A) |
Aruba Instant On 1830 48G 24p Class4 PoE 4SFP 370W Switch (JL815A) |
||||||||
Immunity |
|||||||||||||
Generic |
EN 55035, CISPR 35, KN35 |
EN 55035, CISPR 35, KN35 |
EN 55035, CISPR 35, KN35 |
EN 55035, CISPR 35, KN35 |
EN 55035, CISPR 35, KN35 |
EN 55035, CISPR 35, KN35 |
|||||||
EN |
EN 55035, CISPR 35 |
EN 55035, CISPR 35 |
EN 55035, CISPR 35 |
EN 55035, CISPR 35 |
EN 55035, CISPR 35 |
EN 55035, CISPR 35 |
|||||||
ESD |
EN/IEC 61000-4-2 |
EN/IEC 61000-4-2 |
EN/IEC 61000-4-2 |
EN/IEC 61000-4-2 |
EN/IEC 61000-4-2 |
EN/IEC 61000-4-2 |
|||||||
Radiated |
EN/IEC 61000-4-3 |
EN/IEC 61000-4-3 |
EN/IEC 61000-4-3 |
EN/IEC 61000-4-3 |
EN/IEC 61000-4-3 |
EN/IEC 61000-4-3 |
|||||||
EFT/Burst |
EN/IEC 61000-4-4 |
EN/IEC 61000-4-4 |
EN/IEC 61000-4-4 |
EN/IEC 61000-4-4 |
EN/IEC 61000-4-4 |
EN/IEC 61000-4-4 |
|||||||
Surge |
EN/IEC 61000-4-5 |
EN/IEC 61000-4-5 |
EN/IEC 61000-4-5 |
EN/IEC 61000-4-5 |
EN/IEC 61000-4-5 |
EN/IEC 61000-4-5 |
|||||||
Conducted |
EN/IEC 61000-4-6 |
EN/IEC 61000-4-6 |
EN/IEC 61000-4-6 |
EN/IEC 61000-4-6 |
EN/IEC 61000-4-6 |
EN/IEC 61000-4-6 |
|||||||
Power frequency magnetic field |
EN/IEC 61000-4-8 |
EN/IEC 61000-4-8 |
EN/IEC 61000-4-8 |
EN/IEC 61000-4-8 |
EN/IEC 61000-4-8 |
EN/IEC 61000-4-8 |
|||||||
Voltage dips and interruptions |
EN/IEC 61000-4-11 |
EN/IEC 61000-4-11 |
EN/IEC 61000-4-11 |
EN/IEC 61000-4-11 |
EN/IEC 61000-4-11 |
EN/IEC 61000-4-11 |
|||||||
Harmonics |
EN/IEC 61000-3-2 |
EN/IEC 61000-3-2 |
EN/IEC 61000-3-2 |
EN/IEC 61000-3-2 |
EN/IEC 61000-3-2 |
EN/IEC 61000-3-2 |
|||||||
Flicker |
EN /IEC 61000-3-3 |
EN /IEC 61000-3-3 |
EN /IEC 61000-3-3 |
EN /IEC 61000-3-3 |
EN /IEC 61000-3-3 |
EN /IEC 61000-3-3 |
|||||||
Device Management |
Aruba Instant On Cloud; Web browser; SNMP Manager |
Aruba Instant On Cloud; Web browser; SNMP Manager |
Aruba Instant On Cloud; Web browser; SNMP Manager |
Aruba Instant On Cloud; Web browser; SNMP Manager |
Aruba Instant On Cloud; Web browser; SNMP Manager |
Aruba Instant On Cloud; Web browser; SNMP Manager |
|||||||
Mounting |
|||||||||||||
Mounting positions and supported racking |
Supports table-top mounting Supports wall-mounting with ports facing either up or down Supports under-table mounting using base surface mounting holes |
Mounts in an EIAstandard 19 in. telco rack or equipment cabinet. 2-post rack kit included Supports table-top mounting Supports rack-mounting Supports wall-mounting with ports facing either up or down Supports under-table mounting using the brackets provided Must be mounted top surface up. To prevent possible impact to longterm reliability, product should not be mounted upside-down |
Mounts in an EIAstandard 19 in. telco rack or equipment cabinet. 2-post rack kit included Supports table-top mounting Supports rack-mounting Supports wall-mounting with ports facing either up or down Supports under-table mounting using the brackets provided Must be mounted top surface up. To prevent possible impact to longterm reliability, product should not be mounted upside-down |
Mounts in an EIAstandard 19 in. telco rack or equipment cabinet. 2-post rack kit included Supports table-top mounting Supports rack-mounting Supports wall-mounting with ports facing either up or down Supports under-table mounting using the brackets provided |
Mounts in an EIAstandard 19 in. telco rack or equipment cabinet. 2-post rack kit included Supports table-top mounting Supports rack-mounting Supports wall-mounting with ports facing either up or down Supports under-table mounting using the brackets provided |
Mounts in an EIAstandard 19 in. telco rack or equipment cabinet. 2-post rack kit included Supports table-top mounting Supports rack-mounting Supports wall-mounting with ports facing either up or down Suports under-table mounting using the brackets provided |
|||||||
Aruba Instant On 1830 8G Switch (JL810A) |
Aruba Instant On 1830 8G 4p Class4 PoE 65W Switch (JL811A) |
Aruba Instant On 1830 24G 2SFP Switch (JL812A) |
Aruba Instant On 1830 24G 12p Class4 PoE 2SFP 195W Switch (JL813A) |
Aruba Instant On 1830 48G 4SFP Switch (JL814A) |
Aruba Instant On 1830 48G 24p Class4 PoE 4SFP 370W Switch (JL815A) |
||||||||
Transceivers |
Aruba Instant On 1G SFP LC SX 500m OM2 MMF Transceiver (R9D16A) |
Aruba Instant On 1G SFP LC SX 500m OM2 MMF Transceiver (R9D16A) |
Aruba Instant On 1G SFP LC SX 500m OM2 MMF Transceiver (R9D16A) |
Aruba Instant On 1G SFP LC SX 500m OM2 MMF Transceiver (R9D16A) |
|||||||||
Aruba 1G SFP LC LX 10km SMF Transceiver (J4859D) |
Aruba 1G SFP LC LX 10km SMF Transceiver (J4859D) |
Aruba 1G SFP LC LX 10km SMF Transceiver (J4859D) |
Aruba 1G SFP LC LX 10km SMF Transceiver (J4859D) |
||||||||||
Aruba 1G SFP RJ45 T 100m Cat5e Transceiver (J8177D) |
Aruba 1G SFP RJ45 T 100m Cat5e Transceiver (J8177D) |
Aruba 1G SFP RJ45 T 100m Cat5e Transceiver (J8177D) |
Aruba 1G SFP RJ45 T 100m Cat5e Transceiver (J8177D) |
Spravovatelný switch nabízející 8x 10/100/1000 Mbps RJ-45 portů. Na prvním portu je k dispozici PoE vstup pro prostředí, kde není k dispozici síťové napájení. Přepínací kapacita switche je 16 Gbps a rychlost směrování činí 11,9 Mpps. Mezi hlavní přednosti patří podpora Global Storm Control, TPM, snadná tvorba oddělených VLAN, QoS nebo IGMP Snooping. Lze ho položit jen tak na stůl, ale také namontovat pod něj či na zeď. Bezventilátorové provedení zaručuje naprosto tichý chod. Řada Aruba 1830 nabízí uživatelsky přívětivé webové rozhraní či mobilní aplikaci pro snadnou konfiguraci a správu.
ZÁKLADNÍ SPECIFIKACE
Porty: 8x 10/100/1000 RJ-45
Kapacita switche: 16 Gbps
Rychlost směrování: 11,9 Mpps
Podpora PoE: ano, 802.3af (max. 13 W)
Rozměry: 173 x 157 x 39,1 mm
Hmotnost: 0,77 kg
