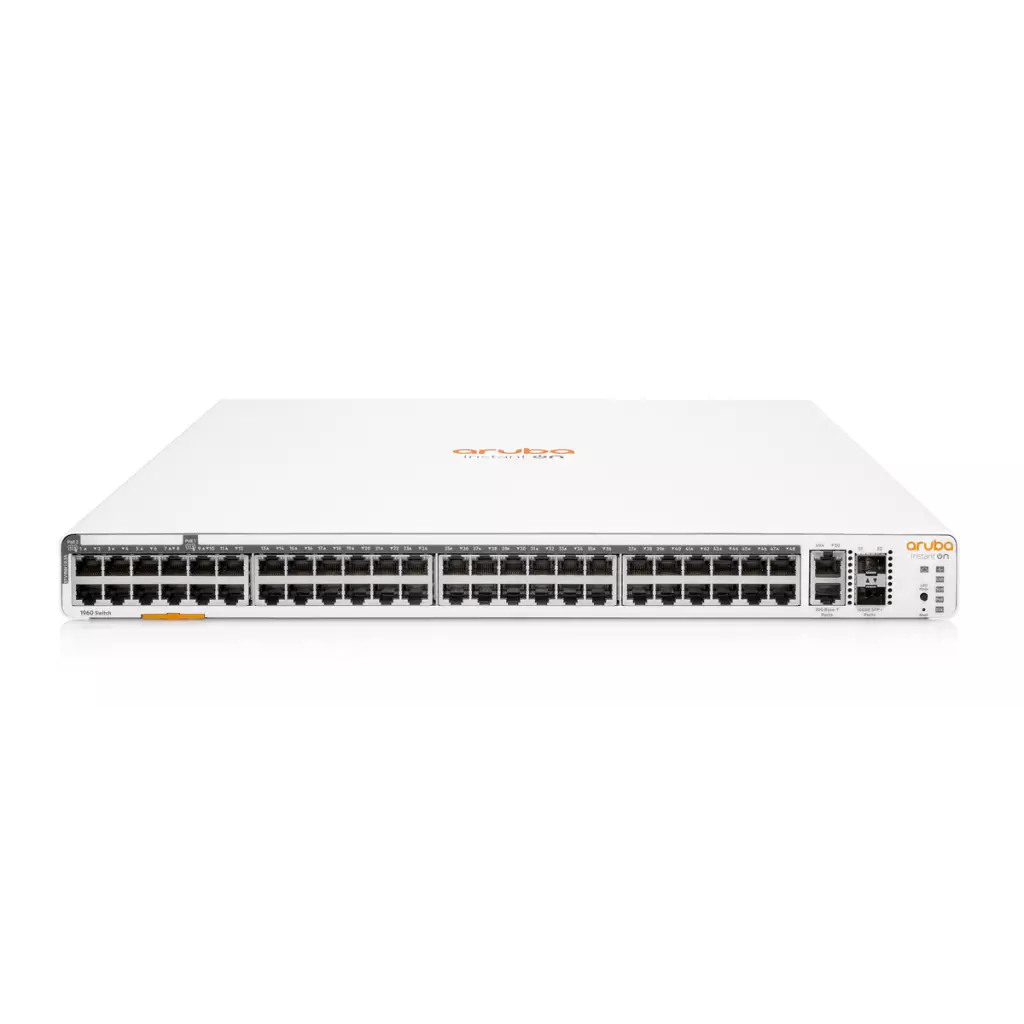

Aruba Instant On 1960 48G 40p Class4 8p Class6 PoE 2XGT 2SFP+ 600W Switch
Stav zboží:
Nové
Dostupnost:
skladem
Datum odeslání:
Expedujeme pozítří
Výrobce:
Hewlett Packard Enterprise
Kód zboží:
5266811
Číslo zboží (PN):
JL809A#ABB
EAN:
190017522937
Záruka koncový zákazník:
96 měsíců
Záruka při koupi na IČO:
96 měsíců
Cena bez DPH: *
27892 Kč
Cena vč. DPH: *
33749 Kč
* - cena uvedena vč. recyklačních a autorských poplatků.
Popis produktu:
HPE Networking Instant On Switch 40p Gigabit CL4 8p Gigabit CL6 PoE 2p 10GBT 2p SFP+ 600W 1960 Aruba Instant On 1960 Switches are advanced, smart-managed, fixed configuration Gigabit stackable switches designed for small and growing businesses that are easy to deploy and affordable. These switches are designed to scale as business grows, making adding more employees, devices and applications simple. Aruba Instant On 1960 switches are made to handle today’s bandwidth-heavy applications like voice and video conferencing, enabling consistent connectivity to improve user experience and application performance. These switches come with flexible management option: local web GUI or Instant On mobile app and cloud-based web portal. What's New Simplify network management by stacking up to (four) 4 Aruba Instant On 1960 switches and managing them through one single IP address. Stacking supported via local and cloud-managed stacking modes. Smart-managed layer 2+ Ethernet access switch series ready to deploy in 12-port, 24-port, and 48-port for non-PoE and PoE (supports Class 4 and Class 6 PoE) models. The Aruba 1960 aggregation switch comes with twelve (12) 10GBase-T and four (4) SFP+ ports, providing 10G connectivity to servers, network storage devices and access switches alike. For environments with heavy bandwidth needs, 10GBase-T and SFP+ uplink ports deliver lightning-fast network speeds and nearly eliminates traffic bottlenecks. Aruba Instant On mobile app and/or cloud-based web portal for easy network management onsite or remotely. Limited Lifetime Warranty. DifferentiatorHigh performance, smart-managed stackable switch designed for small and growing businesses, fast and easy set-up and security you can trust. Stacks up to four 1960 switches at 1G and 10G speeds and enables management through a single IP address, simplifying network operations, supporting both local and cloud-managed stacking. Using either local web GUI, Instant On mobile app or cloud-based web portal, you can quickly set up, monitor and manage the switches from anywhere at anytime. Power consumptionMaximum: 100-127V: 790W 200-220V: 760W Idle: 100-127V: 60W 200-220V: 100W Input voltage100 - 240 VAC Ports48 RJ-45 10/100/1000 PoE (CL4 and CL6) ports, 2 SFP+ 10GbE ports, 2 10GBASE-T ports Switching capacity176 Gbps Stacking capabilities4H height Throughput131 Mpps Memory and processorSingle Core ARMv7 Cortex-A9 @800MHz PoE capabilityTotal 600 W PoE Power (Up to 480 W of Class 6 or 600 W of Class 4 PoE) Operating temperature0-40°C, 0-10,000 ft Management featuresAruba Instant On Cloud; Web browser; SNMP Manager WarrantyLimited Lifetime Warranty with 24x7 phone support for 90 days and chat support for the entire warranty duration. Weight4.9 kg (10.8 lb) Dimensions40.28 x 44.25 x 4.4 cm (15.86 x 17.42 x 1.73 in)
HPE Networking Instant On Switch 40p Gigabit CL4 8p Gigabit CL6 PoE 2p 10GBT 2p SFP+ 600W 1960 Aruba Instant On 1960 Switches are advanced, smart-managed, fixed configuration Gigabit stackable switches designed for small and growing businesses that are easy to deploy and affordable. These switches are designed to scale as business grows, making adding more employees, devices and applications simple. Aruba Instant On 1960 switches are made to handle today’s bandwidth-heavy applications like voice and video conferencing, enabling consistent connectivity to improve user experience and application performance. These switches come with flexible management option: local web GUI or Instant On mobile app and cloud-based web portal. What's New Simplify network management by stacking up to (four) 4 Aruba Instant On 1960 switches and managing them through one single IP address. Stacking supported via local and cloud-managed stacking modes. Smart-managed layer 2+ Ethernet access switch series ready to deploy in 12-port, 24-port, and 48-port for non-PoE and PoE (supports Class 4 and Class 6 PoE) models. The Aruba 1960 aggregation switch comes with twelve (12) 10GBase-T and four (4) SFP+ ports, providing 10G connectivity to servers, network storage devices and access switches alike. For environments with heavy bandwidth needs, 10GBase-T and SFP+ uplink ports deliver lightning-fast network speeds and nearly eliminates traffic bottlenecks. Aruba Instant On mobile app and/or cloud-based web portal for easy network management onsite or remotely. Limited Lifetime Warranty. DifferentiatorHigh performance, smart-managed stackable switch designed for small and growing businesses, fast and easy set-up and security you can trust. Stacks up to four 1960 switches at 1G and 10G speeds and enables management through a single IP address, simplifying network operations, supporting both local and cloud-managed stacking. Using either local web GUI, Instant On mobile app or cloud-based web portal, you can quickly set up, monitor and manage the switches from anywhere at anytime. Power consumptionMaximum: 100-127V: 790W 200-220V: 760W Idle: 100-127V: 60W 200-220V: 100W Input voltage100 - 240 VAC Ports48 RJ-45 10/100/1000 PoE (CL4 and CL6) ports, 2 SFP+ 10GbE ports, 2 10GBASE-T ports Switching capacity176 Gbps Stacking capabilities4H height Throughput131 Mpps Memory and processorSingle Core ARMv7 Cortex-A9 @800MHz PoE capabilityTotal 600 W PoE Power (Up to 480 W of Class 6 or 600 W of Class 4 PoE) Operating temperature0-40°C, 0-10,000 ft Management featuresAruba Instant On Cloud; Web browser; SNMP Manager WarrantyLimited Lifetime Warranty with 24x7 phone support for 90 days and chat support for the entire warranty duration. Weight4.9 kg (10.8 lb) Dimensions40.28 x 44.25 x 4.4 cm (15.86 x 17.42 x 1.73 in)
Aruba Instant On 1960 48G 40p Class4 8p Class6 PoE 2XGT 2SFP+ 600W Switch
I/O ports and slots
|
12 RJ-45 autosensing 100/1000/10GBASE-T ports
(IEEE 802.3u Type 100BASE-TX, IEEE 802.3ab Type 1000BASE-T, IEEE 802.an 10GBASE-T); Duplex: 100BASE-TX: half or full; 1000BASE-T: full only 10GBASE-T: full only
4 SFP+ 10GbE ports
|
Dimensions
|
350.5(d) x 442.5(w) x 43.95(h) mm
|
Weight
|
9.6 lb (4.3 kg)
|
CPU
|
Single Core ARMv7 Cortex-A9 @2Ghz
|
100 Mb Latency
|
< 7.4 uSec
|
1000 Mb Latency
|
< 4.2 uSec
|
10000 Mb Latency
|
< 1.1 uSec
|
Throughput (Mpps)
|
238 Mpps
|
Capacity
|
320 Gbps
|
Routing Table size (# of static entries)
|
512 IPv4/IPv6
|
MAC Address table size (# of entries)
|
16,000 entries
|
Reliability MTBF (years)
|
88.8
|
Operating temperature
|
0-40°C, 0-10,000 ft
|
Operating relative humidity
|
15% to 95% @ 104°F (40°C) non-condensing
|
Nonoperating/Storage temperature
|
-40°F to 158°F (-40°C to 70°C) up to 15000 ft
|
Nonoperating/Storage relative humidity
|
15% to 90% @ 149°F (65°C) non-condensing
|
Altitude
|
up to 10,000 ft (3 km)
|
Acoustics1
|
LWAd = 4.0 Bel
|
Notes1: 1 Acoustics measured in 23°C semi-anechoic chamber with a loading of 100% traffic and (for JL807A and JL809A) 50% PoE on all ports. Measured in accordance with ISO 7779. Declared in accordance with ECMA-109:2010. Values presented are the Declared A-Weighted Sound Power Level (LWAd) and the mean Bystander A-Weighted Sound Pressure Level (LpAm)
|
Electrical Characteristics
|
Frequency
|
50Hz/60Hz
|
AC voltage
|
100-127VAC / 200-240VAC
|
Current
|
1.3A/0.4A
|
Maximum power rating
|
100-127V: 130W 200-220V: 160W
|
Idle power
|
100-127V: 60W 200-220V: 80W
|
PoE power
|
-
|
Power Supply
|
Internal power supply
|
Safety
|
EN/IEC 60950-1:2006 + A11:2009 + A1:2010 + A12:2011 + A2:2013
EN/IEC 62368-1, 2nd. & 3rd. Ed.
UL 62368-1, 2nd. & 3rd. Ed.
CAN/CSA C22.2 No. 62368-1, 2nd. & 3rd. Ed.
EN/IEC 60825-1:2014 Class 1
|
Emissions
|
EN 55032:2015/CISPR 32, Class A
FCC CFR 47 Part 15: 2018 Class A
ICES-003 Class A
VCCI Class A
CNS 13438 Class A
KN 32 Class A
AS/NZS CISPR 32 Class A
|
Generic
|
EN 55035, CISPR 35, KN35
|
EN
|
EN 55035, CISPR 35
|
ESD
|
EN/IEC 61000-4-2
|
Radiated
|
EN/IEC 61000-4-3
|
EFT/Burst
|
EN/IEC 61000-4-4
|
Surge
|
EN/IEC 61000-4-5
|
Conducted
|
EN/IEC 61000-4-6
|
Power frequency magnetic field
|
EN/IEC 61000-4-8
|
Voltage dips and interruptions
|
EN/IEC 61000-4-11
|
Harmonics
|
EN/IEC 61000-3-2
|
Flicker
|
EN /IEC 61000-3-3
|
Device Management
|
Aruba Instant On Cloud; Web browser; SNMP Manager
|
Mounting Positions and Supported Racking
|
- Mounts in an EIA-standard 19 in. telco rack or equipment cabinet. 2-post rack kit included
- Supports table-top mounting
- Supports rack-mounting
- Supports wall-mounting with ports facing either up or down
- Supports under-table mounting using the brackets provided
|
Transceivers
|
- Aruba Instant On 1G SFP LC SX 500m OM2 MMF Transceiver (R9D16A)
- Aruba 1G SFP LC LX 10km SMF Transceiver (J4859D)
- Aruba 1G SFP RJ45 T 100m Cat5e Transceiver (J8177D)
- Aruba Instant On 10G SFP+ LC SR 300m OM3 MMF Transceiver (R9D18A)
- Aruba 10G SFP+ LC LR 10km SMF Transceiver (J9151E)
- Aruba 10G SFP+ to SFP+ 1m DAC (J9281D)
- Aruba 10G SFP+ to SFP+ 3m DAC (J9283D)
|
Model: Aruba Instant On 1960 Switch: Ano Typ Switche: Managed Podporované standardy: *IEEE 802.1AX *IEEE 802.1D *IEEE 802.1Q *IEEE 802.1ab *IEEE 802.1p *IEEE 802.1s *IEEE 802.1w Kapacita propustnosti: 131 Mpps Optika: Ano Konektory: *48x RJ-45 10/100/1000 PoE (CL4 and CL6) ports *2x SFP+ 10GbE ports *2x 10GBASE-T ports PoE: Ano Rozměry: 442 x 402 x 44 mm (ŠxVxH) Hmotnost: 4,9 kg
HPE Aruba Instant On 1960 48G PoE 2SFP+
Spravovatelný PoE+/PoE++ switch nabízející 40× 10/100/1000 Mbps RJ-45 portů s PoE+ (802.3af/at), 8× 10/100/1000 Mbps RJ-45 porty s PoE++ (802.3bt), 2× 10GbE RJ-45 porty a 2× 10G SFP+ porty. Přepínací kapacita switche je 176 Gbps a rychlost směrování činí 131 Mpps. Mezi hlavní přednosti patří snadná tvorba oddělených VLAN, QoS, IGMP Snooping či možnost stohování až 4 switchů. Malým a rostoucím podnikům, které si chtějí svou infrastrukturu řídit samy, nabízí řada Aruba 1960 uživatelsky přívětivé webové rozhraní či mobilní aplikaci pro snadnou konfiguraci a správu.
ZÁKLADNÍ SPECIFIKACE
Porty: 48× 10/100/1000 RJ-45, 2× 10GbE RJ-45, 2× 10G SFP+
Kapacita switche: 176 Gbps
Rychlost směrování: 131 Mpps
Podpora PoE: ano, 802.3af/at/bt (600 W celkem)
Rozměry: 442,5 × 402,75 × 43,95 mm
Hmotnost: 4,9 kg
Model: Aruba Instant On 1960 Switch: Ano Typ Switche: Managed Podporované standardy: *IEEE 802.1AX *IEEE 802.1D *IEEE 802.1Q *IEEE 802.1ab *IEEE 802.1p *IEEE 802.1s *IEEE 802.1w Kapacita propustnosti: 131 Mpps Optika: Ano Konektory: *48x RJ-45 10/100/1000 PoE (CL4 and CL6) ports *2x SFP+ 10GbE ports *2x 10GBASE-T ports PoE: Ano Rozměry: 442 x 402 x 44 mm (ŠxVxH) Hmotnost: 4,9 kg
Prodejce i výrobce si vyhrazuje právo změny parametrů či vlastností bez předchozího upozornění.
Chcete-li mít ohledně konkrétních parametrů aktuální informace kontaktujte nás.
Pozdější reklamace vlastností je zbytečnou komplikací pro obě strany.
