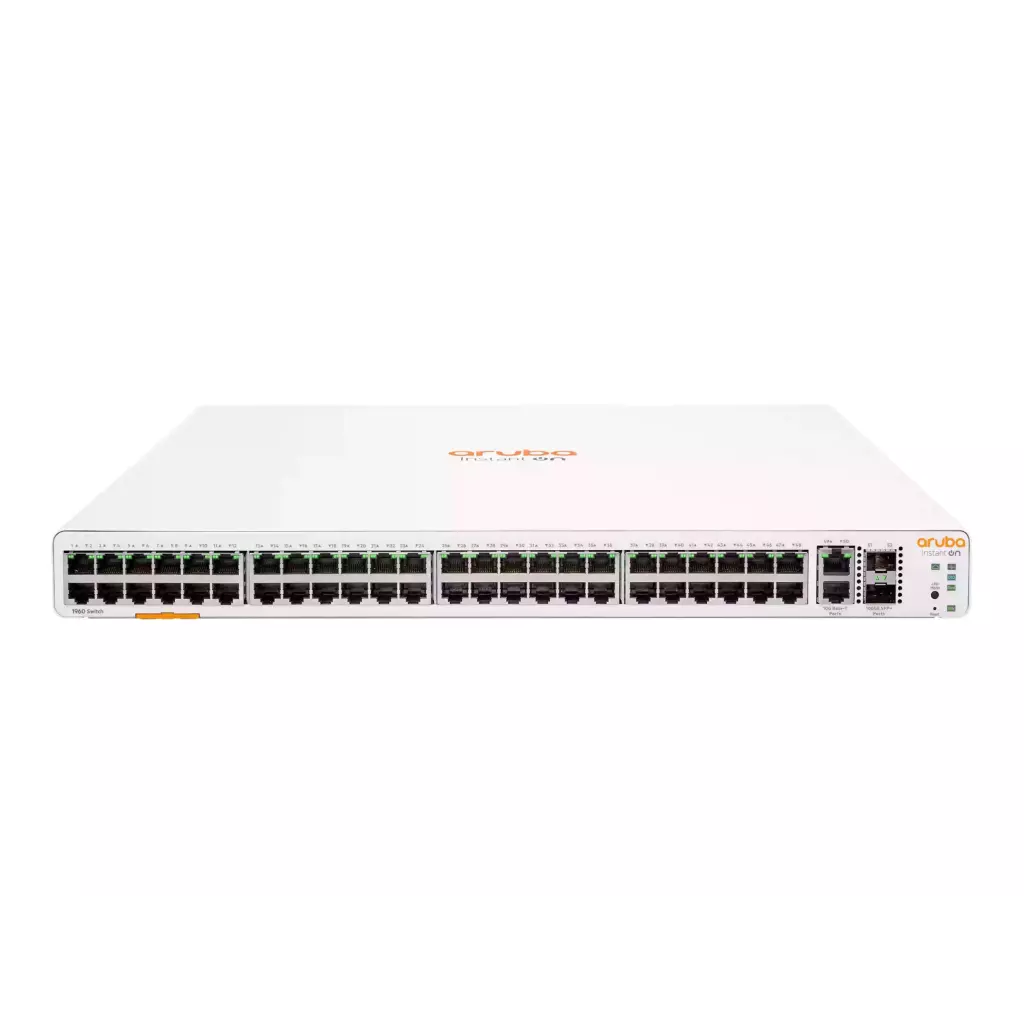

HPE Aruba Instant On 1960 48G 2XGT 2SFP+ Switch

Kód zboží (ID): 5266810 vytisknout
Stav zboží: Nové
Dostupnost: skladem
Datum odeslání: Expedujeme pozítří
Výrobce: HP Enterprise
Kód zboží: 5266810
Číslo zboží (PN): JL808A#ABB
EAN: 190017522616
Záruka koncový zákazník: 120 měsíců
Záruka při koupi na IČO: 120 měsíců
Cena bez DPH: * 18037 Kč
Cena vč. DPH: * 21824 Kč
* - cena uvedena vč. recyklačních a autorských poplatků.

Popis produktu:

HPE Networking Instant On Switch 48p Gigabit 2p 10GBT 2p SFP+ 1960 Aruba Instant On 1960 Switches are advanced, smart-managed, fixed configuration Gigabit stackable switches designed for small and growing businesses that are easy to deploy and affordable. These switches are designed to scale as business grows, making adding more employees, devices and applications simple. Aruba Instant On 1960 switches are made to handle today’s bandwidth-heavy applications like voice and video conferencing, enabling consistent connectivity to improve user experience and application performance. These switches come with flexible management option: local web GUI or Instant On mobile app and cloud-based web portal. Simplify network management by stacking up to (four) 4 Aruba Instant On 1960 switches and managing them through one single IP address. Stacking supported via local and cloud-managed stacking modes. Smart-managed layer 2+ Ethernet access switch series ready to deploy in 12-port, 24-port, and 48-port for non-PoE and PoE (supports Class 4 and Class 6 PoE) models. The Aruba 1960 aggregation switch comes with twelve (12) 10GBase-T and four (4) SFP+ ports, providing 10G connectivity to servers, network storage devices and access switches alike. For environments with heavy bandwidth needs, 10GBase-T and SFP+ uplink ports deliver lightning-fast network speeds and nearly eliminates traffic bottlenecks. Aruba Instant On mobile app and/or cloud-based web portal for easy network management onsite or remotely. Limited Lifetime Warranty. DifferentiatorHigh performance, smart-managed stackable switch designed for small and growing businesses, fast and easy set-up and security you can trust. Stacks up to four 1960 switches at 1G and 10G speeds and enables management through a single IP address, simplifying network operations, supporting both local and cloud-managed stacking. Using either local web GUI, Instant On mobile app or cloud-based web portal, you can quickly set up, monitor and manage the switches from anywhere at anytime. Power consumptionMaximum: 100-127V: 110W 200-220V: 120W Idle: 100-127V: 60W 200-220V: 80W Input voltage100 - 240 VAC Ports48 RJ-45 10/100/1000 ports, 2 SFP+ 10GbE ports, 2 10GBASE-T ports Switching capacity176 Gbps Stacking capabilities4H height Throughput131 Mpps Memory and processorSingle Core ARMv7 Cortex-A9 @800MHz Operating temperature0-40°C, 0-10,000 ft Management featuresAruba Instant On Cloud; Web browser; SNMP Manager WarrantyLimited Lifetime Warranty with 24x7 phone support for 90 days and chat support for the entire warranty duration. Weight4.4 kg (9.8 lb) Dimensions35.05 x 44.25 x 4.4 cm (13.80 x 17.42 x 1.73 in)
HPE Networking Instant On Switch 48p Gigabit 2p 10GBT 2p SFP+ 1960 Aruba Instant On 1960 Switches are advanced, smart-managed, fixed configuration Gigabit stackable switches designed for small and growing businesses that are easy to deploy and affordable. These switches are designed to scale as business grows, making adding more employees, devices and applications simple. Aruba Instant On 1960 switches are made to handle today’s bandwidth-heavy applications like voice and video conferencing, enabling consistent connectivity to improve user experience and application performance. These switches come with flexible management option: local web GUI or Instant On mobile app and cloud-based web portal. Simplify network management by stacking up to (four) 4 Aruba Instant On 1960 switches and managing them through one single IP address. Stacking supported via local and cloud-managed stacking modes. Smart-managed layer 2+ Ethernet access switch series ready to deploy in 12-port, 24-port, and 48-port for non-PoE and PoE (supports Class 4 and Class 6 PoE) models. The Aruba 1960 aggregation switch comes with twelve (12) 10GBase-T and four (4) SFP+ ports, providing 10G connectivity to servers, network storage devices and access switches alike. For environments with heavy bandwidth needs, 10GBase-T and SFP+ uplink ports deliver lightning-fast network speeds and nearly eliminates traffic bottlenecks. Aruba Instant On mobile app and/or cloud-based web portal for easy network management onsite or remotely. Limited Lifetime Warranty. DifferentiatorHigh performance, smart-managed stackable switch designed for small and growing businesses, fast and easy set-up and security you can trust. Stacks up to four 1960 switches at 1G and 10G speeds and enables management through a single IP address, simplifying network operations, supporting both local and cloud-managed stacking. Using either local web GUI, Instant On mobile app or cloud-based web portal, you can quickly set up, monitor and manage the switches from anywhere at anytime. Power consumptionMaximum: 100-127V: 110W 200-220V: 120W Idle: 100-127V: 60W 200-220V: 80W Input voltage100 - 240 VAC Ports48 RJ-45 10/100/1000 ports, 2 SFP+ 10GbE ports, 2 10GBASE-T ports Switching capacity176 Gbps Stacking capabilities4H height Throughput131 Mpps Memory and processorSingle Core ARMv7 Cortex-A9 @800MHz Operating temperature0-40°C, 0-10,000 ft Management featuresAruba Instant On Cloud; Web browser; SNMP Manager WarrantyLimited Lifetime Warranty with 24x7 phone support for 90 days and chat support for the entire warranty duration. Weight4.4 kg (9.8 lb) Dimensions35.05 x 44.25 x 4.4 cm (13.80 x 17.42 x 1.73 in)

Aruba Instant On 1960 48G 2XGT 2SFP+ Switch (JL808A) 20 pack

I/O ports and slots

48 RJ-45 autosensing 10/100/1000 Mbps ports

(IEEE 802.3 Type 10BASE-T, IEEE 802.3u Type 100BASE-TX, IEEE 802.3ab Type 1000BASE-T); Duplex: 10BASE-T/100BASE-TX: half or full; 1000BASE-T: full only

2 SFP+ 10GbE ports 2 10GBASE-T ports

Dimensions

350.5(d) x 442.5(w) x 43.95(h) mm

Weight

9.8 lb (4.4 kg)

CPU

Single-Core ARM v7 Cortex-A9 @800MHz

100 Mb Latency

< 4.4 uSec

1000 Mb Latency

< 2.2 uSec

10000 Mb Latency

< 1.1 uSec

Throughput (Mpps)

131 Mpps

Capacity

176 Gbps

Routing Table size (# of static entries)

32 IPv4/IPv6

MAC Address table size (# of entries)

16,000 entries

Reliability MTBF (years)

109.4

Operating temperature

0-40°C, 0-10,000 ft

Operating relative humidity

15% to 95% @ 104°F (40°C) non-condensing

Nonoperating/Storage temperature

-40°F to 158°F (-40°C to 70°C) up to 15000 ft

Nonoperating/Storage relative humidity

15% to 90% @ 149°F (65°C) non-condensing

Altitude

up to 10,000 ft (3 km)

Acoustics1

LWAd = 2.9 Bel Notes1: 1 Acoustics measured in 23°C semi-anechoic chamber with a loading of 100% traffic and (for JL807A and JL809A) 50% PoE on all ports. Measured in accordance with ISO 7779. Declared in accordance with ECMA-109:2010. Values presented are the Declared A-Weighted Sound Power Level (LWAd) and the mean Bystander A-Weighted Sound Pressure Level (LpAm)

Electrical Characteristics

Frequency

50Hz/60Hz

AC voltage

100-127VAC / 200-240VAC

Current

1.1A/0.4A

Maximum power rating

100-127V: 110W 200-220V: 120W

Idle power

100-127V: 60W 200-220V: 80W

PoE power

-

Power Supply

Internal power supply

Safety

EN/IEC 60950-1:2006 + A11:2009 + A1:2010 + A12:2011 + A2:2013

EN/IEC 62368-1, 2nd. & 3rd. Ed.

UL 62368-1, 2nd. & 3rd. Ed.

CAN/CSA C22.2 No. 62368-1, 2nd. & 3rd. Ed.

EN/IEC 60825-1:2014 Class 4

Emissions

EN 55032:2015/CISPR 32, Class A

FCC CFR 47 Part 15: 2018 Class A

ICES-003 Class A

VCCI Class A

CNS 13438 Class A

KN 32 Class A

AS/NZS CISPR 32 Class A

Generic

EN 55035, CISPR 35, KN35

EN

EN 55035, CISPR 35

ESD

EN/IEC 61000-4-2

Radiated

EN/IEC 61000-4-3

EFT/Burst

EN/IEC 61000-4-4

Surge

EN/IEC 61000-4-5

Conducted

EN/IEC 61000-4-6

Power frequency magnetic field

EN/IEC 61000-4-8

Voltage dips and interruptions

EN/IEC 61000-4-11

Harmonics

EN/IEC 61000-3-2

Flicker

EN /IEC 61000-3-3

Device Management

Aruba Instant On Cloud; Web browser; SNMP Manager

Mounting Positions and Supported Racking
  • Mounts in an EIA-standard 19 in. telco rack or equipment cabinet. 2-post rack kit included
  • Supports table-top mounting
  • Supports rack-mounting
  • Supports wall-mounting with ports facing either up or down
  • Supports under-table mounting using the brackets provided

Transceivers
  • Aruba Instant On 1G SFP LC SX 500m OM2 MMF Transceiver (R9D16A)
  • Aruba 1G SFP LC LX 10km SMF Transceiver (J4859D)
  • Aruba 1G SFP RJ45 T 100m Cat5e Transceiver (J8177D)
  • Aruba Instant On 10G SFP+ LC SR 300m OM3 MMF Transceiver (R9D18A)
  • Aruba 10G SFP+ LC LR 10km SMF Transceiver (J9151E)
  • Aruba 10G SFP+ to SFP+ 1m DAC (J9281D)
  • Aruba 10G SFP+ to SFP+ 3m DAC (J9283D)
Model: Aruba Instant On 1960 Switch: Ano Typ Switche: Managed Podporované standardy: *IEEE 802.1AX *IEEE 802.1D *IEEE 802.1Q *IEEE 802.1ab *IEEE 802.1p *IEEE 802.1s *IEEE 802.1w Kapacita propustnosti: 131 Mpps Optika: Ano Konektory: *48x RJ-45 10/100/1000 ports *2x SFP+ 10GbE ports *2x 10GBASE-T ports PoE: Ne Rozměry: 442 x 350 x 44 mm (ŠxVxH) Hmotnost: 4,4 kg
HPE Aruba Instant On 1960 48G 2SFP/SFP+

Spravovatelný switch nabízející 48x 10/100/1000 Mbps RJ-45 portů, 2x 10 GbE RJ-45 porty a 2x 10 GbE SFP+ porty. Přepínací kapacita switche je 176 Gbps a rychlost směrování činí 131 Mpps. Mezi hlavní přednosti patří snadná tvorba oddělených VLAN, QoS, IGMP Snooping či možnost stohování až 4 switchů. Malým a rostoucím podnikům, které si chtějí svou infrastrukturu řídit samy, nabízí řada Aruba 1960 uživatelsky přívětivé webové rozhraní či mobilní aplikaci pro snadnou konfiguraci a správu.

ZÁKLADNÍ SPECIFIKACE

Porty: 48x 10/100/1000 RJ-45, 2x 10GbE RJ-45, 2x 10GbE SFP+

Kapacita switche: 176 Gbps

Rychlost směrování: 131 Mpps

Podpora PoE: ne

Rozměry: 442,5 x 350,5 x 43,95 mm

Hmotnost: 4,4 kg

Model: Aruba Instant On 1960 Switch: Ano Typ Switche: Managed Podporované standardy: *IEEE 802.1AX *IEEE 802.1D *IEEE 802.1Q *IEEE 802.1ab *IEEE 802.1p *IEEE 802.1s *IEEE 802.1w Kapacita propustnosti: 131 Mpps Optika: Ano Konektory: *48x RJ-45 10/100/1000 ports *2x SFP+ 10GbE ports *2x 10GBASE-T ports PoE: Ne Rozměry: 442 x 350 x 44 mm (ŠxVxH) Hmotnost: 4,4 kg
Prodejce i výrobce si vyhrazuje právo změny parametrů či vlastností bez předchozího upozornění. Chcete-li mít ohledně konkrétních parametrů aktuální informace kontaktujte nás. Pozdější reklamace vlastností je zbytečnou komplikací pro obě strany.
