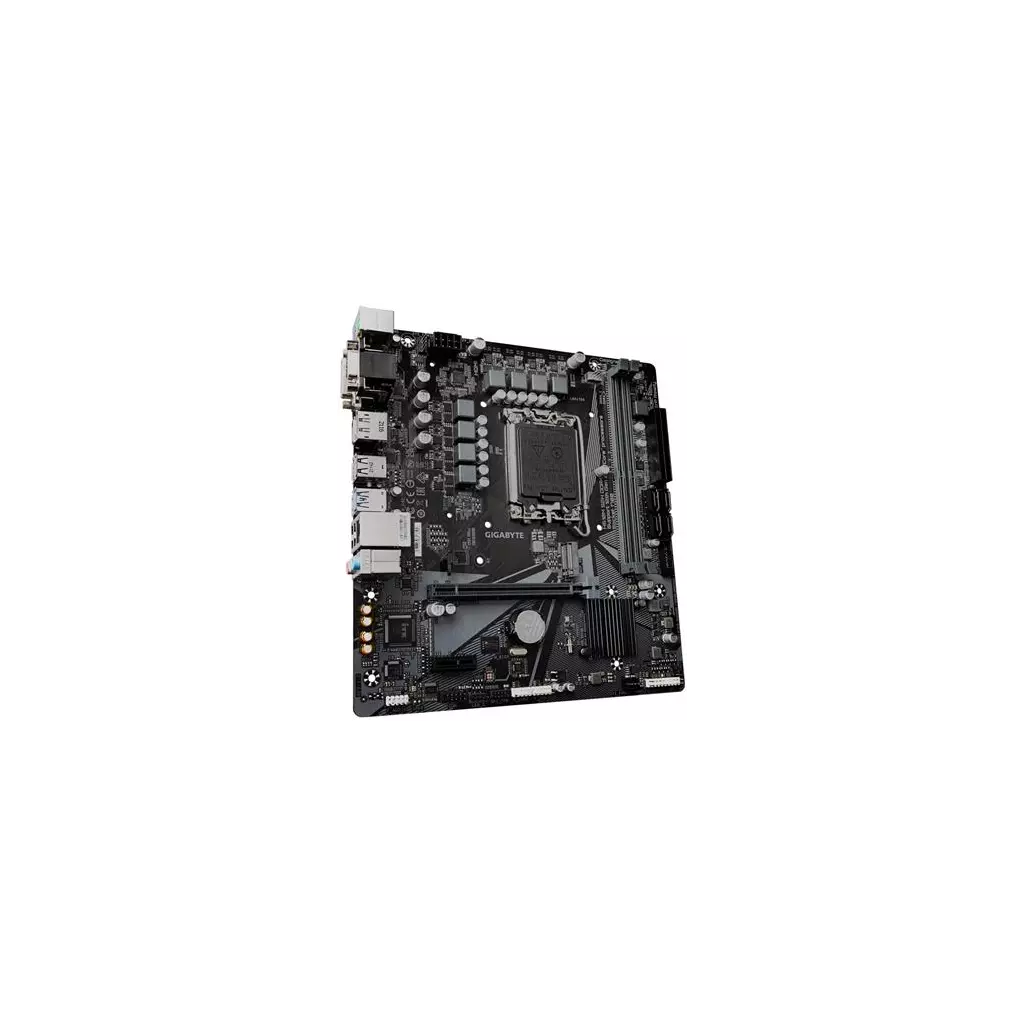

GIGABYTE H610M S2H DDR4 rev. 1.0 / Intel H610 / LGA1700 / 2x DDR4 / M.2 / DP / VGA / HDMI / DVI-D / mATX
![](https://cdn.vmshop.cz/images/get/7/mbgb6254.jpg?p=detail,wp)
Popis produktu:
Deska je vybavena grafickými výstupy pro použití s procesory s integrovaným grafickým jádrem. Základní deska grafickou kartu neobsahuje a bez použití odpovídajícího procesoru, budou tyto výstupy nefunkční.
CPU Podpora procesorů 12. generace Intel Core/ Pentium/ Celeron (patice LGA1700)
Čipová sada Intel H610
Paměť 2x DDR4 paměťový slot, podpora až 64 GB Podpora DDR4 3200/ 3000/ 2933/ 2666/ 2400/ 2133 MHz Dvoukanálová architektura paměti Podpora non-ECC, bez vyrovnávací paměti (1Rx8/2Rx8/1Rx16) Podpora ECC (non-ECC režim), bez vyrovnávací paměti (1Rx8/2Rx8) Podpora Intel Extreme Memory Profile (XMP)
Sloty 1x PCIe 4.0 x16 slot 1x PCIe 3.0 x1 slot
Grafika 1x HDMI port, podporující max. rozlišení 4096 x 2160 při 60 Hz 1x DisplayPort port, podporující max. rozlišení 4096 x 2304 při 60 Hz 1x DVI-D port, podporující max. rozlišení 1920 x 1200 při 60 Hz 1x VGA port, podporující max. rozlišení 1920 x 1200 při 60 Hz
Úložiště Intel H610 čipová sada 1x M.2 slot, M Key, pro jednotky typu 2260/2280 (PCIe 3.0 x4/x2 režim) 4x SATA 6Gb/s port
USB 4x USB 3.2 Gen1 (USB 3.0) port (2 porty na zadním panelu, 2 porty dostupné přes interní USB konektor) 8x USB 2.0 port (4 porty na zadním panelu, 4 porty dostupné přes interní USB konektory)
Audio Realtek Audio Codec 2/4/5.1/7.1kanálové High Definition Audio
LAN 1x Intel Gigabit LAN řadič
Interní konektory 1x 24-pin ATX hlavní napájecí konektor 1x 8-pin ATX 12V napájecí konektor 1x konektor ventilátoru CPU 2x konektor systémového ventilátoru 1x konektor RGB LED pásku 1x M.2 slot, M Key 4x SATA 6Gb/s konektor 1x konektor předního panelu 1x audio konektor předního panelu 1x USB 3.2 Gen1 (USB 3.0) konektor (podporuje 2x USB 3.2 Gen1 port) 2x USB 2.0 konektor (podporuje 4x USB 2.0 port) 1x TPM konektor (podporuje pouze moduly GC-TPM2.0 SPI a GC-TPM2.0 SPI 2.0) 1x konektor pro sériový port 1x propojka Clear CMOS
Porty na zadním panelu 1x PS/2 port klávesnice 1x PS/2 port myši 1x VGA 1x DVI-D 1x HDMI 1x DisplayPort 2x USB 3.2 Gen1 (USB 3.0) 4x USB 2.0 1x RJ-45 3x audio jack
Rozměry 23 x 21,5 cm Micro ATX formát
Deska je vybavena grafickými výstupy pro použití s procesory s integrovaným grafickým jádrem. Základní deska grafickou kartu neobsahuje a bez použití odpovídajícího procesoru, budou tyto výstupy nefunkční.
CPU Podpora procesorů 12. generace Intel Core/ Pentium/ Celeron (patice LGA1700)
Čipová sada Intel H610
Paměť 2x DDR4 paměťový slot, podpora až 64 GB Podpora DDR4 3200/ 3000/ 2933/ 2666/ 2400/ 2133 MHz Dvoukanálová architektura paměti Podpora non-ECC, bez vyrovnávací paměti (1Rx8/2Rx8/1Rx16) Podpora ECC (non-ECC režim), bez vyrovnávací paměti (1Rx8/2Rx8) Podpora Intel Extreme Memory Profile (XMP)
Sloty 1x PCIe 4.0 x16 slot 1x PCIe 3.0 x1 slot
Grafika 1x HDMI port, podporující max. rozlišení 4096 x 2160 při 60 Hz 1x DisplayPort port, podporující max. rozlišení 4096 x 2304 při 60 Hz 1x DVI-D port, podporující max. rozlišení 1920 x 1200 při 60 Hz 1x VGA port, podporující max. rozlišení 1920 x 1200 při 60 Hz
Úložiště Intel H610 čipová sada 1x M.2 slot, M Key, pro jednotky typu 2260/2280 (PCIe 3.0 x4/x2 režim) 4x SATA 6Gb/s port
USB 4x USB 3.2 Gen1 (USB 3.0) port (2 porty na zadním panelu, 2 porty dostupné přes interní USB konektor) 8x USB 2.0 port (4 porty na zadním panelu, 4 porty dostupné přes interní USB konektory)
Audio Realtek Audio Codec 2/4/5.1/7.1kanálové High Definition Audio
LAN 1x Intel Gigabit LAN řadič
Interní konektory 1x 24-pin ATX hlavní napájecí konektor 1x 8-pin ATX 12V napájecí konektor 1x konektor ventilátoru CPU 2x konektor systémového ventilátoru 1x konektor RGB LED pásku 1x M.2 slot, M Key 4x SATA 6Gb/s konektor 1x konektor předního panelu 1x audio konektor předního panelu 1x USB 3.2 Gen1 (USB 3.0) konektor (podporuje 2x USB 3.2 Gen1 port) 2x USB 2.0 konektor (podporuje 4x USB 2.0 port) 1x TPM konektor (podporuje pouze moduly GC-TPM2.0 SPI a GC-TPM2.0 SPI 2.0) 1x konektor pro sériový port 1x propojka Clear CMOS
Porty na zadním panelu 1x PS/2 port klávesnice 1x PS/2 port myši 1x VGA 1x DVI-D 1x HDMI 1x DisplayPort 2x USB 3.2 Gen1 (USB 3.0) 4x USB 2.0 1x RJ-45 3x audio jack
Rozměry 23 x 21,5 cm Micro ATX formát
Parametr | Hodnota |
---|---|
Socket (patice) | Socket 1700 |
Chipset | Intel H610 |
Technologie paměti RAM | DDR4 |
Formát základní desky | micro ATX |
Podpora RAID | Bez RAID podpory |
PCI Express x16 | 1 |
3.5mm Jack | Ano |
Specifikace:
H610M S2H DDR4
Intel H610 Motherboard with 6+1+1 Hybrid Phases Digital VRM Design, PCIe 4.0* Design, Gen3 x4 M.2, Realtek Gaming LAN, HDMI / DVI-D/ D-Sub Ports for Multiple Display , Anti-Sulfur Resistor, Smart Fan 6
- Supports 12th Gen Intel Core™ Series Processors
- Dual Channel Non-ECC Unbuffered DDR4, 2 DIMMs
- 6+1+1 Hybrid Digital VRM Design
- GIGABYTE Gaming LAN with Bandwidth Management
- NVMe PCIe 3.0 x4 M.2
- HDMI / DVI-D / D-Sub Ports for Multiple Display
- High Quality Audio Capacitors and Audio Noise Guard
- Smart Fan 6 Features Multiple Temperature Sensors , Hybrid Fan Headers with FAN STOP
- GIGABYTE APP Center, Simple and Easy Use
- Anti-Sulfur Resistors Design
- Actual support may vary by CPU.
CPU
LGA1700 socket: Support for 12th Generation Intel Core™ i9 processors/Intel Core™ i7 processors/Intel Core™ i5 processors L3 cache varies with CPU (Please refer to "CPU Support List" for more information.)
Chipset
Intel H610 Express Chipset
Memory
Support for DDR4 3200/3000/2933/2666/2400/2133 MHz memory modules 2 x DDR4 DIMM sockets supporting up to 64 GB (32 GB single DIMM capacity) of system memory Dual channel memory architecture Support for ECC Un-buffered DIMM 1Rx8/2Rx8 memory modules (operate in non-ECC mode) Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules Support for Extreme Memory Profile (XMP) memory modules (Please refer "Memory Support List" for more information.)
Onboard Graphics
Integrated Graphics Processor-Intel HD Graphics support: 1 x D-Sub port, supporting a maximum resolution of 1920x1200@60 Hz 1 x DVI-D port, supporting a maximum resolution of 1920x1200@60 Hz * The DVI-D port does not support D-Sub connection by adapter. 1 x HDMI port, supporting a maximum resolution of 4096x2160@60 Hz * Support for HDMI 2.1 version and HDCP 2.3. ** Support native HDMI 2.1 TMDS compatible ports 1 x DisplayPort, supporting a maximum resolution of 4096x2304@60 Hz * Support for DisplayPort 1.2 version and HDCP 2.3 (Graphics specifications may vary depending on CPU support.)
Audio
Realtek Audio CODEC High Definition Audio 2/4/5.1/7.1-channel * To configure 7.1-channel audio, you need to open the audio software and select Device advanced settings > Playback Device to change the default setting first. Please visit GIGABYTE's website for details on configuring the audio software.
LAN
Realtek GbE LAN chip (1 Gbps/100 Mbps)
Expansion Slots
1 x PCI Express x16 slot, running at x16 * For optimum performance, if only one PCI Express graphics card is to be installed, be sure to install it in the PCIEX16 slot. (The PCI Express x16 slot conforms to PCI Express 4.0 standard.) 1 x PCI Express x1 slot (The PCI Express x1 slot conforms to PCI Express 3.0 standard.)
Storage Interface
Chipset: 1 x M.2 connector (Socket 3, M key, type 2260/2280 PCIe 3.0 x4/x2 SSD support) 4 x SATA 6Gb/s connectors
USB
Chipset: 4 x USB 3.2 Gen 1 ports (2 ports on the back panel, 2 ports available through the internal USB header) 4 x USB 2.0/1.1 ports on the back panel Chipset+USB 2.0 Hub: 4 x USB 2.0/1.1 ports available through the internal USB headers
Internal I/O Connectors
1 x 24-pin ATX main power connector 1 x 8-pin ATX 12V power connector 1 x M.2 Socket 3 connector 4 x SATA 6Gb/s connectors 1 x CPU fan header 2 x system fan headers 1 x RGB LED strip header 1 x front panel header 1 x front panel audio header 1 x USB 3.2 Gen 1 header 2 x USB 2.0/1.1 headers 1 x Trusted Platform Module header (For the GC-TPM2.0 SPI/GC-TPM2.0 SPI 2.0 module only) 1 x serial port header 1 x Clear CMOS jumper
Back Panel Connectors
1 x PS/2 keyboard port 1 x PS/2 mouse port 1 x D-Sub port 1 x DVI-D port 1 x DisplayPort 1 x HDMI 2.0 port 2 x USB 3.2 Gen 1 ports 4 x USB 2.0/1.1 ports 1 x RJ-45 port 3 x audio jacks
I/O Controller
iTE I/O Controller Chip
H/W Monitoring
Voltage detection Temperature detection Fan speed detection Overheating warning Fan fail warning Fan speed control * Whether the fan speed control function is supported will depend on the cooler you install.
BIOS
1 x 256 Mbit flash Use of licensed AMI UEFI BIOS PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0
Unique Features
Support for APP Center * Available applications in APP Center may vary by motherboard model. Supported functions of each application may also vary depending on motherboard specifications. @BIOS Ambient LED EasyTune Fast Boot Game Boost ON/OFF Charge Smart Backup System Information Viewer Support for Q-Flash Support for Xpress Install
Bundled Software
Norton Internet Security (OEM version) LAN bandwidth management software
Operating System
Support for Windows 11 64-bit Support for Windows 10 64-bit
Form Factor
Micro ATX Form Factor; 23.0cm x 21.5cm
