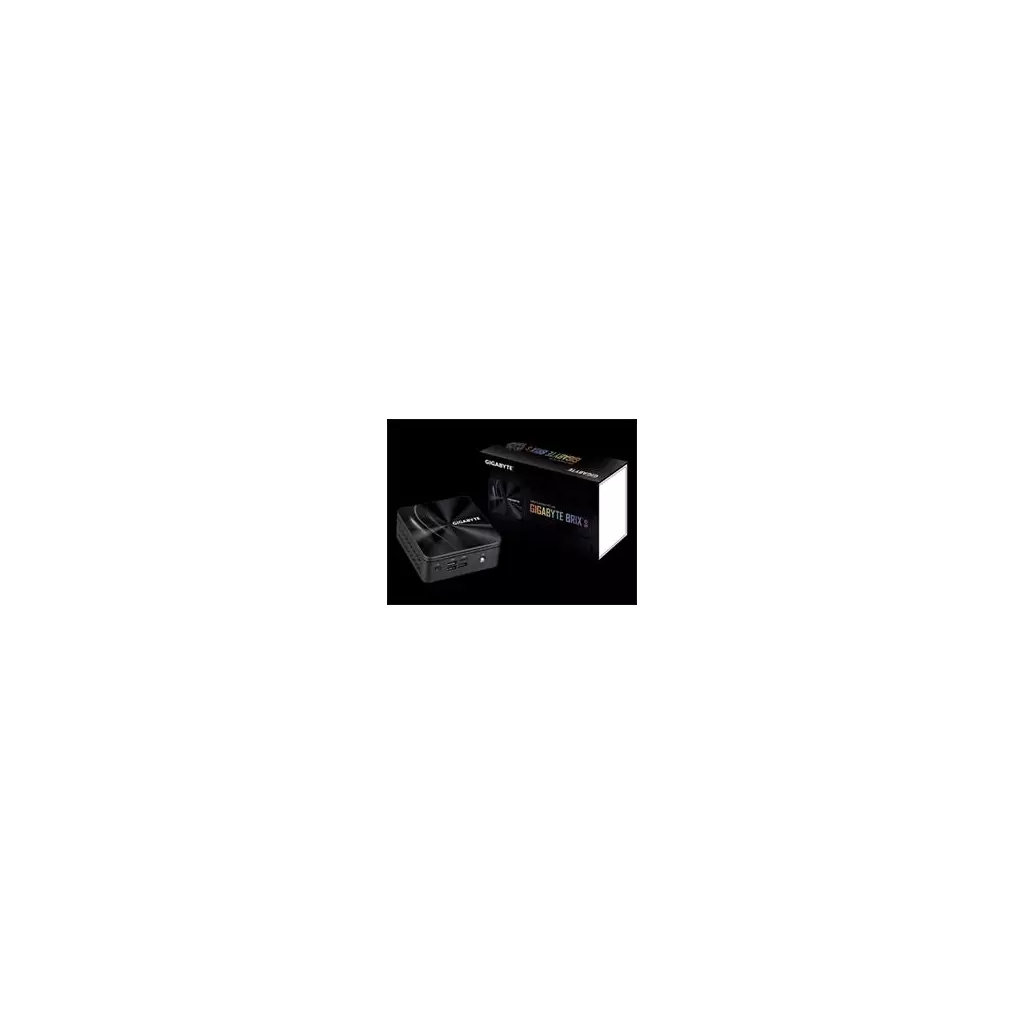

Gigabyte BRIX miniPC Ryzen R5-4500U (6C/6T) 2x SODIMM DDR4, M.2, WiFi6+ BT5.2, 2.5Gb LAN, HDMI,mDP, 6xUSB
Kód zboží (ID): 6446482
vytisknout
již se neprodává
Popis produktu:
- High Performance Ultra Compact PC (46.8 x 119.5 x 119.5 mm)
- Ultra compact PC design in 2 size (Slim /HDD)
- Supports 2.5" HDD/SSD, 7.0/9.5 mm thick (1x6Gbps SATA 3)
- 1 x M.2 SSD (2280) slot support PCI-e x4 /SATA
- 2 x SO-DIMM DDR4 slots support 3200Mhz, Max 64GB
- Intel WIFI6 +BT5.2
- Realtek 2.5G LAN RTL8125
- QUAD display : 2x Type C / HDMI / mDP with HDCP @4x4K/60P
- RS232 COM port in HDD version
- 5x USB 3.2 Gen1 Type A + 2x USB 3.2 Gen2 Type C (4F,3R)
- Realtek ALC255 Codec
- Headphone Jack
- VESA Mounting Bracket (75 x 75mm + 100 x 100mm)
- AC-DC adapter : 100-240V input, 19V/90W
- OS Support : Microsoft Windows 10 64Bit
- 1x Kensington Lock slot
- System Environment Operating Temperature: 0°C to +35°C
- System Storage Temperature: -20°C to +60°C
- Option Daughter board support, 2nd COM port + LAN
-
Dimension46.8 mm x 119.5 mm x 119.5 mm (1.8" x 4.7" x 4.7")
-
Motherboard Size105 x 110 mm
-
CPUAMD RYZEN R5-4500U, 2.3G~4.0G Turbo, 6C/6T Core, 11MB L3 Cache AMD Radeon GPU 1500Mhz, 15W
-
Memory2 x SO-DIMM DDR4 slots 3200MHz Max. 64GB
-
LAN2.5G LAN (Realtek 8125)
-
Wifi CardIntel WiFi6 AX200 / BT 5.2
-
AudioRealtek ALC255
-
VideoAMD Radeon™ Graphics
-
HDMI Resolution (Max.)HDMI2.0a ws HDCP 2.2 3840x2160@60Hz
-
StorageSupports 2.5"" HDD/SSD, 7.0/9.5 mm thick (1 x 6 Gbps SATA 3) 1 x M.2 slot (2280_storage) PCIe Gen3 X4 /SATA
-
Expansion Slots1 x PCIe M.2 NGFF 2230 A-E key slot occupied by the WiFi+BT card
-
Front I/O1 x Power Button 1 x USB 3.2 type C (Gen2) w/ DP alt mode 3 x USB type A 3.2 (Gen1) 1 x head phone jack with MIC
-
Rear I/O1 x HDMI(2.0a) 1 x mDP 1 x USB 3.2 type C (Gen2) w/ DP alt mode 2 x USB 3.2 type A (Gen 1) 1 x RJ45 1 x DC-In
-
Side I/O1 x Kensington lock slot 1 x COM port
-
Power SupplyInput: AC 100-240V Output: DC 19V/4.74A, 90W
-
Support OSWin10 64bit
-
EnvironmentOperating Temperature 0°C to 35°C Storage Temperature -20°C to +60°C
* The entire materials provided herein are for reference only. GIGABYTE reserves the right to modify or revise the content at anytime without prior notice.
* Advertised performance is based on maximum theoretical interface values from respective Chipset vendors or organization who defined the interface specification. Actual performance may vary by system configuration.
* All trademarks and logos are the properties of their respective holders.
* Due to standard PC architecture, a certain amount of memory is reserved for system usage and therefore the actual memory size is less than the stated amount.
