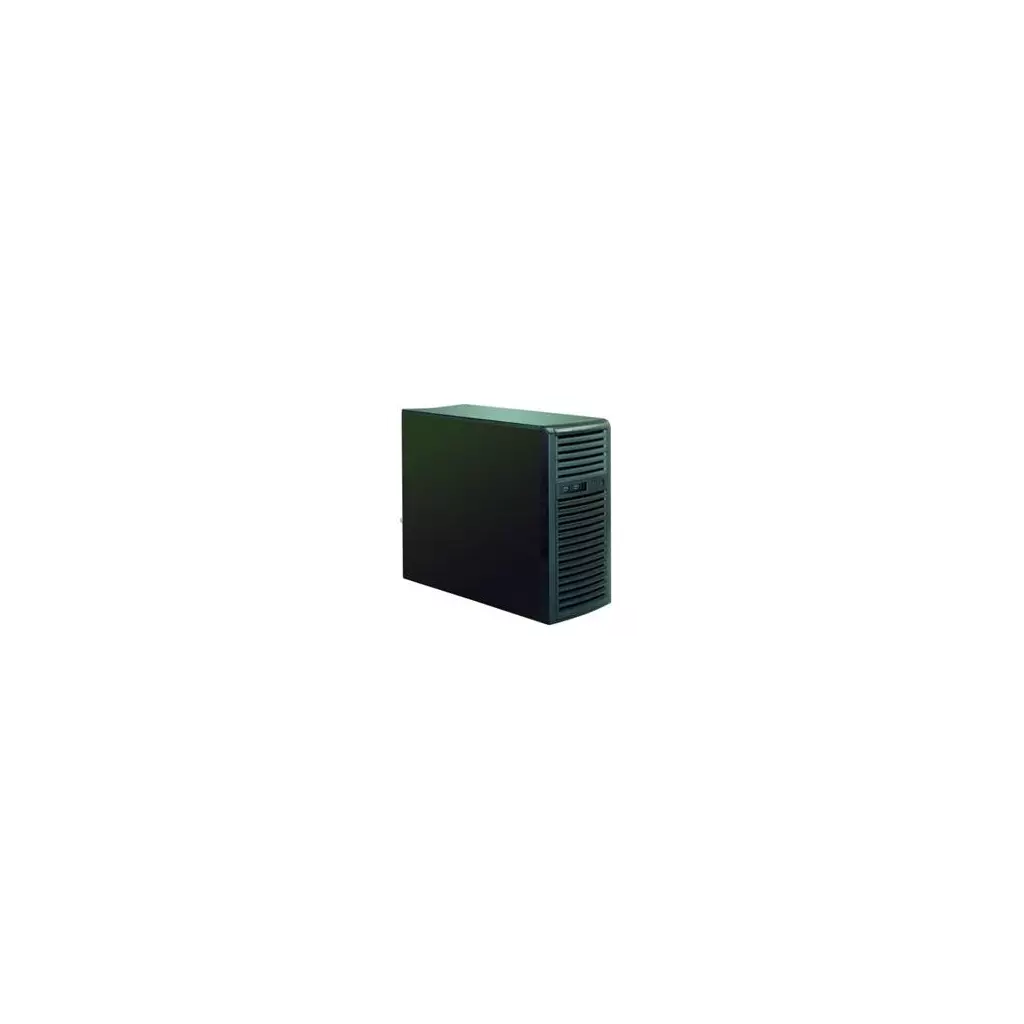

SUPERMICRO Mid-Tower 4x 3,5" fixed HDD, 2x 5,25", 1x external 3,5", 668W (80PLUS Platinum)
Kód zboží (ID): 5265289
vytisknout
již se neprodává
Popis produktu:
Key Features
- 90° Rotatable HDD Cage
- Whisper-Quiet (<21dB)
- Kensington Lock Security
- Front I/O Ports: 2x USB 3.0
- 1x Optional Front 12cm (1850 RPM) PWM Fan
- Mid-Tower Chassis Supports Micro-ATX Motherboard, Sizes ? E-ATX/ATX/Micro ATX
- 668W Platinum Level Certified High-Efficiency Power Supply
- 1x Rear 12cm (1850 RPM) PWM Fan
- 2x 5.25" External HDD Drive Bays & 4x 3.5" Internal HDD Drive Bays
|
|
| Standard Parts List | |||
| Part Number | Qty | Description | |
| Bracket | MCP-250-73201-0N | 1 | SC732 PS2 Power Supply Bracket |
| Cable(s) | CBL-0071L | 1 | ROUND 16 TO 16 PIN RIBBON FP CABLE 30"L, LF |
| Cable(s) | CBL-0084L | 1 | 16PIN FRONT CTRL SPLIT CONVECTOR 6",PB FREE |
| Cable(s) | CBL-CUSB-1007 | 1 | 20p,F to 2x USB 3.0 type A,F,70CM,26/30AWG,RoHS |
| Cable(s) | CBL-PWCD-0160-IS | 1 | PWCD,US,NEMA5-15P TO IEC60320 C13,6FT,16AWG,RoHS/REACH |
| Part(s) | MCP-230-73201-0N | 1 | SC732i USB2.0 Module Assembly |
| Fan(s) | FAN-0124L4 | 1 | 12 CM x12 CM fan |
| Front Bezel | MCP-210-73201-0B | 1 | Black SC732i Front IO Dummy Cover |
| Front Panel | MCP-280-73101-0B | 1 | Black SC731i Plastic Front Control Panel Assembly |
| Drive Tray(s) | MCP-220-73101-0B | 4 | SC731 Tool-less Internal 3.5inch HDD Tray |
| Power Supply & Accessory | PWS-668-PQ | 1 | PS2 668W Multi-Output 80Plus Platinum Power Supply with 24pi |
| Optional Parts List | |||
| Part Number | Qty | Description | |
| Heatsink / Retention | N/A | - | Please refer to our Thermal Components Matrix |
| 2.5" HDD Bracket | MCP-220-73201-0N | - | HDD Cage (4x Internal 2.5" fixed HDD bays) |
| Fan Kit | FAN-0124L4 | - | 12 CM x12 CM fan |
