SC515-505 mini1U ATX/WIO,HDD/4SFF, 505W (80+PLAT), front IO

Product SKUs CSE-515-505 SuperChassis 515-505 Form Factor Support STD and WIO MB size up 12"x13" Processor Support Dual and Single Intel® and AMD processors Dimensions Height 1.7" (43 mm) Width 17.2" (437 mm) Depth 16.9" (429 mm) Gross Weight 16 lbs (7.26 kg) Packaging (W x H x L) 27" (686 mm) x 8" (203 mm) x 24" (610 mm) Available Color No Paint Expansion Slots Up to 2 full height expansion slot(s) Drive Bays Optional up to 4 x 2.5" fixed with bracket Up to 1 x 3.5" fixed drive bay SAS or enterprise SATA HDD only recommended Front Panel Buttons Power On/Off button System Reset Button LEDs 2 Network Activity LEDs Fan Fail/System Over Heat LED HDD activity LED Power Status LED Systems Cooling Fans 4 x 40x56mm PWM fan(s) Optional 2 x fans for AOC cooling Operating Environment (System) Operating Temperature Range 5°C - 35°C (41°F - 95°F) Non-Operating Temperature Range -40°C - 70°C (-40°F - 158°F) Operating Relative Humidity Range 8% - 90% (non-condensing) Non-Operating Relative Humidity Range 5% - 95% (non-condensing) Power Supply 1U 500W Multi-output power supply w/ PMbus, 80Plus Platinum Power Efficiency 93% Total Output Power and Input 500W with Input 100 - 240Vac AC Input Frequency 50-60Hz Dimensions (L x W x H) 180 x 100 x 40 mm Output Type 24pin ATX -12V Max: 0.2A / Min: 0A +12V Max: 41A / Min: 0.5A (100Vac - 240Vac) +5V Max: 15A / Min: 0.2A +3.3V Max: 12A / Min: 0.2A +5Vsb Max: 3A / Min: 0A Certification Platinum Certified Platinum Certified Regulatory (Power Supply) Power Supply Safety / EMC BSMI CCC CE/EMC FCC class A UL/CB UL/CUL Components ? Standard Parts List Part Number Qty Description Cable(S) CBL-0160L 1 US POWER CORD 16AWG, PB FREE Cable(S) CBL-0306L 1 FRONT CTRL CABLE ROUND 16 TO 16 PIN RIBBON, 65CM Fan(s) FAN-0157L4 4 40x40x56 mm 13K-11K RPM Counter-rotating Fan w/ a 160-mm Wire Coming out from the Fan Inlet Side,RoHS/REACH Front Panel MCP-280-51201-0N 1 Front control board (FP512) for SC512 (surface-mounted LED) Cooling Fan & Accessory MCP-320-00027-0B 24 Plastic pin for 40x28, 40x56 fan Cooling Fan & Accessory MCP-320-81801-0B 3 SC818G 2x 4056 fan tray,HF,RoHS,PBF Cooling Fan & Accessory MCP-340-00035-0B 2 Dummy fan 40x56mm for 40x56 counter-rotating fan (cost-effective) Part(s) MCP-260-00078-0N 1 1U I/O shield for X10 and X9 Server MB with 5X5mm vent hole and EMI Gasket,RoHS/REACH,PBF Power Supply & Accessory PWS-505P-1H 1 1U 500W Multi-output, Platinum level w/ PMbus 24pin, W100xL180xH40mm,RoHS/REACH Mounting Rail(s) MCP-290-00102-0N 1set Outer rail, quick-release type, 25.6" to 33.05" Mounting Rail(s) MCP-290-00108-0N 1set Inner rail, front, short, quick-release type Rear Window MCP-240-51501-0N 1 rear window for SC515 single PWS chassis Optional Parts List Part Number Qty Description Rail MCP-290-00056-0N - Quick-release outer rail for square hole short-depth rack (19"~26.4") Chassis parts MCP-240-51502-0N - Riser card bracket for WIO MB in SC515 Tray(s) MCP-220-51401-0N - Dual 2.5" fixed HDD bracket for SC514,515(MCP-220-51402-0N required) Tray(s) MCP-220-51402-0N - 3.5in fixed HDD tray for SC514,515 Cable CBL-0296L - 4 pin to 4 pin fan extension cord, for PWM fan. 23cm. 24AWG Cable CBL-0156L - Front ctrl cable Round 16 pin to 16 pin, 40cm, 28AWG Cable CBL-0260L - US power cord 18AWG 6ft, PBF (default for low watt) Motherboard (for CSE- 515-505) X11SSZ-TLN4F X11SSZ-F X11SSZ-QF X10SRM-TF X10SRM-F X11SSW-4TF X11SSW-TF = Most optimized Chassis for SuperServer Configuration Blue color = Compatible Green color = Global SKU & Compatible Red dot & green color = Optimized + Global SKU

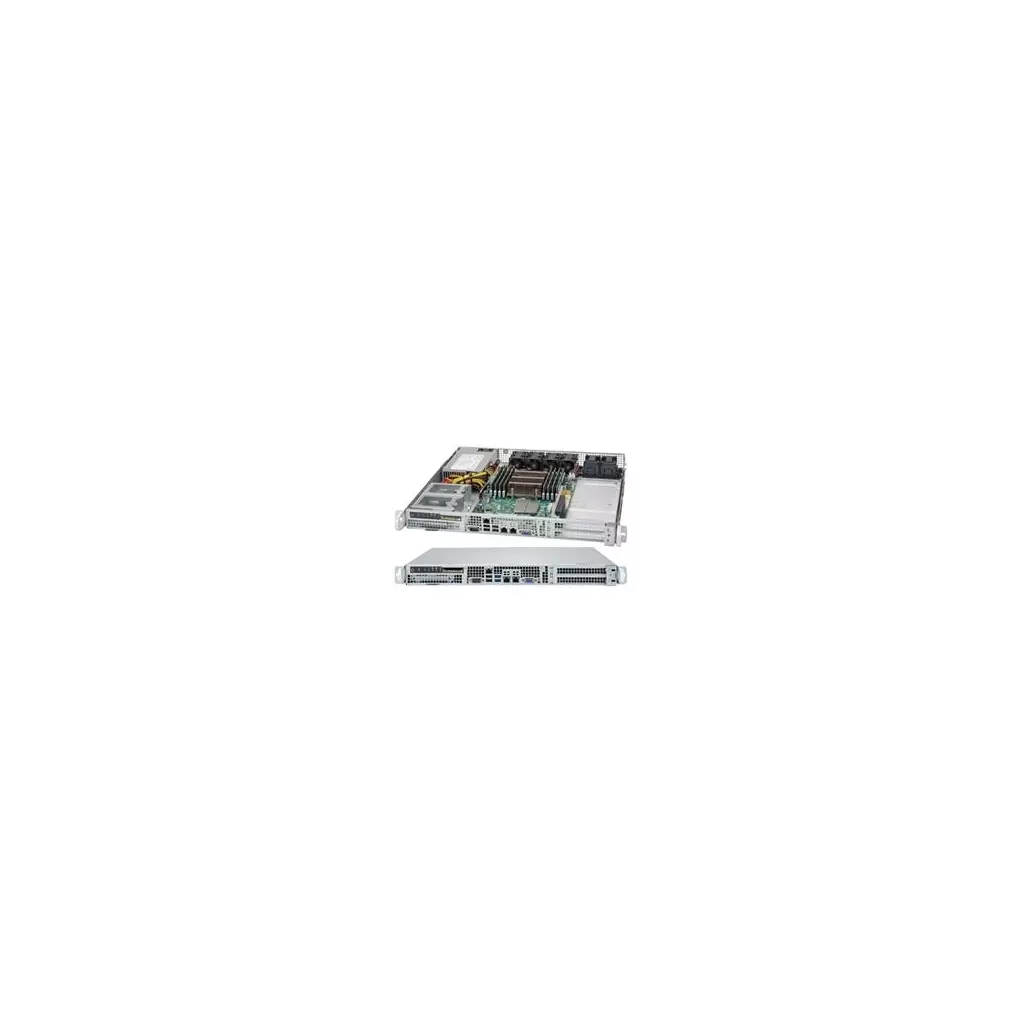

Serverová skříň SuperMicro SC515-505 pro mini 1U rackmount, chassi má hloubku pouze 43cm a IO porty na předním panelu. Je určena pro jedno a dvouprocesorové eATX desky do velikosti 10,3" × 13" a WIO desky 12,3" × 13". O napájení se stará 505W zdroj s vysokou účinnost PLATINUM. Tato skříň je určena pro čtyři 2.5" (MCP-220-51401-0N a MCP-220-51402-0N) nebo jeden 3,5" pevný disk bez hot swap. O aktuálním stavu serveru informuje 5 LED indikatorů ( napajení, aktivita pevných disků, 2× aktivita síťových karet a indikace přehrátí systému). Součástí chassi je tag štítek pro snazší evidenci. Systém je ochlazován čtyřmi vysoko otáčkovými větráky 40×40×46mm ventilátory. Další dva stejné větráky lze doplnit (FAN-0157L4). Kolejnice pro montáž do racku jsou součástí.

Supermicro 515-505. Formát: Skříň, Model: Server, Barva: Šedá. Napájecí zdroj: 500 W. Podporované pevné velikosti disků: 2.5,3.5". Šířka: 437 mm, Hloubka: 429 mm, Výška: 43 mm. Šířka balení: 685 mm, Hloubka balení: 609 mm, Výška balení: 203 mm
