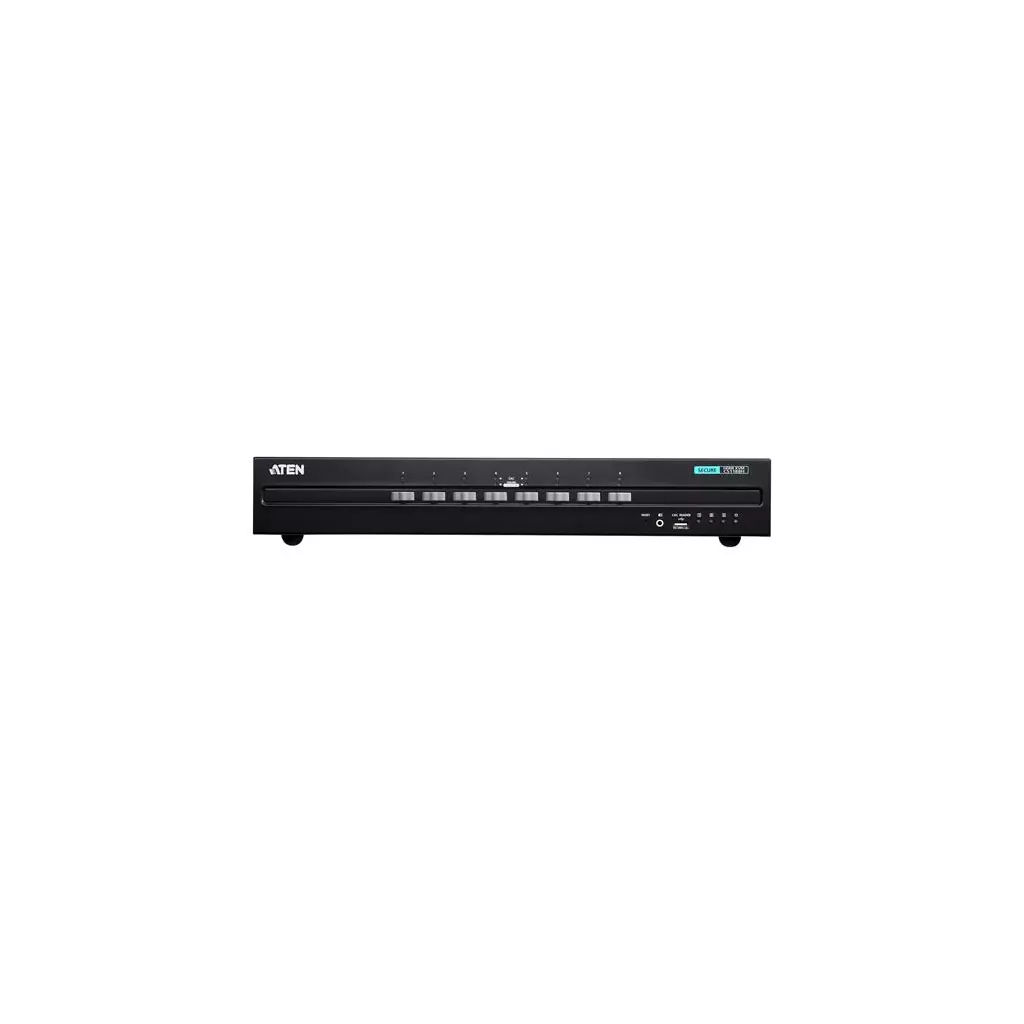

Aten 8-Port USB HDMI Secure KVM Switch (PSS PP v3.0 Compliant)

Compliant with PSS PP v3.0 (Protection Profile for Peripheral Sharing Switch, Version 3.0) security requirements Always-on Chassis Intrusion Detection – renders the ATEN PSS PP v3.0 Secure KVM Switches inoperable when physical tampering is detected Configurable Device Filtering – USB CAC Port can be configured to allow/reject whitelisted / blacklisted devices via Admin logon function or Windows-based application Superior video quality – up to 4K (3840 x 2160 @ 30 Hz)** ATEN PSS PP v3.0 Secure KVM Switch (CS1188H) is specifically designed to meet the stringent security requirement of secure defense and intelligence installations. ATEN PSS PP v3.0 Secure KVM Switch (CS1188H) is compliant with PSS PP v3.0 (Protection Profile for Peripheral Sharing Switch, Version 3.0) standard certified by the National Information Assurance Partnership (NIAP). ATEN PSS PP v3.0 Secure KVM Switch (CS1188H) provides isolation between computer sources and peripherals while sharing a single keyboard, mouse, monitor, speaker set, and Common Access Card (CAC) reader between connected computers of various security classifications. Compliance with PSS PP v3.0 ensures peripheral sharing capabilities provide maximum user data security when switching port focus, preventing unauthorized data flows or leakage between connected sources. Key protections include isolation and unidirectional data flow, restricted peripheral connectivity and filtering, user data protection, configurable device filtering and management, and always-on tamper-proof design, keeping sensitive assets isolated and providing advanced security and a user friendly design for instantly secure deployment. With multi-layered security, ATEN PSS PP v3.0 Secure KVM Switch (CS1188H) ensures high-level desktop security and data safekeeping for applications such as government agencies, finance, and other organizations that often handle sensitive or confidential data on separate networks. NIAP Common Criteria Compliant Compliant with PSS PP v3.0 (Protection Profile for Peripheral Sharing Switch, Version 3.0) security requirements Multi-Layered Security Restricted USB Connectivity – non-authorized HIDs (Human Interface Devices) or non-predefined CAC devices will be rejected / ignored Always-on Chassis Intrusion Detection – renders the ATEN PSS PP v3.0 Secure KVM Switches inoperable when physical tampering is detected Tamper-Evident Seals– provides visual indication of any attempt to access the ATEN PSS PP v3.0 Secure KVM Switches’ internal components Non-Reprogrammable Firmware – prevents reprogramming the ATEN PSS PP v3.0 Secure KVM Switches Port selection via pushbuttons only to enhance security LED indicators for peripheral filtering and KVM security status Rugged metal enclosure Data Channel Isolation and Unidirectional Data Flow Data Channel Isolation – prevents data leakage between connected computers via isolated channel per port Unidirectional Data Flow – ensures unidirectional data flow between the console devices and the selected computer ATEN PSS PP v3.0 Secure KVM Switches control and isolate data flow between the console devices and connected computers Supports analog audio (speaker only)* User Data Protection User Data Protection – Keyboard/Mouse data buffer is automatically purged when switching KVM port focus Security Management KVM Log Data – provides administrative functions for authorized administrator to audit KVM log data Configurable Device Filtering – USB CAC Port can be configured to allow/reject whitelisted / blacklisted devices via Admin logon function or Windows-based application Supports enable / disable CAC function by port Superior Video Quality Superior video quality – up to 4K (3840 x 2160 @ 30 Hz)** Video DynaSync™ – Exclusive ATEN technology eliminates boot-up display problems and optimizes resolutions when switching between ports * Only analog speaker data input is supported. The ATEN PSS PP v3.0 Secure KVM Switches does not convert digital audio to analog audio. ** HDMI Secure KVM Switch series supports console video output resolutions up to 4K @ 30 Hz. Package Contents 1x CS1188H 8-Port USB HDMI Secure KVM Switch 1x Power Cord 1x User Instructions

Compliant with PSS PP v3.0 (Protection Profile for Peripheral Sharing Switch, Version 3.0) security requirements Always-on Chassis Intrusion Detection – renders the ATEN PSS PP v3.0 Secure KVM Switches inoperable when physical tampering is detected Configurable Device Filtering – USB CAC Port can be configured to allow/reject whitelisted / blacklisted devices via Admin logon function or Windows-based application Superior video quality – up to 4K (3840 x 2160 @ 30 Hz)** ATEN PSS PP v3.0 Secure KVM Switch (CS1188H) is specifically designed to meet the stringent security requirement of secure defense and intelligence installations. ATEN PSS PP v3.0 Secure KVM Switch (CS1188H) is compliant with PSS PP v3.0 (Protection Profile for Peripheral Sharing Switch, Version 3.0) standard certified by the National Information Assurance Partnership (NIAP). ATEN PSS PP v3.0 Secure KVM Switch (CS1188H) provides isolation between computer sources and peripherals while sharing a single keyboard, mouse, monitor, speaker set, and Common Access Card (CAC) reader between connected computers of various security classifications. Compliance with PSS PP v3.0 ensures peripheral sharing capabilities provide maximum user data security when switching port focus, preventing unauthorized data flows or leakage between connected sources. Key protections include isolation and unidirectional data flow, restricted peripheral connectivity and filtering, user data protection, configurable device filtering and management, and always-on tamper-proof design, keeping sensitive assets isolated and providing advanced security and a user friendly design for instantly secure deployment. With multi-layered security, ATEN PSS PP v3.0 Secure KVM Switch (CS1188H) ensures high-level desktop security and data safekeeping for applications such as government agencies, finance, and other organizations that often handle sensitive or confidential data on separate networks. NIAP Common Criteria Compliant Compliant with PSS PP v3.0 (Protection Profile for Peripheral Sharing Switch, Version 3.0) security requirements Multi-Layered Security Restricted USB Connectivity – non-authorized HIDs (Human Interface Devices) or non-predefined CAC devices will be rejected / ignored Always-on Chassis Intrusion Detection – renders the ATEN PSS PP v3.0 Secure KVM Switches inoperable when physical tampering is detected Tamper-Evident Seals– provides visual indication of any attempt to access the ATEN PSS PP v3.0 Secure KVM Switches’ internal components Non-Reprogrammable Firmware – prevents reprogramming the ATEN PSS PP v3.0 Secure KVM Switches Port selection via pushbuttons only to enhance security LED indicators for peripheral filtering and KVM security status Rugged metal enclosure Data Channel Isolation and Unidirectional Data Flow Data Channel Isolation – prevents data leakage between connected computers via isolated channel per port Unidirectional Data Flow – ensures unidirectional data flow between the console devices and the selected computer ATEN PSS PP v3.0 Secure KVM Switches control and isolate data flow between the console devices and connected computers Supports analog audio (speaker only)* User Data Protection User Data Protection – Keyboard/Mouse data buffer is automatically purged when switching KVM port focus Security Management KVM Log Data – provides administrative functions for authorized administrator to audit KVM log data Configurable Device Filtering – USB CAC Port can be configured to allow/reject whitelisted / blacklisted devices via Admin logon function or Windows-based application Supports enable / disable CAC function by port Superior Video Quality Superior video quality – up to 4K (3840 x 2160 @ 30 Hz)** Video DynaSync™ – Exclusive ATEN technology eliminates boot-up display problems and optimizes resolutions when switching between ports * Only analog speaker data input is supported. The ATEN PSS PP v3.0 Secure KVM Switches does not convert digital audio to analog audio. ** HDMI Secure KVM Switch series supports console video output resolutions up to 4K @ 30 Hz. Package Contents 1x CS1188H 8-Port USB HDMI Secure KVM Switch 1x Power Cord 1x User Instructions

Compliant with PSS PP v3.0 (Protection Profile for Peripheral Sharing Switch, Version 3.0) security requirements Always-on Chassis Intrusion Detection – renders the ATEN PSS PP v3.0 Secure KVM Switches inoperable when physical tampering is detected Configurable Device Filtering – USB CAC Port can be configured to allow/reject whitelisted / blacklisted devices via Admin logon function or Windows-based application Superior video quality – up to 4K (3840 x 2160 @ 30 Hz)** ATEN PSS PP v3.0 Secure KVM Switch (CS1188H) is specifically designed to meet the stringent security requirement of secure defense and intelligence installations. ATEN PSS PP v3.0 Secure KVM Switch (CS1188H) is compliant with PSS PP v3.0 (Protection Profile for Peripheral Sharing Switch, Version 3.0) standard certified by the National Information Assurance Partnership (NIAP). ATEN PSS PP v3.0 Secure KVM Switch (CS1188H) provides isolation between computer sources and peripherals while sharing a single keyboard, mouse, monitor, speaker set, and Common Access Card (CAC) reader between connected computers of various security classifications. Compliance with PSS PP v3.0 ensures peripheral sharing capabilities provide maximum user data security when switching port focus, preventing unauthorized data flows or leakage between connected sources. Key protections include isolation and unidirectional data flow, restricted peripheral connectivity and filtering, user data protection, configurable device filtering and management, and always-on tamper-proof design, keeping sensitive assets isolated and providing advanced security and a user friendly design for instantly secure deployment. With multi-layered security, ATEN PSS PP v3.0 Secure KVM Switch (CS1188H) ensures high-level desktop security and data safekeeping for applications such as government agencies, finance, and other organizations that often handle sensitive or confidential data on separate networks. NIAP Common Criteria Compliant Compliant with PSS PP v3.0 (Protection Profile for Peripheral Sharing Switch, Version 3.0) security requirements Multi-Layered Security Restricted USB Connectivity – non-authorized HIDs (Human Interface Devices) or non-predefined CAC devices will be rejected / ignored Always-on Chassis Intrusion Detection – renders the ATEN PSS PP v3.0 Secure KVM Switches inoperable when physical tampering is detected Tamper-Evident Seals– provides visual indication of any attempt to access the ATEN PSS PP v3.0 Secure KVM Switches’ internal components Non-Reprogrammable Firmware – prevents reprogramming the ATEN PSS PP v3.0 Secure KVM Switches Port selection via pushbuttons only to enhance security LED indicators for peripheral filtering and KVM security status Rugged metal enclosure Data Channel Isolation and Unidirectional Data Flow Data Channel Isolation – prevents data leakage between connected computers via isolated channel per port Unidirectional Data Flow – ensures unidirectional data flow between the console devices and the selected computer ATEN PSS PP v3.0 Secure KVM Switches control and isolate data flow between the console devices and connected computers Supports analog audio (speaker only)* User Data Protection User Data Protection – Keyboard/Mouse data buffer is automatically purged when switching KVM port focus Security Management KVM Log Data – provides administrative functions for authorized administrator to audit KVM log data Configurable Device Filtering – USB CAC Port can be configured to allow/reject whitelisted / blacklisted devices via Admin logon function or Windows-based application Supports enable / disable CAC function by port Superior Video Quality Superior video quality – up to 4K (3840 x 2160 @ 30 Hz)** Video DynaSync™ – Exclusive ATEN technology eliminates boot-up display problems and optimizes resolutions when switching between ports * Only analog speaker data input is supported. The ATEN PSS PP v3.0 Secure KVM Switches does not convert digital audio to analog audio. ** HDMI Secure KVM Switch series supports console video output resolutions up to 4K @ 30 Hz. Package Contents 1x CS1188H 8-Port USB HDMI Secure KVM Switch 1x Power Cord 1x User Instructions

Přepínač pro ovládání 8 zabezpečených počítačů (klávesnice USB / PS/2, video HDMI, myš USB / PS/2) z jednoho stanoviště. Certifikováno NIAP (National Information Assurance Partnership) a splňuje PSS PP v3.0 (Protection Profile for Peripheral Sharing Switch, Version 3.0).

Parametr	Popis
Použití	Pokud potřebujete dosáhnout vysoké kybernetické bezpečnosti při ovládání počítačů v citlivých instalacích, použijte tento přepínač. Poskytuje datovou izolaci mezi počítači a periferními zařízeními a zároveň sdílí jednu klávesnici, myš, monitor, sadu reproduktorů a čtečku karet Common Access Card (CAC) mezi připojenými počítači různých bezpečnostních tříd.
Typ	CS1188H
Konektory	PC klávesnice a myš: 8x USB B(F) PC připojení pro čtečku karet: 8x USB B(F) PC video: 8x HDMI A(F) PC audio: 8x stereo jack3,5F konzole klávesnice a myš: 2x USB A(F) + 2x PSF konzole video: HDMI A(F) vstup pro čtečku karet: USB A(F) (na předním panelu) výstup audio: stereo jack3,5F (na předním panelu) napájení: IEC320/C14
Podpora	- emulace klávesnice - emulace myši - Video DynaSync - optimalizace rozlišení při startu a při přepínání
Zabezpečení	- omezené připojení USB - neautorizovaná zařízení HID (Human Interface Devices) nebo nedefinovaná zařízení CAC budou odmítnuto / ignorováno - Detekce mechanického narušení přepínače - způsobí, že přepínače ATEN PSS PP v3.0 Secure KVM budou nefunkční, když je detekována fyzická manipulace - bezpečnostní přelepka - poskytuje vizuální indikaci o pokus přístupu k vnitřním součástem přepínače - nemožnost ovlivnit hardware - všechny integrované obvody jsou připájeny přímo na desce, aby se zabránilo manipulaci s komponentami - ROM nelze změnit - zabraňuje neoprávněnému zásahu o pokus přeprogramovat firmware přepínače - mazání vyrovnávací paměti klávesnice - údaje z klávesnice se automaticky vymaže po přepnutí na jiný port přepínače - jednosměrný tok dat mezi konzolí a počítačem
Rozlišení	4K@30Hz (3840 x 2160)
Napájení	100-240V / 50-60Hz
Spotřeba	8,2W
Přepínání	manuálně tlačítkem (pro každý port jedno tlačítko) vypínač napájení
Indikace	LED - 8x oranžová (KVM - online/vybráno), 8x zelená (CAC - online/vybráno), 1x modrá (napájení), 2x zelená (video), 3x zelená (status klávesnice)
Barva	černá
Materiál	odolný kovový kryt
Rozměry	435 x 65,5 x 205mm
Obsah balení	přepínač, napájecí kabel 230V
Druh obalu	papírová krabice;
