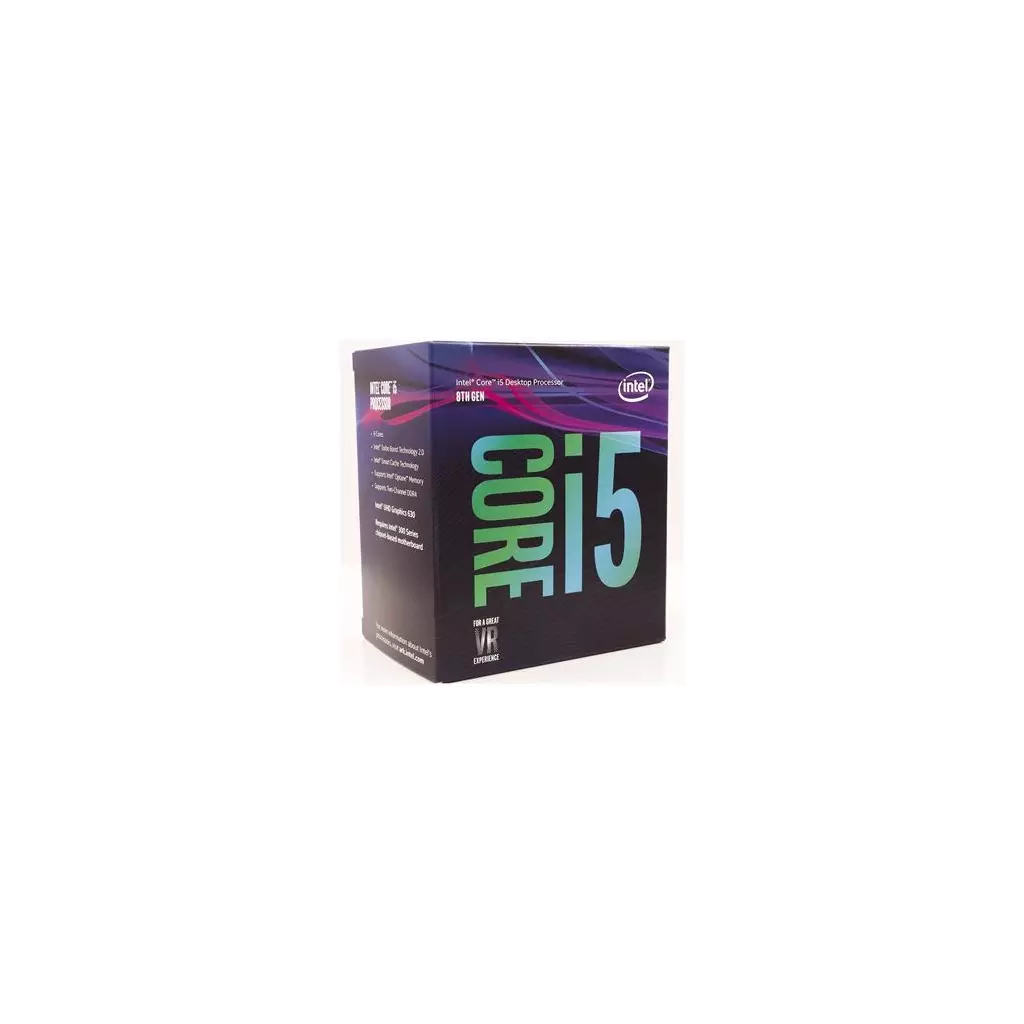

INTEL Core i5-8500T / Coffee Lake / LGA1151 / max. 3,5 GHz / 6C/6T / 9MB / 35W TDP / BOX bez chladiče
Kód zboží (ID): 3170899
vytisknout
již se neprodává
Popis produktu:
| Parametr | Hodnota |
|---|---|
| Socket (patice) | Socket 1151 |
| Druh procesoru | Desktopový |
| Řada procesoru | Intel Core i5 |
| Počet jader | 6 |
| Velikost L3 cache | 9 MB |
Specifikace:
| Code Name | Coffee Lake |
| Essentials | |
| Vertical Segment | Desktop |
| Processor Number | i5-8500T |
| Lithography | 14 nm |
| Use Conditions | Embedded Broad Market Commercial Temp, PC/Client/Tablet |
| Performance | |
| # of Cores | 6 |
| # of Threads | 6 |
| Processor Base Frequency | 2.10 GHz |
| Max Turbo Frequency | 3.50 GHz |
| Cache | 9 MB SmartCache |
| Bus Speed | 8 GT/s DMI3 |
| TDP | 35 W |
| Configurable TDP-down Frequency | 1.60 GHz |
| Configurable TDP-down | 25 W |
| Supplemental Information | |
| Embedded Options Available | Yes |
| Memory Specifications | |
| Max Memory Size (dependent on memory type) | 64 GB |
| Memory Types | DDR4-2666 |
| Max # of Memory Channels | 2 |
| Max Memory Bandwidth | 41.6 GB/s |
| ECC Memory Supported ‡ | No |
| Processor Graphics | |
| Processor Graphics <sup><small>‡</small></sup> | Intel UHD Graphics 630 |
| Graphics Base Frequency | 350 MHz |
| Graphics Max Dynamic Frequency | 1.10 GHz |
| Graphics Video Max Memory | 64 GB |
| 4K Support | Yes, at 60Hz |
| Max Resolution (HDMI 1.4)‡ | 4096x2304@24Hz |
| Max Resolution (DP)‡ | 4096x2304@60Hz |
| Max Resolution (eDP - Integrated Flat Panel)‡ | 4096x2304@60Hz |
| DirectX* Support | 12 |
| OpenGL* Support | 4.5 |
| Intel Quick Sync Video | Yes |
| Intel InTru™ 3D Technology | Yes |
| Intel Clear Video HD Technology | Yes |
| Intel Clear Video Technology | Yes |
| # of Displays Supported ‡ | 3 |
| Device ID | 0x3E92 |
| Expansion Options | |
| Scalability | 1S Only |
| PCI Express Revision | 3.0 |
| PCI Express Configurations ‡ | Up to 1x16, 2x8, 1x8+2x4 |
| Max # of PCI Express Lanes | 16 |
| Package Specifications | |
| Sockets Supported | FCLGA1151 |
| Max CPU Configuration | 1 |
| Thermal Solution Specification | PCG 2015A (35W) |
| T<sub>JUNCTION</sub> | 100°C |
| Package Size | 37.5mm x 37.5mm |
| Advanced Technologies | |
| Intel Optane™ Memory Supported ‡ | Yes |
| Intel Turbo Boost Technology | 2.0 |
| Intel vPro™ Platform Eligibility ‡ | Yes |
| Intel Hyper-Threading Technology ‡ | No |
| Intel Virtualization Technology (VT-x) ‡ | Yes |
| Intel Virtualization Technology for Directed I/O (VT-d) ‡ | Yes |
| Intel VT-x with Extended Page Tables (EPT) ‡ | Yes |
| Intel TSX-NI | Yes |
| Intel 64 ‡ | Yes |
| Instruction Set | 64-bit |
| Instruction Set Extensions | Intel SSE4.1, Intel SSE4.2, Intel AVX2 |
| Idle States | Yes |
| Enhanced Intel SpeedStep Technology | Yes |
| Thermal Monitoring Technologies | Yes |
| Intel Identity Protection Technology ‡ | Yes |
| Intel Stable Image Platform Program (SIPP) | Yes |
| Security & Reliability | |
| Intel AES New Instructions | Yes |
| Secure Key | Yes |
| Intel Software Guard Extensions (Intel SGX) | Yes with Intel ME |
| Intel Memory Protection Extensions (Intel MPX) | Yes |
| Intel OS Guard | Yes |
| Intel Trusted Execution Technology ‡ | Yes |
| Execute Disable Bit ‡ | Yes |
| Intel Boot Guard | Yes |
ZÁKLADNÍ SPECIFIKACE
Model procesoru: i5-8500T Frekvence: 2100 MHz Max. frekvence: 3500 MHz Patice: 1151 Počet jader: 6 Počet vláken: 6 L2 cache: 6 x 256 KB L3 cache: 9 MB TDP: 35 W
Grafický čip: Intel UHD 630
Architektura Výrobní proces: 0.014 micron
Podporované technologie Rozšířená 64-bit technologie paměti VT-x/ VT-d Virtualizační technologie Intel InTru 3D technologie Intel Clear Video HD technologie Intel vPro technologie Intel Turbo Boost technologie
Řadič paměti Počet řadičů: 1 Paměťové kanály: 2 Podpora pamětí: DDR4-2666 Podpora ECC pamětí: ne
Balení neobsahuje chladič procesoru.
