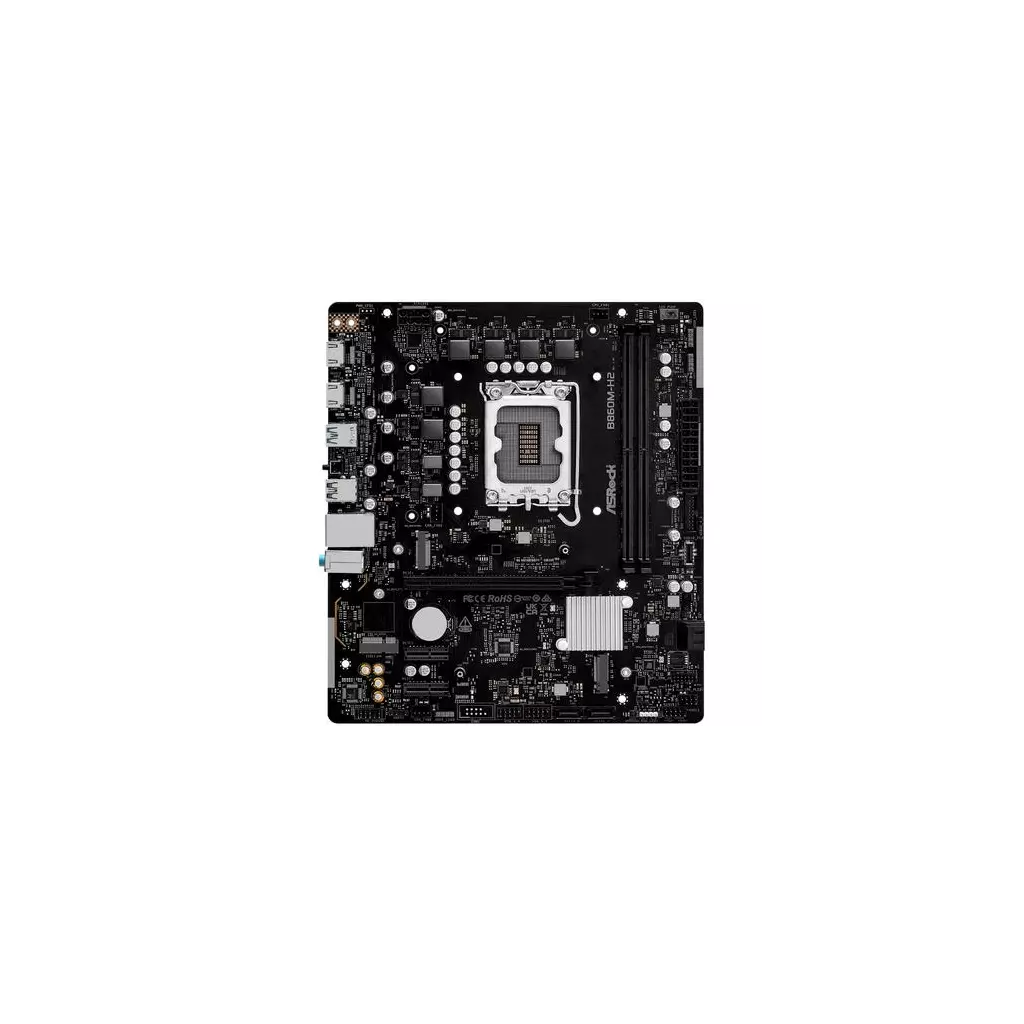

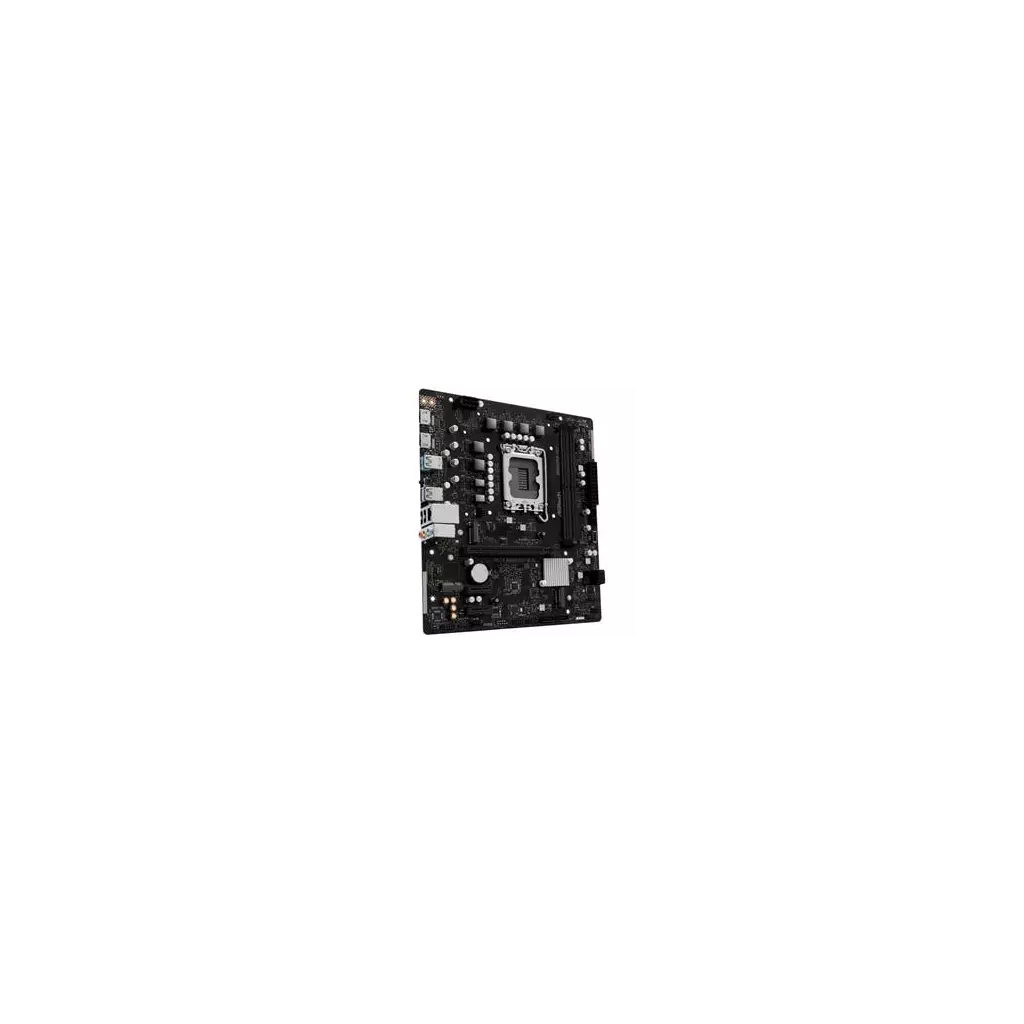

ASROCK B860M-H2 (intel 1851, 2xDDR5, mATX)

Unique Feature

Superb Productivity - PCIe Gen5 (M.2) - Dual Channel DDR5 Rock-Solid Durability - 5+1+1+1+1 Power Phase ASRock Intel 4-Layer Memory POOL (Planes on Outer Layers) Technology EZ Update - BIOS Flashback Button - ASRock Auto Driver Installer

CPU

- Supports Intel Core™ Ultra Processors (Series 2) (LGA1851) - Supports Intel Hybrid Technology - Supports Intel Turbo Boost Max 3.0 Technology - Supports Intel Thermal Velocity Boost (TVB) - Supports Intel Adaptive Boost Technology (ABT) - Integrated NPU for dedicated AI acceleration

Chipset

- Intel B860

Memory

- Dual Channel DDR5 Memory Technology - 2 x DDR5 DIMM Slots - Supports DDR5 non-ECC, un-buffered memory up to 8333+(OC)* - Supports Clocked Unbuffered DIMM (CUDIMM) - Max. capacity of system memory: 128GB - Supports Intel Extreme Memory Profile (XMP) 3.0x *1DPC 1R Up to 8333+ MHz (OC), 6400 MHz Natively. 1DPC 2R Up to 6200+ MHz (OC), 6400 MHz Natively.

BIOS

- 256Mb AMI UEFI Legal BIOS with GUI support

Graphics

- Intel Xe LPG Graphics Architecture - 2 x HDMI 2.1 TMDS/FRL 8G Compatible, support HDR, HDCP 2.3 and max. resolution up to 4K 120Hz *Intel UHD Graphics Built-in Visuals and the VGA outputs can be supported only with processors which are GPU integrated.

Audio

- 7.1 CH HD Audio (Realtek ALC897 Audio Codec)

LAN

- Gigabit LAN 10/100/1000 Mb/s - Realtek 8111H

Slots

CPU: - 1 x PCIe 4.0 x16 Slot (PCIE1), supports x16 mode* Chipset: - 2 x PCIe 4.0 x1 Slots (PCIE2 and PCIE3)* - 1 x M.2 Socket (Key E), supports type 2230 WiFi/BT PCIe WiFi module *Supports NVMe SSD as boot disks

Storage

CPU: - 1 x Blazing M.2 Socket (M2_1, Key M), supports type 2280 PCIe Gen5x4 (128 Gb/s) mode* Chipset: - 1 x Hyper M.2 Socket (M2_2, Key M), supports type 2280 PCIe Gen4x4 (64 Gb/s) mode* - 4 x SATA3 6.0 Gb/s Connectors *Supports Intel Volume Management Device (VMD) Supports NVMe SSD as boot disks

RAID

- Supports RAID 0, RAID 1, RAID 5 and RAID 10 for SATA storage devices

USB

CPU: - 1 x USB 3.2 Gen2x2 Type-C (Rear) Chipset: - 1 x USB 3.2 Gen1 Type-C (Front) - 5 x USB 3.2 Gen1 Type-A (3 Rear, 2 Front) - 6 x USB 2.0 (2 Rear, 4 Front) *All USB ports support ESD Protection

Connector

- 1 x SPI TPM Header - 1 x Power LED and Speaker Header - 1 x RGB LED Header* - 3 x Addressable LED Headers** - 1 x CPU Fan Connector (4-pin) (Smart Fan Speed Control)*** - 2 x Chassis Fan Connectors (4-pin) (Smart Fan Speed Control)*** - 1 x AIO Pump Fan Connector (4-pin) (Smart Fan Speed Control)*** - 1 x 24 pin ATX Power Connector - 1 x 8 pin 12V Power Connector - 2 x USB 2.0 Headers (Support 4 USB 2.0 ports) - 1 x USB 3.2 Gen1 Headers (Supports 2 USB 3.2 Gen1 ports) - 1 x Front Panel Type C USB 3.2 Gen1 Header *Supports in total up to 12V/3A, 36W LED Strip **Support in total up to 5V/3A, 15W LED Strip ***CPU_FAN1, CHA_FAN1~2 and AIO_PUMP support the fan power up to 3A (36W). CPU_FAN1, CHA_FAN1~2 and AIO_PUMP can auto detect if 3-pin or 4-pin fan is in use.

Rear Panel I/O

- 2 x Antenna Mounting Points - 2 x HDMI Ports - 1 x USB 3.2 Gen2x2 Type-C Port (20 Gb/s) - 3 x USB 3.2 Gen1 Type-A Ports - 2 x USB 2.0 Ports - 1 x RJ-45 LAN Port - 1 x BIOS Flashback Button - HD Audio Jacks: Line in / Front Speaker / Microphone

Software and UEFI

Software - ASRock Motherboard Utility (A-Tuning) - ASRock Polychrome SYNC* UEFI - ASRock EZ Mode - ASRock Full HD UEFI - ASRock My Favorites in UEFI - ASRock Auto Driver Installer - ASRock Instant Flash *These utilities can be downloaded from ASRock Live Update & APP Shop.

Accessories

- 1 x I/O Shield - 2 x SATA Data Cables - 1 x Screw for M.2 Socket

Form Factor

- Micro ATX Form Factor: 9.6-in x 8.3-in, 24.4 cm x 21.1 cm

OS

- Microsoft Windows 11 64-bit

Certifications

- FCC, CE - ErP/EuP ready (ErP/EuP ready power supply is required)
