GIGABYTE B860M EAGLE V2

Kód zboží (ID): 6762051 vytisknout

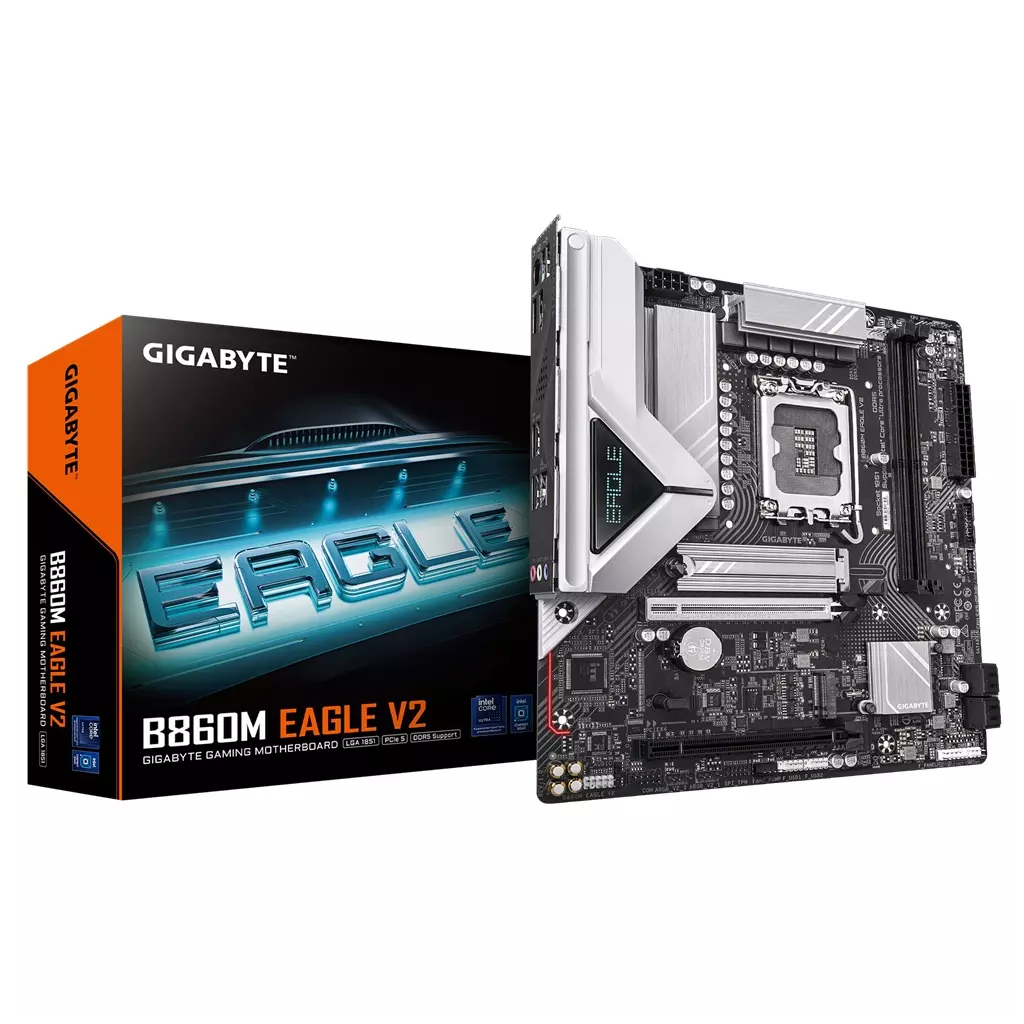

Obrázek produktu GIGABYTE B860M EAGLE V2
Stav zboží: Nové
Dostupnost: skladem (ext. sklad)
Datum odeslání: Expedujeme pozítří
Výrobce: GIGABYTE
Kód zboží: 6762051
Číslo zboží (PN): B860M EAGLE V2
EAN: 4719331869656
Záruka koncový zákazník: 36 měsíců
Záruka při koupi na IČO: 36 měsíců
Cena bez DPH: * 2822.24 Kč
Cena vč. DPH: * 3415 Kč
* - cena uvedena vč. recyklačních a autorských poplatků.

Popis produktu:

GIGABYTE B860M EAGLE V2 Chipset: Intel B860 Express Chipset Rozměrový formát: Micro ATX Form Factor; 24.4cm x 22.5cm Podpora pro procesory: Intel ® Core™ Ultra Patice procesoru: LGA1851 Paměť: * 2 x DDR5 DIMM sockets supporting up to 128 GB (64 GB single DIMM capacity) of system memory *Dual channel memory architecture *Support for ECC Un-buffered DIMM 1Rx8/2Rx8 memory modules (operate in non-ECC mode) *Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules *Support for Extreme Memory Profile (XMP) memory modules Grafické výstupy: * 1 x HDMI port, supporting a maximum resolution of 4096x2160@60 Hz - Support for HDMI 2.1 version and HDCP 2.3 * 1 x DisplayPort, supporting a maximum resolution of 3840x2160@144 Hz - Support for DisplayPort 2.1 version Zvuková karta: *Realtek® Audio CODEC *High Definition Audio *2/4/5.1/7.1-channel *Support for S/PDIF Out Ethernet: Realtek® 2.5GbE LAN chip (2.5 Gbps/1 Gbps/100 Mbps) Rozšiřující sloty: * 1 x PCI Express x16 slot, supporting PCIe 5.0 and running at x16 (PCIEX16) - The PCIEX16 slot can only support a graphics card or an NVMe SSD. If only one graphics card is to be installed, be sure to install it in the PCIEX16 slot * 1 x PCI Express x16 slot, supporting PCIe 4.0 and running at x4 (PCIEX4) Úložný prostor: * 1 x M.2 connector (Socket 3, M key, type 2280 PCIe 5.0 x4/x2 SSD support)(M2A_CPU) * 1 x M.2 connector (Socket 3, M key, type 2280 PCIe 4.0 x4/x2 SSD support)(M2P_SB) * 4 x SATA 6Gb/s connectors RAID řadič: RAID 0, RAID 1, RAID 5, and RAID 10 support for SATA storage devices USB: * 1 x USB Type-C® port with USB 3.2 Gen 1 support, available through the internal USB header * 5 x USB 3.2 Gen 1 ports (3 ports on the back panel, 2 ports available through the internal USB header) * 3 x USB 2.0/1.1 ports on the back panel Chipset+USB 2.0 Hub: * 4 x USB 2.0/1.1 ports available through the internal USB headers Porty na zadním panelu: * 1 x PS/2 keyboard/mouse port *1 x HDMI por* *1 x DisplayPort* *3 x USB 3.2 Gen 1 ports *3 x USB 2.0/1.1 ports *1 x RJ-45 port *3 x audio jacks Interní porty: Napájení * 1 x 24-pin ATX main power connector *1 x 8-pin ATX 12V power connector Související s ventilátorem a chlazením * 1 x CPU fan header *1 x CPU fan/water cooling pump header *1 x system fan header *1 x system fan/water cooling pump header Související s úložištěm * 2 x M.2 Socket 3 connectors *4 x SATA 6Gb/s connectors USB * 1 x USB Type-C® header, with USB 3.2 Gen 1 support *1 x USB 3.2 Gen 1 header *2 x USB 2.0/1.1 headers Ostatní * 3 x addressable RGB Gen2 LED strip headers *1 x front panel header *1 x front panel audio header *1 x S/PDIF Out header *1 x Trusted Platform Module header (For the GC-TPM2.0 SPI V2 module only) *1 x serial port header *1 x Q-Flash Plus button *1 x reset jumper *1 x Clear CMOS jumper BIOS: *1 x 256 Mbit flash *Use of licensed AMI UEFI BIOS *PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0 Odkaz na stránku výrobce: https://www.gigabyte.com/Motherboard/B860M-EAGLE-V2/sp#sp
GIGABYTE B860M EAGLE V2 Chipset: Intel B860 Express Chipset Rozměrový formát: Micro ATX Form Factor; 24.4cm x 22.5cm Podpora pro procesory: Intel ® Core™ Ultra Patice procesoru: LGA1851 Paměť: * 2 x DDR5 DIMM sockets supporting up to 128 GB (64 GB single DIMM capacity) of system memory *Dual channel memory architecture *Support for ECC Un-buffered DIMM 1Rx8/2Rx8 memory modules (operate in non-ECC mode) *Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules *Support for Extreme Memory Profile (XMP) memory modules Grafické výstupy: * 1 x HDMI port, supporting a maximum resolution of 4096x2160@60 Hz - Support for HDMI 2.1 version and HDCP 2.3 * 1 x DisplayPort, supporting a maximum resolution of 3840x2160@144 Hz - Support for DisplayPort 2.1 version Zvuková karta: *Realtek® Audio CODEC *High Definition Audio *2/4/5.1/7.1-channel *Support for S/PDIF Out Ethernet: Realtek® 2.5GbE LAN chip (2.5 Gbps/1 Gbps/100 Mbps) Rozšiřující sloty: * 1 x PCI Express x16 slot, supporting PCIe 5.0 and running at x16 (PCIEX16) - The PCIEX16 slot can only support a graphics card or an NVMe SSD. If only one graphics card is to be installed, be sure to install it in the PCIEX16 slot * 1 x PCI Express x16 slot, supporting PCIe 4.0 and running at x4 (PCIEX4) Úložný prostor: * 1 x M.2 connector (Socket 3, M key, type 2280 PCIe 5.0 x4/x2 SSD support)(M2A_CPU) * 1 x M.2 connector (Socket 3, M key, type 2280 PCIe 4.0 x4/x2 SSD support)(M2P_SB) * 4 x SATA 6Gb/s connectors RAID řadič: RAID 0, RAID 1, RAID 5, and RAID 10 support for SATA storage devices USB: * 1 x USB Type-C® port with USB 3.2 Gen 1 support, available through the internal USB header * 5 x USB 3.2 Gen 1 ports (3 ports on the back panel, 2 ports available through the internal USB header) * 3 x USB 2.0/1.1 ports on the back panel Chipset+USB 2.0 Hub: * 4 x USB 2.0/1.1 ports available through the internal USB headers Porty na zadním panelu: * 1 x PS/2 keyboard/mouse port *1 x HDMI port* *1 x DisplayPort* *3 x USB 3.2 Gen 1 ports *3 x USB 2.0/1.1 ports *1 x RJ-45 port *3 x audio jacks Interní porty: Napájení * 1 x 24-pin ATX main power connector *1 x 8-pin ATX 12V power connector Související s ventilátorem a chlazením * 1 x CPU fan header *1 x CPU fan/water cooling pump header *1 x system fan header *1 x system fan/water cooling pump header Související s úložištěm * 2 x M.2 Socket 3 connectors *4 x SATA 6Gb/s connectors USB * 1 x USB Type-C® header, with USB 3.2 Gen 1 support *1 x USB 3.2 Gen 1 header *2 x USB 2.0/1.1 headers Ostatní * 3 x addressable RGB Gen2 LED strip headers *1 x front panel header *1 x front panel audio header *1 x S/PDIF Out header *1 x Trusted Platform Module header (For the GC-TPM2.0 SPI V2 module only) *1 x serial port header *1 x Q-Flash Plus button *1 x reset jumper *1 x Clear CMOS jumper BIOS: *1 x 256 Mbit flash *Use of licensed AMI UEFI BIOS *PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0 Odkaz na stránku výrobce: https://www.gigabyte.com/Motherboard/B860M-EAGLE-V2/sp#sp
GIGABYTE B860M EAGLE V2 Chipset: Intel B860 Express Chipset Rozměrový formát: Micro ATX Form Factor; 24.4cm x 22.5cm Podpora pro procesory: Intel ® Core™ Ultra Patice procesoru: LGA1851 Paměť: * 2 x DDR5 DIMM sockets supporting up to 128 GB (64 GB single DIMM capacity) of system memory *Dual channel memory architecture *Support for ECC Un-buffered DIMM 1Rx8/2Rx8 memory modules (operate in non-ECC mode) *Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules *Support for Extreme Memory Profile (XMP) memory modules Grafické výstupy: * 1 x HDMI port, supporting a maximum resolution of 4096x2160@60 Hz - Support for HDMI 2.1 version and HDCP 2.3 * 1 x DisplayPort, supporting a maximum resolution of 3840x2160@144 Hz - Support for DisplayPort 2.1 version Zvuková karta: *Realtek® Audio CODEC *High Definition Audio *2/4/5.1/7.1-channel *Support for S/PDIF Out Ethernet: Realtek® 2.5GbE LAN chip (2.5 Gbps/1 Gbps/100 Mbps) Rozšiřující sloty: * 1 x PCI Express x16 slot, supporting PCIe 5.0 and running at x16 (PCIEX16) - The PCIEX16 slot can only support a graphics card or an NVMe SSD. If only one graphics card is to be installed, be sure to install it in the PCIEX16 slot * 1 x PCI Express x16 slot, supporting PCIe 4.0 and running at x4 (PCIEX4) Úložný prostor: * 1 x M.2 connector (Socket 3, M key, type 2280 PCIe 5.0 x4/x2 SSD support)(M2A_CPU) * 1 x M.2 connector (Socket 3, M key, type 2280 PCIe 4.0 x4/x2 SSD support)(M2P_SB) * 4 x SATA 6Gb/s connectors RAID řadič: RAID 0, RAID 1, RAID 5, and RAID 10 support for SATA storage devices USB: * 1 x USB Type-C® port with USB 3.2 Gen 1 support, available through the internal USB header * 5 x USB 3.2 Gen 1 ports (3 ports on the back panel, 2 ports available through the internal USB header) * 3 x USB 2.0/1.1 ports on the back panel Chipset+USB 2.0 Hub: * 4 x USB 2.0/1.1 ports available through the internal USB headers Porty na zadním panelu: * 1 x PS/2 keyboard/mouse port *1 x HDMI por* *1 x DisplayPort* *3 x USB 3.2 Gen 1 ports *3 x USB 2.0/1.1 ports *1 x RJ-45 port *3 x audio jacks Interní porty: Napájení * 1 x 24-pin ATX main power connector *1 x 8-pin ATX 12V power connector Související s ventilátorem a chlazením * 1 x CPU fan header *1 x CPU fan/water cooling pump header *1 x system fan header *1 x system fan/water cooling pump header Související s úložištěm * 2 x M.2 Socket 3 connectors *4 x SATA 6Gb/s connectors USB * 1 x USB Type-C® header, with USB 3.2 Gen 1 support *1 x USB 3.2 Gen 1 header *2 x USB 2.0/1.1 headers Ostatní * 3 x addressable RGB Gen2 LED strip headers *1 x front panel header *1 x front panel audio header *1 x S/PDIF Out header *1 x Trusted Platform Module header (For the GC-TPM2.0 SPI V2 module only) *1 x serial port header *1 x Q-Flash Plus button *1 x reset jumper *1 x Clear CMOS jumper BIOS: *1 x 256 Mbit flash *Use of licensed AMI UEFI BIOS *PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0 Odkaz na stránku výrobce: https://www.gigabyte.com/Motherboard/B860M-EAGLE-V2/sp#sp

GIGABYTE B860M EAGLE V2

  • Supports Intel Core™ Ultra processors (Series 2)
  • Digital 6+1+2 phases VRM solution
  • Dual Channel DDR5: 2*DIMMs with XMP Memory Module Support
  • D5 Bionic Corsa for Infinite Memory Performance
  • AI Perfdrive: Provides optimal and customized BIOS preset profile for users
  • EZ-Latch: PCIe and M.2 slots with Quick Release & Screwless Design
  • EZ-Latch Click: M.2 heatsinks with screwless design
  • Friendly UI: Multi-Theme, AIO Fan Control, and Q-Flash Auto Scan in BIOS and SW
  • Ultra-Fast Storage: 2*M.2 slots, including 1* PCIe 5.0 x4
  • Efficient Thermal: VRM Thermal Armor Advanced & M.2 Thermal Guard
  • Fast Networking: 2.5GbE LAN
  • Extended Connectivity: HDMI, DisplayPort

CPU LGA1851 socket: Support for Intel Core™ Ultra Processors (Go to GIGABYTE's website for the latest CPU support list.) L3 cache varies with CPU

Chipset Intel B860 Express Chipset

Memory Support for DDR5 9066(O.C)/8800(O.C)/8600(O.C)/8400(O.C)/8266(O.C)/8200(O.C)/8000(O.C)/7950(O.C)/7900(O.C)/7800(O.C)/7600(O.C)/7400(O.C)/7200(O.C)/7000(O.C)/6800(O.C)/6600(O.C)/6400/5600 MT/s memory modules 2 x DDR5 DIMM sockets supporting up to 128 GB (64 GB single DIMM capacity) of system memory Dual channel memory architecture Support for ECC Un-buffered DIMM 1Rx8/2Rx8 memory modules (operate in non-ECC mode) Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules Support for Extreme Memory Profile (XMP) memory modules (The CPU and memory configuration may affect the supported memory types, data rate (speed), and number of DRAM modules, please refer to "Memory Support List" on GIGABYTE's website for more information.)

Onboard Graphics Integrated Graphics Processor-Intel HD Graphics support 1 x HDMI port, supporting a maximum resolution of 4096x2160@60 Hz * Support for HDMI 2.1 version and HDCP 2.3. 1 x DisplayPort, supporting a maximum resolution of 3840x2160@144 Hz * Support for DisplayPort 2.1 version. (Graphics specifications may vary depending on CPU support.)

Audio Realtek Audio CODEC High Definition Audio 2/4/5.1/7.1-channel * You can change the functionality of an audio jack using the audio software. To configure 7.1-channel audio, access the audio software for audio settings. Support for S/PDIF Out

LAN Realtek 2.5GbE LAN chip (2.5 Gbps/1 Gbps/100 Mbps)

Expansion Slots CPU: 1 x PCI Express x16 slot, supporting PCIe 5.0 and running at x16 (PCIEX16) * The PCIEX16 slot can only support a graphics card or an NVMe SSD. If only one graphics card is to be installed, be sure to install it in the PCIEX16 slot. Chipset: 1 x PCI Express x16 slot, supporting PCIe 4.0 and running at x4 (PCIEX4)

Storage Interface CPU: 1 x M.2 connector (Socket 3, M key, type 2280 PCIe 5.0 x4/x2 SSD support) (M2A_CPU) Chipset: 1 x M.2 connector (Socket 3, M key, type 2280 PCIe 4.0 x4/x2 SSD support) (M2P_SB) 4 x SATA 6Gb/s connectors RAID 0, RAID 1, RAID 5, and RAID 10 support for SATA storage devices

USB Chipset: 1 x USB Type-C port with USB 3.2 Gen 1 support, available through the internal USB header 5 x USB 3.2 Gen 1 ports (3 ports on the back panel, 2 ports available through the internal USB header) 3 x USB 2.0/1.1 ports on the back panel Chipset + USB 2.0 Hub: 4 x USB 2.0/1.1 ports available through the internal USB headers

Internal I/O Connectors 1 x 24-pin ATX main power connector 1 x 8-pin ATX 12V power connector 1 x CPU fan header 1 x CPU fan/water cooling pump header 1 x system fan header 1 x system fan/water cooling pump header 3 x addressable RGB Gen2 LED strip headers 2 x M.2 Socket 3 connectors 4 x SATA 6Gb/s connectors 1 x front panel header 1 x front panel audio header 1 x S/PDIF Out header 1 x USB Type-C header, with USB 3.2 Gen 1 support 1 x USB 3.2 Gen 1 header 2 x USB 2.0/1.1 headers 1 x Trusted Platform Module header (For the GC-TPM2.0 SPI V2 module only) 1 x serial port header 1 x Q-Flash Plus button 1 x reset jumper 1 x Clear CMOS jumper

Back Panel Connectors 1 x PS/2 keyboard/mouse port 1 x HDMI port* 1 x DisplayPort* 3 x USB 3.2 Gen 1 ports 3 x USB 2.0/1.1 ports 1 x RJ-45 port 3 x audio jacks * Actual support may vary by CPU.

I/O Controller iTE I/O Controller Chip

H/W Monitoring Voltage detection Temperature detection Fan speed detection Water cooling flow rate detection Fan fail warning Fan speed control * Whether the fan (pump) speed control function is supported will depend on the fan(pump) you install.

BIOS 1 x 256 Mbit flash Use of licensed AMI UEFI BIOS PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0

Unique Features Support for GIGABYTE Control Center (GCC) * Available applications in GCC may vary by motherboard model. Supported functions of each application may also vary depending on motherboard specifications. Support for Q-Flash Support for Q-Flash Plus Support for Smart Backup

Bundled Software Norton Internet Security (OEM version) LAN bandwidth management software

Operating System Support for Windows 11 64-bit Support for Windows 10 64-bit * The Intel NPU driver is only supported on Windows 11.

Form Factor Micro ATX Form Factor; 24.4cm x 22.5cm

ikonka infobloku
Prodejce i výrobce si vyhrazuje právo změny parametrů či vlastností bez předchozího upozornění. Chcete-li mít ohledně konkrétních parametrů aktuální informace kontaktujte nás. Pozdější reklamace vlastností je zbytečnou komplikací pro obě strany.
