ASROCK B850 LIVEMIXER WIFI (AM5, amd B850, 4xDDR5, PCIE 5.0, HDMI, 2xSATA3 +3xM.2, USB3.2 G2x2, GLAN 2,5G, ATX)

Kód zboží (ID): 6713281 vytisknout

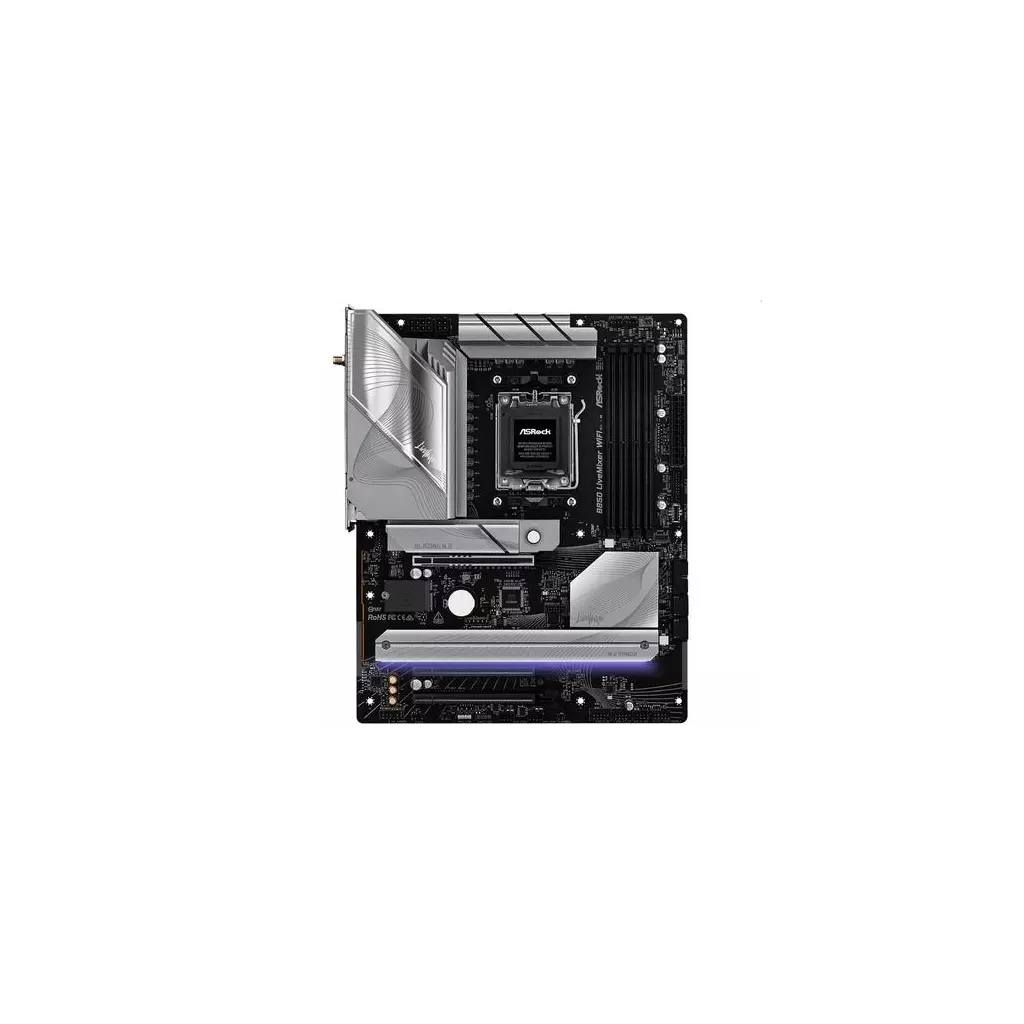

Obrázek produktu ASROCK B850 LIVEMIXER WIFI (AM5, amd B850, 4xDDR5, PCIE 5.0, HDMI, 2xSATA3 +3xM.2, USB3.2 G2x2, GLAN 2,5G, ATX)
Stav zboží: Nové
Dostupnost: skladem (ext. sklad)
Datum odeslání: Expedujeme 5.8.
Výrobce: ASROCK
Kód zboží: 6713281
Číslo zboží (PN): B850 LIVEMIXER WIFI
EAN: 4711581490154
Záruka koncový zákazník: 36 měsíců
Záruka při koupi na IČO: 36 měsíců
Cena bez DPH: * 4750.03 Kč
Cena vč. DPH: * 5748 Kč
* - cena uvedena vč. recyklačních a autorských poplatků.

Popis produktu:

ASRock B850 LiveMixer WiFi

Deska je vybavena grafickými výstupy pro použití s procesory s integrovaným grafickým jádrem. Základní deska grafickou kartu neobsahuje a bez použití odpovídajícího procesoru, budou tyto výstupy nefunkční.

CPU Podpora procesorů AMD Ryzen série 9000, 8000 a 7000 (patice AM5)

Čipová sada AMD B850

Paměť 4× DDR5 paměťový slot, podpora až 256 GB Podpora DDR5 až 8000+ (OC) MHz Dvoukanálová architektura paměti Podpora ECC/non-ECC, bez vyrovnávací paměti Podpora AMD EXtended Profiles for Overclocking (EXPO) Podpora Extreme Memory Profile (XMP)

Sloty AMD CPU 1× PCIe 5.0 x16 slot AMD B850 čipová sada 2× PCIe 4.0 x16 slot (podporuje x4 režim)

Grafika 1× HDMI 2.1 port, podporující max. rozlišení 4K při 120 Hz 1× DisplayPort 1.4 port, podporující max. rozlišení 4K při 120 Hz

Úložiště AMD CPU 1× Blazing M.2 slot, M Key, pro jednotky typu 2280 (PCIe 5.0 x4 režim) 1× Hyper M.2 slot, M Key, pro jednotky typu 2280 (PCIe 4.0 x4 režim) AMD B850 čipová sada 1× Hyper M.2 slot, M Key, pro jednotky typu 2230/2242/2260/2280 (PCIe 4.0 x4 režim) 2× SATA 6Gb/s port Podpora RAID 0 a RAID 1 pro SATA jednotky Podpora RAID 0, RAID 1 a RAID 10 pro M.2 NVMe jednotky

USB 1× USB-C 3.2 Gen2 port na zadním panelu 1× USB 3.2 Gen2 port na zadním panelu 1× USB-C 3.2 Gen2x2 port dostupný přes interní USB konektor 8× USB 3.2 Gen1 (USB 3.0) port (4 porty na zadním panelu, 4 porty dostupné přes interní USB konektory) 12× USB 2.0 port (8 portů na zadním panelu, 4 porty dostupné přes interní USB konektory)

Audio Realtek ALC1220 Codec 7.1kanálové High Definition Audio Nahimic audio

LAN 1× Dragon RTL8125BG 2,5Gigabit LAN řadič

WLAN/ Bluetooth Wi-Fi 7 Wi-Fi 802.11a/b/g/n/ac/ax/axe/be Triple Band (2,4 GHz, 5 GHz, 6 GHz) Podpora MU-MIMO Bluetooth 5.4

Interní konektory 1× konektor SPI TPM 1× konektor termistoru 1× konektor reproduktoru a Power LED 1× konektor RGB LED pásku 3× konektor adresovatelného LED pásku 2× 4pin konektor ventilátoru CPU 3× 4pin konektor ventilátoru skříně 1× 4pin konektor ventilátoru AIO 1× 24pin ATX hlavní napájecí konektor 1× 8pin 12V napájecí konektor 1× 4pin 12V napájecí konektor 1× audio konektor předního panelu 2× USB 2.0 konektor (podporuje 4× USB 2.0 port) 2× USB 3.2 Gen1 (USB 3.0) konektor (podporuje 4× USB 3.2 Gen1 port) 1× USB-C 3.2 Gen2x2 konektor předního panelu

Porty na zadním panelu 2× konektor Wi-Fi antény 1× HDMI 1× DisplayPort 1× optický S/PDIF výstup 1× USB-C 3.2 Gen2 (USB-C 3.1) 1× USB 3.2 Gen2 (USB 3.1) 4× USB 3.2 Gen1 (USB 3.0) 8× USB 2.0 1× RJ-45 1× tlačítko BIOS Flashback 2× audio jack

Rozměry 30,5 × 24,4 cm ATX formát

Řada LiveMixer je vytvořena s ohledem na potřeby moderních tvůrců obsahu a nabízí vynikající konektivitu pro streamování a více pomocných zařízení. Její spolehlivý výkon zajišťuje bezproblémovou tvorbu obsahu a efektivní správu času. LiveMixer je určen pro tvůrce obsahu současné generace, kteří potřebují základní desky s velkou konektivitou pro streamování a další přídavná zařízení. Také její spolehlivý výkon nám umožňuje poskytovat skvělý obsah a šetřit náš čas. Superb Productivity - PCIe Gen5 (Graphics, M.2) - Dual Channel DDR5 Rock-Solid Durability - 14+2+1 Power Phase, 80A Dr.MOS for VCore+SOC+MISC with Enlarged Heatsink Armor - Flexible Integrated I/O Shield - 20K Long-lasting Black Caps (high quality and conductive polymer capacitors) for VCore Ultrafast Connectivity - 2.5G LAN, 802.11be Wi-Fi 7 Module - ASRock Lightning Gaming Ports
Podporuje procesory AMD Socket AM5 Ryzen™ řady 9000 a 8000 a 7000 4x DDR5 DIMM, podporuje až 8000+ (OC) Sloty CPU: - 1 x PCIe 5.0 x16 Slot (PCIE1), supports x16 mode Chipset: - 2 x PCIe 4.0 x16 Slots (PCIE2 and PCIE3), support x4 mode - 1 x M.2 Socket (Key E), supports type 2230 WiFi/BT PCIe WiFi module Storage : CPU: - 1 x Blazing M.2 Socket (M2_1, Key M), supports type 2280 PCIe Gen5x4 (128 Gb/s) mode - 1 x Hyper M.2 Socket (M2_2, Key M), supports type 2280 PCIe Gen4x4 (64 Gb/s) mode Chipset: - 1 x Hyper M.2 Socket (M2_3, Key M), supports type 2230/2242/2260/2280 PCIe Gen4x4 (64 Gb/s) mode USB CPU: - 1 x USB 3.2 Gen2 Type-C (Rear) - 1 x USB 3.2 Gen2 Type-A (Rear) - 1 x USB 3.2 Gen1 Type-A (Rear (USB32_1)) Chipset: - 1 x USB 3.2 Gen2x2 Type-C (Front) - 7 x USB 3.2 Gen1 Type-A (3 Rear (USB32_234), 4 Front) - 12 x USB 2.0 (8 Rear, 4 Front) Konektory: - 1 x SPI TPM Header - 1 x Thermistor Cable Header - 1 x Power LED and Speaker Header - 1 x RGB LED Header* - 3 x Addressable LED Headers** - 2 x CPU Fan Connectors (4-pin) (Smart Fan Speed Control)*** - 3 x Chassis Fan Connectors (4-pin) (Smart Fan Speed Control)*** - 1 x AIO Pump Fan Connector (4-pin) (Smart Fan Speed Control)*** - 1 x 24 pin ATX Power Connector - 1 x 8 pin 12V Power Connector (Hi-Density Power Connector) - 1 x 4 pin 12V Power Connector (Hi-Density Power Connector) - 1 x Front Panel Audio Connector - 2 x USB 2.0 Headers (Support 4 USB 2.0 ports) - 2 x USB 3.2 Gen1 Headers (Support 4 USB 3.2 Gen1 ports) - 1 x Front Panel Type C USB 3.2 Gen2x2 Header (20 Gb/s) Zadní panel : - 2 x Antenna Ports - 1 x HDMI Port - 1 x DisplayPort 1.4 - 1 x Optical SPDIF Out Port - 1 x USB 3.2 Gen2 Type-C Port (10 Gb/s) - 1 x USB 3.2 Gen2 Type-A Port (10 Gb/s) - 4 x USB 3.2 Gen1 Type-A Ports* - 8 x USB 2.0 Ports - 1 x RJ-45 LAN Port - 1 x BIOS Flashback Button - 1 x Line Out Jack (Gold Audio Jack) - 1 x Microphone Input Jack (Gold Audio Jack) ATX : 30.5 cm x 24.4 cm

ASRock B850 LiveMixer WiFi

LiveMixer series is crafted with the needs of modern content creators in mind, offering excellent connectivity for streaming and multiple auxiliary devices. Its reliable performance ensures seamless content creation and efficient time management.

Unique Feature

Superb Productivity - PCIe Gen5 (Graphics, M.2) - Dual Channel DDR5 Rock-Solid Durability - 14+2+1 Power Phase, 80A Dr.MOS for VCore+SOC+MISC with Enlarged Heatsink Armor - Flexible Integrated I/O Shield - 20K Long-lasting Black Caps (high quality and conductive polymer capacitors) for VCore Ultrafast Connectivity - 2.5G LAN, 802.11be Wi-Fi 7 Module - ASRock Lightning Gaming Ports EZ Update - BIOS Flashback Button - ASRock Auto Driver Installer EZ Troubleshooter - ASRock Post Status Checker

CPU

- Supports AMD Socket AM5 Ryzen™ 9000, 8000 and 7000 Series Processors* * The availability of expansion slots may vary by CPU. Please refer to PCIe/M.2 Bandwidth Table for details.

Chipset

- AMD B850

Memory

- Dual Channel DDR5 Memory Technology - 4 x DDR5 DIMM Slots - Supports DDR5 ECC/non-ECC, un-buffered memory up to 8000+(OC) - Max. capacity of system memory: 256GB - Supports Extreme Memory Profile (XMP) and EXTended Profiles for Overclocking (EXPO) memory modules

BIOS

- 256Mb AMI UEFI Legal BIOS with GUI support

Graphics

Integrated AMD RDNA™ graphics (Actual support may vary by CPU) - 1 x HDMI 2.1 TMDS/FRL 8G Compatible, supports HDR, HDCP 2.3 and max. resolution up to 4K 120Hz - 1 x DisplayPort 1.4 with DSC (compressed), supports HDCP 2.3 and max. resolution up to 4K 120Hz

Audio

- 7.1 CH HD Audio with Content Protection (Realtek ALC1220 Audio Codec) - Impedance Sensing on Rear Out port - Individual PCB Layers for R/L Audio Channel - Nahimic Audio

LAN

- 2.5 Gigabit LAN 10/100/1000/2500 Mb/s - Dragon RTL8125BG - Supports Dragon 2.5G LAN Software - Smart Auto Adjust Bandwidth Control - Visual User Friendly UI - Visual Network Usage Statistics - Optimized Default Setting for Game, Browser, and Streaming Modes - User Customized Priority Control

Wireless LAN

- 802.11be 2x2 Wi-Fi 7 Module - Supports IEEE 802.11a/b/g/n/ac/ax/axe/be - Supports 2.4GHz/5GHz/6GHz* frequency band - Supports 160MHz channel bandwidth with 6GHz* frequency band - 1 antenna to support 2 (Transmit) x 2 (Receive) diversity technology - Supports Bluetooth 5.4 - Supports MU-MIMO *The Wi-Fi 7 module is supported by Microsoft Windows 11 only. There is no driver available for Windows 10. The availability of the 6GHz band will depend on the different regulation status of each country and region. It will be activated (for supported countries) through Windows Update and software updates once available.

Slots

CPU: - 1 x PCIe 5.0 x16 Slot (PCIE1), supports x16 mode* Chipset: - 2 x PCIe 4.0 x16 Slots (PCIE2 and PCIE3), support x4 mode* - 1 x M.2 Socket (Key E), supports type 2230 WiFi/BT PCIe WiFi module - 15µ Gold Contact in VGA PCIe Slot (PCIE1) * PCIE1 will run at Gen5x16 with 9000 and 7000 series processors, Gen4x8 with 8000 (Phoenix 1) series processors and Gen4x4 with 8000 (Phoenix 2) series processors. If M2_3 is occupied, PCIE3 will be disabled. Supports NVMe SSD as boot disks

Storage

CPU: - 1 x Blazing M.2 Socket (M2_1, Key M), supports type 2280 PCIe Gen5x4 (128 Gb/s) mode* - 1 x Hyper M.2 Socket (M2_2, Key M), supports type 2280 PCIe Gen4x4 (64 Gb/s) mode* Chipset: - 1 x Hyper M.2 Socket (M2_3, Key M), supports type 2230/2242/2260/2280 PCIe Gen4x4 (64 Gb/s) mode* - 2 x SATA3 6.0 Gb/s Connectors * Supports NVMe SSD as boot disks M2_1 is the first priority for M.2 installation. M2_1 will run at Gen5x4 with 9000 and 7000 series processors and Gen4x4 with 8000 (Phoenix 1 and Phoenix 2) series processors. M2_2 will run at Gen4x4 with 9000 and 7000 series processors, Gen4x4 with 8000 (Phoenix 1) series processors and Gen4x2 with 8000 (Phoenix 2) series processors. If M2_3 is occupied, PCIE3 will be disabled.

RAID

- Supports RAID 0 and RAID 1 for SATA storage devices - Supports RAID 0, RAID 1 and RAID 10 for M.2 NVMe storage devices* * Requires additional M.2 NVMe expansion cards to support RAID 10

USB

CPU: - 1 x USB 3.2 Gen2 Type-C (Rear) - 1 x USB 3.2 Gen2 Type-A (Rear) - 1 x USB 3.2 Gen1 Type-A (Rear (USB32_1)) Chipset: - 1 x USB 3.2 Gen2x2 Type-C (Front) - 7 x USB 3.2 Gen1 Type-A (3 Rear (USB32_234), 4 Front) - 12 x USB 2.0 (8 Rear, 4 Front) * All USB ports support ESD Protection

Connector

- 1 x SPI TPM Header - 1 x Thermistor Cable Header - 1 x Power LED and Speaker Header - 1 x RGB LED Header* - 3 x Addressable LED Headers** - 2 x CPU Fan Connectors (4-pin) (Smart Fan Speed Control)*** - 3 x Chassis Fan Connectors (4-pin) (Smart Fan Speed Control)*** - 1 x AIO Pump Fan Connector (4-pin) (Smart Fan Speed Control)*** - 1 x 24 pin ATX Power Connector - 1 x 8 pin 12V Power Connector (Hi-Density Power Connector) - 1 x 4 pin 12V Power Connector (Hi-Density Power Connector) - 1 x Front Panel Audio Connector - 2 x USB 2.0 Headers (Support 4 USB 2.0 ports) - 2 x USB 3.2 Gen1 Headers (Support 4 USB 3.2 Gen1 ports) - 1 x Front Panel Type C USB 3.2 Gen2x2 Header (20 Gb/s) * Supports in total up to 12V/3A, 36W LED Strip ** Support in total up to 5V/3A, 15W LED Strip *** CPU_FAN1 supports the fan power up to 1A (12W). CPU_FAN2, CHA_FAN1~3 and AIO_PUMP support the fan power up to 3A (36W). CPU_FAN2, CHA_FAN1~3 and AIO_PUMP can auto detect if 3-pin or 4-pin fan is in use.

Rear Panel I/O

- 2 x Antenna Ports - 1 x HDMI Port - 1 x DisplayPort 1.4 - 1 x Optical SPDIF Out Port - 1 x USB 3.2 Gen2 Type-C Port (10 Gb/s) - 1 x USB 3.2 Gen2 Type-A Port (10 Gb/s) - 4 x USB 3.2 Gen1 Type-A Ports* - 8 x USB 2.0 Ports - 1 x RJ-45 LAN Port - 1 x BIOS Flashback Button - 1 x Line Out Jack (Gold Audio Jack) - 1 x Microphone Input Jack (Gold Audio Jack) * USB32_12 are Lightning Gaming Ports. USB32_34 support Ultra USB Power.

Software and UEFI

Software - ASRock Motherboard Utility (A-Tuning) - ASRock Dragon 2.5G LAN Software - ASRock Polychrome SYNC* UEFI - ASRock EZ Mode - ASRock Full HD UEFI - ASRock Auto Driver Installer - ASRock Instant Flash *These utilities can be downloaded from ASRock Live Update & APP Shop.

Accessories

- 2 x SATA Data Cables - 2 x ASRock WiFi 2.4/5/6 GHz Antennas - 1 x Thermistor Cable

Form Factor

- ATX Form Factor: 12.0-in x 9.6-in, 30.5 cm x 24.4 cm - 8 Layer PCB

OS

- Microsoft Windows 10 64-bit / 11 64-bit

Certifications

- FCC, CE - ErP/EuP ready (ErP/EuP ready power supply is required)
