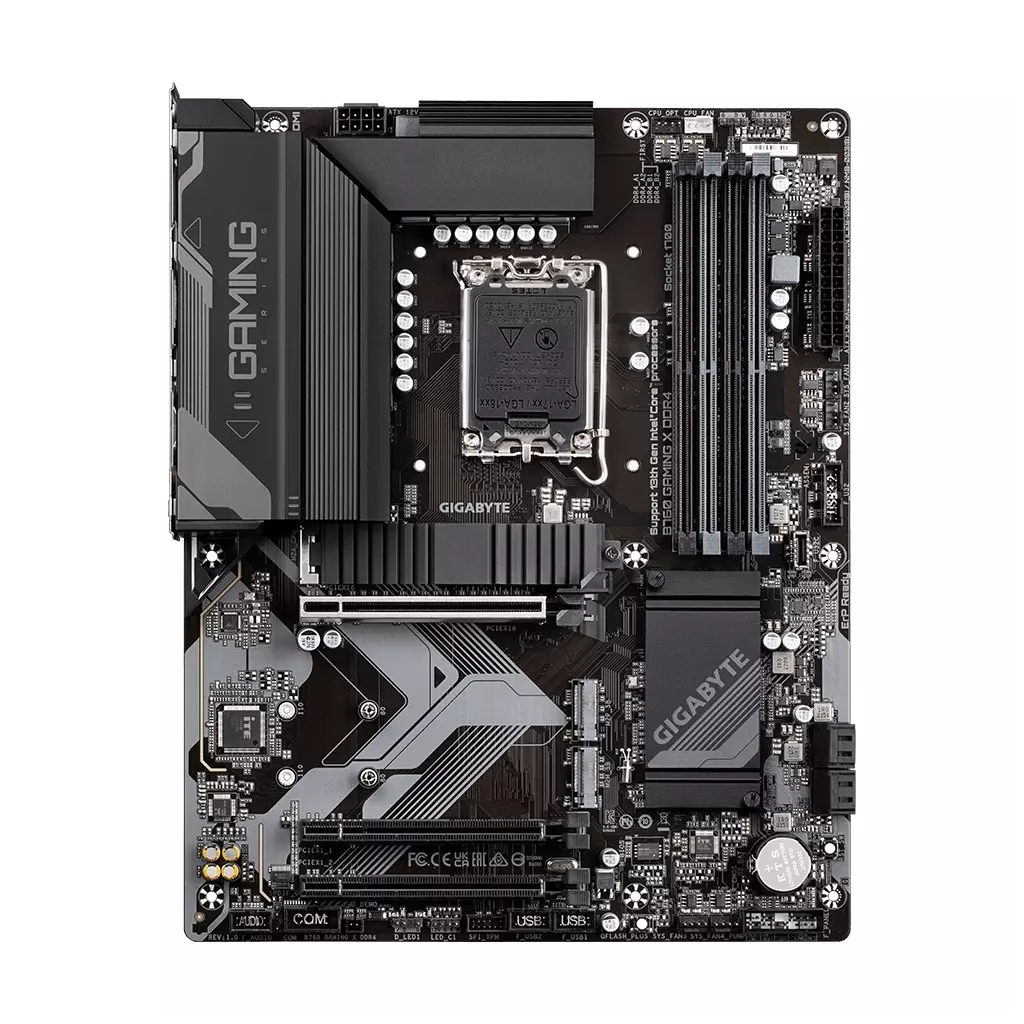

GIGABYTE MB Sc LGA1700 B760 GAMING X DDR4, Intel B760, 4xDDR4, 1xDP, 1xHDMI
Stav zboží:
Nové
Dostupnost:
skladem
Datum odeslání:
Expedujeme 30.9.
Výrobce:
Gigabyte
Kód zboží:
5551925
Číslo zboží (PN):
B760 GAMING X DDR4
EAN:
4719331850906
Záruka koncový zákazník:
36 měsíců
Záruka při koupi na IČO:
36 měsíců
Cena bez DPH: *
3172 Kč
Cena vč. DPH: *
3838 Kč
* - cena uvedena vč. recyklačních a autorských poplatků.
Popis produktu:
B760 GAMING X DDR4 Intel® Socket LGA 1700:Support 13th and 12th Gen Series Processors Unparalleled Performance:Hybrid 8+1+1 Phases Digital VRM Solution Dual Channel DDR4:4*DIMMs XMP Memory Module Support Next Generation Storage:3*PCIe 4.0 x4 M.2 Connectors Advanced Thermal Design & M.2 Thermal Guard:To Ensure VRM Power Stability & M.2 SSD Performance EZ-Latch:PCIe 4.0x16 Slot with Quick Release Design Fast Networks:2.5GbE LAN Extended Connectivity:Front USB-C® 10Gb/s, DP, HDMI Smart Fan 6:Features Multiple Temperature Sensors, Hybrid Fan Headers with FAN STOP Q-Flash Plus:Update BIOS Without Installing the CPU, Memory and Graphics Card CPU LGA1700 socket: Support for the 13th and 12th Generation Intel® Core™, Pentium® Gold and Celeron® Processors L3 cache varies with CPU (Please refer "CPU Support List" for more information.) Chipset Intel® B760 Express Chipset Memory Support for DDR4 5333(O.C.)/ 5133(O.C.)/ 5000(O.C.)/ 4933(O.C.)/ 4800(O.C.)/ 4700(O.C.)/ 4600(O.C.)/ 4500(O.C.)/ 4400(O.C.)/ 4300(O.C.)/ 4266(O.C.)/ 4133(O.C.)/ 4000(O.C.)/ 3866(O.C.)/ 3800(O.C.)/ 3733(O.C.)/ 3666(O.C.)/ 3600(O.C.)/ 3466(O.C.)/ 3400(O.C.)/ 3333(O.C.)/ 3300(O.C.)/ 3200/ 3000/ 2933/ 2666/ 2400/ 2133 MT/s memory modules 4 x DDR DIMM sockets supporting up to 128 GB (32 GB single DIMM capacity) of system memory Dual channel memory architecture Support for ECC Un-buffered DIMM 1Rx8/2Rx8 memory modules (operate in non-ECC mode) Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules Support for Extreme Memory Profile (XMP) memory modules (Please refer "Memory Support List" for more information.) Onboard Graphics Integrated Graphics Processor-Intel® HD Graphics support: 1 x DisplayPort, supporting a maximum resolution of 4096x2304@60 Hz * Support for DisplayPort 1.2 version and HDCP 2.3 1 x HDMI port, supporting a maximum resolution of 4096x2160@60 Hz * Support for HDMI 2.0 version and HDCP 2.3. (Graphics specifications may vary depending on CPU support.) Audio Realtek® Audio CODEC High Definition Audio 2/4/5.1/7.1-channel Support for S/PDIF Out * You can change the functionality of an audio jack using the audio software. To configure 7.1-channel audio, access the audio software for audio settings. LAN Realtek® 2.5GbE LAN chip (2.5 Gbps/1 Gbps/100 Mbps) Expansion Slots CPU: 1 x PCI Express x16 slot, supporting PCIe 4.0 and running at x16 (PCIEX16) * For optimum performance, if only one PCI Express graphics card is to be installed, be sure to install it in the PCIEX16 slot. Chipset: 2 x PCI Express x16 slots, supporting PCIe 3.0 and running at x1 (PCIEX1_1, PCIEX1_2) Storage Interface CPU: 1 x M.2 connector (Socket 3, M key, type 22110/2280 PCIe 4.0 x4/x2 SSD support) (M2A_CPU) Chipset: 2 x M.2 connectors (Socket 3, M key, type 22110/2280 PCIe 4.0 x4/x2 SSD support) (M2P_SB, M2M_SB) 4 x SATA 6Gb/s connectors RAID 0, RAID 1, RAID 5, and RAID 10 support for SATA storage devices USB Chipset: 1 x USB Type-C® port with USB 3.2 Gen 2 support, available through the internal USB header 1 x USB 3.2 Gen 2 Type-A port (red) on the back panel 4 x USB 3.2 Gen 1 ports (2 ports on the back panel, 2 ports available through the internal USB header) 1 x USB 2.0/1.1 port on the back panel Chipset+2 USB 2.0 Hubs: 8 x USB 2.0/1.1 ports (4 ports on the back panel, 4 ports available through the internal USB headers) Internal I/O Connectors 1 x 24-pin ATX main power connector 1 x 8-pin ATX 12V power connector 1 x CPU fan header 1 x CPU fan/water cooling pump header 3 x system fan headers 1 x system fan/water cooling pump header 2 x addressable LED strip headers 2 x RGB LED strip headers 3 x M.2 Socket 3 connectors 4 x SATA 6Gb/s connectors 1 x front panel header 1 x front panel audio header 1 x S/PDIF Out header 1 x USB Type-C® header, with USB 3.2 Gen 2 support 1 x USB 3.2 Gen 1 header 2 x USB 2.0/1.1 headers 1 x Trusted Platform Module header (For the GC-TPM2.0 SPI/GC-TPM2.0 SPI 2.0 module only) 1 x serial port header 1 x Q-Flash Plus button 1 x reset button 1 x reset jumper 1 x Clear CMOS jumper Back Panel Connectors 1 x USB 3.2 Gen 2 Type-A port (red) 2 x USB 3.2 Gen 1 ports 5 x USB 2.0/1.1 ports 1 x DisplayPort 1 x HDMI port 1 x RJ-45 port 6 x audio jacks I/O Controller iTE® I/O Controller Chip H/W Monitoring Voltage detection Temperature detection Fan speed detection Water cooling flow rate detection Fan fail warning Fan speed control * Whether the fan (pump) speed control function is supported will depend on the fan (pump) you install. BIOS 1 x 256 Mbit flash Use of licensed AMI UEFI BIOS PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0 Unique Features Support for GIGABYTE Control Center (GCC) * Available applications in GCC may vary by motherboard model. Supported functions of each application may also vary depending on motherboard specifications. Support for Q-Flash Support for Q-Flash Plus Bundled Software Norton® Internet Security (OEM version) LAN bandwidth management software Operating System Support for Windows 11 64-bit Support for Windows 10 64-bit Form Factor ATX Form Factor; 30.5cm x 24.4cm
B760 GAMING X DDR4 Intel® Socket LGA 1700:Support 13th and 12th Gen Series Processors Unparalleled Performance:Hybrid 8+1+1 Phases Digital VRM Solution Dual Channel DDR4:4*DIMMs XMP Memory Module Support Next Generation Storage:3*PCIe 4.0 x4 M.2 Connectors Advanced Thermal Design & M.2 Thermal Guard:To Ensure VRM Power Stability & M.2 SSD Performance EZ-Latch:PCIe 4.0x16 Slot with Quick Release Design Fast Networks:2.5GbE LAN Extended Connectivity:Front USB-C® 10Gb/s, DP, HDMI Smart Fan 6:Features Multiple Temperature Sensors, Hybrid Fan Headers with FAN STOP Q-Flash Plus:Update BIOS Without Installing the CPU, Memory and Graphics Card CPU LGA1700 socket: Support for the 13th and 12th Generation Intel® Core™, Pentium® Gold and Celeron® Processors L3 cache varies with CPU (Please refer "CPU Support List" for more information.) Chipset Intel® B760 Express Chipset Memory Support for DDR4 5333(O.C.)/ 5133(O.C.)/ 5000(O.C.)/ 4933(O.C.)/ 4800(O.C.)/ 4700(O.C.)/ 4600(O.C.)/ 4500(O.C.)/ 4400(O.C.)/ 4300(O.C.)/ 4266(O.C.)/ 4133(O.C.)/ 4000(O.C.)/ 3866(O.C.)/ 3800(O.C.)/ 3733(O.C.)/ 3666(O.C.)/ 3600(O.C.)/ 3466(O.C.)/ 3400(O.C.)/ 3333(O.C.)/ 3300(O.C.)/ 3200/ 3000/ 2933/ 2666/ 2400/ 2133 MT/s memory modules 4 x DDR DIMM sockets supporting up to 128 GB (32 GB single DIMM capacity) of system memory Dual channel memory architecture Support for ECC Un-buffered DIMM 1Rx8/2Rx8 memory modules (operate in non-ECC mode) Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules Support for Extreme Memory Profile (XMP) memory modules (Please refer "Memory Support List" for more information.) Onboard Graphics Integrated Graphics Processor-Intel® HD Graphics support: 1 x DisplayPort, supporting a maximum resolution of 4096x2304@60 Hz * Support for DisplayPort 1.2 version and HDCP 2.3 1 x HDMI port, supporting a maximum resolution of 4096x2160@60 Hz * Support for HDMI 2.0 version and HDCP 2.3. (Graphics specifications may vary depending on CPU support.) Audio Realtek® Audio CODEC High Definition Audio 2/4/5.1/7.1-channel Support for S/PDIF Out * You can change the functionality of an audio jack using the audio software. To configure 7.1-channel audio, access the audio software for audio settings. LAN Realtek® 2.5GbE LAN chip (2.5 Gbps/1 Gbps/100 Mbps) Expansion Slots CPU: 1 x PCI Express x16 slot, supporting PCIe 4.0 and running at x16 (PCIEX16) * For optimum performance, if only one PCI Express graphics card is to be installed, be sure to install it in the PCIEX16 slot. Chipset: 2 x PCI Express x16 slots, supporting PCIe 3.0 and running at x1 (PCIEX1_1, PCIEX1_2) Storage Interface CPU: 1 x M.2 connector (Socket 3, M key, type 22110/2280 PCIe 4.0 x4/x2 SSD support) (M2A_CPU) Chipset: 2 x M.2 connectors (Socket 3, M key, type 22110/2280 PCIe 4.0 x4/x2 SSD support) (M2P_SB, M2M_SB) 4 x SATA 6Gb/s connectors RAID 0, RAID 1, RAID 5, and RAID 10 support for SATA storage devices USB Chipset: 1 x USB Type-C® port with USB 3.2 Gen 2 support, available through the internal USB header 1 x USB 3.2 Gen 2 Type-A port (red) on the back panel 4 x USB 3.2 Gen 1 ports (2 ports on the back panel, 2 ports available through the internal USB header) 1 x USB 2.0/1.1 port on the back panel Chipset+2 USB 2.0 Hubs: 8 x USB 2.0/1.1 ports (4 ports on the back panel, 4 ports available through the internal USB headers) Internal I/O Connectors 1 x 24-pin ATX main power connector 1 x 8-pin ATX 12V power connector 1 x CPU fan header 1 x CPU fan/water cooling pump header 3 x system fan headers 1 x system fan/water cooling pump header 2 x addressable LED strip headers 2 x RGB LED strip headers 3 x M.2 Socket 3 connectors 4 x SATA 6Gb/s connectors 1 x front panel header 1 x front panel audio header 1 x S/PDIF Out header 1 x USB Type-C® header, with USB 3.2 Gen 2 support 1 x USB 3.2 Gen 1 header 2 x USB 2.0/1.1 headers 1 x Trusted Platform Module header (For the GC-TPM2.0 SPI/GC-TPM2.0 SPI 2.0 module only) 1 x serial port header 1 x Q-Flash Plus button 1 x reset button 1 x reset jumper 1 x Clear CMOS jumper Back Panel Connectors 1 x USB 3.2 Gen 2 Type-A port (red) 2 x USB 3.2 Gen 1 ports 5 x USB 2.0/1.1 ports 1 x DisplayPort 1 x HDMI port 1 x RJ-45 port 6 x audio jacks I/O Controller iTE® I/O Controller Chip H/W Monitoring Voltage detection Temperature detection Fan speed detection Water cooling flow rate detection Fan fail warning Fan speed control * Whether the fan (pump) speed control function is supported will depend on the fan (pump) you install. BIOS 1 x 256 Mbit flash Use of licensed AMI UEFI BIOS PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0 Unique Features Support for GIGABYTE Control Center (GCC) * Available applications in GCC may vary by motherboard model. Supported functions of each application may also vary depending on motherboard specifications. Support for Q-Flash Support for Q-Flash Plus Bundled Software Norton® Internet Security (OEM version) LAN bandwidth management software Operating System Support for Windows 11 64-bit Support for Windows 10 64-bit Form Factor ATX Form Factor; 30.5cm x 24.4cm
B760 GAMING X DDR4
- Supports Intel Core™ 14th/ 13th /12th processors
- Unparalleled Performance:Hybrid 8+1+1 Phases Digital VRM Solution
- Dual Channel DDR4:4*DIMMs XMP Memory Module Support

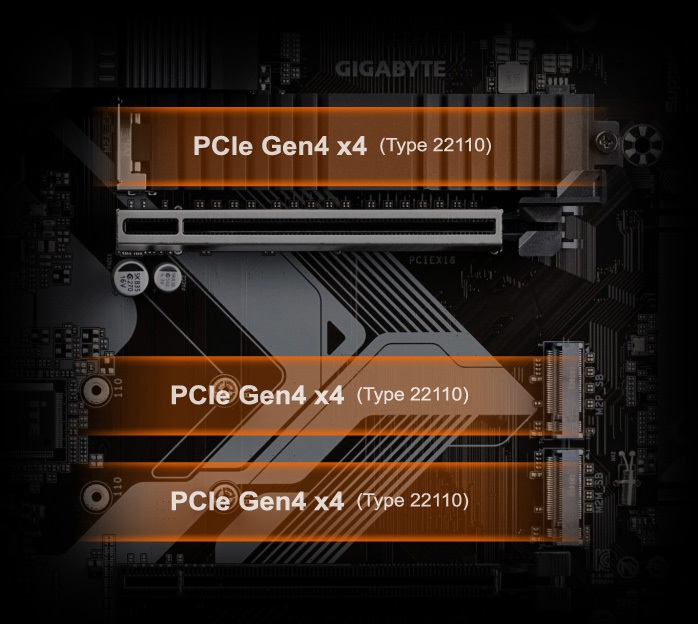

- Next Generation Storage:3*PCIe 4.0 x4 M.2 Connectors
- Advanced Thermal Design & M.2 Thermal Guard:To Ensure VRM Power Stability & M.2 SSD Performance
- EZ-Latch:PCIe 4.0x16 Slot with Quick Release Design

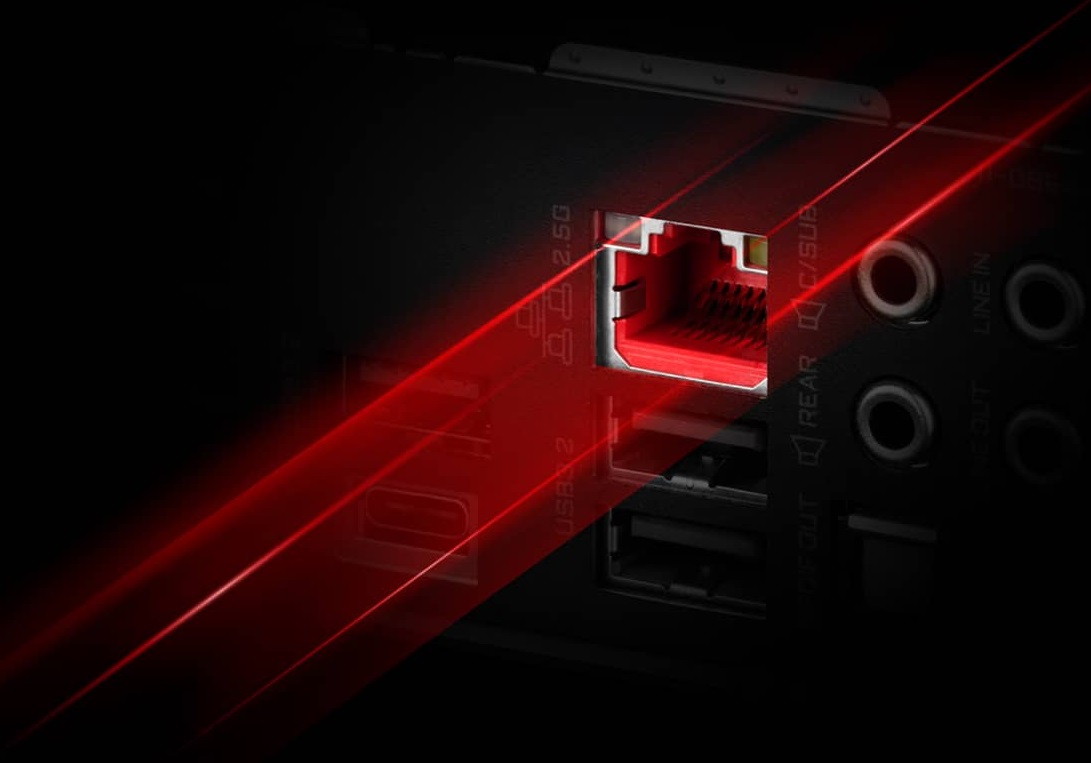

- Fast Networks:2.5GbE LAN
- Extended Connectivity:Front USB-C 10Gb/s, DP, HDMI
- Smart Fan 6:Features Multiple Temperature Sensors, Hybrid Fan Headers with FAN STOP
- Q-Flash Plus:Update BIOS Without Installing the CPU, Memory and Graphics Card
CPU
LGA1700 socket: Support for the 14th, 13th, and 12th Generation Intel Core™, Pentium Gold and Celeron Processors
L3 cache varies with CPU
(Please refer "CPU Support List" for more information.)
Chipset
Intel B760 Express Chipset
Memory
Support for DDR4 5333(O.C.)/ 5133(O.C.)/ 5000(O.C.)/ 4933(O.C.)/ 4800(O.C.)/ 4700(O.C.)/ 4600(O.C.)/ 4500(O.C.)/ 4400(O.C.)/ 4300(O.C.)/ 4266(O.C.)/ 4133(O.C.)/ 4000(O.C.)/ 3866(O.C.)/ 3800(O.C.)/ 3733(O.C.)/ 3666(O.C.)/ 3600(O.C.)/ 3466(O.C.)/ 3400(O.C.)/ 3333(O.C.)/ 3300(O.C.)/ 3200/ 3000/ 2933/ 2666/ 2400/ 2133 MT/s memory modules
4 x DDR DIMM sockets supporting up to 128 GB (32 GB single DIMM capacity) of system memory
Dual channel memory architecture
Support for ECC Un-buffered DIMM 1Rx8/2Rx8 memory modules (operate in non-ECC mode)
Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules
Support for Extreme Memory Profile (XMP) memory modules
(Please refer "Memory Support List" for more information.)
Onboard Graphics
Integrated Graphics Processor-Intel HD Graphics support:
1 x DisplayPort, supporting a maximum resolution of 4096x2304@60 Hz
* Support for DisplayPort 1.2 version and HDCP 2.3
1 x HDMI port, supporting a maximum resolution of 4096x2160@60 Hz
* Support for HDMI 2.0 version and HDCP 2.3.
(Graphics specifications may vary depending on CPU support.)
Audio
Realtek Audio CODEC
High Definition Audio
2/4/5.1/7.1-channel
Support for S/PDIF Out
* You can change the functionality of an audio jack using the audio software. To configure 7.1-channel audio, access the audio software for audio settings.
LAN
Realtek 2.5GbE LAN chip (2.5 Gbps/1 Gbps/100 Mbps)
Expansion Slots
CPU:
1 x PCI Express x16 slot, supporting PCIe 4.0 and running at x16 (PCIEX16)
* For optimum performance, if only one PCI Express graphics card is to be installed, be sure to install it in the PCIEX16 slot.
Chipset:
2 x PCI Express x16 slots, supporting PCIe 3.0 and running at x1 (PCIEX1_1, PCIEX1_2)
Storage Interface
CPU:
1 x M.2 connector (Socket 3, M key, type 22110/2280 PCIe 4.0 x4/x2 SSD support) (M2A_CPU)
Chipset:
2 x M.2 connectors (Socket 3, M key, type 22110/2280 PCIe 4.0 x4/x2 SSD support) (M2P_SB, M2M_SB)
4 x SATA 6Gb/s connectors
RAID 0, RAID 1, RAID 5, and RAID 10 support for SATA storage devices
USB
Chipset:
1 x USB Type-C port with USB 3.2 Gen 2 support, available through the internal USB header
1 x USB 3.2 Gen 2 Type-A port (red) on the back panel
4 x USB 3.2 Gen 1 ports (2 ports on the back panel, 2 ports available through the internal USB header)
1 x USB 2.0/1.1 port on the back panel
Chipset+2 USB 2.0 Hubs:
8 x USB 2.0/1.1 ports (4 ports on the back panel, 4 ports available through the internal USB headers)
Internal I/O Connectors
1 x 24-pin ATX main power connector
1 x 8-pin ATX 12V power connector
1 x CPU fan header
1 x CPU fan/water cooling pump header
3 x system fan headers
1 x system fan/water cooling pump header
2 x addressable LED strip headers
2 x RGB LED strip headers
3 x M.2 Socket 3 connectors
4 x SATA 6Gb/s connectors
1 x front panel header
1 x front panel audio header
1 x S/PDIF Out header
1 x USB Type-C header, with USB 3.2 Gen 2 support
1 x USB 3.2 Gen 1 header
2 x USB 2.0/1.1 headers
1 x Trusted Platform Module header (For the GC-TPM2.0 SPI/GC-TPM2.0 SPI 2.0 module only)
1 x serial port header
1 x Q-Flash Plus button
1 x reset button
1 x reset jumper
1 x Clear CMOS jumper
Back Panel Connectors
1 x USB 3.2 Gen 2 Type-A port (red)
2 x USB 3.2 Gen 1 ports
5 x USB 2.0/1.1 ports
1 x DisplayPort
1 x HDMI port
1 x RJ-45 port
6 x audio jacks
I/O Controller
iTE I/O Controller Chip
H/W Monitoring
Voltage detection
Temperature detection
Fan speed detection
Water cooling flow rate detection
Fan fail warning
Fan speed control
* Whether the fan (pump) speed control function is supported will depend on the fan (pump) you install.
BIOS
1 x 256 Mbit flash
Use of licensed AMI UEFI BIOS
PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0
Unique Features
Support for GIGABYTE Control Center (GCC)
* Available applications in GCC may vary by motherboard model. Supported functions of each application may also vary depending on motherboard specifications.
Support for Q-Flash
Support for Q-Flash Plus
Bundled Software
Norton Internet Security (OEM version)
LAN bandwidth management software
Operating System
Support for Windows 11 64-bit
Support for Windows 10 64-bit
Form Factor
ATX Form Factor; 30.5cm x 24.4cm
GIGABYTE B760 GAMING X DDR4 (rev. 1.0) Chipset: Intel® B760 Express Rozměrový formát: ATX (305x244mm) Podpora pro procesory: 13. a 12. generace Intel® Core™, Pentium® Gold a Celeron® Patice procesoru: LGA1700 Paměť: * 4x DIMM patice podporující až 128GB, DDR4 5333(OC)/5133(OC)/5000(OC)/4933(OC)/4800(OC)/4700(OC)/4600(OC)/4500(OC)/4400(OC)/4300(OC)/4266(OC)/4133(OC)/4000(OC)/3866(OC)/3800(OC)/3733(OC)/3666(OC)/3600(OC)/3466(OC)/3400(OC)/3333(OC)/3300(OC)/3200/3000/2933/2800/2666/2400/2133MT/s * dvoukanálová architektura paměti * podpora paměťových modulů Extreme Memory Profile (XMP) Grafické výstupy: * 1x DisplayPort 1.2 * 1x HDMI® 2.0 Zvuková karta: kodek Realtek 7.1 Surround Sound High Definition Audio CODEC Ethernet: Realtek® 2,5GbE LAN WLAN + Bluetooth: ne Rozšiřující sloty: * 1x PCI Express x16 s podporou PCIe 4.0 a běžícím na x16 (PCIEX16) * 2x PCI Express x16 s podporou PCIe 3.0 a běžícím na x1 (PCIEX1_1, PCIEX1_2) Úložný prostor: celkem podporuje 3 sloty M.2 a 4 porty SATA 6Gb/s * 1x M.2, M key, typ 22110/2280 - podpora PCIe 4.0 x4/x2 SSD (M2A_CPU) * 2x M.2, M key, typ 22110/2280 - podpora PCIe 4.0 x4/x2 SSD (M2P_SB, M2M_SB) * 4x port SATA 6Gb/s RAID řadič: podpora RAID 0/1/5/10 pro úložná zařízení SATA USB: Zadní USB (celkem 8 portů) * 1x USB 3.2 Gen 2 typu A (červený) * 2x USB 3.2 Gen 1 * 5x USB 2.0/1.1 Přední USB (celkem 7 portů) * 1x USB typ-C® konektor - podpora USB 3.2 Gen 2 * 1x USB 3.2 Gen 1 header - podpora dalších 2 portů USB 3.2 Gen 1 * 2x USB 2.0/1.1 header - podpora dalších 4 portů USB 2.0/1.1 Porty na zadním panelu: * 1x USB 3.2 Gen 2 typu A (červený) * 2x USB 3.2 Gen 1 * 5x USB 2.0/1.1 * 1x DisplayPort 1.2 * 1x HDMI 2.0 * 1x RJ-45 * 6x audio jack Interní porty: Napájení * 1x 24-pin ATX hlavní napájecí konektor * 1x 8-pin ATX 12V napájecí konektor Související s ventilátorem a chlazením * 1x CPU fan header * 1x CPU fan/water cooling pump header * 3x system fan headers * 1x system fan/water cooling pump header Související s úložištěm * 3x M.2 slot (Key M) * 4x SATA 6Gb/s port USB * 1x USB typ-C® header s podporou USB 3.2 Gen 2 * 1x USB 3.2 Gen 1 header * 2x USB 2.0/1.1 header Ostatní * 2x adresovatelný LED strip header * 2x RGB LED strip header * 1x front panel header * 1x front panel audio header * 1x S/PDIF Out header * 1x Trusted Platform Module header (pouze pro modul GC-TPM2.0 SPI/GC-TPM2.0 SPI 2.0) * 1x serial port header * 1x tlačítko reset * 1x tlačítko Q-Flash Plus * 1x reset jumper * 1x Clear CMOS jumper BIOS: 1x 256Mb flash, AMI UEFI BIOS Odkaz na stránku výrobce: https://www.gigabyte.com/Motherboard/B760-GAMING-X-DDR4-rev-10#kf
GIGABYTE B760 GAMING X DDR4
Deska je vybavena grafickými výstupy pro použití s procesory s integrovaným grafickým jádrem. Základní deska grafickou kartu neobsahuje a bez použití odpovídajícího procesoru, budou tyto výstupy nefunkční.
CPU
Podpora procesorů 12. a 13. generace Intel Core/ Pentium/ Celeron (patice LGA1700)
Čipová sada
Intel B760
Paměť
4x DDR4 paměťový slot, podpora až 128 GB
Podpora DDR4 5333 (OC)/ 5133 (OC)/ 5000 (OC)/ 4933 (OC)/ 4800 (OC)/ 4700 (OC)/ 4600 (OC)/ 4500 (OC)/ 4400 (OC)/ 4300 (OC)/ 4266 (OC)/ 4133 (OC)/ 4000 (OC)/ 3866 (OC)/ 3800 (OC)/ 3733 (OC)/ 3666 (OC)/ 3600 (OC)/ 3466 (OC)/ 3400 (OC)/ 3333 (OC)/ 3300 (OC)/ 3200/ 3000/ 2933/ 2666/ 2400/ 2133 MHz
Dvoukanálová architektura paměti
Podpora ECC, 1Rx8/2Rx8, bez vyrovnávací paměti (non-ECC režim)
Podpora non-ECC, 1Rx8/2Rx8/1Rx16, bez vyrovnávací paměti
Podpora Intel Extreme Memory Profile (XMP)
Sloty
Intel CPU
1x PCIe 4.0 x16 slot
Intel B760 čipová sada
2x PCIe 3.0 x16 slot (podporuje x1 režim)
Grafika
1x HDMI port, podporující max. rozlišení 4096 x 2160 při 60 Hz
1x DisplayPort port, podporující max. rozlišení 4096 x 2304 při 60 Hz
Úložiště
Intel CPU
1x M.2 slot, M Key, pro jednotky typu 22110/2280 (PCIe 4.0 x4/x2 režim)
Intel B760 čipová sada
2x M.2 slot, M Key, pro jednotky typu 22110/2280 (PCIe 4.0 x4/x2 režim)
4x SATA 6Gb/s port
Podpora RAID 0, RAID 1, RAID 5 a RAID 10 pro SATA jednotky
USB
1x USB 3.2 Gen2 typ C port dostupný přes interní USB konektor
1x USB 3.2 Gen2 typ A port na zadním panelu
4x USB 3.2 Gen1 (USB 3.0) port (2 porty na zadním panelu, 2 porty dostupné přes interní USB konektor)
9x USB 2.0 port (5 portů na zadním panelu, 4 porty dostupné přes interní USB konektory)
Audio
Realtek Audio Codec
2/4/5.1/7.1kanálové High Definition Audio
Podpora S/PDIF výstupu
LAN
1x Realtek 2,5Gigabit LAN řadič
Interní konektory
1x 24-pin ATX hlavní napájecí konektor
1x 8-pin ATX 12V napájecí konektor
1x konektor ventilátoru CPU
1x konektor ventilátoru CPU/ pumpy vodního chlazení
3x konektor systémového ventilátoru
1x konektor systémového ventilátoru/ pumpy vodního chlazení
2x konektor adresovatelného LED pásku
2x konektor RGB LED pásku
3x M.2 slot, M Key
4x SATA 6 Gb/s konektor
1x konektor předního panelu
1x audio konektor předního panelu
1x konektor S/PDIF výstupu
1x USB 3.2 Gen2 typ C konektor
1x USB 3.2 Gen1 (USB 3.0) konektor (podporuje 2x USB 3.2 Gen1 port)
2x USB 2.0 konektor (podporuje 4x USB 2.0 port)
1x TPM konektor (pouze pro moduly GC-TPM2.0 SPI a GC-TPM2.0 SPI 2.0)
1x konektor pro sériový port
1x tlačítko Q-Flash Plus
1x tlačítko Reset
1x propojka Reset
1x propojka Clear CMOS
Porty na zadním panelu
1x USB 3.2 Gen2 typ A
2x USB 3.2 Gen1 (USB 3.0)
5x USB 2.0
1x DisplayPort
1x HDMI
1x RJ-45
6x audio jack
Rozměry
30,5 x 24,4 cm
ATX formát
GIGABYTE B760 GAMING X DDR4 (rev. 1.0) Chipset: Intel® B760 Express Rozměrový formát: ATX (305x244mm) Podpora pro procesory: 13. a 12. generace Intel® Core™, Pentium® Gold a Celeron® Patice procesoru: LGA1700 Paměť: 4x DIMM patice podporující až 128GB, DDR4 5333(OC)/5133(OC)/5000(OC)/4933(OC)/4800(OC)/4700(OC)/4600(OC)/4500(OC)/4400(OC)/4300(OC)/4266(OC)/4133(OC)/4000(OC)/3866(OC)/3800(OC)/3733(OC)/3666(OC)/3600(OC)/3466(OC)/3400(OC)/3333(OC)/3300(OC)/3200/3000/2933/2800/2666/2400/2133MT/s dvoukanálová architektura paměti podpora paměťových modulů Extreme Memory Profile (XMP) Grafická karta: 1x DisplayPort 1.2 1x HDMI® 2.0 Zvuková karta: kodek Realtek 7.1 Surround Sound High Definition Audio CODEC Ethernet: Realtek® 2,5GbE LAN WLAN + Bluetooth: ne Rozšiřující sloty: 1x PCI Express x16 s podporou PCIe 4.0 a běžícím na x16 (PCIEX16) 2x PCI Express x16 s podporou PCIe 3.0 a běžícím na x1 (PCIEX1_1, PCIEX1_2) Úložný prostor: celkem podporuje 3 sloty M.2 a 4 porty SATA 6Gb/s 1x M.2, M key, typ 22110/2280 - podpora PCIe 4.0 x4/x2 SSD (M2A_CPU) 2x M.2, M key, typ 22110/2280 - podpora PCIe 4.0 x4/x2 SSD (M2P_SB, M2M_SB) 4x port SATA 6Gb/s RAID řadič: podpora RAID 0/1/5/10 pro úložná zařízení SATA USB: Zadní USB (celkem 8 portů) 1x USB 3.2 Gen 2 typu A (červený) 2x USB 3.2 Gen 1 5x USB 2.0/1.1 Přední USB (celkem 7 portů) 1x USB typ-C® konektor - podpora USB 3.2 Gen 2 1x USB 3.2 Gen 1 header - podpora dalších 2 portů USB 3.2 Gen 1 2x USB 2.0/1.1 header - podpora dalších 4 portů USB 2.0/1.1 Porty na zadním panelu: 1x USB 3.2 Gen 2 typu A (červený) 2x USB 3.2 Gen 1 5x USB 2.0/1.1 1x DisplayPort 1.2 1x HDMI 2.0 1x RJ-45 6x audio jack Interní porty: Napájení 1x 24-pin ATX hlavní napájecí konektor 1x 8-pin ATX 12V napájecí konektor Související s ventilátorem a chlazením 1x CPU fan header 1x CPU fan/water cooling pump header 3x system fan headers 1x system fan/water cooling pump header Související s úložištěm 3x M.2 slot (Key M) 4x SATA 6Gb/s port USB 1x USB typ-C® header s podporou USB 3.2 Gen 2 1x USB 3.2 Gen 1 header 2x USB 2.0/1.1 header Ostatní 2x adresovatelný LED strip header 2x RGB LED strip header 1x front panel header 1x front panel audio header 1x S/PDIF Out header 1x Trusted Platform Module header (pouze pro modul GC-TPM2.0 SPI/GC-TPM2.0 SPI 2.0) 1x serial port header 1x tlačítko reset 1x tlačítko Q-Flash Plus 1x reset jumper 1x Clear CMOS jumper BIOS: 1x 256Mb flash, AMI UEFI BIOS
GIGABYTE B760 GAMING X DDR4 (rev. 1.0) Chipset: Intel® B760 Express Rozměrový formát: ATX (305x244mm) Podpora pro procesory: 13. a 12. generace Intel® Core™, Pentium® Gold a Celeron® Patice procesoru: LGA1700 Paměť: * 4x DIMM patice podporující až 128GB, DDR4 5333(OC)/5133(OC)/5000(OC)/4933(OC)/4800(OC)/4700(OC)/4600(OC)/4500(OC)/4400(OC)/4300(OC)/4266(OC)/4133(OC)/4000(OC)/3866(OC)/3800(OC)/3733(OC)/3666(OC)/3600(OC)/3466(OC)/3400(OC)/3333(OC)/3300(OC)/3200/3000/2933/2800/2666/2400/2133MT/s * dvoukanálová architektura paměti * podpora paměťových modulů Extreme Memory Profile (XMP) Grafické výstupy: * 1x DisplayPort 1.2 * 1x HDMI® 2.0 Zvuková karta: kodek Realtek 7.1 Surround Sound High Definition Audio CODEC Ethernet: Realtek® 2,5GbE LAN WLAN + Bluetooth: ne Rozšiřující sloty: * 1x PCI Express x16 s podporou PCIe 4.0 a běžícím na x16 (PCIEX16) * 2x PCI Express x16 s podporou PCIe 3.0 a běžícím na x1 (PCIEX1_1, PCIEX1_2) Úložný prostor: celkem podporuje 3 sloty M.2 a 4 porty SATA 6Gb/s * 1x M.2, M key, typ 22110/2280 - podpora PCIe 4.0 x4/x2 SSD (M2A_CPU) * 2x M.2, M key, typ 22110/2280 - podpora PCIe 4.0 x4/x2 SSD (M2P_SB, M2M_SB) * 4x port SATA 6Gb/s RAID řadič: podpora RAID 0/1/5/10 pro úložná zařízení SATA USB: Zadní USB (celkem 8 portů) * 1x USB 3.2 Gen 2 typu A (červený) * 2x USB 3.2 Gen 1 * 5x USB 2.0/1.1 Přední USB (celkem 7 portů) * 1x USB typ-C® konektor - podpora USB 3.2 Gen 2 * 1x USB 3.2 Gen 1 header - podpora dalších 2 portů USB 3.2 Gen 1 * 2x USB 2.0/1.1 header - podpora dalších 4 portů USB 2.0/1.1 Porty na zadním panelu: * 1x USB 3.2 Gen 2 typu A (červený) * 2x USB 3.2 Gen 1 * 5x USB 2.0/1.1 * 1x DisplayPort 1.2 * 1x HDMI 2.0 * 1x RJ-45 * 6x audio jack Interní porty: Napájení * 1x 24-pin ATX hlavní napájecí konektor * 1x 8-pin ATX 12V napájecí konektor Související s ventilátorem a chlazením * 1x CPU fan header * 1x CPU fan/water cooling pump header * 3x system fan headers * 1x system fan/water cooling pump header Související s úložištěm * 3x M.2 slot (Key M) * 4x SATA 6Gb/s port USB * 1x USB typ-C® header s podporou USB 3.2 Gen 2 * 1x USB 3.2 Gen 1 header * 2x USB 2.0/1.1 header Ostatní * 2x adresovatelný LED strip header * 2x RGB LED strip header * 1x front panel header * 1x front panel audio header * 1x S/PDIF Out header * 1x Trusted Platform Module header (pouze pro modul GC-TPM2.0 SPI/GC-TPM2.0 SPI 2.0) * 1x serial port header * 1x tlačítko reset * 1x tlačítko Q-Flash Plus * 1x reset jumper * 1x Clear CMOS jumper BIOS: 1x 256Mb flash, AMI UEFI BIOS Odkaz na stránku výrobce: https://www.gigabyte.com/Motherboard/B760-GAMING-X-DDR4-rev-10#kf
GIGABYTE B760 GAMING X DDR4 (rev. 1.0) Chipset: Intel® B760 Express Rozměrový formát: ATX (305x244mm) Podpora pro procesory: 13. a 12. generace Intel® Core™, Pentium® Gold a Celeron® Patice procesoru: LGA1700 Paměť: * 4x DIMM patice podporující až 128GB, DDR4 5333(OC)/5133(OC)/5000(OC)/4933(OC)/4800(OC)/4700(OC)/4600(OC)/4500(OC)/4400(OC)/4300(OC)/4266(OC)/4133(OC)/4000(OC)/3866(OC)/3800(OC)/3733(OC)/3666(OC)/3600(OC)/3466(OC)/3400(OC)/3333(OC)/3300(OC)/3200/3000/2933/2800/2666/2400/2133MT/s * dvoukanálová architektura paměti * podpora paměťových modulů Extreme Memory Profile (XMP) Grafické výstupy: * 1x DisplayPort 1.2 * 1x HDMI® 2.0 Zvuková karta: kodek Realtek 7.1 Surround Sound High Definition Audio CODEC Ethernet: Realtek® 2,5GbE LAN WLAN + Bluetooth: ne Rozšiřující sloty: * 1x PCI Express x16 s podporou PCIe 4.0 a běžícím na x16 (PCIEX16) * 2x PCI Express x16 s podporou PCIe 3.0 a běžícím na x1 (PCIEX1_1, PCIEX1_2) Úložný prostor: celkem podporuje 3 sloty M.2 a 4 porty SATA 6Gb/s * 1x M.2, M key, typ 22110/2280 - podpora PCIe 4.0 x4/x2 SSD (M2A_CPU) * 2x M.2, M key, typ 22110/2280 - podpora PCIe 4.0 x4/x2 SSD (M2P_SB, M2M_SB) * 4x port SATA 6Gb/s RAID řadič: podpora RAID 0/1/5/10 pro úložná zařízení SATA USB: Zadní USB (celkem 8 portů) * 1x USB 3.2 Gen 2 typu A (červený) * 2x USB 3.2 Gen 1 * 5x USB 2.0/1.1 Přední USB (celkem 7 portů) * 1x USB typ-C® konektor - podpora USB 3.2 Gen 2 * 1x USB 3.2 Gen 1 header - podpora dalších 2 portů USB 3.2 Gen 1 * 2x USB 2.0/1.1 header - podpora dalších 4 portů USB 2.0/1.1 Porty na zadním panelu: * 1x USB 3.2 Gen 2 typu A (červený) * 2x USB 3.2 Gen 1 * 5x USB 2.0/1.1 * 1x DisplayPort 1.2 * 1x HDMI 2.0 * 1x RJ-45 * 6x audio jack Interní porty: Napájení * 1x 24-pin ATX hlavní napájecí konektor * 1x 8-pin ATX 12V napájecí konektor Související s ventilátorem a chlazením * 1x CPU fan header * 1x CPU fan/water cooling pump header * 3x system fan headers * 1x system fan/water cooling pump header Související s úložištěm * 3x M.2 slot (Key M) * 4x SATA 6Gb/s port USB * 1x USB typ-C® header s podporou USB 3.2 Gen 2 * 1x USB 3.2 Gen 1 header * 2x USB 2.0/1.1 header Ostatní * 2x adresovatelný LED strip header * 2x RGB LED strip header * 1x front panel header * 1x front panel audio header * 1x S/PDIF Out header * 1x Trusted Platform Module header (pouze pro modul GC-TPM2.0 SPI/GC-TPM2.0 SPI 2.0) * 1x serial port header * 1x tlačítko reset * 1x tlačítko Q-Flash Plus * 1x reset jumper * 1x Clear CMOS jumper BIOS: 1x 256Mb flash, AMI UEFI BIOS Odkaz na stránku výrobce: https://www.gigabyte.com/Motherboard/B760-GAMING-X-DDR4-rev-10#kf
GIGABYTE B760 GAMING X DDR4 (rev. 1.0) Chipset: Intel® B760 Express Rozměrový formát: ATX (305x244mm) Podpora pro procesory: 13. a 12. generace Intel® Core™, Pentium® Gold a Celeron® Patice procesoru: LGA1700 Paměť: 4x DIMM patice podporující až 128GB, DDR4 5333(OC)/5133(OC)/5000(OC)/4933(OC)/4800(OC)/4700(OC)/4600(OC)/4500(OC)/4400(OC)/4300(OC)/4266(OC)/4133(OC)/4000(OC)/3866(OC)/3800(OC)/3733(OC)/3666(OC)/3600(OC)/3466(OC)/3400(OC)/3333(OC)/3300(OC)/3200/3000/2933/2800/2666/2400/2133MT/s dvoukanálová architektura paměti podpora paměťových modulů Extreme Memory Profile (XMP) Grafická karta: 1x DisplayPort 1.2 1x HDMI® 2.0 Zvuková karta: kodek Realtek 7.1 Surround Sound High Definition Audio CODEC Ethernet: Realtek® 2,5GbE LAN WLAN + Bluetooth: ne Rozšiřující sloty: 1x PCI Express x16 s podporou PCIe 4.0 a běžícím na x16 (PCIEX16) 2x PCI Express x16 s podporou PCIe 3.0 a běžícím na x1 (PCIEX1_1, PCIEX1_2) Úložný prostor: celkem podporuje 3 sloty M.2 a 4 porty SATA 6Gb/s 1x M.2, M key, typ 22110/2280 - podpora PCIe 4.0 x4/x2 SSD (M2A_CPU) 2x M.2, M key, typ 22110/2280 - podpora PCIe 4.0 x4/x2 SSD (M2P_SB, M2M_SB) 4x port SATA 6Gb/s RAID řadič: podpora RAID 0/1/5/10 pro úložná zařízení SATA USB: Zadní USB (celkem 8 portů) 1x USB 3.2 Gen 2 typu A (červený) 2x USB 3.2 Gen 1 5x USB 2.0/1.1 Přední USB (celkem 7 portů) 1x USB typ-C® konektor - podpora USB 3.2 Gen 2 1x USB 3.2 Gen 1 header - podpora dalších 2 portů USB 3.2 Gen 1 2x USB 2.0/1.1 header - podpora dalších 4 portů USB 2.0/1.1 Porty na zadním panelu: 1x USB 3.2 Gen 2 typu A (červený) 2x USB 3.2 Gen 1 5x USB 2.0/1.1 1x DisplayPort 1.2 1x HDMI 2.0 1x RJ-45 6x audio jack Interní porty: Napájení 1x 24-pin ATX hlavní napájecí konektor 1x 8-pin ATX 12V napájecí konektor Související s ventilátorem a chlazením 1x CPU fan header 1x CPU fan/water cooling pump header 3x system fan headers 1x system fan/water cooling pump header Související s úložištěm 3x M.2 slot (Key M) 4x SATA 6Gb/s port USB 1x USB typ-C® header s podporou USB 3.2 Gen 2 1x USB 3.2 Gen 1 header 2x USB 2.0/1.1 header Ostatní 2x adresovatelný LED strip header 2x RGB LED strip header 1x front panel header 1x front panel audio header 1x S/PDIF Out header 1x Trusted Platform Module header (pouze pro modul GC-TPM2.0 SPI/GC-TPM2.0 SPI 2.0) 1x serial port header 1x tlačítko reset 1x tlačítko Q-Flash Plus 1x reset jumper 1x Clear CMOS jumper BIOS: 1x 256Mb flash, AMI UEFI BIOS
GIGABYTE B760 GAMING X DDR4 (rev. 1.0) Chipset: Intel® B760 Express Rozměrový formát: ATX (305x244mm) Podpora pro procesory: 13. a 12. generace Intel® Core™, Pentium® Gold a Celeron® Patice procesoru: LGA1700 Paměť: * 4x DIMM patice podporující až 128GB, DDR4 5333(OC)/5133(OC)/5000(OC)/4933(OC)/4800(OC)/4700(OC)/4600(OC)/4500(OC)/4400(OC)/4300(OC)/4266(OC)/4133(OC)/4000(OC)/3866(OC)/3800(OC)/3733(OC)/3666(OC)/3600(OC)/3466(OC)/3400(OC)/3333(OC)/3300(OC)/3200/3000/2933/2800/2666/2400/2133MT/s * dvoukanálová architektura paměti * podpora paměťových modulů Extreme Memory Profile (XMP) Grafické výstupy: * 1x DisplayPort 1.2 * 1x HDMI® 2.0 Zvuková karta: kodek Realtek 7.1 Surround Sound High Definition Audio CODEC Ethernet: Realtek® 2,5GbE LAN WLAN + Bluetooth: ne Rozšiřující sloty: * 1x PCI Express x16 s podporou PCIe 4.0 a běžícím na x16 (PCIEX16) * 2x PCI Express x16 s podporou PCIe 3.0 a běžícím na x1 (PCIEX1_1, PCIEX1_2) Úložný prostor: celkem podporuje 3 sloty M.2 a 4 porty SATA 6Gb/s * 1x M.2, M key, typ 22110/2280 - podpora PCIe 4.0 x4/x2 SSD (M2A_CPU) * 2x M.2, M key, typ 22110/2280 - podpora PCIe 4.0 x4/x2 SSD (M2P_SB, M2M_SB) * 4x port SATA 6Gb/s RAID řadič: podpora RAID 0/1/5/10 pro úložná zařízení SATA USB: Zadní USB (celkem 8 portů) * 1x USB 3.2 Gen 2 typu A (červený) * 2x USB 3.2 Gen 1 * 5x USB 2.0/1.1 Přední USB (celkem 7 portů) * 1x USB typ-C® konektor - podpora USB 3.2 Gen 2 * 1x USB 3.2 Gen 1 header - podpora dalších 2 portů USB 3.2 Gen 1 * 2x USB 2.0/1.1 header - podpora dalších 4 portů USB 2.0/1.1 Porty na zadním panelu: * 1x USB 3.2 Gen 2 typu A (červený) * 2x USB 3.2 Gen 1 * 5x USB 2.0/1.1 * 1x DisplayPort 1.2 * 1x HDMI 2.0 * 1x RJ-45 * 6x audio jack Interní porty: Napájení * 1x 24-pin ATX hlavní napájecí konektor * 1x 8-pin ATX 12V napájecí konektor Související s ventilátorem a chlazením * 1x CPU fan header * 1x CPU fan/water cooling pump header * 3x system fan headers * 1x system fan/water cooling pump header Související s úložištěm * 3x M.2 slot (Key M) * 4x SATA 6Gb/s port USB * 1x USB typ-C® header s podporou USB 3.2 Gen 2 * 1x USB 3.2 Gen 1 header * 2x USB 2.0/1.1 header Ostatní * 2x adresovatelný LED strip header * 2x RGB LED strip header * 1x front panel header * 1x front panel audio header * 1x S/PDIF Out header * 1x Trusted Platform Module header (pouze pro modul GC-TPM2.0 SPI/GC-TPM2.0 SPI 2.0) * 1x serial port header * 1x tlačítko reset * 1x tlačítko Q-Flash Plus * 1x reset jumper * 1x Clear CMOS jumper BIOS: 1x 256Mb flash, AMI UEFI BIOS Odkaz na stránku výrobce: https://www.gigabyte.com/Motherboard/B760-GAMING-X-DDR4-rev-10#kf
