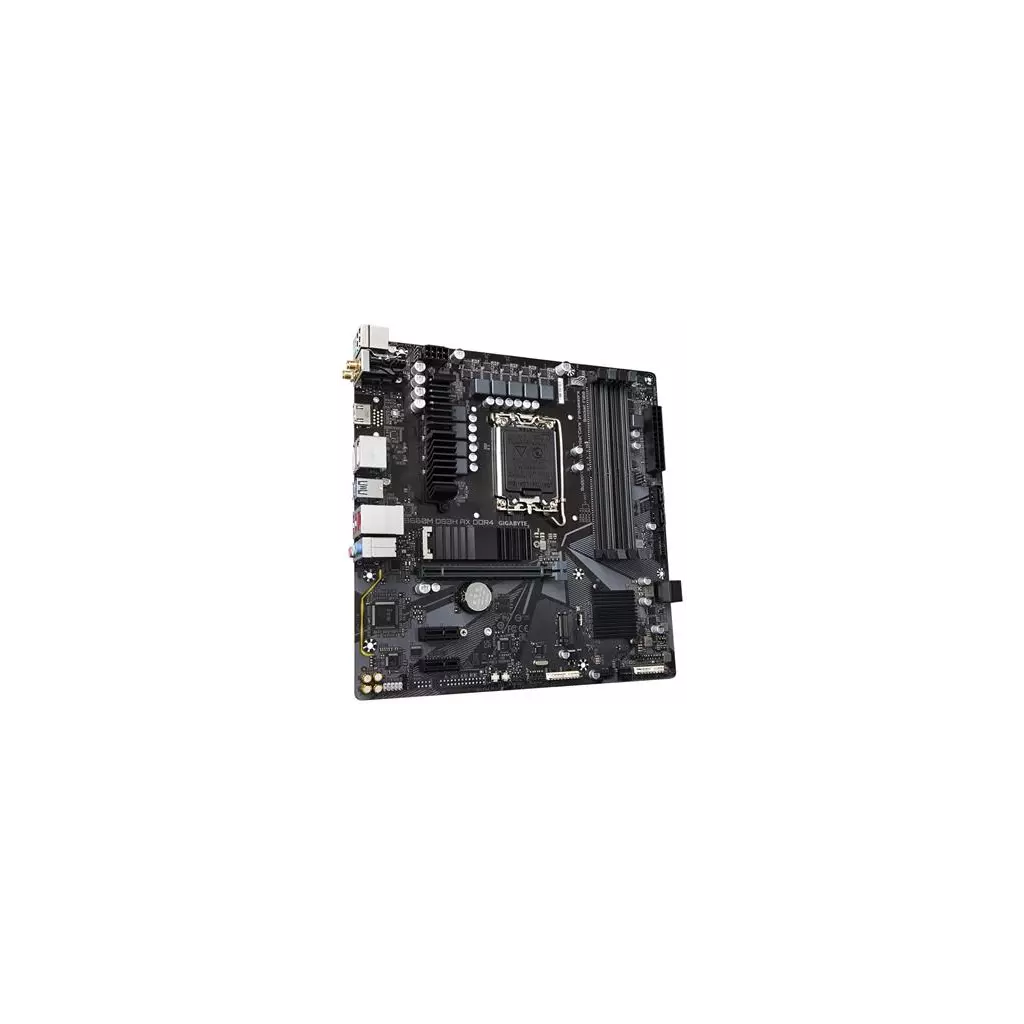

GIGABYTE B660M DS3H AX DDR4 / Intel B660 / LGA1700 / 4x DDR4 / 2x M.2 / DP / HDMI / USB-C / WiFi / mATX
![](https://cdn.vmshop.cz/images/get/7/mbgb6306.jpg?p=detail,wp)
Popis produktu:
Deska je vybavena grafickými výstupy pro použití s procesory s integrovaným grafickým jádrem. Základní deska grafickou kartu neobsahuje a bez použití odpovídajícího procesoru, budou tyto výstupy nefunkční.
CPU Podpora procesorů 12. generace Intel Core/ Pentium/ Celeron (patice LGA1700)
Čipová sada Intel B660
Paměť 4x DDR4 paměťový slot, podpora až 128 GB Podpora DDR4 5333 (OC)/ 5133 (OC)/ 5000 (OC)/ 4933 (OC)/ 4800 (OC)/ 4700 (OC)/ 4600 (OC)/ 4500 (OC)/ 4400 (OC)/ 4300 (OC)/ 4266 (OC)/ 4133 (OC)/ 4000 (OC)/ 3866 (OC)/ 3800 (OC)/ 3733 (OC)/ 3666 (OC)/ 3600 (OC)/ 3466 (OC)/ 3400 (OC)/ 3333 (OC)/ 3300 (OC)/ 3200/ 3000/ 2933/ 2666/ 2400/ 2133 MHz Dvoukanálová architektura paměti Podpora non-ECC, bez vyrovnávací paměti (1Rx8/2Rx8/1Rx16) Podpora ECC (non-ECC režim), bez vyrovnávací paměti (1Rx8/2Rx8) Podpora Intel Extreme Memory Profile (XMP)
Sloty 1x PCIe 4.0 x16 slot 2x PCIe 3.0 x1 slot
Grafika 1x HDMI port, podporující max. rozlišení 4096 x 2160 při 60 Hz 2x DisplayPort port, podporující max. rozlišení 4096 x 2304 při 60 Hz
Úložiště Intel CPU 1x M.2 slot, M Key, pro jednotky typu 2260/2280 (PCIe 4.0 x4/x2 režim) Intel B660 čipová sada 1x M.2 slot, M Key, pro jednotky typu 2260/2280 (PCIe 4.0 x4/x2 režim) 4x SATA 6Gb/s port Podpora RAID 0, RAID 1, RAID 5 a RAID 10 Podpora Intel Optane technologie
USB 1x USB 3.2 Gen2 (USB 3.1) typ C port na zadním panelu 5x USB 3.2 Gen1 (USB 3.0) port (3 porty na zadním panelu, 2 porty dostupné přes interní USB konektor) 6x USB 2.0 port (2 porty na zadním panelu, 4 porty dostupné přes interní USB konektory)
Audio Realtek Audio Codec 2/4/5.1/7.1kanálové High Definition Audio
LAN 1x Realtek 2,5Gigabit LAN řadič
WLAN/ Bluetooth Intel Wi-Fi 6 AX201 Wi-Fi 802.11a/b/g/n/ac/ax Dual Band (2,4 GHz, 5 GHz) Rychlost přenosu dat až 2,4 Gbps Bluetooth 5.2
Interní konektory 1x 24-pin ATX hlavní napájecí konektor 1x 8-pin ATX 12V napájecí konektor 1x konektor ventilátoru CPU 3x konektor systémového ventilátoru 1x konektor adresovatelného LED pásku 1x konektor RGB LED pásku 2x M.2 slot, M Key 4x SATA 6Gb/s konektor 1x konektor předního panelu 1x audio konektor předního panelu 1x USB 3.2 Gen1 (USB 3.0) konektor (podporuje 2x USB 3.2 Gen1 port) 2x USB 2.0 konektor (podporuje 4x USB 2.0 port) 1x TPM konektor (podporuje pouze moduly GC-TPM2.0 SPI a GC-TPM2.0 SPI 2.0) 1x konektor S/PDIF výstupu 1x tlačítko Q-Flash Plus 1x tlačítko Reset 1x Reset propojka 1x propojka Clear CMOS
Konektory na zadním panelu 1x PS/2 combo port klávesnici a myši 1x HDMI 2x DisplayPort 1x USB 3.2 Gen2 typ C 3x USB 3.2 Gen1 (USB 3.0) 2x USB 2.0 1x RJ-45 2x konektor Wi-Fi antény 3x audio jack
Rozměry 24,4 x 24,4 cm Micro ATX formát
Deska je vybavena grafickými výstupy pro použití s procesory s integrovaným grafickým jádrem. Základní deska grafickou kartu neobsahuje a bez použití odpovídajícího procesoru, budou tyto výstupy nefunkční.
CPU Podpora procesorů 12. generace Intel Core/ Pentium/ Celeron (patice LGA1700)
Čipová sada Intel B660
Paměť 4x DDR4 paměťový slot, podpora až 128 GB Podpora DDR4 5333 (OC)/ 5133 (OC)/ 5000 (OC)/ 4933 (OC)/ 4800 (OC)/ 4700 (OC)/ 4600 (OC)/ 4500 (OC)/ 4400 (OC)/ 4300 (OC)/ 4266 (OC)/ 4133 (OC)/ 4000 (OC)/ 3866 (OC)/ 3800 (OC)/ 3733 (OC)/ 3666 (OC)/ 3600 (OC)/ 3466 (OC)/ 3400 (OC)/ 3333 (OC)/ 3300 (OC)/ 3200/ 3000/ 2933/ 2666/ 2400/ 2133 MHz Dvoukanálová architektura paměti Podpora non-ECC, bez vyrovnávací paměti (1Rx8/2Rx8/1Rx16) Podpora ECC (non-ECC režim), bez vyrovnávací paměti (1Rx8/2Rx8) Podpora Intel Extreme Memory Profile (XMP)
Sloty 1x PCIe 4.0 x16 slot 2x PCIe 3.0 x1 slot
Grafika 1x HDMI port, podporující max. rozlišení 4096 x 2160 při 60 Hz 2x DisplayPort port, podporující max. rozlišení 4096 x 2304 při 60 Hz
Úložiště Intel CPU 1x M.2 slot, M Key, pro jednotky typu 2260/2280 (PCIe 4.0 x4/x2 režim) Intel B660 čipová sada 1x M.2 slot, M Key, pro jednotky typu 2260/2280 (PCIe 4.0 x4/x2 režim) 4x SATA 6Gb/s port Podpora RAID 0, RAID 1, RAID 5 a RAID 10 Podpora Intel Optane technologie
USB 1x USB 3.2 Gen2 (USB 3.1) typ C port na zadním panelu 5x USB 3.2 Gen1 (USB 3.0) port (3 porty na zadním panelu, 2 porty dostupné přes interní USB konektor) 6x USB 2.0 port (2 porty na zadním panelu, 4 porty dostupné přes interní USB konektory)
Audio Realtek Audio Codec 2/4/5.1/7.1kanálové High Definition Audio
LAN 1x Realtek 2,5Gigabit LAN řadič
WLAN/ Bluetooth Intel Wi-Fi 6 AX201 Wi-Fi 802.11a/b/g/n/ac/ax Dual Band (2,4 GHz, 5 GHz) Rychlost přenosu dat až 2,4 Gbps Bluetooth 5.2
Interní konektory 1x 24-pin ATX hlavní napájecí konektor 1x 8-pin ATX 12V napájecí konektor 1x konektor ventilátoru CPU 3x konektor systémového ventilátoru 1x konektor adresovatelného LED pásku 1x konektor RGB LED pásku 2x M.2 slot, M Key 4x SATA 6Gb/s konektor 1x konektor předního panelu 1x audio konektor předního panelu 1x USB 3.2 Gen1 (USB 3.0) konektor (podporuje 2x USB 3.2 Gen1 port) 2x USB 2.0 konektor (podporuje 4x USB 2.0 port) 1x TPM konektor (podporuje pouze moduly GC-TPM2.0 SPI a GC-TPM2.0 SPI 2.0) 1x konektor S/PDIF výstupu 1x tlačítko Q-Flash Plus 1x tlačítko Reset 1x Reset propojka 1x propojka Clear CMOS
Konektory na zadním panelu 1x PS/2 combo port klávesnici a myši 1x HDMI 2x DisplayPort 1x USB 3.2 Gen2 typ C 3x USB 3.2 Gen1 (USB 3.0) 2x USB 2.0 1x RJ-45 2x konektor Wi-Fi antény 3x audio jack
Rozměry 24,4 x 24,4 cm Micro ATX formát
Parametr | Hodnota |
---|---|
Socket (patice) | Socket 1700 |
Chipset | Intel B660 |
Technologie paměti RAM | DDR4 |
Formát základní desky | micro ATX |
Podpora RAID | 1 |
Podpora RAID | 5 |
Podpora RAID | 10 |
PCI Express x16 | 1 |
3.5mm Jack | Ano |
Bezdrátové připojení | Wi-Fi |
Specifikace:

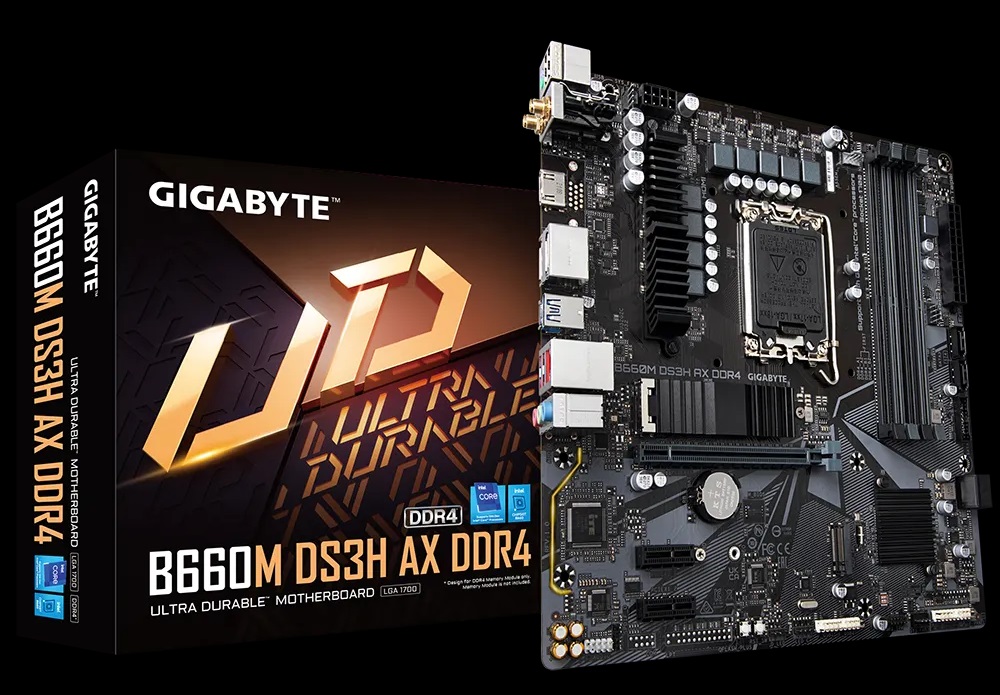

B660M DS3H AX DDR4
Intel B660 Motherboard with 6+2+1 Phases Hybrid Digital VRM with MOS Heatsink, 2 x PCIe 4.0 M.2 with Thermal Guard, 2.5GbE LAN, WIFI 6 802.11ax , Rear USB 3.2 Gen 2 Type-C, RGB FUSION 2.0, Q-Flash Plus
- Supports 12th Gen Intel Core™ Series Processors
- Dual Channel Non-ECC Unbuffered DDR4, 4 DIMMs
- 6+2+1 Phases Hybrid Digital VRM with MOS Heatsink
- WIFI 6 802.11ax 2T2R & BT5 with AERO Antenna
- Fast 2.5 GbE LAN with Bandwidth Management

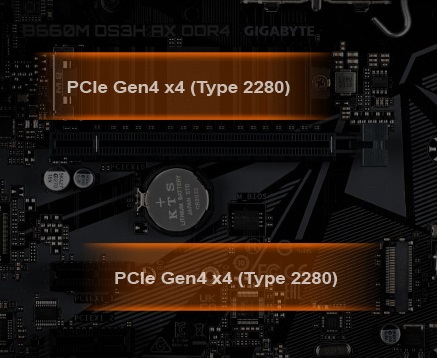

- Dual Ultra-Fast NVMe PCIe 4.0 x4 M.2 with Thermal Guard
- Rear SuperSpeed USB 3.2 Gen 2 TYPE-C for Fast and Versatile Connections
- High Quality Audio Capacitors and Audio Noise Guard
- RGB FUSION 2.0 supports Addressable LED & RGB LED Strips
- Smart Fan 6 Features Multiple Temperature Sensors , Hybrid Fan Headers with FAN STOP
- Q-Flash Plus Update BIOS without Installing the CPU, Memory and Graphics Card
CPU
LGA1700 socket: Support for 12th Generation Intel Core™ i9 processors/Intel Core™ i7 processors/Intel Core™ i5 processors L3 cache varies with CPU (Please refer to "CPU Support List" for more information.)
Chipset
Intel B660 Express Chipset
Memory
Support for DDR4 3200/3000/2933/2666/2400/2133 MHz memory modules 4 x DDR DIMM sockets supporting up to 128 GB (32 GB single DIMM capacity) of system memory Dual channel memory architecture Support for ECC Un-buffered DIMM 1Rx8/2Rx8 memory modules (operate in non-ECC mode) Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules Support for Extreme Memory Profile (XMP) memory modules (Go to GIGABYTE's website for the latest supported memory speeds and memory modules.)
Onboard Graphics
Integrated Graphics Processor-Intel HD Graphics support: 1 x D-Sub port, supporting a maximum resolution of 1920x1200@60 Hz 1 x HDMI port, supporting a maximum resolution of 4096x2160@60 Hz * Support for HDMI 2.1 version and HDCP 2.3. ** Support native HDMI 2.1 TMDS compatible ports. 1 x DisplayPort, supporting a maximum resolution of 4096x2304@60 Hz * Support for DisplayPort 1.2 version and HDCP 2.3 1 x DisplayPort, supporting a maximum resolution of 4096x2304@60 Hz * Support for DisplayPort 1.2 version. (Graphics specifications may vary depending on CPU support.)
Support for up to 3 displays at the same time
Audio
Realtek Audio CODEC High Definition Audio 2/4/5.1/7.1-channel * To configure 7.1-channel audio, you need to open the audio software and select Device advanced settings > Playback Device to change the default setting first.
LAN
Realtek 2.5GbE LAN chip (2.5 Gbps/1 Gbps/100 Mbps)
Wireless Communication module
Intel Wi-Fi 6 AX201 (For PCB rev. 1.0) WIFI a, b, g, n, ac, ax, supporting 2.4/5 GHz Dual-Band BLUETOOTH 5.2 Support for 11ax 160MHz wireless standard and up to 2.4 Gbps data rate Intel Wi-Fi 6 AX200 (For PCB rev. 1.1) WIFI a, b, g, n, ac, ax, supporting 2.4/5 GHz Dual-Band BLUETOOTH 5.2 Support for 11ax 160MHz wireless standard and up to 2.4 Gbps data rate Intel Wi-Fi 6E AX211 (For PCB rev. 1.2) WIFI a, b, g, n, ac, ax, supporting 2.4/5/6 GHz carrier frequency bands BLUETOOTH 5.2 Support for 11ax 160MHz wireless standard and up to 2.4 Gbps data rate (Actual data rate may vary depending on environment and equipment.)
Expansion Slots
1 x PCI Express x16 slot, running at x16 (The PCIEX16 slot conforms to PCI Express 4.0 standard.) 2 x PCI Express x1 slots (The PCIEX1 slots conform to PCI Express 3.0 standard.) Storage Interface CPU: 1 x M.2 connector (Socket 3, M key, type 2260/2280 PCIe 4.0 x4/x2 SSD support) (M2A_CPU) Chipset: 1 x M.2 connector (Socket 3, M key, type 2260/2280 PCIe 4.0 x4/x2 SSD support) (M2P_SB) 4 x SATA 6Gb/s connectors Support for RAID 0, RAID 1, RAID 5, and RAID 10
Intel Optane™ Memory Ready * System acceleration with Intel Optane™ Memory can only be enabled on the M.2 connector supported by the Chipset.
USB
Chipset: 1 x USB Type-C port on the back panel, with USB 3.2 Gen 2 support 5 x USB 3.2 Gen 1 ports (3 ports on the back panel, 2 ports available through the internal USB header) 2 x USB 2.0/1.1 ports on the back panel Chipset+2 USB 2.0 Hubs: 4 x USB 2.0/1.1 ports available through the internal USB headers
Internal I/O Connectors
1 x 24-pin ATX main power connector 1 x 8-pin ATX 12V power connector 1 x CPU fan header 3 x system fan headers 1 x addressable LED strip header 1 x RGB LED strip header 2 x M.2 Socket 3 connectors 4 x SATA 6Gb/s connectors 1 x front panel header 1 x front panel audio header 1 x USB 3.2 Gen 1 header 2 x USB 2.0/1.1 headers 1 x Trusted Platform Module header (For the GC-TPM2.0 SPI/GC-TPM2.0 SPI 2.0 module only) 1 x S/PDIF Out header 1 x Q-Flash Plus button 1 x reset button 1 x reset jumper 1 x Clear CMOS jumper *All fan headers are subject to support AIO_Pump, Pump and high performance fan with the capability of delivering up to 2A/12V @ 24W.
Back Panel Connectors
2 x USB 2.0/1.1 ports 1 x PS/2 keyboard/mouse port 2 x SMA antenna connectors (2T2R) 1 x HDMI port 2 x DisplayPorts 3 x USB 3.2 Gen 1 ports 1 x USB Type-C port, with USB 3.2 Gen 2 support 1 x RJ-45 port 3 x audio jacks
I/O Controller
iTE I/O Controller Chip
H/W Monitoring
Voltage detection Temperature detection Fan speed detection Fan fail warning Fan speed control * Whether the fan speed control function is supported will depend on the cooler you install.
BIOS
1 x 256 Mbit flash Use of licensed AMI UEFI BIOS PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0
Unique Features
Support for APP Center * Available applications in APP Center may vary by motherboard model. Supported functions of each application may also vary depending on motherboard specifications. @BIOS EasyTune Fast Boot Game Boost ON/OFF Charge RGB Fusion Smart Backup System Information Viewer Support for Q-Flash Plus Support for Q-Flash Support for Xpress Install
Bundled Software
Norton Internet Security (OEM version) Realtek Gaming LAN Bandwidth Control Utility
Operating System
Support for Windows 11 64-bit Support for Windows 10 64-bit
Form Factor
Micro ATX Form Factor; 24.4cm x 24.4cm
