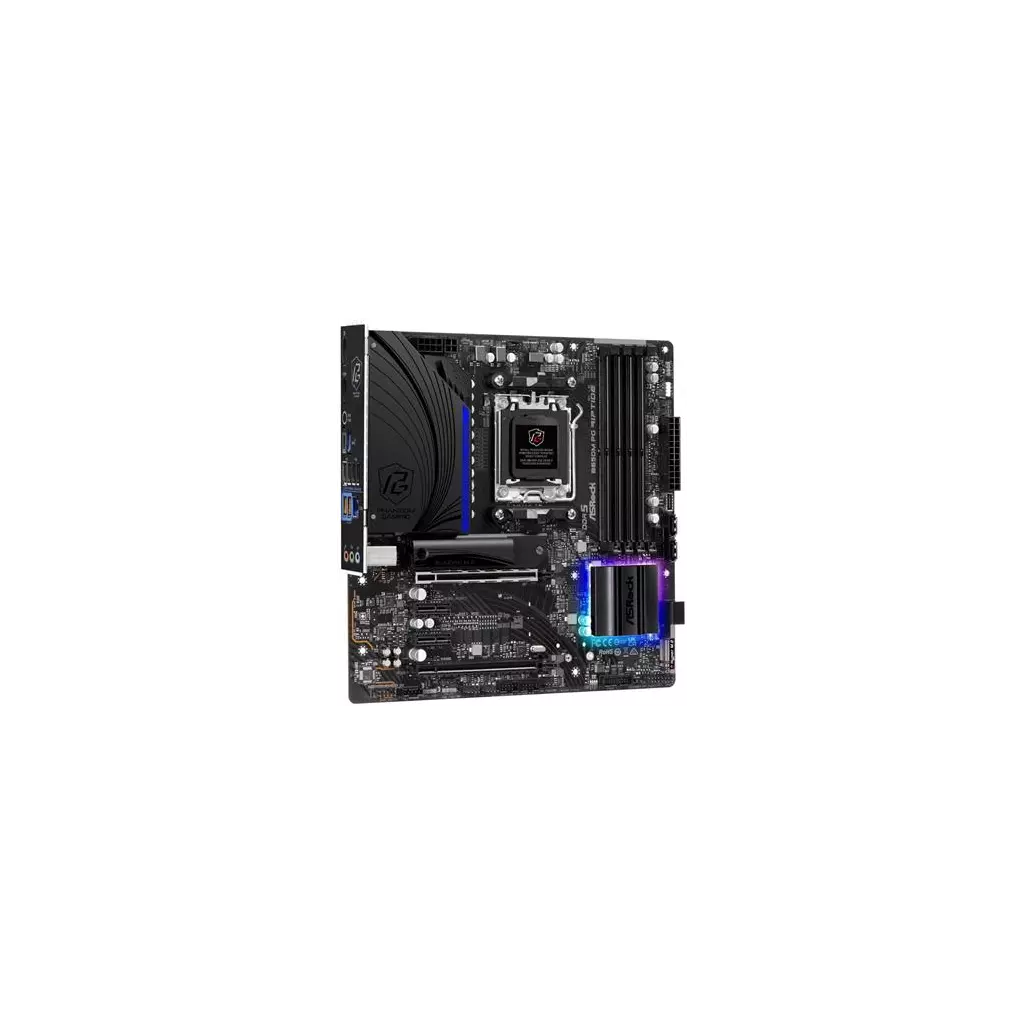

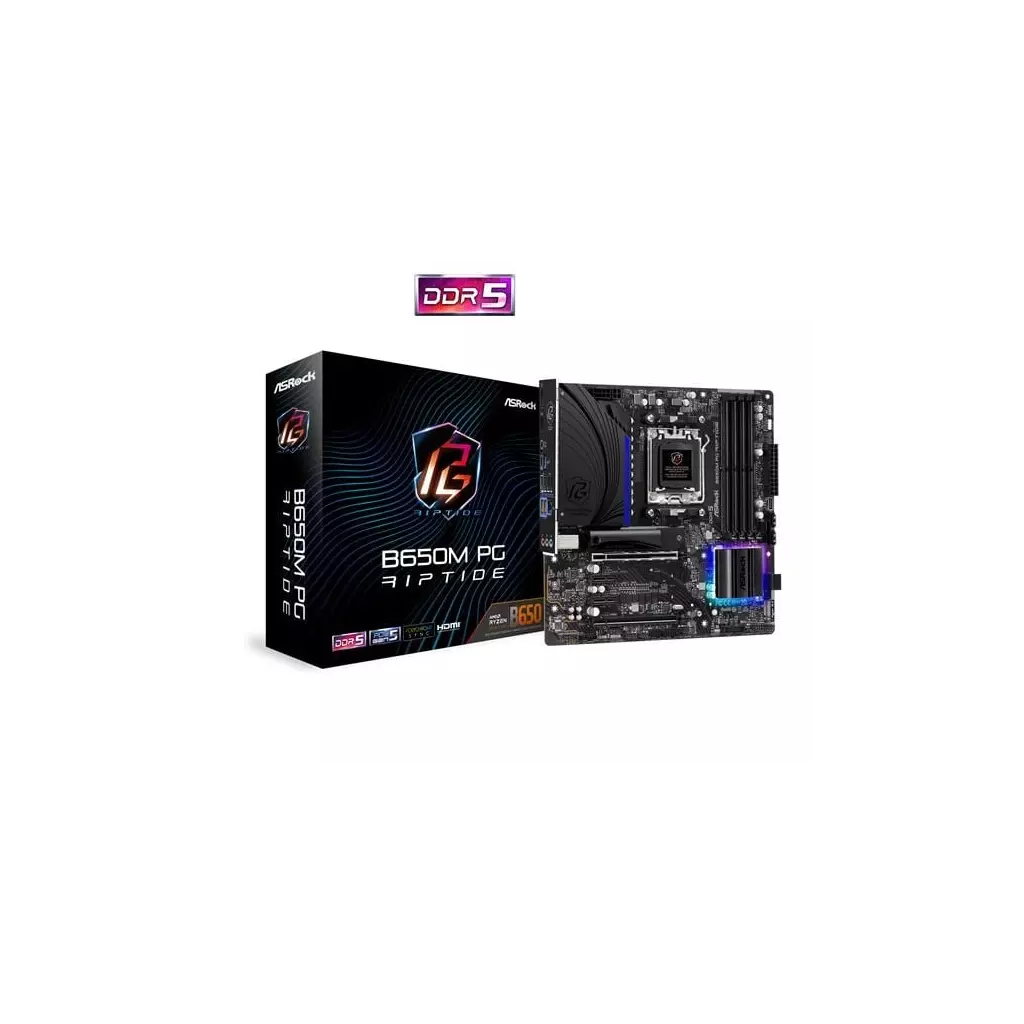

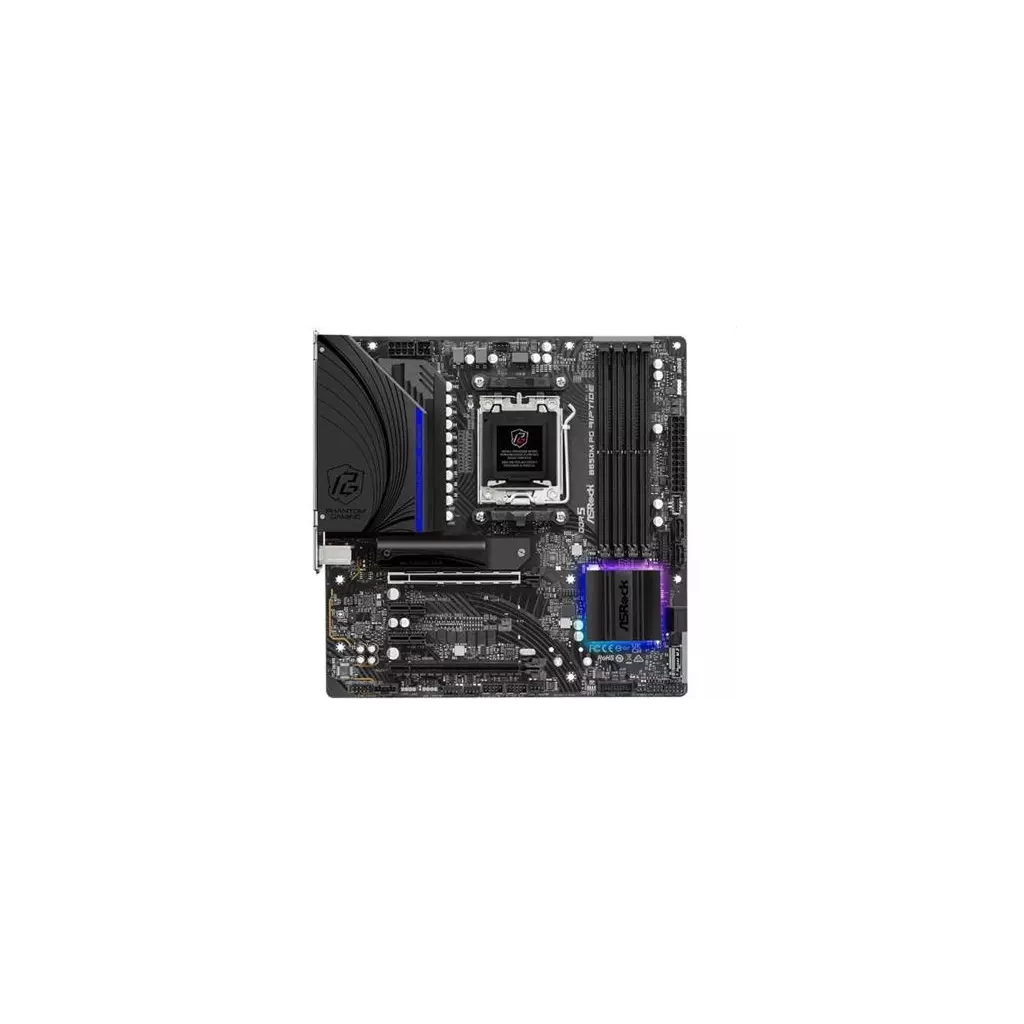

ASROCK B650M PG RIPTIDE (AM5, amd B650, 4xDDR5, PCIE 5.0, HDMI+DPort, 4xSATA3 +2xM.2, USB3.2 G2, GLAN 2,5G, mATX)
Popis produktu:
Deska je vybavena grafickými výstupy pro použití s procesory s integrovaným grafickým jádrem. Základní deska grafickou kartu neobsahuje a bez použití odpovídajícího procesoru, budou tyto výstupy nefunkční.
CPU Podpora procesorů AMD Ryzen série 7000 (patice AM5)
Čipová sada AMD B650
Paměť 4x DDR5 paměťový slot, podpora až 192 GB Podpora DDR5 až 6200+ (OC) MHz Dvoukanálová architektura paměti Podpora ECC/non-ECC, bez vyrovnávací paměti Podpora AMD EXtended Profiles for Overclocking (EXPO) Podpora Extreme Memory Profile (XMP)
Sloty AMD CPU 1x PCIe 4.0 x16 slot AMD B650 čipová sada 1x PCIe 4.0 x16 slot (podporuje x4 režim) 2x PCIe 3.0 x1 slot
Grafika 1x HDMI port, podporující max. rozlišení 4K při 120 Hz 1x DisplayPort port, podporující max. rozlišení 4K při 120 Hz
Multi-GPU Podpora AMD CrossFire technologie
Úložiště AMD CPU 1x Blazing M.2 slot, M Key, pro jednotky typu 2260/2280 (PCIe 5.0 x4 režim) AMD B650 čipová sada 1x Hyper M.2 slot, M Key, pro jednotky typu 2260/2280 (PCIe 4.0 x4 režim) 4x SATA 6Gb/s port Podpora ASRock U.2 Kit Podpora RAID 0, RAID 1 a RAID 10 pro SATA jednotky Podpora RAID 0, RAID 1 a RAID 10 pro M.2 NVMe jednotky
USB 1x USB 3.2 Gen2 typ C port na zadním panelu 1x USB 3.2 Gen2 typ A port na zadním panelu 1x USB 3.2 Gen1 typ C port dostupný přes interní USB konektor 6x USB 3.2 Gen1 (USB 3.0) port (2 porty na zadním panelu, 4 porty dostupné přes interní USB konektory) 8x USB 2.0 port (4 porty na zadním panelu, 4 porty dostupné přes interní USB konektory)
Audio Realtek ALC897 Codec 7.1kanálové High Definition Audio Nahimic audio
LAN 1x Dragon RTL8125BG 2,5Gigabit LAN řadič
Interní konektory 1x konektor SPI TPM 1x konektor reproduktoru a Power LED 1x konektor RGB LED pásku 3x konektor adresovatelného LED pásku 1x 4-pin konektor ventilátoru CPU 1x 4-pin konektor ventilátoru CPU/ ventilátoru vodního chlazení CPU 3x 4-pin konektor ventilátoru skříně/ ventilátoru vodního chlazení CPU 1x 24-pin ATX hlavní napájecí konektor 1x 8-pin 12V napájecí konektor 1x 4-pin 12V napájecí konektor 1x audio konektor předního panelu 1x konektor Thunderbolt AIC (podporuje ASRock Thunderbolt 4 AIC Card) 2x USB 2.0 konektor (podporuje 4x USB 2.0 port) 2x USB 3.2 Gen1 (USB 3.0) konektor (podporuje 4x USB 3.2 Gen1 port) 1x USB 3.2 Gen1 typ C konektor předního panelu
Porty na zadním panelu 1x HDMI 1x DisplayPort 1x USB 3.2 Gen2 typ C 1x USB 3.2 Gen2 (USB 3.1 Gen2) typ A 2x USB 3.2 Gen1 (USB 3.0) 4x USB 2.0 1x RJ-45 1x tlačítko BIOS Flashback 3x audio jack
Rozměry 24,4 x 24,4 cm Micro ATX formát
Parametr | Hodnota |
---|---|
Pro procesory | AMD |
Socket (patice) | Socket AM5 (LGA 1718) |
Chipset | Intel B650 |
Počet paměťových slotů | 4 |
Technologie paměti RAM | DDR5 |
Formát základní desky | micro ATX |
Podpora RAID | 0 |
Podpora RAID | 1 |
Podpora RAID | 10 |
PCI Express x16 | 2 |
PCI Express x1 | 2 |
SATA 3 | 4 |
M.2 slot | 2 |
VGA | 0 |
DVI | 0 |
HDMI | 1 |
DisplayPort | 1 |
COM port | Ne |
LPT port | Ne |
TPM | Ano |
Specifikace:
B650M PG Riptide
- Supports AMD Ryzen™ 7000 Series Processors
- 12+2+1 Phase Power Design, Dr.MOS
- 4 x DDR5 DIMMs, supports up to 6200+(OC)
- 1 PCIe 4.0 x16, 1 PCIe 4.0 x16, 2 PCIe 3.0 x1
- Graphics Output Options: 1 HDMI, 1 DisplayPort
- 7.1 CH HD Audio (Realtek ALC897 Audio Codec), Nahimic Audio
- 1 Blazing M.2 (PCIe Gen5x4), 1 Hyper M.2 (PCIe Gen4x4), 4 SATA3
- 1 USB 3.2 Gen2 Type-C (Rear), 1 USB 3.2 Gen2 Type-A (Rear), 1 USB 3.2 Gen1 Type-C (Front), 6 USB 3.2 Gen1 (2 Rear, 4 Front), 8 USB 2.0 (4 Rear, 4 Front)
- Realtek 2.5G LAN
Unique Feature
Superb Productivity - PCIe Gen5 (M.2) - Dual Channel DDR5 Rock-Solid Durability - 12+2+1 Power Phase, 50A Dr.MOS with Enlarged Heatsink Armor - Flexible Integrated I/O Shield Ultrafast Gaming - 2.5G LAN - ASRock Lightning Gaming Ports EZ Update - BIOS Flashback Button - ASRock Auto Driver Installer EZ Troubleshooter - ASRock Post Status Checker
CPU
- Supports AMD Socket AM5 Ryzen™ 7000 Series Processors
Chipset
- AMD B650
Memory
- Dual Channel DDR5 Memory Technology - 4 x DDR5 DIMM Slots - Supports DDR5 ECC/non-ECC, un-buffered memory up to 6200+(OC) - Max. capacity of system memory: 128GB - Supports Extreme Memory Profile (XMP) and EXTended Profiles for Overclocking (EXPO) memory modules
BIOS
- 256Mb AMI UEFI Legal BIOS with GUI support
Graphics
Integrated AMD RDNA™ 2 graphics (Actual support may vary by CPU) - 1 x HDMI 2.1 TMDS/FRL 8G Compatible, supports HDR, HDCP 2.3 and max. resolution up to 4K 120Hz - 1 x DisplayPort 1.4 with DSC (compressed), supports HDCP 2.3 and max. resolution up to 4K 120Hz
Audio
- 7.1 CH HD Audio (Realtek ALC897 Audio Codec) - Nahimic Audio
LAN
- 2.5 Gigabit LAN 10/100/1000/2500 Mb/s - Dragon RTL8125BG - Supports Phantom Gaming LAN Software - Smart Auto Adjust Bandwidth Control - Visual User Friendly UI - Visual Network Usage Statistics - Optimized Default Setting for Game, Browser, and Streaming Modes - User Customized Priority Control
Slots
CPU: - 1 x PCIe 4.0 x16 Slot (PCIE1), supports x16 mode* Chipset: - 1 x PCIe 4.0 x16 Slot (PCIE4), supports x4 mode* - 2 x PCIe 3.0 x1 Slots (PCIE2 and PCIE3)
- Supports AMD CrossFire™ - 15µ Gold Contact in VGA PCIe Slot (PCIE1)
*Supports NVMe SSD as boot disks
Storage
CPU: - 1 x Blazing M.2 Socket (M2_1, Key M), supports type 2260/2280 PCIe Gen5x4 (128 Gb/s) mode* Chipset: - 1 x Hyper M.2 Socket (M2_2, Key M), supports type 2260/2280 PCIe Gen4x4 (64 Gb/s) mode* - 4 x SATA3 6.0 Gb/s Connectors
*Supports NVMe SSD as boot disks Supports ASRock U.2 Kit
RAID
- Supports RAID 0, RAID 1 and RAID 10 for SATA storage devices - Supports RAID 0, RAID 1 and RAID 10 for M.2 NVMe storage devices
*Requires additional M.2 NVMe expansion cards to support RAID 10
USB
- 1 x USB 3.2 Gen2 Type-C (Rear) - 1 x USB 3.2 Gen2 Type-A (Rear) - 1 x USB 3.2 Gen1 Type-C (Front) - 6 x USB 3.2 Gen1 (2 Rear, 4 Front) - 8 x USB 2.0 (4 Rear, 4 Front)
*All USB ports support ESD Protection
Connector
- 1 x SPI TPM Header - 1 x Power LED and Speaker Header - 1 x RGB LED Header* - 3 x Addressable LED Headers** - 1 x CPU Fan Connector (4-pin)*** - 1 x CPU/Water Pump Fan Connector (4-pin) (Smart Fan Speed Control)**** - 3 x Chassis/Water Pump Fan Connectors (4-pin) (Smart Fan Speed Control)***** - 1 x 24 pin ATX Power Connector - 1 x 8 pin 12V Power Connector - 1 x 4 pin 12V Power Connector - 1 x Front Panel Audio Connector - 1 x Thunderbolt™ AIC Connector (5-pin) (Supports ASRock Thunderbolt™ 4 AIC Card) - 2 x USB 2.0 Headers (Support 4 USB 2.0 ports) - 2 x USB 3.2 Gen1 Headers (Support 4 USB 3.2 Gen1 ports) - 1 x Front Panel Type C USB 3.2 Gen1 Header
*Supports in total up to 12V/3A, 36W LED Strip
**Support in total up to 5V/3A, 15W LED Strip
***CPU_FAN1 supports the fan power up to 1A (12W).
****CPU_FAN2/WP supports the fan power up to 2A (24W).
*****CHA_FAN1~3/WP support the fan power up to 2A (24W). CPU_FAN2/WP and CHA_FAN1~3/WP can auto detect if 3-pin or 4-pin fan is in use.
Rear Panel I/O
- 1 x HDMI Port - 1 x DisplayPort 1.4 - 1 x USB 3.2 Gen2 Type-A Port (10 Gb/s) (ReDriver) - 1 x USB 3.2 Gen2 Type-C Port (10 Gb/s) (ReDriver) - 2 x USB 3.2 Gen1 Ports (USB32_23 are Lightning Gaming Ports.) - 4 x USB 2.0 Ports - 1 x RJ-45 LAN Port - 1 x BIOS Flashback Button - HD Audio Jacks: Line in / Front Speaker / Microphone
Software and UEFI
Software - ASRock Motherboard Utility (Phantom Gaming Tuning) - ASRock Phantom Gaming LAN Software - ASRock Polychrome SYNC* UEFI - ASRock Full HD UEFI - ASRock Auto Driver Installer - ASRock Instant Flash
*These utilities can be downloaded from ASRock Live Update & APP Shop.

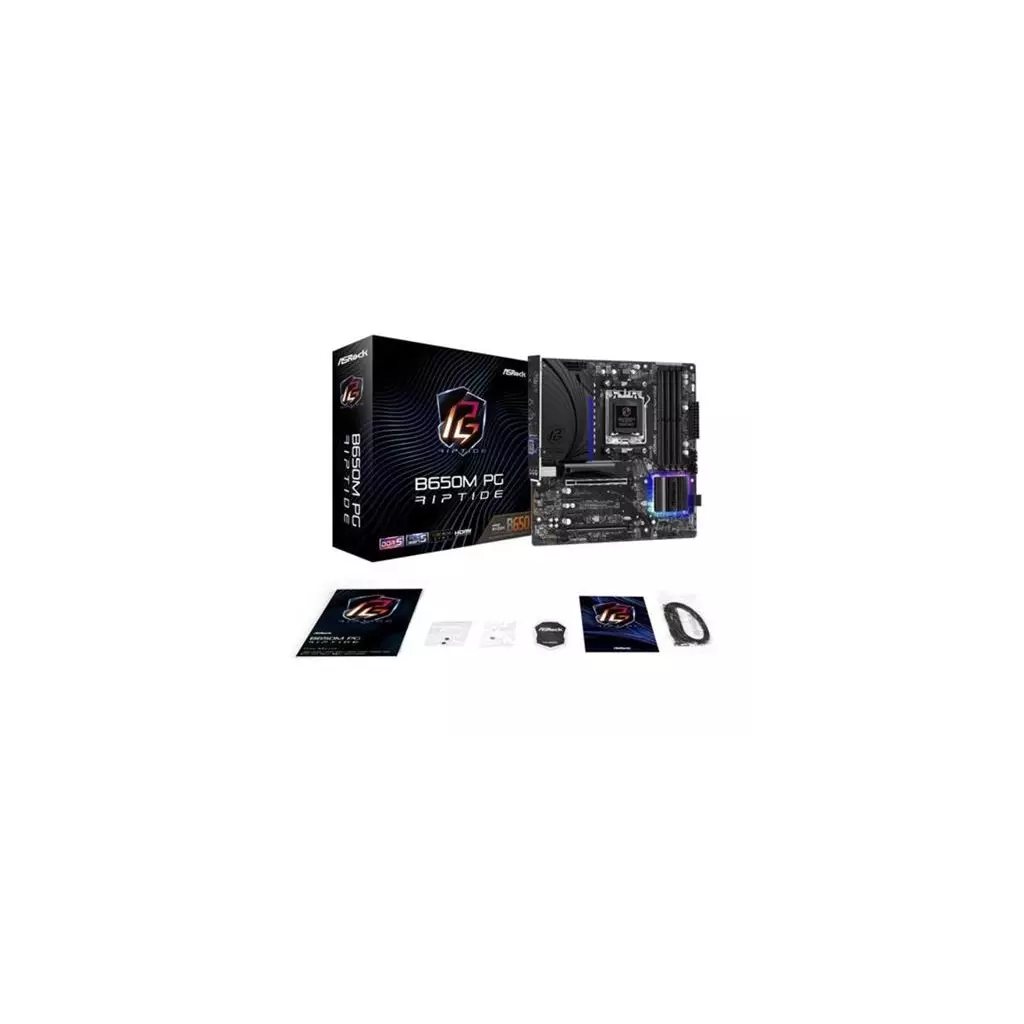

Accessories
- 1 x User Manual - 2 x SATA Data Cables - 2 x Screws for M.2 Sockets - 1 x Standoff for M.2 Socket
Form Factor
- Micro ATX Form Factor: 9.6-in x 9.6-in, 24.4 cm x 24.4 cm - 2oz Copper PCB
OS
- Microsoft Windows 10 64-bit / 11 64-bit
Certifications
- FCC, CE - ErP/EuP ready (ErP/EuP ready power supply is required)
