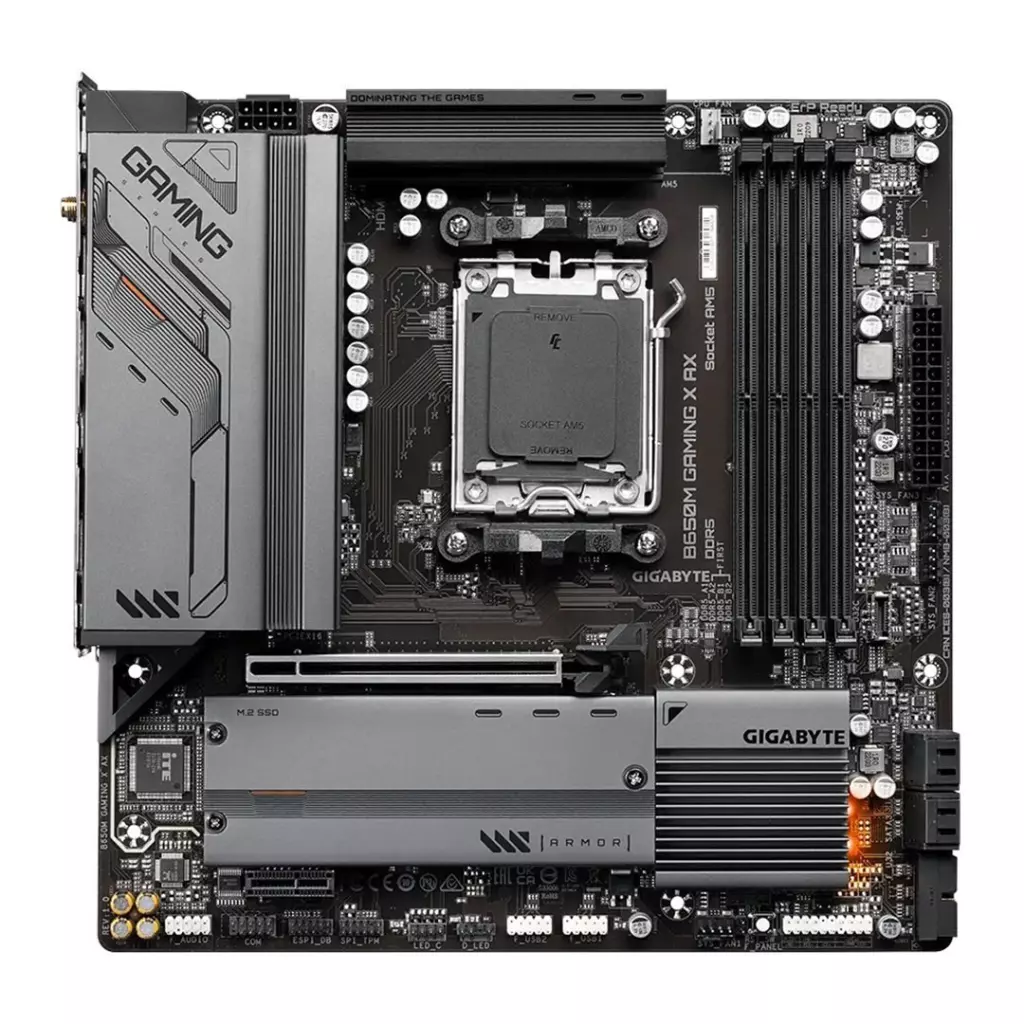

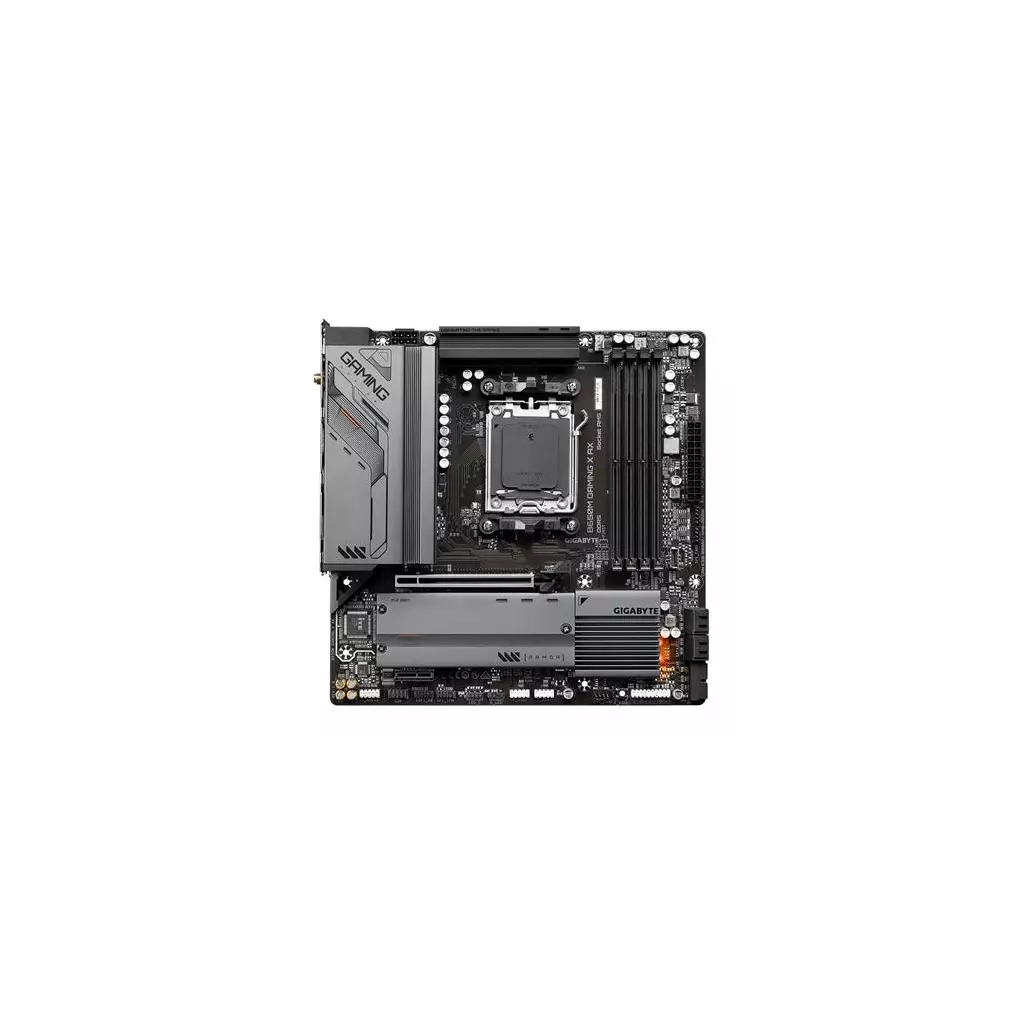

GIGABYTE B650M GAMING X AX

Chipset: AMD B650 Rozměrový formát: Micro ATX Form Factor; (24.4cm x 24.4cm) Podpora pro procesory: AMD Ryzen 7000 Series Processors Patice procesoru: AM5 Pozice na paměti: 4 x DDR5 DIMM, Dual channel memory architecture Podpora pro paměti: DDR5 6400(OC) / 6200(OC) / 6000(OC) / 5600(OC) / 5200 / 4800 / 4400 MT/s memory modules Max.velikost operační paměti: 128 GB (32 GB single DIMM capacity) Podpora pro paměti typu: non-ECC, XMP Grafická karta: (na základě procesoru) 2 x DisplayPorts 1.4, maximální rozlišení 3840x2160@144 Hz 1 x HDMI 2.1 port, maximální rozlišení 4096x2160@60 Hz Zvuková karta: Realtek Audio CODEC 2/4/5.1/7.1-channel Síťová karta: Realtek 2.5GbE LAN chip (2.5 Gbps/1 Gbps/100 Mbps) AMD Wi-Fi 6E RZ616 a, b, g, n, ac, ax Bluetooth 5.2 Rozšiřující sloty: 1 x PCI Express x16 slot, supporting PCIe 4.0 and running at x16 (PCIEX16) 1 x PCI Express x1 slot, supporting PCIe 3.0 and running at x1 (PCIEX1) RAID řadič: RAID 0, RAID 1, and RAID 10 SATA: 4 x SATA 6Gb/s connectors M.2: 2 x M.2 Socket 3 connectors USB: Interní: 1 x USB Type-C header, with USB 3.2 Gen 2 support 1 x USB 3.2 Gen 1 header 2 x USB 2.0/1.1 headers Externí: 1 x USB 3.2 Gen 2 Type-A port (red) 2 x USB 3.2 Gen 1 ports 1 x USB Type-C port, with USB 3.2 Gen 2 support 4 x USB 2.0/1.1 ports Interní porty: 1 x 24-pin ATX main power connector 1 x 8-pin ATX 12V power connector 1 x CPU fan header 3 x system fan headers 1 x addressable LED strip header 1 x RGB LED strip header 2 x M.2 Socket 3 connectors 4 x SATA 6Gb/s connectors 1 x front panel header 1 x front panel audio header 1 x USB Type-C header, with USB 3.2 Gen 2 support 1 x USB 3.2 Gen 1 header 2 x USB 2.0/1.1 headers 1 x Trusted Platform Module header (For the GC-TPM2.0 SPI/GC-TPM2.0 SPI 2.0 module only) 1 x serial port header 1 x reset button 1 x reset jumper 1 x Clear CMOS jumper Externí porty: 4 x USB 2.0/1.1 ports 1 x PS/2 keyboard/mouse port 2 x SMA antenna connectors (2T2R) 2 x DisplayPorts 1 x HDMI port 1 x USB 3.2 Gen 2 Type-A port (red) 1 x USB Type-C port, with USB 3.2 Gen 2 support 1 x Q-Flash Plus button 1 x RJ-45 port 2 x USB 3.2 Gen 1 ports 3 x audio jacks BIOS: AMI UEFI BIOS, 1 x 256 Mbit flash

Chipset: AMD B650 Rozměrový formát: Micro ATX Form Factor; (24.4cm x 24.4cm) Podpora pro procesory: AMD Ryzen 7000 Series Processors Patice procesoru: AM5 Pozice na paměti: 4 x DDR5 DIMM, Dual channel memory architecture Podpora pro paměti: DDR5 6400(OC) / 6200(OC) / 6000(OC) / 5600(OC) / 5200 / 4800 / 4400 MT/s memory modules Max.velikost operační paměti: 128 GB (32 GB single DIMM capacity) Podpora pro paměti typu: non-ECC, XMP Grafické výstupy: (na základě procesoru) *2 x DisplayPorts 1.4, maximální rozlišení 3840x2160@144 Hz *1 x HDMI 2.1 port, maximální rozlišení 4096x2160@60 Hz Zvuková karta: Realtek Audio CODEC 2/4/5.1/7.1-channel Síťová karta: *Realtek 2.5GbE LAN chip (2.5 Gbps/1 Gbps/100 Mbps) *AMD Wi-Fi 6E RZ616 a, b, g, n, ac, ax *Bluetooth 5.2 Rozšiřující sloty: *1 x PCI Express x16 slot, supporting PCIe 4.0 and running at x16 (PCIEX16) *1 x PCI Express x1 slot, supporting PCIe 3.0 and running at x1 (PCIEX1) RAID řadič: RAID 0, RAID 1, and RAID 10 SATA: 4 x SATA 6Gb/s connectors M.2: 2 x M.2 Socket 3 connectors USB: *Interní: *1 x USB Type-C header, with USB 3.2 Gen 2 support *1 x USB 3.2 Gen 1 header *2 x USB 2.0/1.1 headers *Externí: *1 x USB 3.2 Gen 2 Type-A port (red) *2 x USB 3.2 Gen 1 ports *1 x USB Type-C port, with USB 3.2 Gen 2 support *4 x USB 2.0/1.1 ports Interní porty: *1 x 24-pin ATX main power connector *1 x 8-pin ATX 12V power connector *1 x CPU fan header *3 x system fan headers *1 x addressable LED strip header *1 x RGB LED strip header *2 x M.2 Socket 3 connectors *4 x SATA 6Gb/s connectors *1 x front panel header *1 x front panel audio header *1 x USB Type-C header, with USB 3.2 Gen 2 support *1 x USB 3.2 Gen 1 header *2 x USB 2.0/1.1 headers *1 x Trusted Platform Module header (For the GC-TPM2.0 SPI/GC-TPM2.0 SPI 2.0 module only) *1 x serial port header *1 x reset button *1 x reset jumper *1 x Clear CMOS jumper Externí porty: *4 x USB 2.0/1.1 ports *1 x PS/2 keyboard/mouse port *2 x SMA antenna connectors (2T2R) *2 x DisplayPorts *1 x HDMI port *1 x USB 3.2 Gen 2 Type-A port (red) *1 x USB Type-C port, with USB 3.2 Gen 2 support *1 x Q-Flash Plus button *1 x RJ-45 port *2 x USB 3.2 Gen 1 ports *3 x audio jacks BIOS: AMI UEFI BIOS, 1 x 256 Mbit flash Stránka výrobce: http://www.gigabyte.com/Motherboard/B650M-GAMING-X-AX-rev-1x#kf

GIGABYTE B650M GAMING X AX

Deska je vybavena grafickými výstupy pro použití s procesory s integrovaným grafickým jádrem. Základní deska grafickou kartu neobsahuje a bez použití odpovídajícího procesoru, budou tyto výstupy nefunkční.

CPU Podpora procesorů AMD Ryzen série 7000 (patice AM5)

Čipová sada AMD B650

Paměť 4x DDR5 paměťový slot, podpora až 192 GB Podpora DDR5 6400 (OC)/ 6200 (OC)/ 6000 (OC)/ 5600 (OC)/ 5200/ 4800/ 4400 MHz Dvoukanálová architektura paměti Podpora non-ECC, bez vyrovnávací paměti, 1Rx8/2Rx8/1Rx16 Podpora AMD EXtended Profiles for Overclocking (EXPO) Podpora Intel Extreme Memory Profile (XMP)

Sloty AMD CPU 1x PCIe 4.0 x16 slot AMD B650 čipová sada 1x PCIe 3.0 x1 slot

Grafika 1x HDMI port, podporující max. rozlišení 4096 x 2160 při 60 Hz 2x DisplayPort port, podporující max. rozlišení 3840 x 2160 při 144 Hz

Úložiště AMD CPU 2x M.2 slot, M Key, pro jednotky typu 2280/25110 (PCIe 4.0 x4/x2 režim) AMD B650 čipová sada 4x SATA 6Gb/s port Podpora RAID 0, RAID 1 a RAID 10 pro SATA jednotky Podpora RAID 0, RAID 1 a RAID 10 pro PCIe jednotky

USB AMD B650 čipová sada 1x USB 3.2 Gen2 typ C port dostupný přes interní USB konektor 4x USB 3.2 Gen1 (USB 3.0) port (2 porty na zadním panelu, 2 porty dostupné přes interní USB konektor) 4x USB 2.0 port dostupný přes interní USB konektory AMD CPU 1x USB 3.2 Gen2 typ C port na zadním panelu 1x USB 3.2 Gen2 typ A port na zadním panelu 4x USB 2.0 port na zadním panelu

Audio Realtek Audio Codec 2/4/5.1/7.1kanálové High Definition Audio

LAN 1x Realtek 2,5Gigabit LAN řadič

WLAN/ Bluetooth rev. 1.0: AMD Wi-Fi 6E RZ616 (MT7922A22M) Wi-Fi 802.11a/b/g/n/ac/ax Triple Band (2,4 GHz, 5 GHz, 6 GHz) Rychlost přenosu dat až 2,4 Gbps Bluetooth 5.2 rev 1.1: Intel Wi-Fi 6E AX210 Wi-Fi 802.11a/b/g/n/ac/ax Triple Band (2,4 GHz, 5 GHz, 6 GHz) Rychlost přenosu dat až 2,4 Gbps Bluetooth 5.3

Interní konektory 1x 24-pin ATX hlavní napájecí konektor 1x 8-pin ATX 12V napájecí konektor 1x konektor ventilátoru CPU 3x konektor systémového ventilátoru 1x konektor adresovatelného LED pásku 1x konektor RGB LED pásku 2x M.2 slot, M Key 4x SATA 6Gb/s konektor 1x konektor předního panelu 1x audio konektor předního panelu 1x USB 3.2 Gen2 typ C konektor 1x USB 3.2 Gen1 (USB 3.0) konektor (podporuje 2x USB 3.2 Gen1 port) 2x USB 2.0 konektor (podporuje 4x USB 2.0 port) 1x TPM konektor (podporuje pouze moduly GC-TPM2.0 SPI a GC-TPM2.0 SPI 2.0) 1x konektor pro sériový port 1x tlačítko Reset 1x Reset propojka 1x propojka Clear CMOS

Porty na zadním panelu 1x tlačítko Q-Flash Plus 2x konektor Wi-Fi antény 1x PS/2 combo port klávesnice a myši 2x DisplayPort 1x HDMI 1x USB 3.2 Gen2 typ C 1x USB 3.2 Gen2 (USB 3.1 Gen2) 2x USB 3.2 Gen1 (USB 3.0) 4x USB 2.0 1x RJ-45 3x audio jack

Rozměry 24,4 x 24,4 cm Micro ATX formát

Bazar

B650M GAMING X AX

• AMD Socket AM5:Supports AMD Ryzen™ 7000 Series Processors
• Unparalleled Performance:Direct 6+2+1 Phases Digital VRM Solution
• Dual Channel DDR5:4*SMD DIMMs with AMD EXPO™ & Intel XMP Memory Module Support
• SuperSpeed Storage:2*PCIe 4.0 x4 M.2 Connectors
• Advanced Thermal Design & M.2 Thermal Guard:To Ensure VRM Power Stability & 25110 M.2 SSD Performance
• EZ-Latch:PCIe x16 Slot & M.2 Connectors with Quick Release & Screwless Design
• Fast Networks:2.5GbE LAN & Wi-Fi 6E 802.11ax
• Extended Connectivity:2*DP, HDMI, 2*USB-C 10Gb/s
• Smart Fan 6:Features Multiple Temperature Sensors, Hybrid Fan Headers with FAN STOP
• Q-Flash Plus:Update BIOS Without Installing the CPU, Memory and Graphics Card

CPU

AMD Socket AM5, support for: AMD Ryzen™ 7000 Series Processors (Please refer "CPU Support List" for more information.)

Chipset

AMD B650

Memory

Support for DDR5 6400(OC) / 6200(OC) / 6000(OC) / 5600(OC) / 5200 / 4800 / 4400 MT/s memory modules 4 x DDR5 DIMM sockets supporting up to 128 GB (32 GB single DIMM capacity) of system memory Dual channel memory architecture Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules Support for AMD EXtended Profiles for Overclocking (AMD EXPO™) and Extreme Memory Profile (XMP) memory modules (Please refer "Memory Support List" for more information.)

Onboard Graphics

Integrated Graphics Processor: 2 x DisplayPorts, supporting a maximum resolution of 3840x2160@144 Hz * Support for DisplayPort 1.4 version and HDR. 1 x HDMI port, supporting a maximum resolution of 4096x2160@60 Hz * Support for HDMI 2.1 version and HDCP 2.3. ** Support native HDMI 2.1 TMDS compatible ports. (Graphics specifications may vary depending on CPU support.)

Support for up to 3 displays at the same time

Audio

Realtek Audio CODEC High Definition Audio 2/4/5.1/7.1-channel * You can change the functionality of an audio jack using the audio software. To configure 7.1-channel audio, access the audio software for audio settings.

LAN

Realtek 2.5GbE LAN chip (2.5 Gbps/1 Gbps/100 Mbps)

Wireless Communication module

AMD Wi-Fi 6E RZ616 (MT7922A22M) (For PCB rev. 1.0) WIFI a, b, g, n, ac, ax, supporting 2.4/5/6 GHz carrier frequency bands BLUETOOTH 5.2 Support for 11ax 160MHz wireless standard and up to 2.4 Gbps data rate Intel Wi-Fi 6E AX210 (For PCB rev. 1.1) WIFI a, b, g, n, ac, ax, supporting 2.4/5/6 GHz carrier frequency bands BLUETOOTH 5.3 Support for 11ax 160MHz wireless standard and up to 2.4 Gbps data rate (Actual data rate may vary depending on environment and equipment.)

Expansion Slots

CPU: 1 x PCI Express x16 slot, supporting PCIe 4.0 and running at x16 (PCIEX16) Chipset: 1 x PCI Express x1 slot, supporting PCIe 3.0 and running at x1 (PCIEX1)

Storage Interface

CPU: 2 x M.2 connectors (Socket 3, M key, type 25110/2280 PCIe 4.0 x4/x2 SSD support) Chipset: 4 x SATA 6Gb/s connectors RAID 0, RAID 1, and RAID 10 support for NVMe SSD storage devices RAID 0, RAID 1, and RAID 10 support for SATA storage devices

USB

CPU: 1 x USB Type-C port on the back panel, with USB 3.2 Gen 2 support 1 x USB 3.2 Gen 2 Type-A port (red) on the back panel CPU + USB 2.0 Hub: 4 x USB 2.0/1.1 ports on the back panel Chipset: 1 x USB Type-C port with USB 3.2 Gen 2 support, available through the internal USB header 4 x USB 3.2 Gen 1 ports (2 ports on the back panel, 2 ports available through the internal USB header) 4 x USB 2.0/1.1 ports available through the internal USB headers

Internal I/O Connectors

1 x 24-pin ATX main power connector 1 x 8-pin ATX 12V power connector 1 x CPU fan header 3 x system fan headers 1 x addressable LED strip header 1 x RGB LED strip header 2 x M.2 Socket 3 connectors 4 x SATA 6Gb/s connectors 1 x front panel header 1 x front panel audio header 1 x USB Type-C header, with USB 3.2 Gen 2 support 1 x USB 3.2 Gen 1 header 2 x USB 2.0/1.1 headers 1 x Trusted Platform Module header (For the GC-TPM2.0 SPI/GC-TPM2.0 SPI 2.0 module only) 1 x serial port header 1 x reset button 1 x reset jumper 1 x Clear CMOS jumper

Back Panel Connectors

4 x USB 2.0/1.1 ports 1 x PS/2 keyboard/mouse port 2 x SMA antenna connectors (2T2R) 2 x DisplayPorts 1 x HDMI port 1 x USB 3.2 Gen 2 Type-A port (red) 1 x USB Type-C port, with USB 3.2 Gen 2 support 1 x Q-Flash Plus button 1 x RJ-45 port 2 x USB 3.2 Gen 1 ports 3 x audio jacks

I/O Controller

iTE I/O Controller Chip

H/W Monitoring

Voltage detection Temperature detection Fan speed detection Fan fail warning Fan speed control * Whether the fan speed control function is supported will depend on the cooler you install.

BIOS

1 x 256 Mbit flash Use of licensed AMI UEFI BIOS PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0

Unique Features

Support for GIGABYTE Control Center (GCC) * Available applications in GCC may vary by motherboard model. Supported functions of each application may also vary depending on motherboard specifications. Support for Q-Flash Support for Q-Flash Plus

Bundled Software

Norton Internet Security (OEM version) LAN bandwidth management software

Operating System

Support for Windows 11 64-bit Support for Windows 10 64-bit

Form Factor

Micro ATX Form Factor; 24.4cm x 24.4cm
