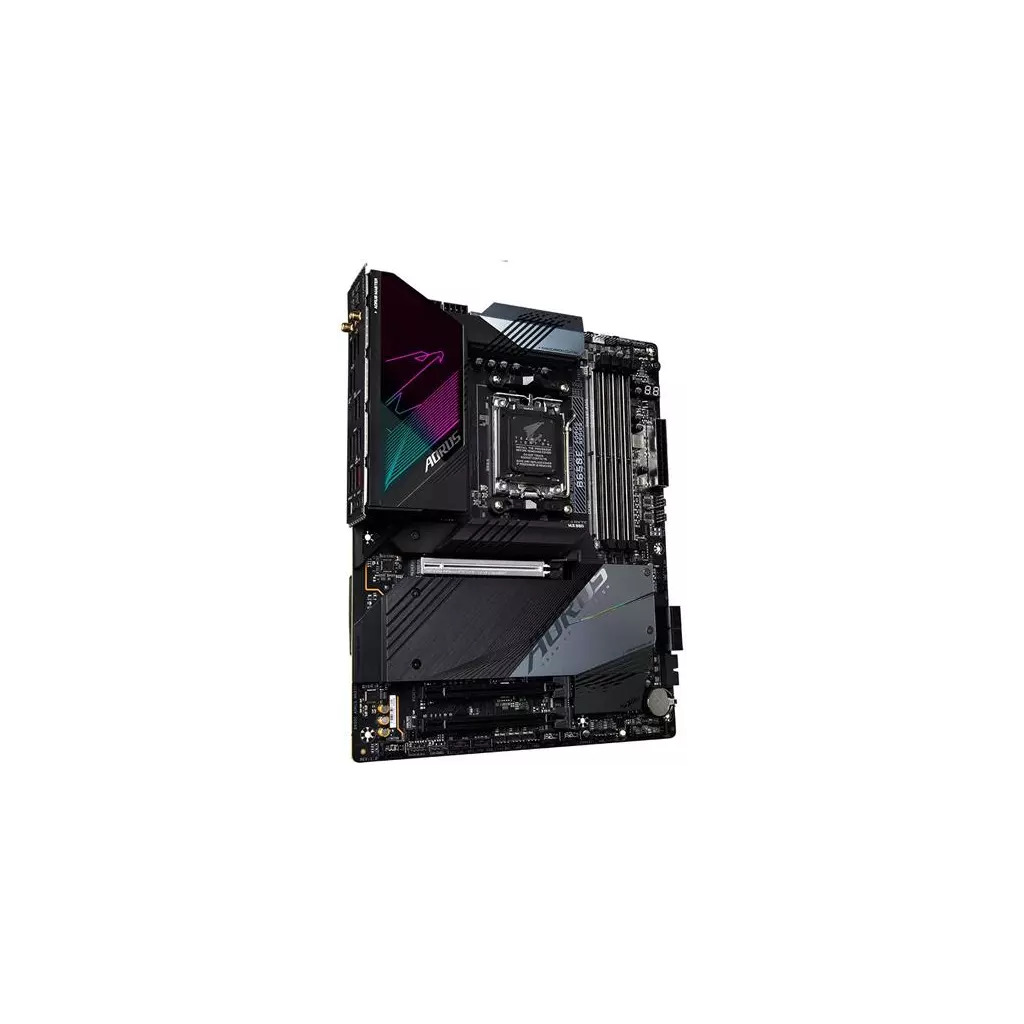

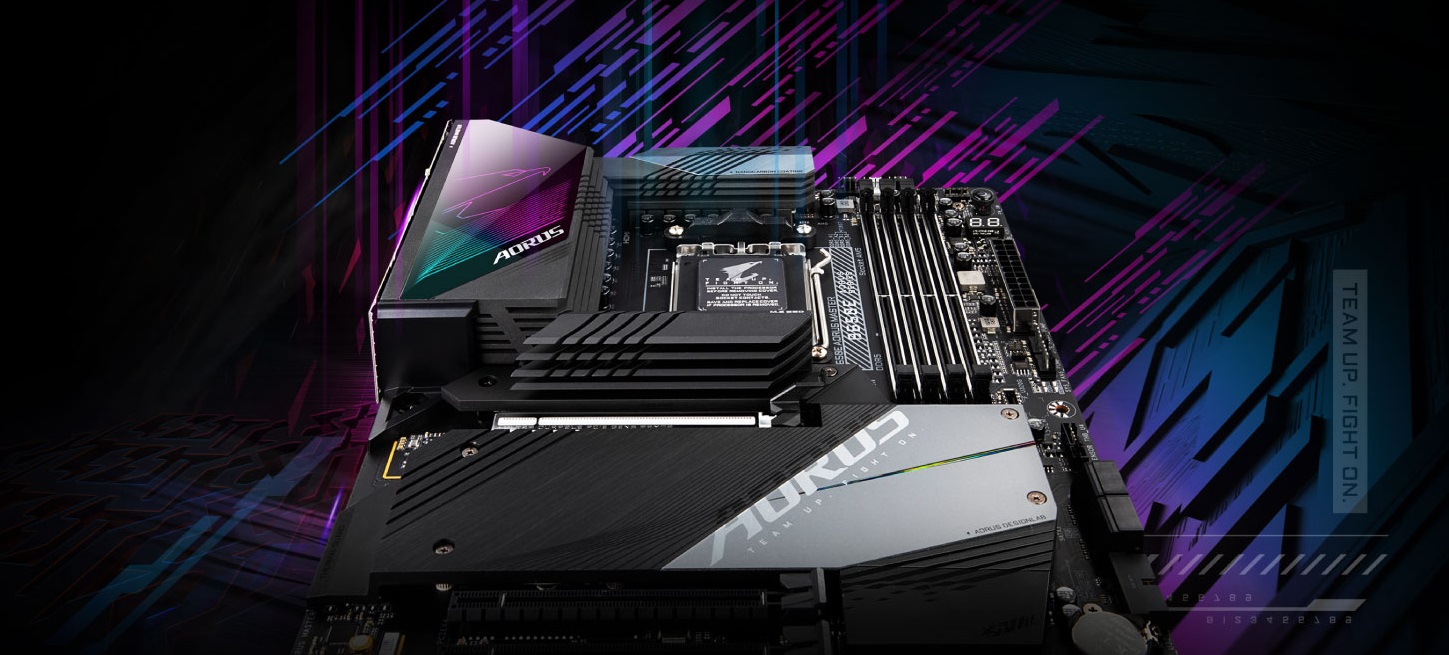

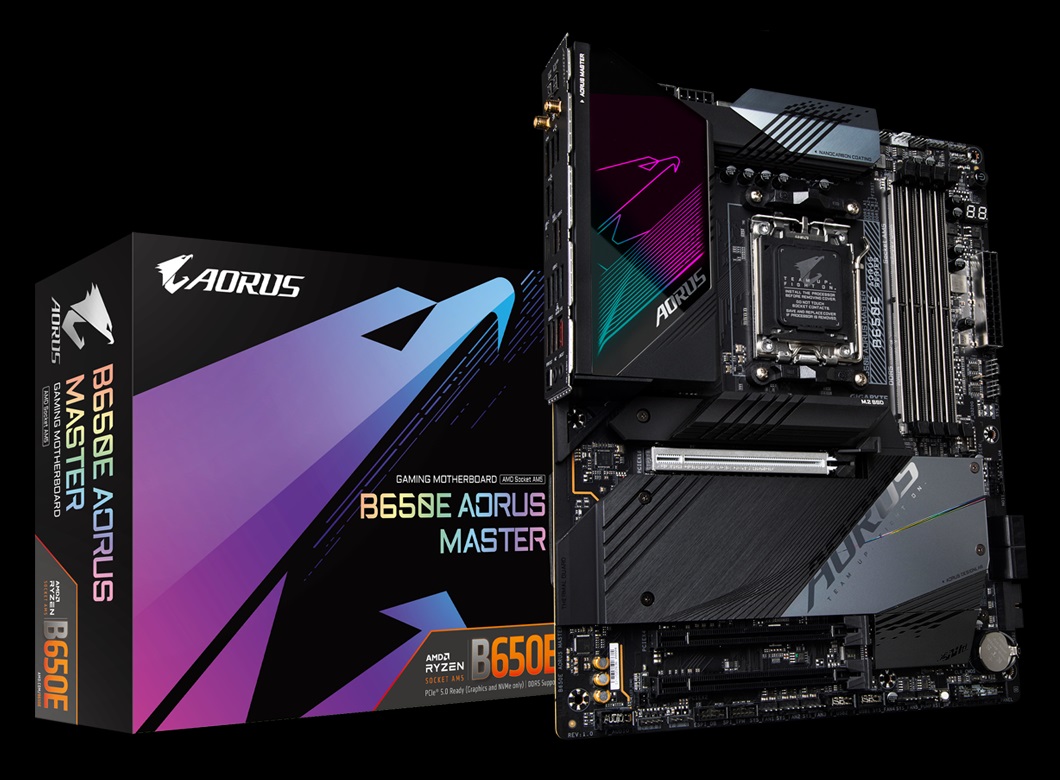

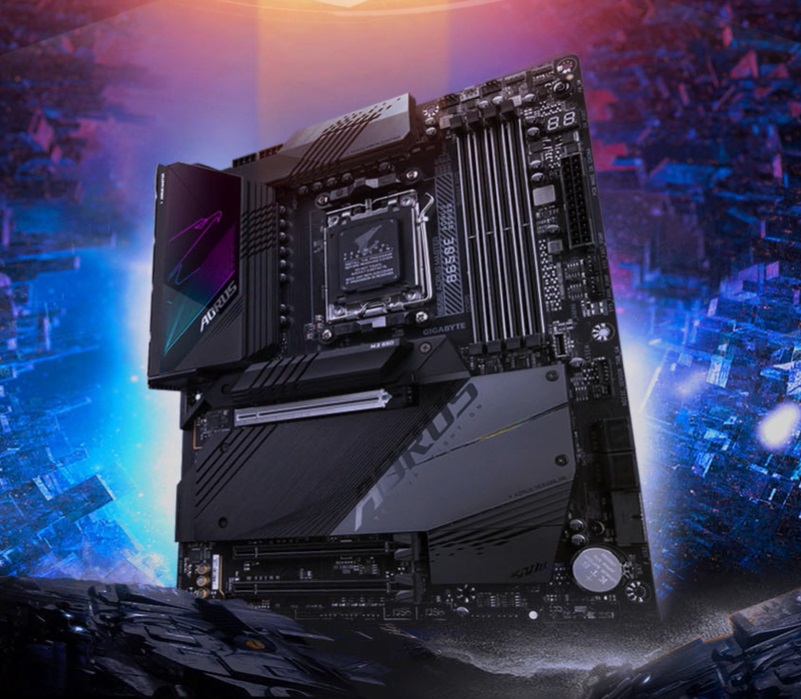

GIGABYTE B650E AORUS MASTER/AM5/ATX
Stav zboží:
Nové
Dostupnost:
dostupnost na dotaz
Datum odeslání:
Neznámé
Výrobce:
Gigabyte
Kód zboží:
5493239
Číslo zboží (PN):
B650E AORUS MASTER
EAN:
Záruka koncový zákazník:
36 měsíců
Záruka při koupi na IČO:
36 měsíců
Cena bez DPH: *
8730 Kč
Cena vč. DPH: *
10564 Kč
* - cena uvedena vč. recyklačních a autorských poplatků.
Popis produktu:
Chipset: AMD B650 Rozměrový formát: ATX Form Factor, (30.5cm x 24.4cm) Podpora pro procesory: AMD Ryzen 7000 Series Processors Patice procesoru: AM5 Pozice na paměti: 4 x DDR5 DIMM, Dual channel memory architecture Podpora pro paměti: DDR5 6666(OC) / 6600(OC) / 6400(OC) / 6200(OC) / 6000(OC) / 5600(OC) / 5200 / 4800 / 4400 MT/s memory modules Max.velikost operační paměti: 128 GB (32 GB single DIMM capacity) Podpora pro paměti typu: non-ECC, XMP Grafická karta: (na základě procesoru) 1 x HDMI 2.1 port, maximální rozlišení 7680x4320@60 Hz Zvuková karta: Realtek ALC1220-VB CODEC 2/4/5.1-channel Podpora S/PDIF Out Síťová karta: Intel 2.5GbE LAN chip (2.5 Gbps/1 Gbps/100 Mbps) AMD Wi-Fi 6E RZ616 a, b, g, n, ac, ax Bluetooth 5.2 Rozšiřující sloty: 1 x PCI Express x16 slot, supporting PCIe 5.0* and running at x16 (PCIEX16) 1 x PCI Express x16 slot, supporting PCIe 4.0 and running at x4 (PCIEX4) 1 x PCI Express x16 slot, supporting PCIe 4.0 and running at x2 (PCIEX2) RAID řadič: RAID 0, RAID 1, and RAID 10 SATA: 4 x SATA 6Gb/s connectors M.2: 4 x M.2 Socket 3 connectors USB: Interní: 1 x USB Type-C header, with USB 3.2 Gen 2x2 support 1 x USB 3.2 Gen 1 header 2 x USB 2.0/1.1 headers Externí: 1 x USB Type-C port on the back panel, with USB 3.2 Gen 2 support 4 x USB 3.2 Gen 2 Type-A ports (red) 4 x USB 3.2 Gen 1 ports 4 x USB 2.0/1.1 ports Interní porty: 1 x 24-pin ATX main power connector 2 x 8-pin ATX 12V power connectors 1 x CPU fan header 1 x water cooling CPU fan header 4 x system fan headers 4 x system fan/water cooling pump headers 2 x addressable LED strip headers 2 x RGB LED strip headers 1 x CPU cooler LED strip/RGB LED strip header 4 x M.2 Socket 3 connectors 4 x SATA 6Gb/s connectors 1 x front panel header 1 x front panel audio header 1 x USB Type-C header, with USB 3.2 Gen 2x2 support 1 x USB 3.2 Gen 1 header 2 x USB 2.0/1.1 headers 1 x noise detection header 1 x THB_U4 add-in card connector 1 x Trusted Platform Module header (For the GC-TPM2.0 SPI/GC-TPM2.0 SPI 2.-0 module only) 1 x power button 1 x reset button 2 x temperature sensor headers 1 x reset jumper 1 x Clear CMOS jumper Externí porty: 1 x Q-Flash Plus button 1 x Clear CMOS button 1 x HDMI 2.1 port 2 x SMA antenna connectors (2T2R) 1 x USB Type-C port on the back panel, with USB 3.2 Gen 2 support 4 x USB 3.2 Gen 2 Type-A ports (red) 4 x USB 3.2 Gen 1 ports 4 x USB 2.0/1.1 ports 1 x RJ-45 port 1 x optical S/PDIF Out connector 2 x audio jacks BIOS: AMI UEFI BIOS, 1 x 256 Mbit flash
Chipset: AMD B650 Rozměrový formát: ATX Form Factor, (30.5cm x 24.4cm) Podpora pro procesory: AMD Ryzen 7000 Series Processors Patice procesoru: AM5 Pozice na paměti: 4 x DDR5 DIMM, Dual channel memory architecture Podpora pro paměti: DDR5 6666(OC) / 6600(OC) / 6400(OC) / 6200(OC) / 6000(OC) / 5600(OC) / 5200 / 4800 / 4400 MT/s memory modules Max.velikost operační paměti: 128 GB (32 GB single DIMM capacity) Podpora pro paměti typu: non-ECC, XMP Grafická karta: (na základě procesoru) 1 x HDMI 2.1 port, maximální rozlišení 7680x4320@60 Hz Zvuková karta: Realtek ALC1220-VB CODEC 2/4/5.1-channel Podpora S/PDIF Out Síťová karta: Intel 2.5GbE LAN chip (2.5 Gbps/1 Gbps/100 Mbps) AMD Wi-Fi 6E RZ616 a, b, g, n, ac, ax Bluetooth 5.2 Rozšiřující sloty: 1 x PCI Express x16 slot, supporting PCIe 5.0* and running at x16 (PCIEX16) 1 x PCI Express x16 slot, supporting PCIe 4.0 and running at x4 (PCIEX4) 1 x PCI Express x16 slot, supporting PCIe 4.0 and running at x2 (PCIEX2) RAID řadič: RAID 0, RAID 1, and RAID 10 SATA: 4 x SATA 6Gb/s connectors M.2: 4 x M.2 Socket 3 connectors USB: Interní: 1 x USB Type-C header, with USB 3.2 Gen 2x2 support 1 x USB 3.2 Gen 1 header 2 x USB 2.0/1.1 headers Externí: 1 x USB Type-C port on the back panel, with USB 3.2 Gen 2 support 4 x USB 3.2 Gen 2 Type-A ports (red) 4 x USB 3.2 Gen 1 ports 4 x USB 2.0/1.1 ports Interní porty: 1 x 24-pin ATX main power connector 2 x 8-pin ATX 12V power connectors 1 x CPU fan header 1 x water cooling CPU fan header 4 x system fan headers 4 x system fan/water cooling pump headers 2 x addressable LED strip headers 2 x RGB LED strip headers 1 x CPU cooler LED strip/RGB LED strip header 4 x M.2 Socket 3 connectors 4 x SATA 6Gb/s connectors 1 x front panel header 1 x front panel audio header 1 x USB Type-C header, with USB 3.2 Gen 2x2 support 1 x USB 3.2 Gen 1 header 2 x USB 2.0/1.1 headers 1 x noise detection header 1 x THB_U4 add-in card connector 1 x Trusted Platform Module header (For the GC-TPM2.0 SPI/GC-TPM2.0 SPI 2.-0 module only) 1 x power button 1 x reset button 2 x temperature sensor headers 1 x reset jumper 1 x Clear CMOS jumper Externí porty: 1 x Q-Flash Plus button 1 x Clear CMOS button 1 x HDMI 2.1 port 2 x SMA antenna connectors (2T2R) 1 x USB Type-C port on the back panel, with USB 3.2 Gen 2 support 4 x USB 3.2 Gen 2 Type-A ports (red) 4 x USB 3.2 Gen 1 ports 4 x USB 2.0/1.1 ports 1 x RJ-45 port 1 x optical S/PDIF Out connector 2 x audio jacks BIOS: AMI UEFI BIOS, 1 x 256 Mbit flash
Chipset: AMD B650 Rozměrový formát: ATX Form Factor, (30.5cm x 24.4cm) Podpora pro procesory: AMD Ryzen 7000 Series Processors Patice procesoru: AM5 Pozice na paměti: 4 x DDR5 DIMM, Dual channel memory architecture Podpora pro paměti: DDR5 6666(OC) / 6600(OC) / 6400(OC) / 6200(OC) / 6000(OC) / 5600(OC) / 5200 / 4800 / 4400 MT/s memory modules Max.velikost operační paměti: 128 GB (32 GB single DIMM capacity) Podpora pro paměti typu: non-ECC, XMP Grafické výstupy: (na základě procesoru) *1 x HDMI 2.1 port, maximální rozlišení 7680x4320@60 Hz Zvuková karta: Realtek ALC1220-VB CODEC *2/4/5.1-channel *Podpora S/PDIF Out Síťová karta: *Intel 2.5GbE LAN chip (2.5 Gbps/1 Gbps/100 Mbps) *AMD Wi-Fi 6E RZ616 a, b, g, n, ac, ax *Bluetooth 5.2 Rozšiřující sloty: *1 x PCI Express x16 slot, supporting PCIe 5.0* and running at x16 (PCIEX16) *1 x PCI Express x16 slot, supporting PCIe 4.0 and running at x4 (PCIEX4) *1 x PCI Express x16 slot, supporting PCIe 4.0 and running at x2 (PCIEX2) RAID řadič: RAID 0, RAID 1, and RAID 10 SATA: 4 x SATA 6Gb/s connectors M.2: 4 x M.2 Socket 3 connectors USB: *Interní: *1 x USB Type-C header, with USB 3.2 Gen 2x2 support *1 x USB 3.2 Gen 1 header *2 x USB 2.0/1.1 headers *Externí: *1 x USB Type-C port on the back panel, with USB 3.2 Gen 2 support *4 x USB 3.2 Gen 2 Type-A ports (red) *4 x USB 3.2 Gen 1 ports *4 x USB 2.0/1.1 ports Interní porty: *1 x 24-pin ATX main power connector *2 x 8-pin ATX 12V power connectors *1 x CPU fan header *1 x water cooling CPU fan header *4 x system fan headers *4 x system fan/water cooling pump headers *2 x addressable LED strip headers *2 x RGB LED strip headers *1 x CPU cooler LED strip/RGB LED strip header *4 x M.2 Socket 3 connectors *4 x SATA 6Gb/s connectors *1 x front panel header *1 x front panel audio header *1 x USB Type-C header, with USB 3.2 Gen 2x2 support *1 x USB 3.2 Gen 1 header *2 x USB 2.0/1.1 headers *1 x noise detection header *1 x THB_U4 add-in card connector *1 x Trusted Platform Module header (For the GC-TPM2.0 SPI/GC-TPM2.0 SPI 2.-0 module only) *1 x power button *1 x reset button *2 x temperature sensor headers *1 x reset jumper *1 x Clear CMOS jumper Externí porty: *1 x Q-Flash Plus button *1 x Clear CMOS button *1 x HDMI 2.1 port *2 x SMA antenna connectors (2T2R) *1 x USB Type-C port on the back panel, with USB 3.2 Gen 2 support *4 x USB 3.2 Gen 2 Type-A ports (red) *4 x USB 3.2 Gen 1 ports *4 x USB 2.0/1.1 ports *1 x RJ-45 port *1 x optical S/PDIF Out connector *2 x audio jacks BIOS: AMI UEFI BIOS, 1 x 256 Mbit flash Stránka výrobce: http://www.gigabyte.com/Motherboard/B650E-AORUS-MASTER-rev-10#kf
GIGABYTE B650E AORUS MASTER
Deska je vybavena grafickými výstupy pro použití s procesory s integrovaným grafickým jádrem. Základní deska grafickou kartu neobsahuje a bez použití odpovídajícího procesoru, budou tyto výstupy nefunkční.
CPU
Podpora procesorů AMD Ryzen série 7000 (patice AM5)
Čipová sada
AMD B650
Paměť
4x DDR5 paměťový slot, podpora až 192 GB
Podpora DDR5 6666 (OC)/ 6600 (OC)/ 6400 (OC)/ 6200 (OC)/ 6000 (OC)/ 5600 (OC)/ 5200/ 4800/ 4400 MHz
Dvoukanálová architektura paměti
Podpora non-ECC, bez vyrovnávací paměti, 1Rx8/2Rx8/1Rx16
Podpora AMD EXtended Profiles for Overclocking (EXPO)
Podpora Intel Extreme Memory Profile (XMP)
Sloty
AMD CPU
1x PCIe 5.0 x16 slot
AMD B650 čipová sada
1x PCIe 4.0 x16 slot (podporuje x4 režim)
1x PCIe 4.0 x16 slot (podporuje x2 režim)
Grafika
1x HDMI port, podporující max. rozlišení 7680 x 4320 při 60 Hz
Multi-GPU
Podpora AMD CrossFire technologie
Úložiště
AMD CPU

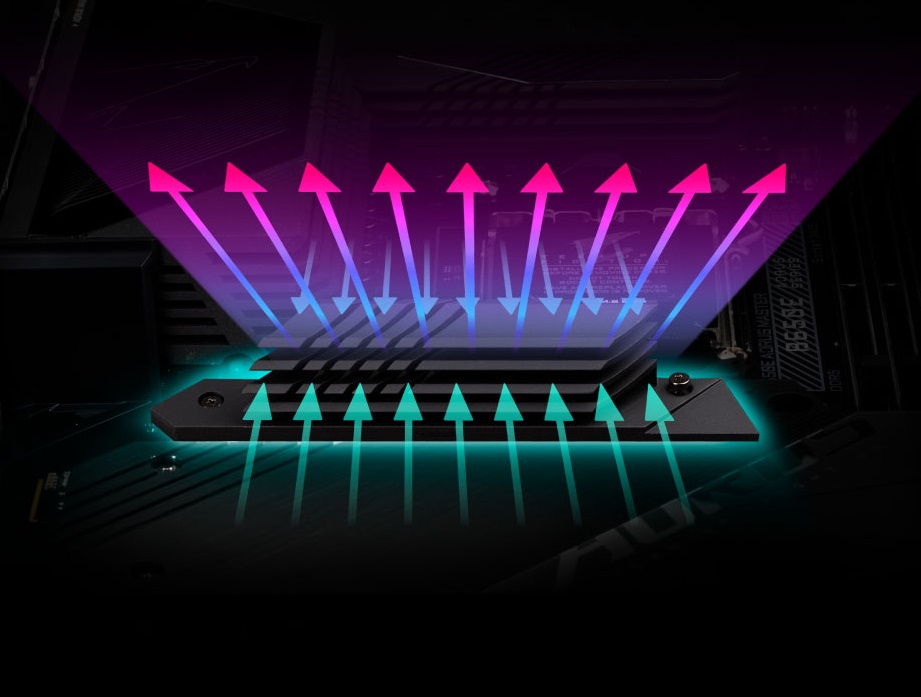

1x M.2 slot, M Key, pro jednotky typu 2280/25110 (PCIe 5.0 x4/x2 režim)
3x M.2 slot, M Key, pro jednotky typu 2280/22110 (PCIe 5.0 x4/x2 režim)
AMD B650 čipová sada
4x SATA 6Gb/s port
Podpora RAID 0, RAID 1 a RAID 10 pro SATA jednotky
Podpora RAID 0, RAID 1 a RAID 10 pro PCIe jednotky
USB
AMD B650 čipová sada
1x USB 3.2 Gen2x2 typ C port dostupný přes interní USB konektor
2x USB 3.2 Gen2 typ A port na zadním panelu
2x USB 3.2 Gen1 (USB 3.0) port dostupný přes interní USB konektor
4x USB 2.0 port dostupný přes interní USB konektory
AMD CPU
1x USB 3.2 Gen2 typ C port na zadním panelu
2x USB 3.2 Gen2 typ A port na zadním panelu
4x USB 3.2 Gen1 (USB 3.0) port na zadním panelu
4x USB 2.0 port na zadním panelu
Audio
Realtek ALC1220-VB Codec
2/4/5.1kanálové High Definition Audio
ESS ES9118 DAC čip
Podpora DTS:X Ultra
Podpora S/PDIF výstupu
LAN
1x Intel 2,5Gigabit LAN řadič
WLAN/ Bluetooth
AMD Wi-Fi 6E RZ616 (MT7922A22M)
Wi-Fi 802.11a/b/g/n/ac/ax
Triple Band (2,4 GHz, 5 GHz, 6 GHz)
Rychlost přenosu dat až 2,4 Gbps
Bluetooth 5.2
Interní konektory
1x 24-pin ATX hlavní napájecí konektor
2x 8-pin ATX 12V napájecí konektor
1x konektor ventilátoru CPU
1x konektor ventilátoru vodního chlazení CPU
4x konektor systémového ventilátoru
4x konektor systémového ventilátoru/ pumpy vodního chlazení
2x konektor adresovatelného LED pásku
2x konektor RGB LED pásku
1x konektor LED pásku chladiče procesoru/ RGB LED pásku
4x M.2 slot, M Key
4x SATA 6Gb/s konektor
1x konektor předního panelu
1x audio konektor předního panelu
1x USB 3.2 Gen2x2 typ C konektor
1x USB 3.2 Gen1 (USB 3.0) konektor (podporuje 2x USB 3.2 Gen1 port)
2x USB 2.0 konektor (podporuje 4x USB 2.0 port)
1x konektor detekce hluku
1x konektor Thunderbolt AIC
1x TPM konektor (podporuje pouze moduly GC-TPM2.0 SPI a GC-TPM2.0 SPI 2.0)
1x tlačítko Power
1x tlačítko Reset
2x konektor teplotního čidla
1x Reset propojka
1x propojka Clear CMOS
Porty na zadním panelu
1x tlačítko Q-Flash Plus
1x tlačítko Clear CMOS
1x HDMI
2x konektor Wi-Fi antény
1x USB 3.2 Gen2 typ C
4x USB 3.2 Gen1 (USB 3.0)
4x USB 3.2 Gen2 (USB 3.1 Gen2)
4x USB 2.0

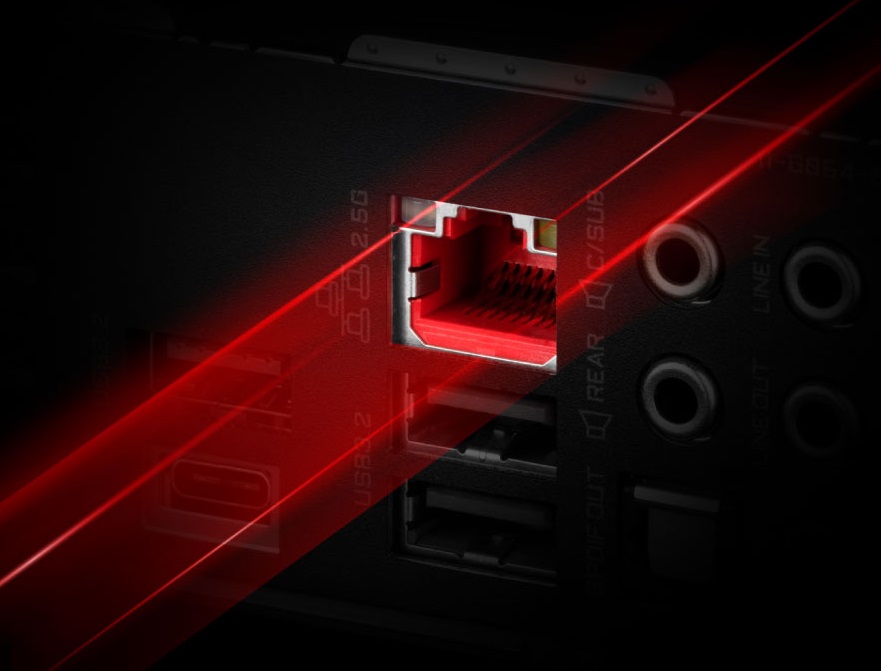

1x RJ-45
1x optický S/PDIF výstup
2x audio jack
Rozměry
30,5 x 24,4 cm
ATX formát
Chipset: AMD B650 Rozměrový formát: ATX Form Factor, (30.5cm x 24.4cm) Podpora pro procesory: AMD Ryzen 7000 Series Processors Patice procesoru: AM5 Pozice na paměti: 4 x DDR5 DIMM, Dual channel memory architecture Podpora pro paměti: DDR5 6666(OC) / 6600(OC) / 6400(OC) / 6200(OC) / 6000(OC) / 5600(OC) / 5200 / 4800 / 4400 MT/s memory modules Max.velikost operační paměti: 128 GB (32 GB single DIMM capacity) Podpora pro paměti typu: non-ECC, XMP Grafická karta: (na základě procesoru) 1 x HDMI 2.1 port, maximální rozlišení 7680x4320@60 Hz Zvuková karta: Realtek ALC1220-VB CODEC 2/4/5.1-channel Podpora S/PDIF Out Síťová karta: Intel 2.5GbE LAN chip (2.5 Gbps/1 Gbps/100 Mbps) AMD Wi-Fi 6E RZ616 a, b, g, n, ac, ax Bluetooth 5.2 Rozšiřující sloty: 1 x PCI Express x16 slot, supporting PCIe 5.0* and running at x16 (PCIEX16) 1 x PCI Express x16 slot, supporting PCIe 4.0 and running at x4 (PCIEX4) 1 x PCI Express x16 slot, supporting PCIe 4.0 and running at x2 (PCIEX2) RAID řadič: RAID 0, RAID 1, and RAID 10 SATA: 4 x SATA 6Gb/s connectors M.2: 4 x M.2 Socket 3 connectors USB: Interní: 1 x USB Type-C header, with USB 3.2 Gen 2x2 support 1 x USB 3.2 Gen 1 header 2 x USB 2.0/1.1 headers Externí: 1 x USB Type-C port on the back panel, with USB 3.2 Gen 2 support 4 x USB 3.2 Gen 2 Type-A ports (red) 4 x USB 3.2 Gen 1 ports 4 x USB 2.0/1.1 ports Interní porty: 1 x 24-pin ATX main power connector 2 x 8-pin ATX 12V power connectors 1 x CPU fan header 1 x water cooling CPU fan header 4 x system fan headers 4 x system fan/water cooling pump headers 2 x addressable LED strip headers 2 x RGB LED strip headers 1 x CPU cooler LED strip/RGB LED strip header 4 x M.2 Socket 3 connectors 4 x SATA 6Gb/s connectors 1 x front panel header 1 x front panel audio header 1 x USB Type-C header, with USB 3.2 Gen 2x2 support 1 x USB 3.2 Gen 1 header 2 x USB 2.0/1.1 headers 1 x noise detection header 1 x THB_U4 add-in card connector 1 x Trusted Platform Module header (For the GC-TPM2.0 SPI/GC-TPM2.0 SPI 2.-0 module only) 1 x power button 1 x reset button 2 x temperature sensor headers 1 x reset jumper 1 x Clear CMOS jumper Externí porty: 1 x Q-Flash Plus button 1 x Clear CMOS button 1 x HDMI 2.1 port 2 x SMA antenna connectors (2T2R) 1 x USB Type-C port on the back panel, with USB 3.2 Gen 2 support 4 x USB 3.2 Gen 2 Type-A ports (red) 4 x USB 3.2 Gen 1 ports 4 x USB 2.0/1.1 ports 1 x RJ-45 port 1 x optical S/PDIF Out connector 2 x audio jacks BIOS: AMI UEFI BIOS, 1 x 256 Mbit flash
Chipset: AMD B650 Rozměrový formát: ATX Form Factor, (30.5cm x 24.4cm) Podpora pro procesory: AMD Ryzen 7000 Series Processors Patice procesoru: AM5 Pozice na paměti: 4 x DDR5 DIMM, Dual channel memory architecture Podpora pro paměti: DDR5 6666(OC) / 6600(OC) / 6400(OC) / 6200(OC) / 6000(OC) / 5600(OC) / 5200 / 4800 / 4400 MT/s memory modules Max.velikost operační paměti: 128 GB (32 GB single DIMM capacity) Podpora pro paměti typu: non-ECC, XMP Grafické výstupy: (na základě procesoru) *1 x HDMI 2.1 port, maximální rozlišení 7680x4320@60 Hz Zvuková karta: Realtek ALC1220-VB CODEC *2/4/5.1-channel *Podpora S/PDIF Out Síťová karta: *Intel 2.5GbE LAN chip (2.5 Gbps/1 Gbps/100 Mbps) *AMD Wi-Fi 6E RZ616 a, b, g, n, ac, ax *Bluetooth 5.2 Rozšiřující sloty: *1 x PCI Express x16 slot, supporting PCIe 5.0* and running at x16 (PCIEX16) *1 x PCI Express x16 slot, supporting PCIe 4.0 and running at x4 (PCIEX4) *1 x PCI Express x16 slot, supporting PCIe 4.0 and running at x2 (PCIEX2) RAID řadič: RAID 0, RAID 1, and RAID 10 SATA: 4 x SATA 6Gb/s connectors M.2: 4 x M.2 Socket 3 connectors USB: *Interní: *1 x USB Type-C header, with USB 3.2 Gen 2x2 support *1 x USB 3.2 Gen 1 header *2 x USB 2.0/1.1 headers *Externí: *1 x USB Type-C port on the back panel, with USB 3.2 Gen 2 support *4 x USB 3.2 Gen 2 Type-A ports (red) *4 x USB 3.2 Gen 1 ports *4 x USB 2.0/1.1 ports Interní porty: *1 x 24-pin ATX main power connector *2 x 8-pin ATX 12V power connectors *1 x CPU fan header *1 x water cooling CPU fan header *4 x system fan headers *4 x system fan/water cooling pump headers *2 x addressable LED strip headers *2 x RGB LED strip headers *1 x CPU cooler LED strip/RGB LED strip header *4 x M.2 Socket 3 connectors *4 x SATA 6Gb/s connectors *1 x front panel header *1 x front panel audio header *1 x USB Type-C header, with USB 3.2 Gen 2x2 support *1 x USB 3.2 Gen 1 header *2 x USB 2.0/1.1 headers *1 x noise detection header *1 x THB_U4 add-in card connector *1 x Trusted Platform Module header (For the GC-TPM2.0 SPI/GC-TPM2.0 SPI 2.-0 module only) *1 x power button *1 x reset button *2 x temperature sensor headers *1 x reset jumper *1 x Clear CMOS jumper Externí porty: *1 x Q-Flash Plus button *1 x Clear CMOS button *1 x HDMI 2.1 port *2 x SMA antenna connectors (2T2R) *1 x USB Type-C port on the back panel, with USB 3.2 Gen 2 support *4 x USB 3.2 Gen 2 Type-A ports (red) *4 x USB 3.2 Gen 1 ports *4 x USB 2.0/1.1 ports *1 x RJ-45 port *1 x optical S/PDIF Out connector *2 x audio jacks BIOS: AMI UEFI BIOS, 1 x 256 Mbit flash Stránka výrobce: http://www.gigabyte.com/Motherboard/B650E-AORUS-MASTER-rev-10#kf
GIGABYTE B650E AORUS MASTER. Výrobce procesoru: AMD, Patice procesoru: Zásuvka AM5, Kompatibilní procesory: AMD Ryzen™ 7. Podporované typy paměti: DDR5-SDRAM, Maximální vnitřní paměť: 192 GB, Typ paměťových slotů: DIMM. Podporovaná rozhraní úložiště: M.2, SATA III, Podporované typy úložišť: HDD & SSD, Úrovně RAID: 0, 1, 10. Maximální rozlišení: 7680 x 4320 px. Konektor USB: USB Typ-A, USB typu C
Chipset: AMD B650 Rozměrový formát: ATX Form Factor, (30.5cm x 24.4cm) Podpora pro procesory: AMD Ryzen 7000 Series Processors Patice procesoru: AM5 Pozice na paměti: 4 x DDR5 DIMM, Dual channel memory architecture Podpora pro paměti: DDR5 6666(OC) / 6600(OC) / 6400(OC) / 6200(OC) / 6000(OC) / 5600(OC) / 5200 / 4800 / 4400 MT/s memory modules Max.velikost operační paměti: 128 GB (32 GB single DIMM capacity) Podpora pro paměti typu: non-ECC, XMP Grafické výstupy: (na základě procesoru) *1 x HDMI 2.1 port, maximální rozlišení 7680x4320@60 Hz Zvuková karta: Realtek ALC1220-VB CODEC *2/4/5.1-channel *Podpora S/PDIF Out Síťová karta: *Intel 2.5GbE LAN chip (2.5 Gbps/1 Gbps/100 Mbps) *AMD Wi-Fi 6E RZ616 a, b, g, n, ac, ax *Bluetooth 5.2 Rozšiřující sloty: *1 x PCI Express x16 slot, supporting PCIe 5.0* and running at x16 (PCIEX16) *1 x PCI Express x16 slot, supporting PCIe 4.0 and running at x4 (PCIEX4) *1 x PCI Express x16 slot, supporting PCIe 4.0 and running at x2 (PCIEX2) RAID řadič: RAID 0, RAID 1, and RAID 10 SATA: 4 x SATA 6Gb/s connectors M.2: 4 x M.2 Socket 3 connectors USB: *Interní: *1 x USB Type-C header, with USB 3.2 Gen 2x2 support *1 x USB 3.2 Gen 1 header *2 x USB 2.0/1.1 headers *Externí: *1 x USB Type-C port on the back panel, with USB 3.2 Gen 2 support *4 x USB 3.2 Gen 2 Type-A ports (red) *4 x USB 3.2 Gen 1 ports *4 x USB 2.0/1.1 ports Interní porty: *1 x 24-pin ATX main power connector *2 x 8-pin ATX 12V power connectors *1 x CPU fan header *1 x water cooling CPU fan header *4 x system fan headers *4 x system fan/water cooling pump headers *2 x addressable LED strip headers *2 x RGB LED strip headers *1 x CPU cooler LED strip/RGB LED strip header *4 x M.2 Socket 3 connectors *4 x SATA 6Gb/s connectors *1 x front panel header *1 x front panel audio header *1 x USB Type-C header, with USB 3.2 Gen 2x2 support *1 x USB 3.2 Gen 1 header *2 x USB 2.0/1.1 headers *1 x noise detection header *1 x THB_U4 add-in card connector *1 x Trusted Platform Module header (For the GC-TPM2.0 SPI/GC-TPM2.0 SPI 2.-0 module only) *1 x power button *1 x reset button *2 x temperature sensor headers *1 x reset jumper *1 x Clear CMOS jumper Externí porty: *1 x Q-Flash Plus button *1 x Clear CMOS button *1 x HDMI 2.1 port *2 x SMA antenna connectors (2T2R) *1 x USB Type-C port on the back panel, with USB 3.2 Gen 2 support *4 x USB 3.2 Gen 2 Type-A ports (red) *4 x USB 3.2 Gen 1 ports *4 x USB 2.0/1.1 ports *1 x RJ-45 port *1 x optical S/PDIF Out connector *2 x audio jacks BIOS: AMI UEFI BIOS, 1 x 256 Mbit flash Stránka výrobce: http://www.gigabyte.com/Motherboard/B650E-AORUS-MASTER-rev-10#kf
Chipset: AMD B650 Rozměrový formát: ATX Form Factor, (30.5cm x 24.4cm) Podpora pro procesory: AMD Ryzen 7000 Series Processors Patice procesoru: AM5 Pozice na paměti: 4 x DDR5 DIMM, Dual channel memory architecture Podpora pro paměti: DDR5 6666(OC) / 6600(OC) / 6400(OC) / 6200(OC) / 6000(OC) / 5600(OC) / 5200 / 4800 / 4400 MT/s memory modules Max.velikost operační paměti: 128 GB (32 GB single DIMM capacity) Podpora pro paměti typu: non-ECC, XMP Grafická karta: (na základě procesoru) 1 x HDMI 2.1 port, maximální rozlišení 7680x4320@60 Hz Zvuková karta: Realtek ALC1220-VB CODEC 2/4/5.1-channel Podpora S/PDIF Out Síťová karta: Intel 2.5GbE LAN chip (2.5 Gbps/1 Gbps/100 Mbps) AMD Wi-Fi 6E RZ616 a, b, g, n, ac, ax Bluetooth 5.2 Rozšiřující sloty: 1 x PCI Express x16 slot, supporting PCIe 5.0* and running at x16 (PCIEX16) 1 x PCI Express x16 slot, supporting PCIe 4.0 and running at x4 (PCIEX4) 1 x PCI Express x16 slot, supporting PCIe 4.0 and running at x2 (PCIEX2) RAID řadič: RAID 0, RAID 1, and RAID 10 SATA: 4 x SATA 6Gb/s connectors M.2: 4 x M.2 Socket 3 connectors USB: Interní: 1 x USB Type-C header, with USB 3.2 Gen 2x2 support 1 x USB 3.2 Gen 1 header 2 x USB 2.0/1.1 headers Externí: 1 x USB Type-C port on the back panel, with USB 3.2 Gen 2 support 4 x USB 3.2 Gen 2 Type-A ports (red) 4 x USB 3.2 Gen 1 ports 4 x USB 2.0/1.1 ports Interní porty: 1 x 24-pin ATX main power connector 2 x 8-pin ATX 12V power connectors 1 x CPU fan header 1 x water cooling CPU fan header 4 x system fan headers 4 x system fan/water cooling pump headers 2 x addressable LED strip headers 2 x RGB LED strip headers 1 x CPU cooler LED strip/RGB LED strip header 4 x M.2 Socket 3 connectors 4 x SATA 6Gb/s connectors 1 x front panel header 1 x front panel audio header 1 x USB Type-C header, with USB 3.2 Gen 2x2 support 1 x USB 3.2 Gen 1 header 2 x USB 2.0/1.1 headers 1 x noise detection header 1 x THB_U4 add-in card connector 1 x Trusted Platform Module header (For the GC-TPM2.0 SPI/GC-TPM2.0 SPI 2.-0 module only) 1 x power button 1 x reset button 2 x temperature sensor headers 1 x reset jumper 1 x Clear CMOS jumper Externí porty: 1 x Q-Flash Plus button 1 x Clear CMOS button 1 x HDMI 2.1 port 2 x SMA antenna connectors (2T2R) 1 x USB Type-C port on the back panel, with USB 3.2 Gen 2 support 4 x USB 3.2 Gen 2 Type-A ports (red) 4 x USB 3.2 Gen 1 ports 4 x USB 2.0/1.1 ports 1 x RJ-45 port 1 x optical S/PDIF Out connector 2 x audio jacks BIOS: AMI UEFI BIOS, 1 x 256 Mbit flash
GIGABYTE B650E AORUS MASTER. Výrobce procesoru: AMD, Patice procesoru: Zásuvka AM5, Kompatibilní procesory: AMD Ryzen™ 7. Podporované typy paměti: DDR5-SDRAM, Maximální vnitřní paměť: 192 GB, Typ paměťových slotů: DIMM. Podporovaná rozhraní úložiště: M.2, SATA III, Podporované typy úložišť: HDD & SSD, Úrovně RAID: 0, 1, 10. Maximální rozlišení: 7680 x 4320 px. Konektor USB: USB Typ-A, USB typu C
Chipset: AMD B650 Rozměrový formát: ATX Form Factor, (30.5cm x 24.4cm) Podpora pro procesory: AMD Ryzen 7000 Series Processors Patice procesoru: AM5 Pozice na paměti: 4 x DDR5 DIMM, Dual channel memory architecture Podpora pro paměti: DDR5 6666(OC) / 6600(OC) / 6400(OC) / 6200(OC) / 6000(OC) / 5600(OC) / 5200 / 4800 / 4400 MT/s memory modules Max.velikost operační paměti: 128 GB (32 GB single DIMM capacity) Podpora pro paměti typu: non-ECC, XMP Grafické výstupy: (na základě procesoru) *1 x HDMI 2.1 port, maximální rozlišení 7680x4320@60 Hz Zvuková karta: Realtek ALC1220-VB CODEC *2/4/5.1-channel *Podpora S/PDIF Out Síťová karta: *Intel 2.5GbE LAN chip (2.5 Gbps/1 Gbps/100 Mbps) *AMD Wi-Fi 6E RZ616 a, b, g, n, ac, ax *Bluetooth 5.2 Rozšiřující sloty: *1 x PCI Express x16 slot, supporting PCIe 5.0* and running at x16 (PCIEX16) *1 x PCI Express x16 slot, supporting PCIe 4.0 and running at x4 (PCIEX4) *1 x PCI Express x16 slot, supporting PCIe 4.0 and running at x2 (PCIEX2) RAID řadič: RAID 0, RAID 1, and RAID 10 SATA: 4 x SATA 6Gb/s connectors M.2: 4 x M.2 Socket 3 connectors USB: *Interní: *1 x USB Type-C header, with USB 3.2 Gen 2x2 support *1 x USB 3.2 Gen 1 header *2 x USB 2.0/1.1 headers *Externí: *1 x USB Type-C port on the back panel, with USB 3.2 Gen 2 support *4 x USB 3.2 Gen 2 Type-A ports (red) *4 x USB 3.2 Gen 1 ports *4 x USB 2.0/1.1 ports Interní porty: *1 x 24-pin ATX main power connector *2 x 8-pin ATX 12V power connectors *1 x CPU fan header *1 x water cooling CPU fan header *4 x system fan headers *4 x system fan/water cooling pump headers *2 x addressable LED strip headers *2 x RGB LED strip headers *1 x CPU cooler LED strip/RGB LED strip header *4 x M.2 Socket 3 connectors *4 x SATA 6Gb/s connectors *1 x front panel header *1 x front panel audio header *1 x USB Type-C header, with USB 3.2 Gen 2x2 support *1 x USB 3.2 Gen 1 header *2 x USB 2.0/1.1 headers *1 x noise detection header *1 x THB_U4 add-in card connector *1 x Trusted Platform Module header (For the GC-TPM2.0 SPI/GC-TPM2.0 SPI 2.-0 module only) *1 x power button *1 x reset button *2 x temperature sensor headers *1 x reset jumper *1 x Clear CMOS jumper Externí porty: *1 x Q-Flash Plus button *1 x Clear CMOS button *1 x HDMI 2.1 port *2 x SMA antenna connectors (2T2R) *1 x USB Type-C port on the back panel, with USB 3.2 Gen 2 support *4 x USB 3.2 Gen 2 Type-A ports (red) *4 x USB 3.2 Gen 1 ports *4 x USB 2.0/1.1 ports *1 x RJ-45 port *1 x optical S/PDIF Out connector *2 x audio jacks BIOS: AMI UEFI BIOS, 1 x 256 Mbit flash Stránka výrobce: http://www.gigabyte.com/Motherboard/B650E-AORUS-MASTER-rev-10#kf
Prodejce i výrobce si vyhrazuje právo změny parametrů či vlastností bez předchozího upozornění.
Chcete-li mít ohledně konkrétních parametrů aktuální informace kontaktujte nás.
Pozdější reklamace vlastností je zbytečnou komplikací pro obě strany.
