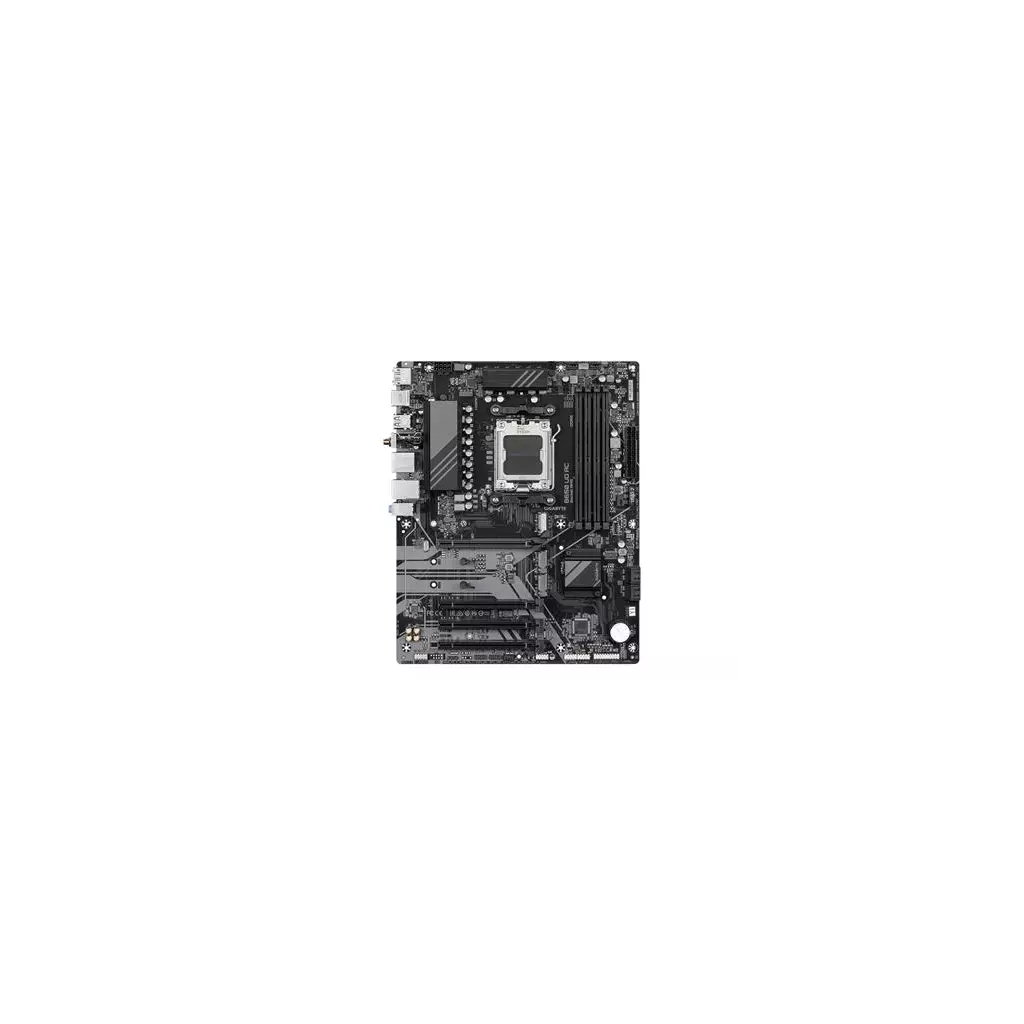

Gigabyte B650 UD AC
Kód zboží (ID): 6147471
vytisknout
Stav zboží:
Nové
Dostupnost:
není skladem
Datum odeslání:
Neznámé
Výrobce:
Gigabyte
Kód zboží:
6147471
Číslo zboží (PN):
B650 UD AC
EAN:
4719331860578
Záruka koncový zákazník:
24 měsíců
Záruka při koupi na IČO:
24 měsíců
Cena bez DPH: *
3077.45 Kč
Cena vč. DPH: *
3724 Kč
* - cena uvedena vč. recyklačních a autorských poplatků.
Popis produktu:
GIGABYTE B650 UD AC
- AMD Socket AM5:Supports AMD Ryzen™ 7000/ Ryzen™ 8000 Series Processors
- Unparalleled Performance:6+2+2 Phases Digital VRM Solution
- Dual Channel DDR5:4*SMD DIMMs with AMD EXPO™ & Intel XMP Memory Module Support
- SuperSpeed Storage:1*PCIe 5.0 + 2*PCIe 4.0 M.2 Connectors
- EZ-Latch:PCIe x16 Slot with Quick Release Design
- Fast Networks:Wi-Fi 6E 802.11ac & GbE LAN
- Extended Connectivity:DP, HDMI, Rear USB 10Gb/s
- Smart Fan 6:Features Multiple Temperature Sensors, Hybrid Fan Headers with FAN STOP
- Q-Flash Plus:Update BIOS Without Installing the CPU, Memory and Graphics Card
CPU
AMD Socket AM5, support for: AMD Ryzen™ 7000 Series Processors / AMD Ryzen™ 8000 Series Processors (Go to GIGABYTE's website for the latest CPU support list.)
Chipset
AMD B650
Memory
Support for DDR5 7600(OC)/ 7200(OC)/ 7000(OC)/ 6800(OC)/ 6600(OC)/ 6400(OC)/ 6200(OC)/ 6000(OC)/ 5600(OC)/ 5200/ 4800 MT/s memory modules 4 x DDR5 DIMM sockets supporting up to 192 GB (48 GB single DIMM capacity) of system memory Dual channel memory architecture Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules Support for AMD EXtended Profiles for Overclocking (AMD EXPO™) and Extreme Memory Profile (XMP) memory modules (The CPU and memory configuration may affect the supported memory types, data rate (speed), and number of DRAM modules, please refer to "Memory Support List" on GIGABYTE's website for more information.)
Onboard Graphics
Integrated Graphics Processor: - 1 x DisplayPort, supporting a maximum resolution of 3840x2160@144 Hz * Support for DisplayPort 1.4 version. - 1 x HDMI port, supporting a maximum resolution of 4096x2160@60 Hz * Support for HDMI 2.1 version and HDCP 2.3. ** Support for native HDMI 2.1 TMDS compatible ports. (Graphics specifications may vary depending on CPU support.)
Audio
Realtek Audio CODEC High Definition Audio 2/4/5.1/7.1-channel * You can change the functionality of an audio jack using the audio software. To configure 7.1-channel audio, access the audio software for audio settings.
LAN
Realtek GbE LAN chip (1 Gbps/100 Mbps/10 Mbps)
Wireless Communication module
AzureWave Wi-Fi AW-CB304NF/AW-CB515NF (Realtek RTL8821CE) - WIFI 802.11a, b, g, n, ac, supporting 2.4/5 GHz Dual-Band - BLUETOOTH 5.0 - Support for 11ac wireless standard (Actual data rate may vary depending on environment and equipment.)
Expansion Slots
1 x PCI Express x16 slot (PCIEX16), integrated in the CPU: - AMD Ryzen™ 7000 Series Processors support PCIe 4.0 x16 mode - AMD Ryzen™ 8000 Series-Phoenix 1 Processors support PCIe 4.0 x8 mode - AMD Ryzen™ 8000 Series-Phoenix 2 Processors support PCIe 4.0 x4 mode * The PCIEX16 slot can only support a graphics card or an NVMe SSD. If only one graphics card is to be installed, be sure to install it in the PCIEX16 slot. Chipset: 3 x PCI Express x16 slots, supporting PCIe 3.0 and running at x1 * The PCIEX1_1 and PCIEX1_2 slots become unavailable when an AMD Ryzen™ 8000 Series-Phoenix 2 processor is used.
Storage Interface
1 x M.2 connector (M2A_CPU), integrated in the CPU, supporting Socket 3, M key, type 25110/2580 SSDs: - AMD Ryzen™ 7000 Series Processors support PCIe 5.0 x4/x2 SSDs - AMD Ryzen™ 8000 Series-Phoenix 1 Processors support PCIe 4.0 x4/x2 SSDs - AMD Ryzen™ 8000 Series-Phoenix 2 Processors support PCIe 4.0 x4/x2 SSDs 1 x M.2 connector (M2P_CPU), integrated in the CPU, supporting Socket 3, M key, type 22110/2280 SSDs: - AMD Ryzen™ 7000 Series Processors support PCIe 4.0 x2 SSDs - AMD Ryzen™ 8000 Series-Phoenix 1 Processors support PCIe 4.0 x2 SSDs - AMD Ryzen™ 8000 Series-Phoenix 2 Processors support PCIe 4.0 x2 SSDs Chipset: 1 x M.2 connector (Socket 3, M key, type 22110/2280 PCIe 4.0 x4/x2 SSD support) (M2C_SB) 4 x SATA 6Gb/s connectors RAID 0, RAID 1, and RAID 10 support for NVMe SSD storage devices RAID 0, RAID 1, and RAID 10 support for SATA storage devices
USB
CPU: - 2 x USB 3.2 Gen 2 Type-A ports (red) on the back panel - 1 x USB Type-C port on the back panel, with USB 3.2 Gen 1 support CPU+USB 2.0 Hub: - 4 x USB 2.0/1.1 ports on the back panel Chipset: - 2 x USB 3.2 Gen 1 ports available through the internal USB header - 1 x USB Type-C port with USB 3.2 Gen 1 support, available through the internal USB header - 4 x USB 2.0/1.1 ports (2 ports on the back panel, 2 ports available through the internal USB header) Chipset+USB 2.0 Hub: - 4 x USB 2.0/1.1 ports available through the internal USB headers
Internal I/O Connectors
1 x 24-pin ATX main power connector 1 x 8-pin ATX 12V power connector 1 x CPU fan header 1 x CPU fan/water cooling pump header 2 x system fan headers 1 x system fan/water cooling pump header 3 x addressable RGB Gen2 LED strip headers 1 x RGB LED strip header 3 x M.2 Socket 3 connectors 4 x SATA 6Gb/s connectors 1 x front panel header 1 x front panel audio header 1 x USB Type-C header, with USB 3.2 Gen 1 support 1 x USB 3.2 Gen 1 header 3 x USB 2.0/1.1 headers 1 x Trusted Platform Module header (For the GC-TPM2.0 SPI/GC-TPM2.0 SPI 2.0/ GC-TPM2.0 SPI V2 module only) 1 x Q-Flash Plus button 1 x serial port header j 1 x Clear CMOS jumper
Back Panel Connectors
1 x DisplayPort 1 x HDMI port 1 x PS/2 keyboard/mouse port 2 x SMA antenna connectors (2T2R) 1 x USB Type-C port, with USB 3.2 Gen 1 support 2 x USB 3.2 Gen 2 Type-A ports (red) 6 x USB 2.0/1.1 ports 1 x RJ-45 port 3 x audio jacks
I/O Controller
iTE I/O Controller Chip
H/W Monitoring
Voltage detection Temperature detection Fan speed detection Water cooling flow rate detection Fan fail warning Fan speed control * Whether the fan (pump) speed control function is supported will depend on the fan (pump) you install.
BIOS
1 x 256 Mbit flash Use of licensed AMI UEFI BIOS PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0
Unique Features
Support for GIGABYTE Control Center (GCC) * Available applications in GCC may vary by motherboard model. Supported functions of each application may also vary depending on motherboard specifications. Support for Q-Flash Support for Q-Flash Plus
Bundled Software
Norton Internet Security (OEM version) LAN bandwidth management software
Operating System
Support for Windows 11 64-bit Support for Windows 10 64-bit
Form Factor
ATX Form Factor; 30.5cm x 24.4cm
GIGABYTE B650 UD AC * Smart Fan 6 * Q-Flash Plus Chipset: AMD B650 Rozměrový formát: ATX (305x244mm) Podpora pro procesory: AMD Ryzen™ řady 8000/7000 Patice procesoru: AM5 Paměť: * 4x DIMM patice podporující až 192GB (kapacita 48GB single DIMM), DDR5 7600(OC)/7200(OC)/7000(OC)/6800(OC)/6600(OC)/6400(OC)/6200(OC)/6000(OC)/5600(OC)/5200MT/s paměťové moduly * dvoukanálová architektura paměti * podpora pro AMD EXtended Profiles for Overclocking (AMD EXPO™) a podpora paměťových modulů Extreme Memory Profile (XMP) Grafické výstupy: grafické specifikace se mohou lišit v závislosti na podpoře CPU * 1x DisplayPort 1.4 * 1x HDMI® 2.1 Zvuková karta: kodek Realtek 7.1 Surround Sound High Definition Audio CODEC Ethernet: Realtek® GbE LAN WLAN + Bluetooth: Realtek® RTL8821CE, Wi-Fi 5 + BT5.0 Rozšiřující sloty: * 1x PCI Express x16 (PCIEX16) * 2x PCI Express x16 (PCIEX1_1/PCIEX1_2), podpora PCIe 3.0 x1 * 1x PCI Express x16 (PCIEX1_3) RAID řadič: podpora pro RAID 0/1/10 pro úložná zařízení NVMe SSD a SATA Úložný prostor: celkem podporuje 3 sloty M.2 a 4 porty SATA 6Gb/s * 1x M.2 (M2A_CPU), integrovaný v CPU, podpora Socket 3, M key, typ 25110/22110/2580/2280 SSD * 1x M.2 (M2P_CPU), integrovaný v CPU, podpora Socket 3, M key, typ 22110/2280 SSD * 1x M.2 (M2C_SB), integrovaný v čipsetu, podpora Socket 3, M key, typ 22110/2280 PCIe 4.0 x4/x2 SSD * 4x port SATA 6Gb/s USB: Zadní USB (celkem 9 portů) * 1x USB typ-C®, s podporou USB 3.2 Gen 1 * 2x USB 3.2 Gen 2 typ-A (červený) * 6x USB 2.0/1.1 Přední USB (celkem 9 portů) * 1x USB typ-C® konektor - podpora USB 3.2 Gen 1 * 1x USB 3.2 Gen 1 header - podpora dalších 2 portů USB 3.2 Gen 1 * 3x USB 2.0/1.1 header - podpora dalších 6 portů USB 2.0/1.1 Porty na zadním panelu: * 1x DisplayPort * 1x HDMI * 1x PS/2 pro klávesnici/myš * 2x SMA anténní konektor (2T2R) * 1x USB typ-C®, s podporou USB 3.2 Gen 1 * 2x USB 3.2 Gen 2 typ-A (červený) * 6x USB 2.0/1.1 * 1x RJ-45 * 3x audio konektor Interní porty: Napájení * 1x 24-pin ATX hlavní napájecí konektor * 1x 8-pin ATX 12V napájecí konektor Související s ventilátorem a chlazením * 1x CPU fan header * 1x CPU fan/water cooling pump header * 2x system fan header * 1x system fan/water cooling pump header Související s úložištěm * 3x M.2 slot (Key M) * 4x SATA 6Gb/s port USB * 1x USB typ-C® header, s podporou USB 3.2 Gen 1 * 1x USB 3.2 Gen 1 header * 3x USB 2.0/1.1 header Ostatní * 3x adresovatelný RGB Gen2 LED strip header * 1x RGB LED strip header * 1x front panel header * 1x front panel audio header * 1x Trusted Platform Module header (pouze pro modul GC-TPM2.0 SPI/GC-TPM2.0 SPI 2.0/GC-TPM2.0 SPI V2) * 1x tlačítko Q-Flash Plus * 1x serial port header * 1x Clear CMOS jumper BIOS: 1x 256Mb flash, AMI UEFI BIOS, PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0 Odkaz na stránku výrobce: https://www.gigabyte.com/Motherboard/B650-UD-AC-rev-10#kf
