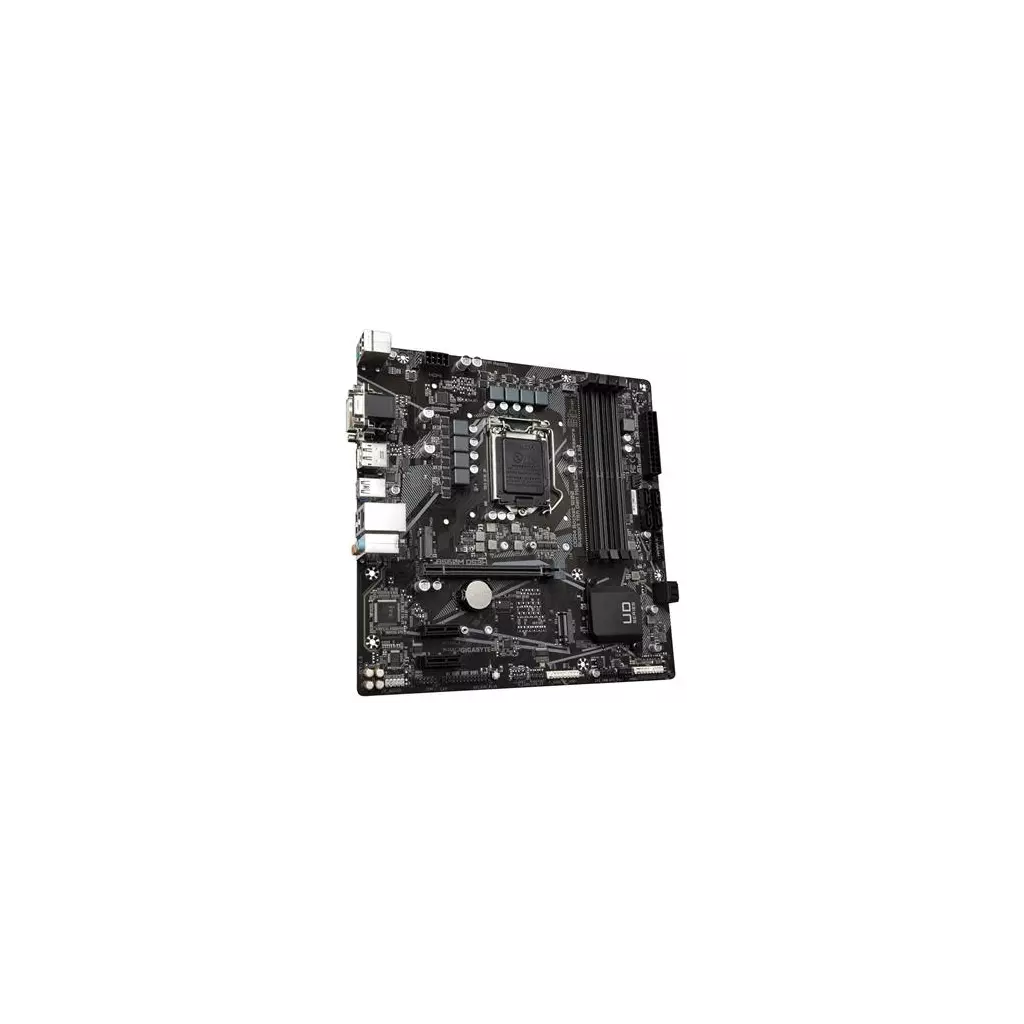

GIGABYTE B560M DS3H / Intel B560 / LGA1200 / 4x DDR4 / 2x M.2 / VGA / DVI-D / HDMI / DP / USB-C / mATX
![](https://cdn.vmshop.cz/images/get/7/mbgb6184.jpg?p=detail,wp)
Popis produktu:
Deska je vybavena grafickými výstupy pro použití s procesory s integrovaným grafickým jádrem. Základní deska grafickou kartu neobsahuje a bez použití odpovídajícího procesoru, budou tyto výstupy nefunkční.
CPU Podpora procesorů 11. generace Intel Core i5/ i7/ i9 Podpora procesorů 10. generace Intel Core/ Pentium/ Celeron Patice LGA1200
Čipová sada Intel B560
Paměť 4 x DDR4 paměťový slot, podpora až 128 GB Podpora DDR4 3200/ 3000/ 2933/ 2666/ 2400/ 2133 MHz CPU Intel 10. gen. (Core i7/ i9) podporuje 2933/ 2666/ 2400/ 2133 MHz CPU Intel 10. gen. (Core i5/ i3/ Pentium/ Celeron) podporuje 2666/ 2400/ 2133 MHz Dvoukanálová architektura paměti Podpora non-ECC, bez vyrovnávací paměti, 1Rx8/2Rx8/1Rx16 Podpora ECC pamětí (non-ECC režim), 1Rx8/2Rx8 Podpora Intel Extreme Memory Profile (XMP)
Sloty 1 x PCIe 4.0 x16 slot CPU Intel 10. gen. podporuje PCIe 3.0 2 x PCIe 3.0 x1
Grafika 1 x HDMI port, podporující max. rozlišení 4096 x 2160 při 30 Hz 1 x DisplayPort port, podporující max. rozlišení 4096 x 2304 při 60 Hz 1 x VGA port, podporující max. rozlišení 1920 x 1200 při 60 Hz 1 x DVI-D port, podporující max. rozlišení 1920 x 1200 při 60 Hz
Úložiště Intel CPU 1 x M.2 slot, M Key, pro jednotky typu 2260/2280/22110 (PCIe 4.0 x2/x4 režim) CPU Intel 10. gen. podporuje PCIe 3.0 Intel B560 čipová sada 6 x SATA 6Gb/s port 1 x M.2 slot, M Key, pro jednotky typu 2260/2280 (SATA a PCIe 3.0 x2/x4 režim) Podpora Intel Optane technologie
USB 1 x USB 3.2 Gen1 typ C port na zadním panelu 5 x USB 3.2 Gen1 port (3 porty na zadním panelu, 2 porty dostupné přes interní USB konektor) 6 x USB 2.0 port (2 porty na zadním panelu, 4 porty dostupné přes interní USB konektory)
Audio Realtek Audio Codec 2/4/5.1/7.1kanálové High Definition Audio
LAN 1 x Realtek Gigabit LAN řadič
Interní konektory 1 x 24-pin ATX hlavní napájecí konektor 1 x 8-pin ATX 12V napájecí konektor 6 x SATA 6Gb/s konektor 2 x M.2 slot, M Key 1 x USB 3.2 Gen1 (USB 3.0) konektor (podporuje 2 x USB 3.2 Gen1 port) 2 x USB 2.0 konektor (podporuje 4 x USB 2.0 port) 1 x konektor ventilátoru CPU 3 x konektor systémového ventilátoru 1 x audio konektor předního panelu 1 x konektor předního panelu 1 x TPM konektor (podporuje pouze moduly GC-TPM2.0 SPI a GC-TPM2.0 SPI 2.0) 1 x konektor RGB LED pásku 1 x konektor adresovatelného LED pásku 1 x propojka Clear CMOS 1 x konektor pro sériový port 1 x konektor pro paralelní port 1 x tlačítko Q-Flash Plus
Porty na zadním panelu 1 x PS/2 combo port klávesnice a myši 1 x DisplayPort 1 x HDMI 1 x VGA 1 x DVI-D 1 x USB 3.2 Gen1 (USB 3.0) typ C 3 x USB 3.2 Gen1 (USB 3.0) 2 x USB 2.0 1 x RJ-45 3 x audio jack
Rozměry 24,4 x 24,4 cm Micro ATX formát
Deska je vybavena grafickými výstupy pro použití s procesory s integrovaným grafickým jádrem. Základní deska grafickou kartu neobsahuje a bez použití odpovídajícího procesoru, budou tyto výstupy nefunkční.
CPU Podpora procesorů 11. generace Intel Core i5/ i7/ i9 Podpora procesorů 10. generace Intel Core/ Pentium/ Celeron Patice LGA1200
Čipová sada Intel B560
Paměť 4 x DDR4 paměťový slot, podpora až 128 GB Podpora DDR4 3200/ 3000/ 2933/ 2666/ 2400/ 2133 MHz CPU Intel 10. gen. (Core i7/ i9) podporuje 2933/ 2666/ 2400/ 2133 MHz CPU Intel 10. gen. (Core i5/ i3/ Pentium/ Celeron) podporuje 2666/ 2400/ 2133 MHz Dvoukanálová architektura paměti Podpora non-ECC, bez vyrovnávací paměti, 1Rx8/2Rx8/1Rx16 Podpora ECC pamětí (non-ECC režim), 1Rx8/2Rx8 Podpora Intel Extreme Memory Profile (XMP)
Sloty 1 x PCIe 4.0 x16 slot CPU Intel 10. gen. podporuje PCIe 3.0 2 x PCIe 3.0 x1
Grafika 1 x HDMI port, podporující max. rozlišení 4096 x 2160 při 30 Hz 1 x DisplayPort port, podporující max. rozlišení 4096 x 2304 při 60 Hz 1 x VGA port, podporující max. rozlišení 1920 x 1200 při 60 Hz 1 x DVI-D port, podporující max. rozlišení 1920 x 1200 při 60 Hz
Úložiště Intel CPU 1 x M.2 slot, M Key, pro jednotky typu 2260/2280/22110 (PCIe 4.0 x2/x4 režim) CPU Intel 10. gen. podporuje PCIe 3.0 Intel B560 čipová sada 6 x SATA 6Gb/s port 1 x M.2 slot, M Key, pro jednotky typu 2260/2280 (SATA a PCIe 3.0 x2/x4 režim) Podpora Intel Optane technologie
USB 1 x USB 3.2 Gen1 typ C port na zadním panelu 5 x USB 3.2 Gen1 port (3 porty na zadním panelu, 2 porty dostupné přes interní USB konektor) 6 x USB 2.0 port (2 porty na zadním panelu, 4 porty dostupné přes interní USB konektory)
Audio Realtek Audio Codec 2/4/5.1/7.1kanálové High Definition Audio
LAN 1 x Realtek Gigabit LAN řadič
Interní konektory 1 x 24-pin ATX hlavní napájecí konektor 1 x 8-pin ATX 12V napájecí konektor 6 x SATA 6Gb/s konektor 2 x M.2 slot, M Key 1 x USB 3.2 Gen1 (USB 3.0) konektor (podporuje 2 x USB 3.2 Gen1 port) 2 x USB 2.0 konektor (podporuje 4 x USB 2.0 port) 1 x konektor ventilátoru CPU 3 x konektor systémového ventilátoru 1 x audio konektor předního panelu 1 x konektor předního panelu 1 x TPM konektor (podporuje pouze moduly GC-TPM2.0 SPI a GC-TPM2.0 SPI 2.0) 1 x konektor RGB LED pásku 1 x konektor adresovatelného LED pásku 1 x propojka Clear CMOS 1 x konektor pro sériový port 1 x konektor pro paralelní port 1 x tlačítko Q-Flash Plus
Porty na zadním panelu 1 x PS/2 combo port klávesnice a myši 1 x DisplayPort 1 x HDMI 1 x VGA 1 x DVI-D 1 x USB 3.2 Gen1 (USB 3.0) typ C 3 x USB 3.2 Gen1 (USB 3.0) 2 x USB 2.0 1 x RJ-45 3 x audio jack
Rozměry 24,4 x 24,4 cm Micro ATX formát
Parametr | Hodnota |
---|---|
Socket (patice) | Socket 1200 |
Formát | micro ATX |
Integrovaná grafická karta | Ano (CPU) |
Chipset | Intel |
Technologie paměti RAM | DDR4 |
PCI express 16x | 1 |
Integrovaná LAN karta | 1 |
Podpora RAID | Bez RAID podpory |
Rozhraní | HDMI |
Rozhraní | VGA |
Rozhraní | USB 2.0 |
Rozhraní | USB 3.2 |
Rozhraní | 3.5mm Jack |
Rozhraní | LAN |
Rozhraní | DVI |
Rozhraní | DisplayPort |
Rozhraní | USB Type-C |
Další rozhraní | M.2 |
Specifikace:
B560M DS3H
Intel B560 Ultra Durable Motherboard with Direct 6+2 Phases Digital VRM, Full PCIe 4.0* Design, PCIe 4.0 M.2, GIGABYTE 8118 Gaming LAN, 8-ch HD Audio with Audio Caps, USB TYPE-C , RGB FUSION 2.0, Q-Flash Plus
- Supports 11th and 10th Gen Intel Core™ Series Processors
- Dual Channel Non-ECC Unbuffered DDR4, 4 DIMMs
- Direct 6+2 Phases Digital VRM Solution with Low RDS(on) MOSFETs
- Dual Ultra-Fast NVMe PCIe 4.0/3.0* x4 M.2
- GIGABYTE Exclusive 8118 Gaming LAN with Bandwidth Management
- USB 3.2 Gen1 Type-C for Fast and Versatile Connections
- High Quality Audio Capacitors and Audio Noise Guard with LED Trace Path Lighting
- RGB FUSION 2.0 Supports Addressable LED & RGB LED Strips
- Smart Fan 6 Features Multiple Temperature Sensors , Hybrid Fan Headers with FAN STOP
- Q-Flash Plus Update BIOS without Installing the CPU, Memory and Graphics Card
- * Actual support may vary by CPU.
CPU
LGA1200 package: 11th Generation Intel Core™ i9 processors / Intel Core™ i7 processors / Intel Core™ i5 processors 10th Generation Intel Core™ i9 processors / Intel Core™ i7 processors / Intel Core™ i5 processors / Intel Core™ i3 processors/ Intel Pentium processors / Intel Celeron processors* * Limited to processors with 4 MB Intel Smart Cache, Intel Celeron G5xx5 family. L3 cache varies with CPU (Please refer to "CPU Support List" for more information.)
Chipset
Intel B560 Express Chipset
Memory
11th Generation Intel Core™ i9/i7/i5 processors: Support for DDR4 5333(O.C.)/ DDR4 5133(O.C.)/DDR4 5000(O.C.)/4933(O.C.)/4800(O.C.)/ 4700(O.C.)/ 4600(O.C.)/ 4500(O.C.)/ 4400(O.C.)/ 4300(O.C.)/4266(O.C.) / 4133(O.C.) / 4000(O.C.) / 3866(O.C.) / 3800(O.C.) / 3733(O.C.) / 3666(O.C.) / 3600(O.C.) / 3466(O.C.) / 3400(O.C.) / 3333(O.C.) / 3300(O.C.) / 3200(O.C.) / 3000(O.C.) / 2933 / 2800 / 2666 / 2400 / 2133 MHz 10th Generation Intel Core™ i9/i7 processors: Support for DDR4 2933/2666/2400/2133 MHz memory modules 10th Generation Intel Core™ i5/i3/Pentium/Celeron processors: Support for DDR4 2666/2400/2133 MHz memory modules 4 x DDR4 DIMM sockets supporting up to 128 GB (32 GB single DIMM capacity) of system memory Dual channel memory architecture Support for ECC Un-buffered DIMM 1Rx8/2Rx8 memory modules (operate in non-ECC mode) Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules Support for Extreme Memory Profile (XMP) memory modules (Go to GIGABYTE's website for the latest supported memory speeds and memory modules.)
Onboard Graphics
Integrated Graphics Processor-Intel HD Graphics support: 1 x D-Sub port, supporting a maximum resolution of 1920x1200@60 Hz 1 x DVI-D port, supporting a maximum resolution of 1920x1200@60 Hz * The DVI-D port does not support D-Sub connection by adapter. 1 x DisplayPort, supporting a maximum resolution of 4096x2304@60 Hz * Support for DisplayPort 1.2 version and HDCP 2.3 * When the D-Sub port and DisplayPort are connected at the same time, images will output from the DisplayPort only. 1 x HDMI port, supporting a maximum resolution of 4096x2160@30 Hz * Support for HDMI 1.4 version and HDCP 2.3. (Graphics specifications may vary depending on CPU support.) Support for up to 3 displays at the same time
Audio
Realtek Audio CODEC High Definition Audio 2/4/5.1/7.1-channel * To configure 7.1-channel audio, you need to open the audio software and select Device advanced settings > Playback Device to change the default setting first.
LAN
Realtek GbE LAN chip (1000/100 Mbit)
Expansion Slots
1 x PCI Express x16 slot, running at x16 (The PCIEX16 slot conforms to PCI Express 4.0 standard.) (Note) 2 x PCI Express x1 slots (The PCIEX1 slot conforms to PCI Express 3.0 standard.)
Storage Interface
CPU: 1 x M.2 connector (Socket 3, M key, type 2260/2280/22110 PCIe 4.0 x4/x2 SSD support) (M2P_CPU) (Note) Chipset: 1 x M.2 connector (Socket 3, M key, type 2260/2280 SATA and PCIe 3.0 x4/ x2 SSD support) (M2A_SB) 6 x SATA 6Gb/s connectors * Refer to "1-7 Internal Connectors," for the installation notices for the M.2 and SATA connectors. Intel Optane™ Memory Ready * System Acceleration with Intel Optane™ Memory enabled on the M2P_CPU connector only.
USB
Chipset: 1 x USB Type-C port on the back panel, with USB 3.2 Gen 1 support 5 x USB 3.2 Gen 1 ports (3 ports on the back panel, 2 ports available through the internal USB header) 4 x USB 2.0/1.1 ports available through the internal USB headers Chipset+USB 2.0 Hub: 2 x USB 2.0/1.1 ports on the back panel
Internal I/O Connectors
1 x 24-pin ATX main power connector 1 x 8-pin ATX 12V power connector 1 x CPU fan header 3 x system fan headers 1 x addressable LED strip header 1 x RGB LED strip header 6 x SATA 6Gb/s connectors 2 x M.2 Socket 3 connectors 1 x front panel header 1 x front panel audio header 1 x USB 3.2 Gen 1 header 2 x USB 2.0/1.1 headers 1 x Trusted Platform Module header (For the GC-TPM2.0 SPI/GC-TPM2.0 SPI 2.0 module only) 1 x serial port header 1 x parallel port header 1 x Clear CMOS jumper 1 x Q-Flash Plus button *All fan headers are subject to support AIO_Pump, Pump and high performance fan with the capability of delivering up to 2A/12V @ 24W.
Back Panel Connectors
2 x USB 2.0/1.1 ports 1 x PS/2 keyboard/mouse port 1 x D-Sub port 1 x DVI-D port 1 x DisplayPort 1 x HDMI port 3 x USB 3.2 Gen 1 ports 1 x USB Type-C port, with USB 3.2 Gen 1 support 1 x RJ-45 port 3 x audio jacks
I/O Controller
iTE I/O Controller Chip
H/W Monitoring
Voltage detection Temperature detection Fan speed detection Fan fail warning Fan speed control * Whether the fan speed control function is supported will depend on the fan you install.
BIOS
1 x 256 Mbit flash Use of licensed AMI UEFI BIOS PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0
Unique Features
Support for APP Center * Available applications in APP Center may vary by motherboard model. Supported functions of each application may also vary depending on motherboard specifications. @BIOS EasyTune Fast Boot Game Boost ON/OFF Charge RGB Fusion Smart Backup System Information Viewer Support for Q-Flash Plus Support for Q-Flash Support for Xpress Install
Bundled Software
Norton Internet Security (OEM version) Realtek 8118 Gaming LAN Bandwidth Control Utility
Operating System
Support for Windows 10 64-bit
Form Factor
Micro ATX Form Factor; 24.4cm x 24.4cm
Note
Supported by 11th Generation processors only.
