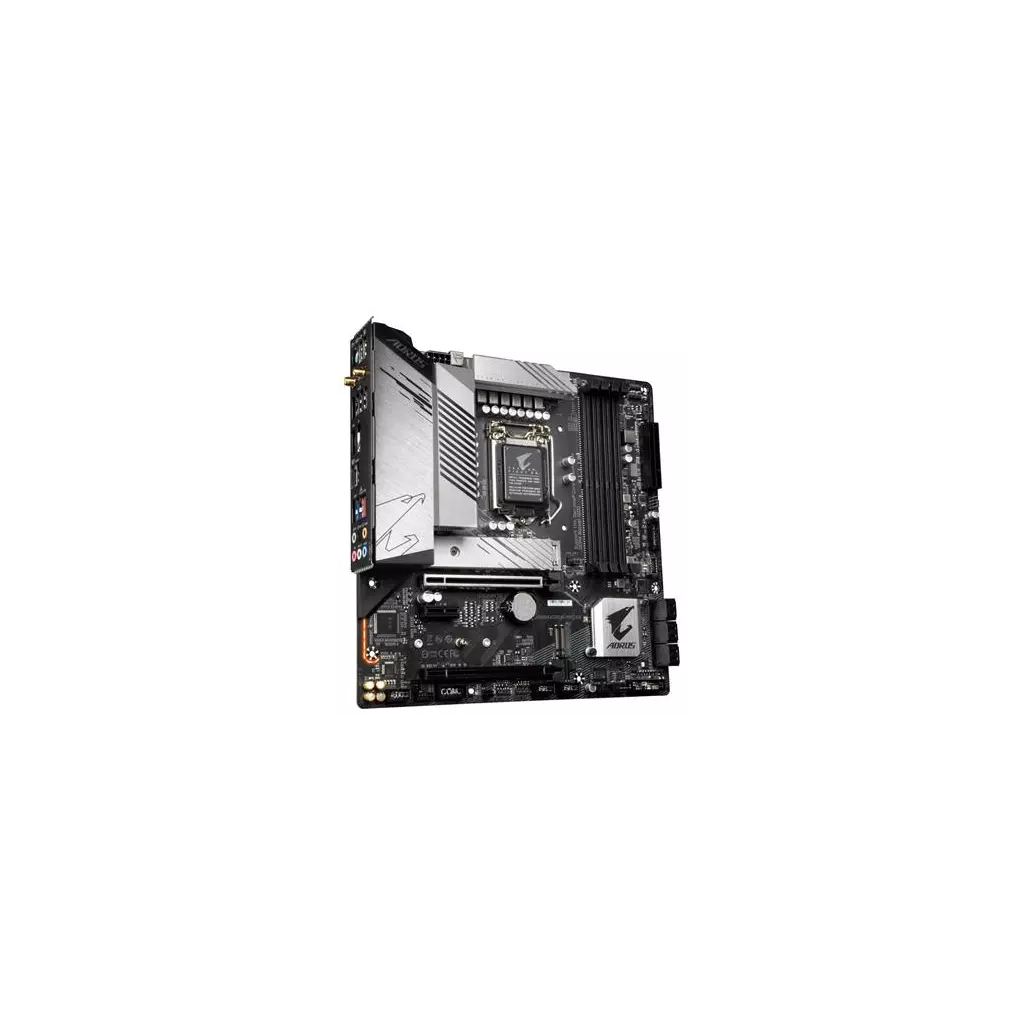

GIGABYTE B560M AORUS PRO AX / Intel B560 / LGA1200 / 4x DDR4 / 2x M.2 / HDMI / DP / USB-C / WiFi / mATX
Popis produktu:
Deska je vybavena grafickými výstupy pro použití s procesory s integrovaným grafickým jádrem. Základní deska grafickou kartu neobsahuje a bez použití odpovídajícího procesoru, budou tyto výstupy nefunkční.
CPU Podpora procesorů 11. generace Intel Core i5/ i7/ i9 Podpora procesorů 10. generace Intel Core/ Pentium/ Celeron Patice LGA1200
Čipová sada Intel B560
Paměť 4x DDR4 paměťový slot, podpora až 128 GB Podpora DDR4 3200/ 3000/ 2933/ 2666/ 2400/ 2133 MHz CPU Intel 10. gen. (Core i7/ i9) podporuje 2933/ 2666/ 2400/ 2133 MHz CPU Intel 10. gen. (Core i5/ i3/ Pentium/ Celeron) podporuje 2666/ 2400/ 2133 MHz Dvoukanálová architektura paměti Podpora non-ECC, bez vyrovnávací paměti, 1Rx8/2Rx8/1Rx16 Podpora ECC pamětí (non-ECC režim), 1Rx8/2Rx8 Podpora Intel Extreme Memory Profile (XMP)
Sloty 1x PCIe 4.0 x16 slot CPU Intel 10. gen. podporuje PCIe 3.0 1x PCIe 3.0 x16 slot (podporuje x4 režim) 1x PCIe 3.0 x1
Grafika 1x HDMI port, podporující max. rozlišení 4096 x 2160 při 30 Hz 1x DisplayPort port, podporující max. rozlišení 4096 x 2304 při 60 Hz
Multi-GPU Podpora AMD Quad-GPU CrossFire a 2-Way CrossFire technologie
Úložiště Intel CPU 1x M.2 slot, M Key, pro jednotky typu 2260/2280 (PCIe 4.0 x2/x4 režim) CPU Intel 10. gen. podporuje PCIe 3.0 Intel B560 čipová sada 6x SATA 6Gb/s port 1x M.2 slot, M Key, pro jednotky typu 2260/2280/22110 (SATA a PCIe 3.0 x2/x4 režim) Podpora Intel Optane technologie
USB 1x USB 3.2 Gen2x2 typ C port na zadním panelu 1x USB 3.2 Gen1 typ C port dostupný přes interní USB konektor 1x USB 3.2 Gen2 typ A port na zadním panelu 4x USB 3.2 Gen1 port (2 porty na zadním panelu, 2 porty dostupné přes interní USB konektor) 10x USB 2.0 port (6 portů na zadním panelu, 4 porty dostupné přes interní USB konektory)
Audio Realtek Audio Codec 2/4/5.1/7.1kanálové High Definition Audio
LAN 1x Intel 2,5Gigabit LAN řadič
WLAN/ Bluetooth Intel Wi-Fi 6 AX200 Wi-Fi 802.11a/b/g/n/ac/ax Dual Band (2,4 GHz, 5 GHz) Rychlost přenosu dat až 2,4 Gbps Bluetooth 5.1
Interní konektory 1x 24-pin ATX hlavní napájecí konektor 1x 8-pin ATX 12V napájecí konektor 6x SATA 6Gb/s konektor 2x M.2 slot, M Key 1x USB 3.2 Gen1 typ C konektor 1x USB 3.2 Gen1 (USB 3.0) konektor (podporuje 2x USB 3.2 Gen1 port) 2x USB 2.0 konektor (podporuje 4x USB 2.0 port) 1x konektor ventilátoru CPU 1x konektor ventilátoru vodního chlazení 3x konektor systémového ventilátoru 1x audio konektor předního panelu 1x konektor předního panelu 1x TPM konektor (podporuje pouze moduly GC-TPM2.0 SPI a GC-TPM2.0 SPI 2.0) 2x konektor RGB LED pásku 2x konektor adresovatelného LED pásku 2x konektor Thunderbolt AIC 1x propojka Clear CMOS 1x konektor pro sériový port 1x tlačítko Q-Flash Plus
Porty na zadním panelu 2x konektor Wi-Fi antény 1x PS/2 combo port klávesnice a myši 1x DisplayPort 1x HDMI 1x USB 3.2 Gen2x2 typ C 1x USB 3.2 Gen2 (USB 3.1 Gen2) 2x USB 3.2 Gen1 (USB 3.0) 6x USB 2.0 1x RJ-45 6x audio jack
Rozměry 24,4 x 24,4 cm Micro ATX formát
Deska je vybavena grafickými výstupy pro použití s procesory s integrovaným grafickým jádrem. Základní deska grafickou kartu neobsahuje a bez použití odpovídajícího procesoru, budou tyto výstupy nefunkční.
CPU Podpora procesorů 11. generace Intel Core i5/ i7/ i9 Podpora procesorů 10. generace Intel Core/ Pentium/ Celeron Patice LGA1200
Čipová sada Intel B560
Paměť 4x DDR4 paměťový slot, podpora až 128 GB Podpora DDR4 3200/ 3000/ 2933/ 2666/ 2400/ 2133 MHz CPU Intel 10. gen. (Core i7/ i9) podporuje 2933/ 2666/ 2400/ 2133 MHz CPU Intel 10. gen. (Core i5/ i3/ Pentium/ Celeron) podporuje 2666/ 2400/ 2133 MHz Dvoukanálová architektura paměti Podpora non-ECC, bez vyrovnávací paměti, 1Rx8/2Rx8/1Rx16 Podpora ECC pamětí (non-ECC režim), 1Rx8/2Rx8 Podpora Intel Extreme Memory Profile (XMP)
Sloty 1x PCIe 4.0 x16 slot CPU Intel 10. gen. podporuje PCIe 3.0 1x PCIe 3.0 x16 slot (podporuje x4 režim) 1x PCIe 3.0 x1
Grafika 1x HDMI port, podporující max. rozlišení 4096 x 2160 při 30 Hz 1x DisplayPort port, podporující max. rozlišení 4096 x 2304 při 60 Hz
Multi-GPU Podpora AMD Quad-GPU CrossFire a 2-Way CrossFire technologie
Úložiště Intel CPU 1x M.2 slot, M Key, pro jednotky typu 2260/2280 (PCIe 4.0 x2/x4 režim) CPU Intel 10. gen. podporuje PCIe 3.0 Intel B560 čipová sada 6x SATA 6Gb/s port 1x M.2 slot, M Key, pro jednotky typu 2260/2280/22110 (SATA a PCIe 3.0 x2/x4 režim) Podpora Intel Optane technologie
USB 1x USB 3.2 Gen2x2 typ C port na zadním panelu 1x USB 3.2 Gen1 typ C port dostupný přes interní USB konektor 1x USB 3.2 Gen2 typ A port na zadním panelu 4x USB 3.2 Gen1 port (2 porty na zadním panelu, 2 porty dostupné přes interní USB konektor) 10x USB 2.0 port (6 portů na zadním panelu, 4 porty dostupné přes interní USB konektory)
Audio Realtek Audio Codec 2/4/5.1/7.1kanálové High Definition Audio
LAN 1x Intel 2,5Gigabit LAN řadič
WLAN/ Bluetooth Intel Wi-Fi 6 AX200 Wi-Fi 802.11a/b/g/n/ac/ax Dual Band (2,4 GHz, 5 GHz) Rychlost přenosu dat až 2,4 Gbps Bluetooth 5.1
Interní konektory 1x 24-pin ATX hlavní napájecí konektor 1x 8-pin ATX 12V napájecí konektor 6x SATA 6Gb/s konektor 2x M.2 slot, M Key 1x USB 3.2 Gen1 typ C konektor 1x USB 3.2 Gen1 (USB 3.0) konektor (podporuje 2x USB 3.2 Gen1 port) 2x USB 2.0 konektor (podporuje 4x USB 2.0 port) 1x konektor ventilátoru CPU 1x konektor ventilátoru vodního chlazení 3x konektor systémového ventilátoru 1x audio konektor předního panelu 1x konektor předního panelu 1x TPM konektor (podporuje pouze moduly GC-TPM2.0 SPI a GC-TPM2.0 SPI 2.0) 2x konektor RGB LED pásku 2x konektor adresovatelného LED pásku 2x konektor Thunderbolt AIC 1x propojka Clear CMOS 1x konektor pro sériový port 1x tlačítko Q-Flash Plus
Porty na zadním panelu 2x konektor Wi-Fi antény 1x PS/2 combo port klávesnice a myši 1x DisplayPort 1x HDMI 1x USB 3.2 Gen2x2 typ C 1x USB 3.2 Gen2 (USB 3.1 Gen2) 2x USB 3.2 Gen1 (USB 3.0) 6x USB 2.0 1x RJ-45 6x audio jack
Rozměry 24,4 x 24,4 cm Micro ATX formát
Parametr | Hodnota |
---|---|
Socket (patice) | Socket 1200 |
Formát | micro ATX |
Integrovaná grafická karta | Ano (CPU) |
Chipset | Intel |
Technologie paměti RAM | DDR4 |
PCI express 16x | 1 |
Integrovaná LAN karta | 1 |
Podpora RAID | Bez RAID podpory |
Rozhraní | HDMI |
Rozhraní | USB 2.0 |
Rozhraní | USB 3.2 |
Rozhraní | 3.5mm Jack |
Rozhraní | LAN |
Rozhraní | DisplayPort |
Rozhraní | USB Type-C |
Další rozhraní | M.2 |
Další rozhraní | WiFi |
Specifikace:
B560M AORUS PRO AX
- Supports 11th and 10th Gen Intel Core™ Series Processors
- Dual Channel Non-ECC Unbuffered DDR4, 4 DIMMs
- Direct 12+1 Phases Digital VRM Solution with 50A DrMOS
- Shielded Memory Routing for Better Memory Overclocking
- Fully Covered Thermal Design with High Coverage MOSFET Heatsinks
- Onboard Intel WiFi 6 802.11ax 2T2R & BT5 with AORUS Antenna
- Blazing Fast Intel 2.5GbE LAN with cFosSpeed
- Dual Ultra-Fast NVMe PCIe 4.0*/3.0 x4 M.2 with Thermal Guard
- SuperSpeed USB 3.2 Gen2x2 TYPE-C delivers up to 20Gb/s Transfer Speeds
- Pre-installed IO Shield for Easy and Quick Installation
- RGB FUSION 2.0 with Multi-Zone Addressable LED Light Show Design, Support Addressable LED & RGB LED Strips
- Smart Fan 6 Features Multiple Temperature Sensors , Hybrid Fan Headers with FAN STOP
- Q-Flash Plus Update BIOS without Installing the CPU, Memory and Graphics Card
- * Actual support may vary by CPU.
CPU
LGA1200 package: 11th Generation Intel Core™ i9 processors / Intel Core™ i7 processors / Intel Core™ i5 processors 10th Generation Intel Core™ i9 processors / Intel Core™ i7 processors / Intel Core™ i5 processors / Intel Core™ i3 processors/ Intel Pentium processors / Intel Celeron processors* * Limited to processors with 4 MB Intel Smart Cache, Intel Celeron G5xx5 family. L3 cache varies with CPU (Please refer to "CPU Support List" for more information.)
Chipset
Intel B560 Express Chipset
Memory
11th Generation Intel Core™ i9/i7/i5 processors: Support for DDR4 5333(O.C.)/ DDR4 5133(O.C.)/DDR4 5000(O.C.)/4933(O.C.)/4800(O.C.)/ 4700(O.C.)/ 4600(O.C.)/ 4500(O.C.)/ 4400(O.C.)/ 4300(O.C.)/4266(O.C.) / 4133(O.C.) / 4000(O.C.) / 3866(O.C.) / 3800(O.C.) / 3733(O.C.) / 3666(O.C.) / 3600(O.C.) / 3466(O.C.) / 3400(O.C.) / 3333(O.C.) / 3300(O.C.) / 3200(O.C.) / 3000(O.C.) / 2933 / 2800 / 2666 / 2400 / 2133 MHz memory modules 10th Generation Intel Core™ i9/i7 processors: Support for DDR4 2933/2666/2400/2133 MHz memory modules 10th Generation Intel Core™ i5/i3 /Pentium/Celeron processors: Support for DDR4 2666/2400/2133 MHz memory modules 4 x DDR4 DIMM sockets supporting up to 128 GB (32 GB single DIMM capacity) of system memory Dual channel memory architecture Support for ECC Un-buffered DIMM 1Rx8/2Rx8 memory modules (operate in non-ECC mode) Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules Support for Extreme Memory Profile (XMP) memory modules (Please refer "Memory Support List" for more information.)
Onboard Graphics
Integrated Graphics Processor-Intel HD Graphics support: 1 x HDMI port, supporting a maximum resolution of 4096x2160@30 Hz * Support for HDMI 1.4 version and HDCP 2.3. 1 x DisplayPort, supporting a maximum resolution of 4096x2304@60 Hz * Support for DisplayPort 1.2 version, HDCP 2.3 (Graphics specifications may vary depending on CPU support.)
Audio
Realtek Audio codec High Definition Audio 2/4/5.1/7.1-channel
LAN
Intel2.5GbE LAN chip (2.5 Gbit/1 Gbit/100 Mbit)
Wireless Communication module
Intel Wi-Fi 6 AX200 WIFI a, b, g, n, ac, ax, supporting 2.4/5 GHz Dual-Band BLUETOOTH 5.1 Support for 11ax 160MHz wireless standard and up to 2.4 Gbps data rate * Actual data rate may vary depending on environment and equipment.
Expansion Slots
1 x PCI Express x16 slot, running at x16 (PCIEX16) * For optimum performance, if only one PCI Express graphics card is to be installed, be sure to install it in the PCIEX16 slot. (The PCIEX16 slot conforms to PCI Express 4.0 standard.)* *Supported by 11th Generation processors only. 1 x PCI Express x16 slot, running at x4 (PCIEX4) 1 x PCI Express x1 slot (The PCIEX4 and PCIEX1 slots conform to PCI Express 3.0 standard.)
Multi-Graphics Technology
Support for AMD Quad-GPU CrossFire™ and 2-Way AMD CrossFire™ technologies
Storage Interface
CPU: 1 x M.2 connector (Socket 3, M key, type 2260/2280 PCIe 4.0 x4/x2 SSD support) (M2P_CPU)* * Supported by 11th Generation processors only. Chipset: 1 x M.2 connector on the back of the motherboard (Socket 3, M key, type 2260/2280/22110 SATA and PCIe 3.0 x4/x2 SSD support) (M2A_SB) 6 x SATA 6Gb/s connectors * Refer to "1-7 Internal Connectors," for the installation notices for the M.2 and SATA connectors. Intel Optane™ Memory Ready
USB
Chipset: 1 x USB Type-C port on the back panel, with USB 3.2 Gen2x2 support 1 x USB 3.2 Gen2 Type-A ports (red) on the back panel 2 x USB 3.2 Gen1 ports on the back panel 2 x USB 2.0/1.1 ports on the back panel Chipset+USB 3.2 Gen 1 Hub: 1 x USB Type-C port with USB 3.2 Gen1 support, available through the internal USB header 2 x USB 3.2 Gen1 ports available through the internal USB header Chipset+ 2 USB 2.0 Hubs: 8 x USB 2.0/1.1 ports (4 ports on the back panel, 4 ports available through the internal USB headers)
Internal I/O Connectors
1 x 24-pin ATX main power connector 1 x 8-pin ATX 12V power connector 1 x CPU fan header 1 x water cooling CPU fan header 3 x system fan headers 2 x addressable LED strip headers 2 x RGB LED strip headers 6 x SATA 6Gb/s connectors 2 x M.2 Socket 3 connectors 1 x front panel header 1 x front panel audio header 1 x USB Type-C header, with USB 3.2 Gen 1 support 1 x USB 3.2 Gen 1 header 2 x USB 2.0/1.1 headers 2 x Thunderbolt™ add-in card connectors 1 x Trusted Platform Module header (For the GC-TPM2.0 SPI/GC-TPM2.0 SPI 2.0 module only) 1 x serial port header 1 x Clear CMOS jumper 1 x Q-Flash Plus button *All fan headers are subject to support AIO_Pump, Pump and high performance fan with the capability of delivering up to 2A/12V @ 24W.
Back Panel Connectors
1 x PS/2 keyboard/mouse port 1 x USB Type-C port, with USB 3.2 Gen2x2 support 1 x USB 3.2 Gen2 Type-A port (red) 2 x USB 3.2 Gen1 ports 6 x USB 2.0/1.1 ports 2 x SMA antenna connectors (2T2R) 1 x DisplayPort 1 x HDMI port 1 x RJ-45 port 6 x audio jacks
I/O Controller
iTE I/O Controller Chip
H/W Monitoring
Voltage detection Temperature detection Fan speed detection Water cooling flow rate detection Fan fail warning Fan speed control * Whether the fan speed control function is supported will depend on the cooler you install.
BIOS
1 x 256 Mbit flash Use of licensed AMI UEFI BIOS PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0
Unique Features
Support for APP Center * Available applications in APP Center may vary by motherboard model. Supported functions of each application may also vary depending on motherboard specifications. @BIOS EasyTune Fast Boot Game Boost ON/OFF Charge RGB Fusion Smart Backup System Information Viewer Support for Q-Flash Plus Support for Q-Flash Support for Xpress Install
Bundled Software
Norton Internet Security (OEM version) cFosSpeed
Operating System
Support for Windows 10 64-bit
Form Factor
Micro ATX Form Factor; 24.4cm x 24.4cm
