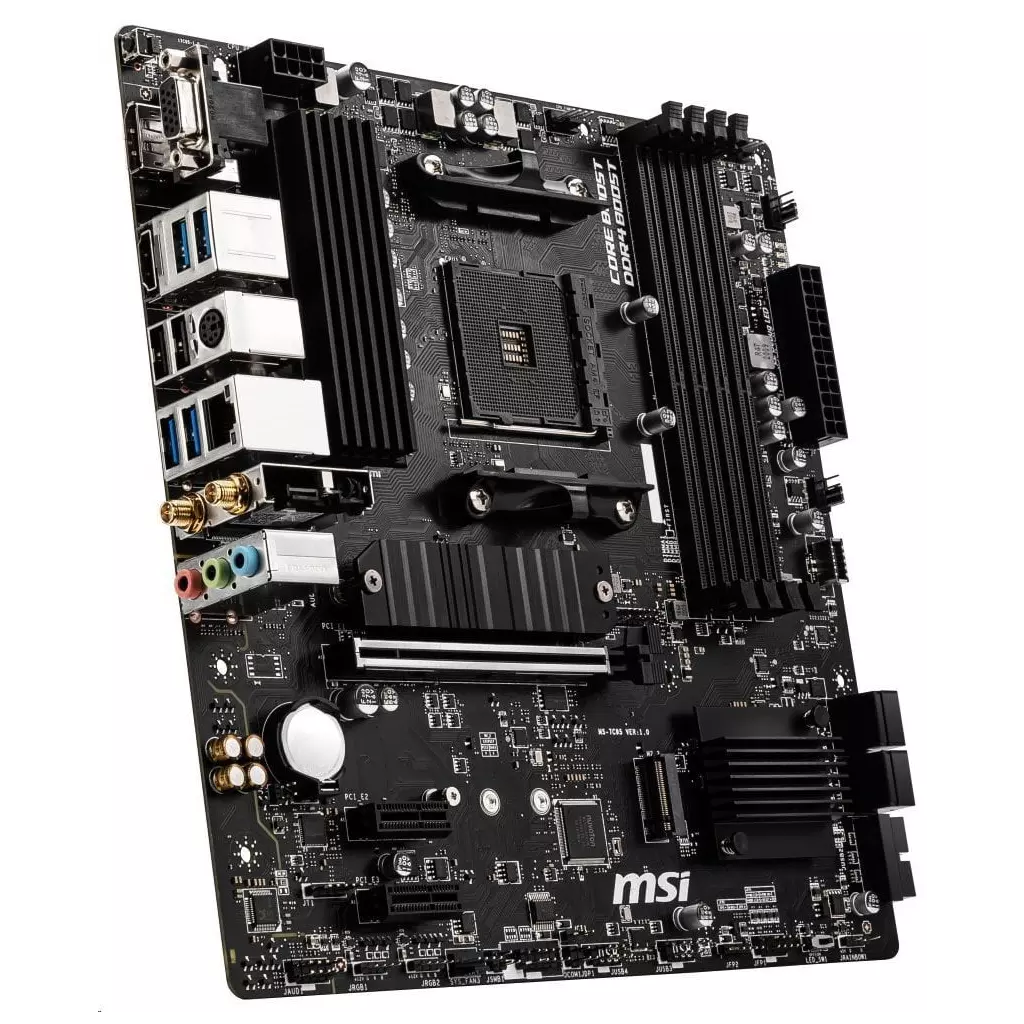

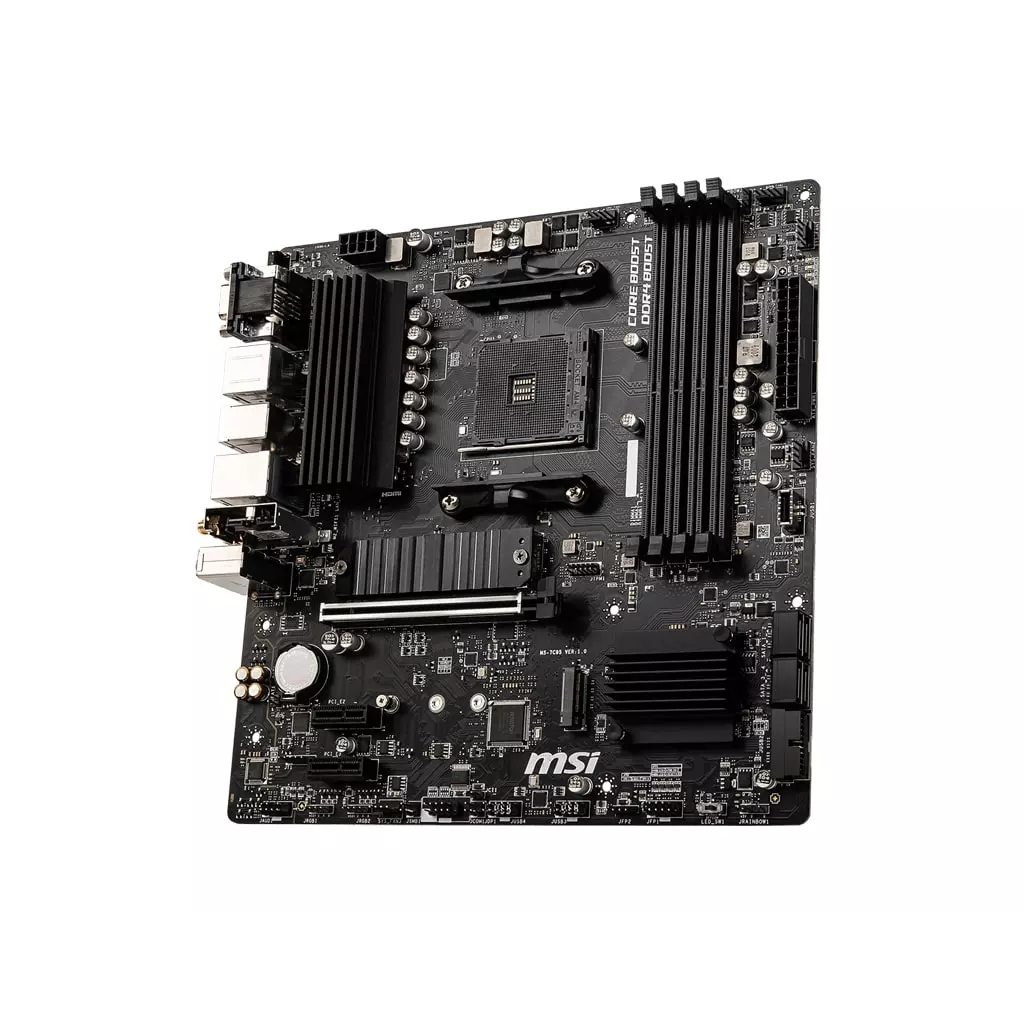

MSI B550M PRO-VDH WIFI

Chipset: AMD B550 Rozměrový formát: Formát Micro-ATX (244 mm x 244 mm) Podpora pro procesory: 3rd Gen AMD Ryzen™ processors, and future AMD Ryzen™ processors with BIOS update Patice procesoru: AM4 Pozice na paměti: 4x DDR4 Podpora pro paměti: •Supports DDR4 1866/ 2133/ 2400/ 2667/ 2800/ 2933/ 3000/ 3066/ 3200 MHz by JEDEC •Supports DDR4 2667/ 2800 /2933 /3000 /3066 /3200 /3466 /3600/ 3733 /3866 /4000 /4133 /4266 /4400+ MHz by A-XMP OC MODE Max.velikost operační paměti: 128 GB Podpora pro paměti typu: DDR4 •Dual channel memory architecture •Supports non-ECC UDIMM memory •Supports ECC UDIMM memory •Supports un-buffered memory Grafická karta: na základě procesoru •1x VGA port, supports resolution of 2048x1536 @50Hz, 2048x1280 @60Hz, 1920x1200 @60Hz •1x DisplayPort, supports a maximum resolution of 4096x2160 @60Hz •1x HDMI port, supports a maximum resolution of 4096x2160 @24Hz Zvuková karta: •Realtek® ALC892 Codec Síťová karta: •1x Realtek® 8111HN Gigabit LAN controller •Intel® Wireless-AC 3168 •Bluetooth 4.2 RAID řadič: •Supports RAID 0, RAID 1 and RAID 10 for SATA storage devices •Supports RAID 0 and RAID 1 for M.2 NVMe storage devices Rozšiřující sloty: •1x PCIe 4.0/ 3.0 x16 slot (PCI_E1) •2x PCIe 3.0 x1 slots SATA: •4x SATA 6Gb/s ports M.2: •2x M.2 slots (Key M) USB: •zadní USB porty ( celkem 6 ) •2x USB 2.0 ports •4x USB 3.2 Gen 1 5Gbps Type-A ports •přední USB porty ( celkem 7 ) •1x USB 3.2 Gen 1 5Gbps Type-C port •2x USB 3.2 Gen 1 5Gbps ports •4x USB 2.0 ports Interní porty: •1x 24-pin ATX main power connector •1x 8-pin ATX 12V power connector •4x SATA 6Gb/s connectors •2x M.2 slots (M-Key) •1x USB 3.2 Gen 1 5Gbps Type-C port •1x USB 3.2 Gen 1 5Gbps connector (supports additional 2 USB 3.2 Gen 1 5Gbps ports) •2x USB 2.0 connectors (supports additional 4 USB 2.0 ports) •1x 4-pin CPU fan connector •1x 4-pin water-pump fan connector •3x 4-pin system fan connectors •1x Front panel audio connector •2x System panel connectors •1x Serial port connector •1x Chassis Intrusion connector •2x 4-pin RGB LED connectors •2x 3-pin RAINBOW LED connectors •1x TPM module connector •1x Clear CMOS jumper Externí porty: •VGA •PS/2 Keyboard / Mouse •1x LAN •Flash BIOS Button •DisplayPort •HDMI •2x USB 2.0 •4x USB 3.2 Gen 1 5Gbps Type-A •Wi-Fi Antenna connectors •3x Audio jacks

Chipset: AMD B550 Rozměrový formát: Formát Micro-ATX (244 mm x 244 mm) Podpora pro procesory: 3rd Gen AMD Ryzen™ processors, and future AMD Ryzen™ processors with BIOS update Patice procesoru: AM4 Pozice na paměti: 4x DDR4 Podpora pro paměti: *Supports DDR4 1866/ 2133/ 2400/ 2667/ 2800/ 2933/ 3000/ 3066/ 3200 MHz by JEDEC *Supports DDR4 2667/ 2800 /2933 /3000 /3066 /3200 /3466 /3600/ 3733 /3866 /4000 /4133 /4266 /4400+ MHz by A-XMP OC MODE Max.velikost operační paměti: 128 GB Podpora pro paměti typu: DDR4 *Dual channel memory architecture *Supports non-ECC UDIMM memory *Supports ECC UDIMM memory *Supports un-buffered memory Grafické výstupy: na základě procesoru *1x VGA port, supports resolution of 2048x1536 @50Hz, 2048x1280 @60Hz, 1920x1200 @60Hz *1x DisplayPort, supports a maximum resolution of 4096x2160 @60Hz *1x HDMI port, supports a maximum resolution of 4096x2160 @24Hz Zvuková karta: *Realtek® ALC892 Codec Síťová karta: *1x Realtek® 8111HN Gigabit LAN controller *Intel® Wireless-AC 3168 *Bluetooth 4.2 RAID řadič: *Supports RAID 0, RAID 1 and RAID 10 for SATA storage devices *Supports RAID 0 and RAID 1 for M.2 NVMe storage devices Rozšiřující sloty: *1x PCIe 4.0/ 3.0 x16 slot (PCI_E1) *2x PCIe 3.0 x1 slots SATA: *4x SATA 6Gb/s ports M.2: *2x M.2 slots (Key M) USB: *zadní USB porty ( celkem 6 ) *2x USB 2.0 ports *4x USB 3.2 Gen 1 5Gbps Type-A ports *přední USB porty ( celkem 7 ) *1x USB 3.2 Gen 1 5Gbps Type-C port *2x USB 3.2 Gen 1 5Gbps ports *4x USB 2.0 ports Interní porty: *1x 24-pin ATX main power connector *1x 8-pin ATX 12V power connector *4x SATA 6Gb/s connectors *2x M.2 slots (M-Key) *1x USB 3.2 Gen 1 5Gbps Type-C port *1x USB 3.2 Gen 1 5Gbps connector (supports additional 2 USB 3.2 Gen 1 5Gbps ports) *2x USB 2.0 connectors (supports additional 4 USB 2.0 ports) *1x 4-pin CPU fan connector *1x 4-pin water-pump fan connector *3x 4-pin system fan connectors *1x Front panel audio connector *2x System panel connectors *1x Serial port connector *1x Chassis Intrusion connector *2x 4-pin RGB LED connectors *2x 3-pin RAINBOW LED connectors *1x TPM module connector *1x Clear CMOS jumper Externí porty: *VGA *PS/2 Keyboard / Mouse *1x LAN *Flash BIOS Button *DisplayPort *HDMI *2x USB 2.0 *4x USB 3.2 Gen 1 5Gbps Type-A *Wi-Fi Antenna connectors *3x Audio jacks Stránka výrobce: https://www.msi.com/Motherboard/B550M-PRO-VDH-WIFI

Parametr	Hodnota
Socket (patice)	Socket AM4
Formát	micro ATX
Integrovaná grafická karta	Ano
Chipset	AMD
Technologie paměti RAM	DDR4
PCI express 16x	1
Integrovaná LAN karta	1
Podpora RAID	1
Podpora RAID	10
Rozhraní	HDMI
Rozhraní	VGA
Rozhraní	USB 2.0
Rozhraní	USB 3.2
Rozhraní	3.5mm Jack
Rozhraní	LAN
Rozhraní	DisplayPort
Další rozhraní	WiFi

Specifikace:

B550M PRO-VDH WIFI

TECHNICAL SPECIFICATIONS

CPU	Supports AM4 socket 3rd Gen AMD Ryzen™ processors, and future AMD Ryzen™ processors with BIOS update
Chipset	AMD B550 Chipset
Memory	4x DDR4 memory slots, support up to 128GB 1 Supports DDR4 1866/ 2133/ 2400/ 2667/ 2800/ 2933/ 3000/ 3066/ 3200 MHz by JEDEC Supports DDR4 2667/ 2800 /2933 /3000 /3066 /3200 /3466 /3600/ 3733 /3866 /4000 /4133 /4266 /4400+ MHz by A-XMP OC MODE 1DPC 1R max speed 4400 MHZ 1DPC 2R max speed 3733 MHZ 2DPC 1R max speed 3866 MHZ 2DPC 2R max speed 3466 MHZ Dual channel memory architecture Supports non-ECC UDIMM memory Supports ECC UDIMM memory Supports un-buffered memory Please refer www.msi.com for more information on compatible memory.
Slots	1x PCIe 4.0/ 3.0 x16 slot (PCI_E1) 1 2x PCIe 3.0 x1 slots
Onboard Graphics	1x VGA port, supports resolution of 2048x1536 @50Hz, 2048x1280 @60Hz, 1920x1200 @60Hz1 1x DisplayPort, supports a maximum resolution of 4096x2160 @60Hz1 1x HDMI port, supports a maximum resolution of 4096x2160 @24Hz1 Maximum shared memory of 16 GB Available for the processor with integrated graphics.
Storage	4x SATA 6Gb/s ports 2x M.2 slots (Key M) M2_1 slot (from AMD Processor) Supports PCIe 4.0/ 3.0 x4 1 Supports SATA 6Gb/s Supports 2242/ 2260/ 2280 storage devices M2_2 slot (from AMD B550 chipset) Supports PCIe 3.0x4 Supports 2242/ 2260/ 2280 storage devices The supported specification depends on installed processor.
RAID	Supports RAID 0, RAID 1 and RAID 10 for SATA storage devices Supports RAID 0 and RAID 1 for M.2 NVMe storage devices
USB	AMD B550 Chipset 3x USB 3.2 Gen 1 5Gbps ports (1 Type-C internal connector, and 2 ports are available through the internal USB 3.2 Gen 1 5Gbps connector) 6x USB 2.0 ports (2 Type-A ports on the back panel, 4 ports through the internal USB 2.0 connectors) AMD Processor 4x USB 3.2 Gen 1 5Gbps Type-A ports on the back panel
Audio	Realtek ALC892 Codec 7.1-Channel High Definition Audio
LAN	1x Realtek 8111HN Gigabit LAN controller
Internal Connectors	1x 24-pin ATX main power connector 1x 8-pin ATX 12V power connector 4x SATA 6Gb/s connectors 2x M.2 slots (M-Key) 1x USB 3.2 Gen 1 5Gbps Type-C port 1x USB 3.2 Gen 1 5Gbps connector (supports additional 2 USB 3.2 Gen 1 5Gbps ports) 2x USB 2.0 connectors (supports additional 4 USB 2.0 ports) 1x 4-pin CPU fan connector 1x 4-pin water-pump fan connector 3x 4-pin system fan connectors 1x Front panel audio connector 2x System panel connectors 1x Serial port connector 1x Chassis Intrusion connector 2x 4-pin RGB LED connectors 2x 3-pin RAINBOW LED connectors 1xTPM module connector 1x Clear CMOS jumper
Back Panel Ports	VGA USB 3.2 Gen 1 5Gbps Type-A Keyboard / Mouse LAN Flash BIOS Button DisplayPort HDMI USB 2.0 USB 3.2 Gen 1 5Gbps Type-A Wi-Fi Antenna connectors 3x Audio jacks
Dimensions	Micro-ATX Form Factor 9.6 in. x 9.6 in. (24.4 cm x 24.4 cm)
Mounting	8 mounting holes

MSI B550M PRO-VDH WIFI Deska je vybavena grafickými výstupy pro použití s procesory s integrovaným grafickým jádrem. Základní deska grafickou kartu neobsahuje a bez použití odpovídajícího procesoru, budou tyto výstupy nefunkční. CPU Podpora procesorů AMD Ryzen 3. a vyšší generace (patice AM4) Čipová sada AMD B550 Paměť 4 x DDR4 paměťový slot, podpora až 128 GB Podpora DDR4 1866/ 2133/ 2400/ 2667/ 2800/ 2933/ 3000/ 3066/ 3200 MHz (JEDEC) Podpora DDR4 2667/ 2800/ 2933/ 3000/ 3066/ 3200/ 3466/ 3600/ 3733/ 3866/ 4000/ 4133/ 4266/ 4400+ MHz (A-XMP OC režim) Dvoukanálová architektura paměti Podpora non-ECC UDIMM, bez vyrovnávací paměti Podpora ECC UDIMM, bez vyrovnávací paměti (non-ECC režim) Sloty 1 x PCIe 4.0/3.0 x16 slot 2 x PCIe 3.0 x1 slot Grafika 1 x HDMI port, podporující max. rozlišení 4096 x 2160 při 24 Hz 1 x VGA port, podporující max. rozlišení 2048 x 1536 při 50 Hz, 2048 x 1280 při 60 Hz, 1920 x 1200 při 60 Hz 1 x DisplayPort, podporující max. rozlišení 4096 x 2160 při 60 Hz Úložiště AMD B550 čipová sada 4 x SATA 6Gb/s port 1 x M.2 slot, M Key, pro jednotky typu 2242/2260/2280 (PCIe 3.0 x4 režim) AMD CPU 1 x M.2 slot, M Key, pro jednotky typu 2242/2260/2280 (PCIe 4.0/3.0 x4 a SATA režim) Podpora RAID 0, RAID 1 a RAID 10 pro SATA jednotky Podpora RAID 0 a RAID 1 pro M.2 PCIe jednotky USB AMD B550 čipová sada 1 x USB 3.2 Gen1 typ C port dostupný přes interní USB konektor 2 x USB 3.2 Gen1 (USB 3.0) port dostupný přes interní USB konektor 6 x USB 2.0 port (2 porty na zadním panelu, 4 porty dostupné přes interní USB konektory) AMD CPU 4 x USB 3.2 Gen1 (USB 3.0) port na zadním panelu Audio Realtek ALC892 Codec 7.1kanálové High Definition Audio LAN 1 x Realtek 8111HN Gigabit LAN řadič WLAN/ Bluetooth Intel 3168 Wi-Fi 802.11 a/b/g/n/ac Dual Band (2,4 GHz, 5 GHz) Rychlost přenosu dat až 433 Mbps Bluetooth 4.2 Interní konektory 1 x 24-pin ATX hlavní napájecí konektor 1 x 8-pin ATX 12V napájecí konektor 4 x SATA 6Gb/s konektor 2 x M.2 slot, M Key 1 x USB 3.2 Gen1 typ C konektor 1 x USB 3.2 Gen1 (USB 3.0) konektor (podporuje 2 x USB 3.2 Gen1 port) 2 x USB 2.0 konektor (podporuje 4 x USB 2.0 port) 1 x 4-pin konektor ventilátoru CPU 1 x 4-pin konektor ventilátoru vodního chlazení 3 x 4-pin konektor systémového ventilátoru 1 x konektor pro TPM modul 1 x audio konektor předního panelu 2 x konektor systémového panelu 1 x konektor detekce otevření skříně 2 x 4-pin konektor RGB LED 2 x 3-pin konektor RAINBOW LED 1 x konektor pro sériový port 1 x propojka Clear CMOS Konektory na zadním panelu 1 x PS/2 combo port klávesnice a myši 1 x DisplayPort 1 x HDMI 1 x VGA 2 x USB 2.0 4 x USB 3.2 Gen1 (USB 3.0) 1 x RJ-45 2 x konektor Wi-Fi antény 1 x tlačítko Flash BIOS 3 x audio jack Rozměry 24,4 x 24,4 cm Micro ATX formát

B550M PRO-VDH WIFI

TECHNICAL SPECIFICATIONS

CPU	Supports AMD Ryzen™ 5000 & 3000 Series desktop processors (not compatible with AMD Ryzen™ 5 3400G & Ryzen™ 3 3200G) and AMD Ryzen™ 4000 G-Series desktop processors
Chipset	AMD B550 Chipset
Memory	4x DDR4 memory slots, support up to 128GB Supports DDR4 1866/ 2133/ 2400/ 2667/ 2800/ 2933/ 3000/ 3066/ 3200 MHz by JEDEC Supports DDR4 2667/ 2800 /2933 /3000 /3066 /3200 /3466 /3600/ 3733 /3866 /4000 /4133 /4266 /4400+ MHz by A-XMP OC MODE 1DPC 1R max speed 4400 MHZ 1DPC 2R max speed 3733 MHZ 2DPC 1R max speed 3866 MHZ 2DPC 2R max speed 3466 MHZ Dual channel memory architecture Supports non-ECC UDIMM memory Supports ECC UDIMM memory Supports un-buffered memory Please refer www.msi.com for more information on compatible memory.
Slots	1x PCIe 4.0/ 3.0 x16 slot (PCI_E1) 2x PCIe 3.0 x1 slots
Onboard Graphics	1x VGA port, supports resolution of 2048x1536 @50Hz, 2048x1280 @60Hz, 1920x1200 @60Hz1 1x DisplayPort, supports a maximum resolution of 4096x2160 @60Hz1 1x HDMI port, supports a maximum resolution of 4096x2160 @24Hz1 Maximum shared memory of 16 GB Available for the processor with integrated graphics.
Storage	4x SATA 6Gb/s ports 2x M.2 slots (Key M) M2_1 slot (from AMD Processor) Supports PCIe 4.0/ 3.0 x4 1 Supports SATA 6Gb/s Supports 2242/ 2260/ 2280 storage devices M2_2 slot (from AMD B550 chipset) Supports PCIe 3.0x4 Supports 2242/ 2260/ 2280 storage devices The supported specification depends on installed processor.
RAID	Supports RAID 0, RAID 1 and RAID 10 for SATA storage devices Supports RAID 0 and RAID 1 for M.2 NVMe storage devices
USB	AMD B550 Chipset 3x USB 3.2 Gen 1 5Gbps ports (1 Type-C internal connector, and 2 ports are available through the internal USB 3.2 Gen 1 5Gbps connector) 6x USB 2.0 ports (2 Type-A ports on the back panel, 4 ports through the internal USB 2.0 connectors) AMD Processor 4x USB 3.2 Gen 1 5Gbps Type-A ports on the back panel
Audio	Realtek ALC892 Codec 7.1-Channel High Definition Audio
LAN	1x Realtek 8111HN Gigabit LAN controller
Internal Connectors	1x 24-pin ATX main power connector 1x 8-pin ATX 12V power connector 4x SATA 6Gb/s connectors 2x M.2 slots (M-Key) 1x USB 3.2 Gen 1 5Gbps Type-C port 1x USB 3.2 Gen 1 5Gbps connector (supports additional 2 USB 3.2 Gen 1 5Gbps ports) 2x USB 2.0 connectors (supports additional 4 USB 2.0 ports) 1x 4-pin CPU fan connector 1x 4-pin water-pump fan connector 3x 4-pin system fan connectors 1x Front panel audio connector 2x System panel connectors 1x Serial port connector 1x Chassis Intrusion connector 2x 4-pin RGB LED connectors 2x 3-pin RAINBOW LED connectors 1xTPM module connector 1x Clear CMOS jumper
Back Panel Ports	VGA USB 3.2 Gen 1 5Gbps Type-A Keyboard / Mouse LAN Flash BIOS Button DisplayPort HDMI USB 2.0 USB 3.2 Gen 1 5Gbps Type-A Wi-Fi Antenna connectors 3x Audio jacks
Dimensions	Micro-ATX Form Factor 9.6 in. x 9.6 in. (24.4 cm x 24.4 cm)
Mounting	8 mounting holes
