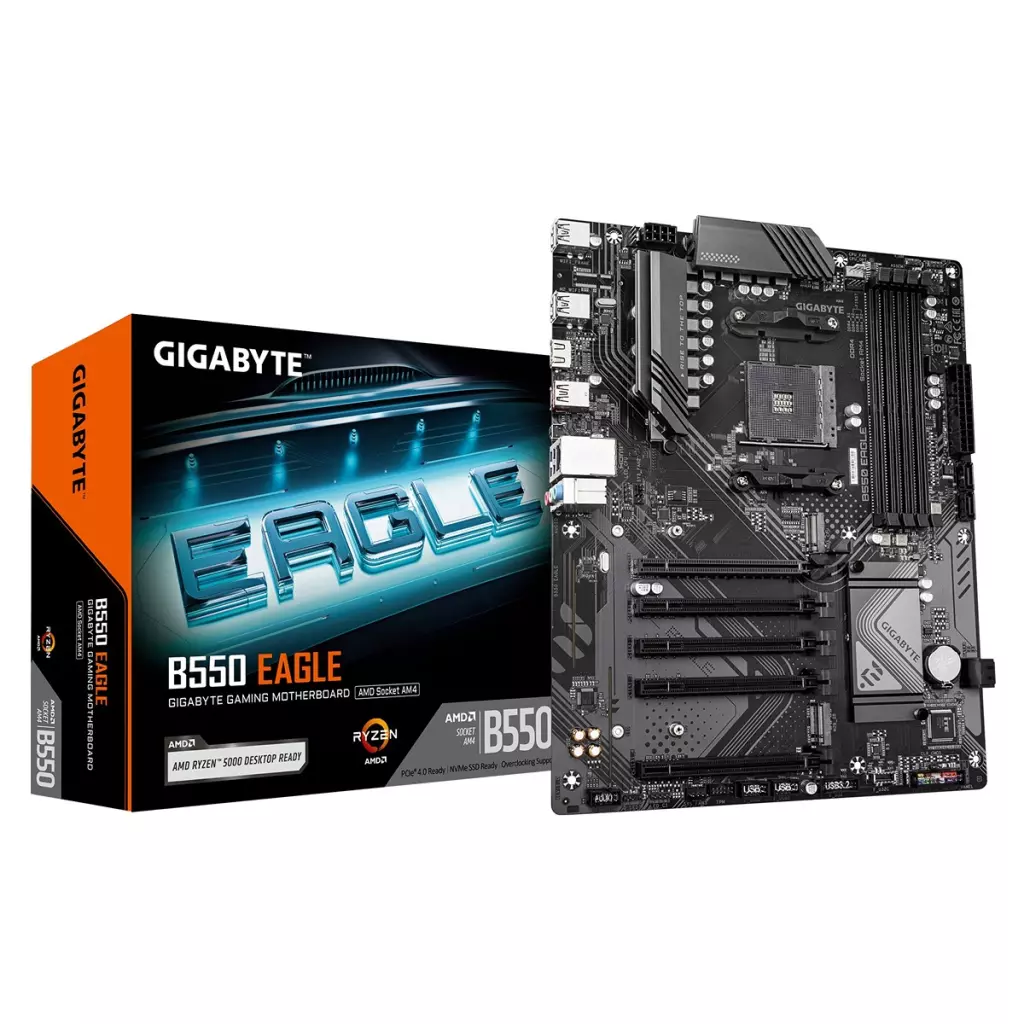

GIGABYTE B550 EAGLE/AM4/ATX
Kód zboží (ID): 6754787
vytisknout
Stav zboží:
Nové
Dostupnost:
skladem (ext. sklad)
Datum odeslání:
Expedujeme pozítří
Výrobce:
GIGABYTE
Kód zboží:
6754787
Číslo zboží (PN):
B550 EAGLE
EAN:
4719331868208
Záruka koncový zákazník:
36 měsíců
Záruka při koupi na IČO:
36 měsíců
Cena bez DPH: *
2166.1 Kč
Cena vč. DPH: *
2621 Kč
* - cena uvedena vč. recyklačních a autorských poplatků.
Popis produktu:
GIGABYTE B550 EAGLE Chipset: AMD B550 Rozměrový formát: ATX (305x244mm) Podpora pro procesory: AMD Ryzen™ 5000 G-Series/5000 Series/AMD Ryzen™ 4000 G-Series/AMD Ryzen™ 3000 G-Series/3000 Series Patice procesoru: AM4 Paměť: * 4x DIMM patice podporující až 128GB, DDR4 3200/2933/2667/2400/2133 MT/s * dvoukanálová architektura paměti * podpora paměťových modulů ECC bez vyrovnávací paměti DIMM 1Rx8/2Rx8 * podpora paměťových modulů DIMM bez vyrovnávací paměti bez ECC 1Rx8/2Rx8/1Rx16 * podpora paměťových modulů Extreme Memory Profile (XMP) Grafické výstupy: grafické specifikace se mohou lišit v závislosti na podpoře CPU * 1x HDMI® 2.1 Zvuková karta: kodek Realtek® (7.1 Surround Sound High Definition Audio CODEC) Ethernet: Realtek® GbE LAN WLAN + Bluetooth: ne Rozšiřující sloty: * 1x PCI Express x16 (PCIEX16) * 4x PCI Express x16, podpora PCIe 3.0 běží na x1 (PCIEX1_1, PCIEX1_2, PCIEX1_3, PCIEX1_4) RAID řadič: podpora RAID 0/1/10 pro SATA a NVMe SSD Úložný prostor: celkem podporuje 2 sloty M.2 a 4 porty SATA 6Gb/s * 1x M.2 (M2A_CPU), M key, typ 2280/22110 SSD (podpora SATA a PCIe 3.0 x4/x2; PCIe 4.0x4/x2) * 1x M.2 (M2B_SB), M key, typ 2280/22110 SSD (podpora PCIe 3.0 x2) * 4x port SATA 6Gb/s USB: Zadní USB (celkem 8 portů) * 1x USB 3.2 Gen 2 typ A/USB 3.2 Gen 1 (červený) * 1x USB typ C® s podporou USB 3.2 Gen 1 * 2x USB 3.2 Gen 1 * 4x USB 2.0/1.1 Přední USB (celkem 7 portů) * 1x USB typ C® header, s podporou USB 3.2 Gen 1 * 1x USB 3.2 Gen 1 header - podpora dalších 2 portů USB 3.2 Gen 1 * 2x USB 2.0 header - podpora dalších 4 portů USB 2.0 Porty na zadním panelu: * 4x USB 2.0/1.1 * 1x HDMI * 1x USB 3.2 Gen 2 typ A/USB 3.2 Gen 1 (červený) * 1x USB typ C® s podporou USB 3.2 Gen 1 * 1x tlačítko Q-Flash Plus * 1x RJ-45 * 2x USB 3.2 Gen 1 * 3x audio konektor Interní porty: Napájení * 1x 24-pin ATX hlavní napájecí konektor * 1x 8-pin ATX 12V napájecí konektor Související s ventilátorem a chlazením * 1x CPU fan header * 1x CPU fan/water cooling pump header * 3x system fan header Související s úložištěm * 2x M.2 slot (Key M) * 4x SATA 6Gb/s port USB * 1x USB typ C® header, s pdoporou USB 3.2 Gen 1 * 1x USB 3.2 Gen 1 header * 2x USB 2.0/1.1 header Ostatní * 2x adresovatelný LED strip header * 2x RGB LED strip header * 1x CPU cooler LED strip/RGB LED strip header * 1x front panel header * 1x front panel audio header * 1x Trusted Platform Module (TPM) header (2x 6pin, pouze pro modul GC-TPM2.0_S) * 1x Clear CMOS jumper BIOS: 1x 128Mb flash, AMI UEFI BIOS, PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0 Odkaz na stránku výrobce: https://www.gigabyte.com/Motherboard/B550-EAGLE#kf
GIGABYTE B550 EAGLE
- AMD Socket AM4 : Supports AMD Ryzen™ 5000 / 4000 / 3000 Series Processors
- Digital twin 10+3 phases VRM solution
- Dual Channel DDR4 : 4*DIMMs
- EZ-Latch : PCIe slots with Quick Release Design
- Ultra-Fast Storage : 2*M.2 slots, including PCIe 4.0 x1
- Efficient Thermal : VRM Thermal Armor Advanced
- Fast Networking : GbE LAN
- Extended Connectivity : HDMI
- PCIe UD Slot : PCIe 4.0 x16 slots with 10X strength for graphics card & Better Heat dissipation effect
CPU
AMD Socket AM4, support for: AMD Ryzen™ 5000 G-Series Processors/ AMD Ryzen™ 5000 Series Processors/ AMD Ryzen™ 4000 G-Series Processors/ AMD Ryzen™ 3000 G-Series Processors/ AMD Ryzen™ 3000 Series Processors (Go to GIGABYTE's website for the latest CPU support list.)
Chipset
AMD B550
Memory
4 x DDR4 DIMM sockets supporting up to 128 GB (32 GB single DIMM capacity) of system memory Support for DDR4 3200/2933/2667/2400/2133 MT/s memory modules Dual channel memory architecture Support for ECC Un-buffered DIMM 1Rx8/2Rx8 memory modules Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules Support for Extreme Memory Profile (XMP) memory modules (The CPU and memory configuration may affect the supported memory types, data rate (speed), and number of DRAM modules, please refer to "Memory Support List" on GIGABYTE's website for more information.)
Onboard Graphics
Integrated Graphics Processor with AMD Radeon™ Graphics support: - 1 x HDMI port, supporting a maximum resolution of 4096x2160@60 Hz * Support for HDMI 2.1 version, HDCP 2.3, and HDR. ** Support for native HDMI 2.1 TMDS compatible ports. (Graphics specifications may vary depending on CPU support.) Maximum shared memory of 16 GB
Audio
Realtek Audio CODEC High Definition Audio 2/4/5.1/7.1-channel * You can change the functionality of an audio jack using the audio software. To configure 7.1-channel audio, access the audio software for audio settings.
LAN
Realtek GbE LAN chip (1 Gbps/100 Gbps/10 Mbps)
Expansion Slots
1 x PCI Express x16 slot (PCIEX16), integrated in the CPU: - AMD Ryzen™ 5000/3000 Series Processors support PCIe 4.0 x16 mode - AMD Ryzen™ 5000 G/4000 G/3000 G Series Processors support PCIe 3.0x16 mode * The PCIEX16 slot can only support a graphics card or an NVMe SSD. If only one graphics card is to be installed, be sure to install it in the PCIEX16 slot. Chipset: - 4 x PCI Express x16 slots, supporting PCIe 3.0 and running at x1(PCIEX1_1, PCIEX1_2, PCIEX1_3, PCIEX1_4)
Storage Interface
1 x M.2 connector (M2A_CPU), integrated in the CPU, supporting Socket 3, M key, type 22110/2280 SSDs: - AMD Ryzen™ 5000/3000 Series Processors support SATA and PCIe 4.0x4/x2 SSDs - AMD Ryzen™ 5000 G/4000 G/3000 G Series Processors support SATA and PCIe 3.0 x4/x2 SSDs 1 x M.2 connector (M2B_SB), integrated in the Chipset, supporting Socket 3, M key, type 22110/2280 PCIe 3.0 x4/x2 SSDs 4 x SATA 6Gb/s connectors RAID 0, RAID 1, and RAID 10 support for NVMe SSD storage devices RAID 0, RAID 1, and RAID 10 support for SATA storage devices
USB
CPU: - AMD Ryzen™ 5000/3000 Series Processors support one USB 3.2 Gen 2 Type-A port (red) on the back panel - AMD Ryzen™ 5000 G/4000 G/3000 G-Series Processors support one USB 3.2 Gen 1 port (red) on the back panel - 1 x USB Type-C port on the back panel, with USB 3.2 Gen 1 support - 2 x USB 3.2 Gen 1 ports on the back panel Chipset: - 1 x USB Type-C port with USB 3.2 Gen 1 support, available through the internal USB header - 2 x USB 3.2 Gen 1 ports available through the internal USB header - 4 x USB 2.0/1.1 ports available through the internal USB headers Chipset+USB 2.0 Hub: - 4 x USB 2.0/1.1 ports on the back panel
Internal I/O Connectors
1 x 24-pin ATX main power connector 1 x 8-pin ATX 12V power connector 1 x CPU fan header 1 x CPU fan/water cooling pump header 3 x system fan headers 2 x addressable LED strip headers 2 x RGB LED strip headers 1 x CPU cooler LED strip/RGB LED strip header 2 x M.2 Socket 3 connectors 4 x SATA 6Gb/s connectors 1 x front panel header 1 x front panel audio header 1 x USB Type-C header, with USB 3.2 Gen 1 support 1 x USB 3.2 Gen 1 header 2 x USB 2.0/1.1 headers 1 x Trusted Platform Module (TPM) header (2x6 pin, for the GC-TPM2.0_S module only) 1 x Clear CMOS jumper
Back Panel I/O Connectors
4 x USB 2.0/1.1 ports 1 x HDMI port (Note) 1 x USB 3.2 Gen 2 Type-A (Note)/USB 3.2 Gen 1 port (red) 1 x USB Type-C port, with USB 3.2 Gen 1 support 1 x Q-Flash Plus button 1 x RJ-45 port 2 x USB 3.2 Gen 1 ports 3 x audio jacks (Note) Actual support may vary by CPU.
I/O Controller
iTE I/O Controller Chip
H/W Monitoring
Voltage detection Temperature detection Fan speed detection Water cooling flow rate detection Fan fail warning Fan speed control * Whether the fan speed control function is supported will depend on the fan you install.
BIOS
1 x 128 Mbit flash Use of licensed AMI UEFI BIOS PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0
Unique Features
Support for APP Center * Available applications in APP Center may vary by motherboard model. Supported functions of each application may also vary depending on motherboard specifications. - @BIOS - EasyTune - RGB Fusion - Smart Backup - System Information Viewer Support for Q-Flash Plus Support for Q-Flash
Bundled Software
Norton Internet Security (OEM version) LAN bandwidth management software
Operating System
Support for Windows 11 64-bit Support for Windows 10 64-bit
Form Factor
ATX Form Factor; 30.5cm x 24.4cm
Prodejce i výrobce si vyhrazuje právo změny parametrů či vlastností bez předchozího upozornění.
Chcete-li mít ohledně konkrétních parametrů aktuální informace kontaktujte nás.
Pozdější reklamace vlastností je zbytečnou komplikací pro obě strany.
