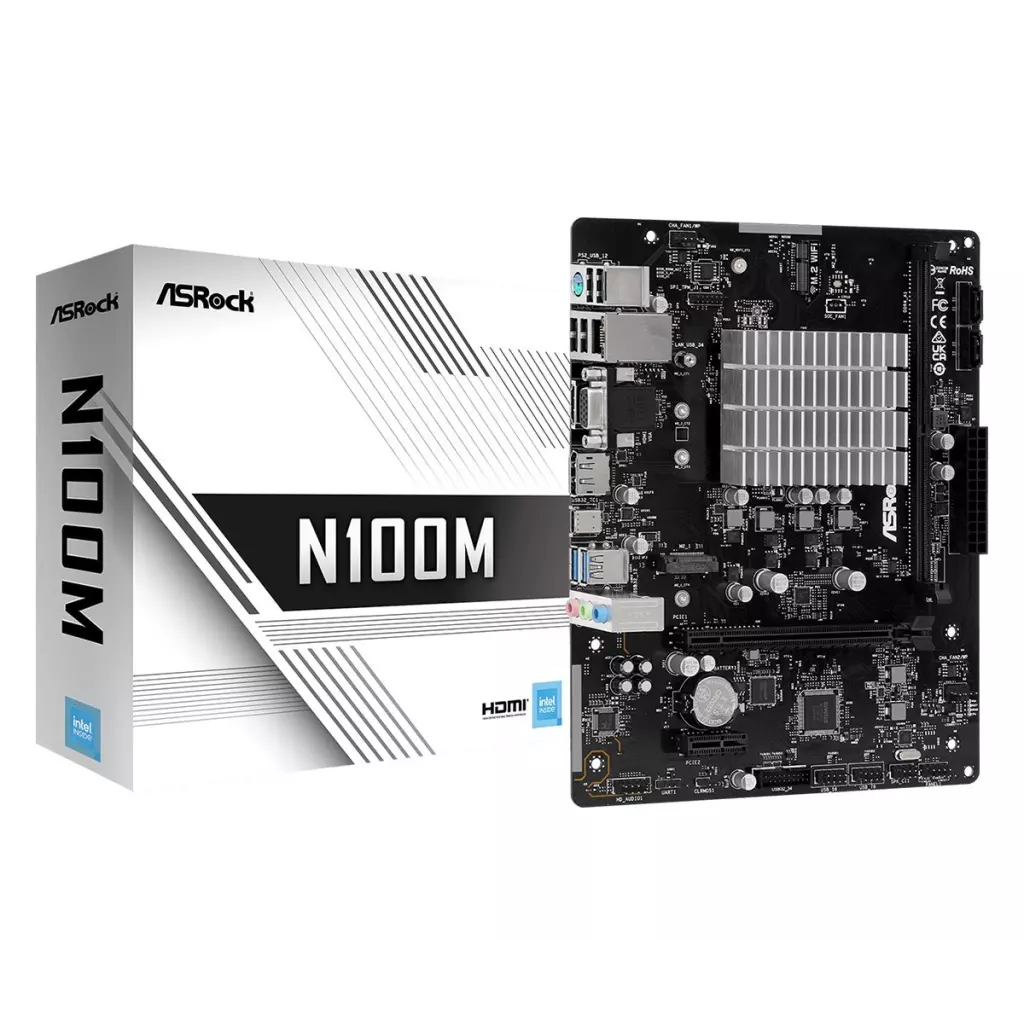

ASRock N100M

Popis produktu:
CPU Intel N100 (až 3,4 GHz)
Paměť 1× DDR4 paměťový slot, podpora až 32 GB Podpora DDR4 3200 MHz non-ECC, bez vyrovnávací paměti Podpora ECC UDIMM pamětí, non-ECC režim
Sloty 1× PCIe 3.0 x16 slot (podporuje x2 režim) 1× PCIe 3.0 x1 slot
Grafika Integrovaná grafická karta Intel UHD 1× HDMI port, podporující max. rozlišení 4K při 60 Hz 1× DisplayPort port, podporující max. rozlišení 4K při 60 Hz 1× VGA port, podporující max. rozlišení 1920 × 1080 při 60 Hz
Úložiště 2× SATA 6Gb/s port 1× M.2 slot, M Key, pro jednotky typu 2242/2260/2280 (PCIe 3.0 ×2 režim)
USB 1× USB-C 3.2 Gen2 na zadním panelu 4× USB 3.2 Gen1 (USB 3.0) (2 porty na zadním panelu, 2 porty dostupné přes interní USB konektor) 8× USB 2.0 (4 porty na zadním panelu, 4 porty dostupné přes interní USB konektory)
Audio Realtek ALC897 Codec 7.1kanálové High Definition Audio
LAN 1× Realtek RTL8111H Gigabit LAN řadič
Interní konektory 1× SPI TPM konektor 1× konektor reproduktoru a detekce otevření skříně 2× 4pin konektor ventilátoru skříně/ ventilátoru vodního chlazení CPU 1× 24pin ATX hlavní napájecí konektor 1× audio konektor předního panelu 1× M.2 slot, E key pro Wi-Fi modul (není součástí) 2× USB 2.0 konektor (podporuje 4× USB 2.0 port) 1× USB 3.2 Gen1 (USB 3.0) konektor (podporuje 2× USB 3.2 Gen1 port)
Konektory na zadním panelu 1× PS/2 port myši/klávesnice 1× VGA 1× HDMI 1× DisplayPort 4× USB 2.0 2 × USB 3.2 Gen1 (USB 3.0) 1× USB-C 3.2 Gen2 1× RJ-45 3× audio jack
Rozměry 22,6 × 17,8 mm mATX formát
ASRock N100M
- Intel Quad-Core Processor N100 (up to 3.4 GHz)
- Supports 1 DDR4 DIMM
- 1 PCIe 3.0 x16 (x2 mode), 1 PCIe 3.0 x1, 1 M.2 Key E for WiFi
- Graphics Output Options: D-Sub, HDMI, DisplayPort
- Realtek ALC897 7.1 CH HD Audio Codec
- 2 SATA3, 1 M.2 (PCIe Gen3x2)
- 1 USB 3.2 Gen2 Type-C (Rear), 4 USB 3.2 Gen1 (2 Rear, 2 Front)
- Realtek Gigabit LAN
- Supports ASRock Auto Driver Installer
The newest Intel N100 processor, built on the Gracemont CPU microarchitecture using the Intel 7 process, features 4 E-cores with a turbo frequency of 3.4GHz and Intel UHD Graphics with 24 EUs. It is suitable for affordable, entry-level computing.

CPU
- Intel Quad-Core Processor N100 (Up to 3.4 GHz) - Supports Intel Turbo Boost Technology
Memory
- 1 x DDR4 DIMM Slot - Supports DDR4 non-ECC, un-buffered memory up to 3200 - Supports ECC UDIMM memory modules (operate in non-ECC mode) - Max. capacity of system memory: 32GB
Graphics
- Integrated Intel UHD Graphics: 24 EUs inside (Up to 750MHz) - Three graphics output options: D-Sub, HDMI and DisplayPort 1.4 - 1 x HDMI 2.1 TMDS Compatible, supports HDCP 2.2 and max. resolution up to 4K 60Hz - 1 x DisplayPort 1.4 with DSC (compressed), supports HDCP 2.2 and max. resolution up to 4K 60Hz - 1 x D-Sub, supports max. resolution up to Full HD (1920x1080) 60Hz
Audio
- 7.1 CH HD Audio (Realtek ALC897 Audio Codec)
LAN
- Gigabit LAN 10/100/1000 Mb/s - Realtek 8111H
Slots
- 1 x PCIe 3.0 x16 Slot (PCIE1), supports x2 mode - 1 x PCIe 3.0 x1 Slot (PCIE2) - 1 x M.2 Socket (Key E), supports type 2230 Intel CNVio (Integrated WiFi/BT)
Storage
- 1 x M.2 Socket (M2_1, Key M), supports type 2242/2260/2280 PCIe Gen3x2 (16 Gb/s) mode* - 2 x SATA3 6.0 Gb/s Connectors
USB
- 1 x USB 3.2 Gen2 Type-C (Rear) - 4 x USB 3.2 Gen1 (2 Rear, 2 Front) - 8 x USB 2.0 (4 Rear, 4 Front)
Internal Connector
- 1 x SPI TPM Header - 1 x Chassis Intrusion and Speaker Header - 2 x Chassis/Water Pump Fan Connectors (4-pin) (Smart Fan Speed Control)* - 1 x 24 pin ATX Power Connector - 1 x Front Panel Audio Connector - 2 x USB 2.0 Headers (Support 4 USB 2.0 ports) - 1 x USB 3.2 Gen1 Header (Supports 2 USB 3.2 Gen1 ports)
Rear Panel I/O
- 2 x Antenna Mounting Points - 1 x PS/2 Mouse/Keyboard Port - 1 x D-Sub Port - 1 x HDMI Port - 1 x DisplayPort 1.4 - 1 x USB 3.2 Gen2 Type-C Port (10 Gb/s) - 2 x USB 3.2 Gen1 Ports - 4 x USB 2.0 Ports - 1 x RJ-45 LAN Port - HD Audio Jacks: Line in / Front Speaker / Microphone
Software and UEFI
Software - ASRock Motherboard Utility (A-Tuning) - ASRock XFast LAN UEFI - ASRock EZ Mode - ASRock Full HD UEFI - ASRock Auto Driver Installer - ASRock Instant Flash
Accessories
- 1 x User Manual - 1 x I/O Shield - 2 x SATA Data Cables - 2 x Screws for M.2 Sockets
Form Factor
- Micro ATX Form Factor: 8.9-in x 7.0-in, 22.6 cm x 17.8 cm - Solid Capacitor design
OS
- Microsoft Windows 10 64-bit / 11 64-bit
Certifications
- FCC, CE - ErP/EuP ready (ErP/EuP ready power supply is required)
BIOS
- 128Mb AMI UEFI Legal BIOS with GUI support
Unique Feature
Rock-Solid Durability - 2+1+1 Power Phase EZ Update - ASRock Auto Driver Installer EZ Troubleshooter - ASRock Post Status Checker
